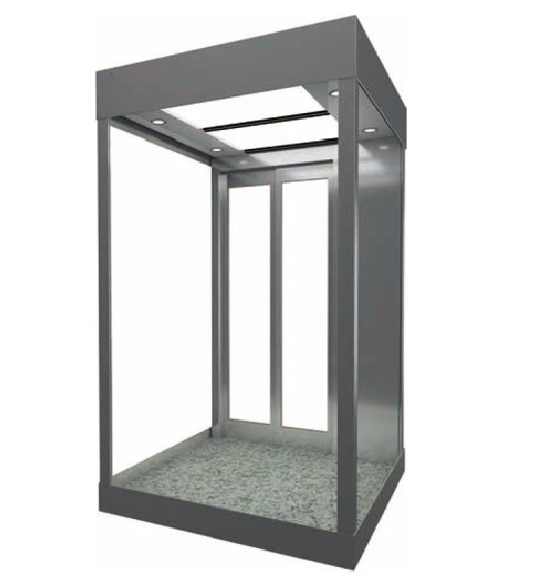

China Lift Supplier Residential Home Elevator with Low Pit Overhead

1 / 5

China Lift Supplier Residential Home Elevator with Low Pit Overhead

Customization:	Available

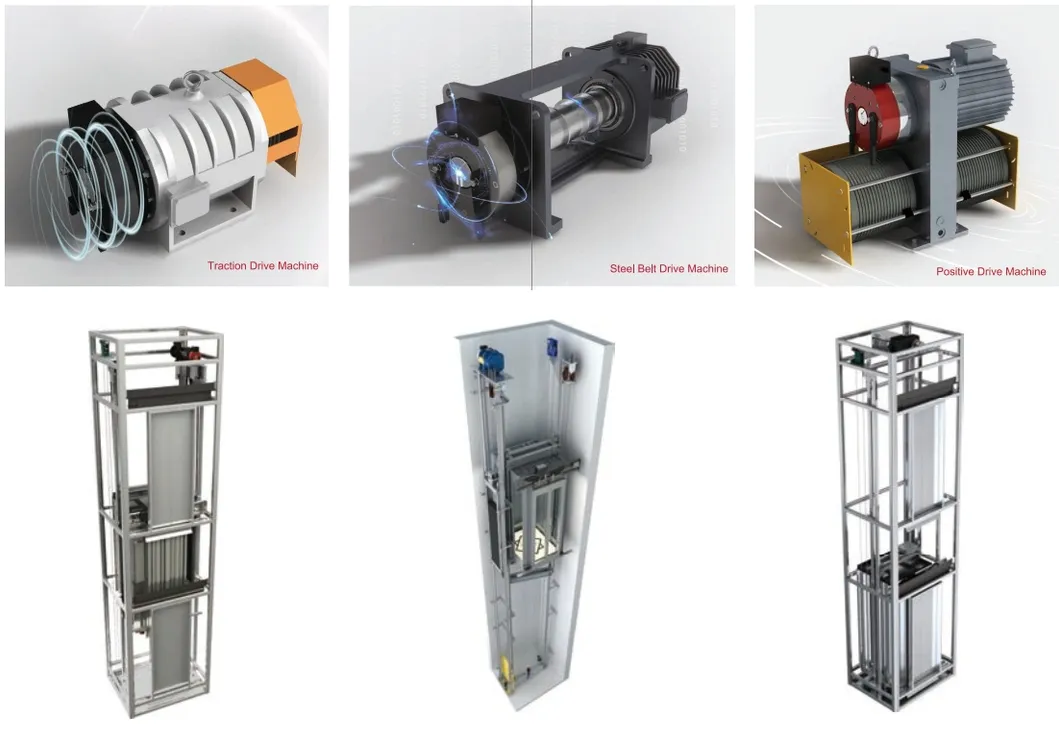

Driving Type:	Steel Rope, Steel Belt, Postive Drive, Platform
Capacity:	<400kgs

Send Inquiry

Product Description

Overview & Basic Information

Model NO.

18Z001

Persons

Speed

0.4m/S

Control Mode

Push-Button Control

Computer Room

With / Without

Elevator Door

Automatic or Manual

Door Knife

Single

Control System

Step / Monarch

Decoration Style

Modern / Simple / Luxury

Package

Seaworthy Plywood Box

Capacity

20000 Units Annually

Origin

China

Product Description

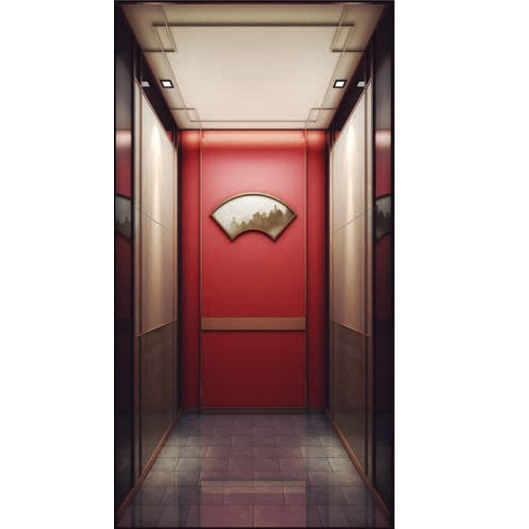

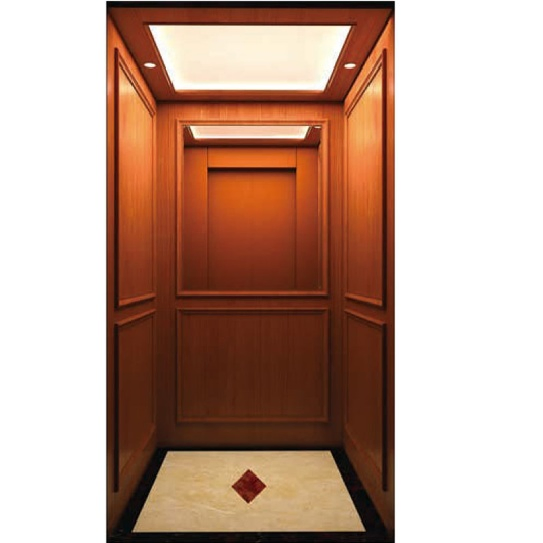

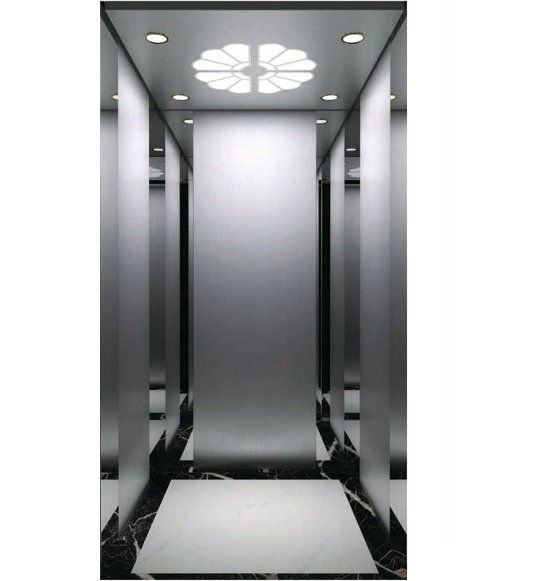

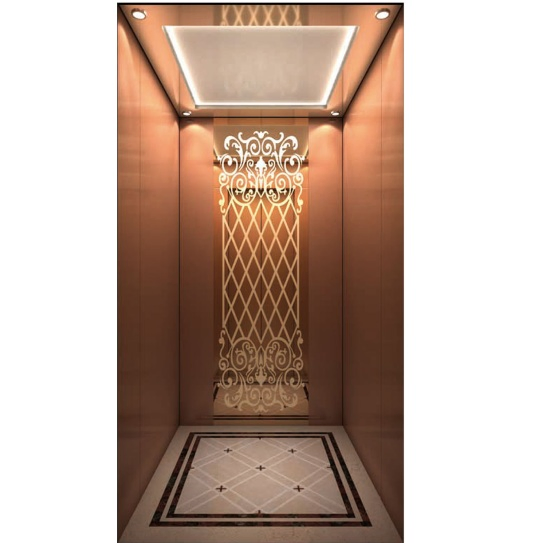

Residential Home Elevator with Low Pit & Overhead

Our residential elevators are manufactured in accordance with international professional standards. We provide high-quality and superior performance lifting solutions suitable for new or existing villas, self-constructed houses, lofts, and penthouses. The platform and entrance direction can be flexibly arranged according to different installation environments.

Core Features

1. Auto Rescue Device (ARD): Passengers are never trapped. With fault self-analysis and voltage recognition, the system safely delivers passengers to the nearest floor during power failures.

2. Perfect Mute Technology: Low-noise traction machine design and car wall noise reduction technologies ensure family members are not disturbed.

3. Space Optimization: Minimal shaft usage area and optimized layout improve space availability in your home.

Product Parameters

Private Villa Solution - Traction Drive

Capacity (kg)	Speed (m/s)	Car Size (WDH)	Open Size (W*H)	Shaft Size (W*D)	Pit Depth	OH (mm)
320	0.4	100010002200	700*2000	1700*1400	500	3300
400	0.4	120010002200	700*2000	1900*1400	500	3300

Steel Belt Solution

Capacity (kg)	Speed (m/s)	Car Size (mm)	Shaft Size (mm)	Pit Depth	OH (mm)
250	0.4	8508502200	1450*1200	350	3100
320	0.4	90010002200	1500*1350	350	3100
400	0.4	110011002200	1700*1450	350	3100

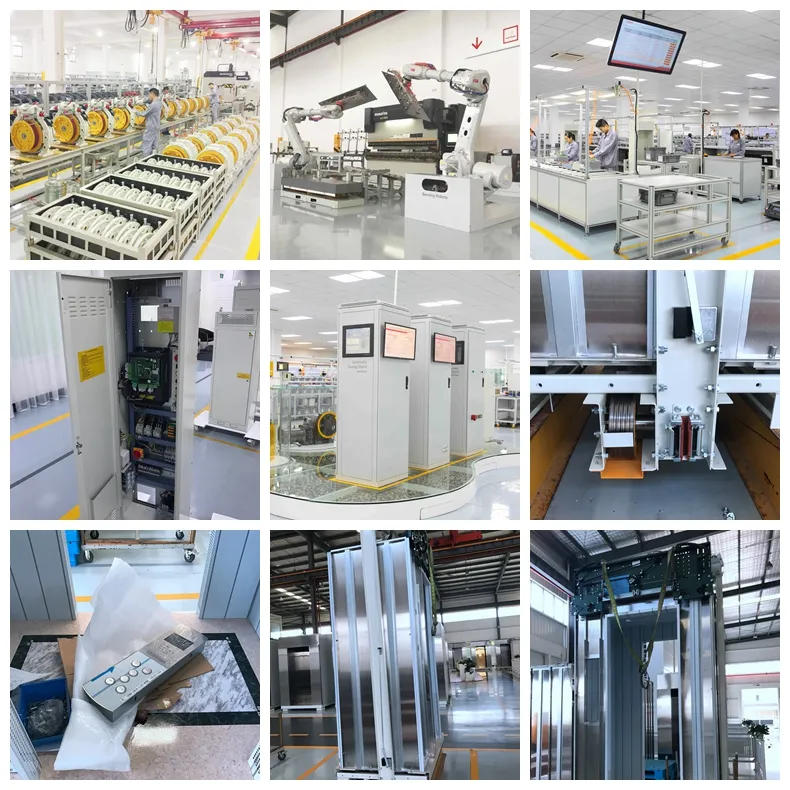

Manufacturing & Quality Control

Strict Operation System: From raw material reception to finished products, every step is controlled. No rejected raw materials are accepted. Our quality control spans five stages (QC1 to QC5), covering material inspection, production commissioning, final testing, packaging checks, and delivery verification.

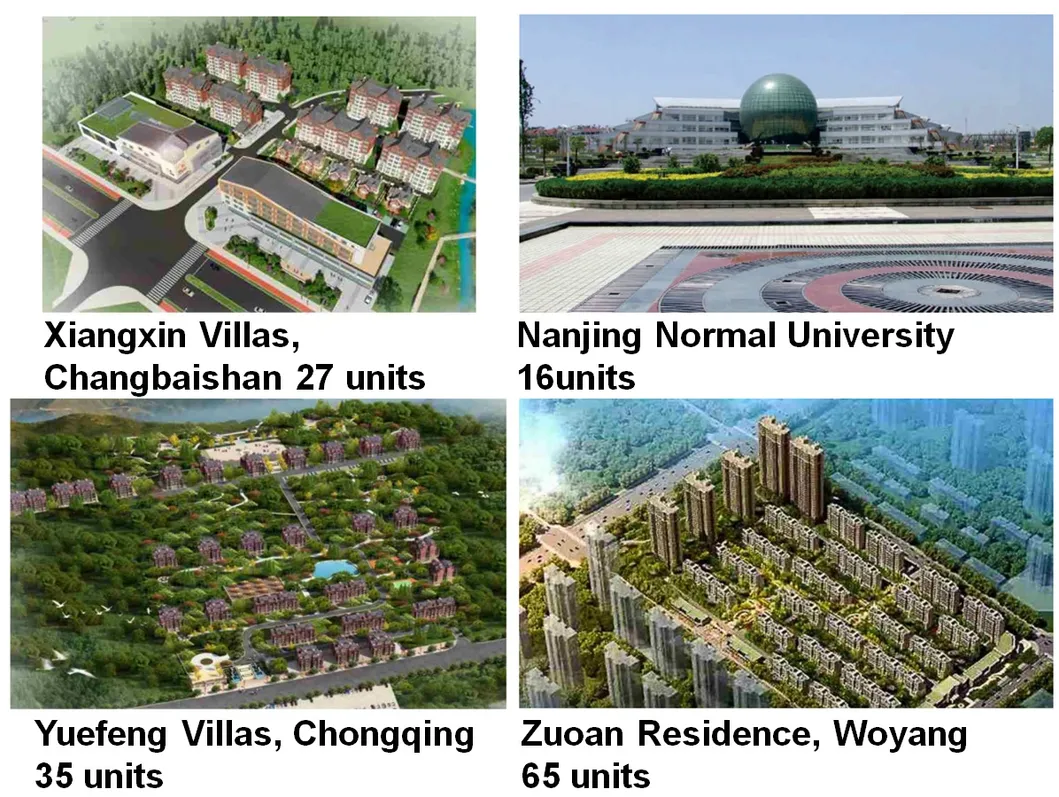

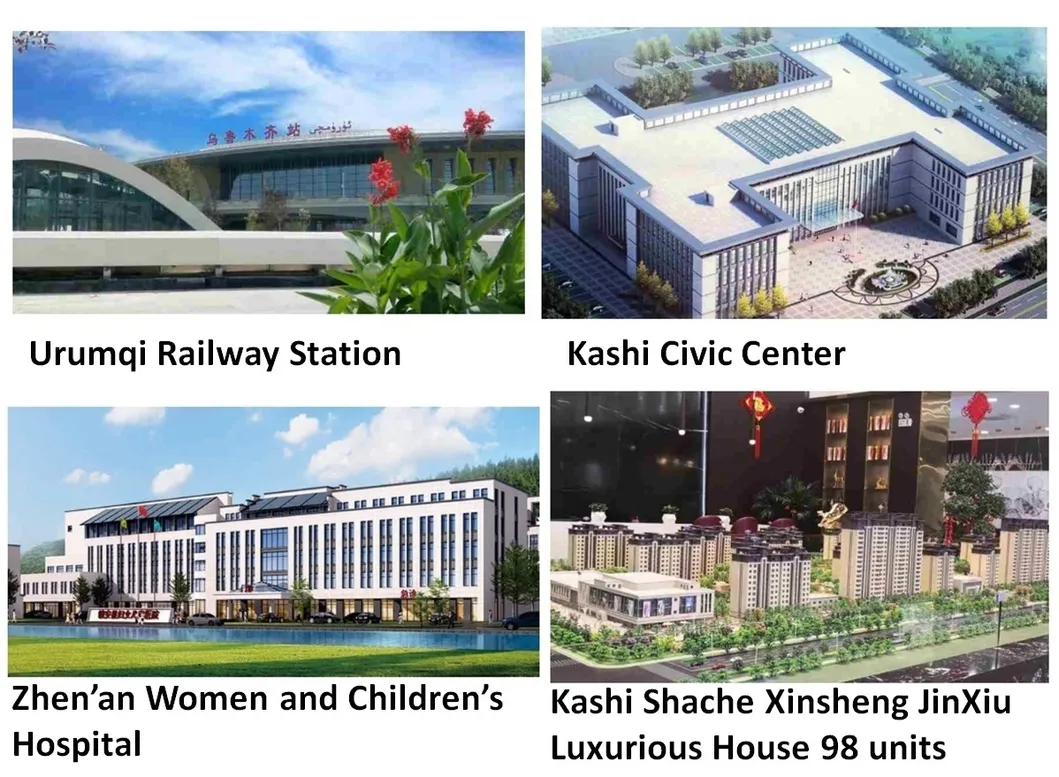

Global Projects

Our business spans over 50 countries across Europe, Asia, Africa, and America, making us one of the most promising development potential elevator manufacturers.

Frequently Asked Questions

1. How to get a fast reply for an inquiry? Please send complete information including elevator type, capacity, number of floors/stops, shaft size, pit depth, and overhead height.

2. What is the standard ordering process? Confirm specifications and drawings, sign the contract, arrange production after payment, notify delivery time, and follow up for after-sale service.

3. What is the typical delivery time? Usually 30 days after the arrival of the deposit. Urgent production schedules are also available for specific projects.

4. What is the product warranty period? The warranty for elevators is 18 months after delivery.

5. Do you provide installation and commissioning support? We provide a complete installation manual and remote guidance for commissioning. For special projects, engineers can be sent to the site.

6. How are the products packed for shipping? All parts are packed in solid, fumigation-free plywood boxes designed for long-term sea transport, with protective film and desiccant for electronic components.
