Customization: Available
After-sales Service: Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
XL-14/XL-33/XL-56
Structure
Conveyor System
Material
Stainless Steel
Material Feature
Fire Resistant
Certification
CE, ISO
Control Method
Button / PLC
Voltage
220V~600V
HS Code
8428200000
Packaging & Delivery
Package Size
170.00cm * 170.00cm * 100.00cm
Gross Weight
900.000kg
Transport Package
Non-Fumigated Wooden Box
Product Description

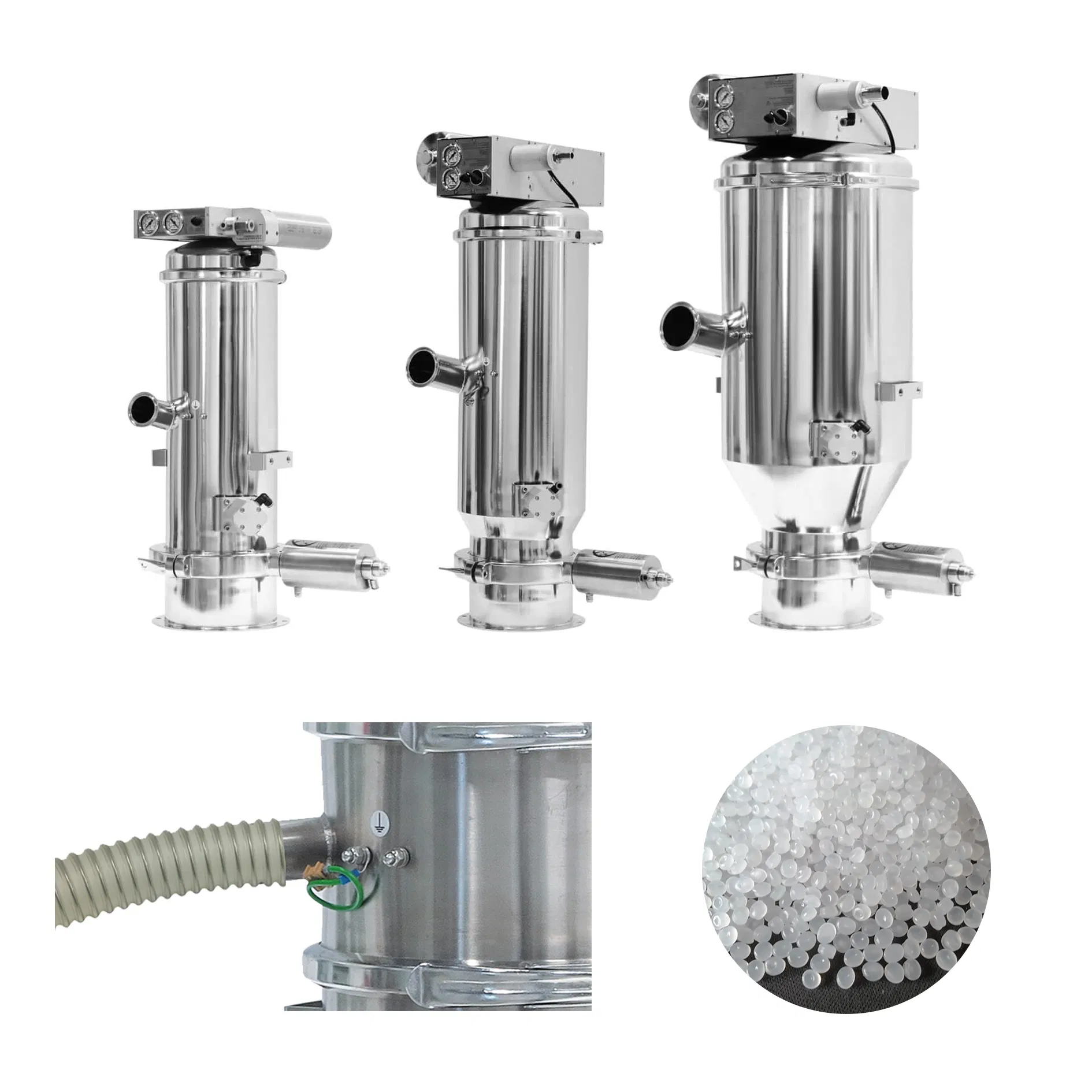

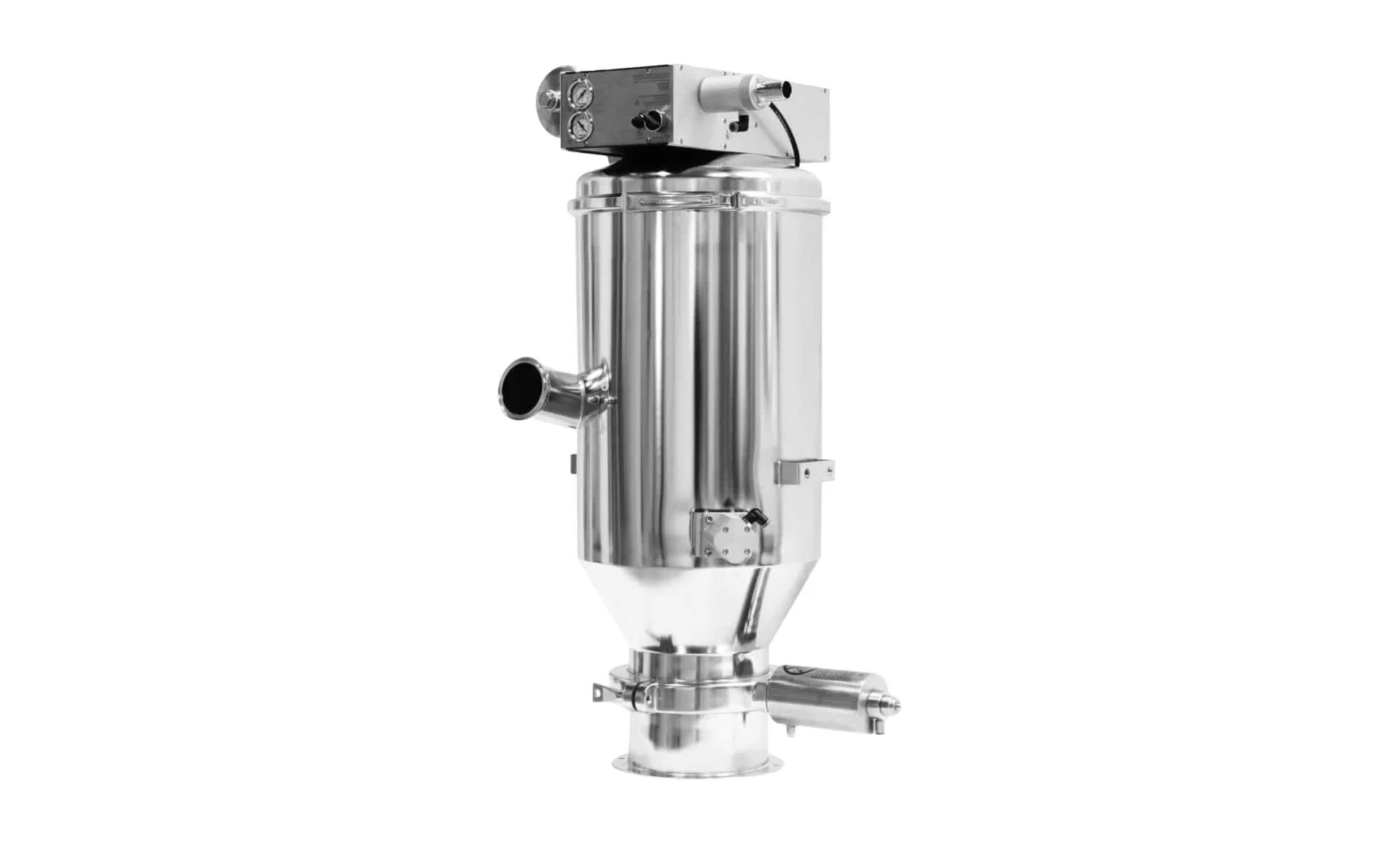

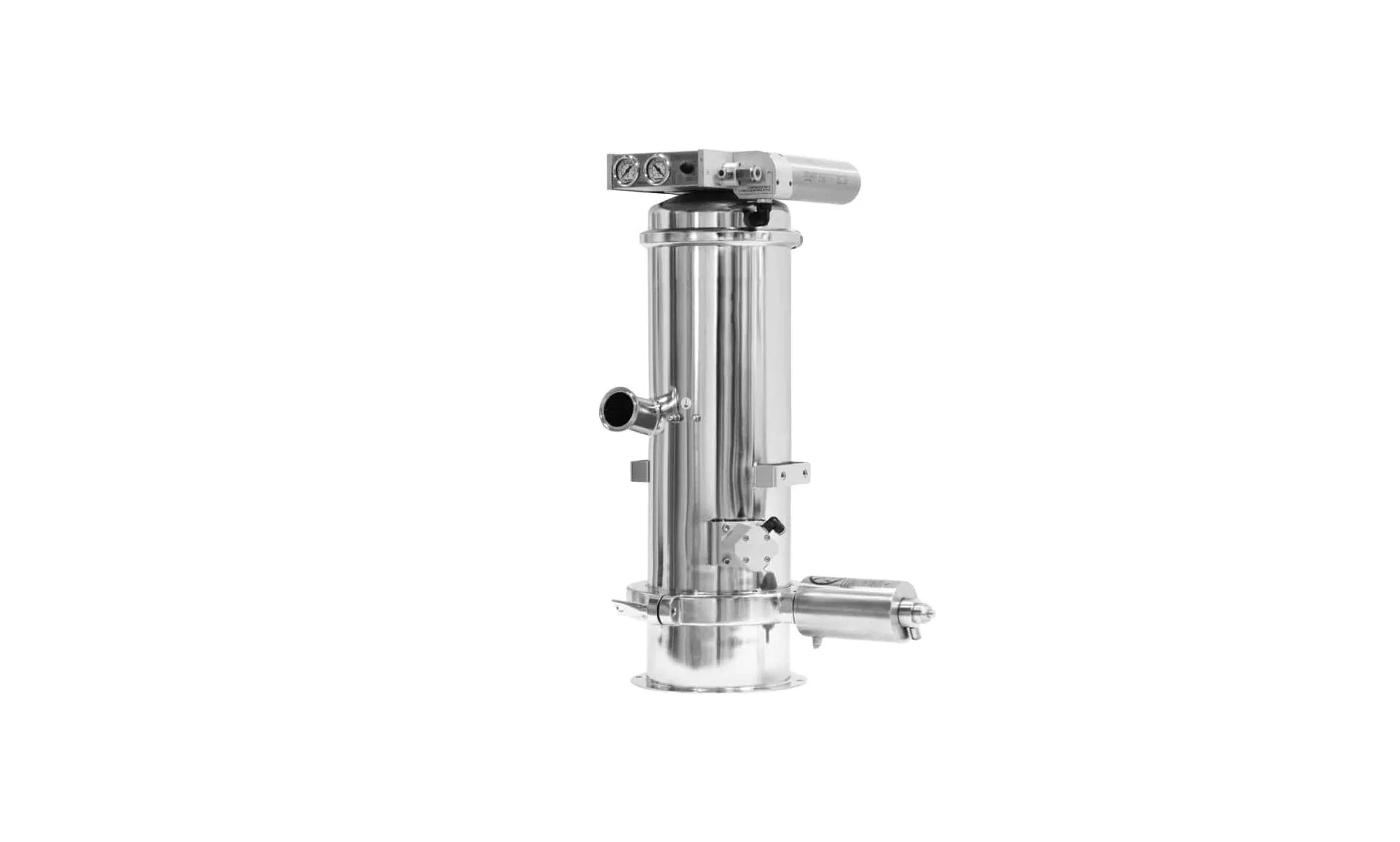

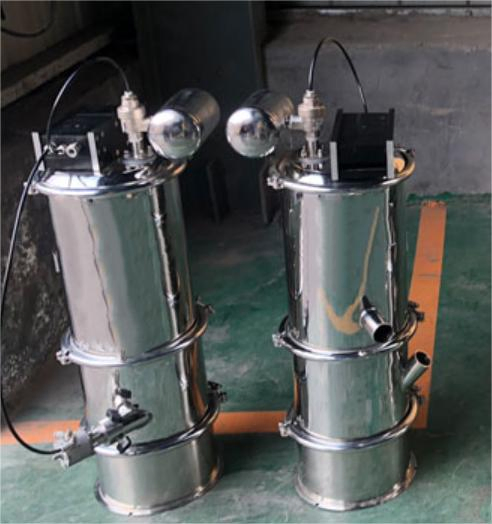

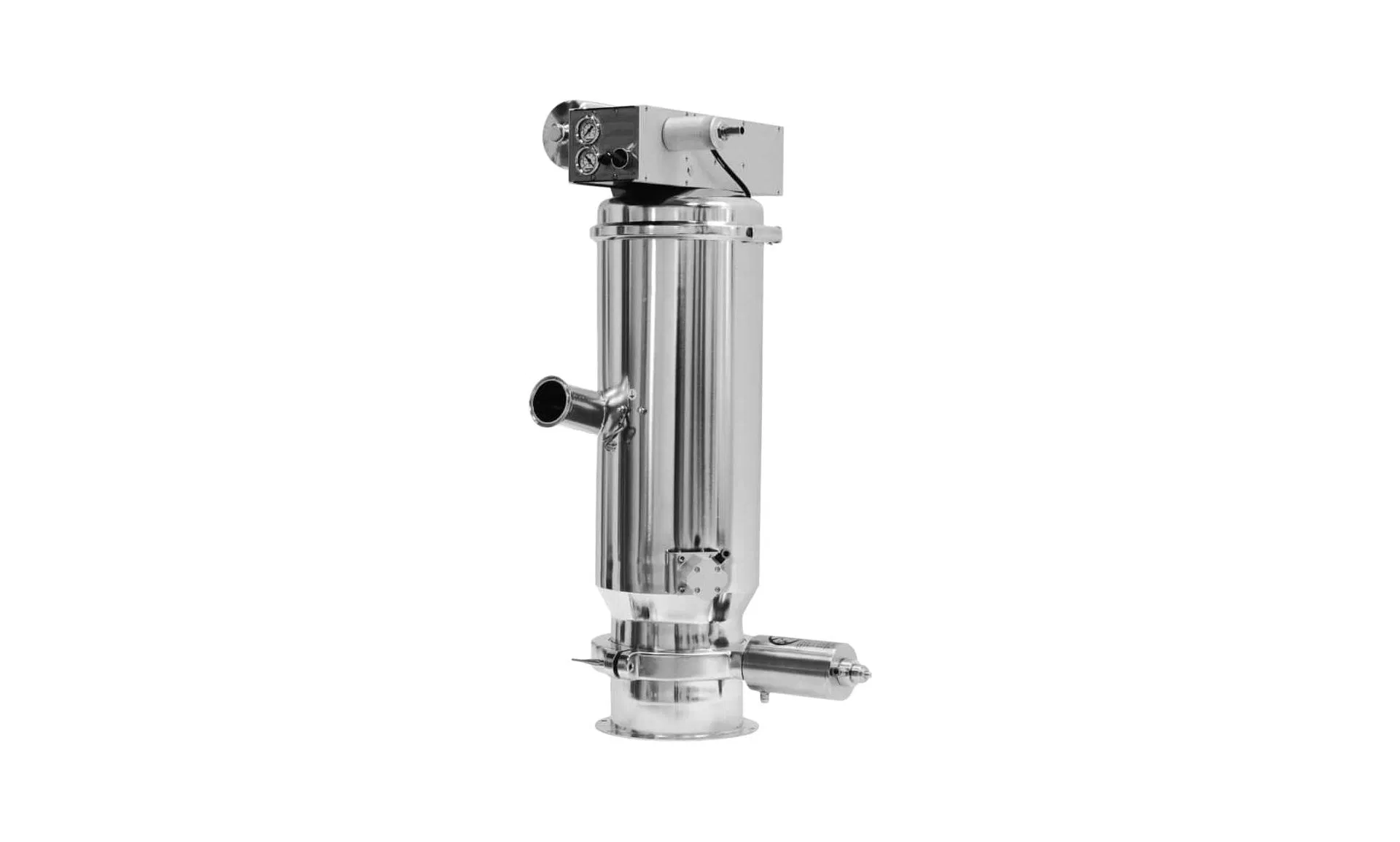

Vacuum Conveyor, Vacuum Feeder, Vacuum Conveyor System

The Vacuum Conveyor is a revolutionary solution designed for dust-free and closed pipeline conveying. It is meticulously engineered to transport granular and powdery materials using the power of vacuum suction.

By harnessing the pressure differential between the vacuum and the surrounding environment, it generates a robust airflow within the pipeline, swiftly transporting powdered substances to ensure a seamless conveying process. Our systems are optimized with integrated cleaning, sterilization functionalities, and high-precision weighing capabilities.

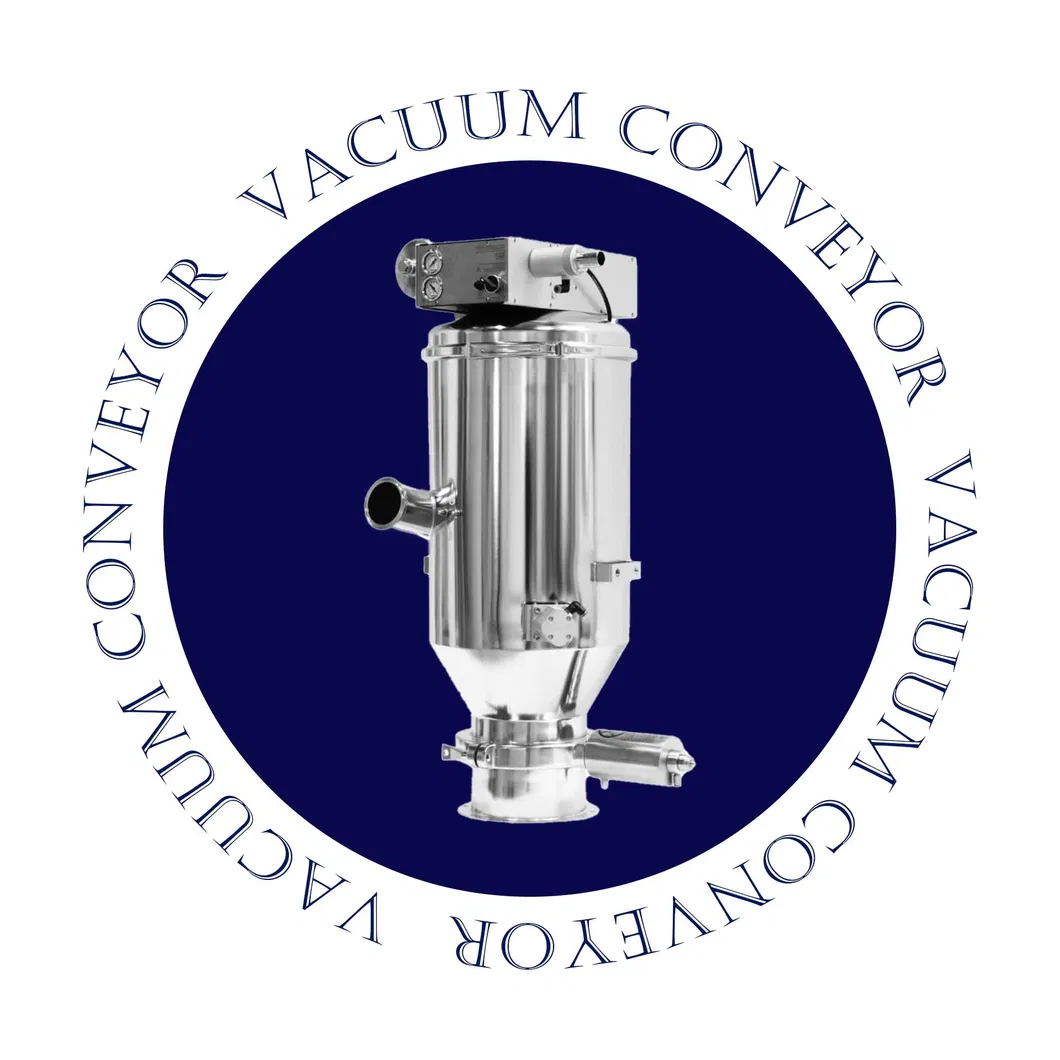

Vacuum Conveyor System

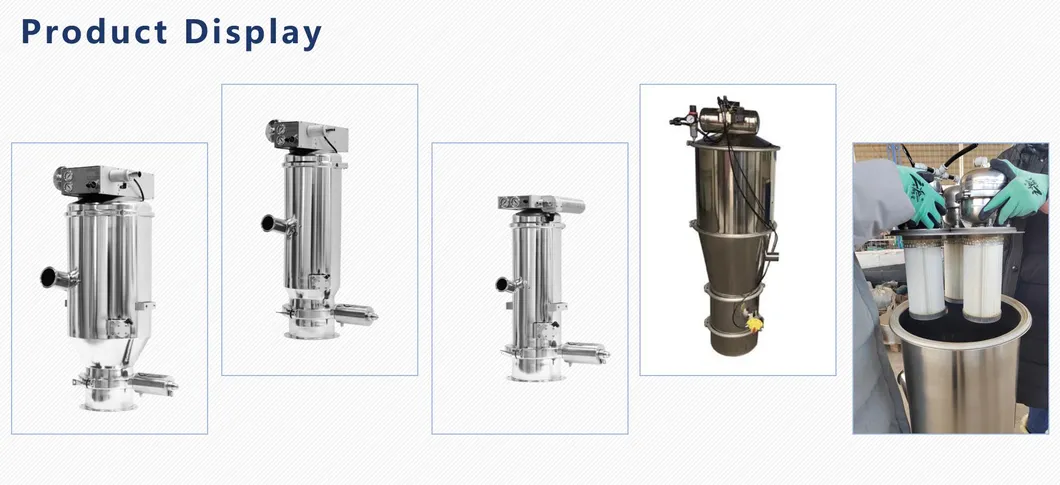

Conveying Process
Key Features & Advantages
⚙️
Automatic Cleaning: Features an independent reverse blowing mechanism for automatic filter cartridge cleaning.
🔇
Low Noise: Boasts a simple design, intuitive operation, easy maintenance, and low noise performance.
🛡️
Eco-Friendly & Sealed: Employs a sealed conveying method, effectively preventing material leakage and dust contamination.
🔥
Safety First: Capable of using inert gas for transportation, ensuring safe handling of flammable and explosive materials.
🧼
CIP/SIP Ready: Equipped with advanced cleaning functionality, including built-in cleaning balls for efficient cleaning and sterilization.
⚖️
High Precision: Can integrate weighing components, achieving measurement accuracy of up to 0.5%.
Technical Parameters
Parameter XL-14 XL-33 XL-56
Volume (L) 14 33 56
Power (W) 200
Air Consumption / Pressure 100/0.6 (L/min/MPa) 200/0.6 (L/min/MPa)
Interface Size 2-inch Quick Connector 3-inch Quick Connector 4-inch Quick Connector
Weight (Kg) 37 40 65
Dimensions (Φ×H mm) Φ400×1000 Φ400×1250 Φ650×1350
[1] Excludes power requirements for additional fans.
[2] Refers to air consumption for the backflush device.
Technical Drawing
Industrial Vacuum Unit
Certifications & Quality
Compliance Certificates
Global Customers
Frequently Asked Questions
What materials can be handled by this vacuum conveyor?

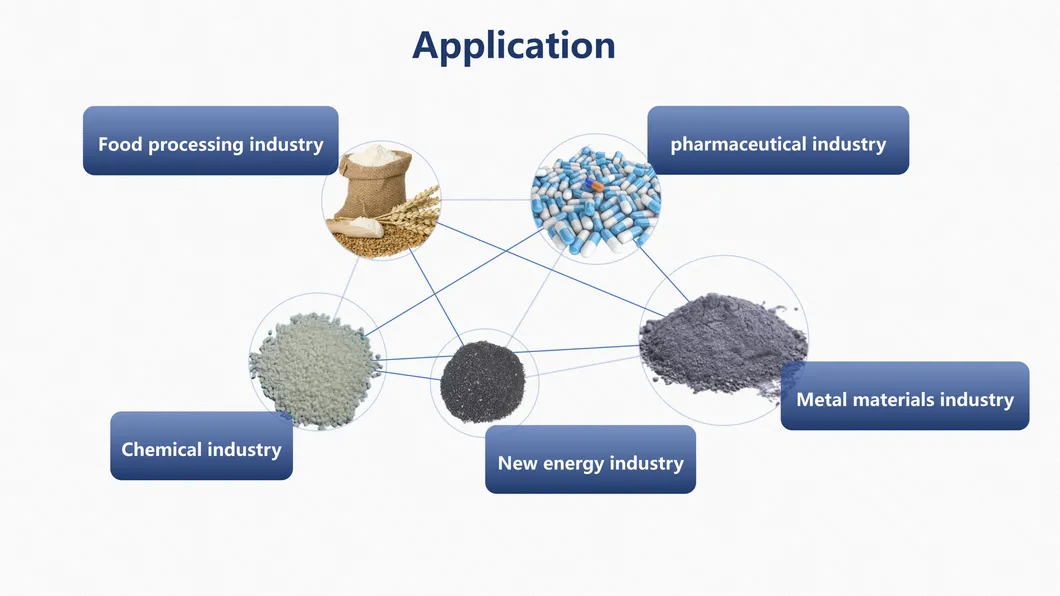

It is designed for the dust-free transport of granular and powdery materials across various industries including chemical, grain, and mining.
How does the automatic cleaning system work?
The system features an independent reverse blowing mechanism that automatically cleans the filter cartridges to ensure continuous operation and airflow.
Is this equipment suitable for hazardous or flammable materials?
Yes, the system is capable of using inert gas for transportation, which ensures the safe handling of flammable and explosive materials.
Does the conveyor support hygiene standards for food and pharma?
Absolutely. The equipment can be equipped with built-in cleaning balls and supports CIP (Cleaning In Place) and SIP (Sterilization In Place) processes.
What is the weighing accuracy of the integrated system?
By integrating high-precision weighing components, the system can achieve a measurement accuracy of up to 0.5%.
What control options are available?
The system supports both manual button controls and automated PLC (Programmable Logic Controller) methods depending on your requirements.
