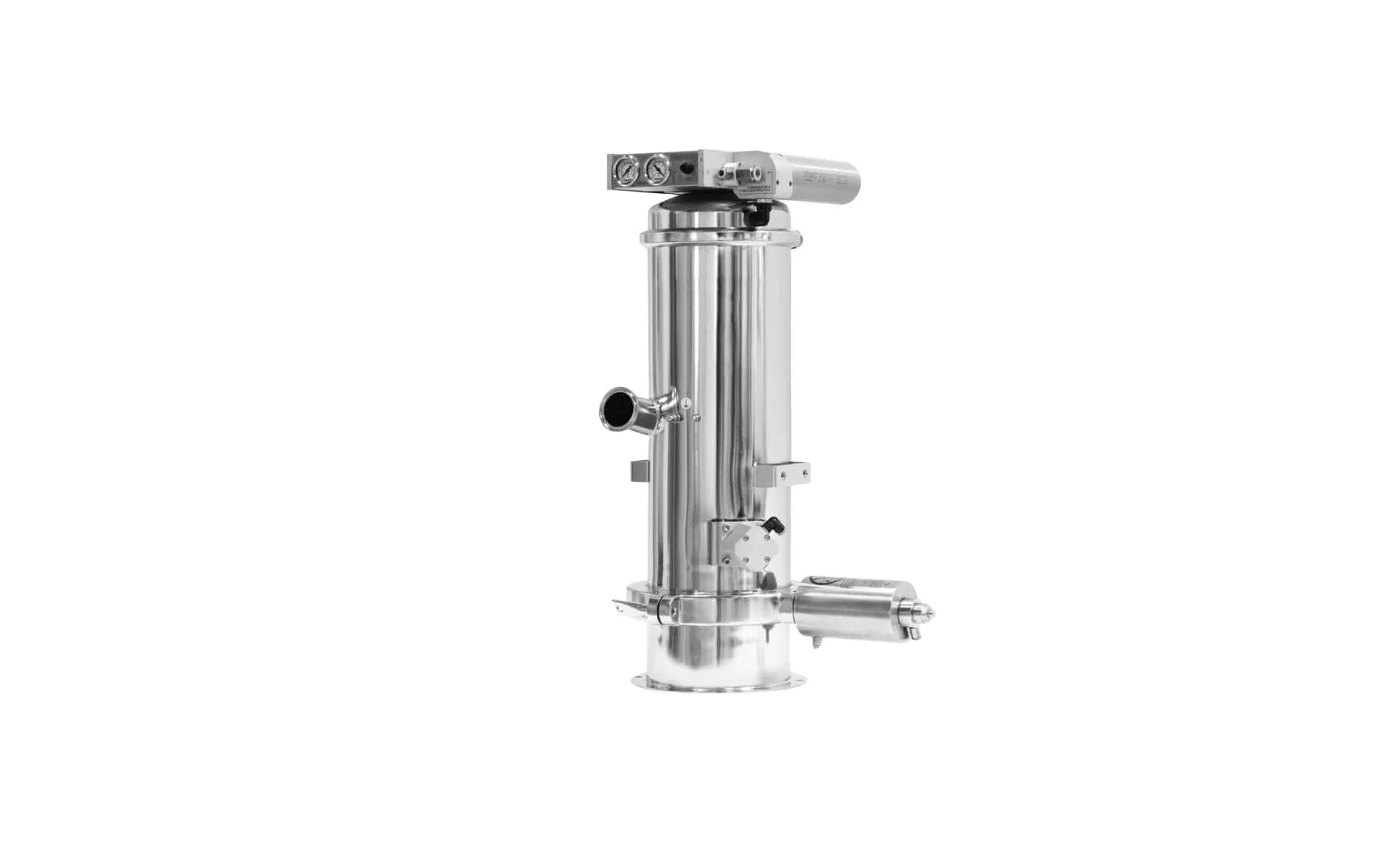

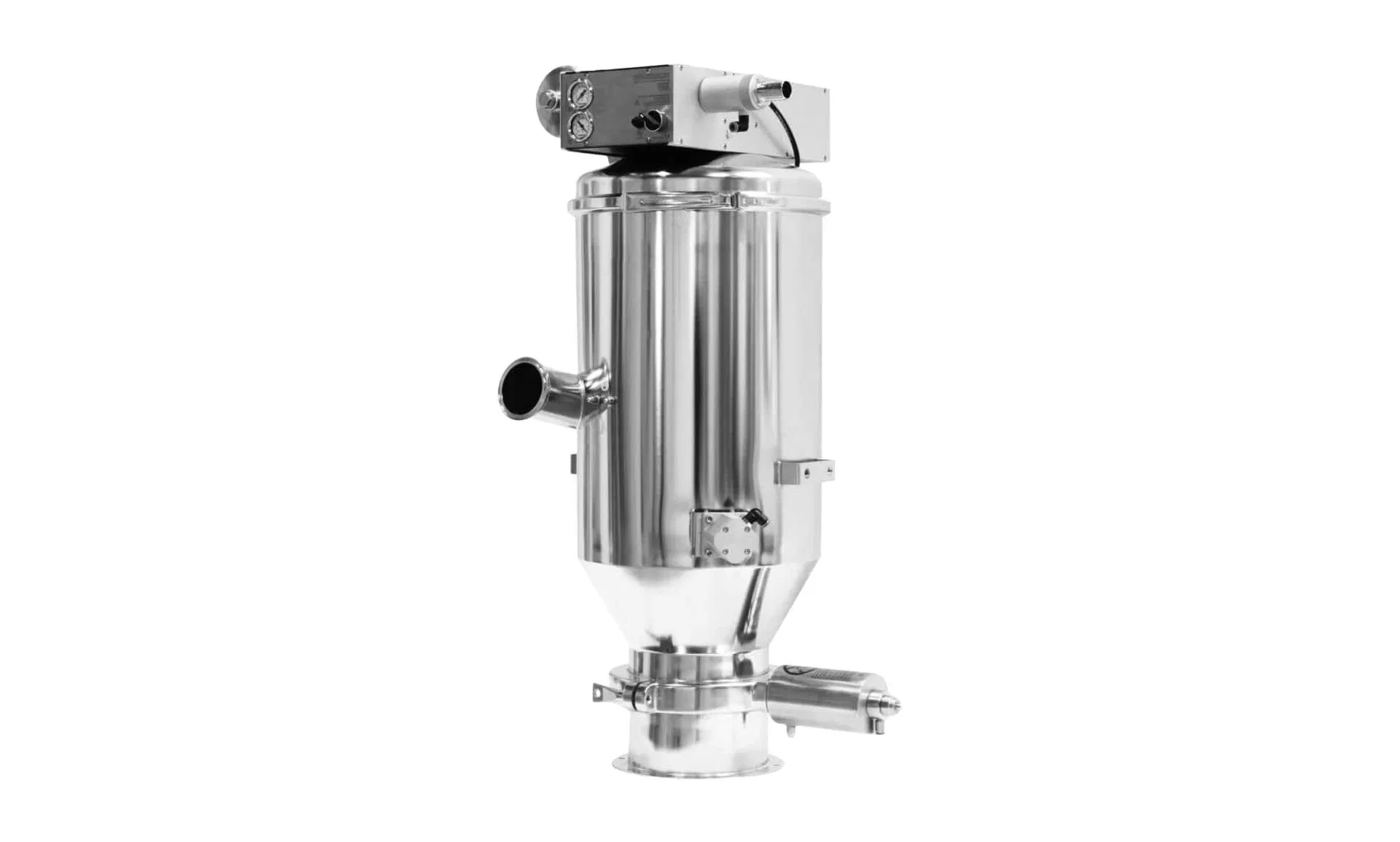

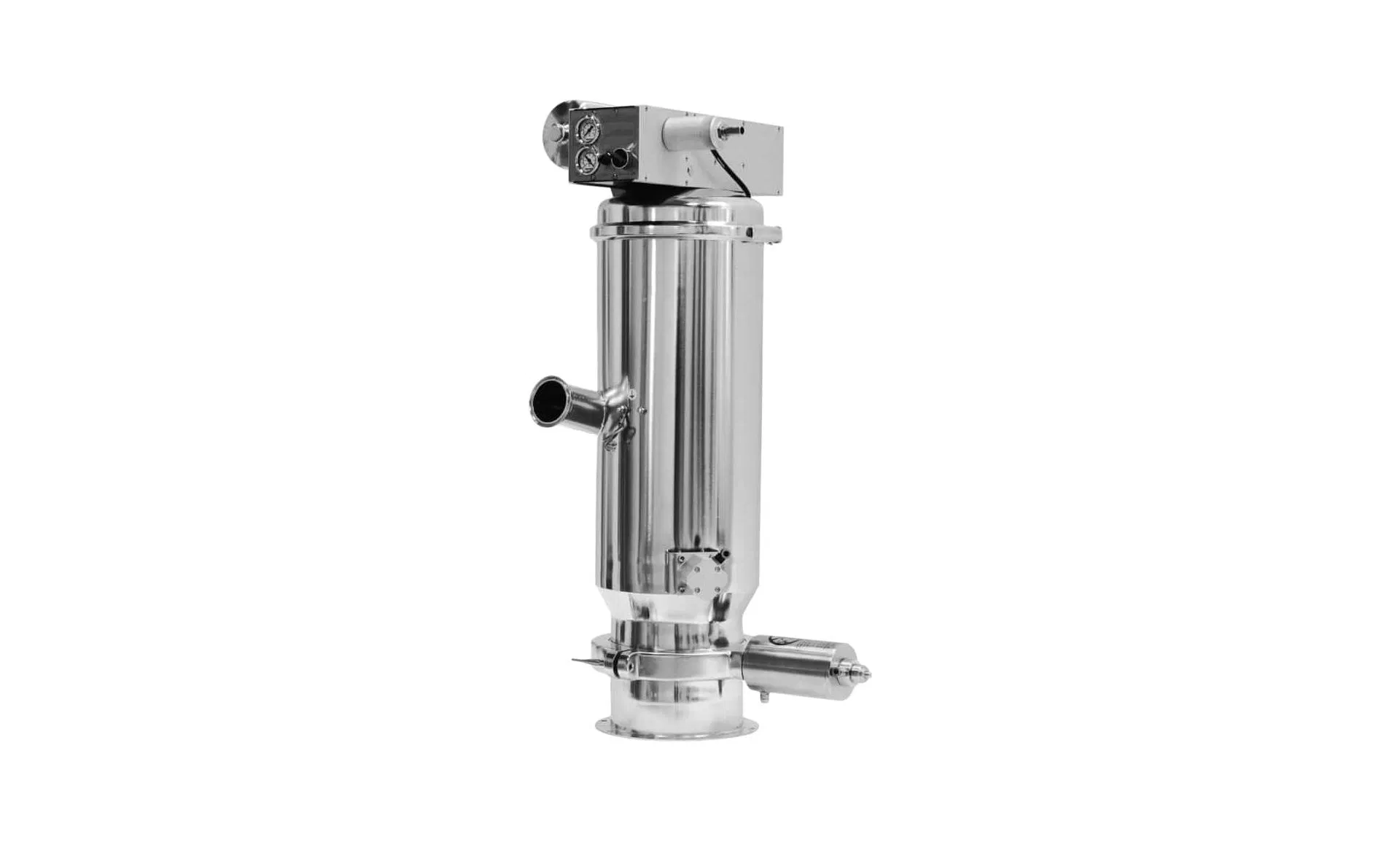

Smart Vacuum Bulk Material Elevator with Compact Design

1 / 5

Smart Vacuum Bulk Material Elevator with Compact Design

Customization:	Available
After-sales Service:	Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

XL-14/XL-33/XL-56

Structure

Conveyor System

Material

Stainless Steel

Material Feature

Fire Resistant

Application

Chemical, Grain, Mining

Condition

New

Certification

CE, ISO

Conveying Method

Negative Pressure Pneumatic

Control Method

Button / PLC

Voltage

220V~600V

Capacity

50000 Pieces/Year

Origin

China

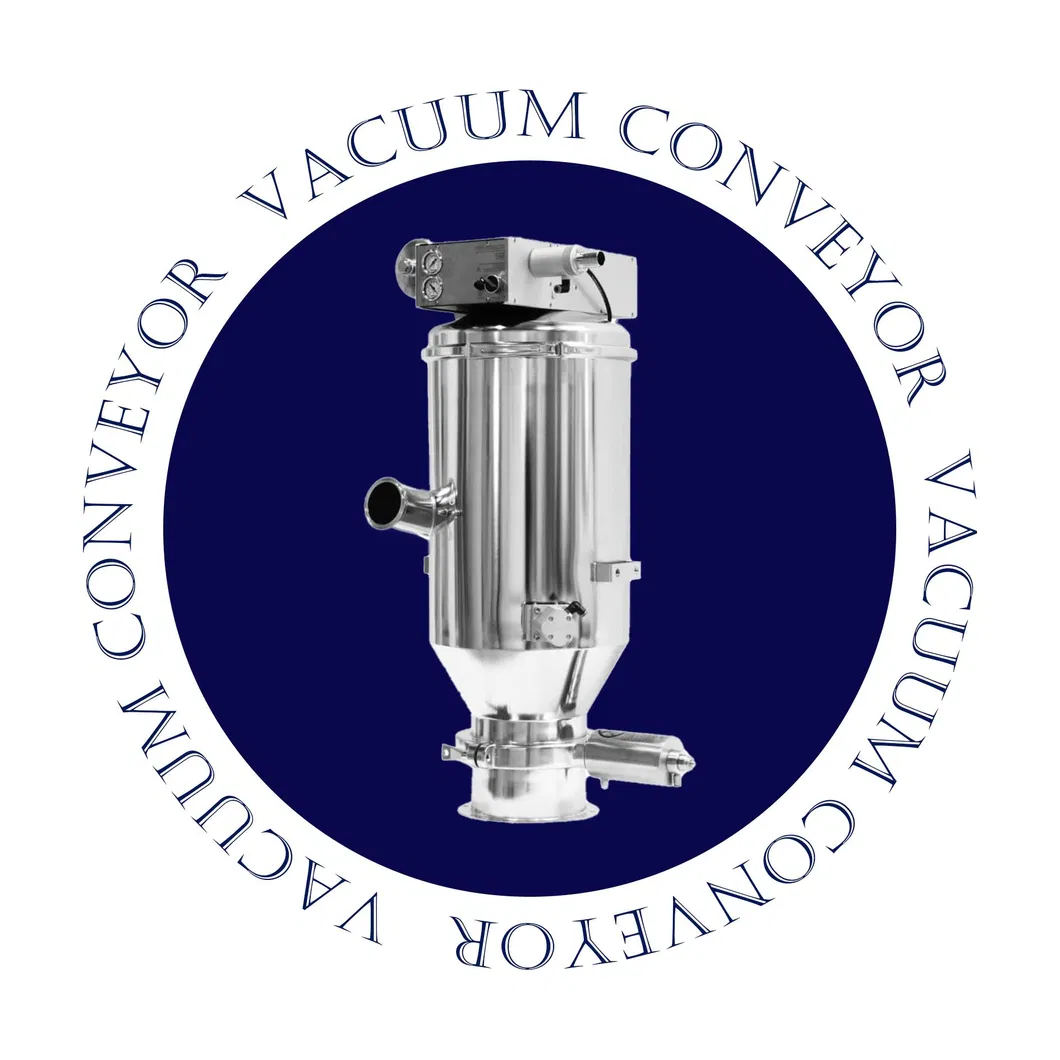

Vacuum Conveyor Solutions

A vacuum conveyor represents a groundbreaking solution for dust-free, closed pipeline transportation, meticulously designed to move granular and powdery materials using the sophisticated power of vacuum suction.

Leveraging the pressure differential between the vacuum and the external environment, it creates a dynamic airflow within the pipeline, rapidly transporting powdered materials and ensuring a highly efficient conveying process.

Our cutting-edge vacuum conveying systems feature integrated cleaning and sterilization capabilities along with high-precision weighing functionalities to meet the unique needs of various industries.

Technical Advantages

⚙️

Automatic Cleaning: Equipped with an independent reverse blowing mechanism for automatic filter cartridge cleaning.

🔇

User-Friendly Operation: Boasts a simple design, easy maintenance, and low noise operation.

🌿

Eco-Friendly: Sealed conveying method that prevents material leakage and ensures a clean workspace.

🛡️

Enhanced Safety: Capable of using inert gas for transportation, ensuring safe handling of flammable and explosive materials.

✨

CIP/SIP Integration: Features advanced cleaning functions, including built-in cleaning balls for efficient sterilization in place.

⚖️

High Precision: Incorporates weighing components for measurement accuracy up to 0.5%.

Technical Parameters

Model	XL-14	XL-33	XL-56
Volume (L)	14	33	56
Power (W)	200
Air Consumption/Pressure	100 (L/min) / 0.6 MPa		200 (L/min) / 0.6 MPa
Interface	2-inch quick connector	3-inch quick connector	4-inch quick connector
Weight (Kg)	37	40	65
Dimensions (D×H mm)	Φ400 × 1000	Φ400 × 1250	Φ650 × 1350

* Power excludes additional selected fans. Air consumption pertains to the backflush device.

Frequently Asked Questions

Q1: What types of materials are suitable for vacuum conveying? The system is ideal for a wide range of granular and powdery materials used in chemical, food, pharmaceutical, and mining industries.

Q2: How does the system prevent dust leakage? It utilizes a completely sealed, negative pressure closed pipeline system, ensuring that no materials escape into the surrounding environment during transport.

Q3: Is the conveyor easy to clean for different batches? Yes, our systems include independent reverse blowing mechanisms and can be equipped with CIP (Cleaning-In-Place) and SIP (Sterilization-In-Place) components.

Q4: Can it handle hazardous or explosive materials? Yes, the system is designed to use inert gas for transportation, making it safe for handling flammable and explosive materials.

Q5: What is the measurement accuracy of the weighing system? Our high-precision weighing components provide an impressive measurement accuracy of up to 0.5%.

Q6: What control methods are available? The system supports both simple Button control and more advanced PLC (Programmable Logic Controller) systems for automated operations.
