2 Floors with Best Price Hydraulic Home Vertical Traction Villa Panoramic Shaftless Platform Vacuum Passenger Elevator Lift

1 / 5

2 Floors with Best Price Hydraulic Home Vertical Traction Villa Panoramic Shaftless Platform Vacuum Passenger Elevator Lift

Customization:	Available
After-sales Service:	Door to Door Service
Warranty:	12 Monthes

Send Inquiry

Product Description

Basic Information

Driving Type

Hydraulic

Capacity

<500kg

Persons

Speed

2.00 - 3.50m/s

Control Mode

Push-Button Control

Pit

With or Without Pit Option

Travel Height

15m

Overhead Room

2300mm (1900mm if no car)

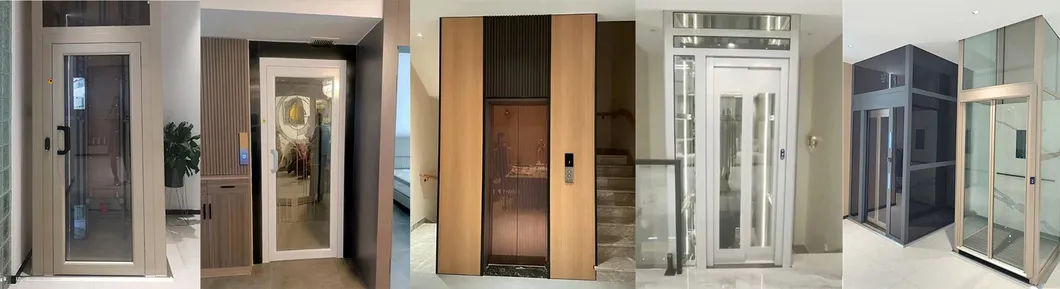

Landing Door

Swing, Auto Central, or Side Open

Car Design

Stainless Steel, Wooden, Glass

Home Lift Description

We specialize in custom hydraulic and traction home lifts designed for limited spaces. Our solutions accommodate various sizes and designs to match your home's aesthetic, offering finishes in stainless steel or glass. These lifts can be installed with or without a shaft or pit, providing ultimate flexibility for your residence.

Technical Parameters

Model	VPL-2	Load Capacity	400kg
Car Size	90010002100mm	Stop	2 (level 3m)
Travel Height	3m	Car Wall	Glass or Stainless Steel
Car Door	Light Curtain (No Door)	Shaft	Optional
Landing Door	Swing Type	Installation Size	1100mm W x 1450mm D

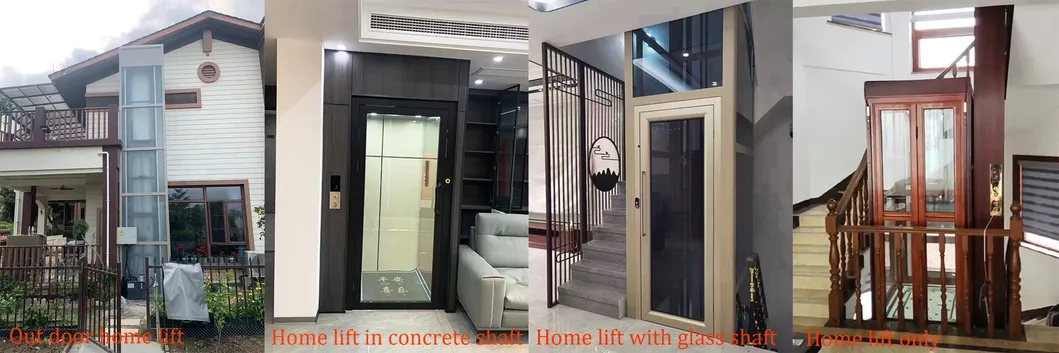

Available Home Lift Styles

Outdoor Home Lift: Heavy structure shaft with double-layer 5+0.75+5mm glass.
Concrete Shaft Lift: Specifically designed for existing masonry shafts.
Glass Shaft Lift: Full panoramic design tailored to your installation area.
Platform Only: Minimalist design for extremely limited installation spaces.

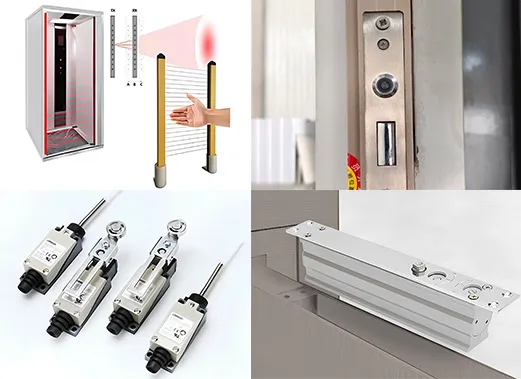

Advanced Safety Systems

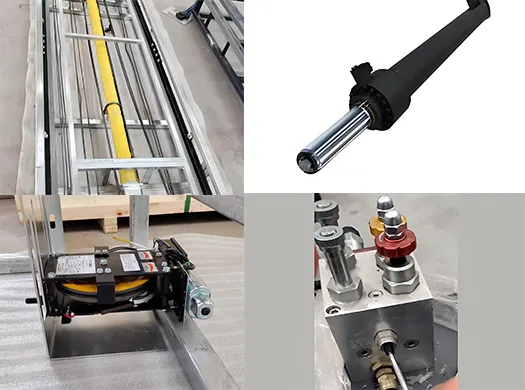

1. Safety Steel RopeFour high-strength ropes, each sustaining a minimum 3000kg load.

2. Explosion Proof ValveMounted in the cylinder to prevent sudden falls if a line is damaged.

3. Safety GearAutomatically clamps to guide rails if rated speed is exceeded.

4. Overflow ValveProtects against excessive pressure and overloading during operation.

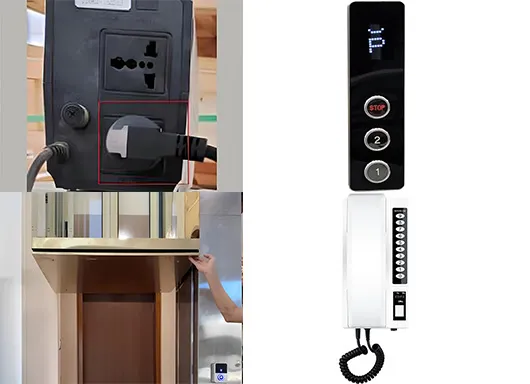

5. UPS SystemEnsures uninterrupted operation and emergency lowering during power outages.

6. Emergency StopButtons located on both the COP and HCP for immediate halting.

7. Safety PanelUnder-platform sensor stops the car immediately if an obstruction is detected.

8. Light CurtainUses light beams to detect obstacles and keep the doors open safely.

Traction vs. Hydraulic Types

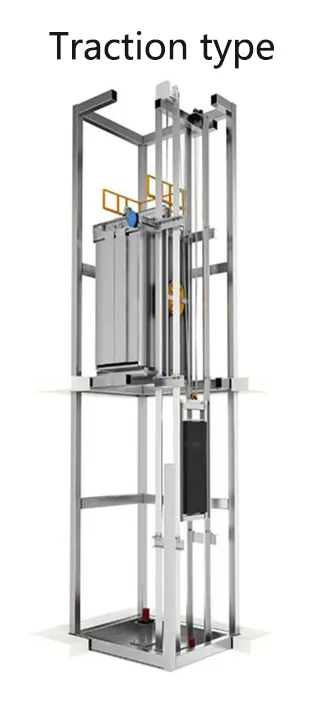

Traction Type

Uses a pulley and counterweight system. Ideal for taller buildings and higher speeds. Offers energy efficiency and smooth rides.

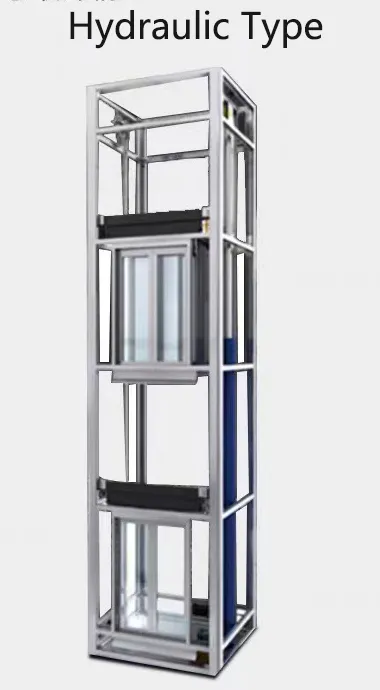

Hydraulic Type

Driven by a fluid piston. Lower initial cost and simpler design. No overhead machinery required, perfect for 2-5 floor homes.

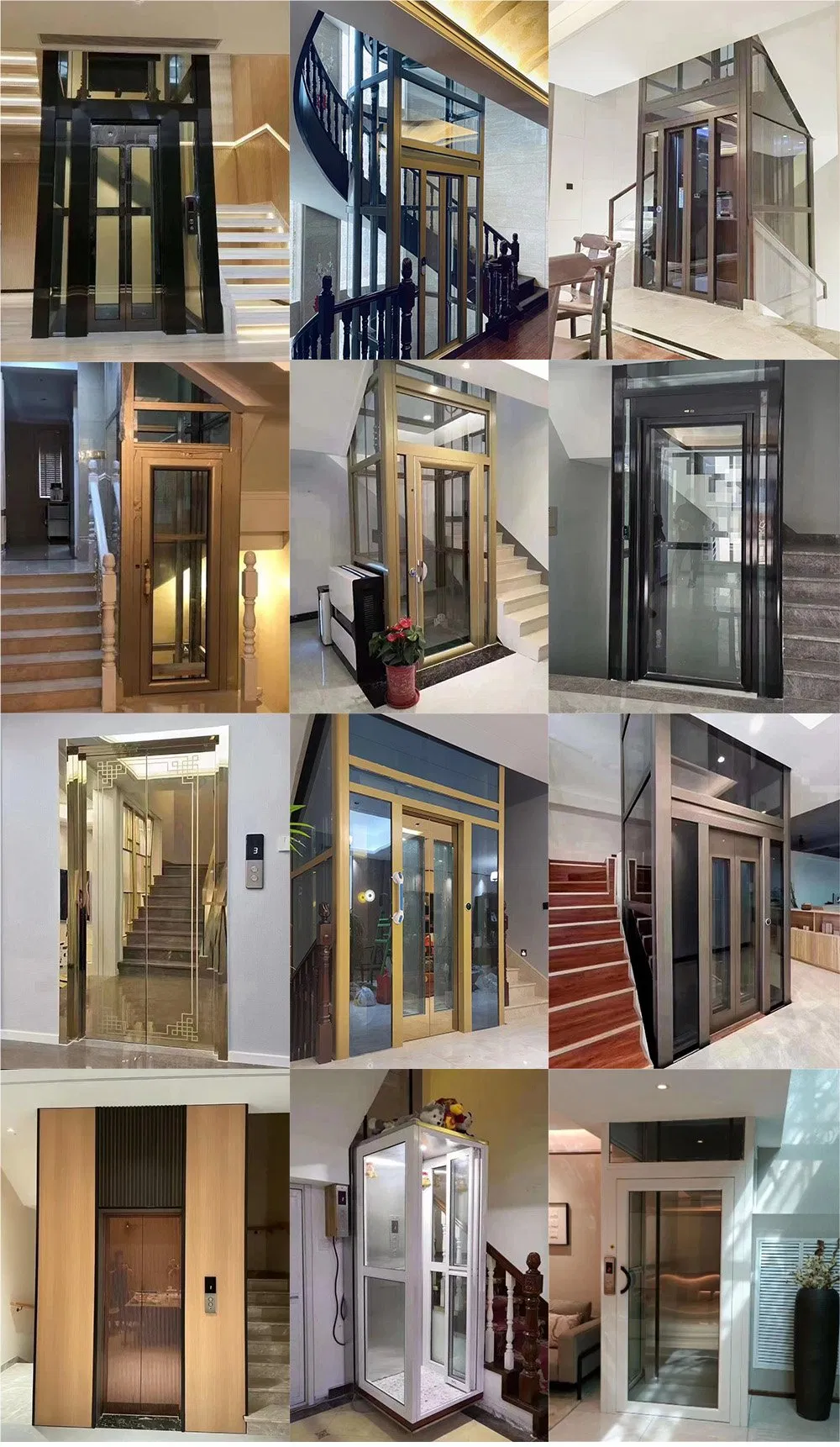

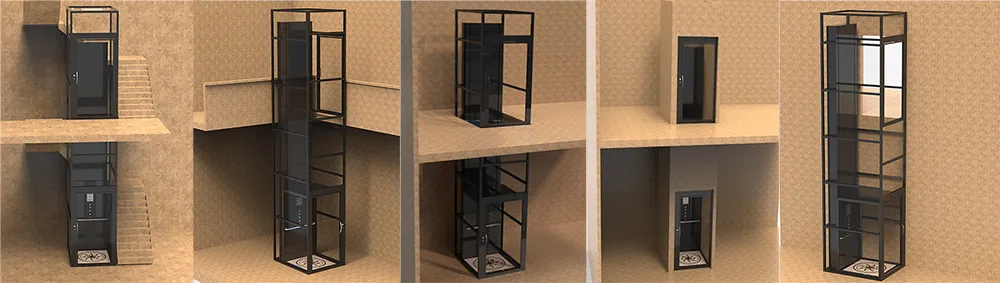

Project Showcase & Custom Design

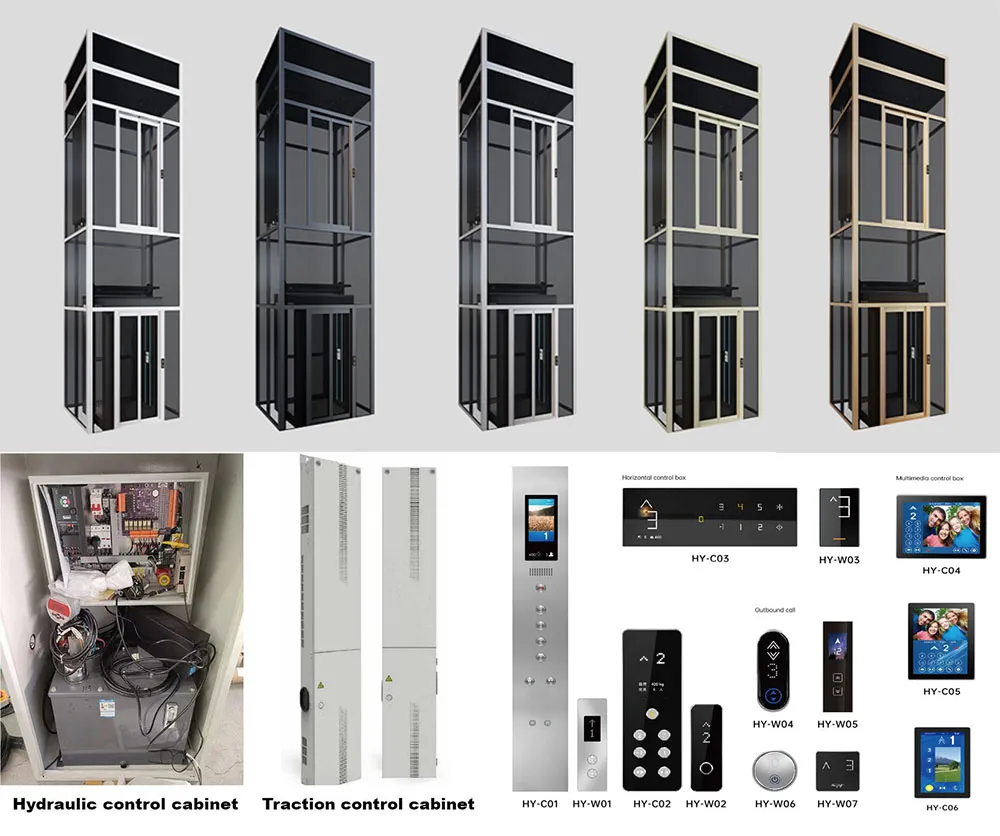

Design Your Personalized Lift

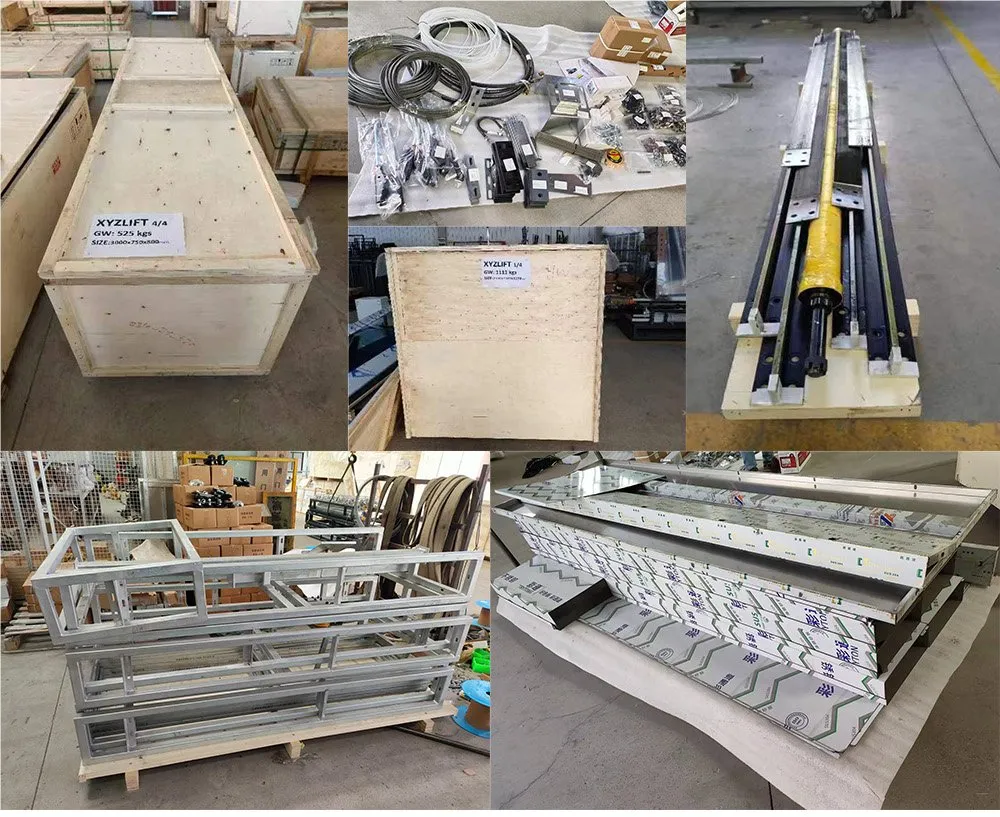

Packaging & Shipping

All parts are securely packaged in 4 reinforced wooden boxes for sea transport:

Package 1: Motor and essential parts
Package 2: Guardrail frame
Package 3: Guardrail and cylinder
Package 4: Glass shaft components

Total Weight: approx. 1450kg

Frequently Asked Questions

What is the maximum capacity for these home lifts?

The standard home lift capacity is designed for under 500kg, typically accommodating 1 to 5 persons comfortably.

Can the lift be installed if I don't have a pre-built shaft?

Yes, we offer lifts that can be installed without a concrete shaft. We can provide a glass shaft or a standalone platform design depending on your space.

How does the lift operate during a power failure?

Our lifts are equipped with a UPS (Uninterrupted Power Supply) system that automatically activates during an outage to ensure you can reach a floor and exit safely.

Is a deep pit required for installation?

No, we have options for both "with pit" and "without pit" installations. Our low-profile designs can work directly on a finished floor with a small ramp.

What safety mechanisms prevent the lift from falling?

Safety is our priority. We use four high-strength steel ropes, explosion-proof valves in hydraulic cylinders, and a mechanical safety gear that clamps to the rails if an over-speed event occurs.

Are the lift designs customizable to match my home decor?

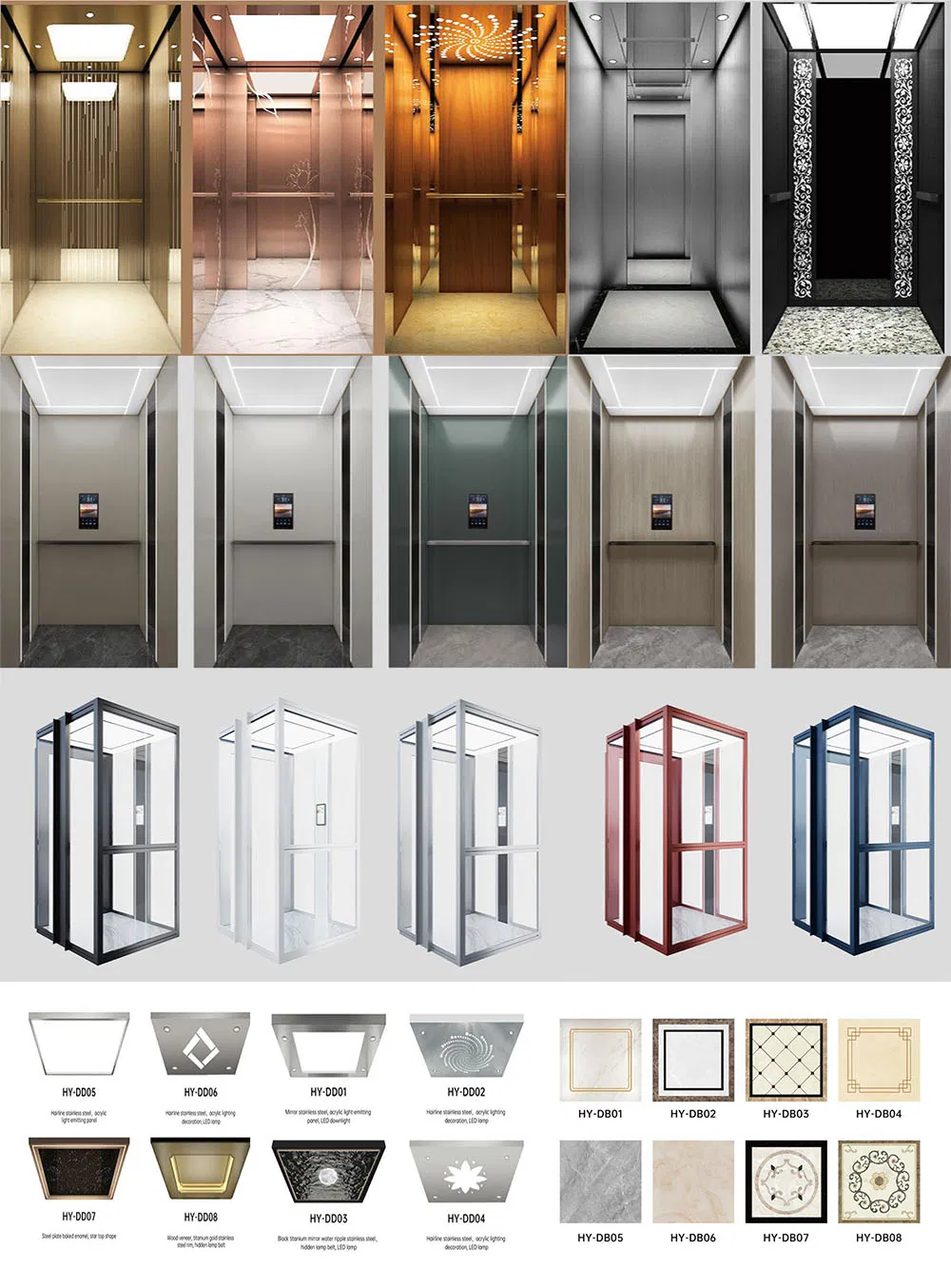

Absolutely. You can choose from various materials (stainless steel, wood, glass), colors, ceiling designs, and floor patterns to ensure the lift integrates perfectly with your interior design.
