Dave Lift
Dave Lift

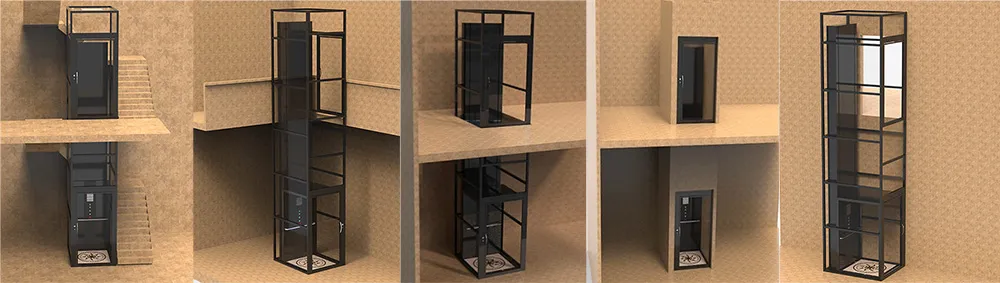

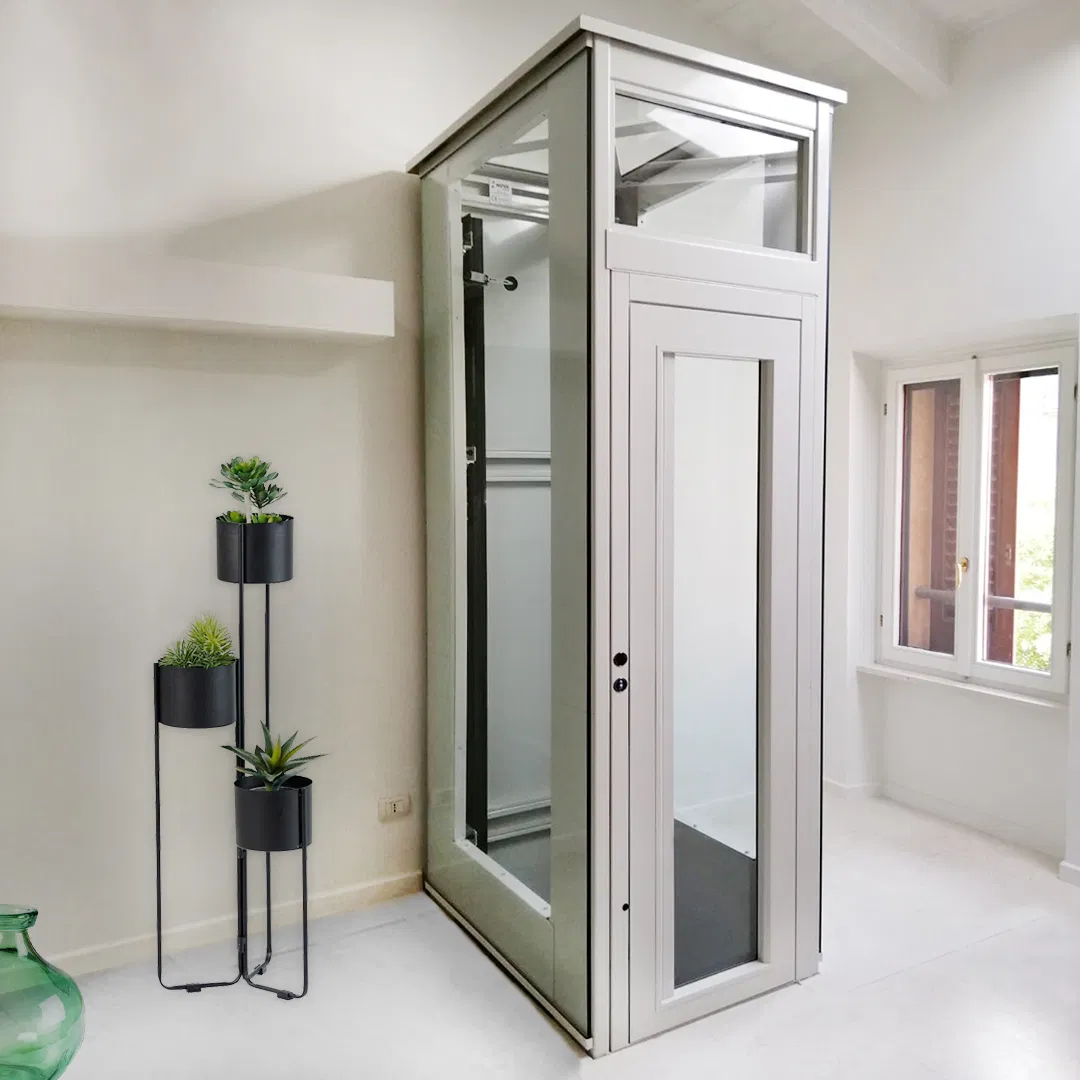

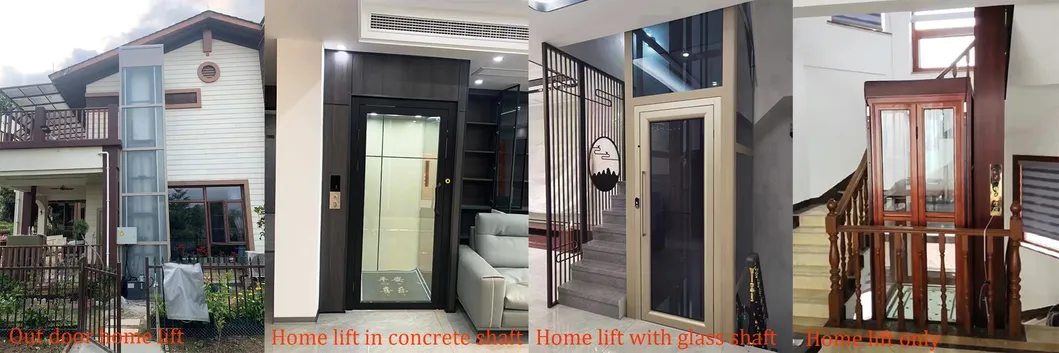

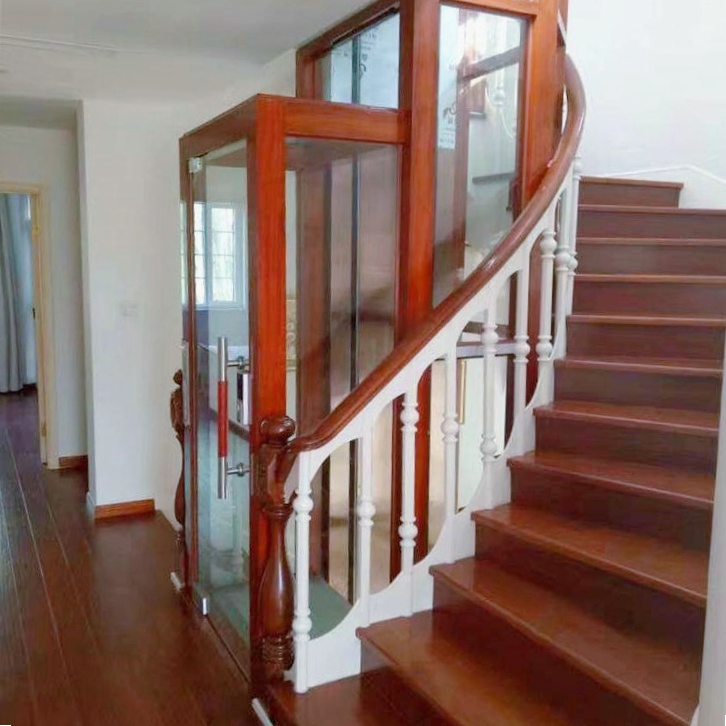

We focus on custom hydraulic and traction home lifts perfect for limited spaces. Our solutions fit various sizes and designs to match your home aesthetic, including stainless steel or glass finishes. These lifts can be installed with or without a shaft and pit, providing flexible solutions for any residential layout.
| Model | VPL-12 |
| Load capacity | 400kg |
| Car size | 900*1000*2100mm |
| Stop | Up to 5 Levels |
| Travel height | 12m |

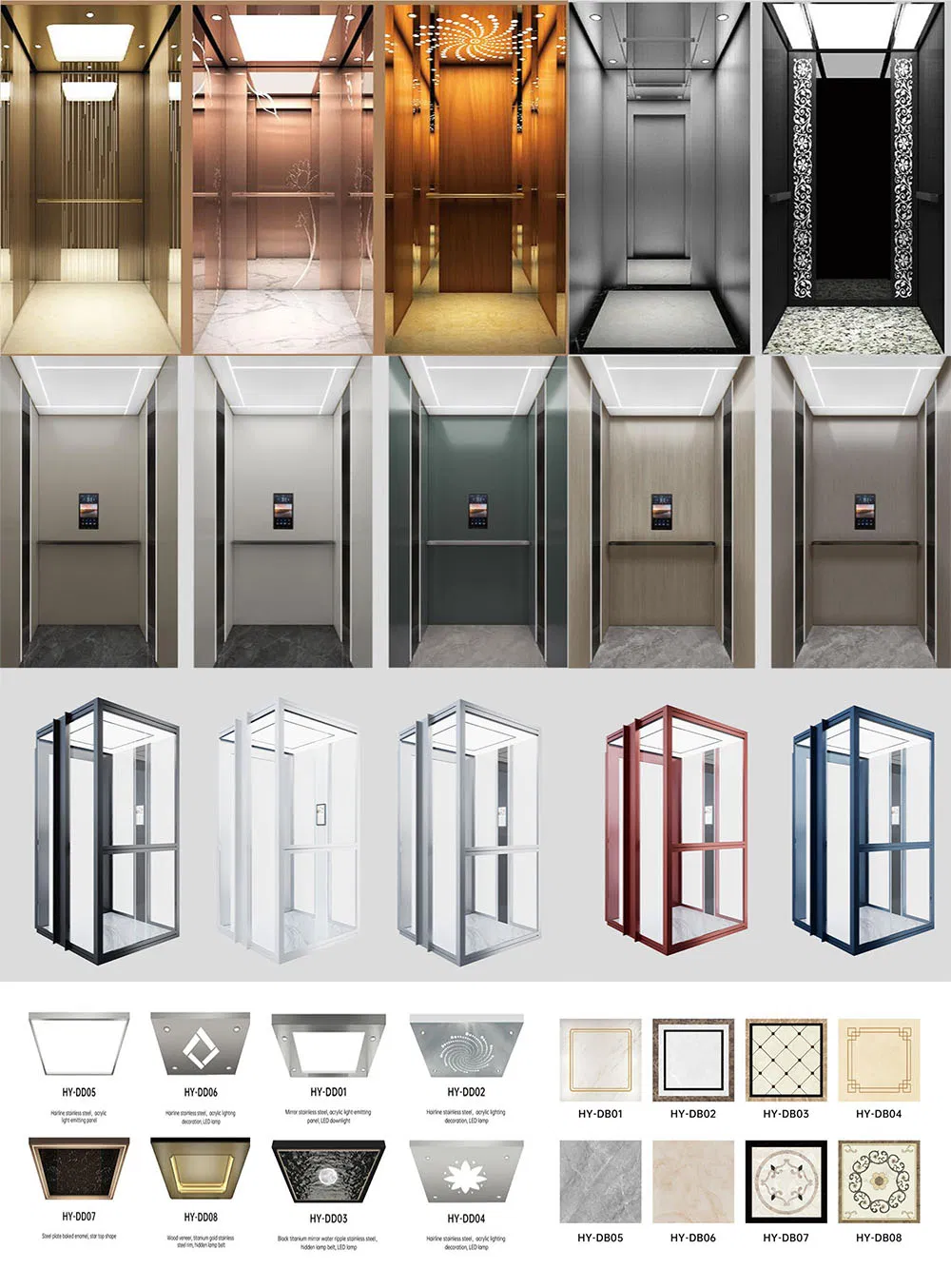

| Car wall | Glass or Stainless Steel |
| Door opening | 900mm width by 2100mm depth |

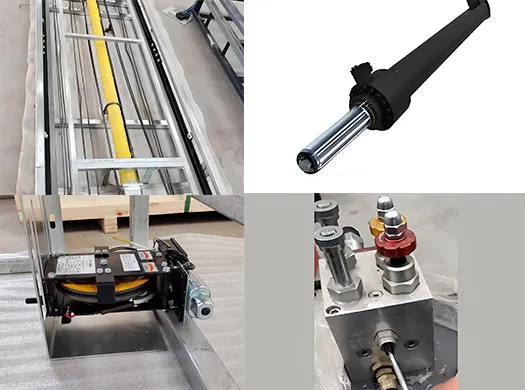

Safety Steel Rope: Four high-strength ropes, each sustaining a minimum of 3000kg.
Explosion Proof Valve: Mounted in the cylinder to prevent sudden falls if lines are damaged.
Safety Gear: Quickly clamps the car to guide rails if speed exceeds rated limits.

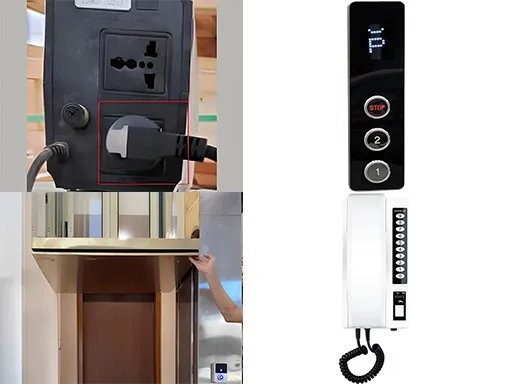

UPS System: Emergency power backup ensures operation during outages.

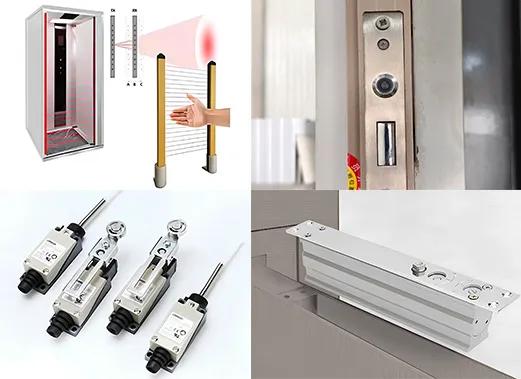

Light Curtain: Detects obstructions to prevent door accidents.
Emergency Stop: Instant stop buttons located on both HCP and COP.

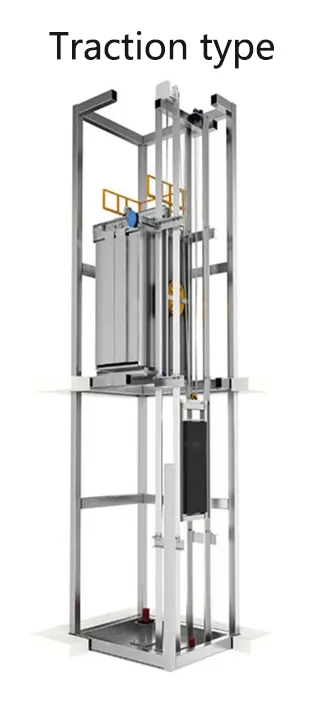

Operates via a pulley and counterweight system. Highly energy-efficient and provides a smooth, fast ride. Ideal for taller buildings.

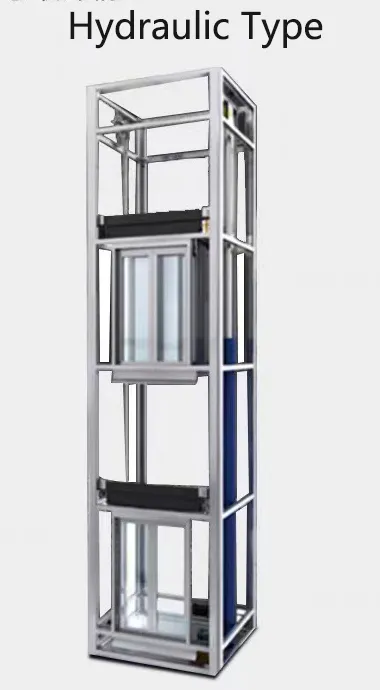

Uses a fluid-driven piston. Features a simpler design with lower initial costs and no need for overhead machinery. Best for 2-5 story homes.

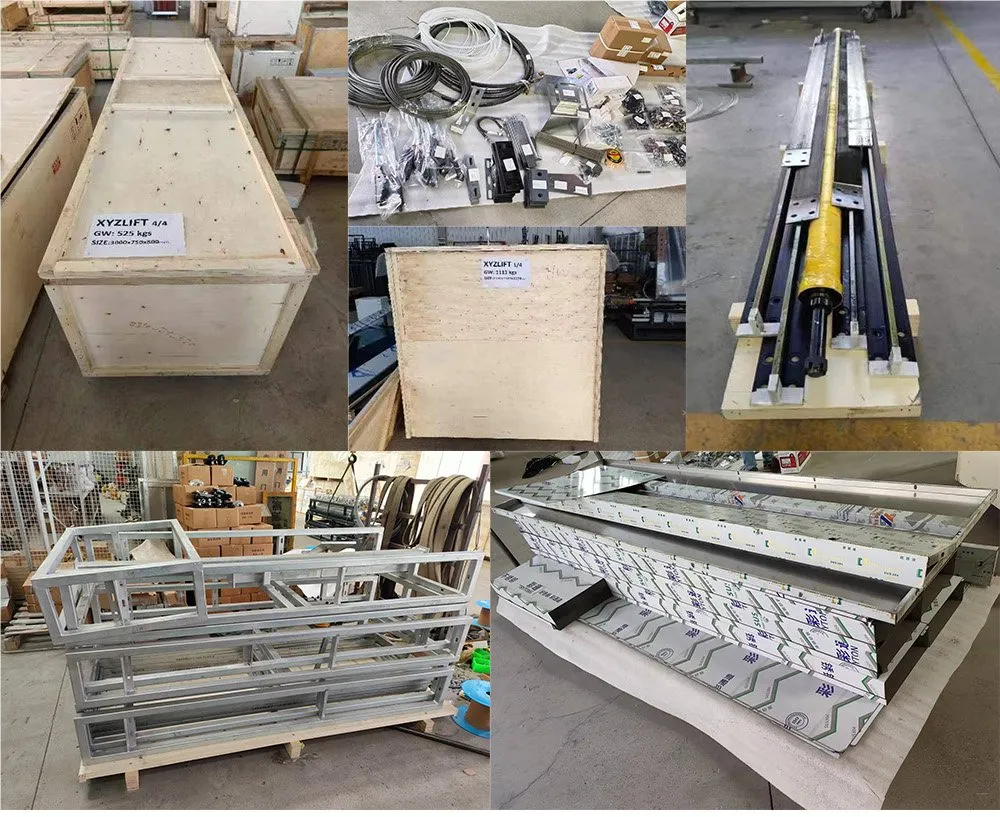

All parts are securely packaged in 4 wooden boxes for sea transport:
Total Weight: approx. 1450kg
