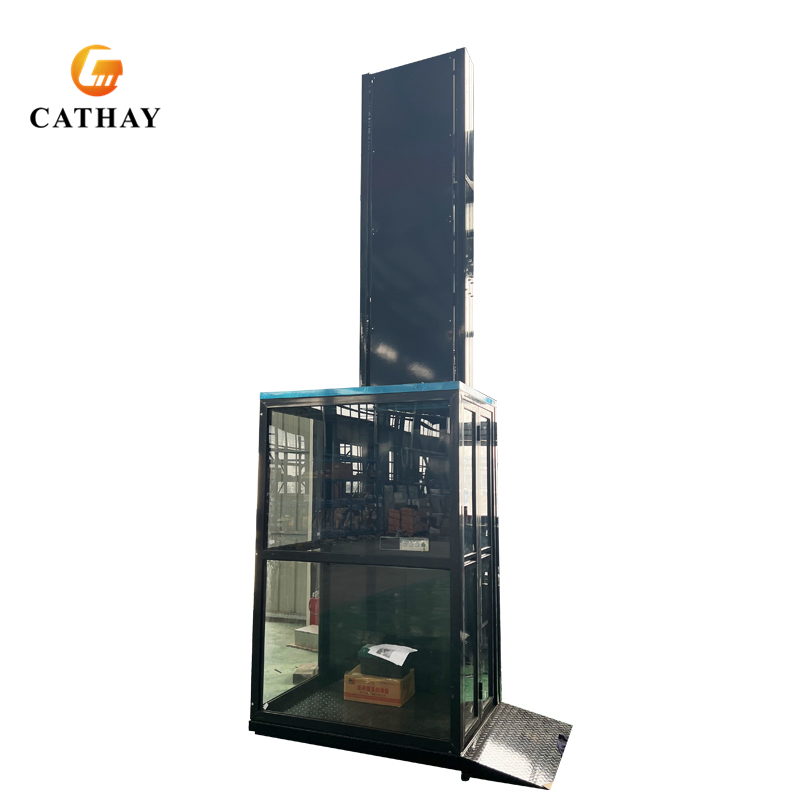

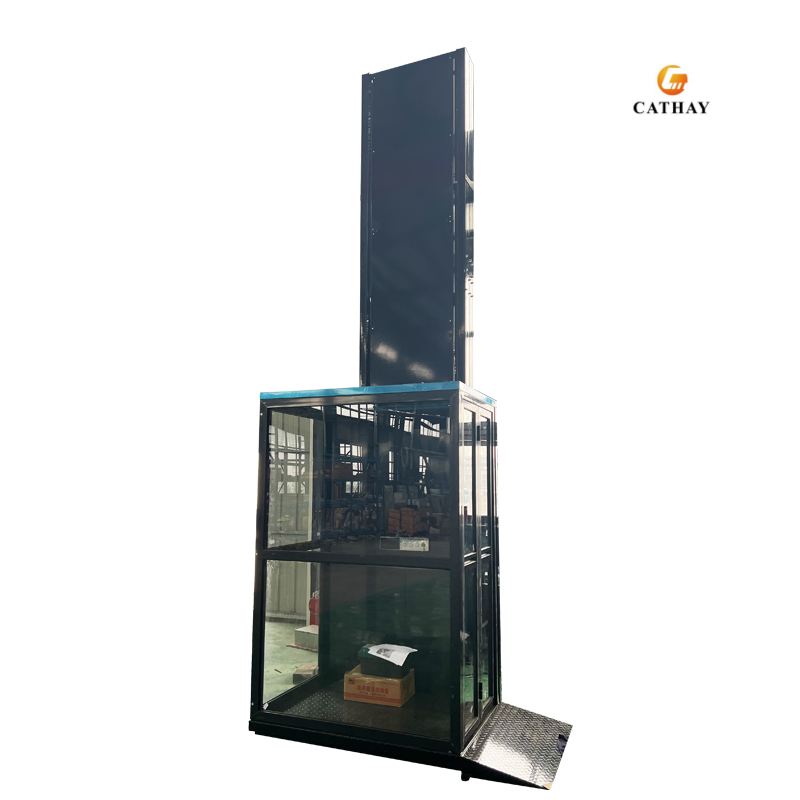

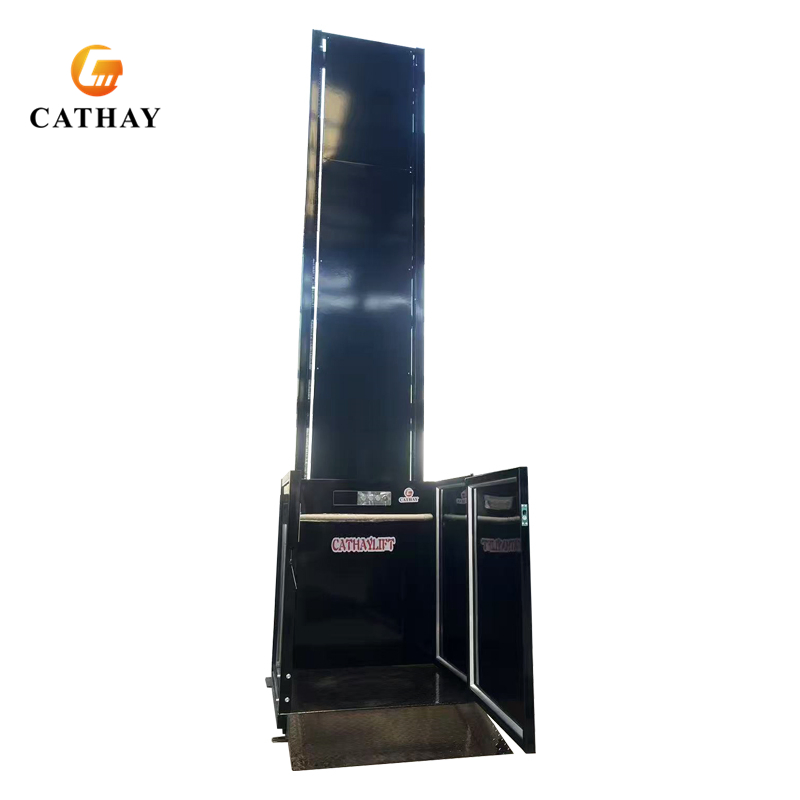

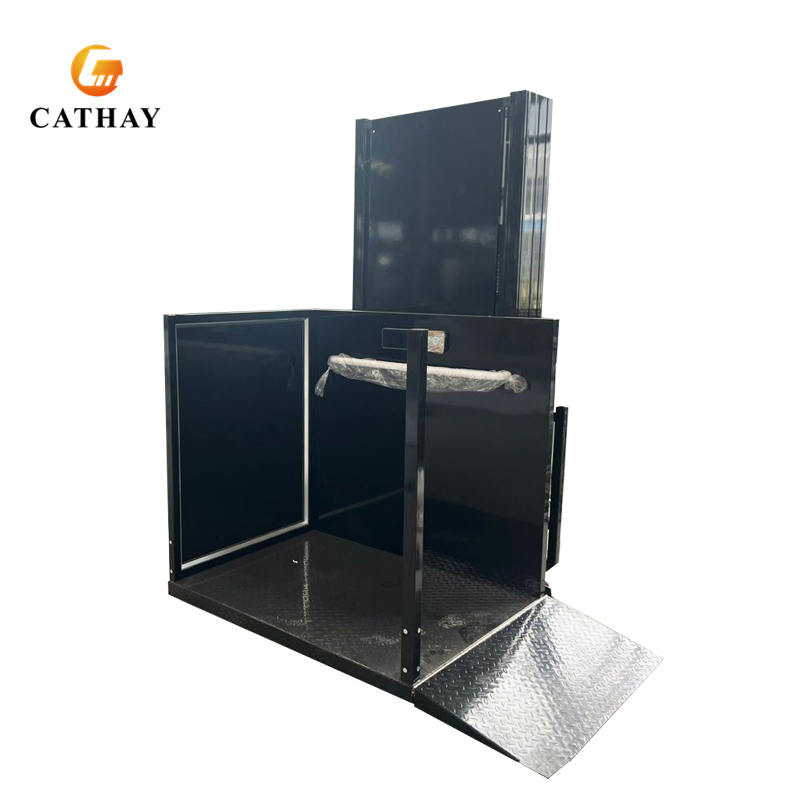

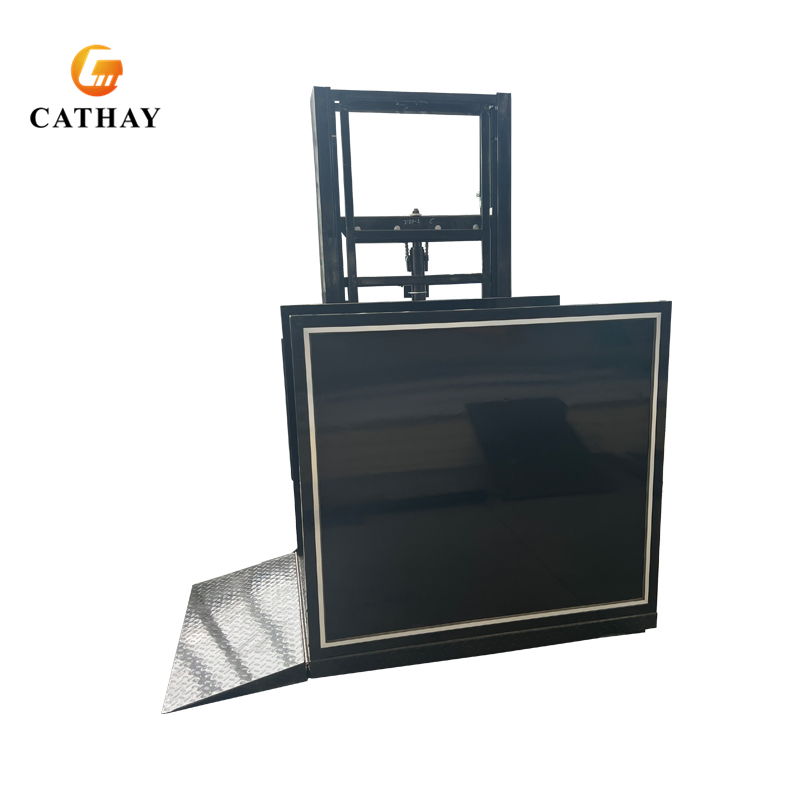

Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE
Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE
Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE
Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE
Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE
1 / 5
Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE
Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE
Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE
Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE
Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE

Hydraulic Small Residential Apartment Elevator 2-5 Floors Shaftless Passenger Lift with CE

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HL10/15/20/25/30/35/40/50/60
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Lift Chain
Carrying Capacity
250kg~500kg
Driven Type
AC
Certification
GS, CE, RoHS, ISO 9001
Lifting Height
1~12m
Voltage
110V 220V 380V 440V
Lifting Speed
0.01~0.2m/S
Working Condition
Indoors and Outdoors (-20°~70°C)
Product Description
Electric Indoor Outdoor Hydraulic Wheelchair Home Platform Elevator Lift

CATHAYLIFT wheelchair home lift/elevator is engineered with a lifting height range of 1~12 meters and a robust lifting capacity of 250~500kg. These custom disabled personnel lifts are designed to meet diverse accessibility needs while ensuring maximum stability and security. Their strong adaptability allows for installation in harsh environments and general explosion-proof locations, making them suitable for a wide variety of residential and commercial settings.

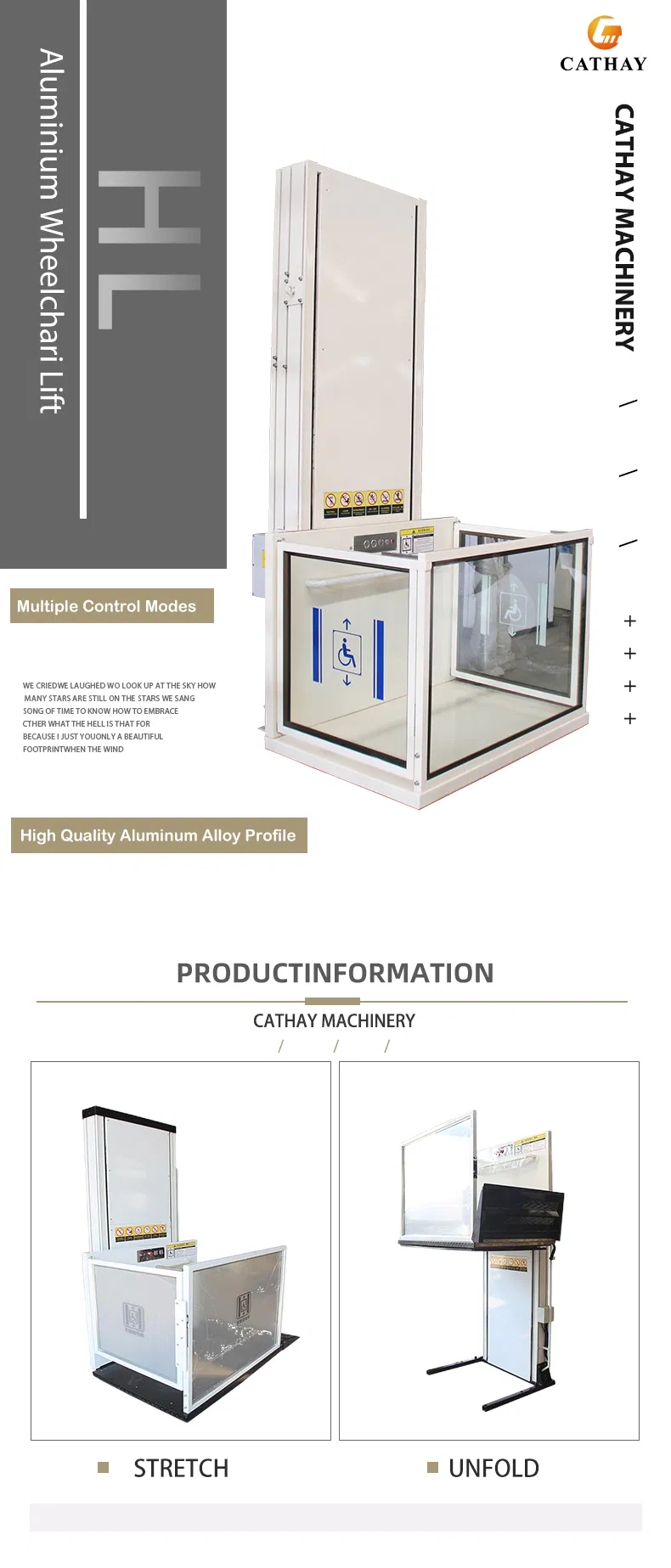

Wheelchair Elevator Platform
Product Parameters
Model HL10 HL20 HL30 HL40 HL50 HL60 HL80 HL100
Max. Platform Height 1m 2m 3m 4m 5m 6m 8m 10m
Load Capacity 250 kg (Standard) / 500 kg (Customized)
Machine Size (mm) 1430*1300*2600 1430*1300*3600 1430*1300*4600 1430*1300*5600 1430*1300*6600 1430*1300*7600 1430*1300*9600 1430*1300*11600
Platform Size 1430*1000mm Skid Proof Checkered Steel
Speed 0.06~0.2m/s
Drive System Hydraulic Silent Pump Station and Electric Motor
Materials Aluminium Rails and Guard with Spraying Plastics

Note: Products can be tailored to suit specific requirements, including table size, height, elevator car, and floor door customization.

Product Advantages

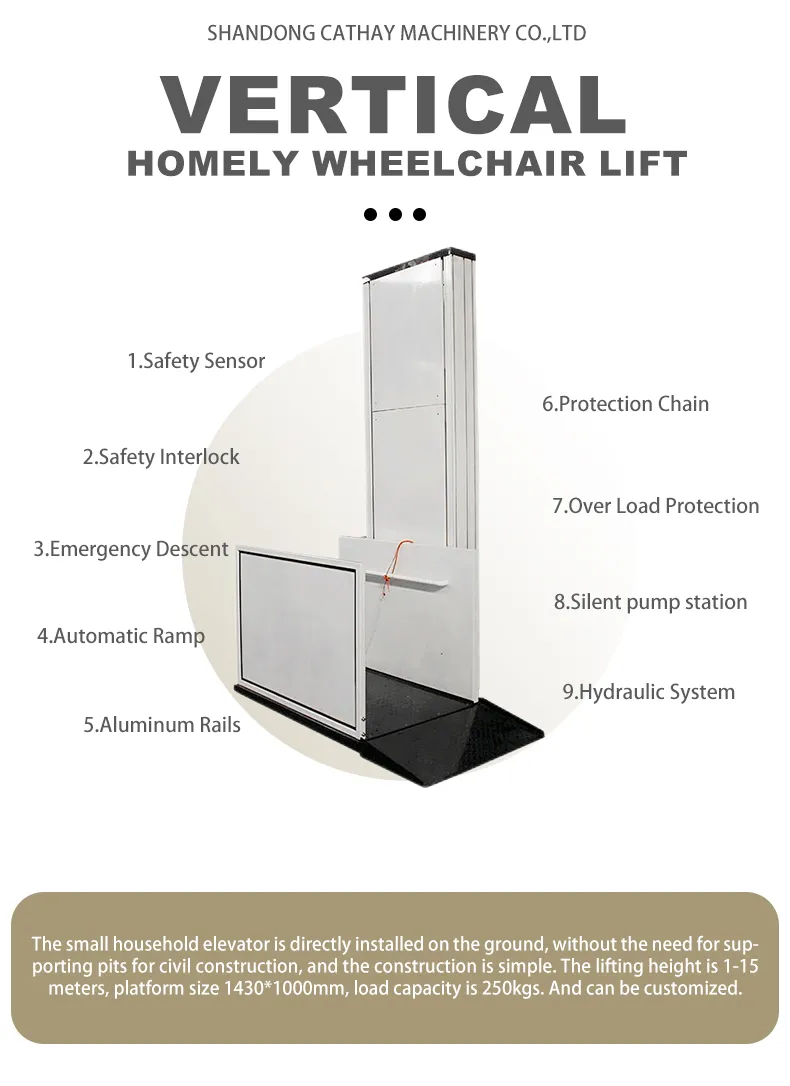

Elevator Advantage 1
Elevator Advantage 2
1
Silent Operation: Equipped with a silent pump station to ensure a quiet environment.
2
Safety Sensors: Safety sensor beneath the car stops the platform immediately if obstacles are detected.
3
Emergency Descent: Manual pressure relief and descent function in case of power outages.
4
Safety Interlock: Automatically locks during malfunction to prevent accidental movement.
5
Automatic Ramp: Folds up automatically during operation to minimize tripping hazards.
6
Durable Rails: Constructed with high-strength extruded aluminum for long-term stability.
7
Overload Protection: Overcurrent relay and pressure relief valve protect against exceeding capacity.
8
Standards Compliance: Meets ANSI/ASME and EN1570 noise and safety standards.

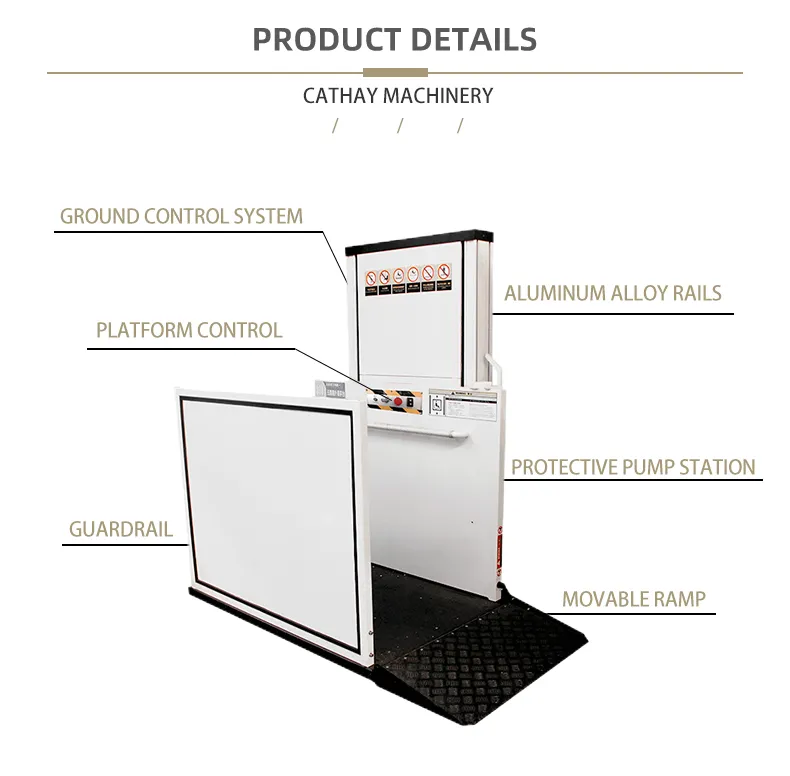

Safety Features

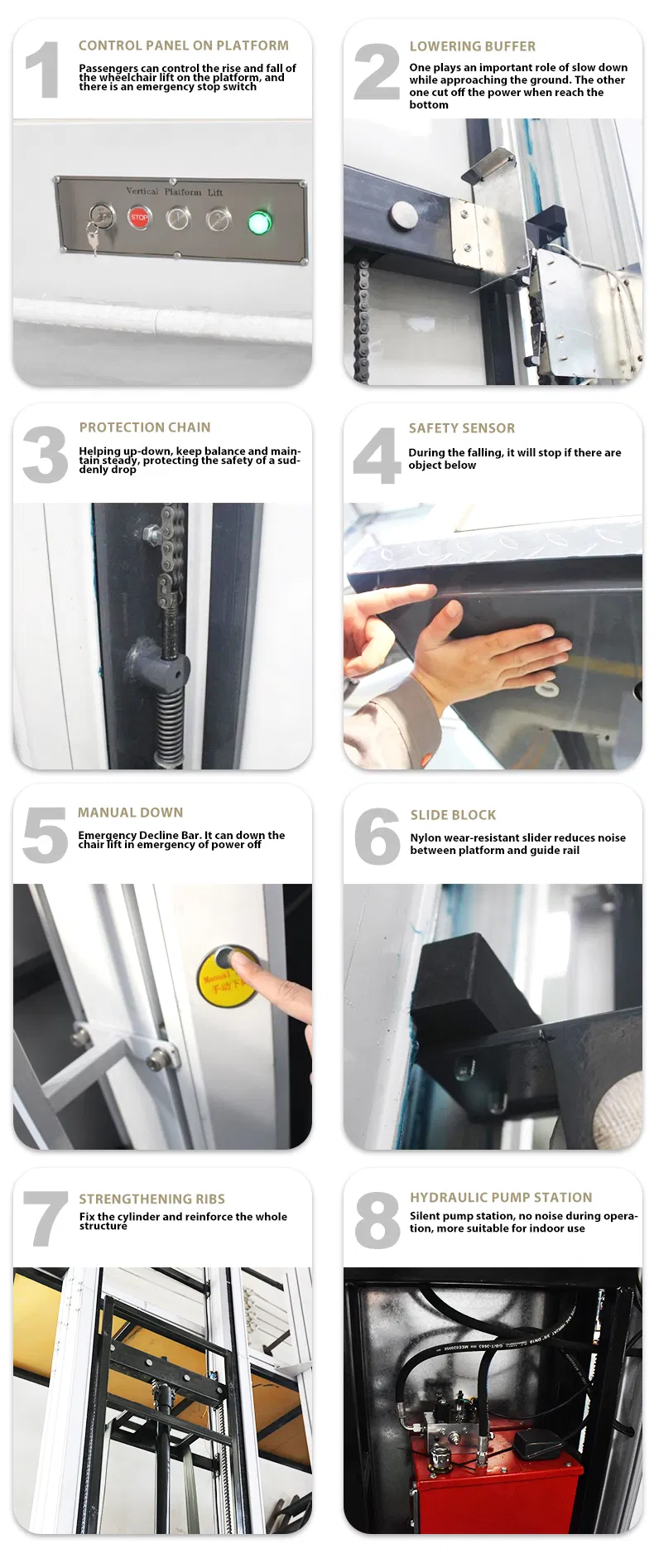

Mechanism Details
Application & Practical Use
Hydraulic wheelchair home lifts provide an efficient and compact way to move between floors in residential spaces, making everyday life easier for seniors and families with mobility challenges. Suitable for both new homes and retrofits, these lifts can be installed indoors or outdoors and fit well in low-rise buildings. Beyond improving accessibility, they enhance property value and support aging-in-place strategies.

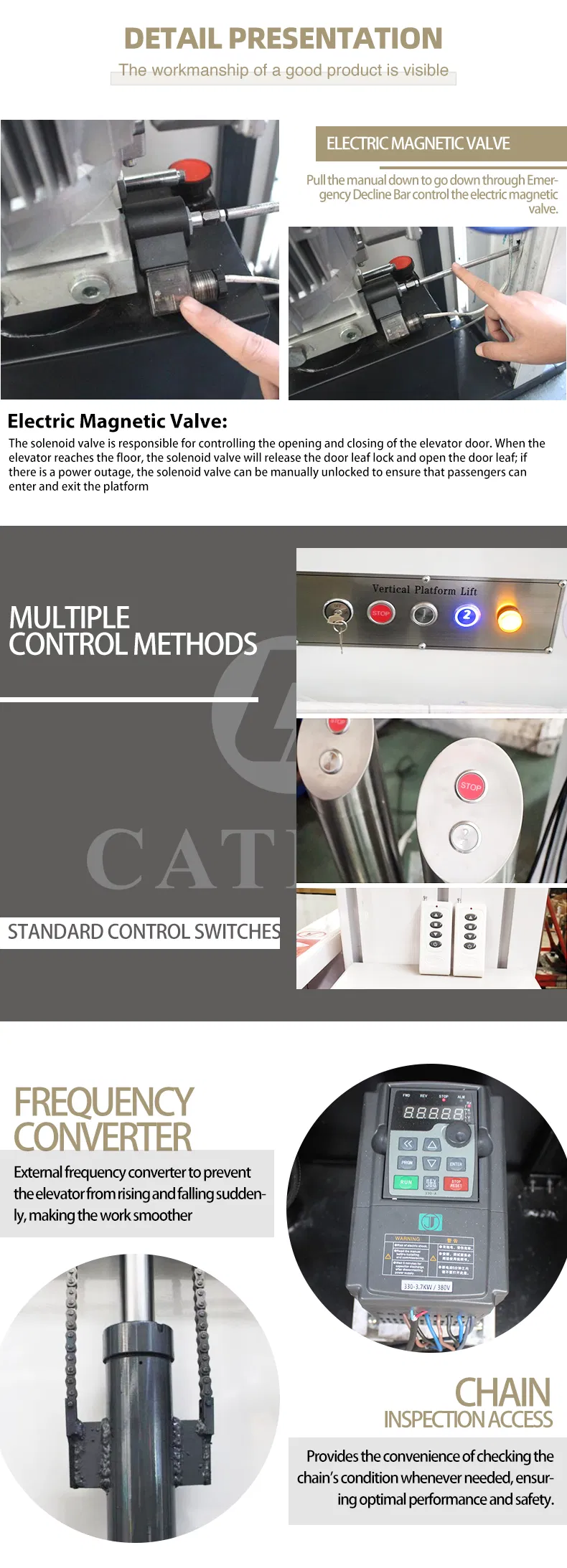

Installation Example 1

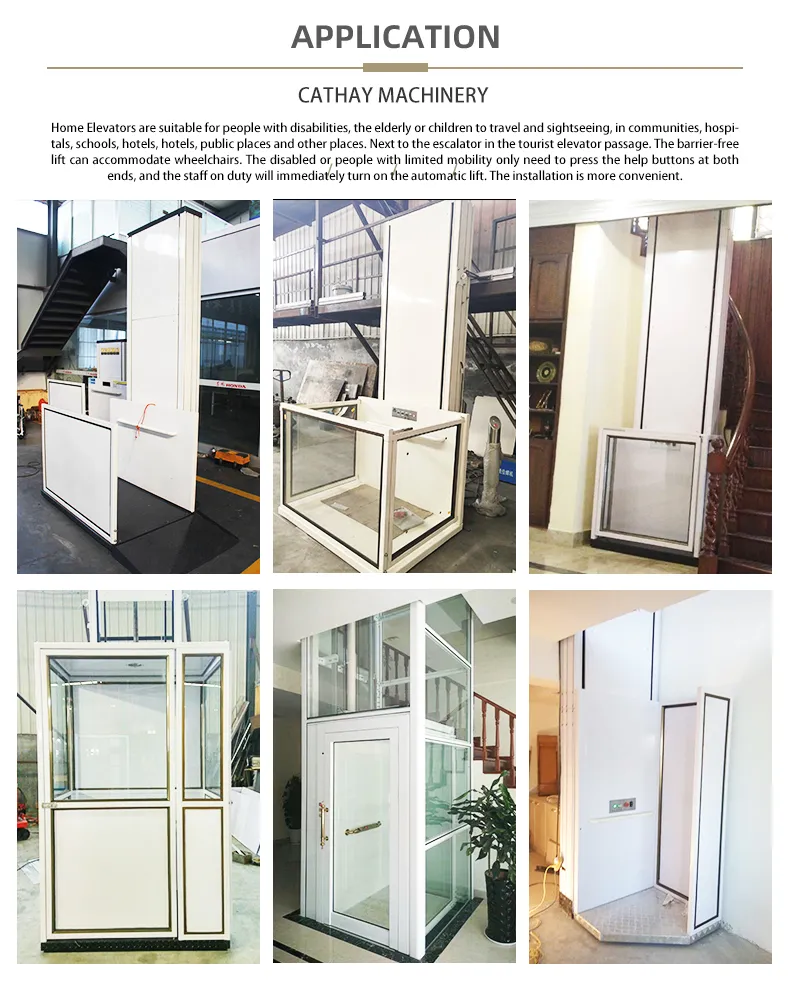

Installation Example 2

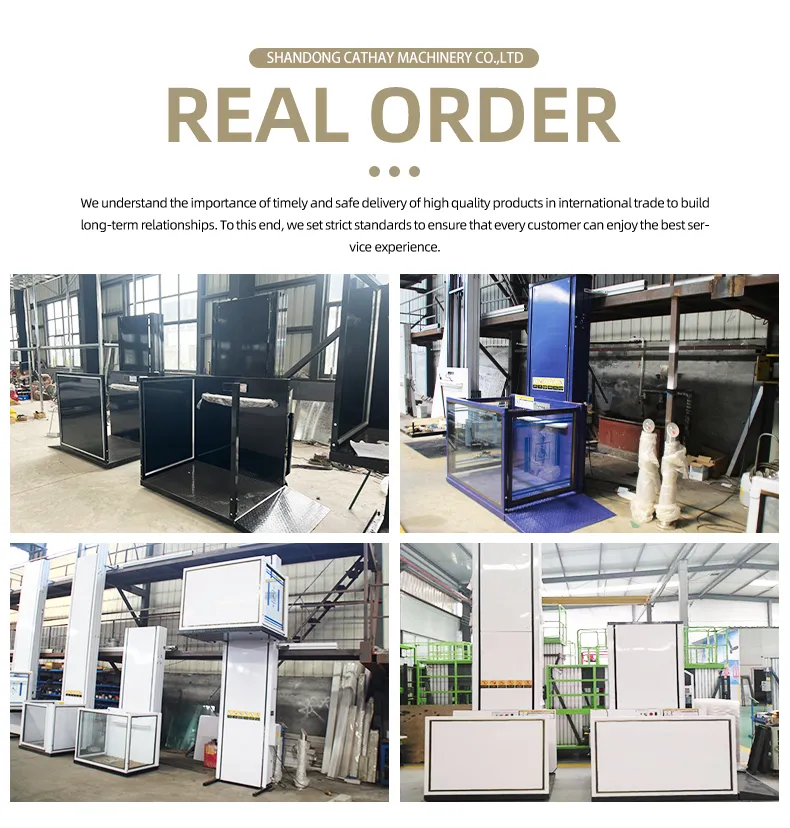

Installation Example 3
Quality & Support
Production Process

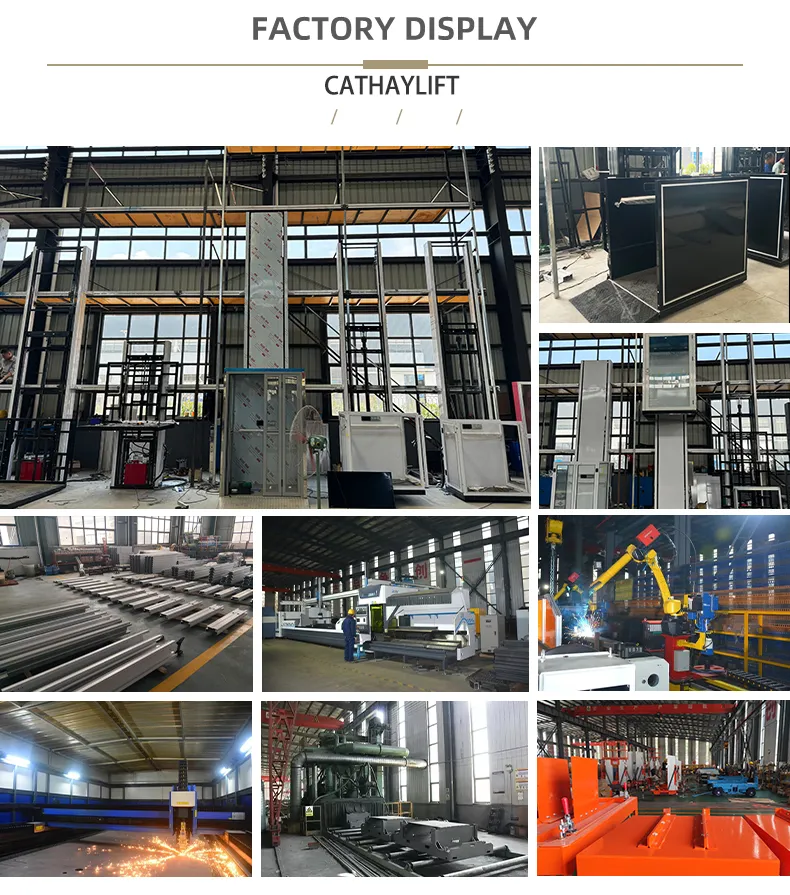

Factory Testing
Certifications
Customer Support
Related Products

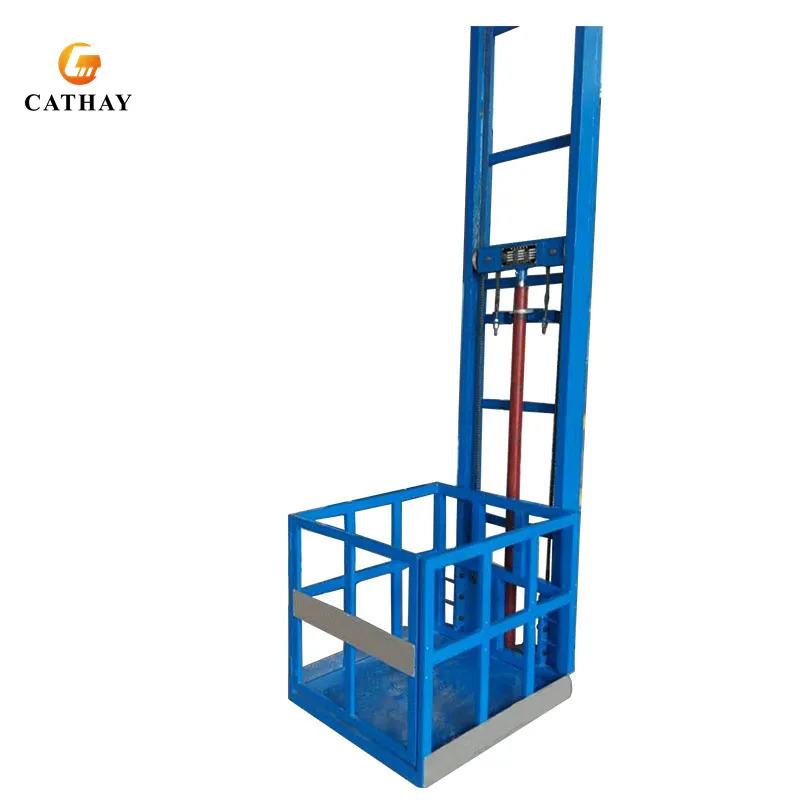

Related Product 1

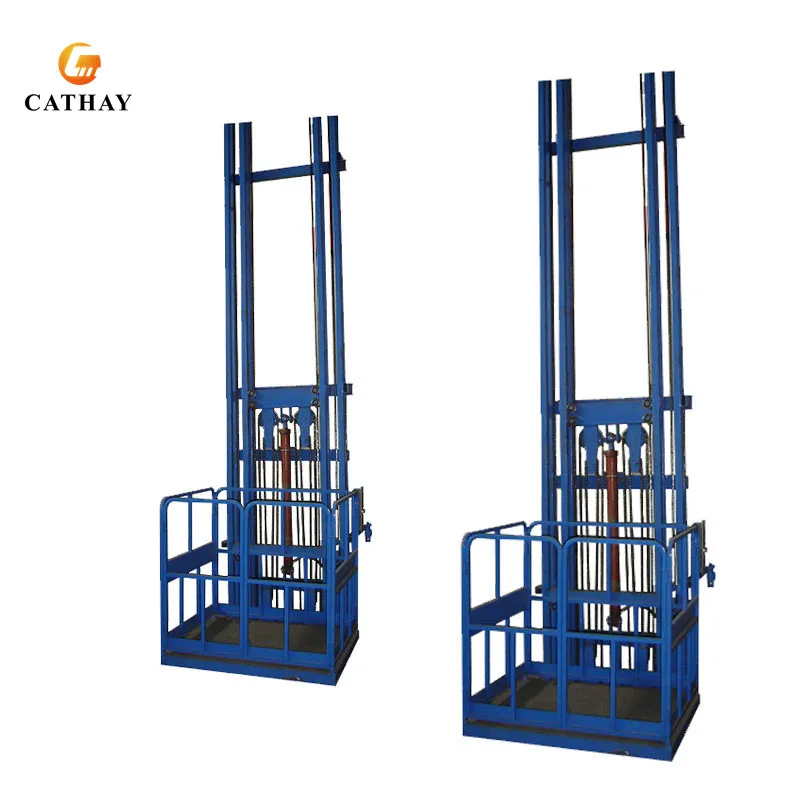

Related Product 2

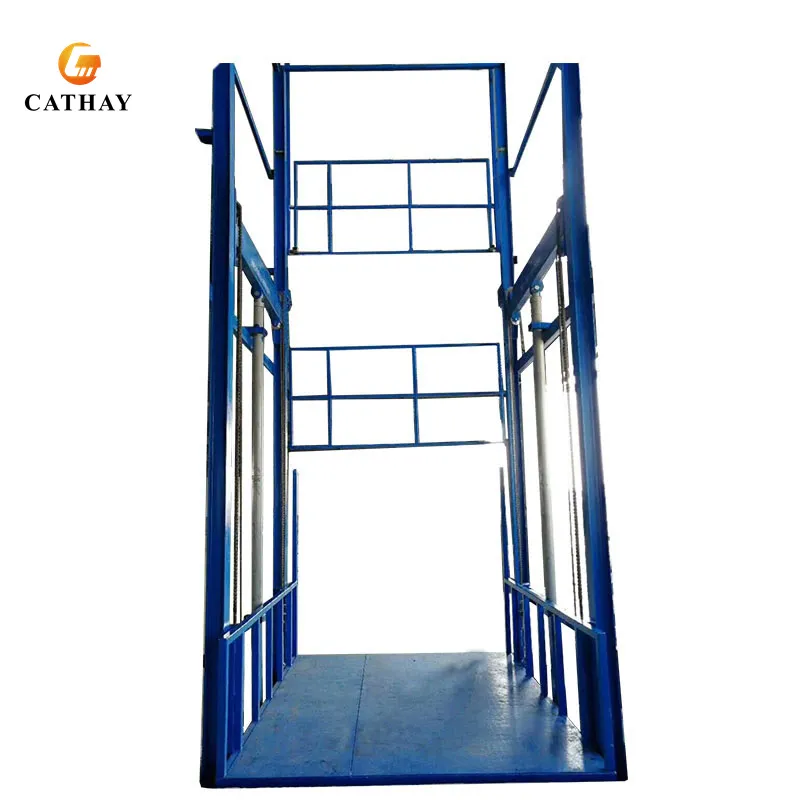

Related Product 3
Frequently Asked Questions
1. What is the maximum lifting height available for the home platform lift?
The lift offers a flexible lifting height range from 1 meter up to 12 meters, depending on the specific model and customization needs.
2. Does the lift require a pit for installation?
For heights under 3.0 meters, the lift can be installed directly on the floor without a pit. For heights above 3.0 meters, it is typically installed on both the floor and the wall for enhanced stability.
3. What safety features are included to protect passengers?
The lift includes safety sensors beneath the platform, an emergency descent function for power outages, a safety interlock system, and overload protection.
4. Can the lift be installed outdoors in extreme weather?
Yes, the hydraulic wheelchair lift is designed for both indoor and outdoor use, operating reliably in temperatures ranging from -20°C to 70°C.
5. What is the standard load capacity of the platform?
The standard carrying capacity ranges from 250kg to 500kg, which safely accommodates a user in a wheelchair and an attendant.
6. How is the lift controlled?
Users can operate the lift via a control panel on the platform, column switches installed on the ground at each floor, or through a remote control with a 20-meter range.
