Basic Information
Model NO.
Gh home elevator
Carrying Capacity
Light Level
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Material
Aluminium/304 Stainless Steel
Capacity
250kg/300kgs etc
Usage
Small Home Lift Villa
Control
Platform Control, Post Control, Remote Control

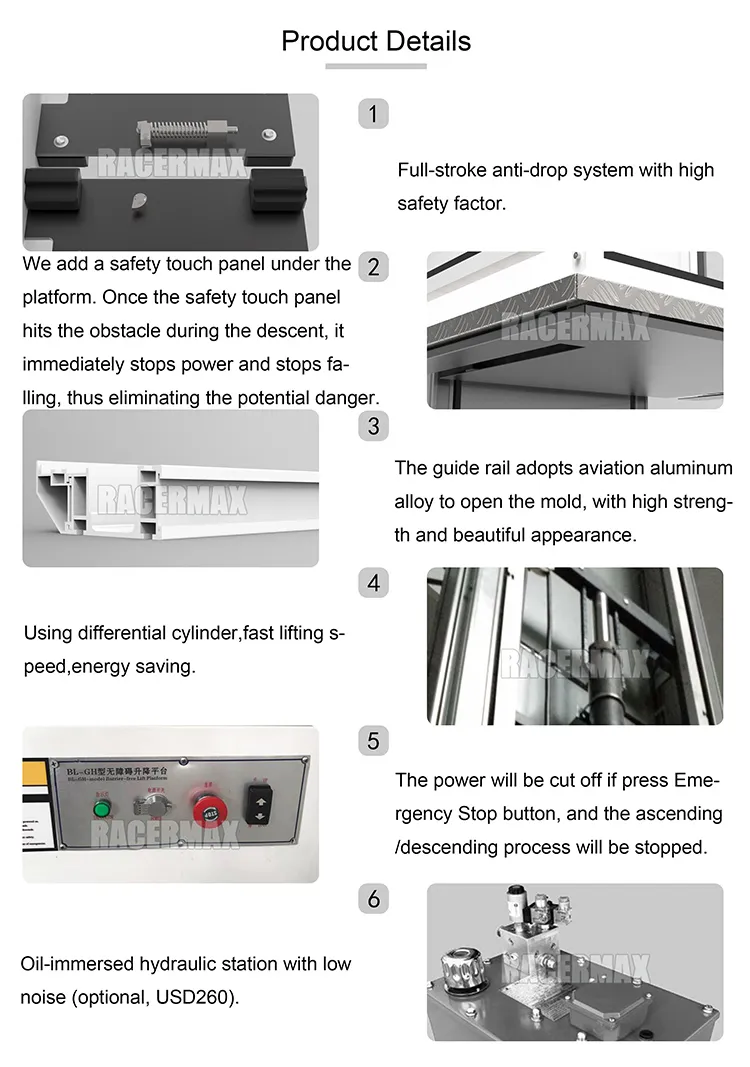

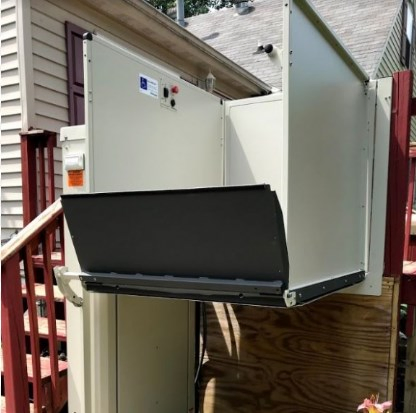

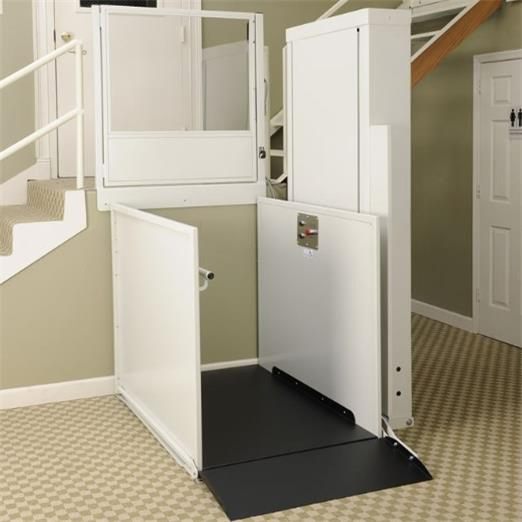

Product Description
✓ Platform Size: 1400*900 /1200*900 mm Or Customized
✓ Capacity: 250kgs/ 600lbs standard (up to 1100 lbs on certain models)
✓ Lifting Speed: 70mm/s
✓ Control System: Programmable microprocessor control system
✓ Stops: 2-8 stops with up to 50 feet of travel
✓ Customization: Custom cab to match home decoration; Customizable cab size
✓ Pit: Customized pit requirements

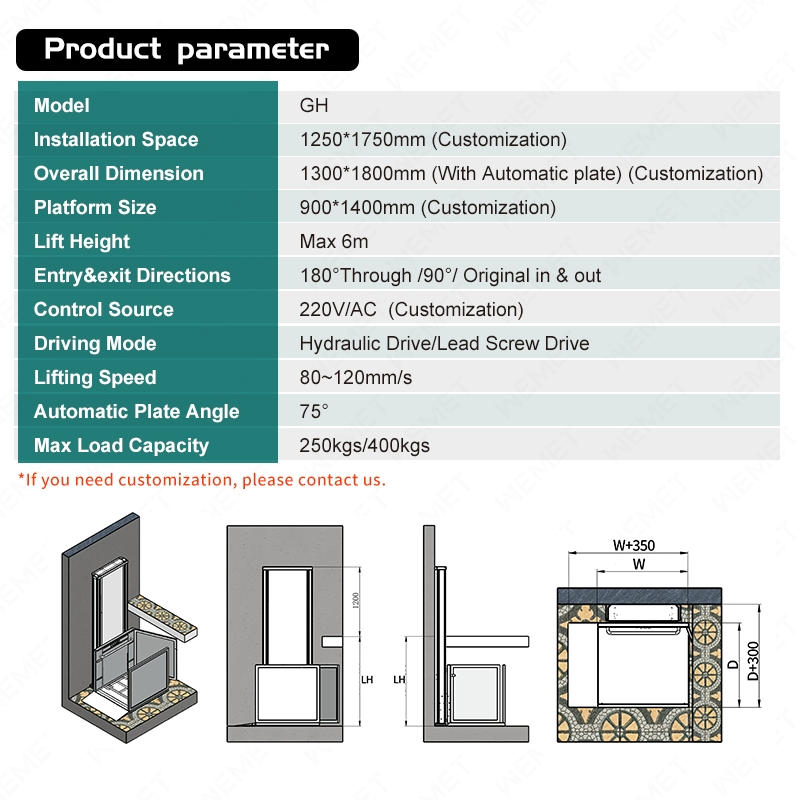

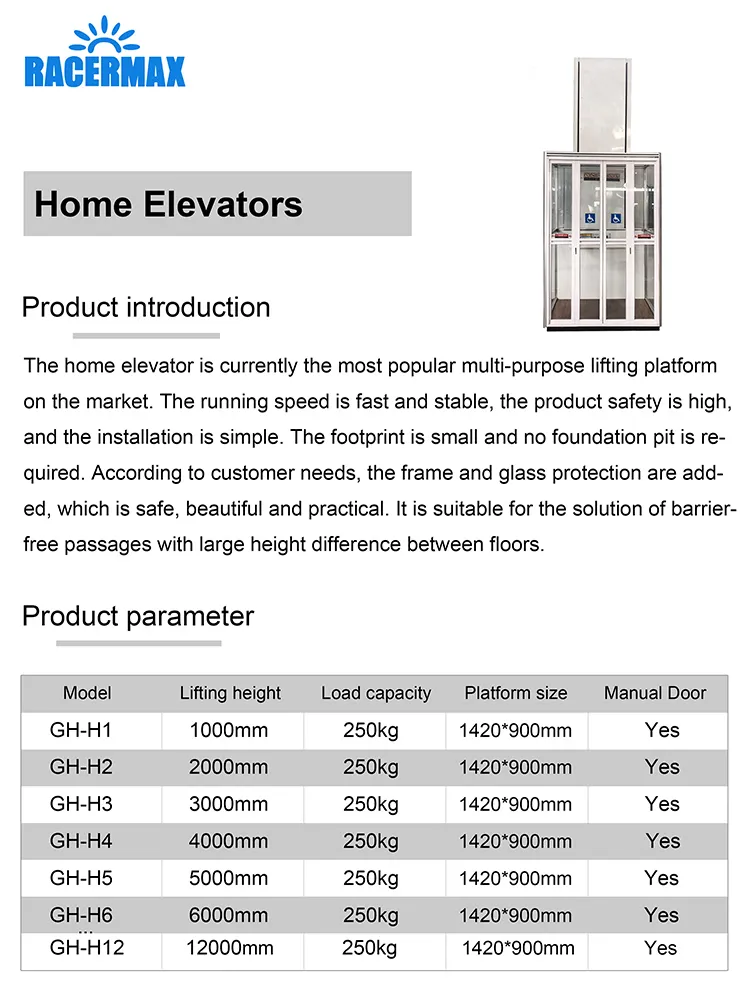

Technical Data & Details

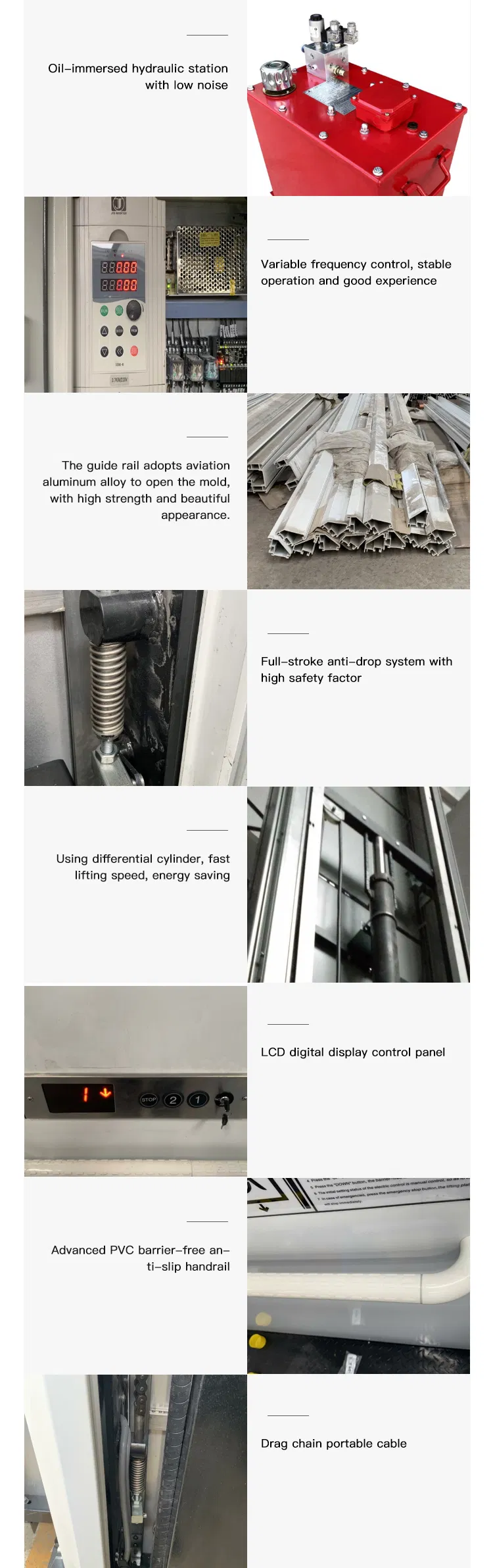

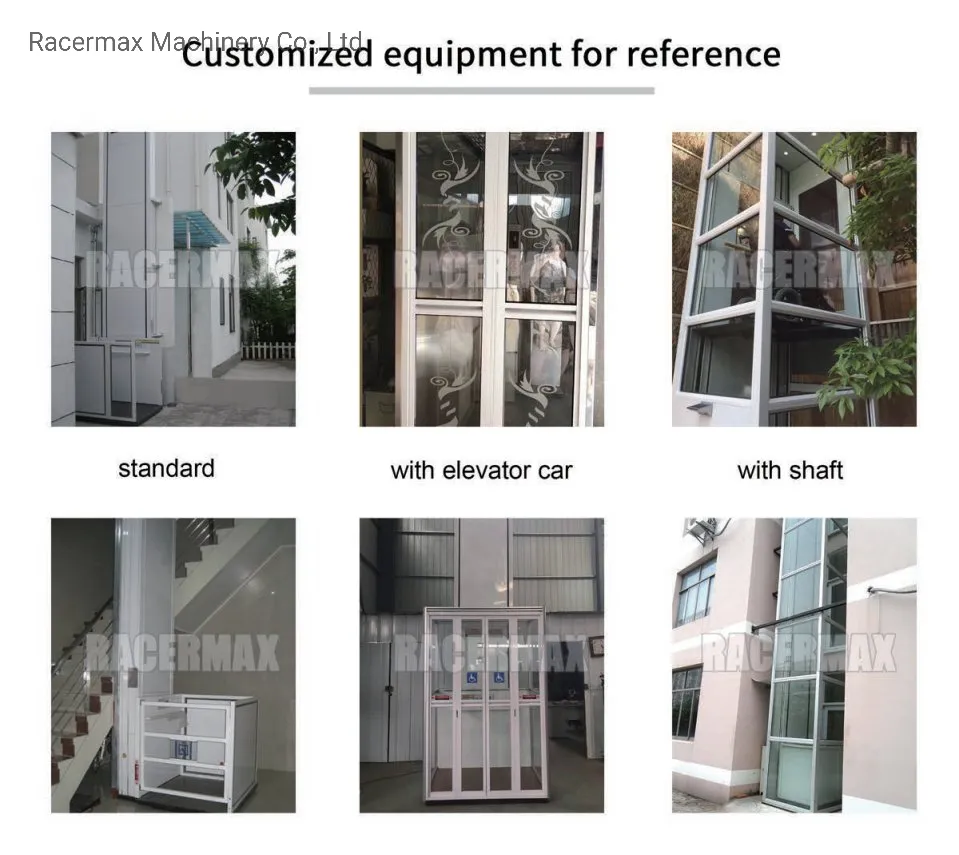

Customized & Optional Parts
Certificates & Packaging

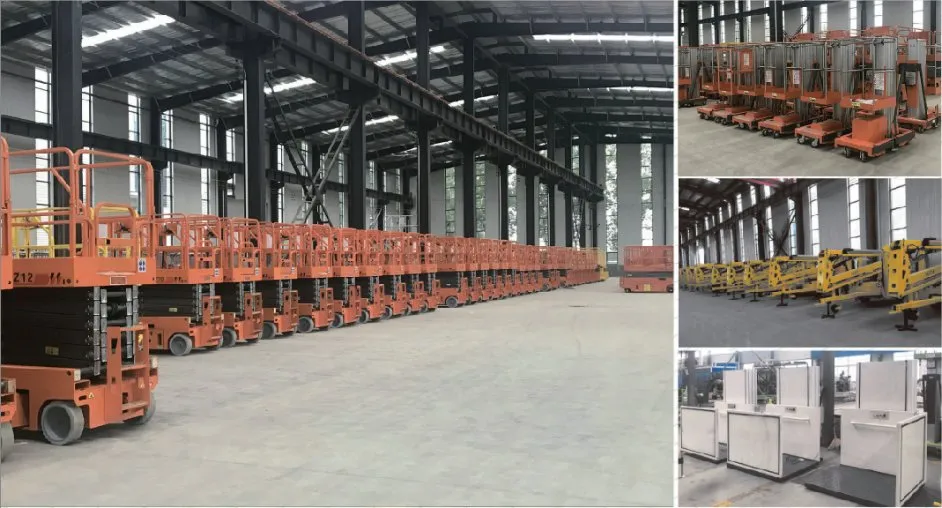

Product Range

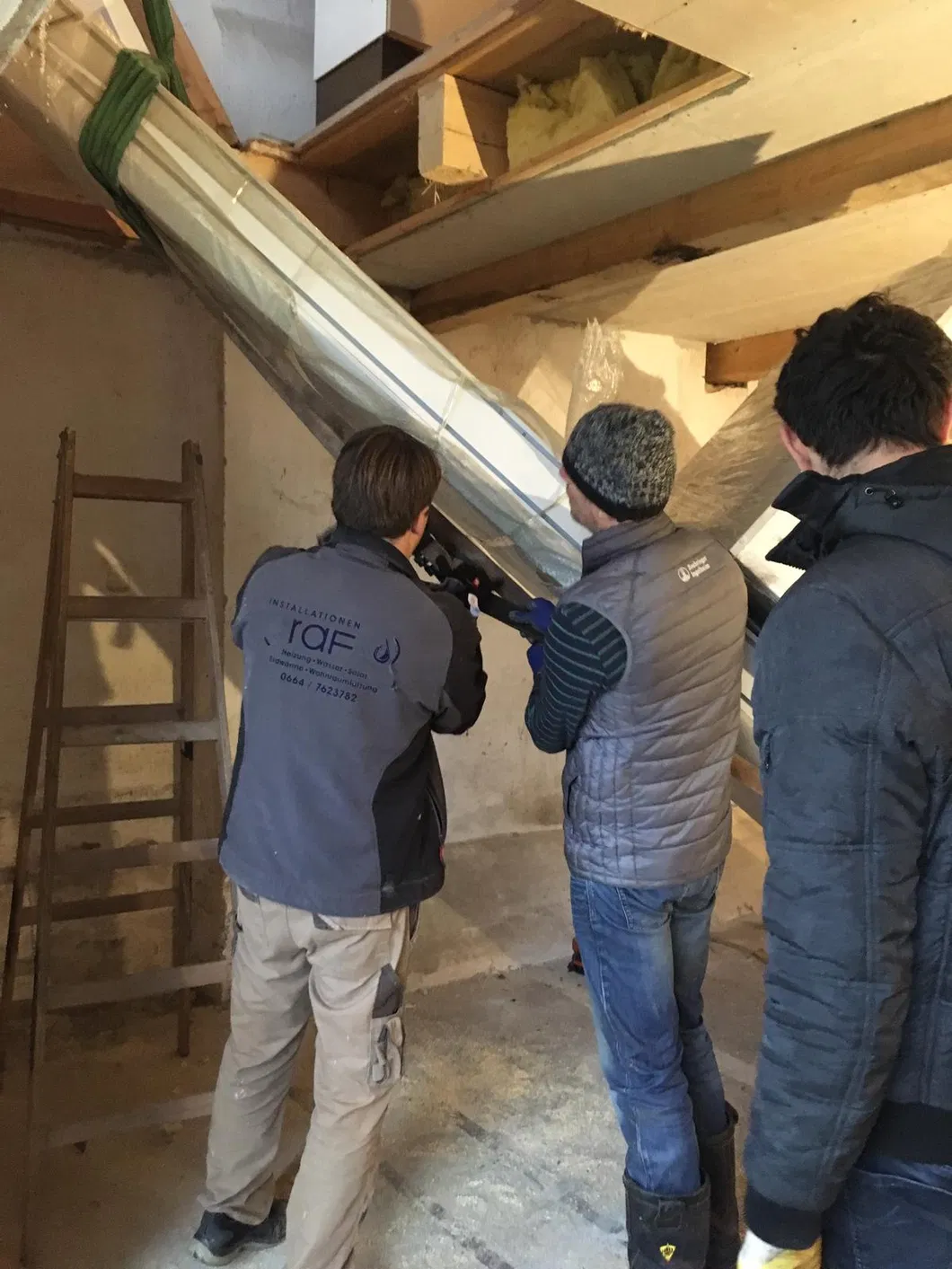

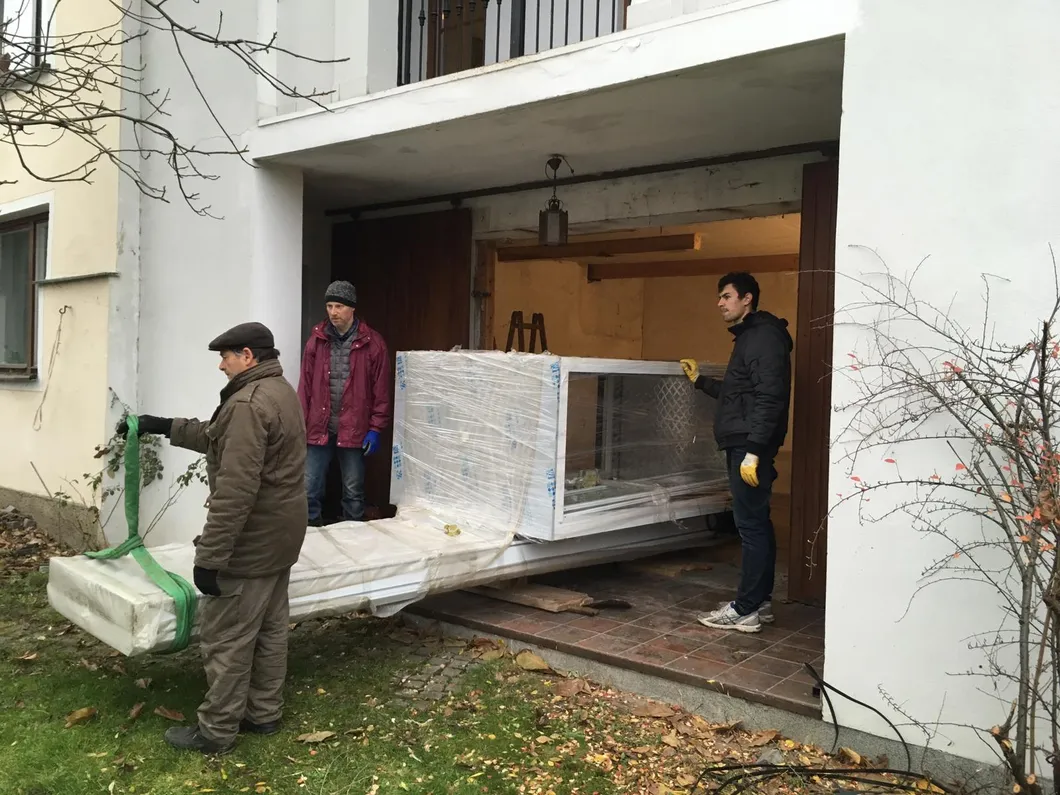

Customer Cases
Frequently Asked Questions
What is the weight capacity of this home elevator?
The standard lifting capacity is 250kg to 300kgs (approx. 600lbs), but certain models can be customized to handle up to 1100 lbs.
Can the platform size be customized for my home?
Yes, while our standard sizes are 1400*900mm and 1200*900mm, we provide fully customized platform and cab sizes to match your specific requirements.
What type of drive system does this lift use?
This home lift utilizes a hydraulic driven system, which ensures smooth operation and a lifting speed of approximately 70mm/s.
Does this elevator require a deep pit?
The pit requirements are customizable. The design allows loads to be transferred to the pit floor through the guide rails, making it adaptable to various architectural designs.
What safety certifications do these lifts have?
Our lifts are manufactured under strict quality control and have obtained both European CE certification and ISO 9001 quality certification.
How many floors can this elevator serve?
The system supports 2 to 8 stops with a total travel distance of up to 50 feet, suitable for most residential villas and buildings.
