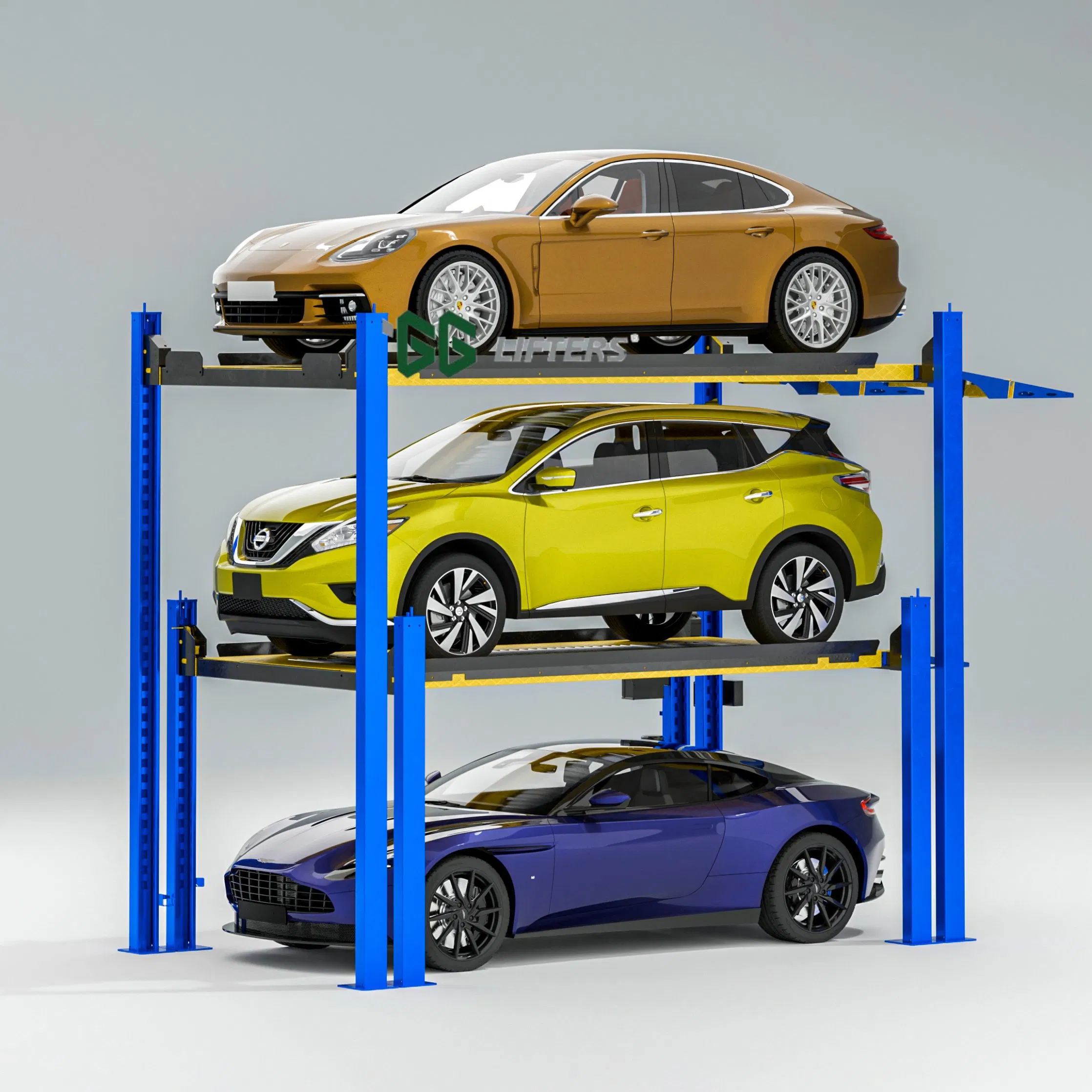

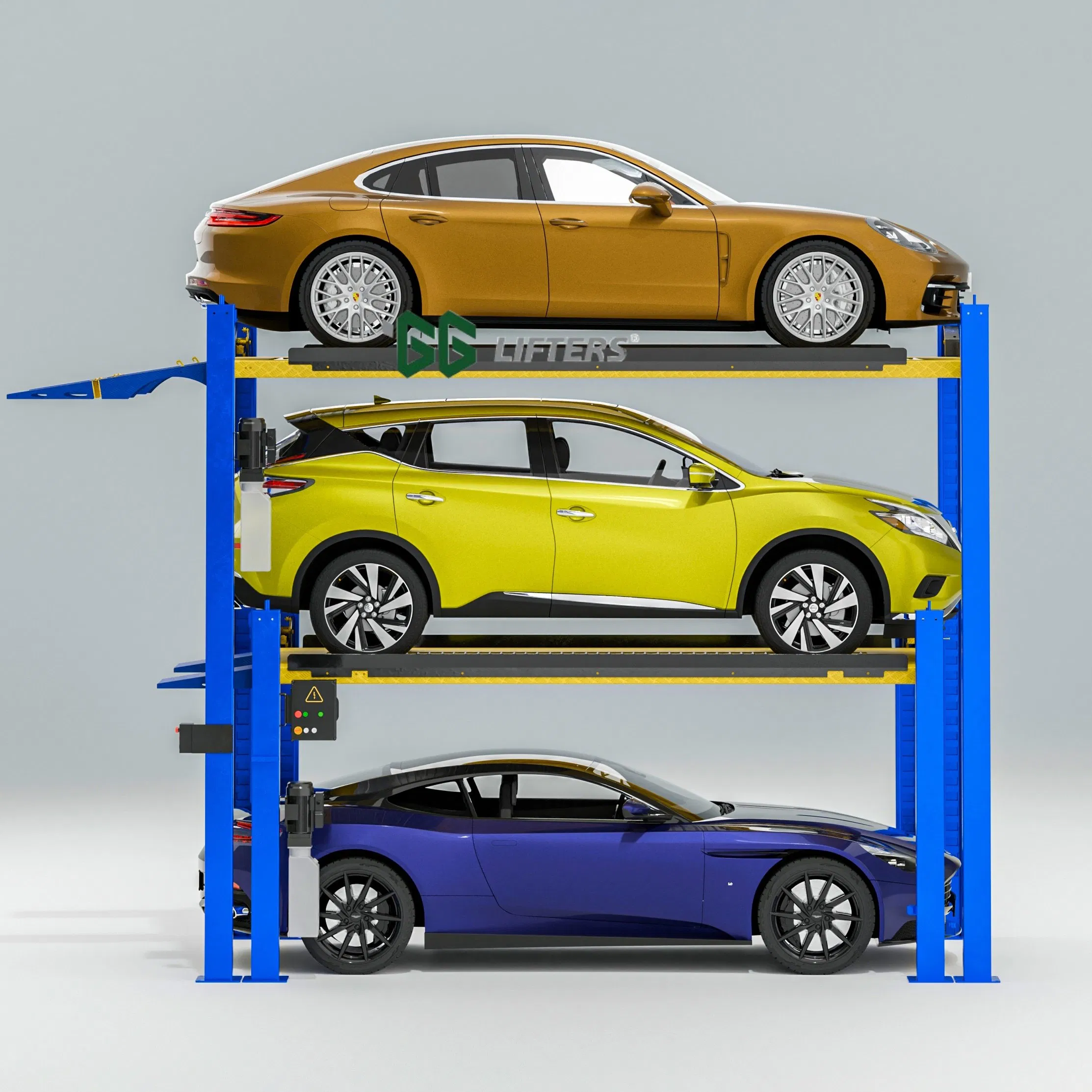

Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift
Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift
Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift
Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift
Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift
1 / 5
Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift
Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift
Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift
Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift
Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift

Automatic 4 post triple stacker parking system best price auto storage mechanic CE hydraulic vertical home garage parking lift

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
PEP54/3500
Capacity
2700kg+3600kg
Lifting Height
1800/3500 mm
Material
Steel
Type
Parking Lift
Vehicle Compatibility
Sedans, SUVs
Driving
Hydraulic
Voltage
220V/380V/2.2kw
Certification
CE, ISO, CCC, SGS

Product Description

Automatic 4 post triple stacker car lift platform best price smart auto storage mechanic CE hydraulic vertical home commercial garage vehicle parking system

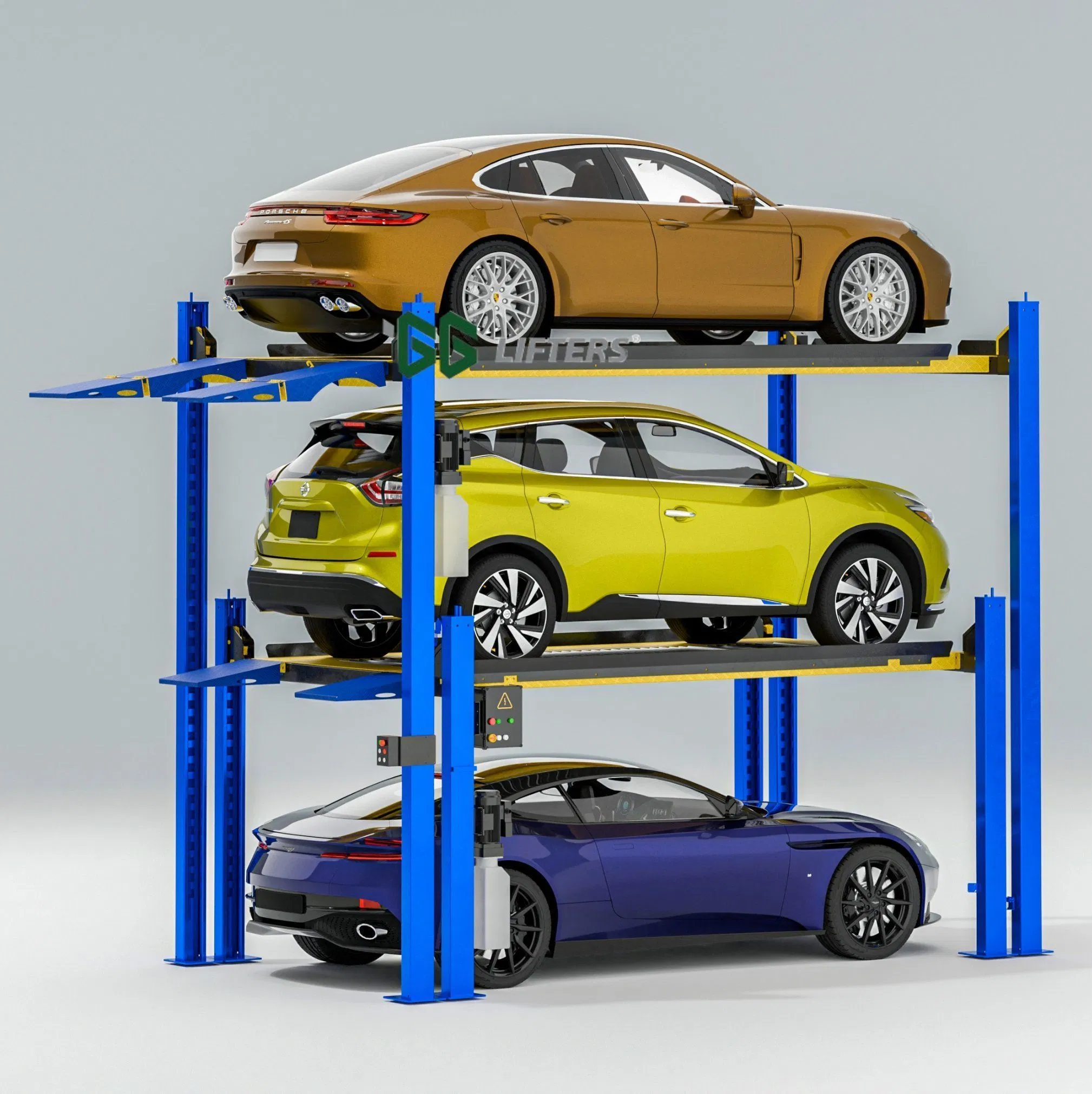

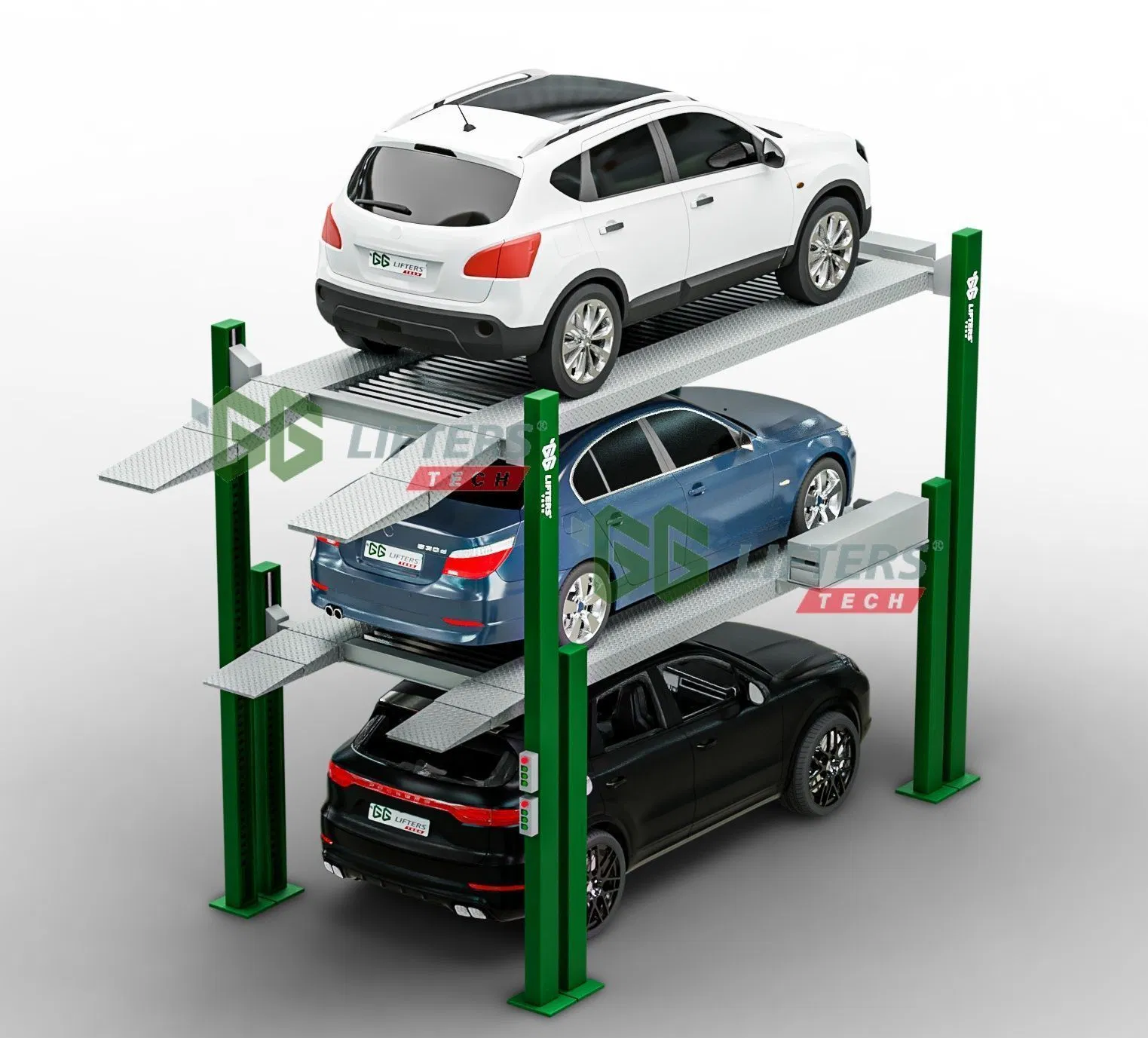

Triple stacker parking system
Parking lift detail
ModelPEP54 /3500
Lifting capacity2700 kg / platform, and 5400 kg totally
Net lifting Height1800/3500 mm
Unit External dimensions6575 *2752*4065 mm
Platforms Length x WidthLower : 4198 x 1966 mm & Upper : 4780 x 1966 mm
Runway typeCheckered steel plates

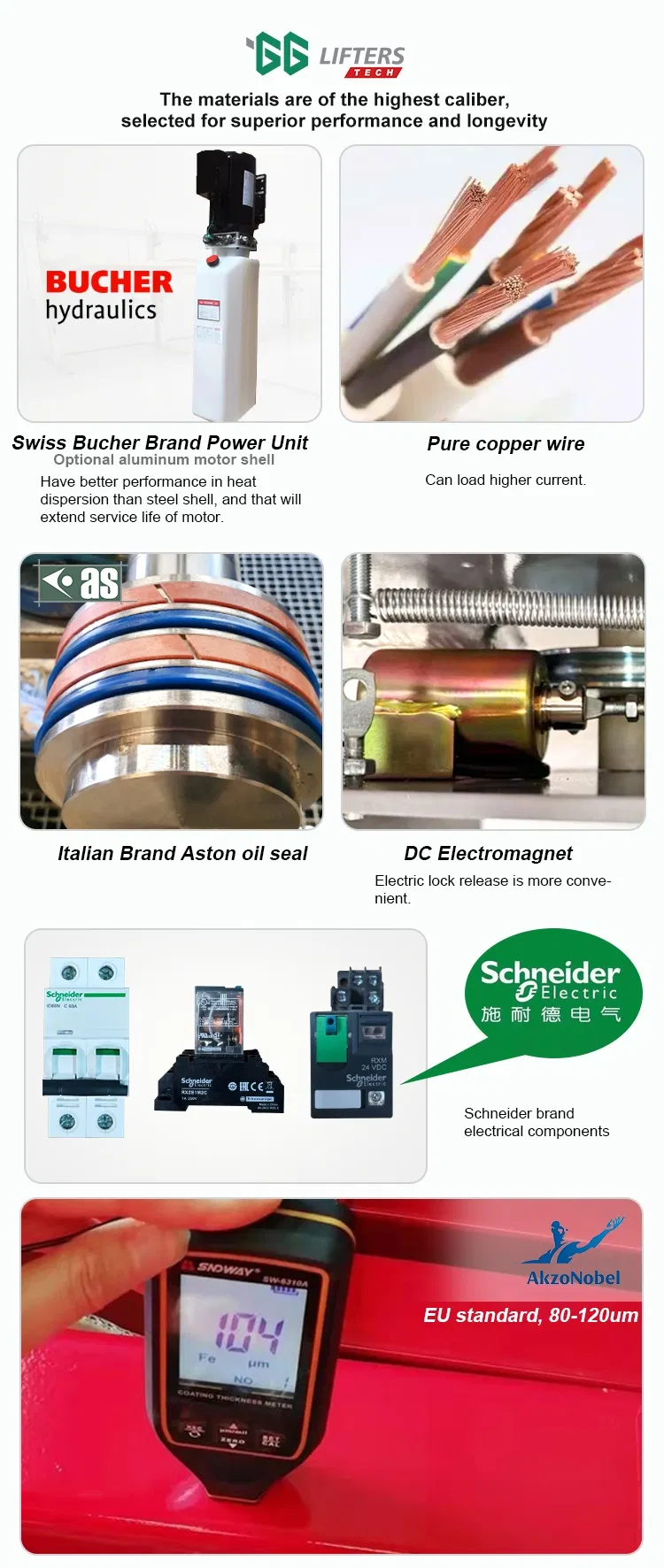

Electric partsOriginal Chint
Oil seals in cylinderAston , Italy
Lock release typeElectromagnetic lock release

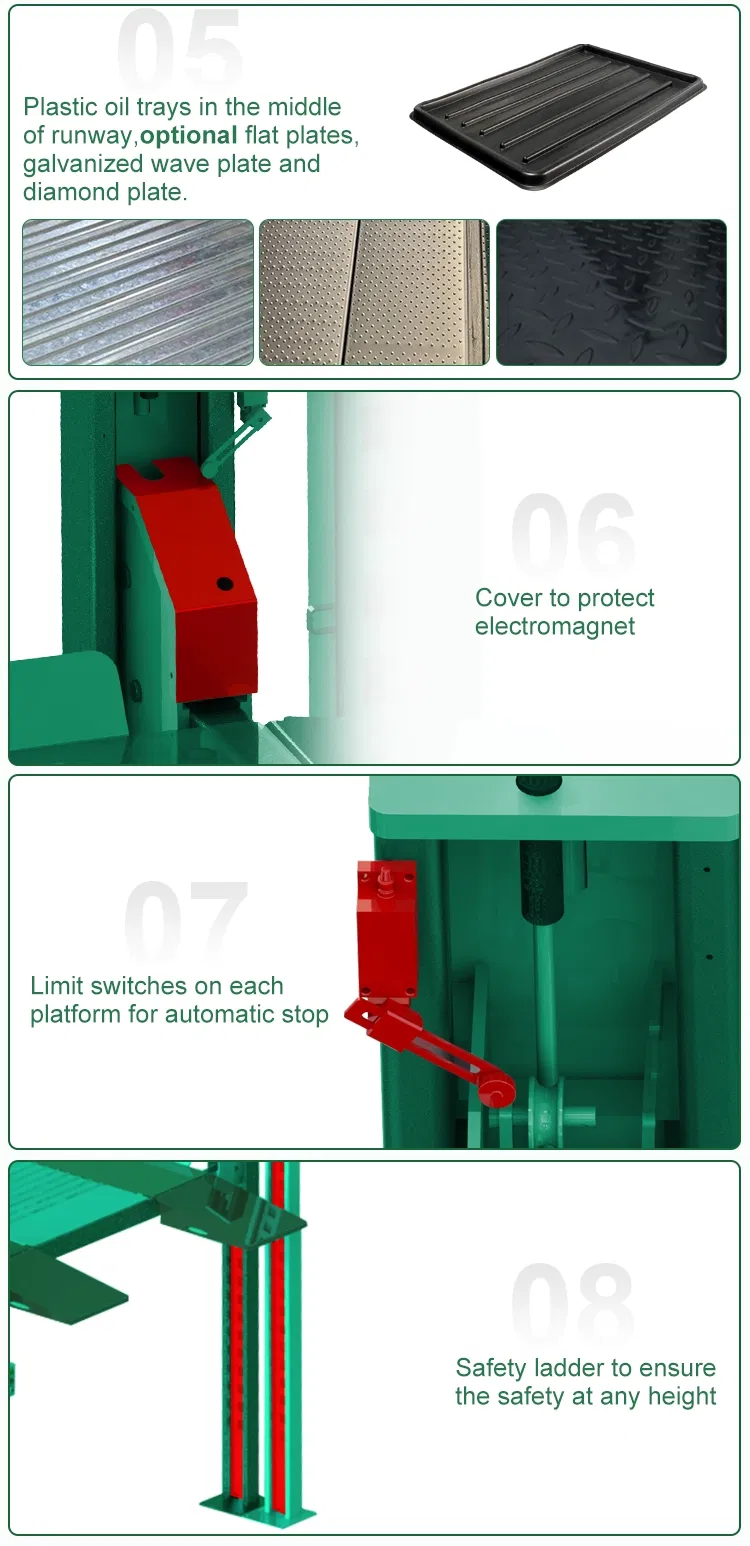

Middle in the runway4 ea plastic oil trays in the middle of runway
Type of rampFoldable ramps

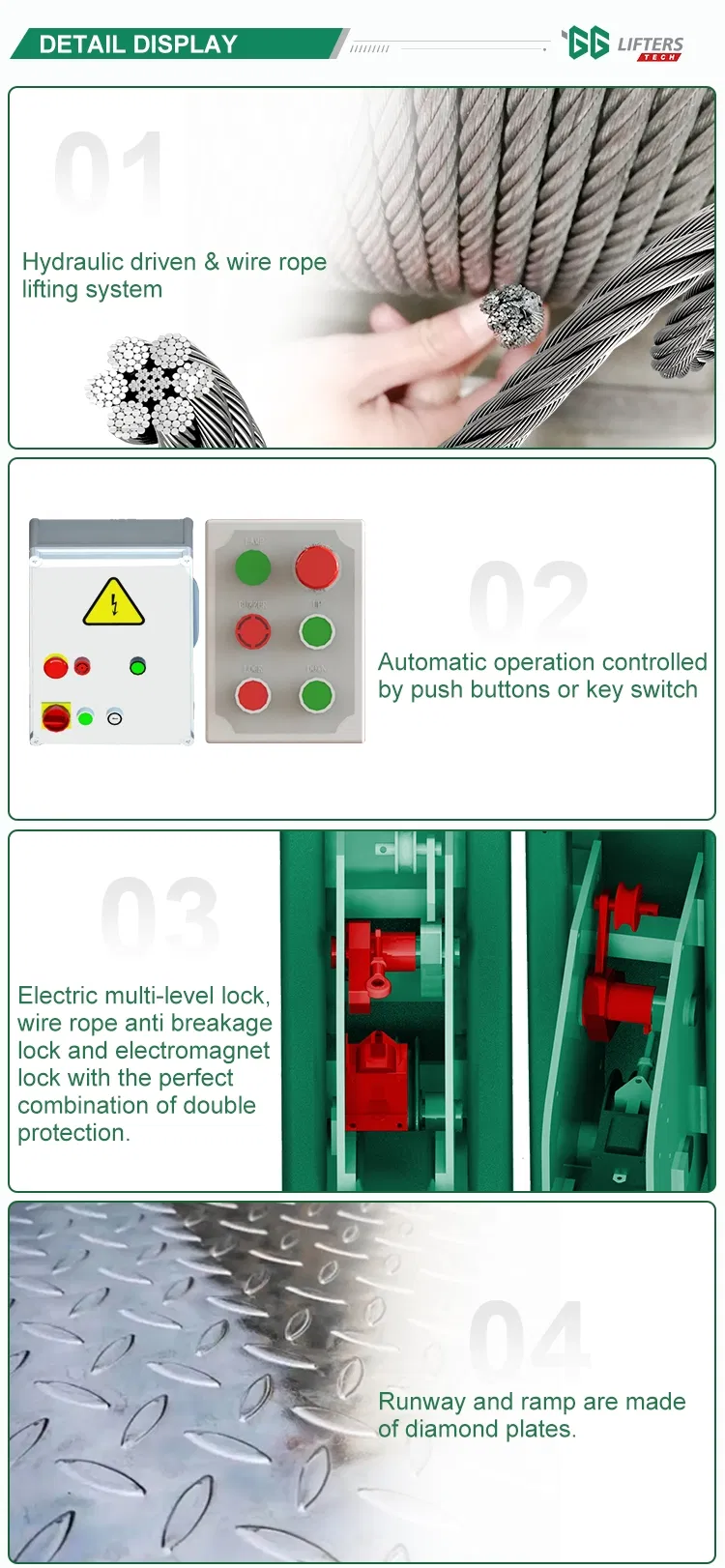

Safety DevicesAdjustable safety lock ladder & steel wire rupture activation
Operation TypePush buttons on operation box
Power Supply380/ 220 V , 50/60 Hz , 1/3 Ph
Motor Capacity2 separate units each is 2.2 Kw.

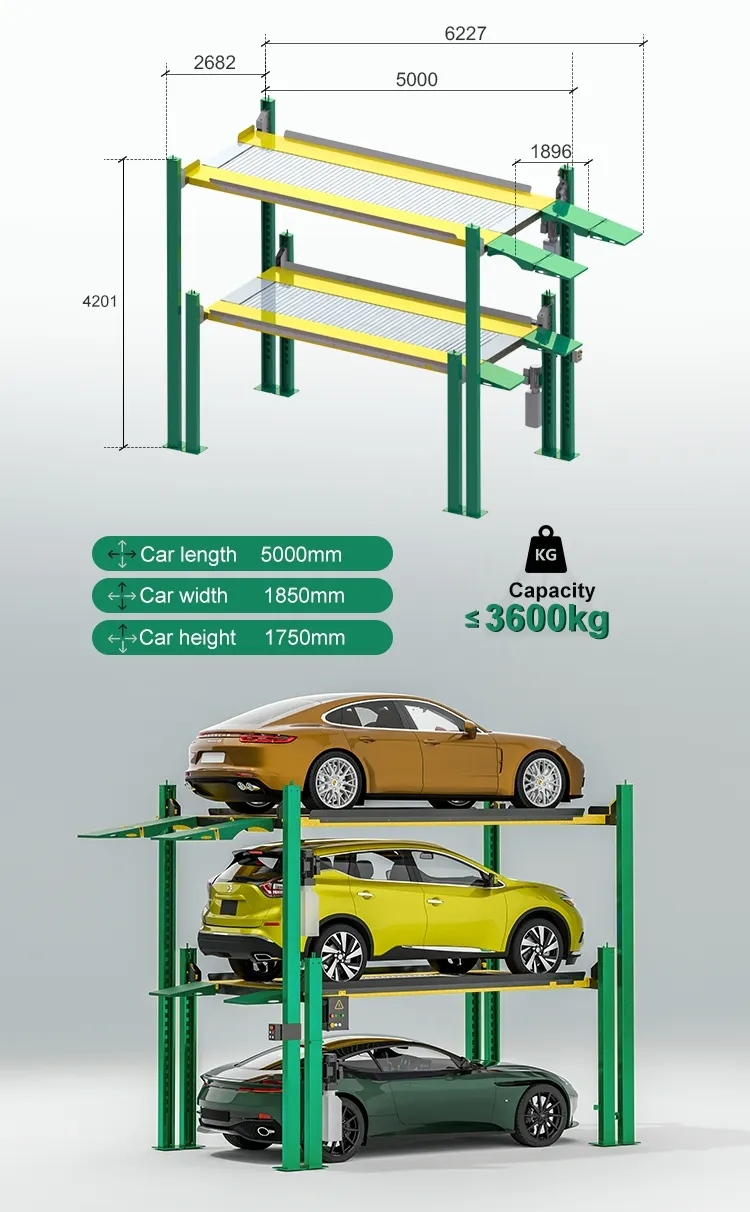

4 post lift details
Parking system installation
Hydraulic vertical parking
Vehicle storage solution
Auto storage mechanic
Garage vehicle parking system
Smart auto storage
Commercial garage lift
Triple stacker mechanics
Automatic parking platform
Vehicle lift structure

Frequently Asked Questions

What is the total lifting capacity of this triple stacker system?
The system provides a lifting capacity of 2700kg per platform, totaling 5400kg across the stacked units, suitable for both sedans and SUVs.
What safety features are included in the PEP54/3500 model?
Safety is prioritized with automatic safety locks, an emergency stop button, overload protection, and a specialized safety device that activates in case of steel wire rupture.
Can this parking lift be installed outdoors?
Yes, the system is designed for both indoor and outdoor installation, making it versatile for home garages or commercial parking lots.
What type of power supply is required for operation?
The system supports a power supply of 220V or 380V (50/60 Hz, 1/3 Phase) and utilizes two separate 2.2 Kw hydraulic motor units.
What is the warranty period for this vehicle lift?
The product comes with a comprehensive warranty: 2 years for electrical components and 5 years for the steel frame structure.
Are the platform dimensions customizable for different vehicles?
The standard lower platform is 4198 x 1966 mm and the upper platform is 4780 x 1966 mm, which effectively accommodates most standard Sedans and SUVs.
