Dave Lift
Dave Lift

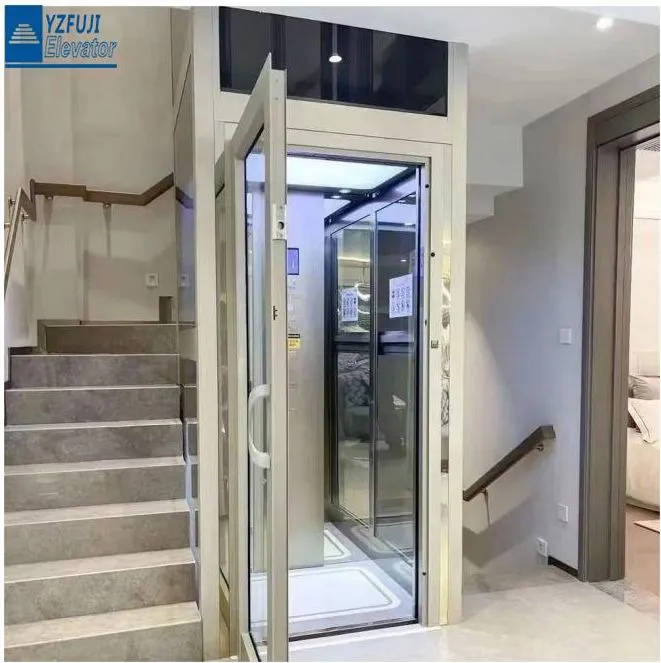

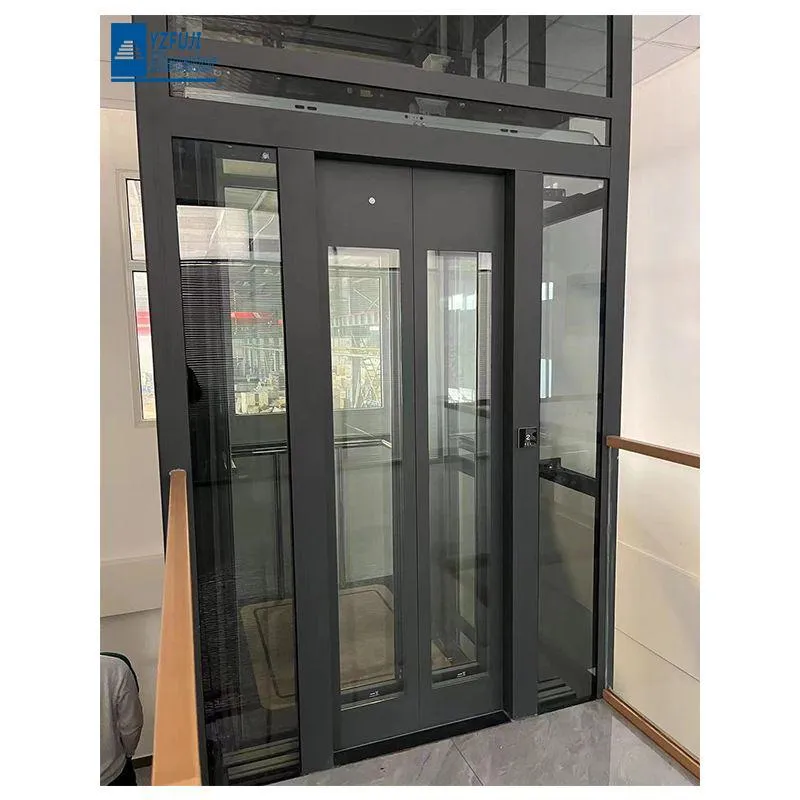

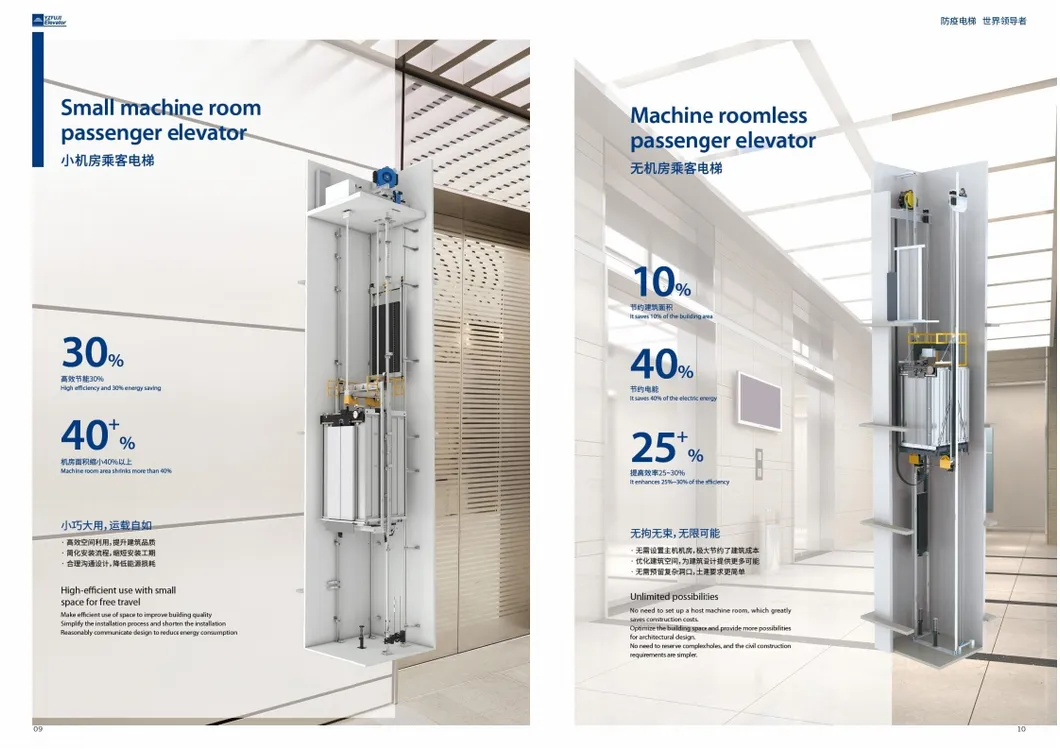

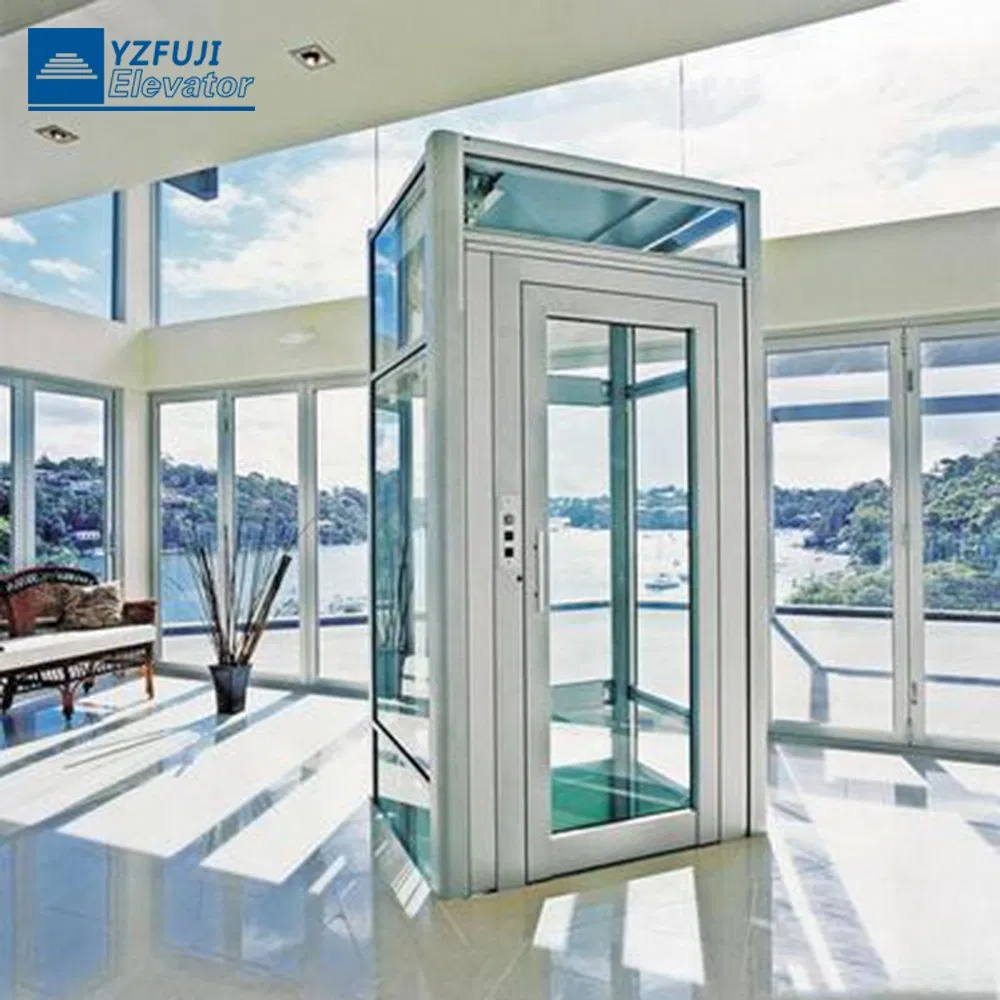

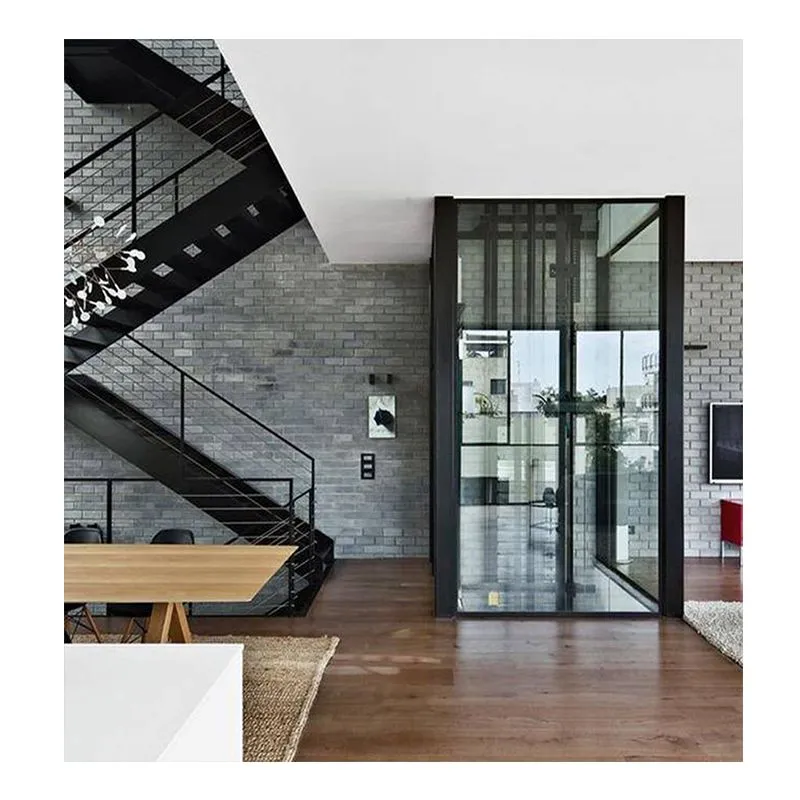

With the advancement of science and technology, the MRL (Machine Room-Less) elevator was created to be added to the interior without destroying the original appearance of buildings. This technology achieves permanent magnet gearless traction after rigorous trials and experiments.
Adopting VVVF control technology and permanent magnet synchronous motor technology, saving energy and protecting the environment. This multi-functional home elevator product is a competitive solution for the renovation of buildings due to its high efficiency and lightweight design.
| Capacity (Kg) | Person | Speed (m/s) | Entrance (mm) | Clear Car Dim (mm) | Hoistway Dim (mm) | Pit Depth (mm) | Overhead Height (mm) |
|---|---|---|---|---|---|---|---|
| 450 | 6 | 1.0-1.5 | 700 | 1200x1100 | 1800x1800 | 1500 | 4400 |
| 630 | 8 | 1.0-1.5 | 800 | 1400x1100 | 2000x1800 | 1500 | 4400 |
| 800 | 10 | 1.0-2.0 | 800 | 1400x1350 | 2000x2050 | 1500 | 4400 |
| 1000 | 13 | 1.0-4.0 | 900 | 1600x1450 | 2200x2200 | 1500 | 4400 |

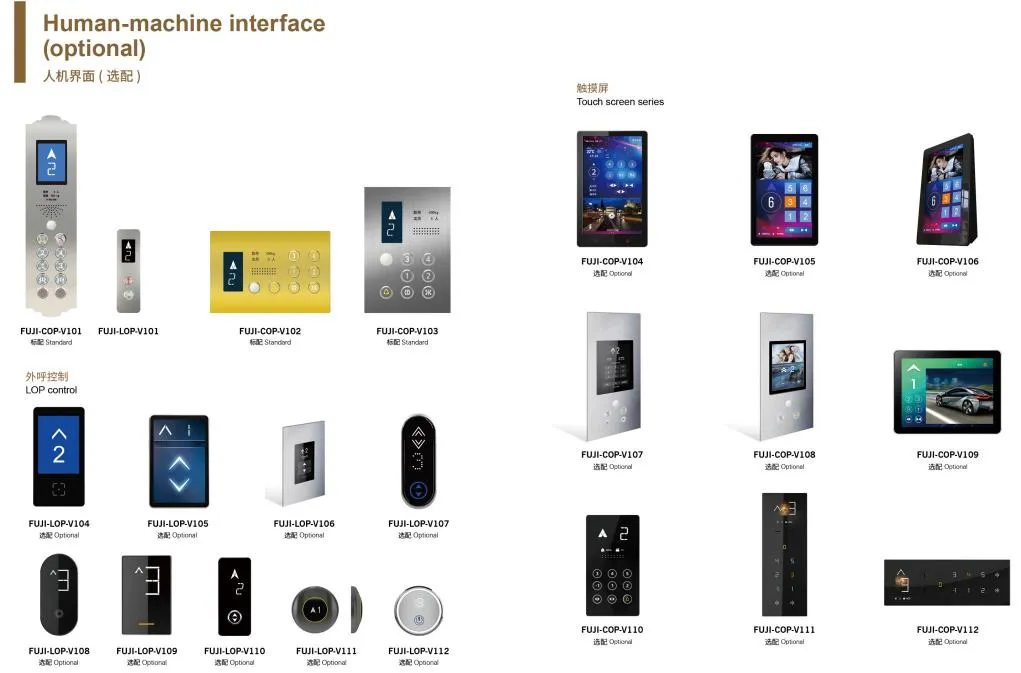

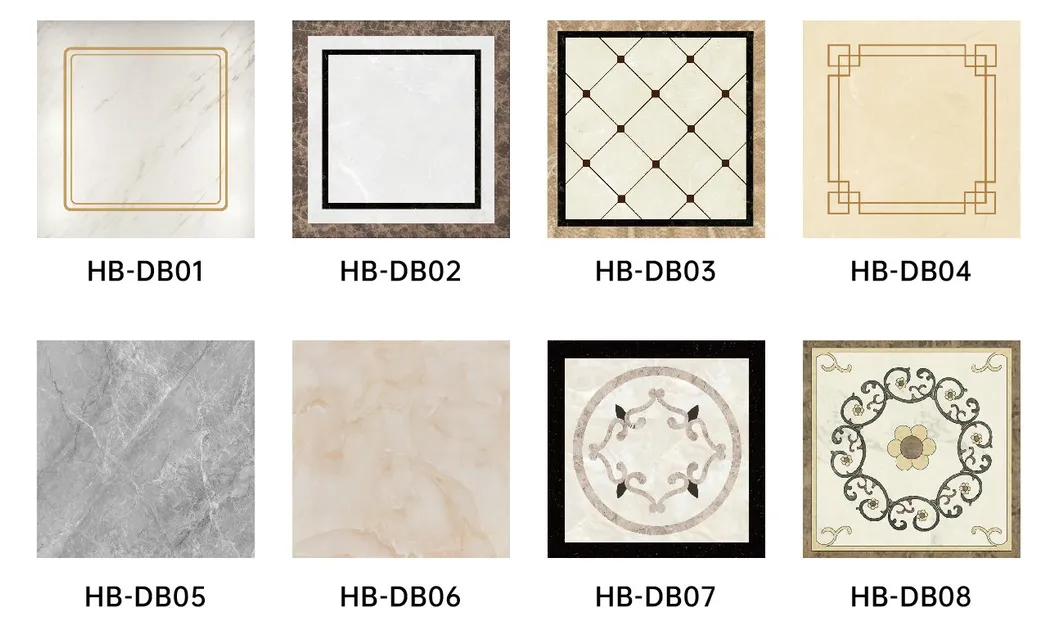

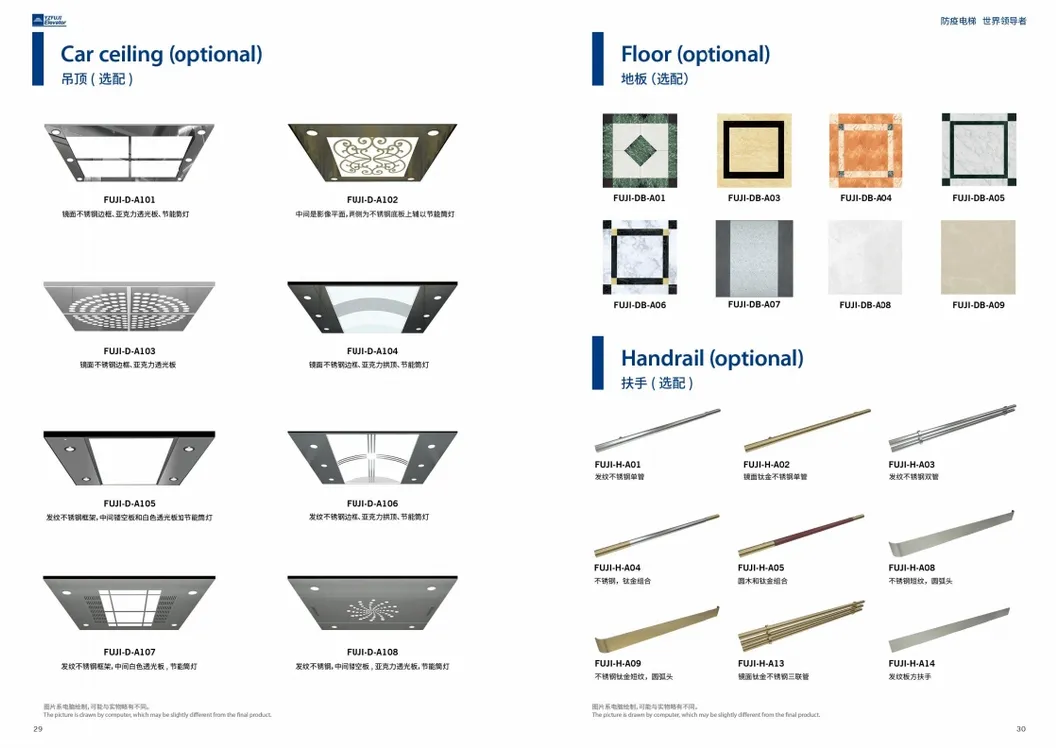

We provide special customized decoration options according to customer requests, catering to unique building styles.

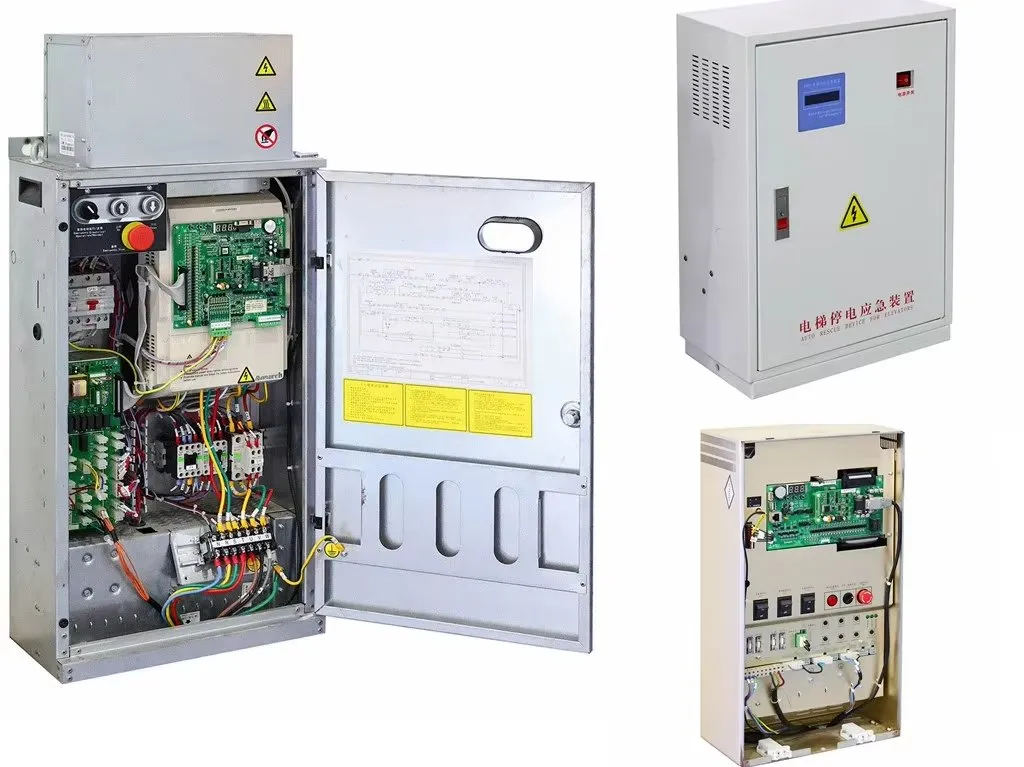

Integrated Control System: High-performance vector control technology and digital direct parking technology calculated for human comfort.

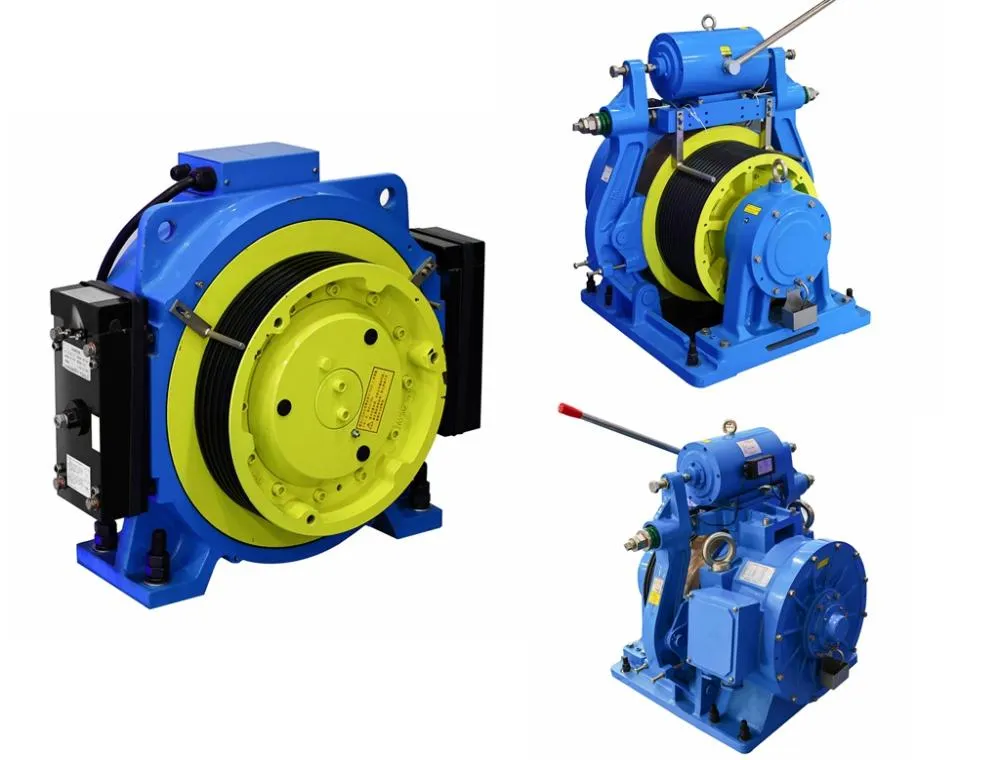

Permanent Magnet Motor: Saves more than 60% energy compared to traditional machines. Maintenance-free and ultra-quiet.

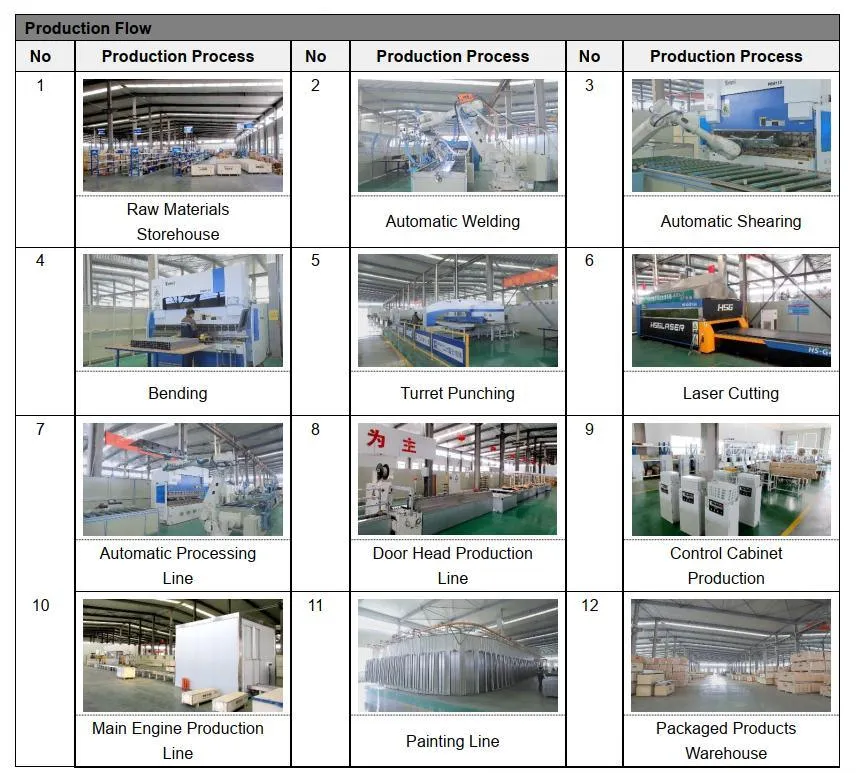

The intelligent production line utilizes advanced robotic systems for feeding, bending, and welding, ensuring the highest manufacturing accuracy and stability.

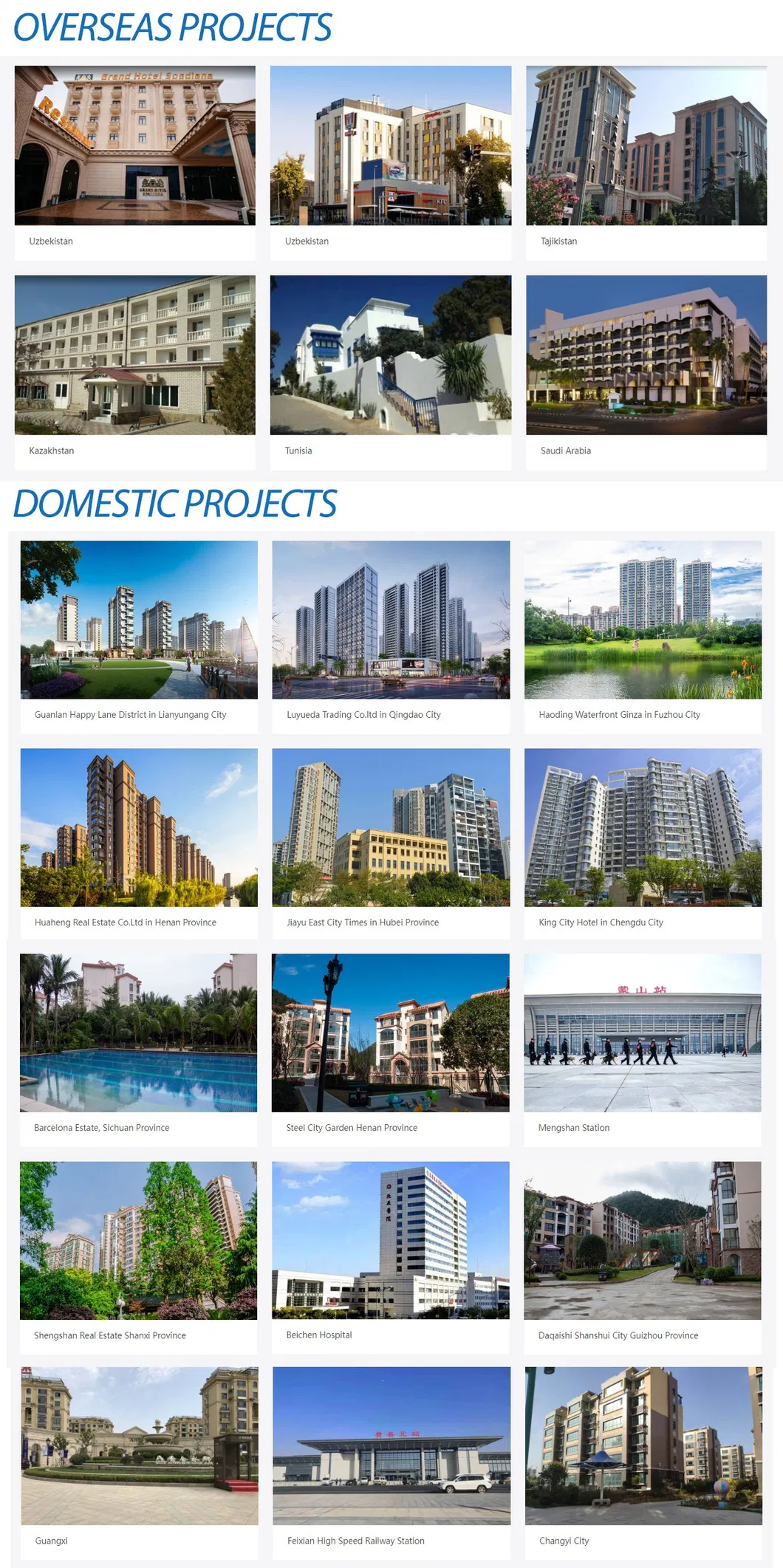

Equipped with ISO9001, CE, SGS, and multiple industry patents, serving as a high-end intelligent transportation equipment provider.

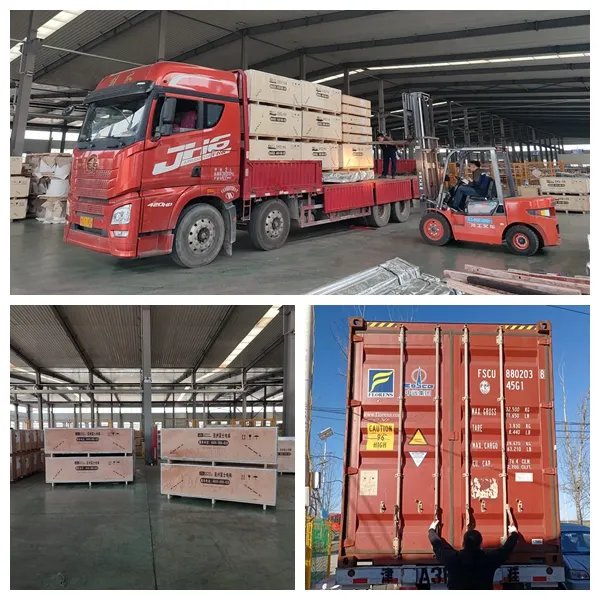

Elevator parts are packed into solid wooden cases with protective film. Our systematic loading method allows installation teams to work efficiently on-site without opening all crates at once.
24/7 online service with professional English-speaking engineers providing remote installation guidance.
We can dispatch engineers for on-site installation guidance and maintenance training for local workers.
