Dave Lift Dave Lift

Cargo Goods Freight Glass Sightseeing Panoramic Observation Home Medical Bed Wheelchair Stretcher Passenger Hospital Electric Lift Elevator

Customization: Available
After-sales Service: by Factory or Local Agent
Warranty: 18 Months After Shipment

Product Description

i

Basic Information

Model NO.16B004
Driving TypeAC Elevator
Capacity>1000kg
Persons11 - 19
Speed1.00 - 2.00m/s
Control ModeCollective Selective Control
Computer RoomUp
Elevator DoorCenter Opening
Elevator TypePassenger / Hospital Elevator
Production Time15~30 Days
StandardEn 81-20, En 81-50
Production Capacity11000 Sets Per Year

Product Description

Professional Solutions for Cargo, Goods, Freight, and Medical Facilities

Our company is dedicated to manufacturing high-quality and superior performance elevators and escalators in accordance with international and professional standards. Our facilities include specialized electronic, traction machine, door system, and assembly workshops equipped with full automatic production lines. We provide a comprehensive range of solutions including passenger elevators, freight elevators, panoramic elevators, hospital elevators, home lifts, and car lifts.

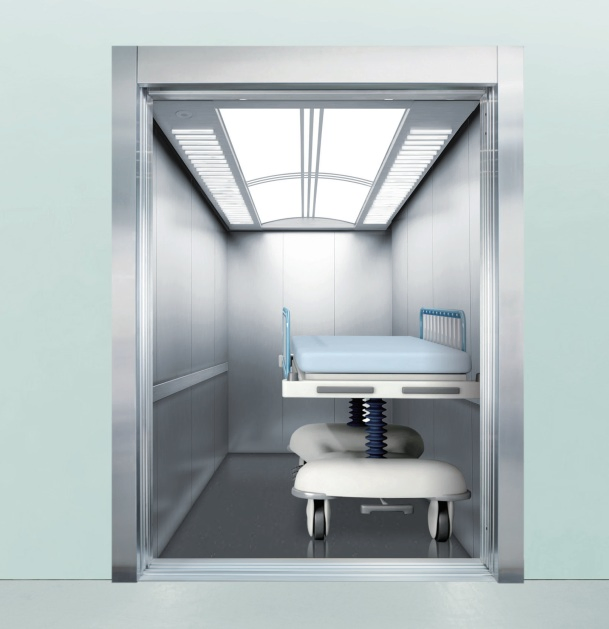

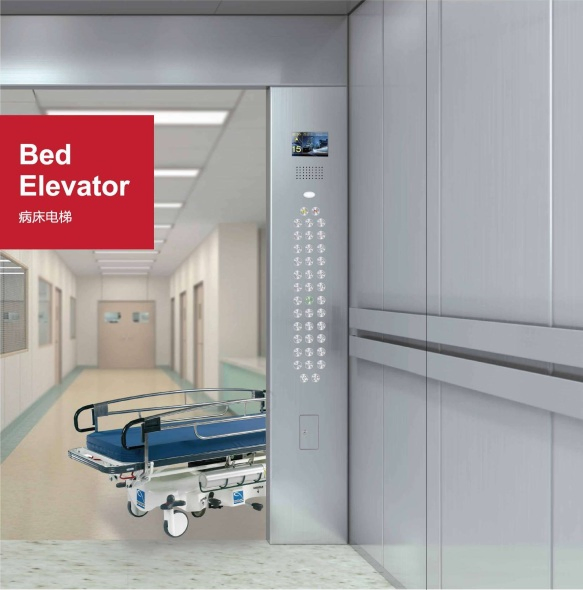

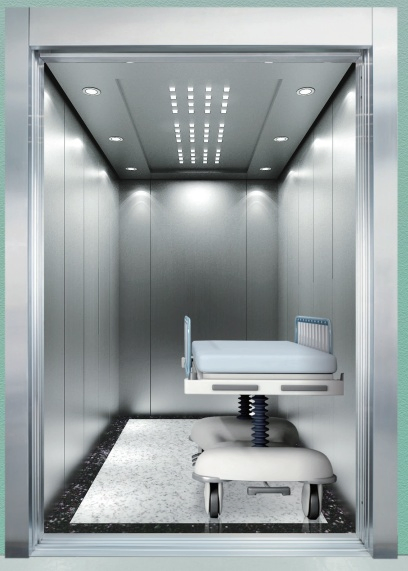

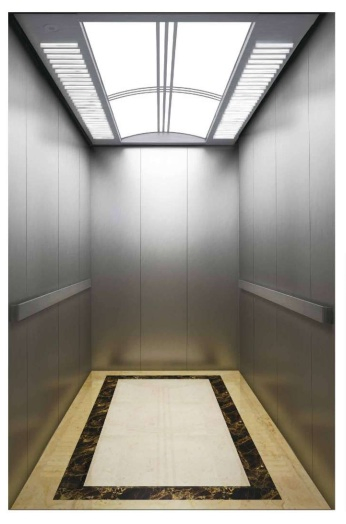

Bed Lift Cabin Design

Hospital Bed Lift Features

Focusing on human-oriented design, our elevators precisely control traveling speed and attentively provide comfortable space for passengers. Utilizing new data network control technology, we achieve intelligent running, maximize lift utilization, and reduce patient waiting time.

1. Safe and Reliable
Prioritizing safety to ensure every passenger's secure delivery to their destination.
2. Space Configurability
Innovative machine room layouts designed to improve space availability and save architectural room.
3. Energy Saving
Adopts gearless permanent magnet synchronous machines to protect the environment and reduce consumption.

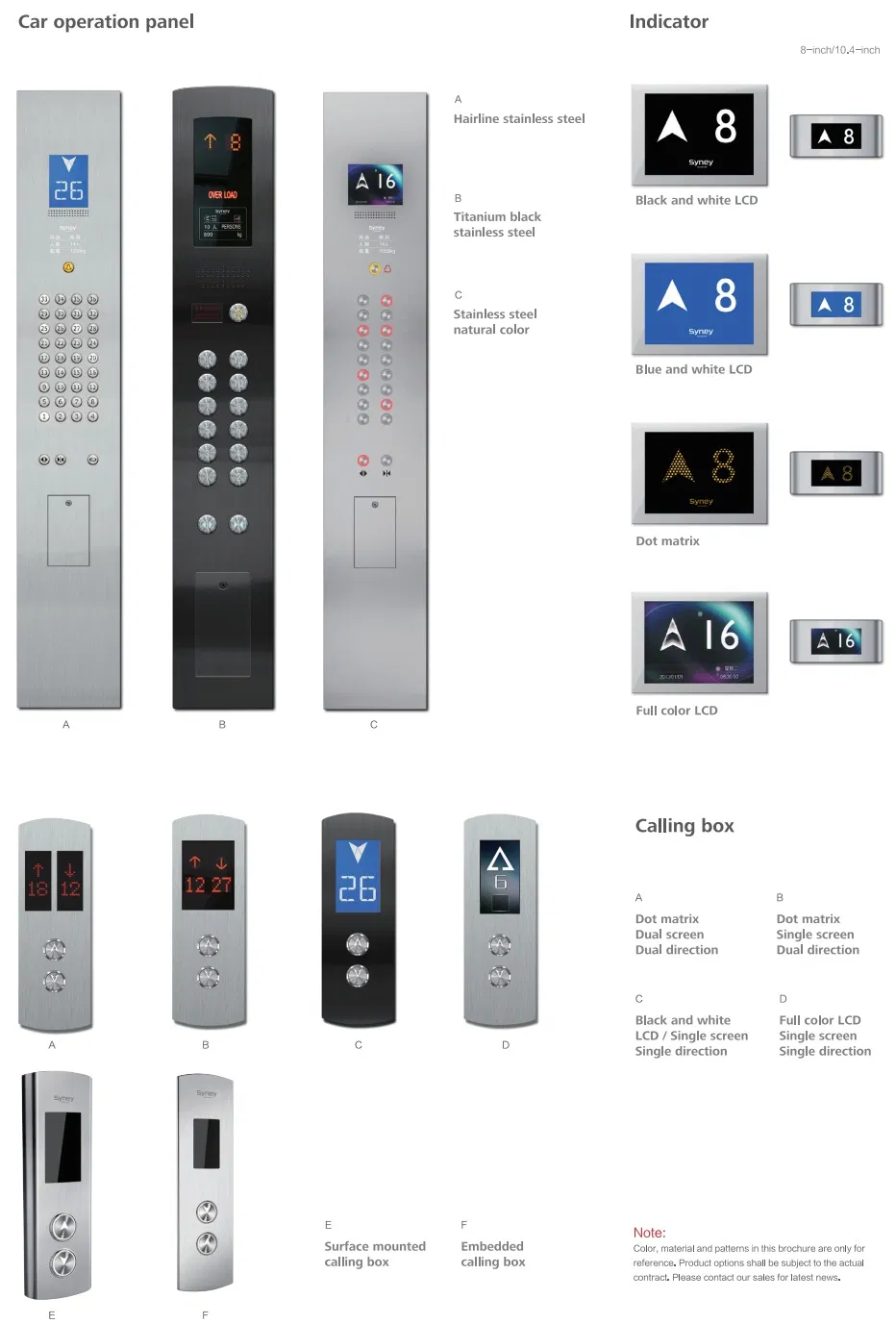

Elevator Detail 1
Elevator Detail 2
📋

Product Parameters

Capacity (kg) Speed (m/s) Cabin Size (CWxCD) Door Open (mm) Shaft Size (HWxHD) Pit Depth (mm) Overhead (mm)
1350 1.0 - 1.75 1300 x 2300 1000 2350 x 2800 1400 - 1700 4200 - 4700
1600 1.0 - 1.75 1400 x 2400 1100 2500 x 2900 1400 - 1700 4200 - 4700
1600 1.0 - 1.75 1400 x 2400 1200 2300 x 2900 1400 - 1700 4200 - 4700

Note: Above standard specification is only for reference. Custom designs are available based on jobsite shaft parameters.

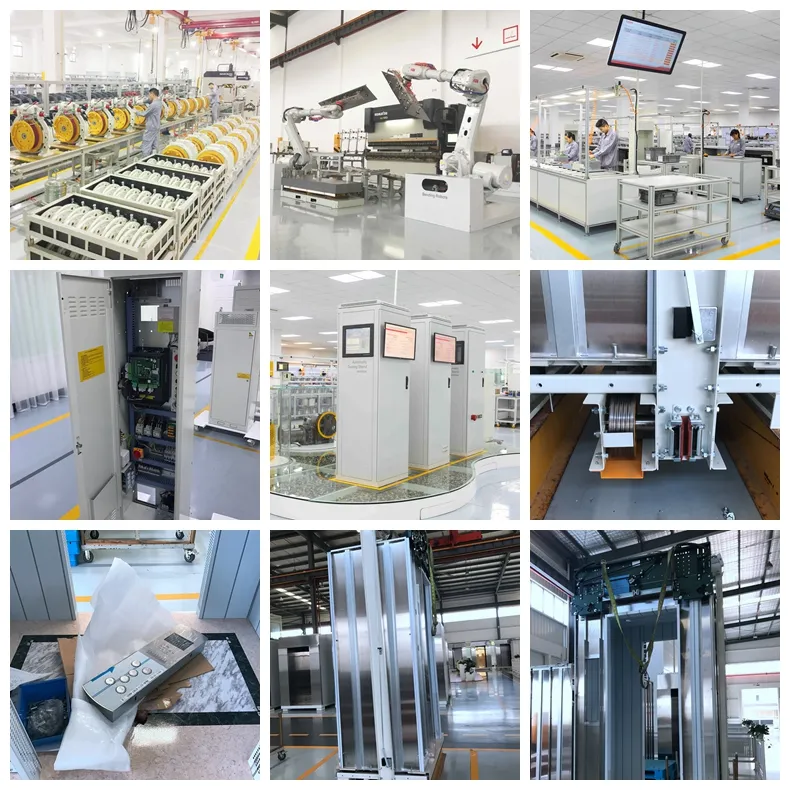

Manufacturing & Quality Control

We maintain a strict operation system from raw material intake to finished product delivery. All materials are checked by our QC department, and only qualified items enter the warehouse. Our production management includes weekly schedules and daily digital status boards in each workshop.

Raw Material: Zero tolerance for rejected materials. All parts must have certificates.

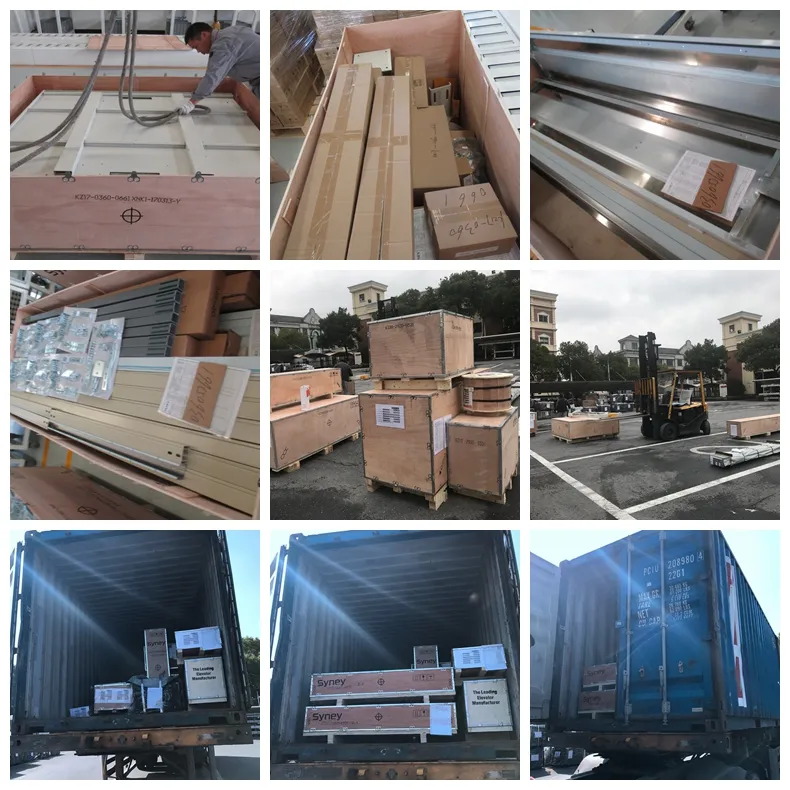

Packing: Solid plywood boxes suitable for long-term sea shipping, including film protection and desiccant for electronic parts.
Testing: Multi-stage QC checks including commissioning, motor-cabinet matching, and final loading inspections.
Manufacturing Process 1
Manufacturing Process 2

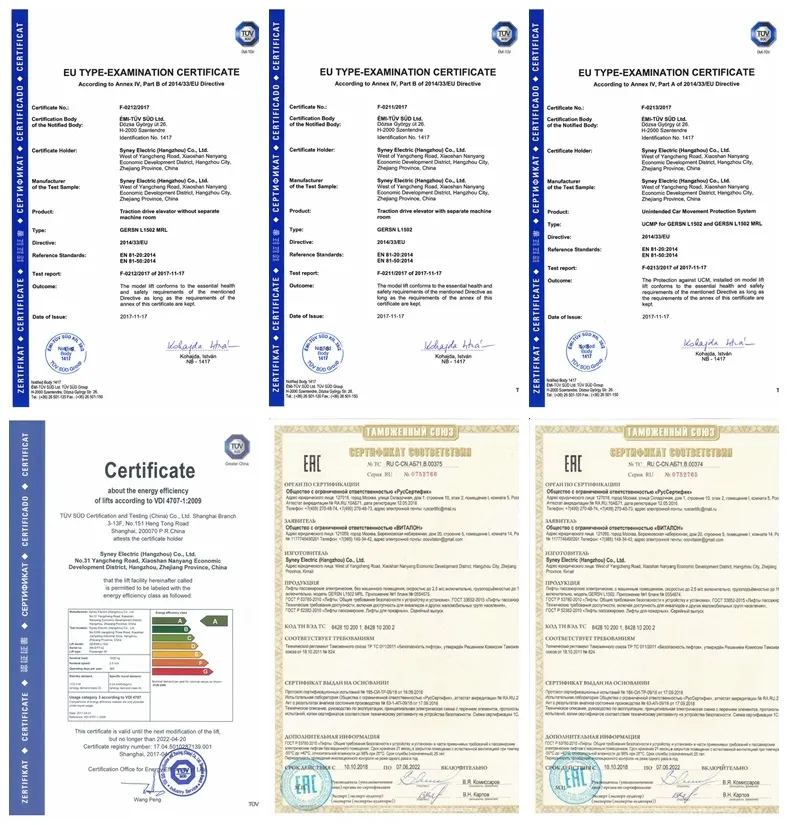

Certifications

Certifications

Our products meet the highest global safety standards, including the prestigious Germany TÜV SÜD certificate. This recognition indicates that our quality systems meet rigorous international requirements.

  • 🔹 CE Certificate for Machine Room Elevators
  • 🔹 CE Certificate for MRL Elevators
  • 🔹 Energy-efficiency Grade A Certification
  • 🔹 EAC Certification for Eurasian markets
🏗

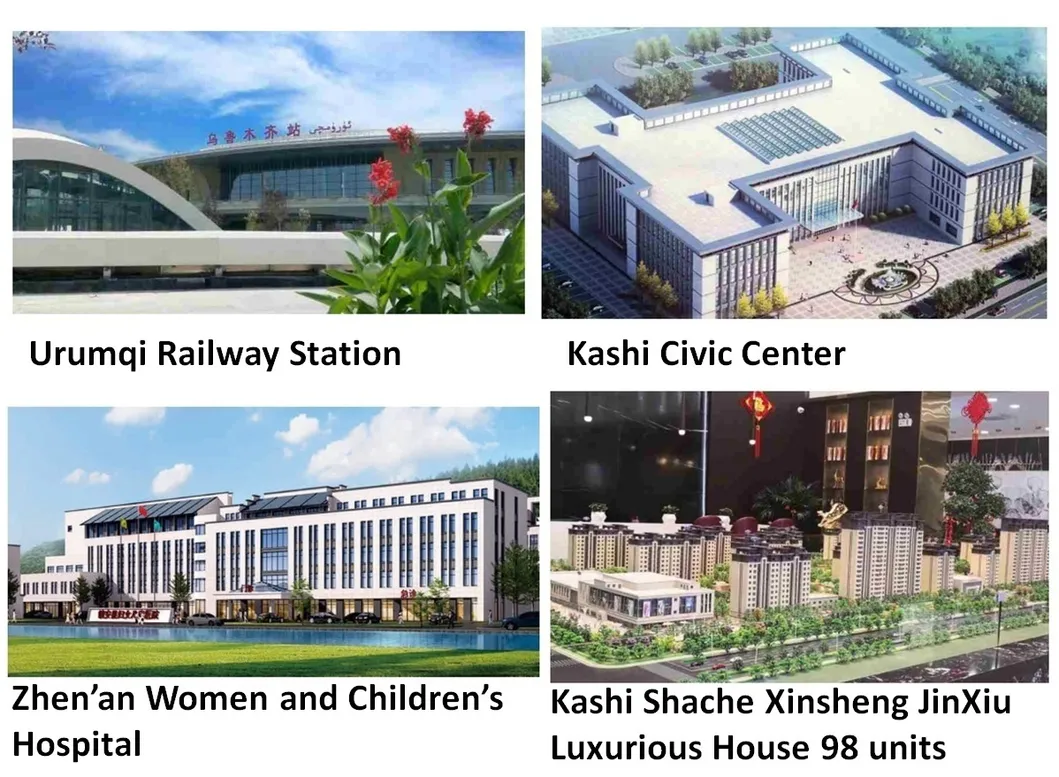

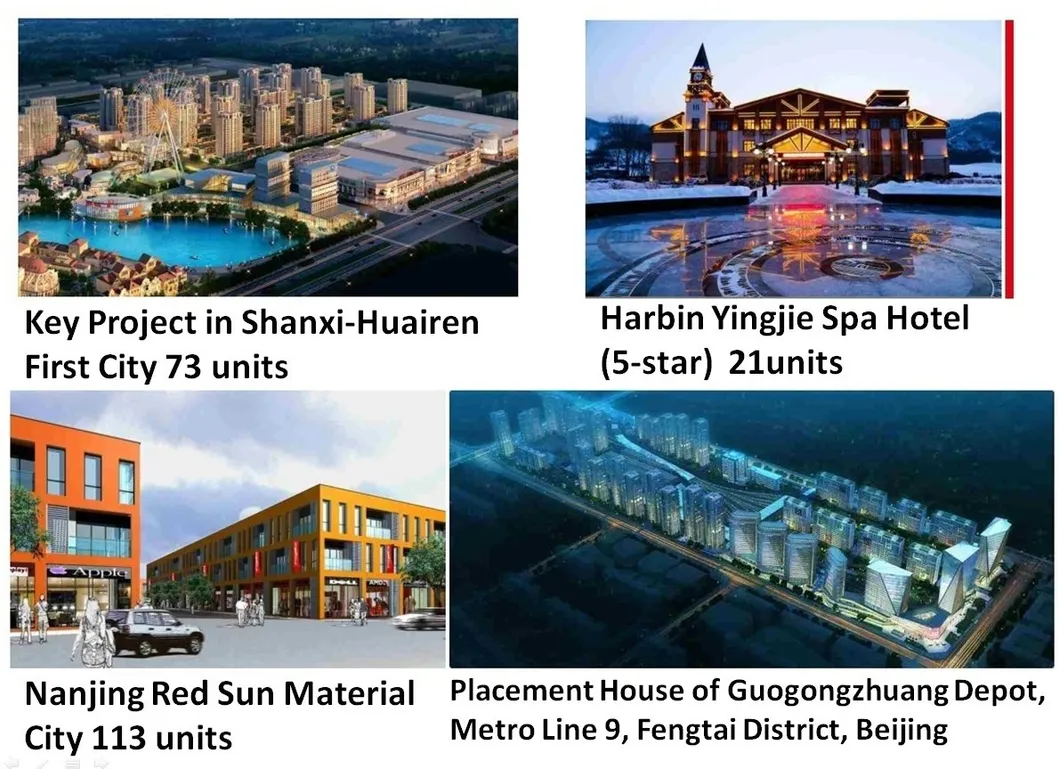

Global Projects

Project Example 1
Project Example 2
?

Frequently Asked Questions

What information is needed for a fast inquiry?
Please provide the shaft status (designed or finished), required capacity (kg or persons), elevator type (e.g., hospital, freight), number of floors/stops, and preferred speed.
What is the typical delivery time?
The standard delivery time is 30 days after the arrival of the deposit. However, urgent production options are available for time-sensitive projects.
What is the product warranty period?
All our elevators come with a standard warranty of 18 months starting from the delivery date.
How do you handle installation and commissioning?
We provide a complete installation manual and remote guidance for commissioning. For special projects, engineers can be dispatched to the site, and we offer technical training for agents at our factory.
Are your products compliant with international standards?
Yes, our products are certified by TÜV SÜD and carry CE and EAC marks, ensuring compliance with European and international safety and energy-efficiency standards.
How are the products protected during shipping?
Parts are packed in fumigation-free solid plywood boxes. Sensitive components like control cabinets and motors are wrapped in protective film with desiccant to prevent moisture damage.
