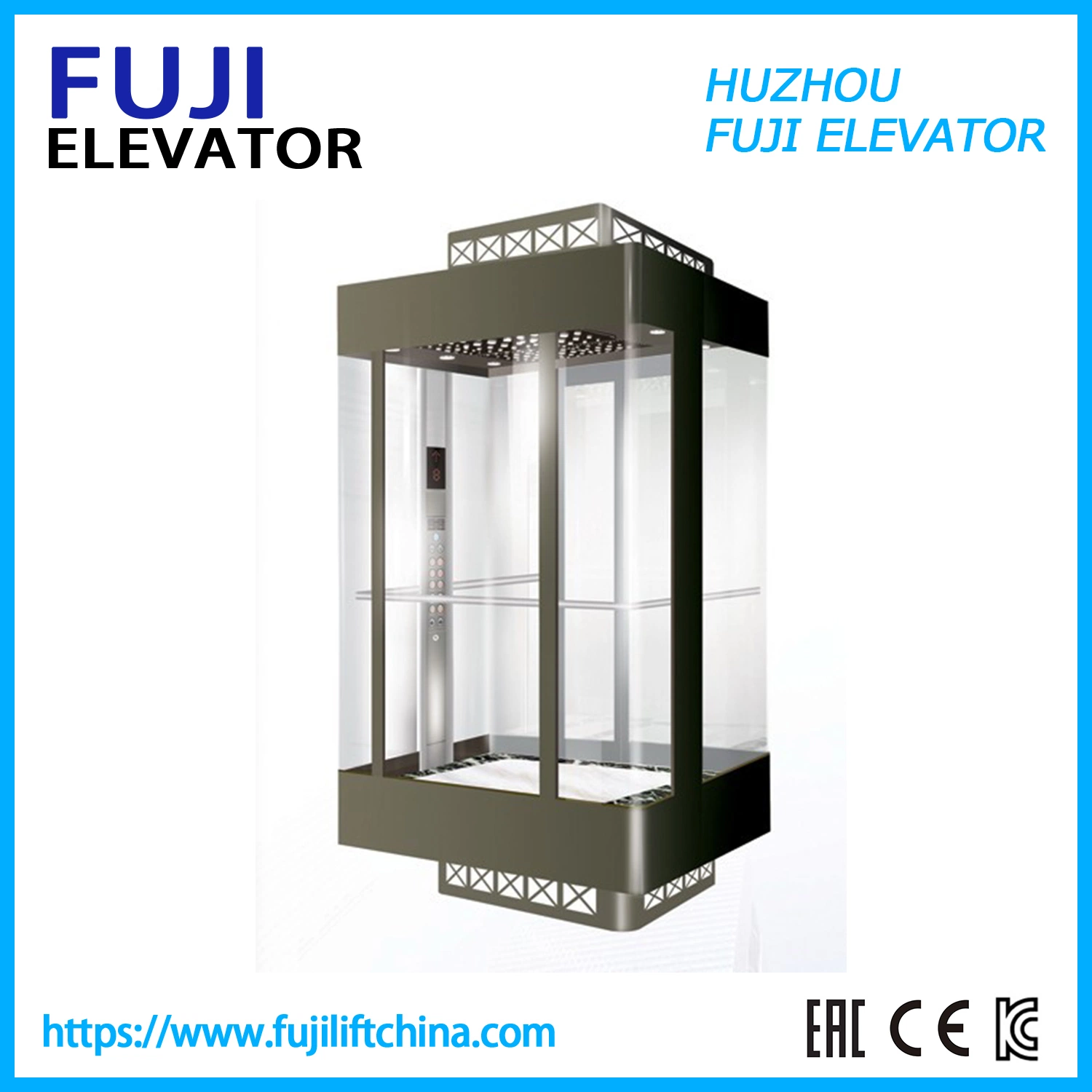

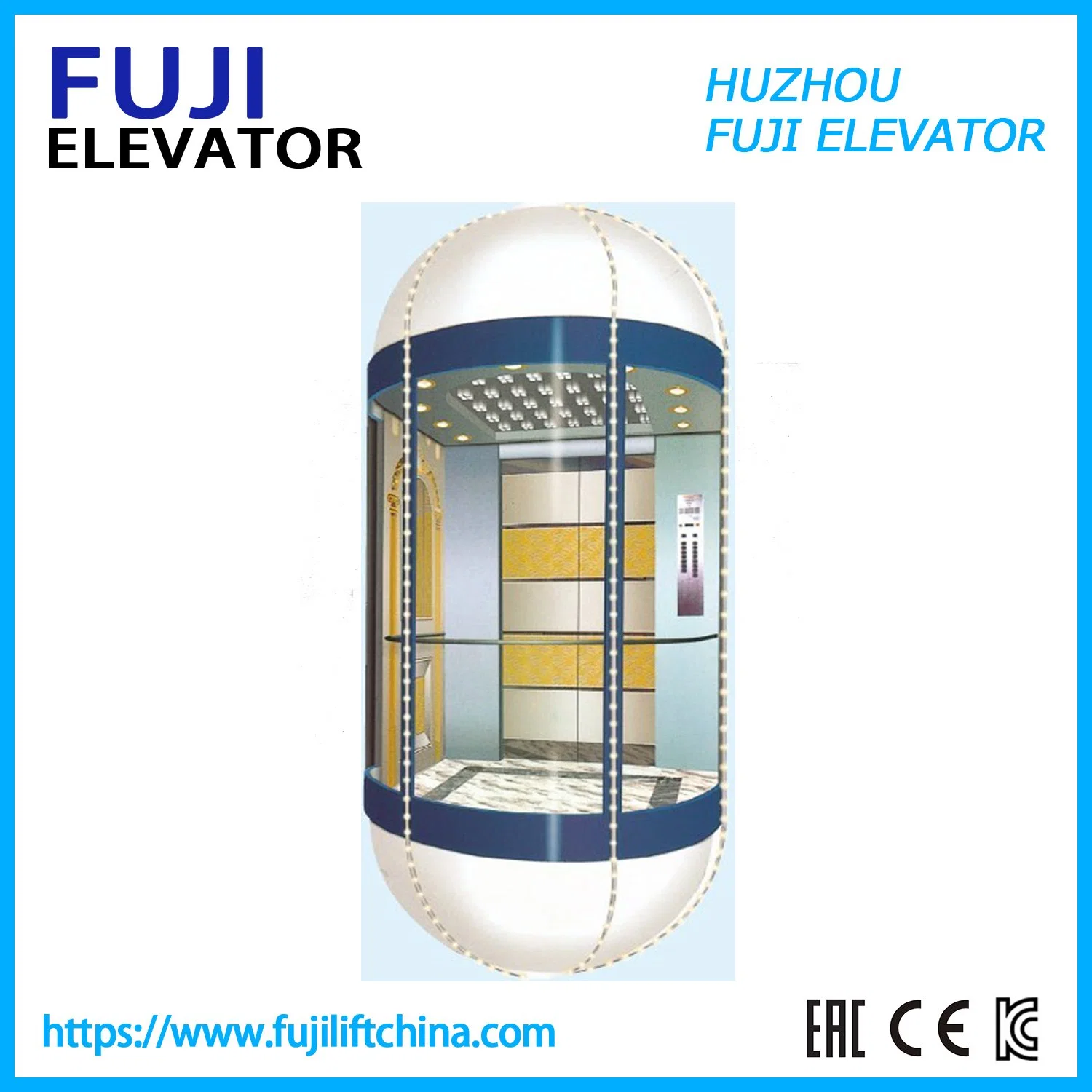

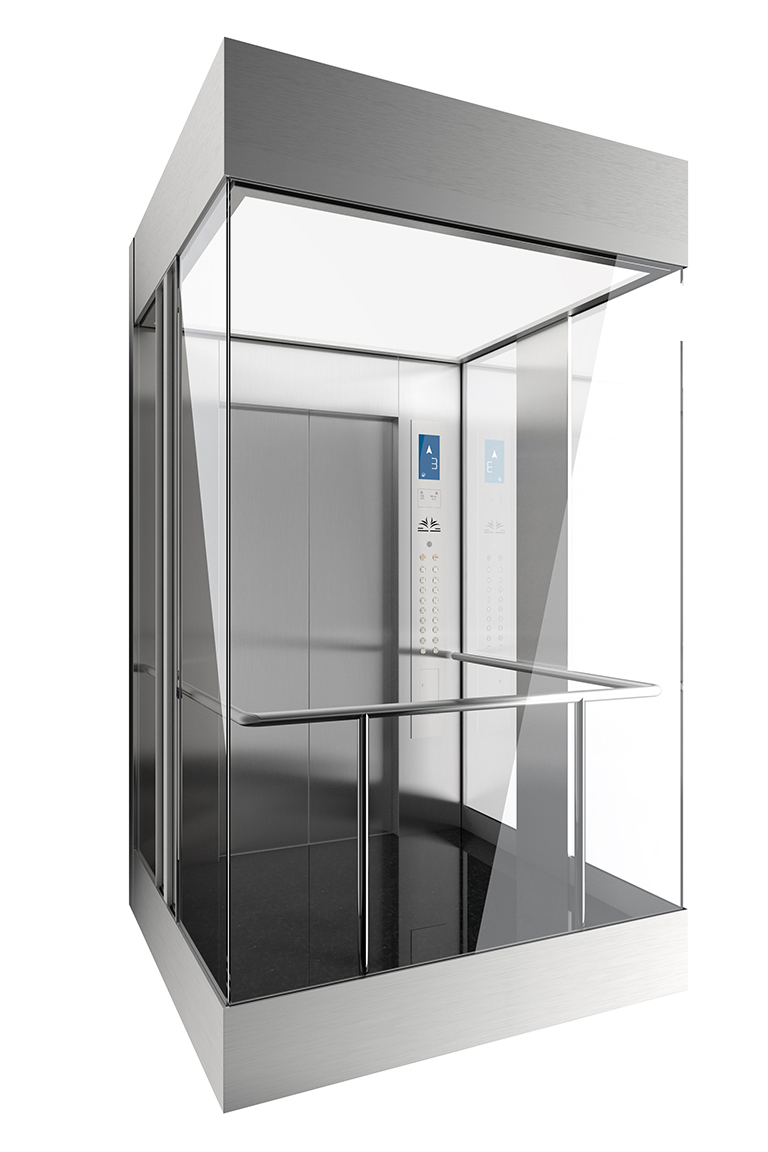

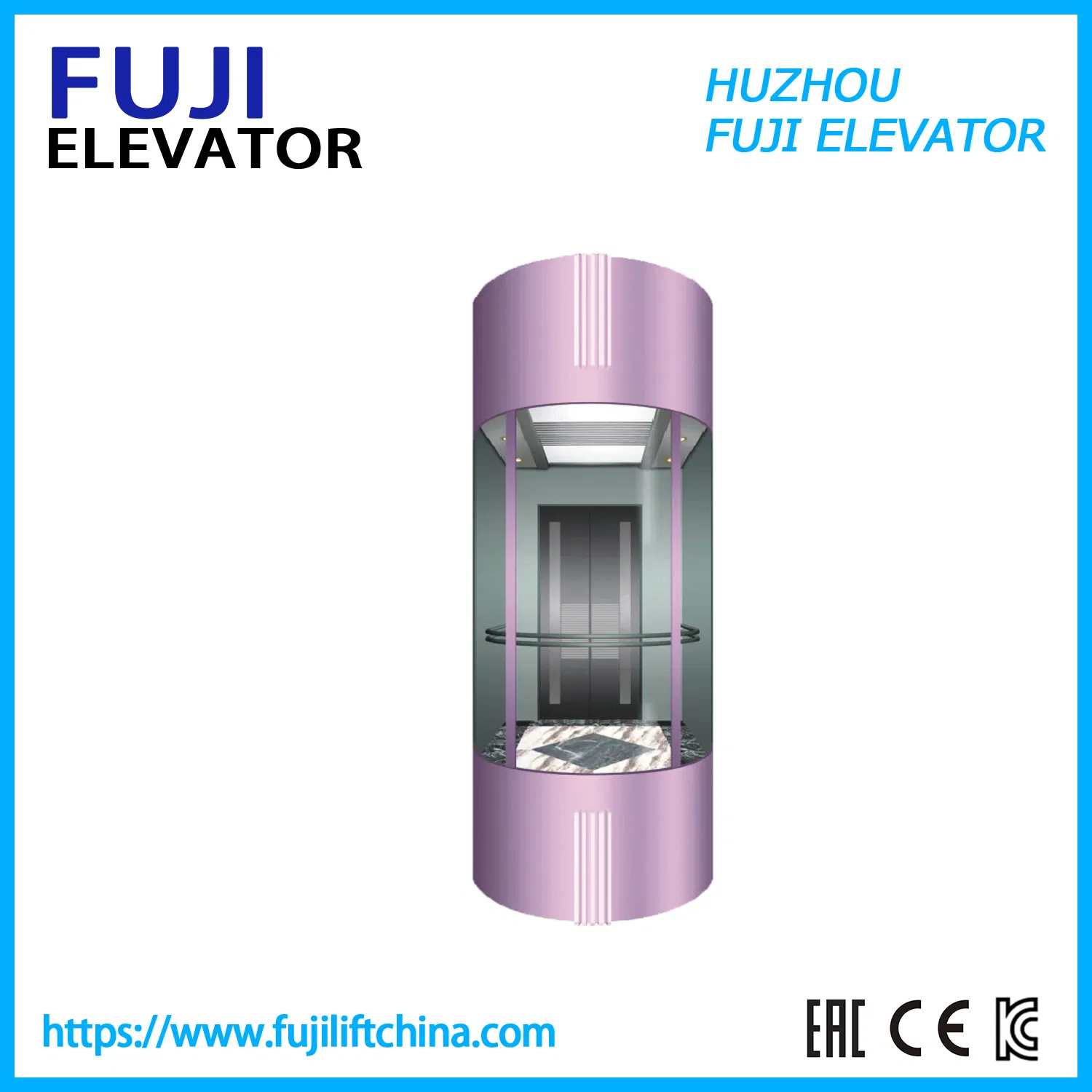

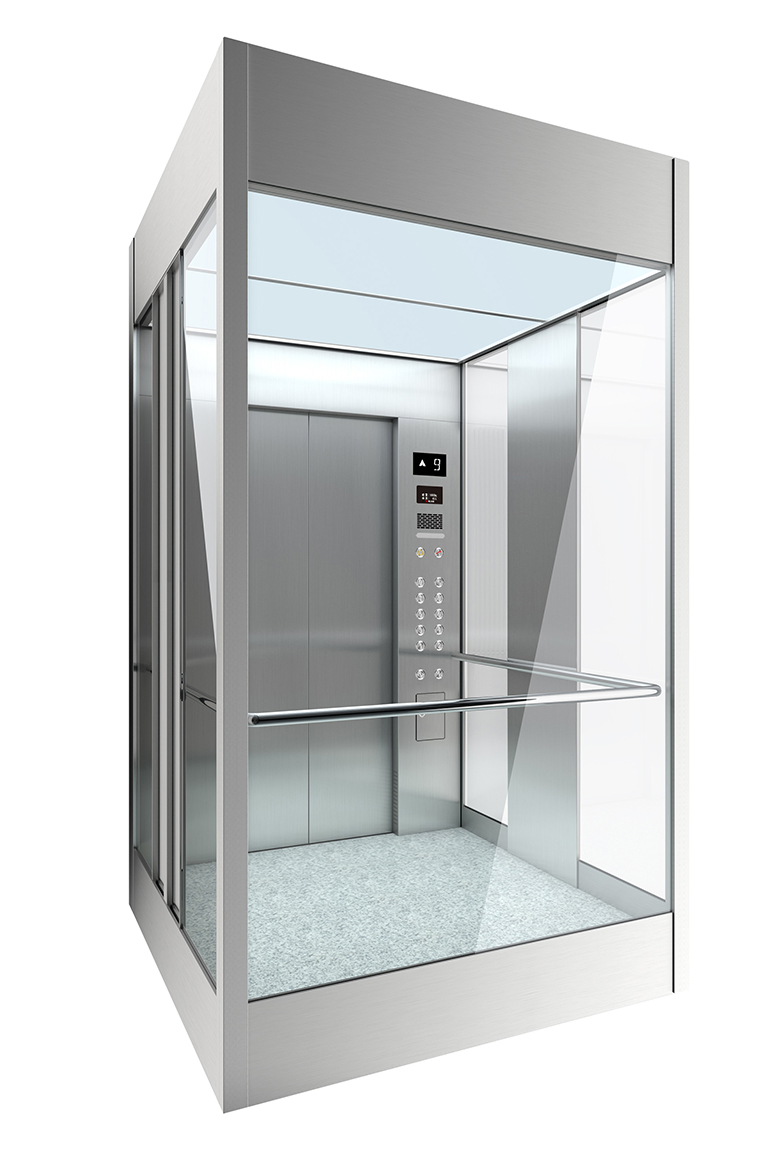

Passenger Elevator Lift Observation Elevator FUJI China Factory Panoramic Elevators with Elevator Door Glass Sightseeing Home Elevator Lifts

1 / 5

Passenger Elevator Lift Observation Elevator FUJI China Factory Panoramic Elevators with Elevator Door Glass Sightseeing Home Elevator Lifts

Customization:	Available
Warranty:	18 Months
Type:	without Machine Room

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.FUJI-B

Speed1.00 - 2.00m/s

Capacity450-1600 Kgs

Persons6-21

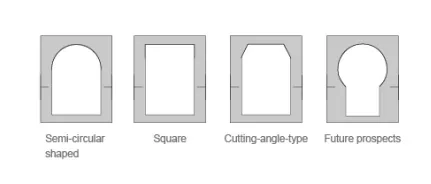

ShapeSemi-circular

Driving TypeAC Elevator

Control ModePush-Button Control

Elevator DoorCenter Opening Door

Production TimeWithin 25-30 Days

Machine RoomWith and Without

OriginChina

MOQ1 Unit

🖼️ Visual Showcase

📋 Technical Parameter Table

Loading Capacity	Rated Speed	Door Type	Door Opening Size (WxH)	Car Size (AxB)	Hoistway Size (AHxBH)	PIT	OH
450kg	1.0/1.5/1.75	Center	800x2100	1400x850	2000x1550	1500/1600	4500
630kg	1.0/1.5/1.75	Center	800x2100	1400x1100	2000x1750	1500/1600	4500
800kg	1.0/1.5/1.75	Center	800x2100	1400x1350	2000x2000	1500/1600	4500
1000kg	1.0/1.5/1.75	Center	900x2100	1600x1400	2200x2150	1500/1600	4500
1250kg	1.0/1.5/1.75	Center	1100x2100	2000x1400	2600x2150	1500/1600	4500/4700
1600kg	1.0/1.5/1.75	Center	1100x2100	2000x1750	2600x2500	1500/1600	4500/4700

✨ Super Enjoyment of Mobile Scene

Fine and exquisite observation elevator enhances building grade. It highlights the whole building. FUJI observation elevator is a mobile scene. It has fine and exquisite visual aesthetics, perfect and comfortable travel. It applies modern new material and new fully computerized, vector type variable frequency speed regulation (VVVF) control technology. It combines with data network system, modular structure, the latest machining craft and technology.

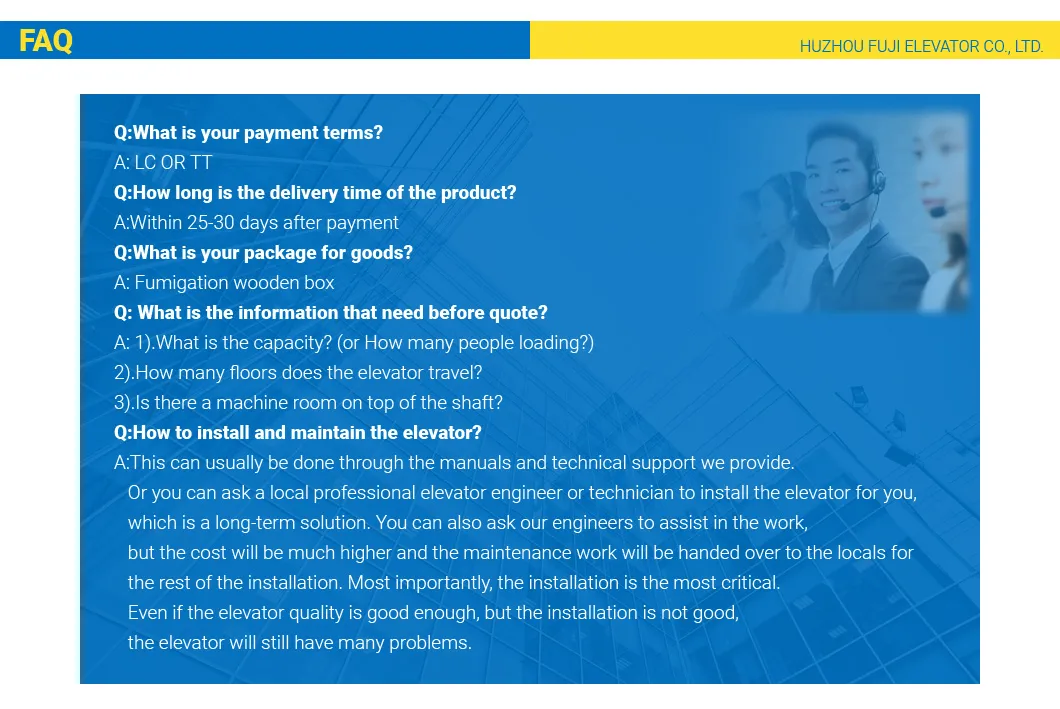

❓ Frequently Asked Questions

What is the production lead time for the panoramic elevator?

The standard production time is within 25 to 30 days after design confirmation.

Can this elevator be installed in buildings without a machine room?

Yes, we provide solutions for both with and without machine room (MRL) configurations.

What control technology is used in these elevators?

We use advanced fully computerized, vector type variable frequency speed regulation (VVVF) control technology for smooth and efficient operation.

What is the maximum loading capacity available?

Our panoramic models support a wide range of capacities from 450kg up to 1600kg.

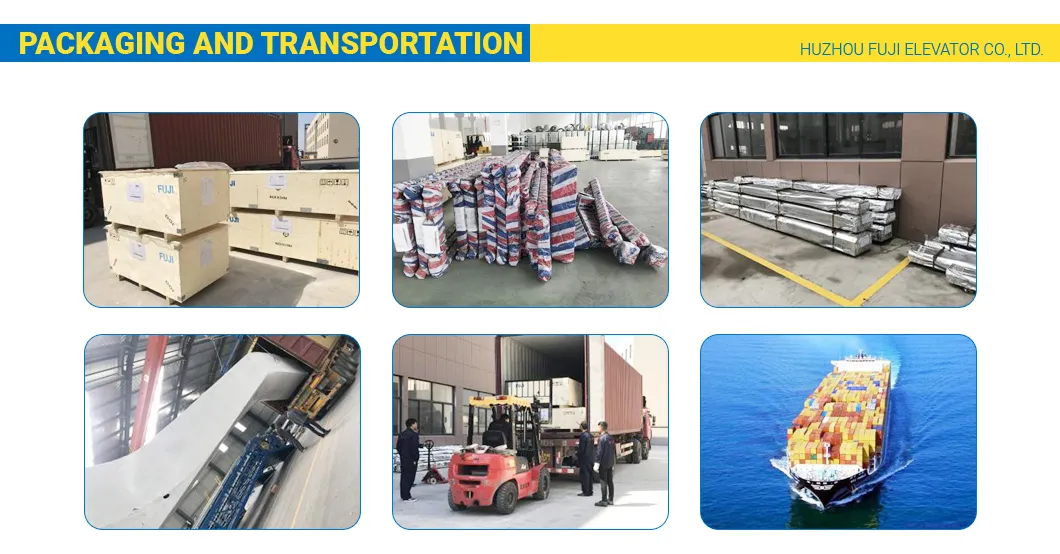

Are the elevators shipped securely for international orders?

Yes, all units are packed in high-quality export-standard wooden cases to ensure safety during transport.

Does the elevator support different door opening widths?

Yes, depending on the model and car size, door openings range from 800mm to 1100mm in width.
