FUJI Vvvf Elevator China Factory Passenger Elevator Sightseeing Residential Home Villa Passenger Elevator Lift Panoramic Observation Glass Elevator

Customization:	Available
After-sales Service:	24 Hours Service
Warranty:	12-18 Months

Send Inquiry

Product Description

Basic Information

Model NO.

FUJI-A

Driving Type

AC Elevator

Capacity

450-1600 Kgs

Persons

5-25

Speed

1-1.75 M/S

Control Mode

Collective Selective Control

Computer Room

Position: Up

Elevator Door

Center Opening Door

Production Time

Within 25-30 Days

Machine Room

With and Without options

Trademark

FUJI

Origin

China

Product Description

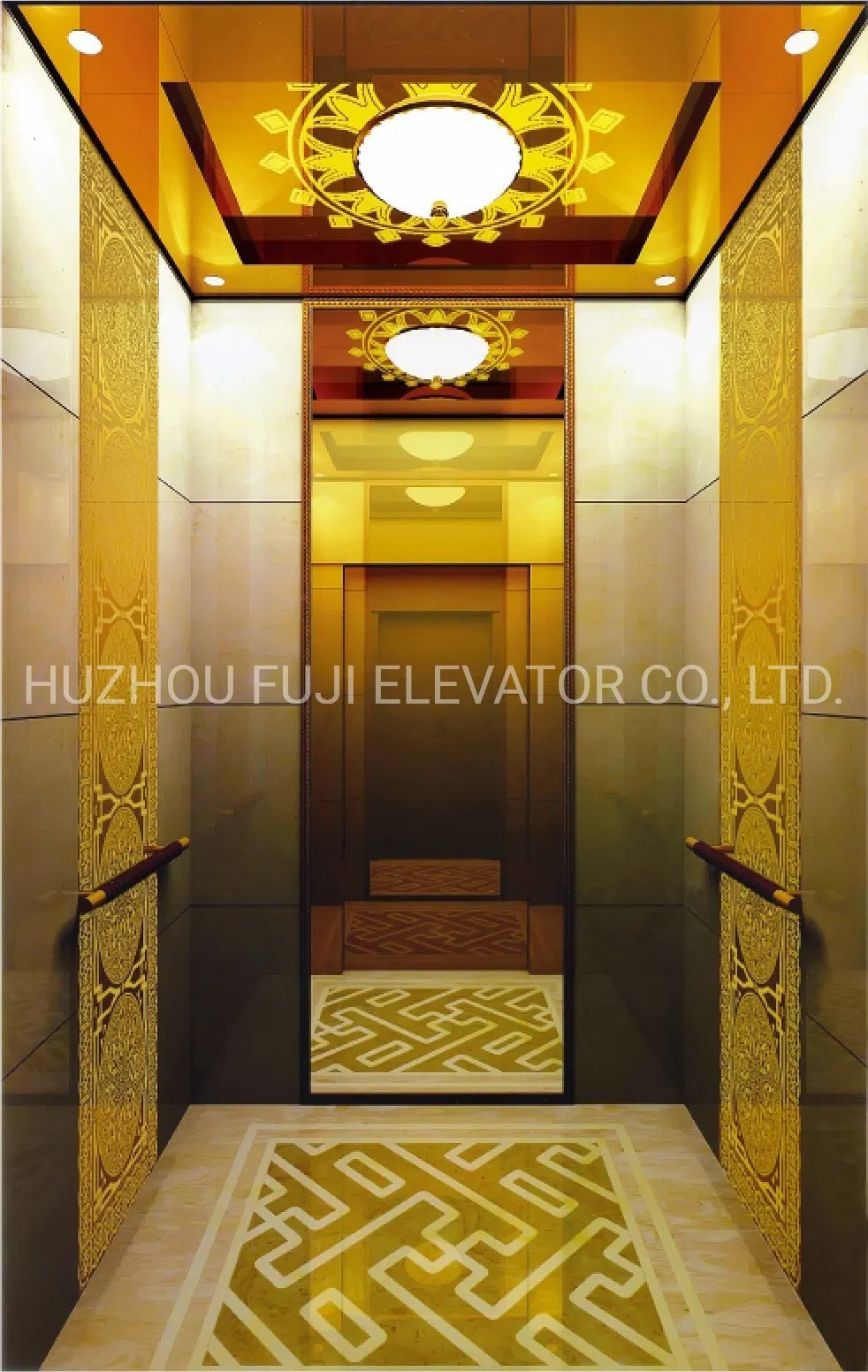

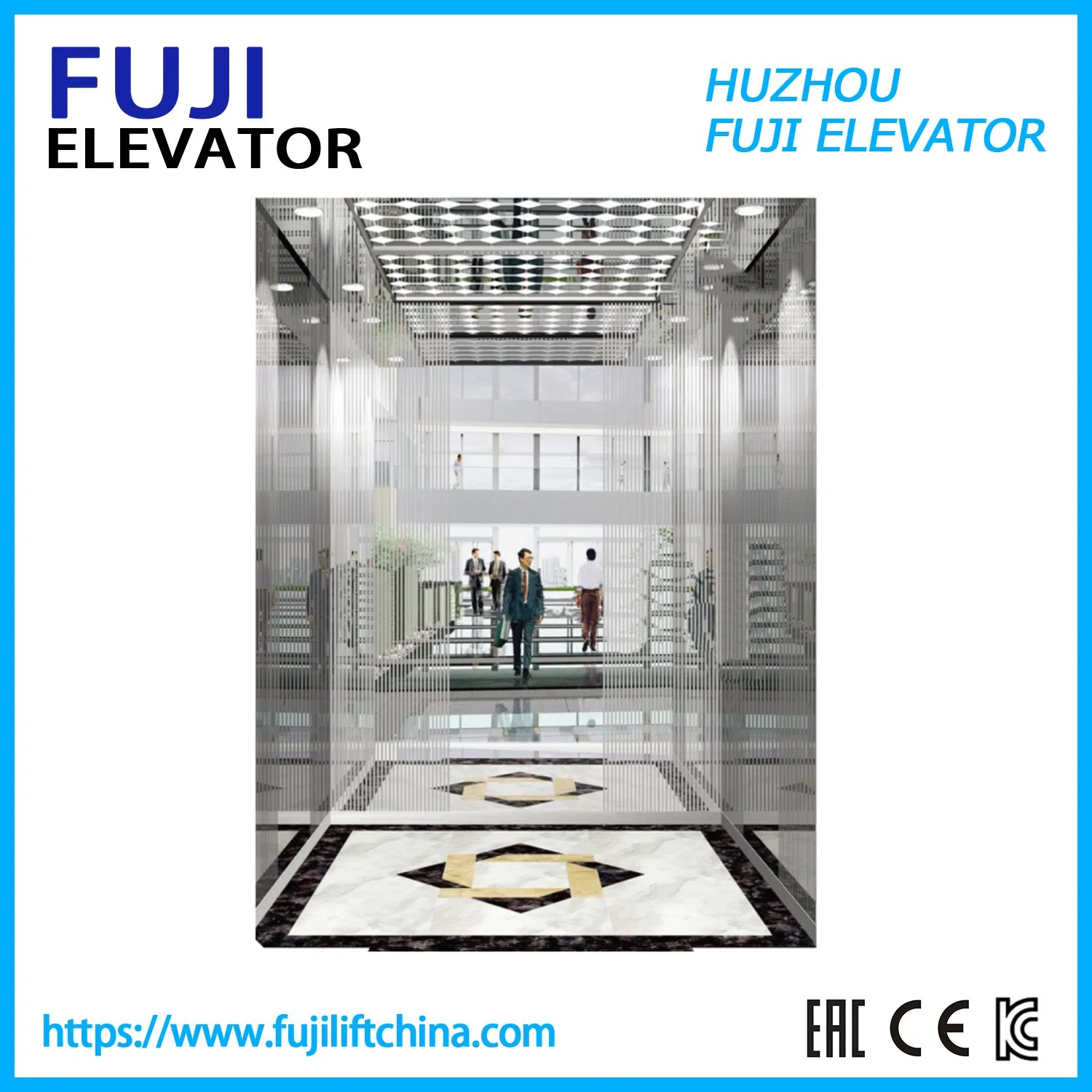

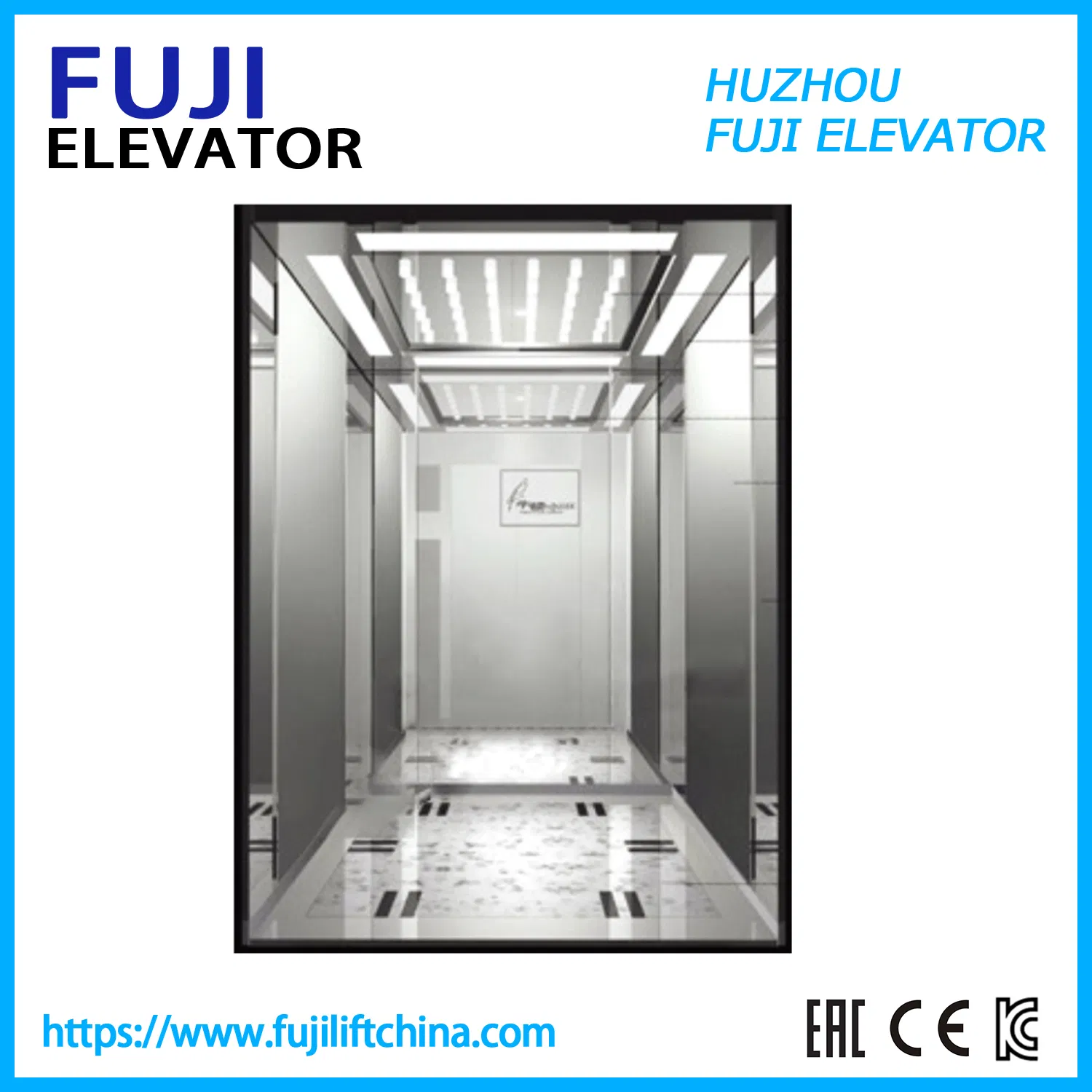

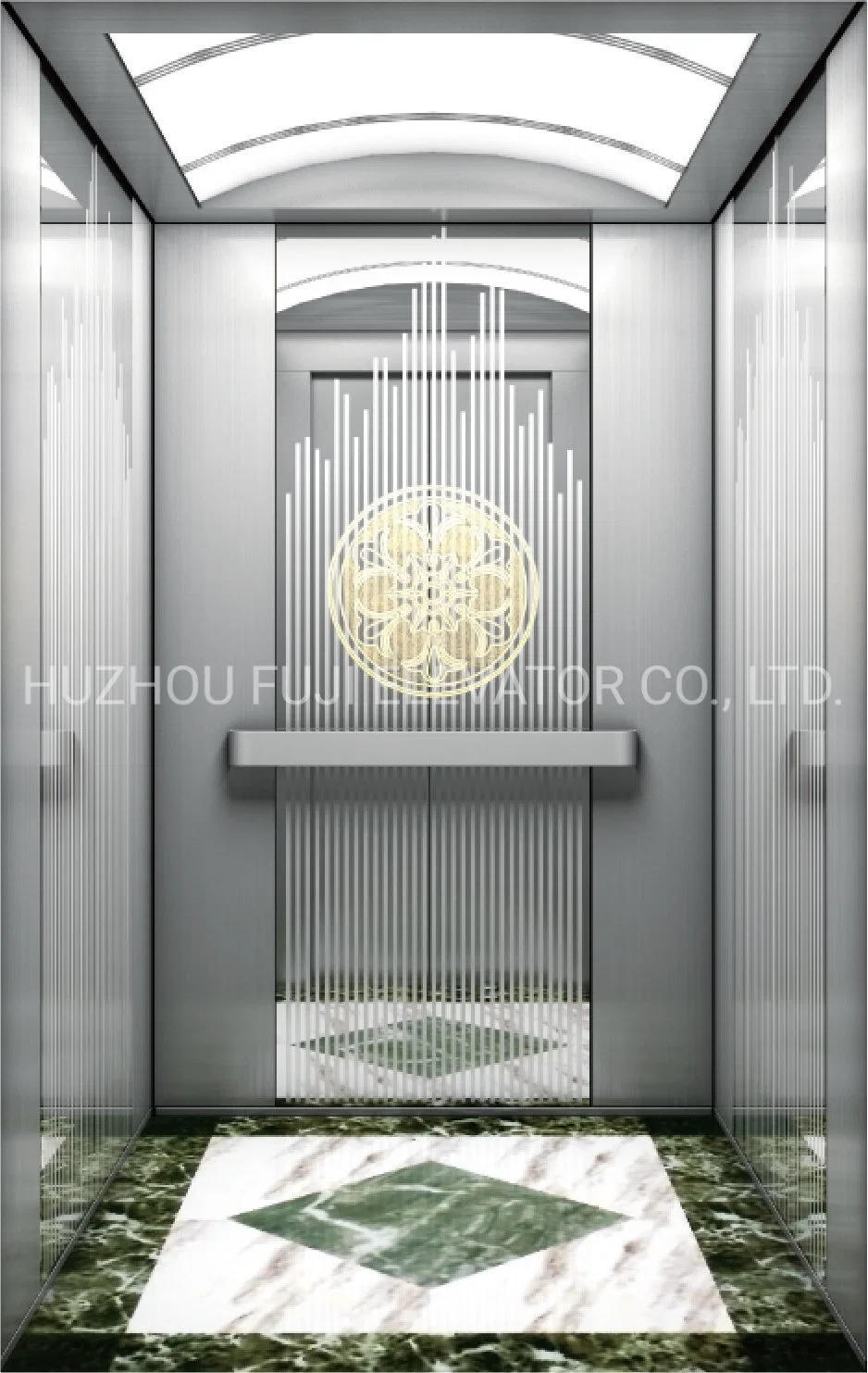

Passenger Elevator Standard Decoration Optional

It's wall	Hairline stainless steel
Ceiling	LED Fluorescent, according to the car design
Car bottom	PVC
Jamb material	The first layer of hairline, the remaining steel plate Spraying
Hall door	The first layer of hairline, the remaining steel plate Spraying

Passenger Elevator Parameter

Load (Kg)	Rated Speed (m/s)	Car Size (mm)	Door Opening (mm)	Shaft Size (mm)	Top Height (mm)	Pit Depth (mm)
450	1	1100×1100	800×2100	2050×1850	4500	1500
630	1 / 1.5 / 1.75	1400×1100	800×2100	2250×1900	4500-4700	1500-1600
800	1 / 1.5 / 1.75	1400×1350	800×2100	2200×1950	4000-4700	1500-1600
1000	1 / 1.5 / 1.75	1500×1550	900×2100	2350×2150	4000-4700	1600
1600	1 / 1.5 / 1.75	1800×2000	1100×2100	2900×2200	4350-4500	1500-1600

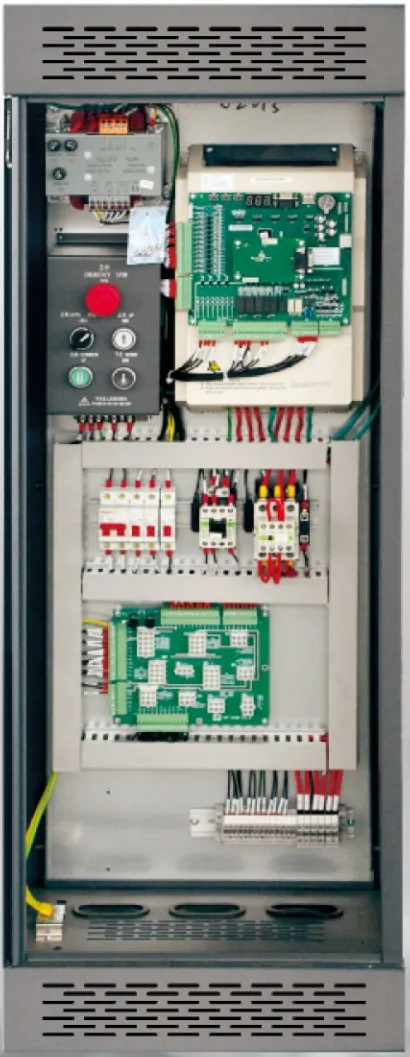

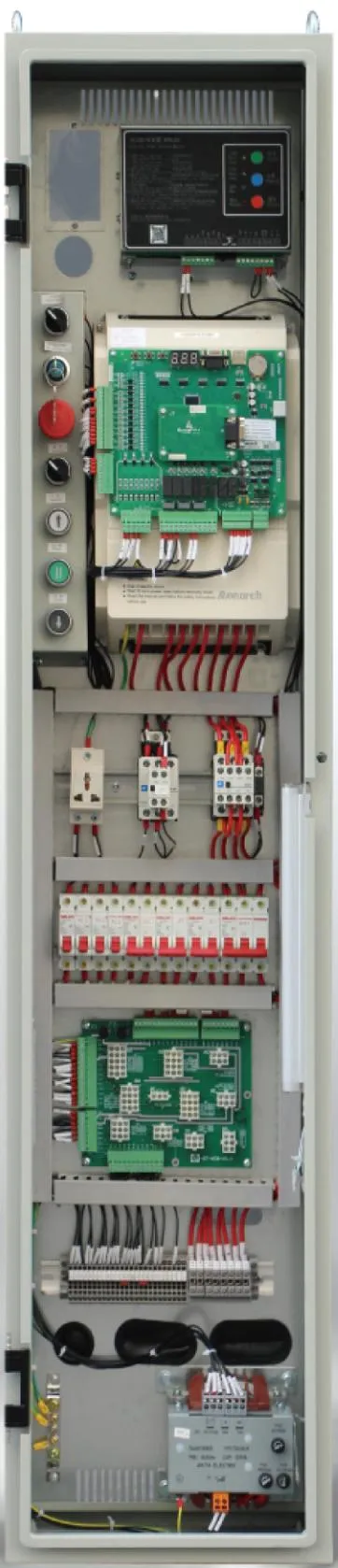

Intellectual Main Control System

It gives first priority to effectiveness in vertical transport field. In order to fully optimize the service efficacy of the elevator system, FUJI elevator fulfills intellectual managements such as multi-computer, modular and network control. Through a fully computerized intellectual control system, it instantly feeds back elevator running conditions, providing passengers with efficient services.

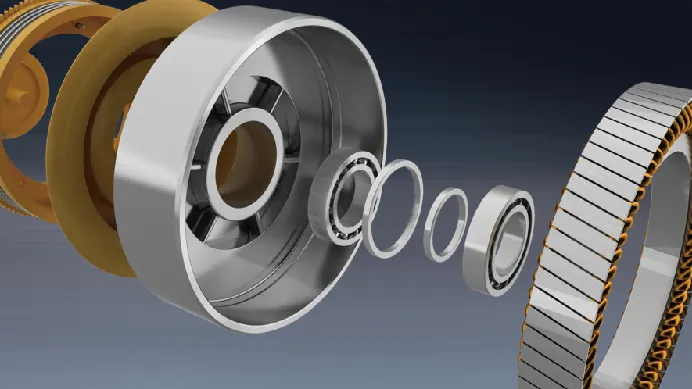

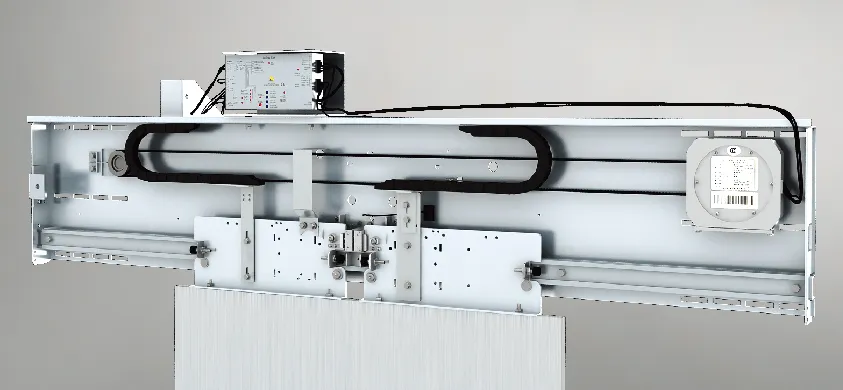

New generation permanent magnet synchronous traction machine & Top advanced door operator system.

Elevator Standard Functions

No.	Function	Description	No.	Function	Description
1	Static electricity protection	Eliminate static electricity.	11	Over-load protection	Protection against motor over-load.
2	Emergency stop button	Immediate stop for emergencies.	12	Step sagging protection	Prevents risk of step breakage.
3	Skirting protection	Prevents foreign bodies jamming.	13	Broken chain protection	Detects chain breakage.
4	Handrail safety	Protects handrail entry points.	14	Comb teeth protection	Prevents trapping at comb points.
5	Drive chain safety	Protects main drive chains.	15	Handrail monitor	Detects speed and breakage.
6	Over-speed protection	Activated if speed >120% rated.	16	Skirting anti-clamp	Brush protection on both sides.
10	Short circuit protection	Electrical safety protection.	20	Phase protection	Lack of phase or error protection.

Frequently Asked Questions (FAQ)

What is the range of load capacity for the FUJI-A model?

The FUJI-A passenger elevator supports a wide load capacity range from 450 Kgs to 1600 Kgs, accommodating approximately 5 to 25 persons.

What are the available rated speeds for this elevator?

The elevator offers multiple speed options including 1.0 m/s, 1.5 m/s, and 1.75 m/s to suit different building heights and traffic requirements.

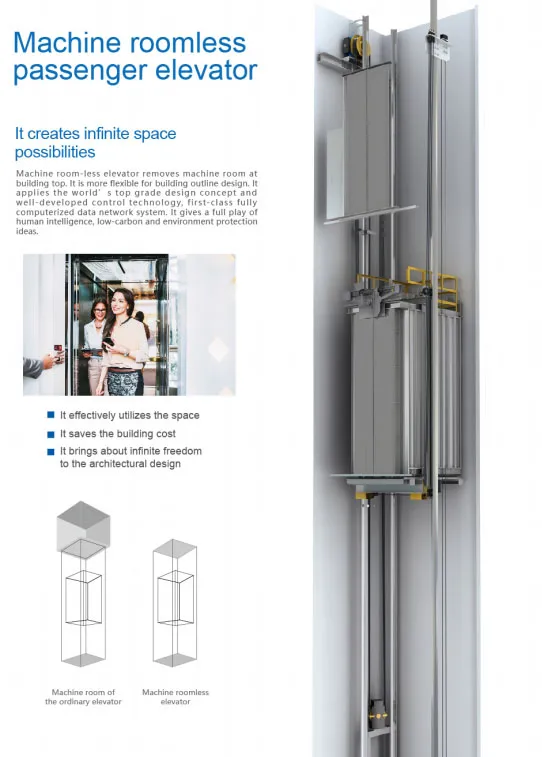

Does this model require a machine room?

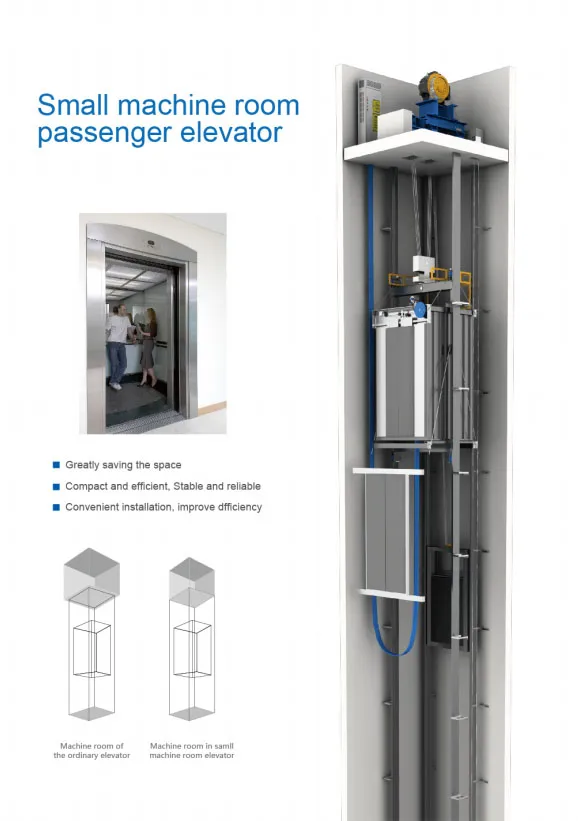

We provide flexible options including both Small Machine Room (SMR) and Machine Roomless (MRL) configurations to maximize your building's architectural space.

What materials are used for the standard cabin decoration?

The standard decoration features Hairline Stainless Steel for walls and hall doors, LED Fluorescent lighting for the ceiling, and durable PVC for the car bottom.

How long is the typical production cycle?

The standard production time for our passenger elevators is within 25 to 30 days from the confirmation of specifications.

What safety features are included as standard?

The elevator is equipped with comprehensive safety systems including Over-speed protection, Emergency stop buttons, Over-load protection, Short circuit protection, and Phase error protection.
