China Indoor Passenger Elevator for Office Building Villa Use High Quality B2B Supply

Customization:	Available
After-sales Service:	One-Year Free Warranty
Warranty:	One Year

📊

Basic Information

Model NO.

Passenger Elevator-XW-K05- (7)

Driving Type

AC Elevator

Capacity

500-1000kg

Persons

6 - 10

Speed

2.00 - 3.50m/s

Control Mode

Collective Selective Control

Door

Center Opening Door

Origin

China

🏗️

Product Description

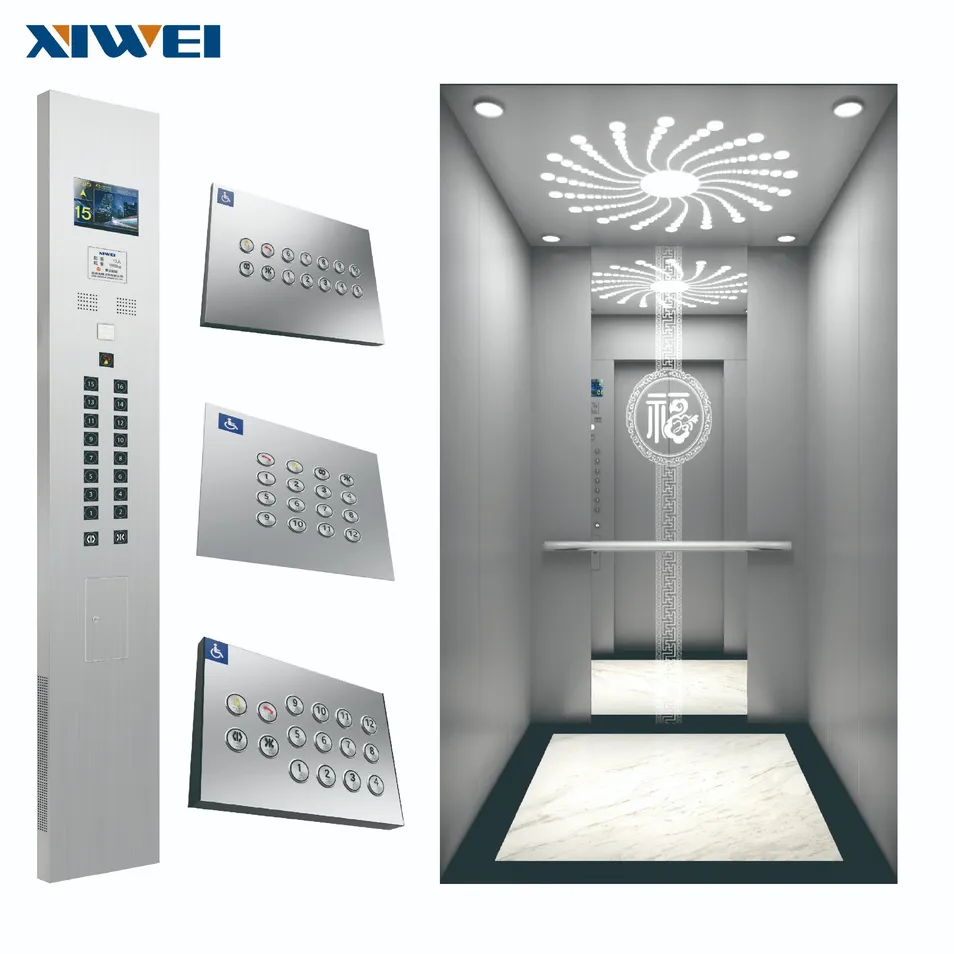

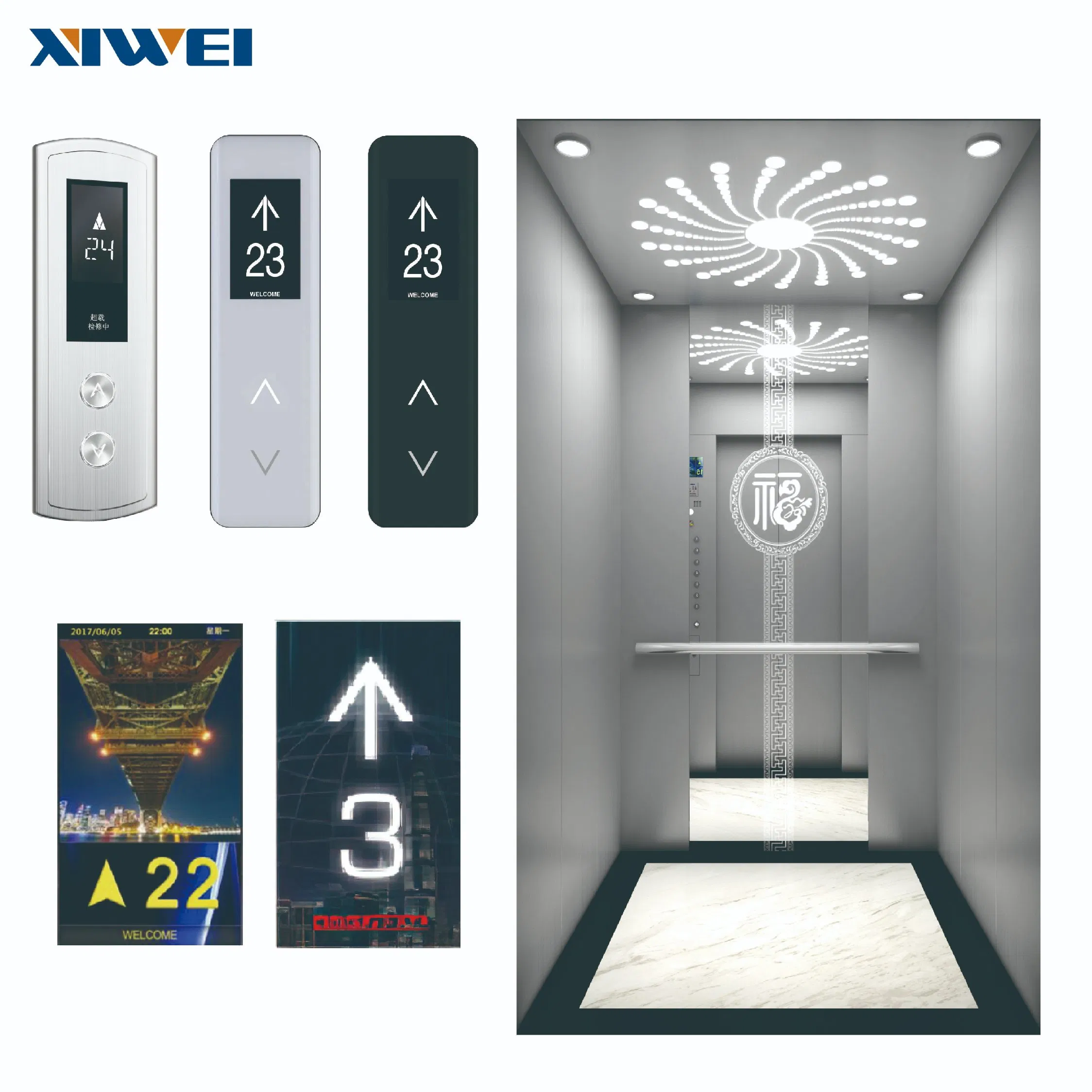

Model: XW-K05

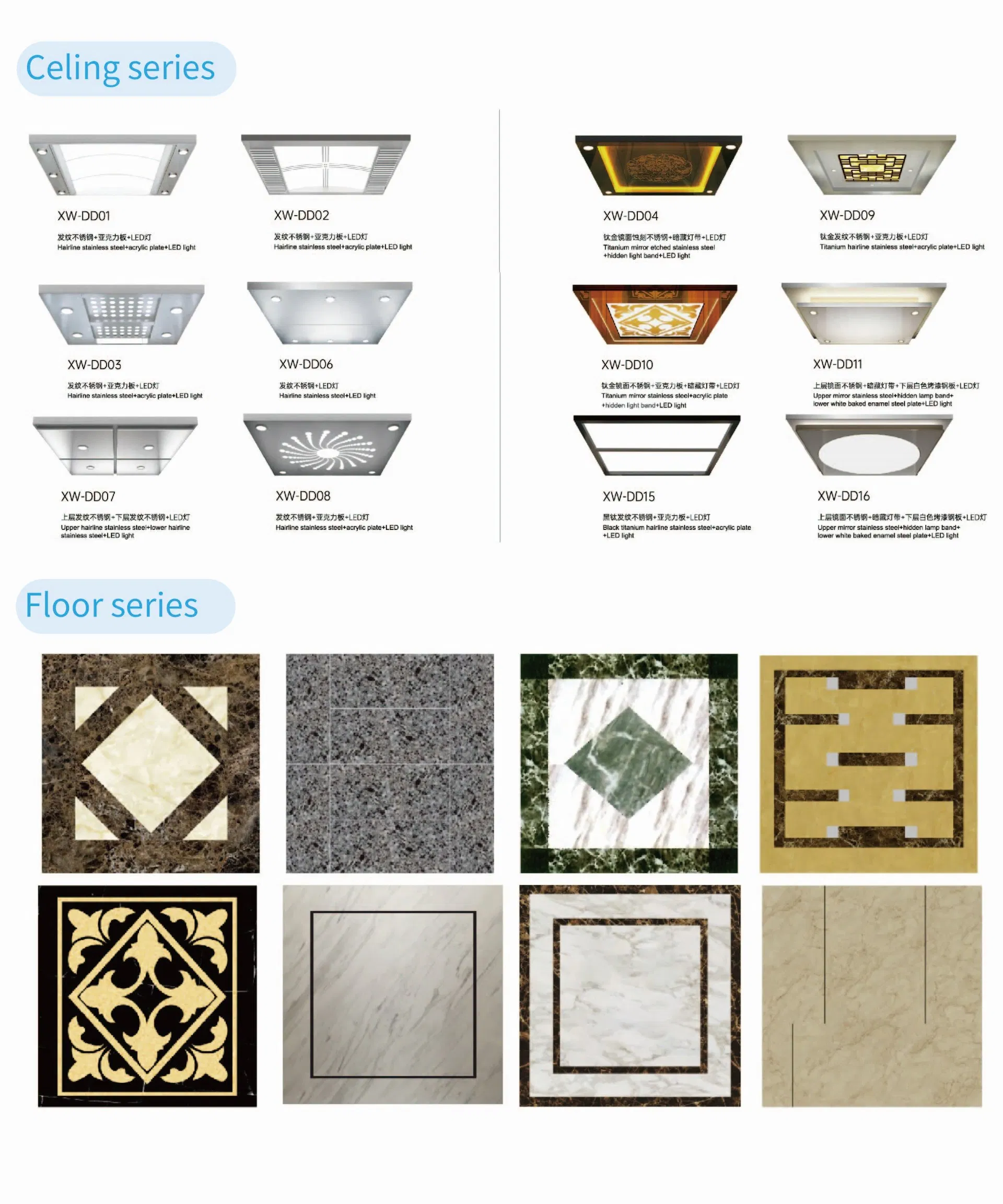

Split ceiling: Hairline stainless steel + acrylic plate + energy saving light
Car wall: Hairline stainless steel + rear-wall center mirror etched
Front wall: Hairline stainless steel

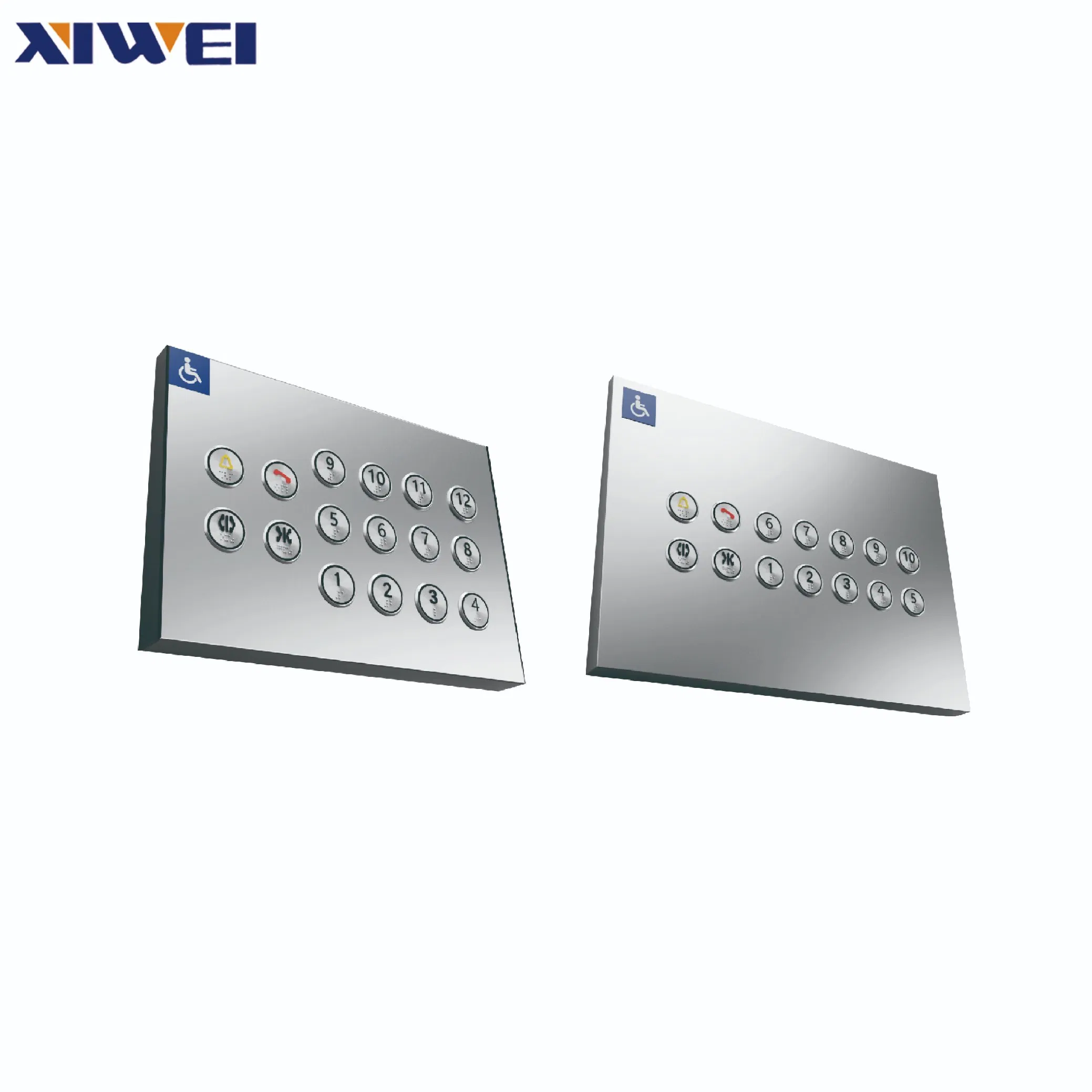

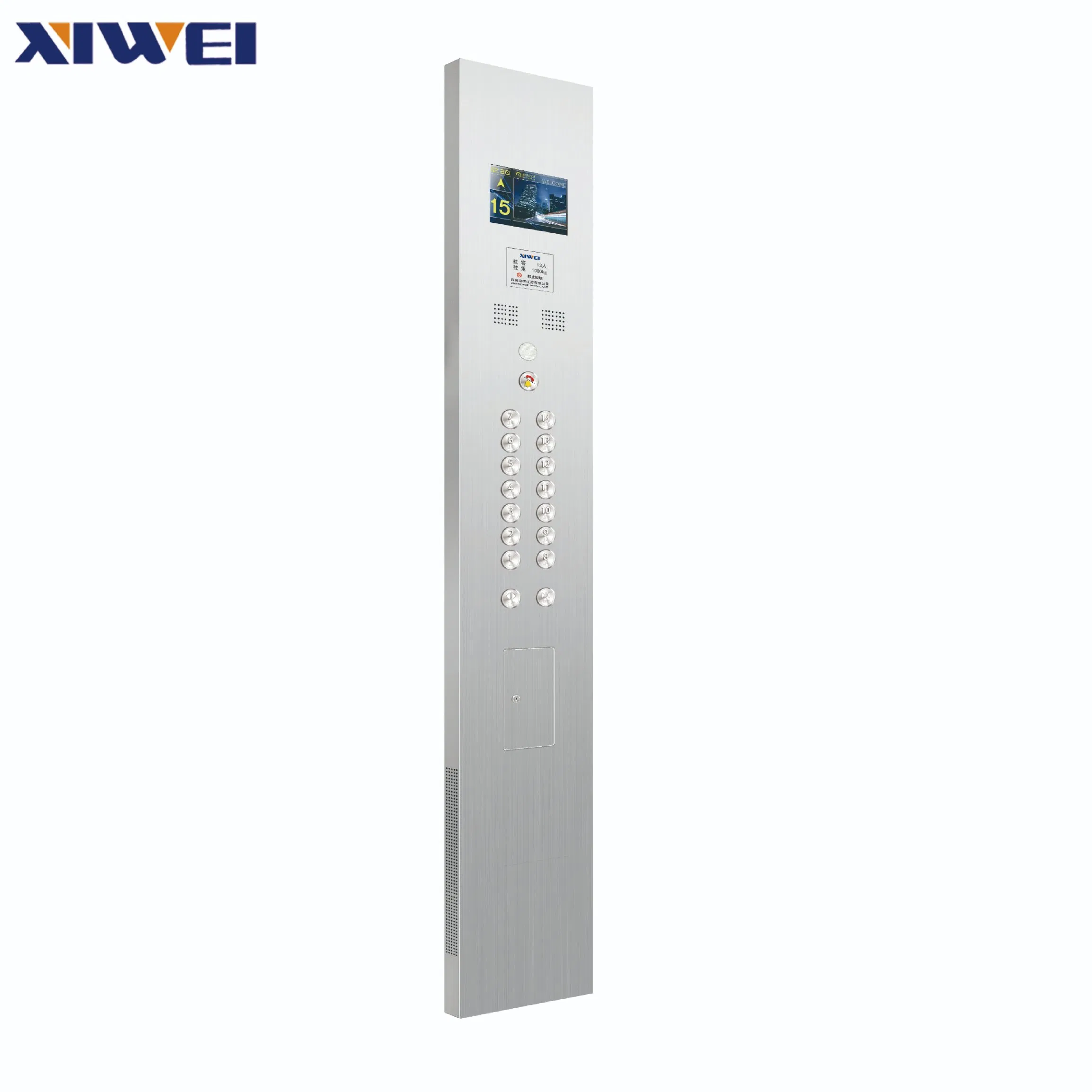

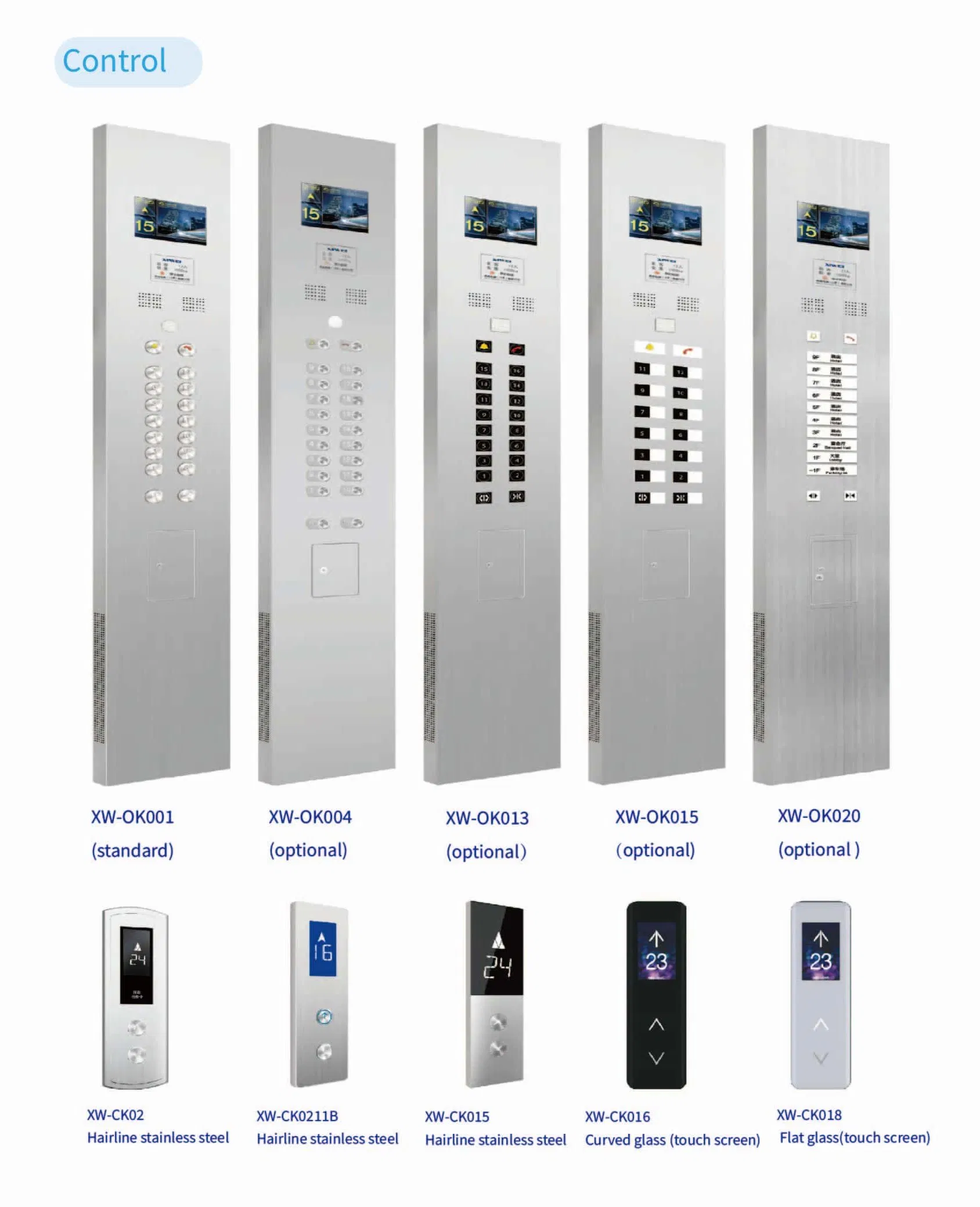

Operation panel: Integrated hairline stainless steel
Handrail: Stainless steel round handrail on the rear wall
Floor: Full body brick or PVC

Applications: Combined with modern technology and fashion art, our passenger lift satisfies all needs of hotels, office buildings, shopping malls, etc., providing a safe and comfortable riding experience.

📏

Technical Specification

Rated Load (kg)	Speed (m/s)	Net Car Size (CWxCD)	Net Door Size (DWxPH)	Net Hoistway (HWxHD)
450	1.0-1.75	1100x1150	700x2100	1850x1600
630	1.0-1.75	1200x1300	800x2100	2000x1750
800	1.0-2.5	1400x1400	800x2100	2100x1800
1000	1.0-2.5	1600x1500	900x2100	2300x1900
1150	1.0-2.5	1700x1500	1000x2100	2450x1900

📦

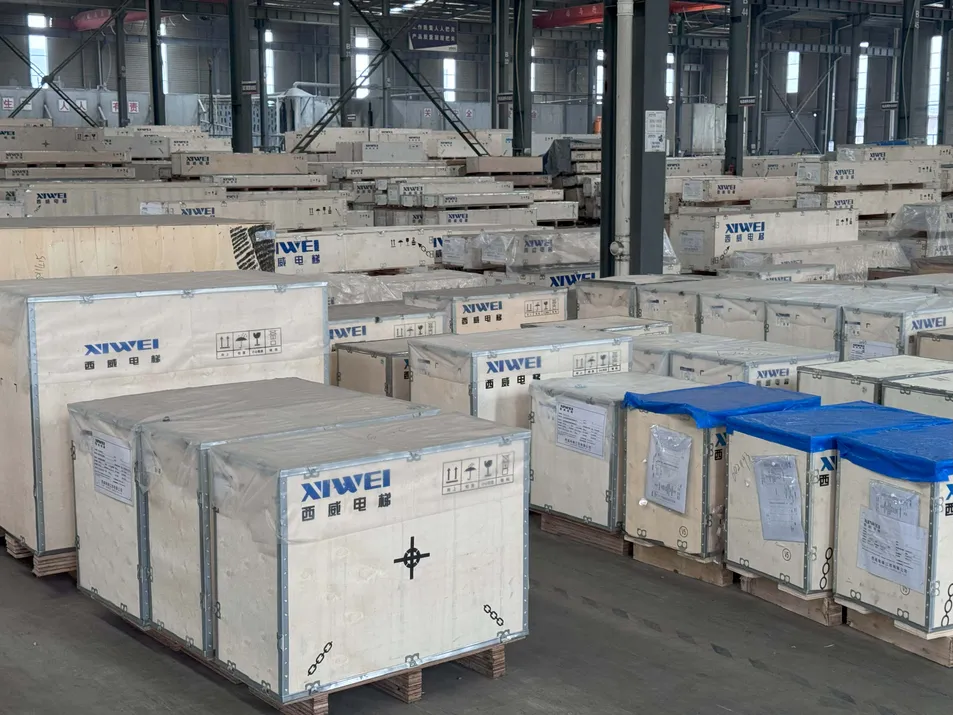

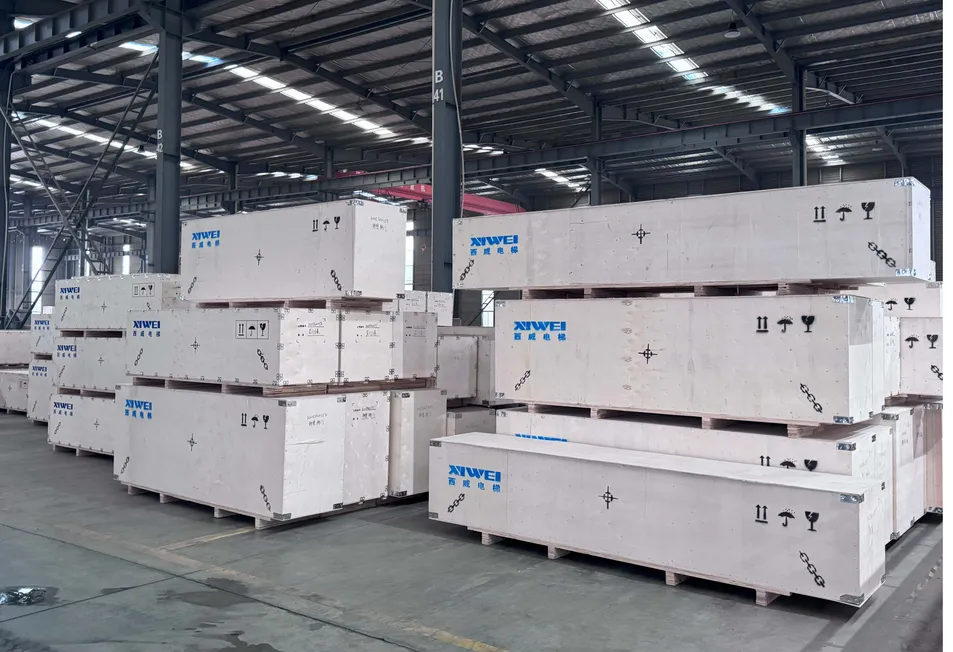

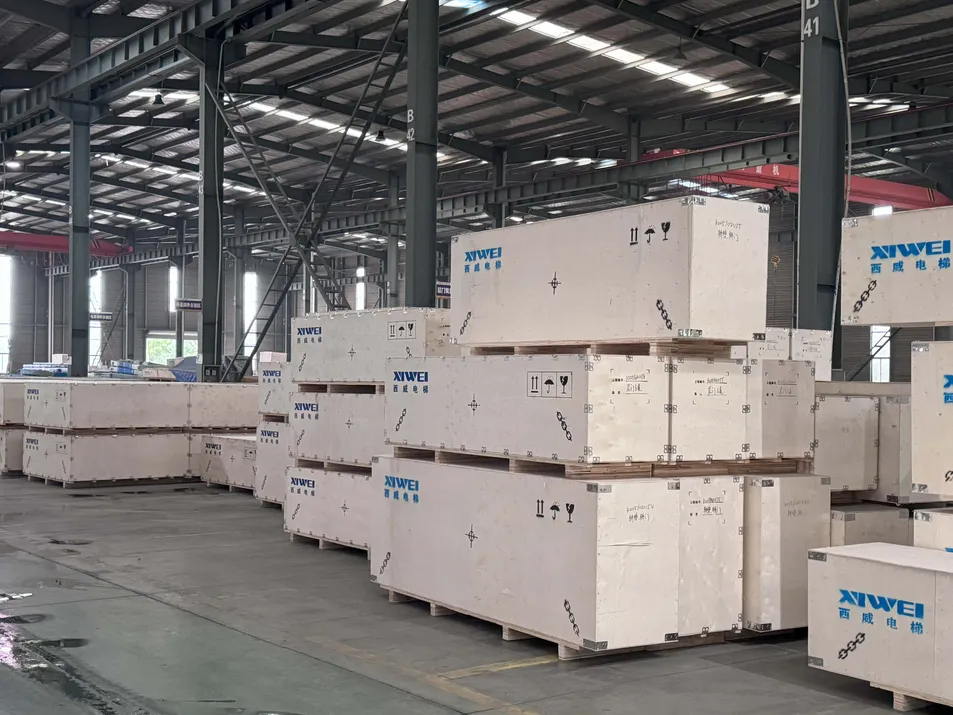

Packing & Delivery

Estimated Shipping Time

DHL: 3-5 working days
UPS / TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
Sea Freight: Depends on destination country

📜

Certifications

🛠️

After-Sales Service

Warranty Terms

Standard Warranty: 1 Year overall coverage.

Core Components: Extended to 5 Years for traction machines, control cabinets, safety gears, and speed governors.

Manufacturing defects and installation issues are fully covered. Maintenance and component replacement costs during the warranty period are borne by us.

🏭

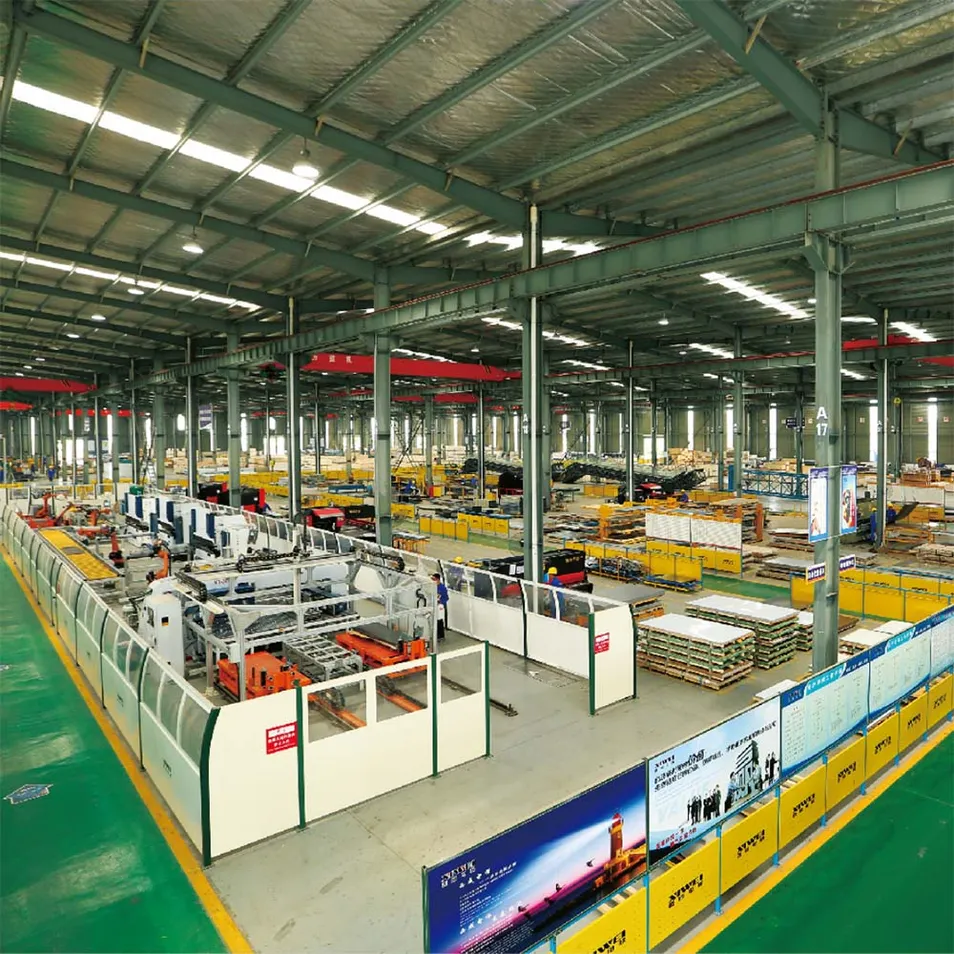

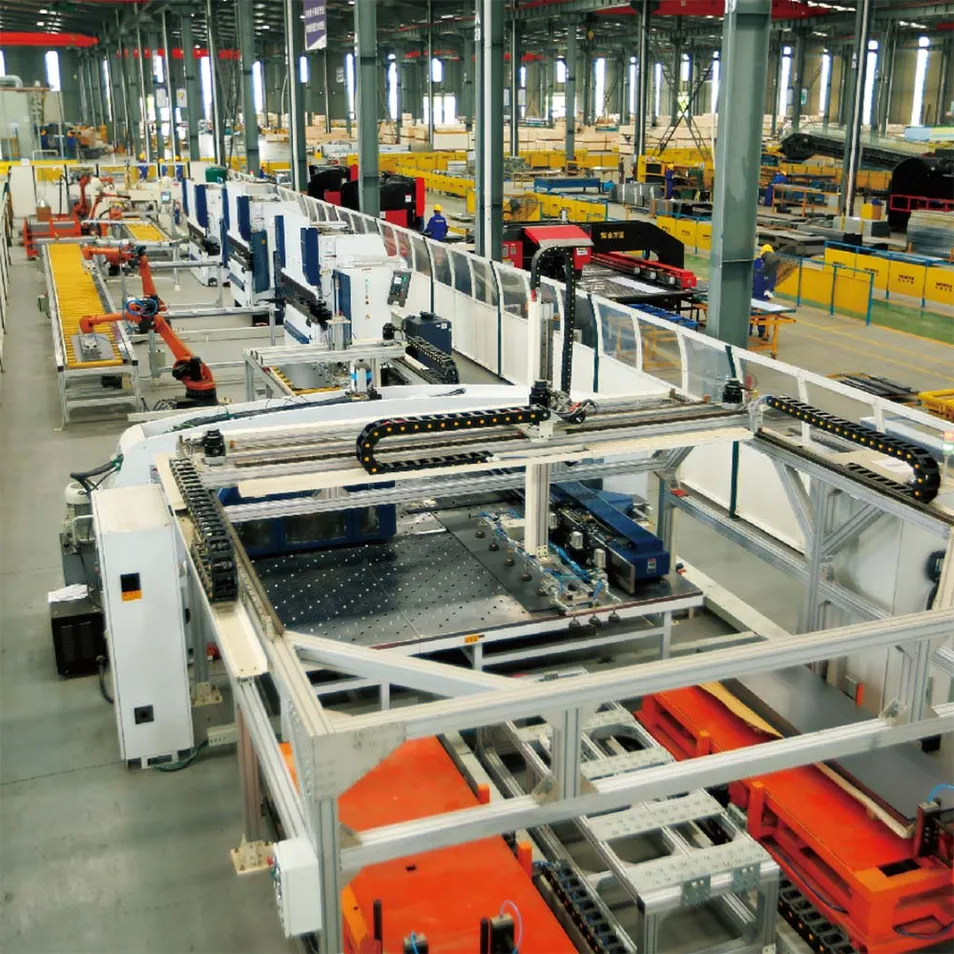

Factory Workshop & Systems

Our production utilizes advanced intellectual devices such as automatic feed warehouses, automatic painted flow-lines, and robot flow-lines. This ensures safe, smooth, and advanced product design with low trouble rates.

❓

Frequently Asked Questions

Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. The tensile strength of the wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire ropes, so they won't break at the same time.

Is it dangerous if power fails suddenly during operation?

If this occurs, the elevator will automatically stop due to the electrical and mechanical safety devices. Elevator brakes will automatically engage in case of power failure.

Will passengers be hurt if the doors close suddenly?

During the closing process, if a person touches the hall door, it will automatically restart. With the anti-clamping switch, once the gate is touched, the elevator cannot close and will reopen.

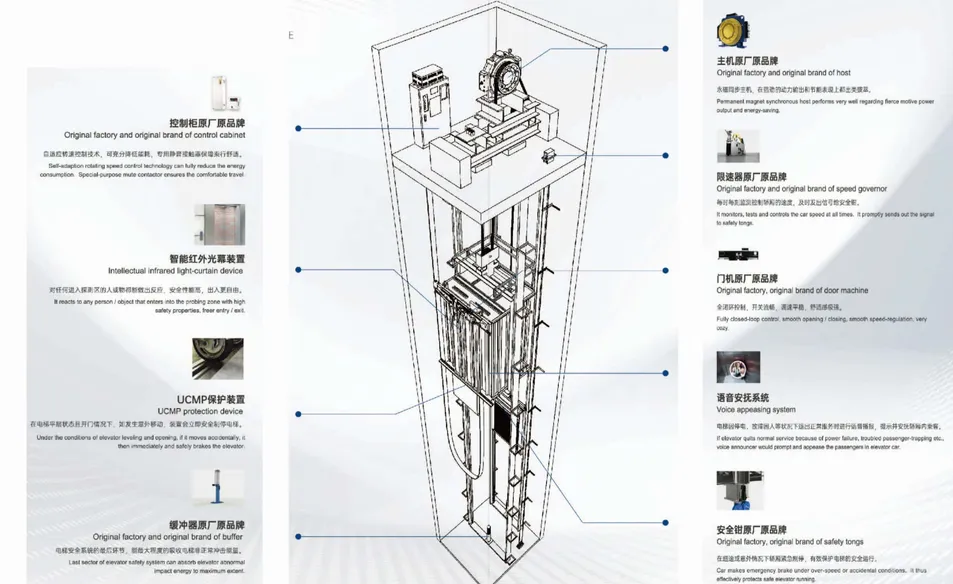

How does the elevator run?

Elevators are operated with a counterweight wire rope through the traction drive, moving up and down on the guide rails.

Is escalator installation complicated?

Our escalators apply an integrated structure, making the equipment more precise and efficient, allowing for easier and more convenient commissioning.

Do you have any certifications?

Yes, we maintain ISO9001, CCC, and CE certificates to ensure international quality standards.
