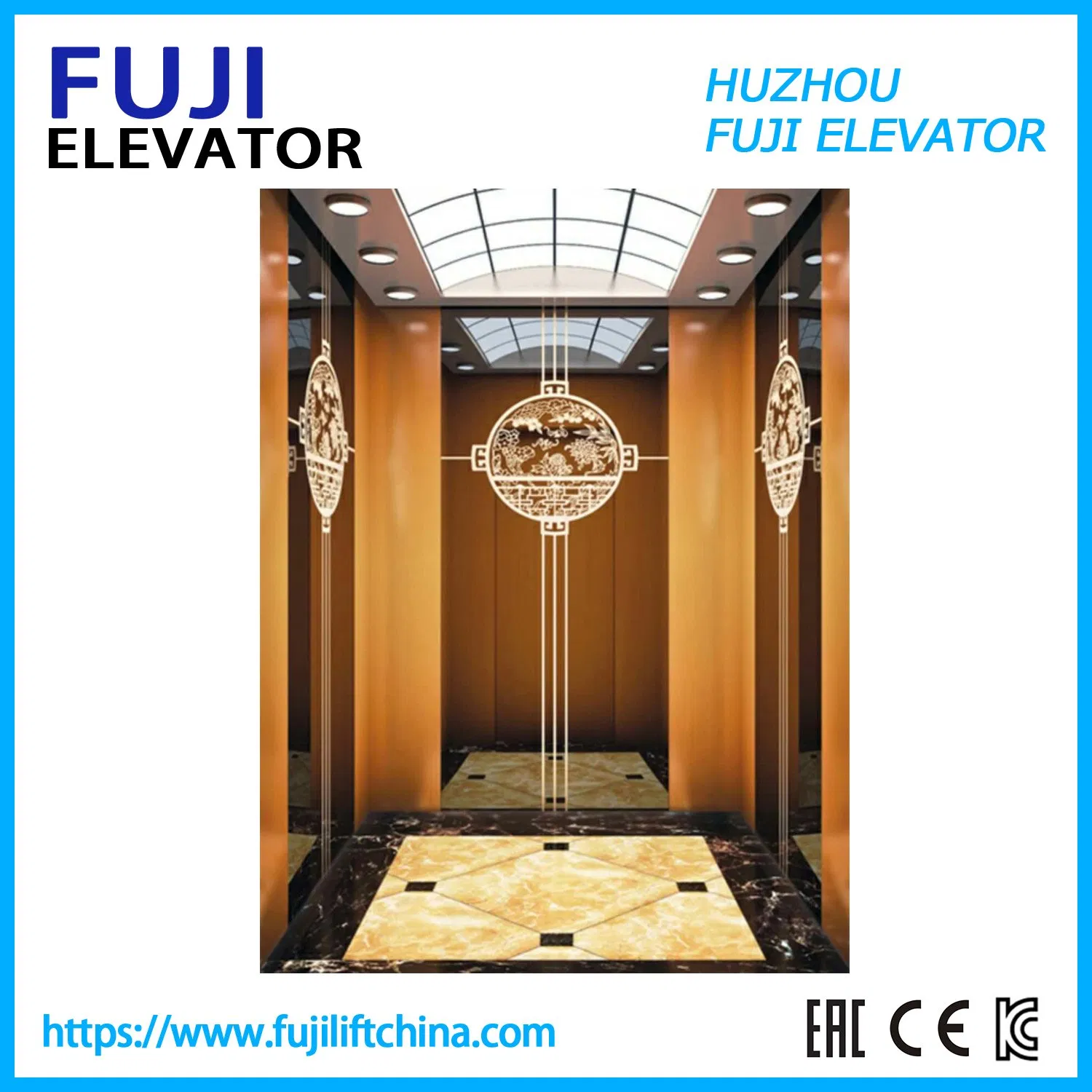

FUJI Elevator with Cheap Price Home Elevator Villa Lift China Lift Manufacturer

1 / 5

FUJI Elevator with Cheap Price Home Elevator Villa Lift China Lift Manufacturer

Customization:	Available
After-sales Service:	24 Hours Service
Warranty:	12-18 Months

Send Inquiry

Product Description

Basic Specifications

Model

FUJI-A

Driving Type

AC Elevator

Capacity

450-1600 Kgs

Persons

5-25

Speed

1-1.75 M/S

Control Mode

Collective Selective Control

Computer Room

Up Position

Elevator Door

Center Opening Door

Production Time

Within 25-30 Days

H.S Code

8428101090

Machine Room

With and Without Options

Transport Package

High Quality Export Wooden Case

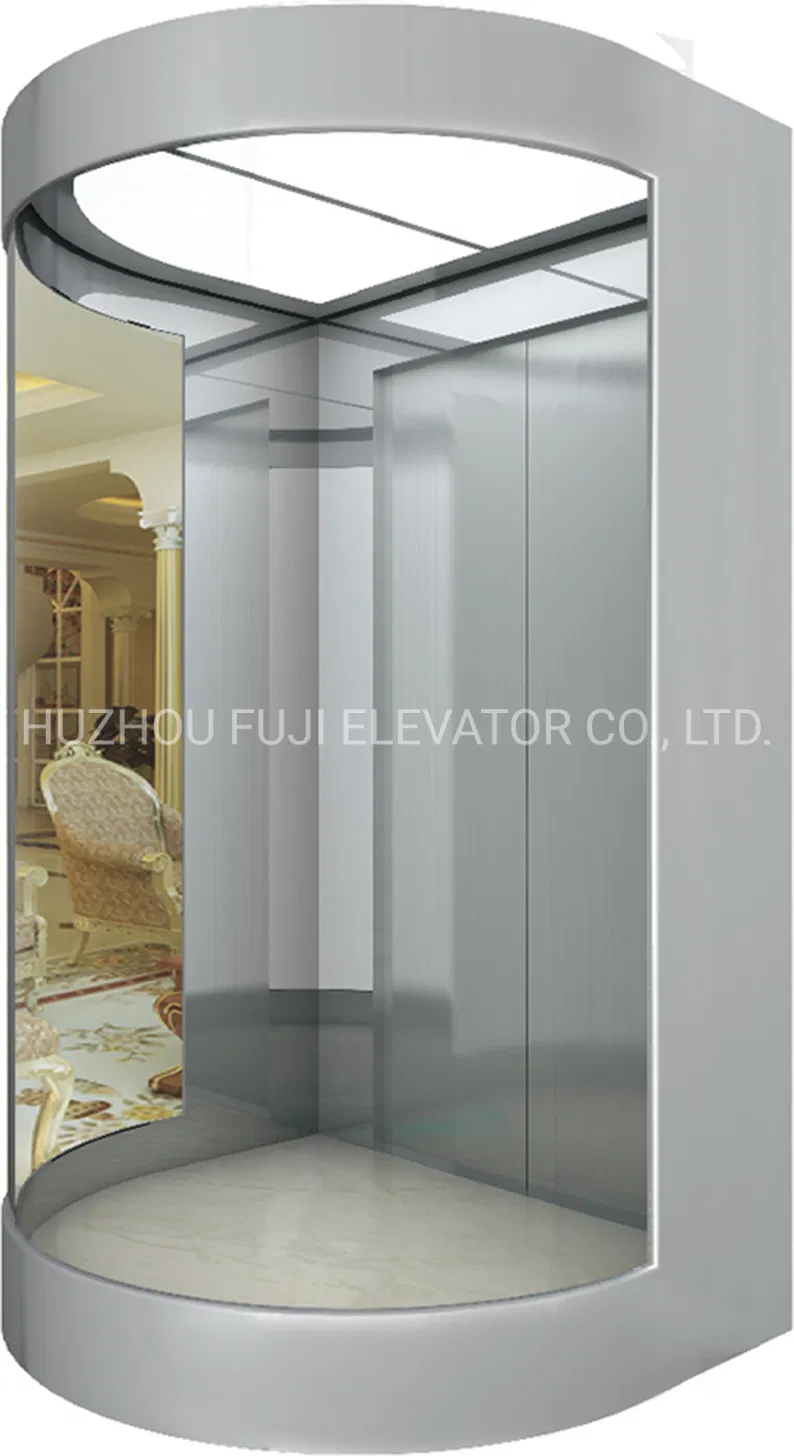

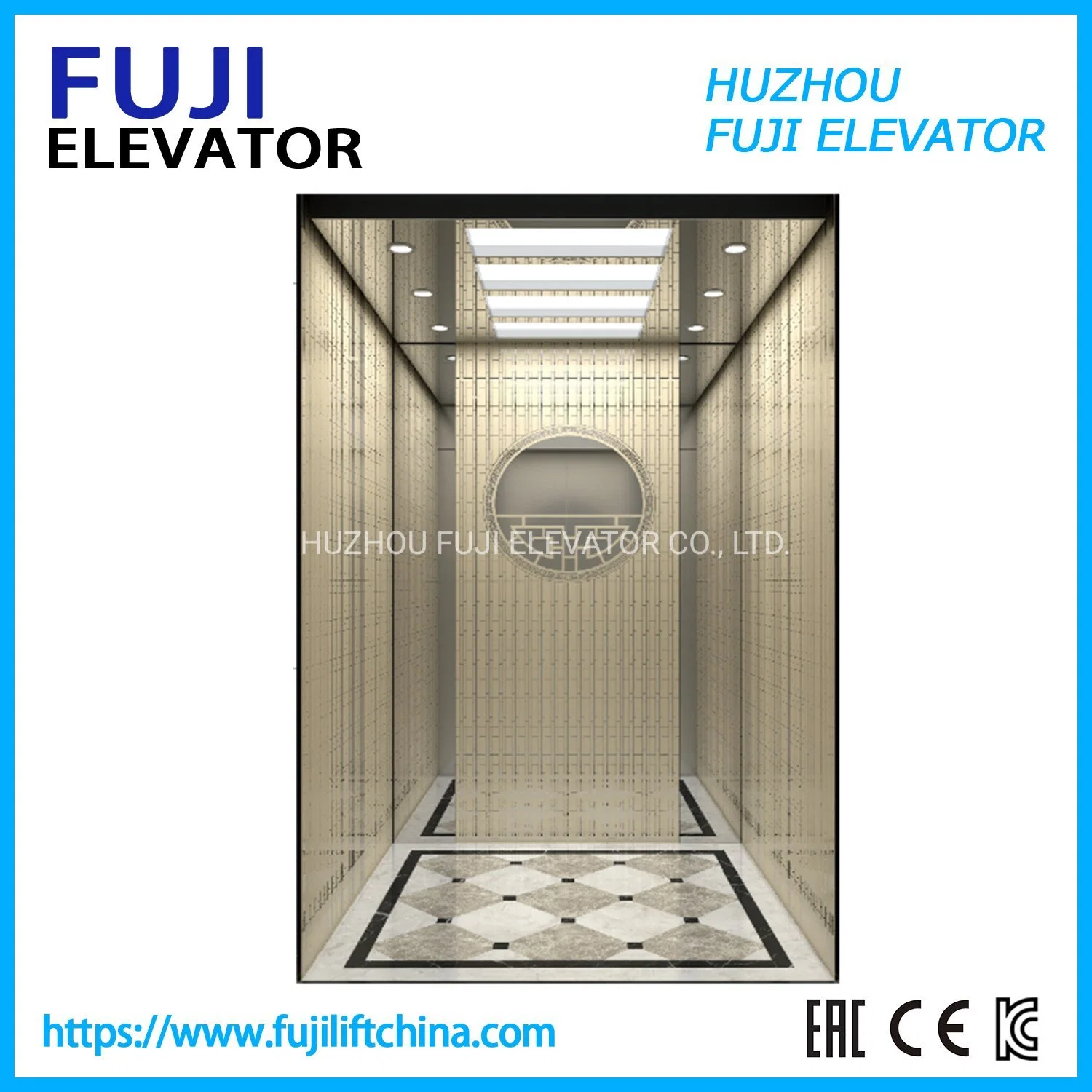

Product Visuals

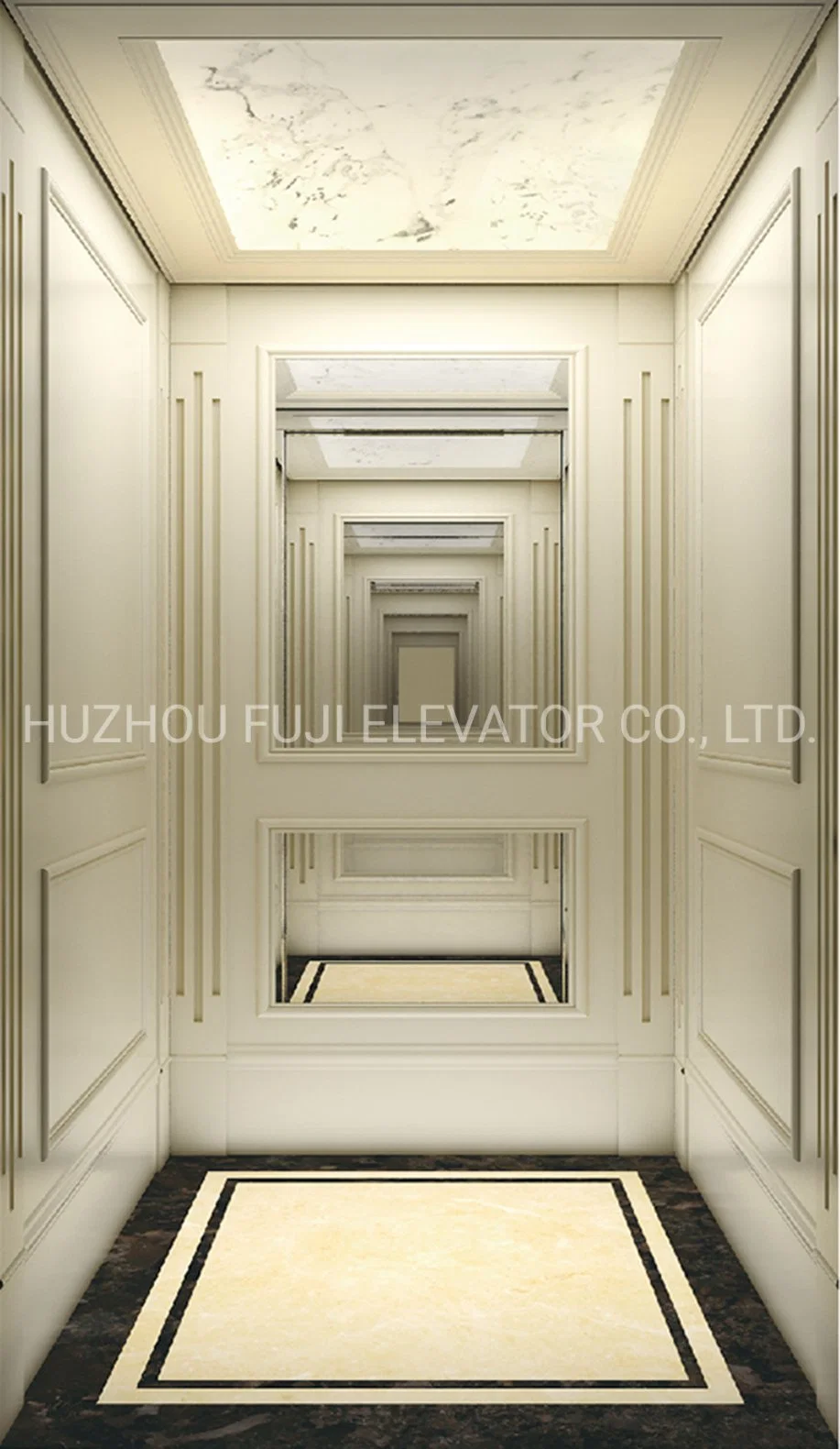

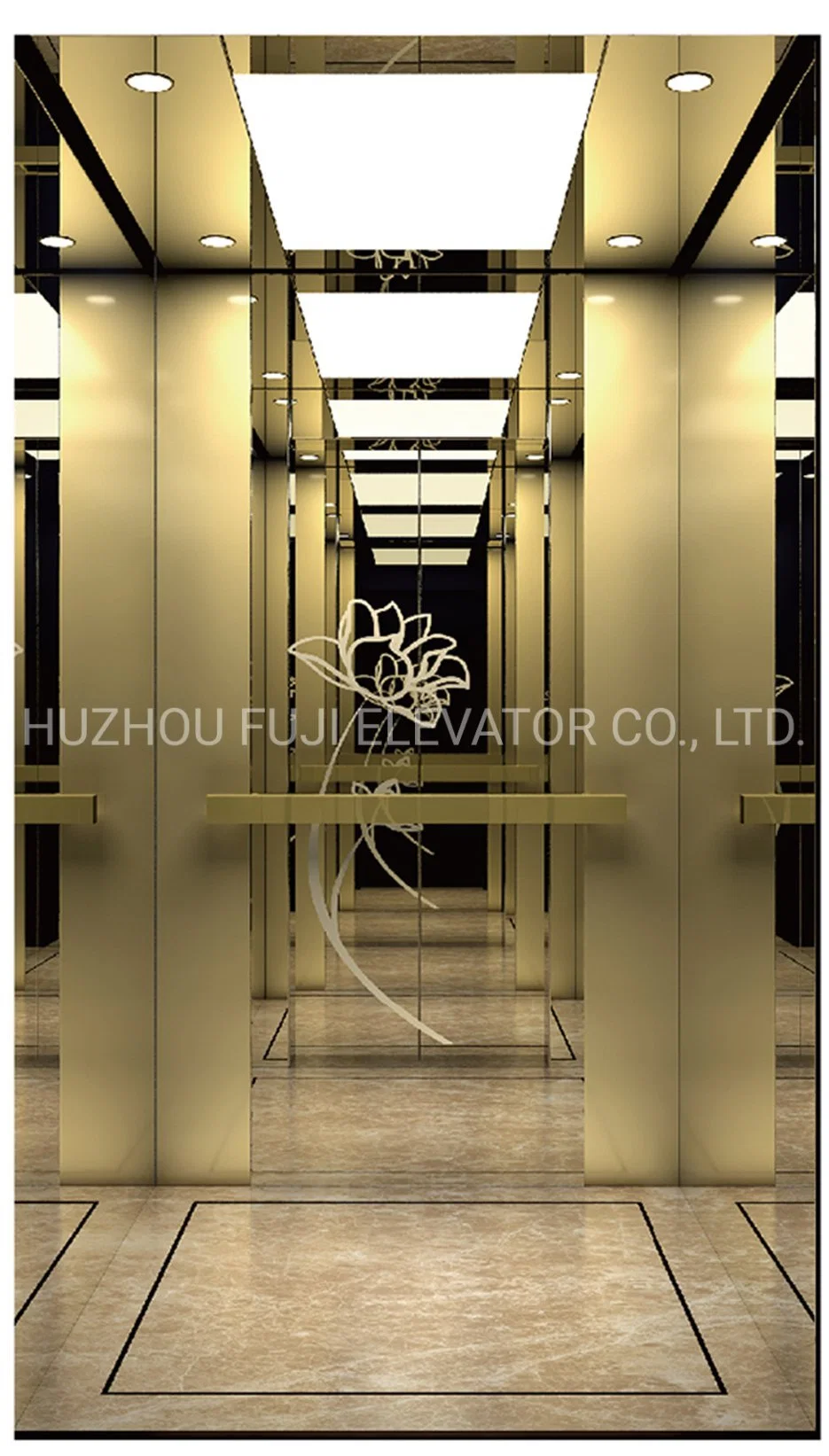

Standard Decoration & Optional Features

Feature Item	Standard Specification
Wall	Hairline stainless steel
Ceiling	LED Fluorescent, according to the car design
Car bottom	PVC
Jamb material	First layer hairline, remaining steel plate Spraying
Hall door	First layer hairline, remaining steel plate Spraying

Passenger Elevator Technical Parameters

Load (Kg)	Rated Speed (m/s)	Car Size (cw*cd mm)	Door Opening (ew*eh mm)	Shaft Size (hw*hd mm)
450	1	1100×1100	800×2100	2050×1850
630	1, 1.5, 1.75	1400×1100	800×2100	2250×1900
800	1, 1.5/1.75	1400×1350	800×2100	2200×1950
1000	1, 1.5/1.75	1500×1550	900×2100	2350×2150
1600	1, 1.5/1.75	1800×2000	1100×2100	2900×2200

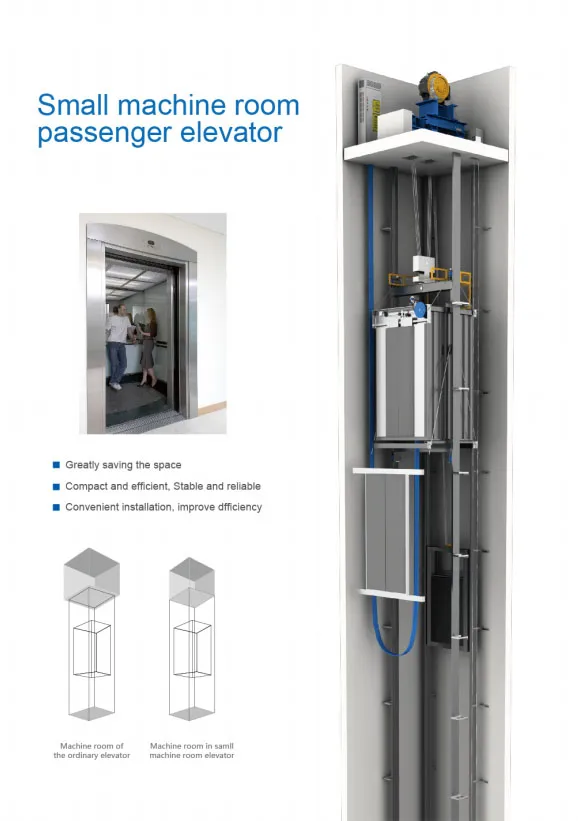

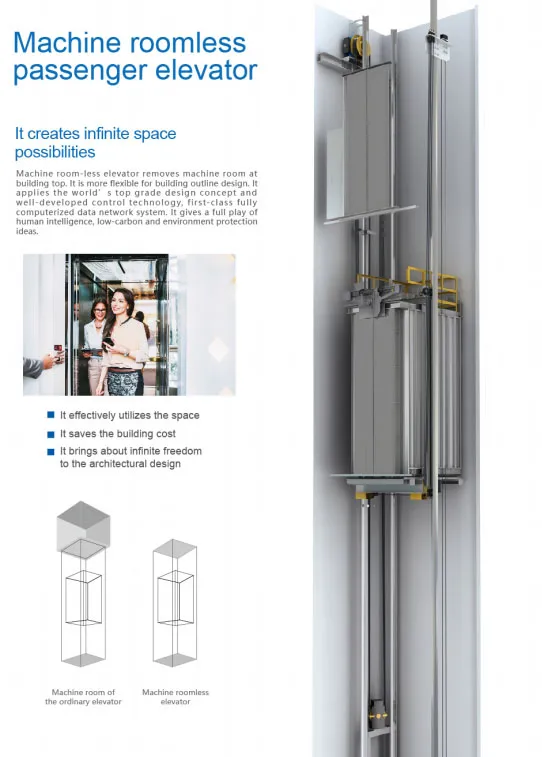

Machine Room & Machine Roomless Options

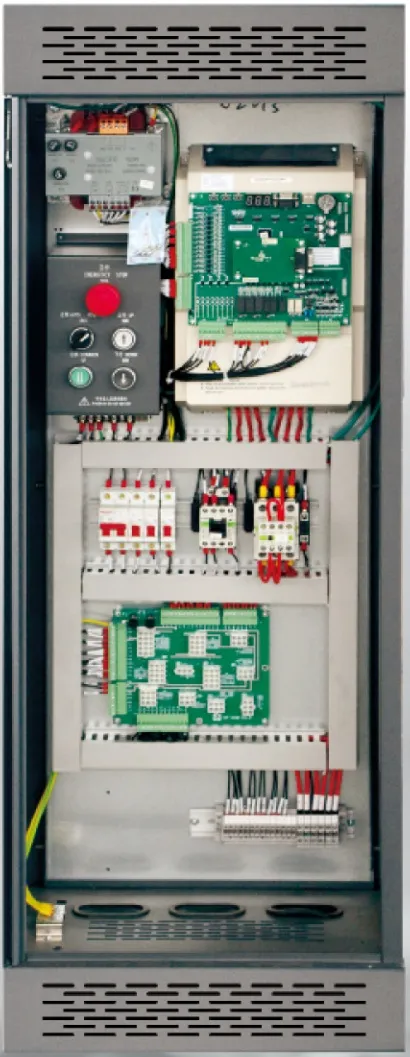

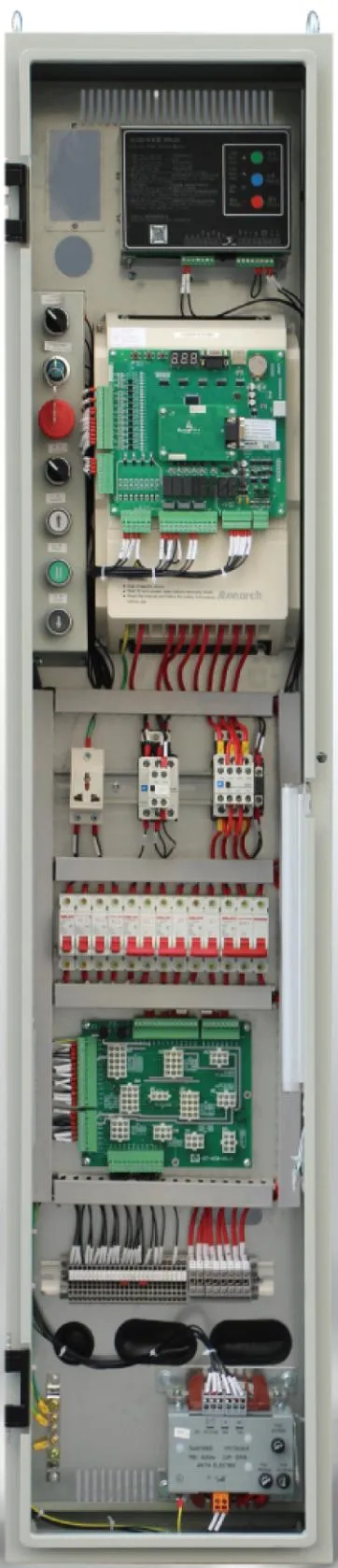

Intellectual Main Control System

It gives first priority to effectiveness in vertical transport field. To fully optimize the service efficacy of the elevator system, it fulfills intellectual management such as multi-computer, modular, and network control. The fully computerized system instantly feeds back running conditions, providing passengers with efficient service.

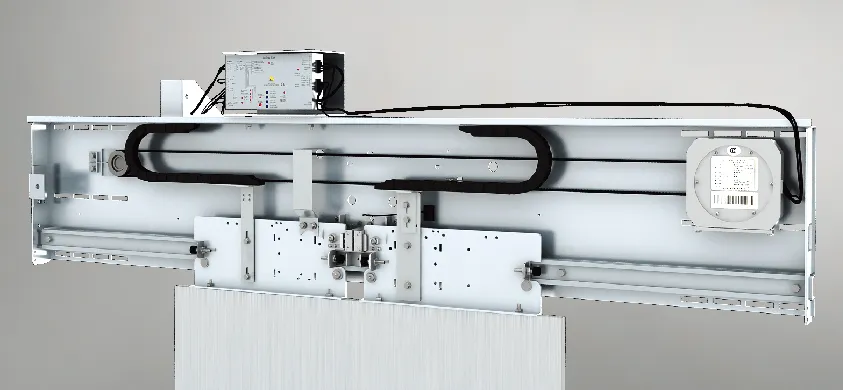

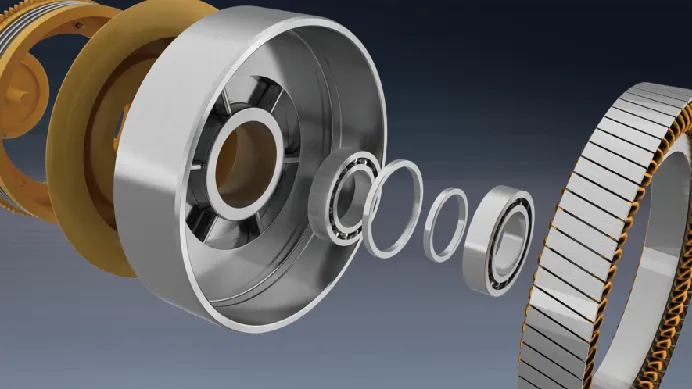

Permanent Magnet Synchronous Traction & Advanced Door System

Elevator Standard Safety Functions

No.	Function Name	Description
1	Static electricity protection	Eliminate static electricity raised from running steps.
2	Emergency stop button	Stops the escalator/moving walk against emergency.
3	Over-load protection	Protection against risk of motor continually over-load.
4	Over-speed protection	Protection if speed exceeds 20% of rated speed.
5	Step missing detection	Detects if a step is missing in the stairway.
6	Lack of phase protection	Protection against risk of phase failure.

Frequently Asked Questions

What is the weight capacity range for this passenger elevator?

The capacity ranges from 450 Kgs to 1600 Kgs, accommodating between 5 and 25 persons depending on the configuration.

What are the available rated speeds?

The elevator supports rated speeds of 1.0 M/S, 1.5 M/S, and 1.75 M/S.

Does this model require a dedicated machine room?

We offer flexible options including both small machine room (SMR) and machine roomless (MRL) designs to suit your building's architectural needs.

What are the standard safety features included?

Standard safety features include emergency stop buttons, over-speed protection, static electricity protection, over-load protection, and step missing detection.

What materials are used for the interior decoration?

The standard decoration features hairline stainless steel for the walls and jambs, with durable PVC for the car flooring and modern LED lighting.

What is the typical production and delivery timeframe?

The standard production time is within 25 to 30 days. Units are shipped in high-quality export wooden cases for maximum protection.
