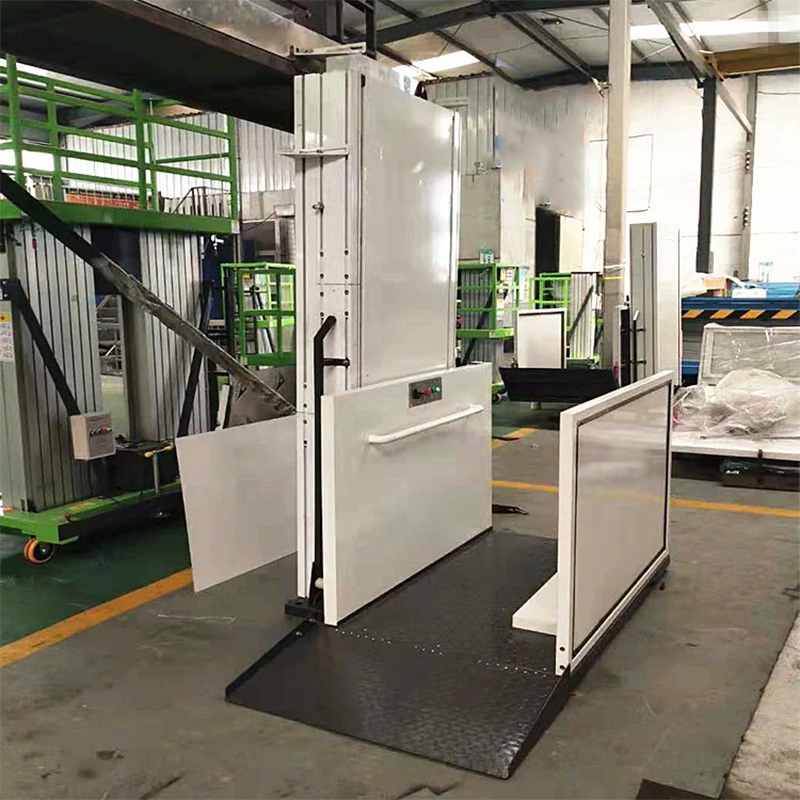

Dave Lift
Dave Lift
| Power | Worldwide voltage customization available |
| Lifting Height | 1500mm standard (Customizable up to 9m) |
| Platform Size | 1430mm(L) x 1000mm(W) |
| Speed | 40mm/s |
| Load Capacity | 300kg |
| In and Out Direction | 90° or 180° |
| Platform Type | Pattern non-slip metal plate |
| Motor | 1.5KW 220V/AC or 110V/AC |
| Environment | Indoor and Outdoor |
| Temperature | -20°C to 60°C |
| Installation | No foundation pit required (Direct fix to concrete) |

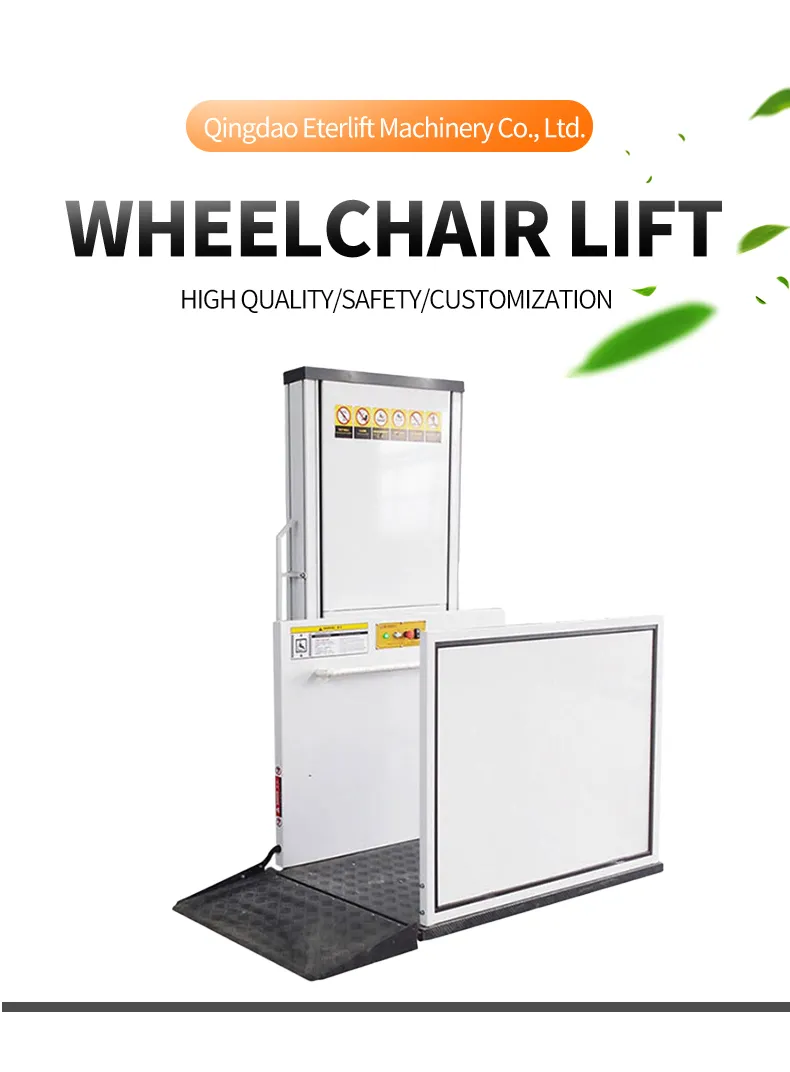

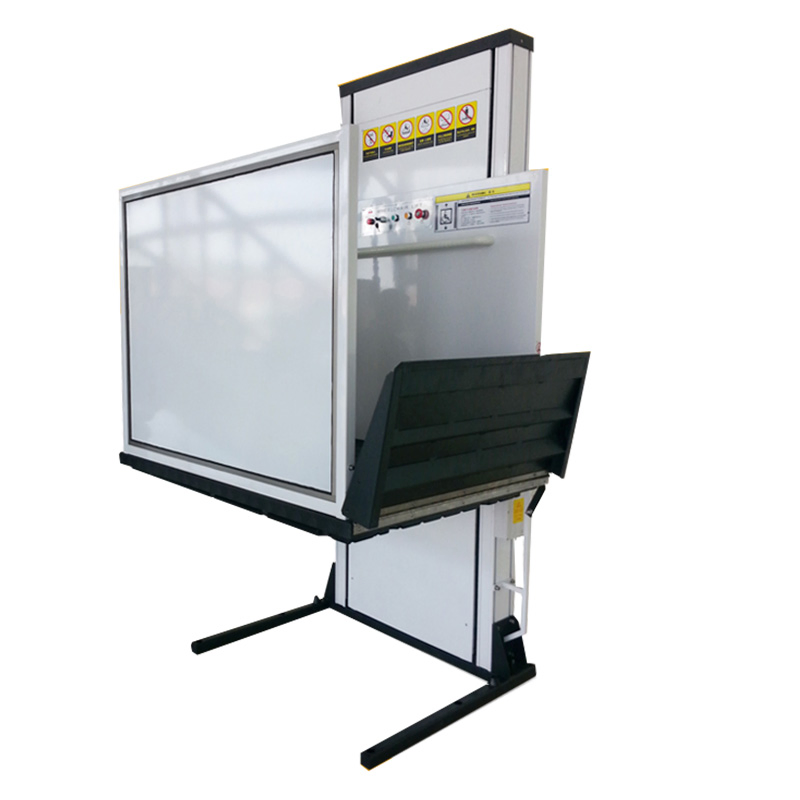

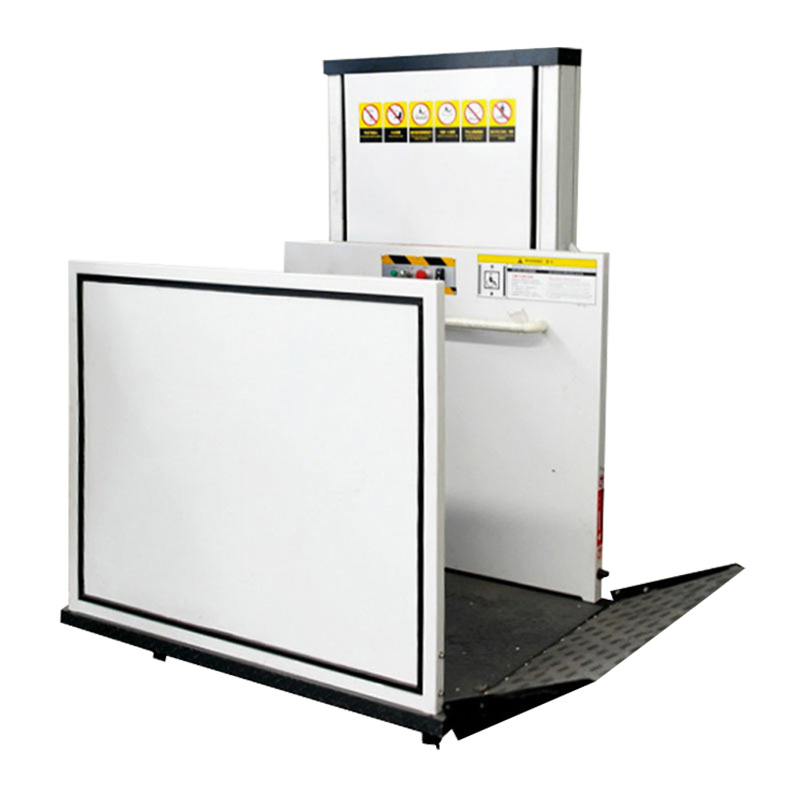

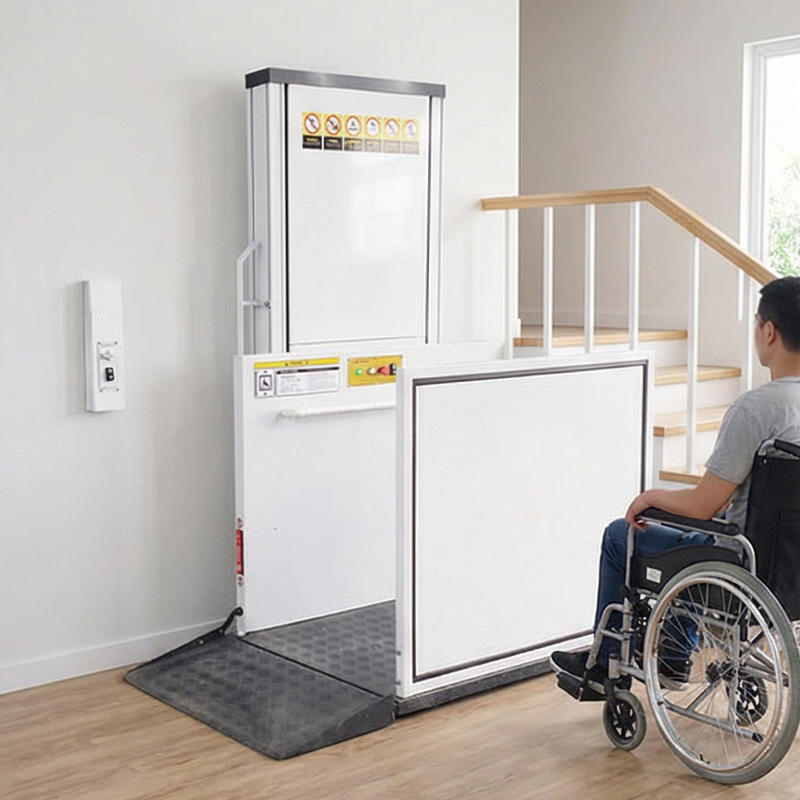

Vertical Home Wheelchair Lift Overview
The vertical home wheelchair lift is the most mainstream and commonly used type of home accessibility lifting equipment. Tailor-made for home scenarios, it mainly solves the vertical mobility problems of people with reduced mobility (the elderly, the disabled). With the advantages of strong adaptability, easy installation, safety and stability, it has become the first choice for accessibility renovation of ordinary families and old communities.
Drive System: Utilizes hydraulic or screw drive systems for smooth, low-noise operation.
Installation: Pit-free design; can be directly fixed on concrete floors without damaging house structures.

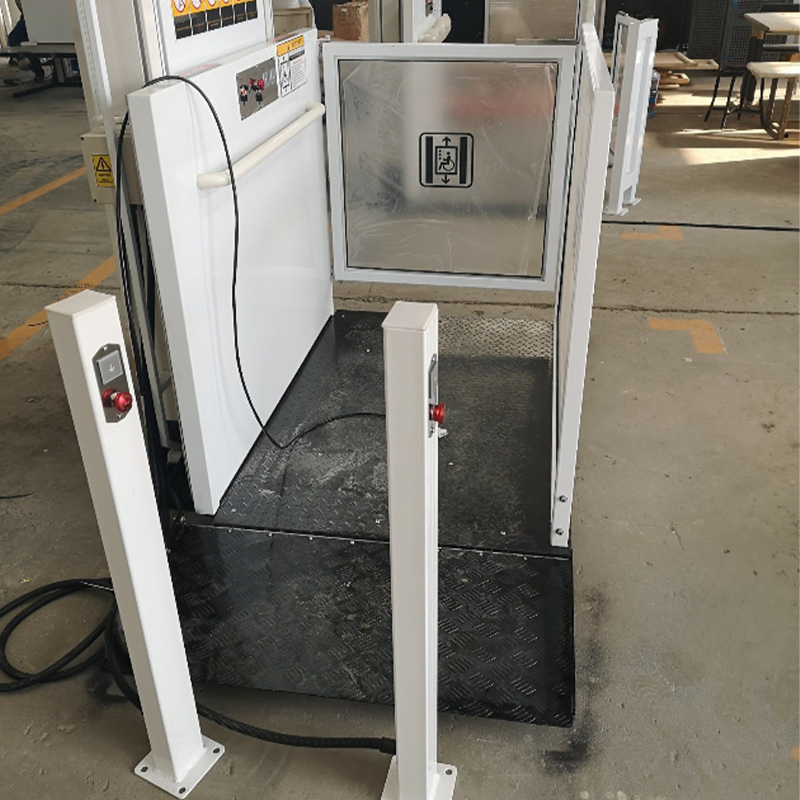

Safety: Equipped with non-slip patterned platforms and emergency stop buttons.
In terms of drive and operation, the vertical home wheelchair lift runs smoothly without jolts. The lifting process is gentle, avoiding discomfort for users. The maximum lifting height can range from 1500mm to 8000mm, covering needs for 1-3 storey residential buildings. It covers a small area and flexibly adapts to indoor and outdoor scenarios, such as balconies, basements, or entrance thresholds.
