Basic Info
Installation
Indoor & Outdoor
Lifting Height
1800mm/1900mm
Safety Features
Automatic Safety Locks, Emergency Stop Button, Overload Protection
Type
Four Post Parking Lift
Vehicle Compatibility
Sedans, SUVs
Lift Mode
Hydraulic Cylinder
Certification
CE, ISO, CCC
Voltage/Power
220V, 380V or Customized /2.2kw
Production Capacity
3000 Units/Year
Packaging & Delivery
Package Size
250.00cm * 240.00cm * 100.00cm
Package Gross Weight
700.000kg
Transport Package
Export Standard
Product Description
We are leading parking lifts in the safety!!!
Operating Principle
The transmission mode of the equipment is hydraulic, which hydraulic pump outputs high pressure oil to push hydraulic cylinder, and drive carrying board up or down for parking and retrieving. When carrying board rises to designated position, the car can drive in and drive out.

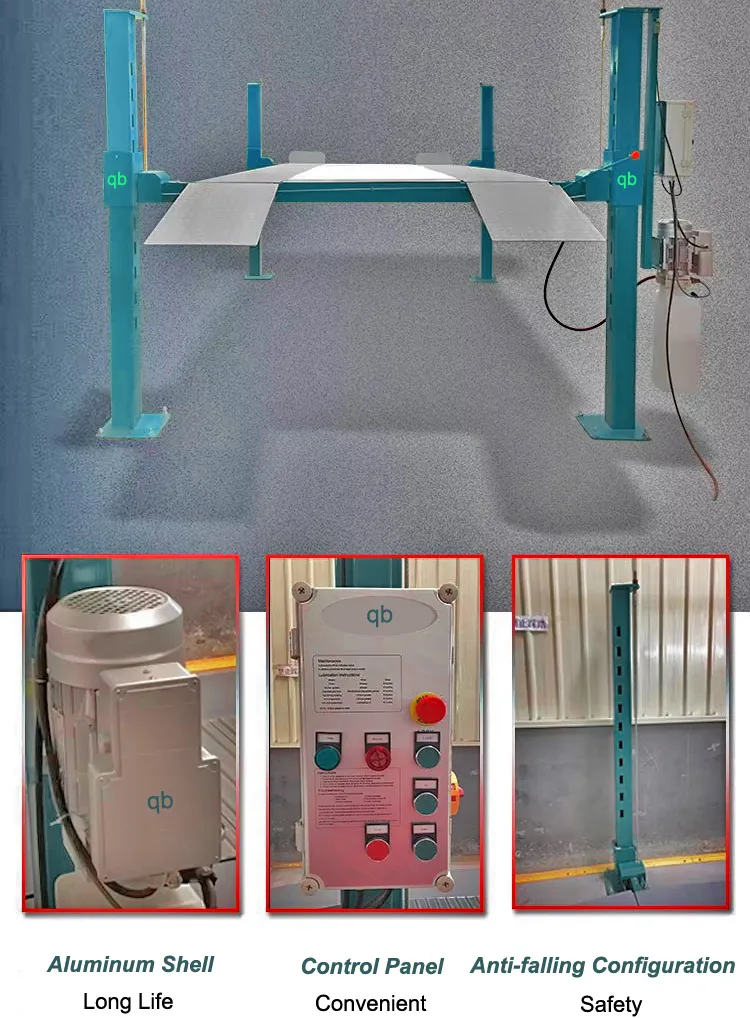

Features
✔Single hydraulic pump drives to rise up wirerope.
✔The system is locked and unlocked automatically.
✔There are anti-dropping metal blocks in columns for safety.
✔Collecting oil structure can prevent oil to drip under car.
✔The self-lubricated bearings are used to ensure safety at any height.
✔Anti-skid design and traction plate are friendly for driving cars.
Parameter
| Model No. |
FPP707 |
FPP708 |
| Lifting Capacity | 7000lbs/3200kgs | 8000lbs/3800kgs |
| Lifting Height | 1800mm | 1900mm |
| Overall Height | 2086mm | 2138mm |
| Width Between Posts | 2353mm | 2353mm |
| Width Between Boards | 949.5mm | 949.5mm |
| Rated Oil Pressure | 18Mpa |
| Rise/Drop Time | 60s/50s |
| Voltage/Power | 220v,380v/2.2kw |
| Operation Mode | Manual |

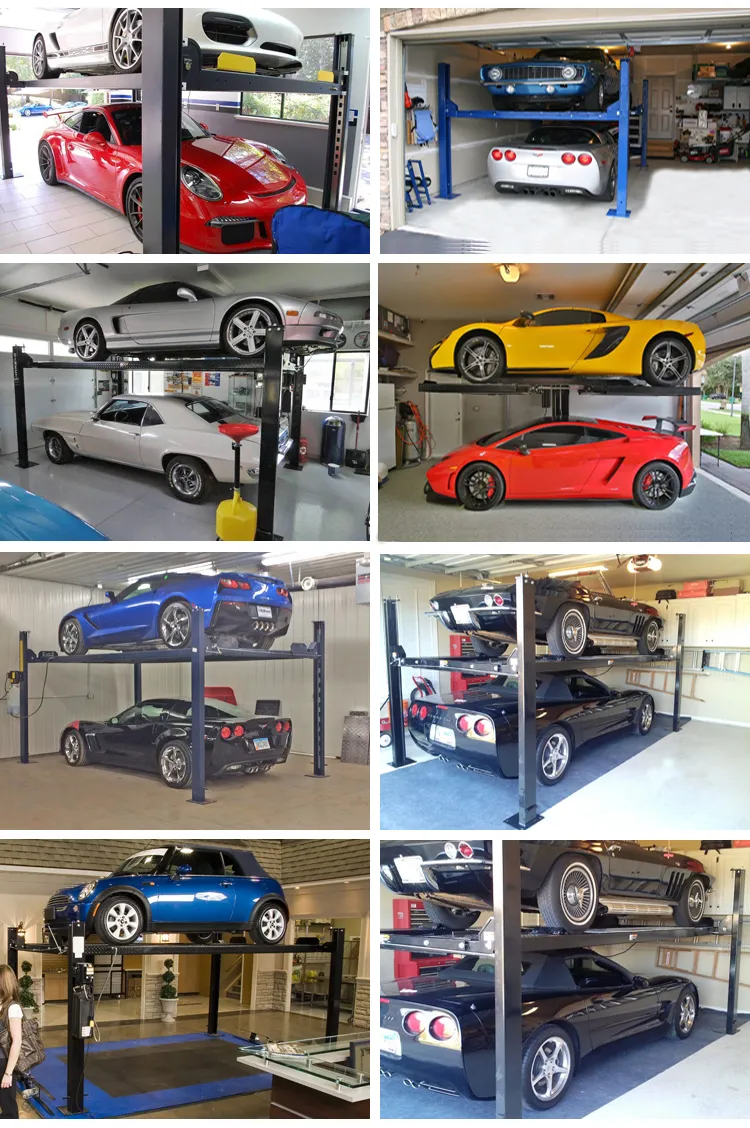

Product Showcase
Frequently Asked Questions
Are you a factory or trading company?
We are a factory with more than 30 years' manufacturing and design experience.
Could the parking system be customized?
Yes. The parking system can be customized accordingly to your site and requirements.
Could the parking system be used for parking SUV?
Yes. The system can be customized to fit for SUV. Please contact us for more details.
Could the system be used outdoor?
Yes. The structure surface is galvanized or painted, which is water-proof, and extra covers could be installed to prevent from rain, snow and heavy wind.
What's the voltage requirement?
The voltage can be customized accordingly to your local voltage requirements.
