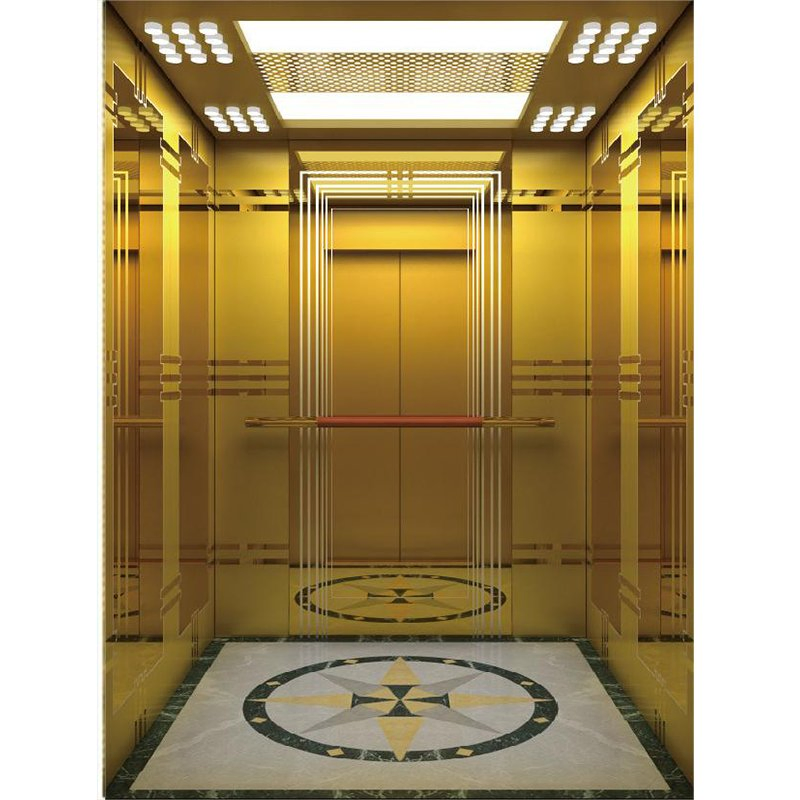

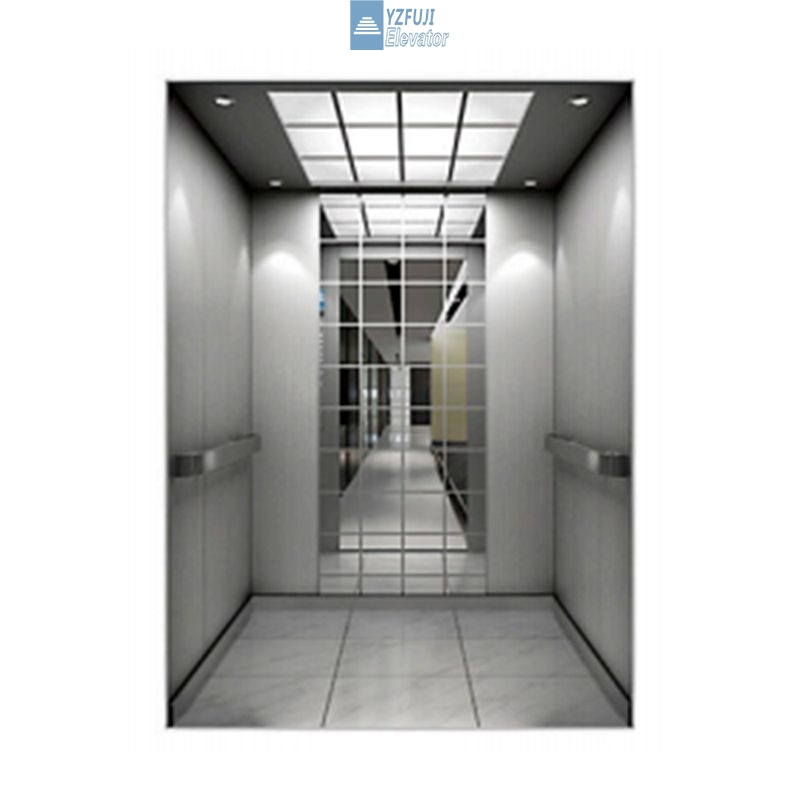

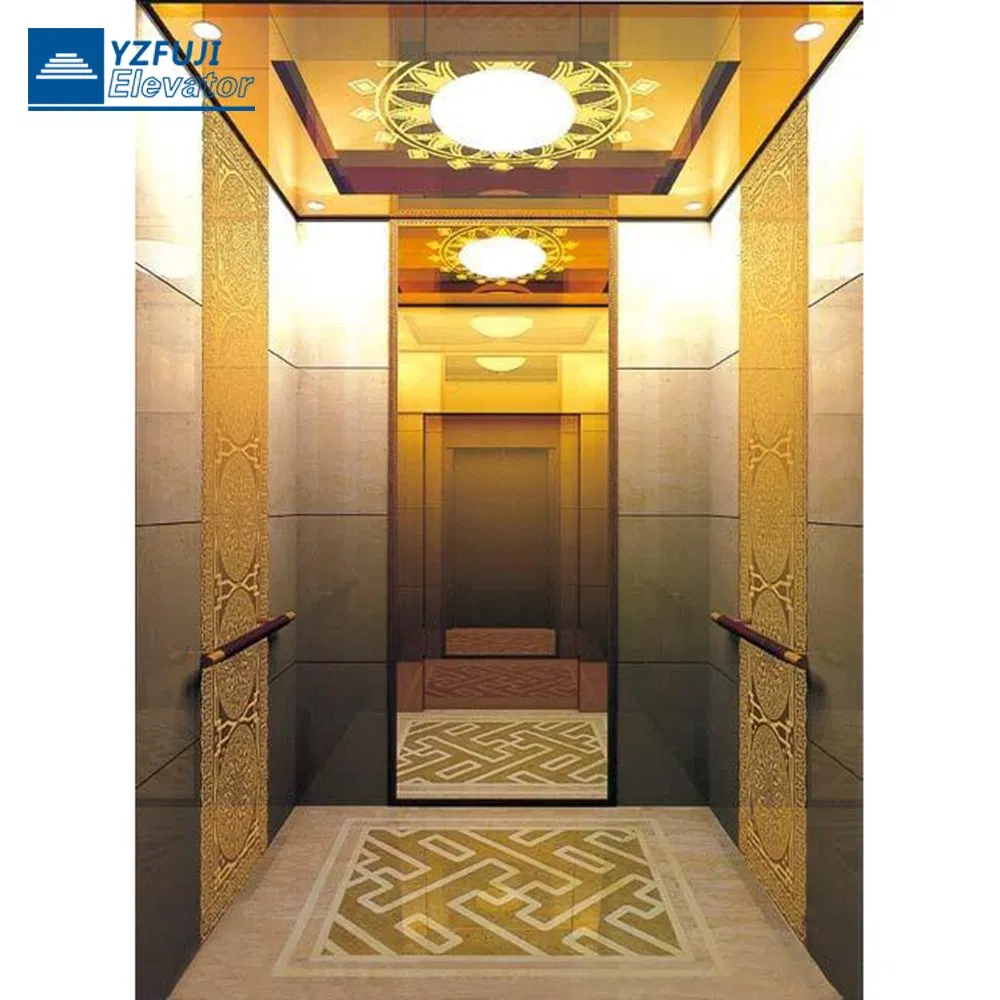

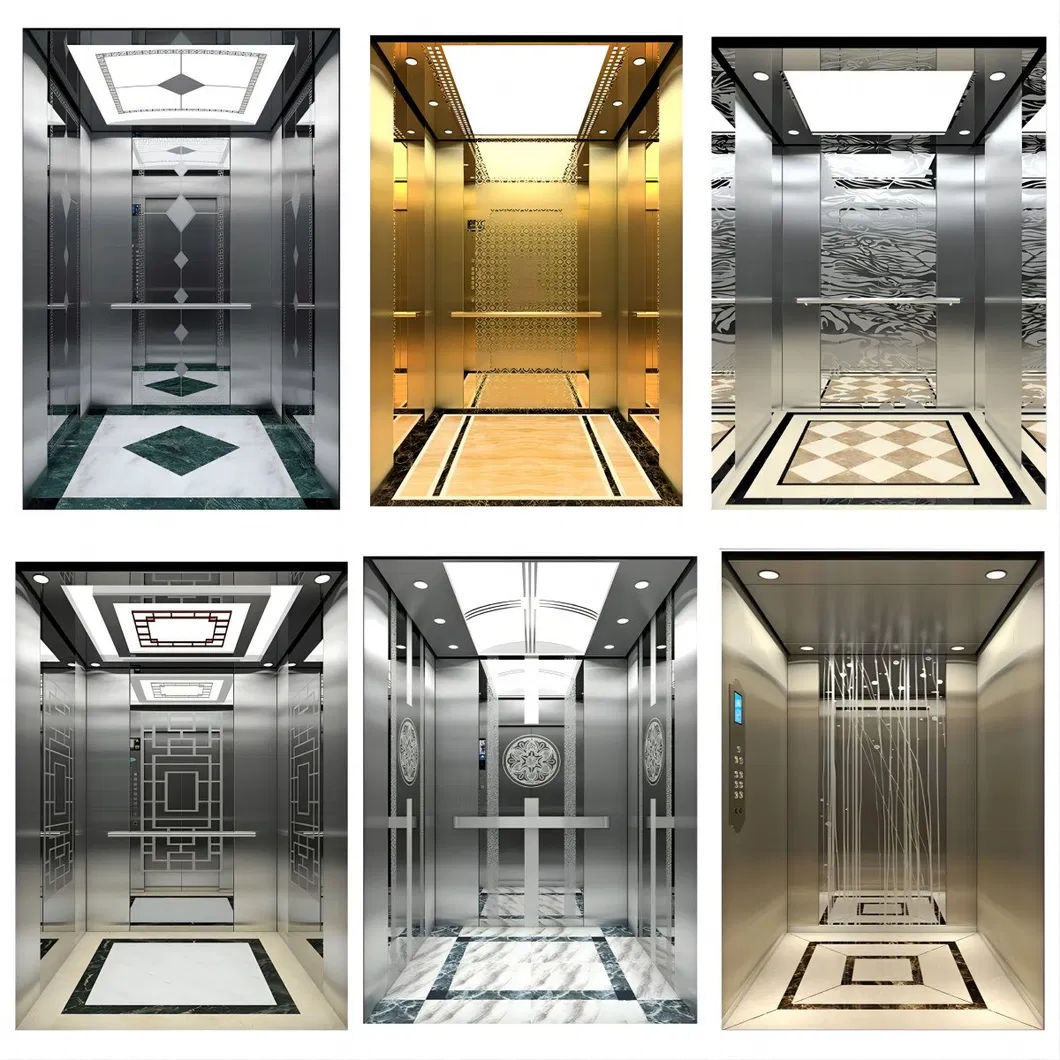

We can produce customized elevators according to your requirements to cater to your buildings or decoration needs:
| Capacity (Kg) | Person | Speed (m/s) | Entrance (mm) | Car Dimension (mm) | Hoistway Dimension (mm) | Pit Depth (mm) | Overhead Height (mm) |
|---|---|---|---|---|---|---|---|
| 450 | 6 | 1.0 | 700 | 1200x1100 | 1800x1800 | 1500 | 4400 |
| 630 | 8 | 1.0-1.5 | 800 | 1400x1100 | 2000x1800 | 1500-1600 | 4400-4500 |
| 800 | 10 | 1.0-2.0 | 800 | 1400x1350 | 2000x2050 | 1500-1800 | 4400-4700 |
| 1000 | 13 | 1.0-2.5 | 900 | 1600x1450 | 2200x2200 | 1500-2000 | 4400-4900 |

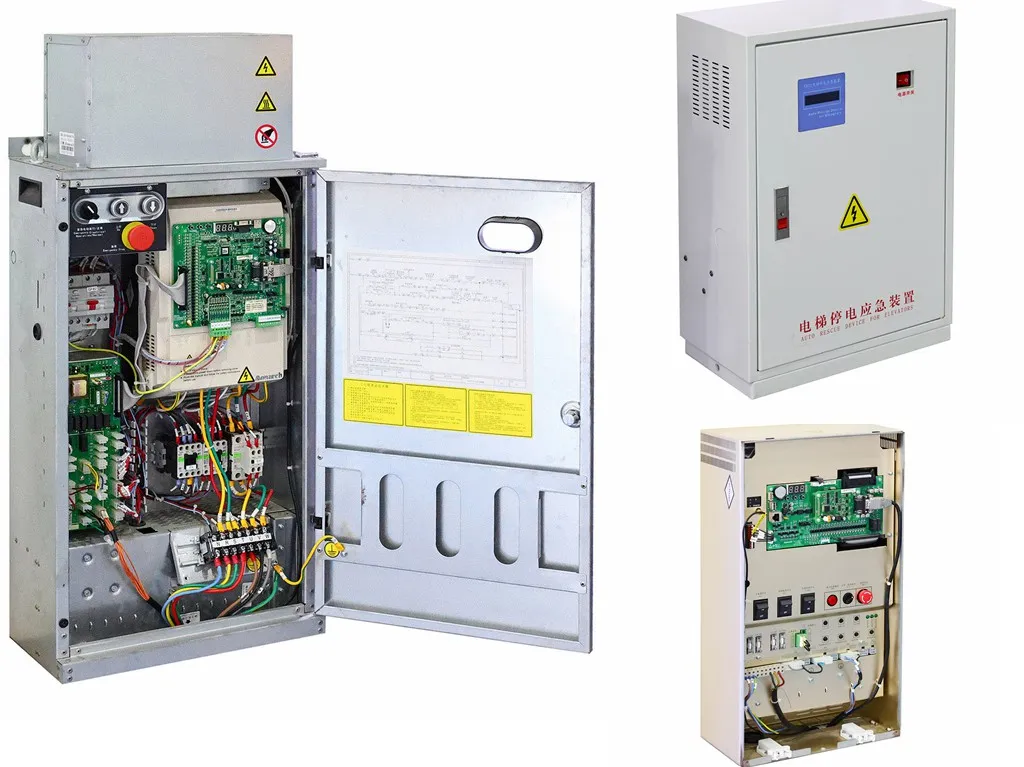

Adopts low noise vector control inverter word frequency, voltage regulation and speed regulation (VVVF). It utilizes advanced IGBT technology to realize PWM control, greatly reducing motor noise and power consumption while prolonging motor life.

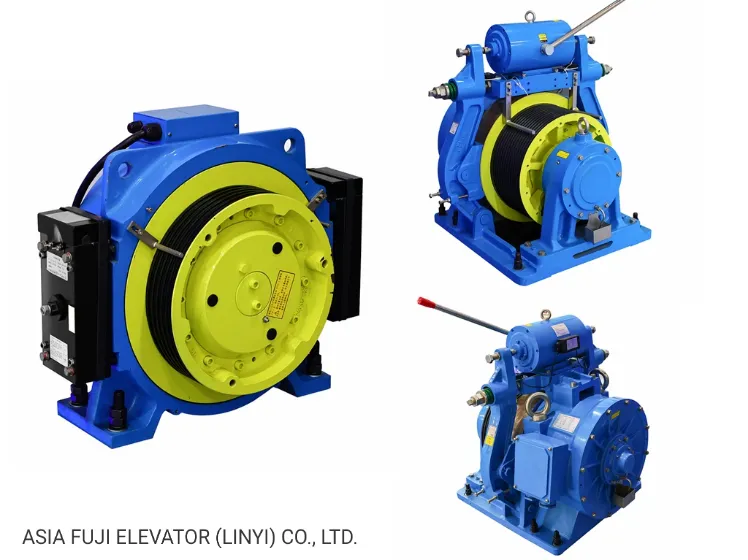

Uses permanent magnet gearless traction machines instead of traditional worm types. This realizes miniaturization and light weight, eliminating mechanical loss and saving more than 60% energy. It meets environmental protection requirements with no oil, minimum noise, and minimum vibration.

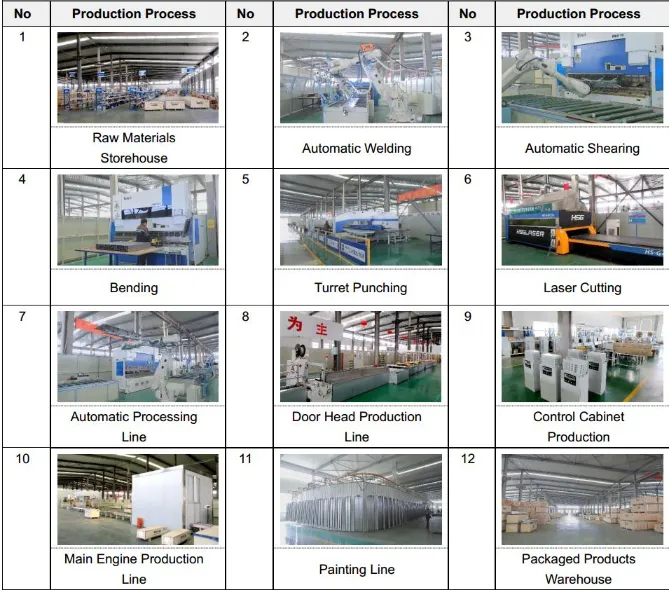

The company integrates research, development, design, and production. It has obtained honors like "National Quality Inspection Stable and Qualified Products" and "High-tech Enterprise". We mainly produce passenger elevators, cargo elevators, sightseeing elevators, villa elevators, and escalators.
