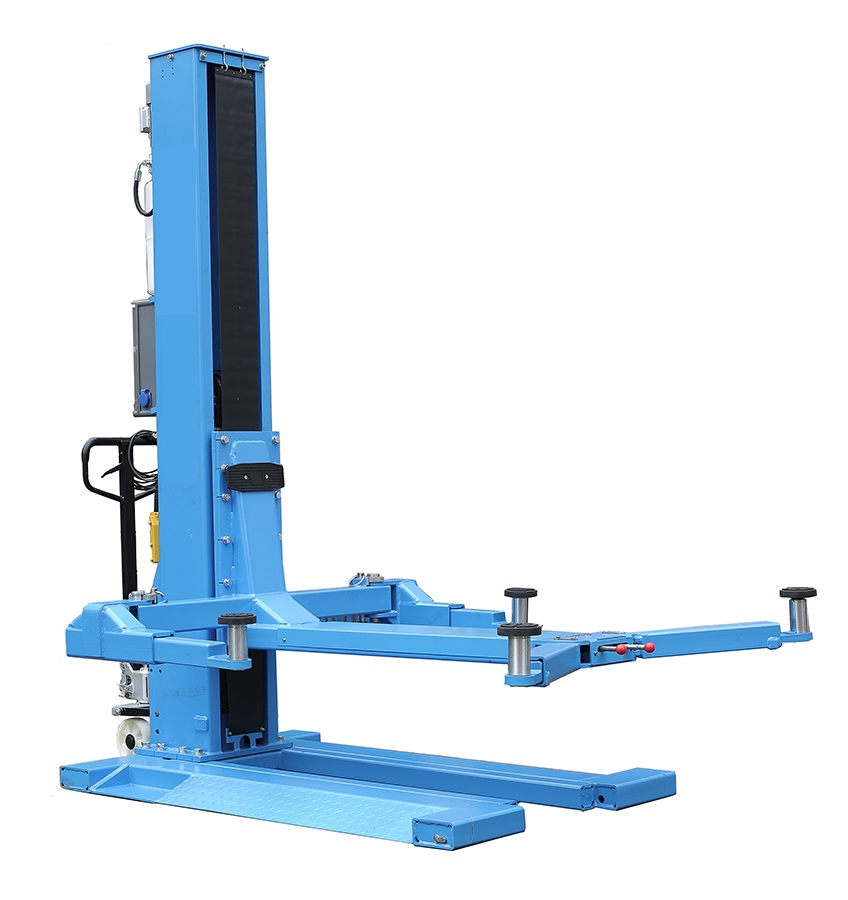

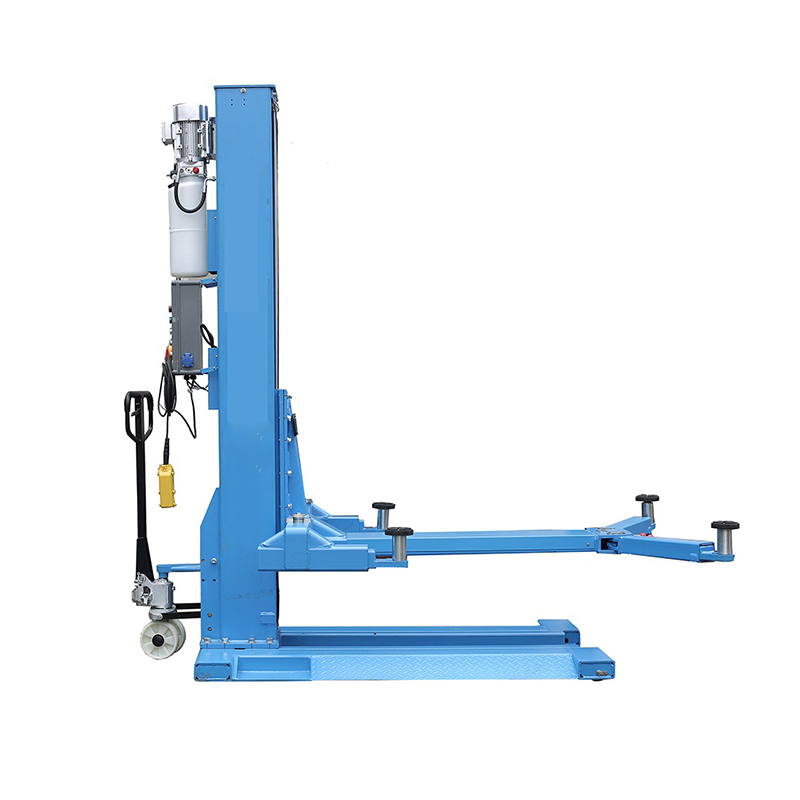

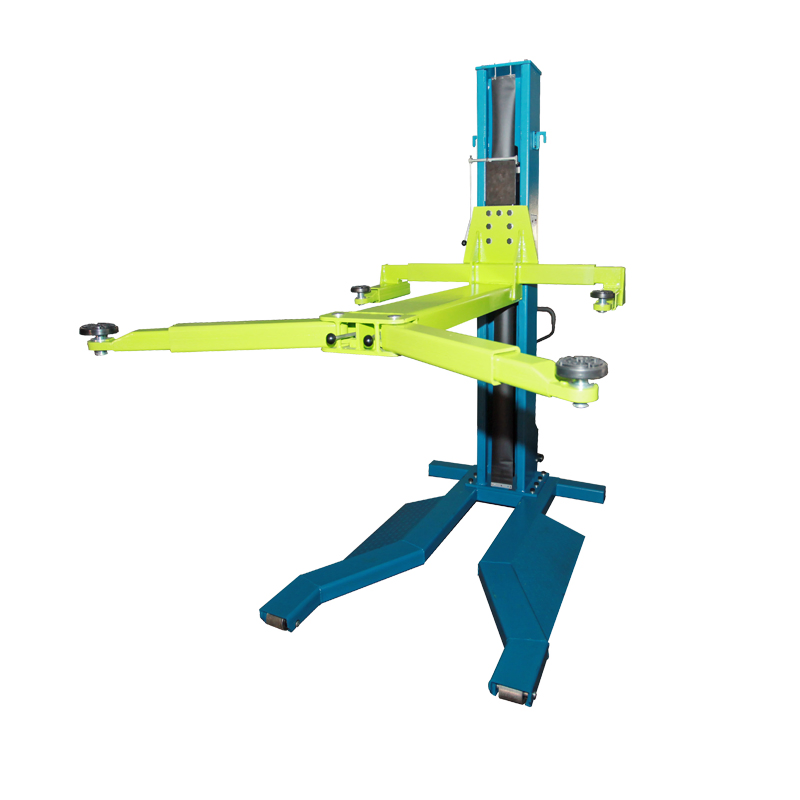

Hydraulic Home Garage Single Post Car Lift for Repair
Hydraulic Home Garage Single Post Car Lift for Repair
Hydraulic Home Garage Single Post Car Lift for Repair
Hydraulic Home Garage Single Post Car Lift for Repair
Hydraulic Home Garage Single Post Car Lift for Repair
1 / 5
Hydraulic Home Garage Single Post Car Lift for Repair
Hydraulic Home Garage Single Post Car Lift for Repair
Hydraulic Home Garage Single Post Car Lift for Repair
Hydraulic Home Garage Single Post Car Lift for Repair
Hydraulic Home Garage Single Post Car Lift for Repair

Hydraulic Home Garage Single Post Car Lift for Repair

Customization: Available
Type: One Cylinder Hydraulic Lift
Lifting Capacity: 2.5T
Send Inquiry

Product Description

Basic Specifications

Model NO.
JH-M2500
Driving Type
Hydraulic
Certification
CE, ISO, ETL
Design
Single Post
Condition
New
Lifting Capacity
2500kg (5,500lbs)
Lifting Time
28s
Gross Weight
713kgs
Service Environment
Indoor or Outdoors
HS Code
8425429000

Product Features

2.5T Capacity Single Post Hydraulic Lift
  • 24V control system ensures safe operation.
  • Fabric chain cover protects the cylinder and provides a clean appearance.
  • High strength gear and rack for enhanced stability and safety.
  • Lifting arm with screw-up holding pads and 3" extension adaptors for easy height adjustment.
  • Two levels of security system with chain protection cover.
  • Fixed single column design with adjustable arms.
  • Mechanical Self-Lock and manual lock release safety device.
  • Self-lubricating UHMW Polyethylene sliders and bronze bush (Maintenance-free).
  • Height limited switch protects the cylinder for a long service life.
Warranty Policy

5 Years Warranty: Lift structure (Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, etc.)

2 Years Warranty: Hydraulic parts (Cylinders, oil seal, oil hose, fittings, etc.)

1 Year Warranty: Spare parts, electrical components, and power unit.

Technical Specifications

Parameter Details
ModelJH-M2500
StyleSingle Post Lift
Lifting Capacity2.5T (5,500lbs)
Lifting Height1800mm
Minimum Lifting Height106mm (4 1/6")
Overall Height2754mm
Overall Width1400-1700mm
Motor2.0/3.0HP
Packing Dimensions105×130×12cm / 275×50.9×37.5cm / 108×77.5×179cm

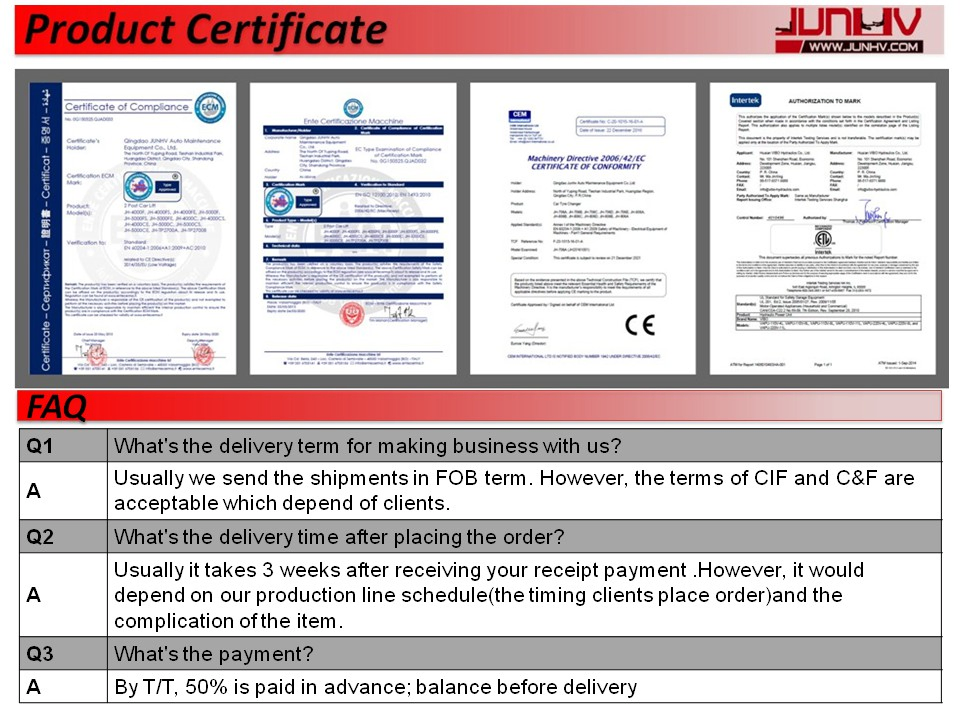

Quality Management

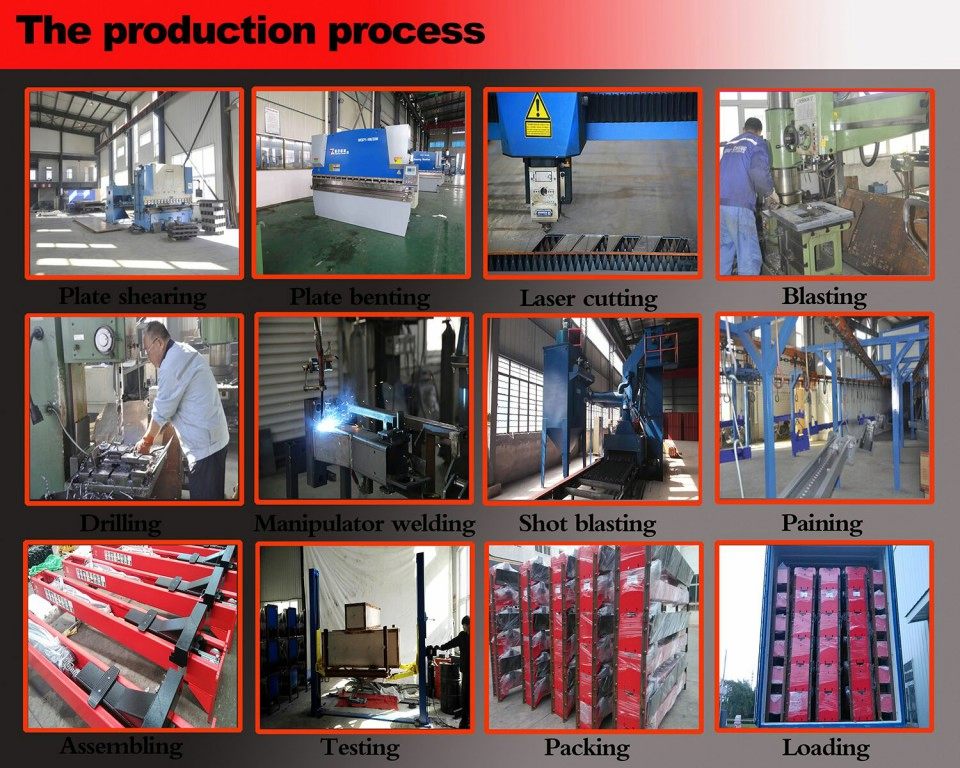

Our manufacturing processes operate under a rigorous and strict quality control system. We hold full manufacturing system certificates including CE and ETL certifications. Every product undergoes a 100% inspection before shipment to guarantee high quality and efficient management in compliance with ISO9001 standards.

Frequently Asked Questions

What is the delivery term for orders?
Usually, we send shipments under FOB terms. However, CIF and C&F terms are also acceptable depending on client requirements.
How long is the delivery time after placing an order?
It typically takes about 3 weeks after receiving your payment. This may vary based on the current production schedule and item complexity.
What are the accepted payment methods?
We accept payment by T/T, with 50% paid in advance and the remaining balance due before delivery.
Can this lift be installed outdoors?
Yes, the design is suitable for both indoor and outdoor service environments.
What is the maximum lifting height of the JH-M2500?
The maximum lifting height for this model is 1800mm, with a minimum height of 106mm.
Is maintenance difficult for this single post lift?
No, the lift features self-lubricating UHMW Polyethylene sliders and bronze bushes, making it virtually maintenance-free and trouble-free.
