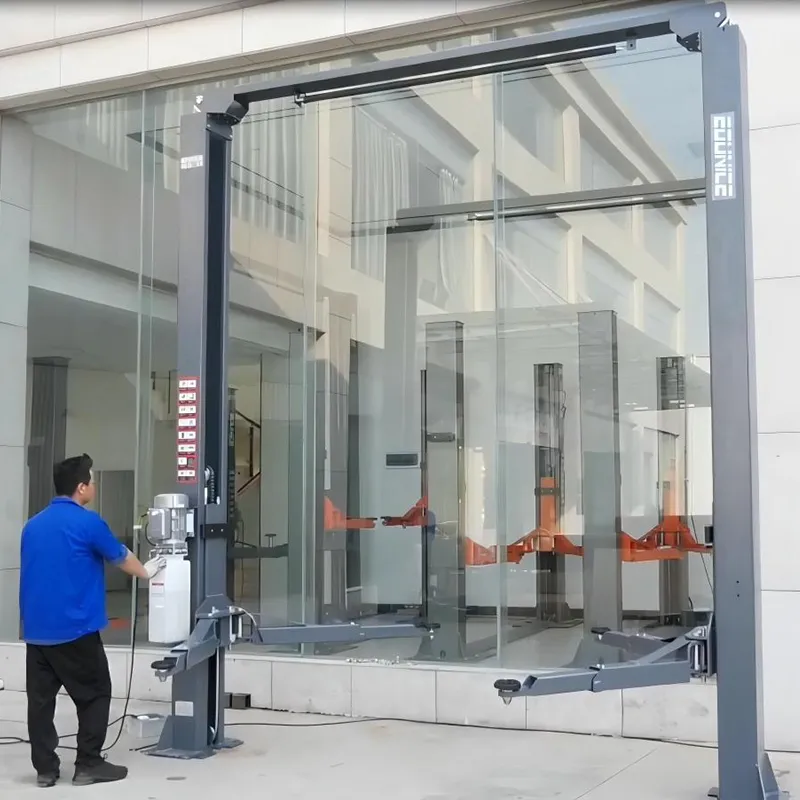

Dave Lift Dave Lift

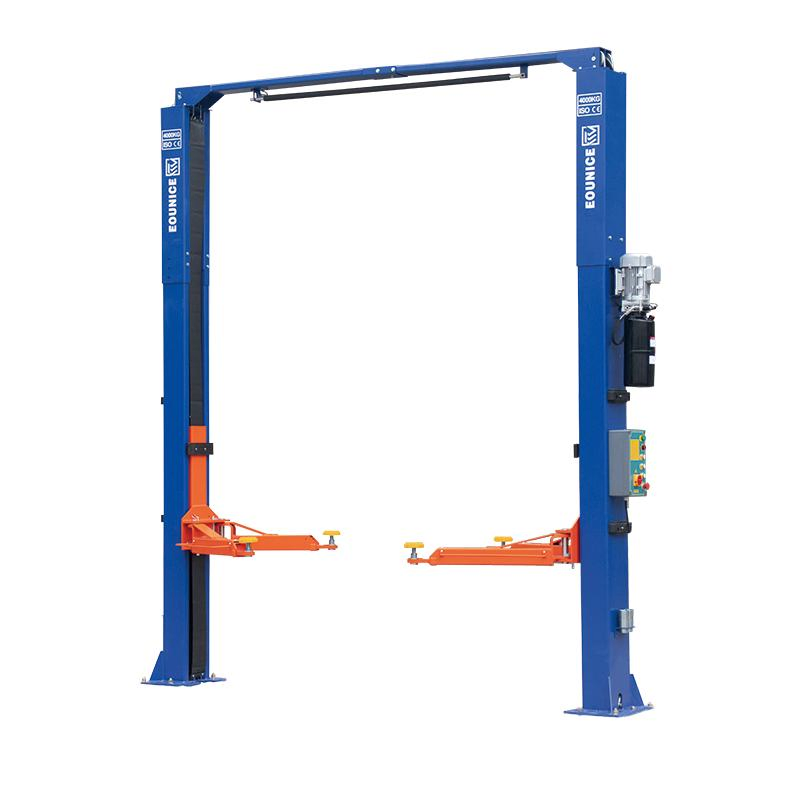

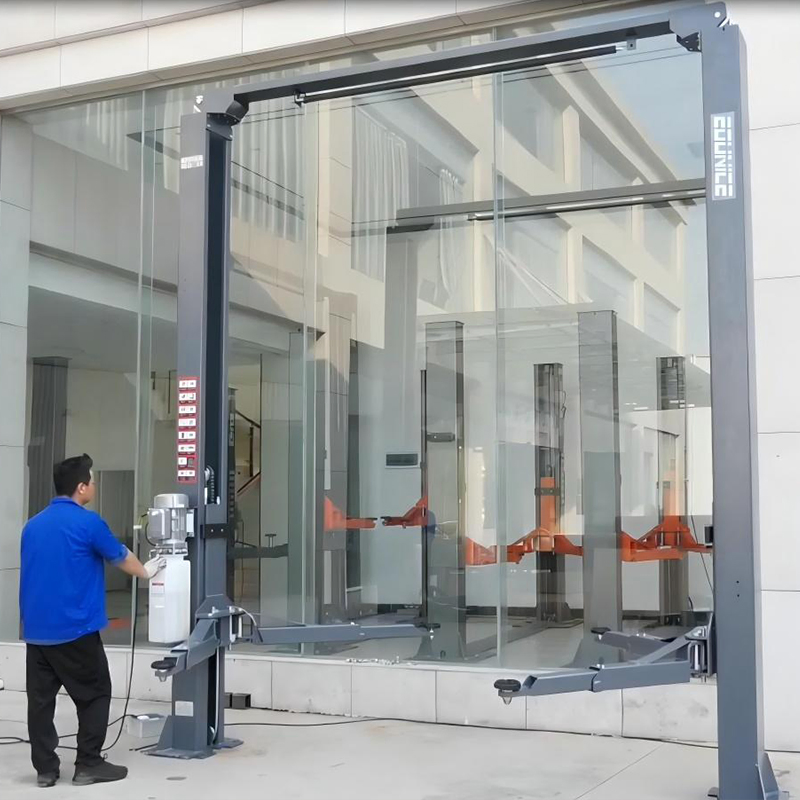

2 Side Manual Release Home Garage Auto Lift 2 Collumn Lifter Car Hoist Hydraulic Car Lift

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Specifications

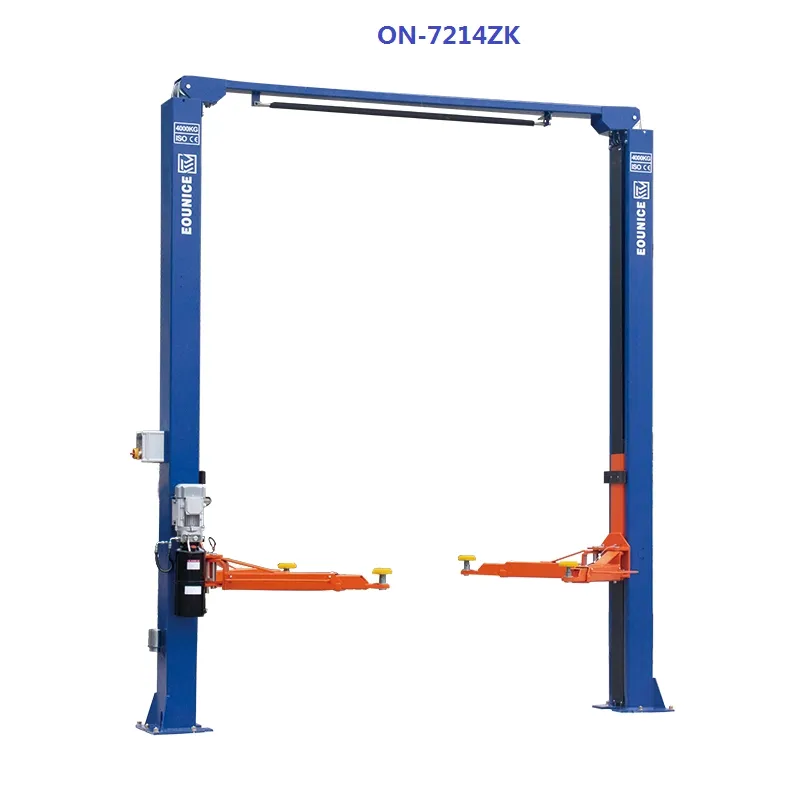

Model NO.
ON-7214ZK
Type
Double Cylinder Hydraulic Lift
Lifting Capacity
4200kg
Driving Type
Hydraulic
Certification
CE, ISO, RoHS
Mechanical Lift Units
2
Lift Type
Planer-type
Condition
New
Design
Two Post
Surface Treatment
Spray-Paint
Gross Weight
652kg
Production Capacity
50000 Pieces/Year
⚙️

Technical Parameters

Model Lifting Capacity Lifting Time Lifting Height Minimum Height Total Height Width Between Columns Gross Weight Motor Power
ON-7214 4,200kgs (9,300LBS) ≤55S 1920mm (75 9/16") 95mm (3 3/4") 3835mm (151") 2850mm (112 1/4") 652kgs 2.2KW (3HP)
ON-7214/4.5 4,500kgs (10,000LBS) ≤55S 1920mm (75 9/16") 95mm (3 3/4") 3835mm (151") 2850mm (112 1/4") 682kgs 2.2KW (3HP)
🌟

Product Features & Introduction

  • CE approved safety standards.
  • Dual-point manual lock release with 24V low voltage operation for safety.
  • Durable chain drive cylinder in each column with anti-surge valves.
  • Ultra-thin adapter design with a minimum height of only 95mm.

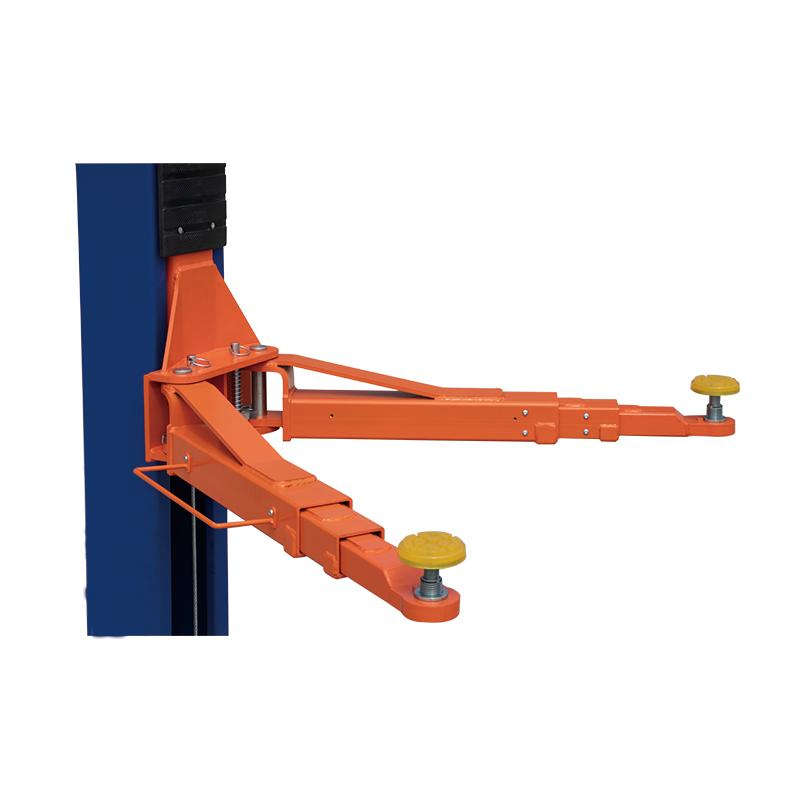

  • Equipped with 4 two-stage lifting arms and screw-up rubber pads.
  • Automatic arms restraints and overhead safety protection device.

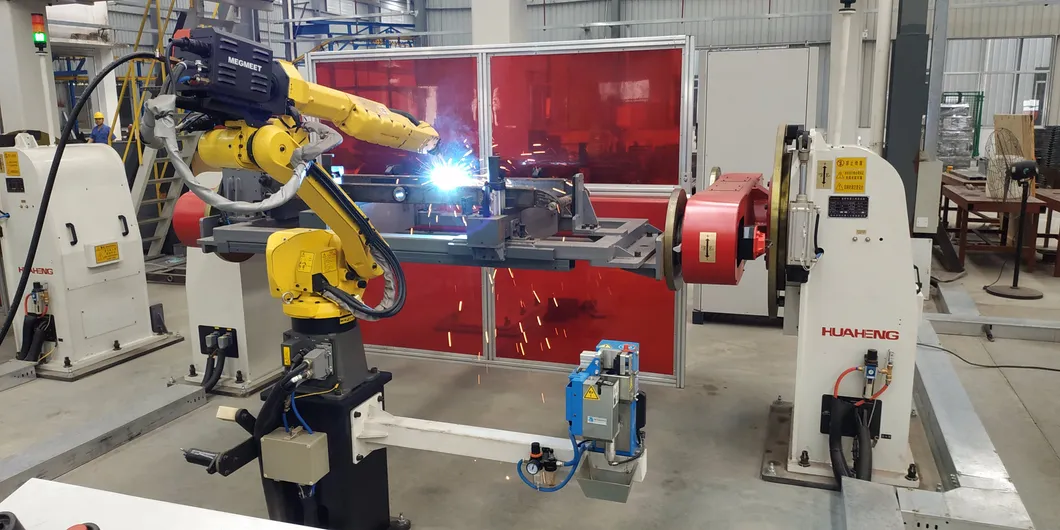

  • Robot-welded structural parts for superior consistency and high strength.
  • Professional imported powder coating for strong adhesion and bright finish.
  • Suitable for vehicles with high roofs (max height up to 3835mm).

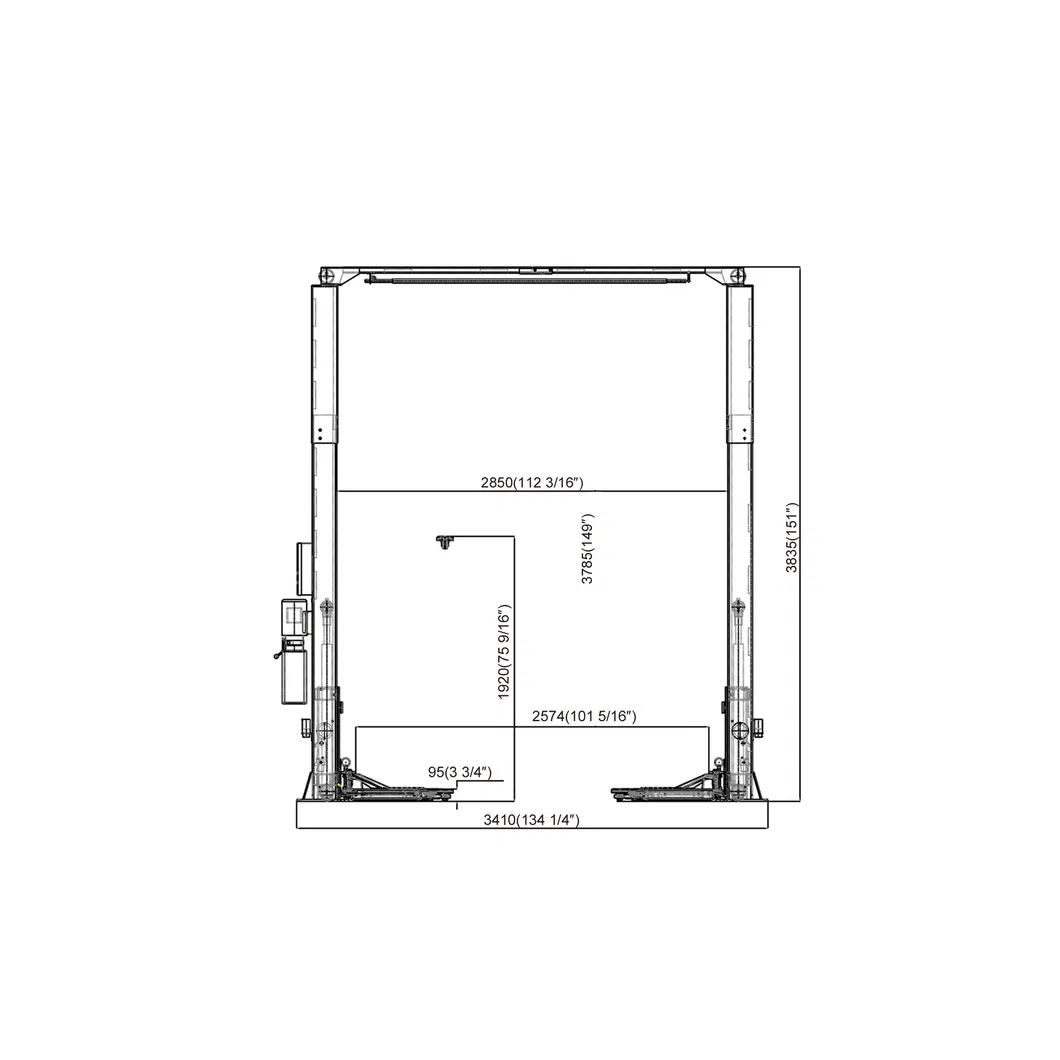

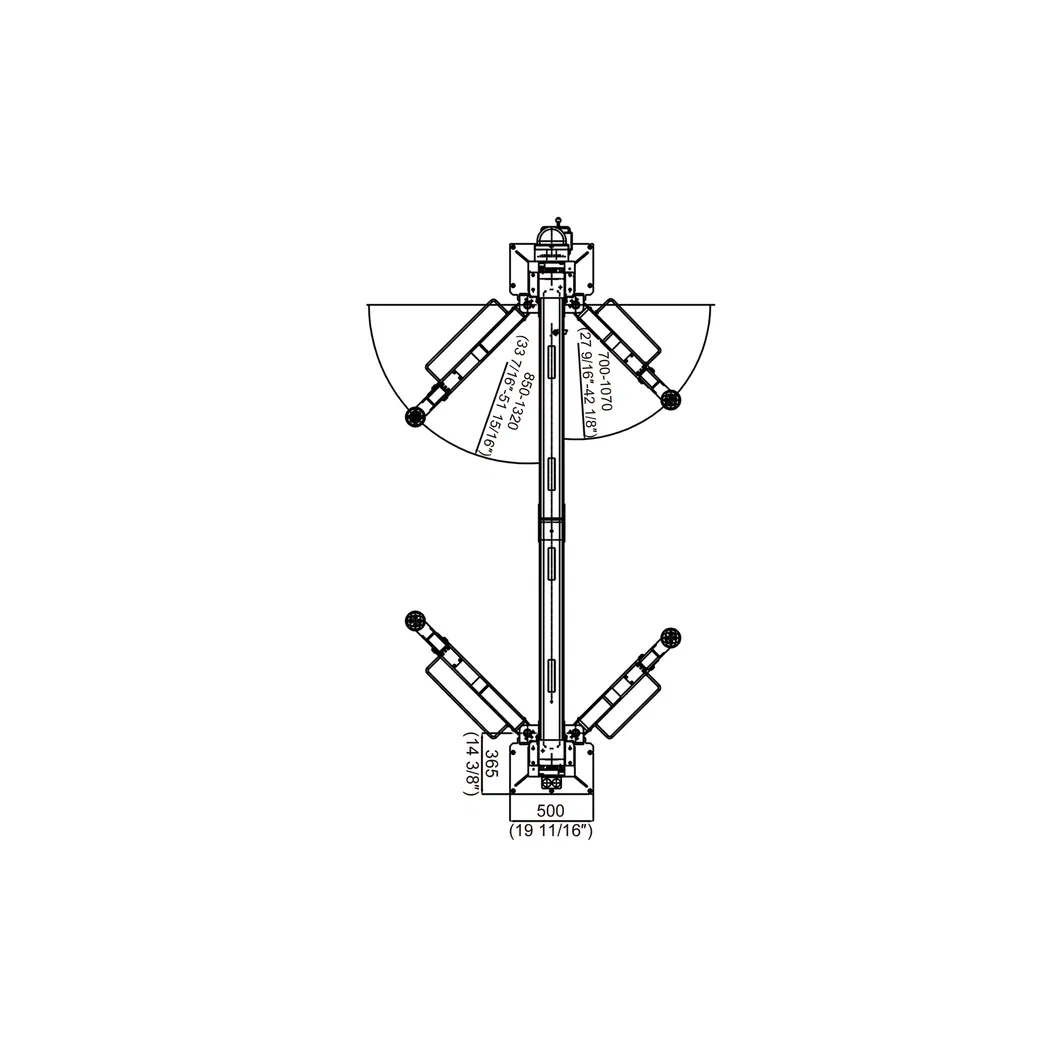

Dimensional Drawing
🏭

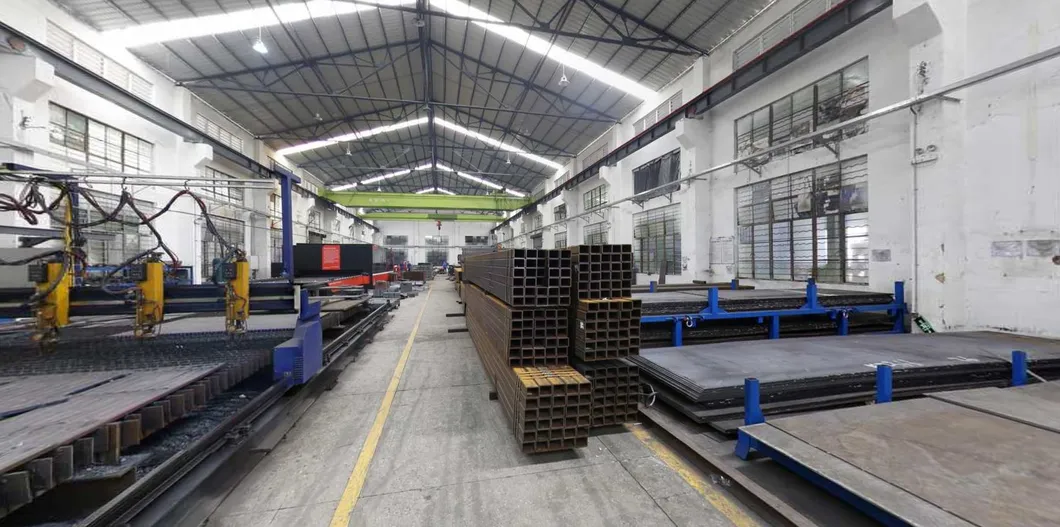

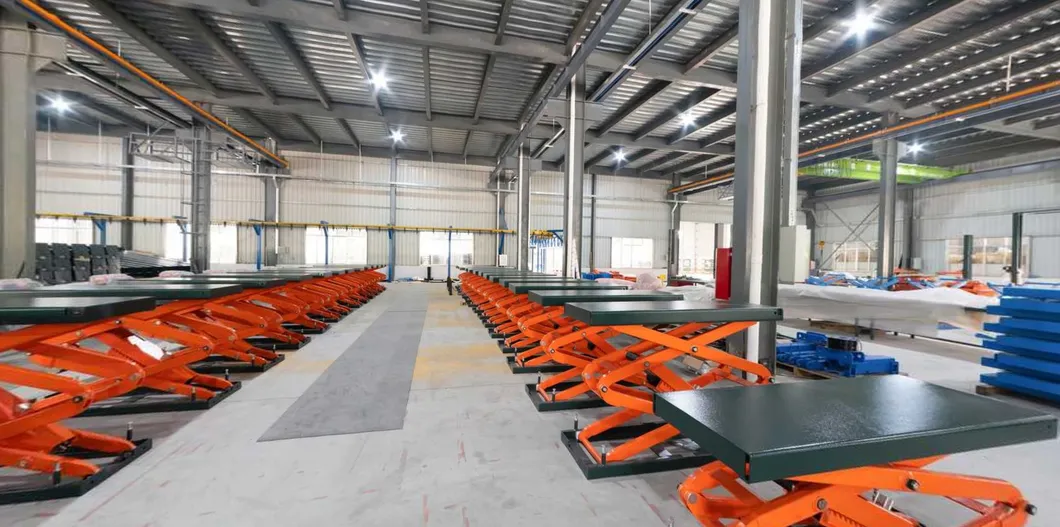

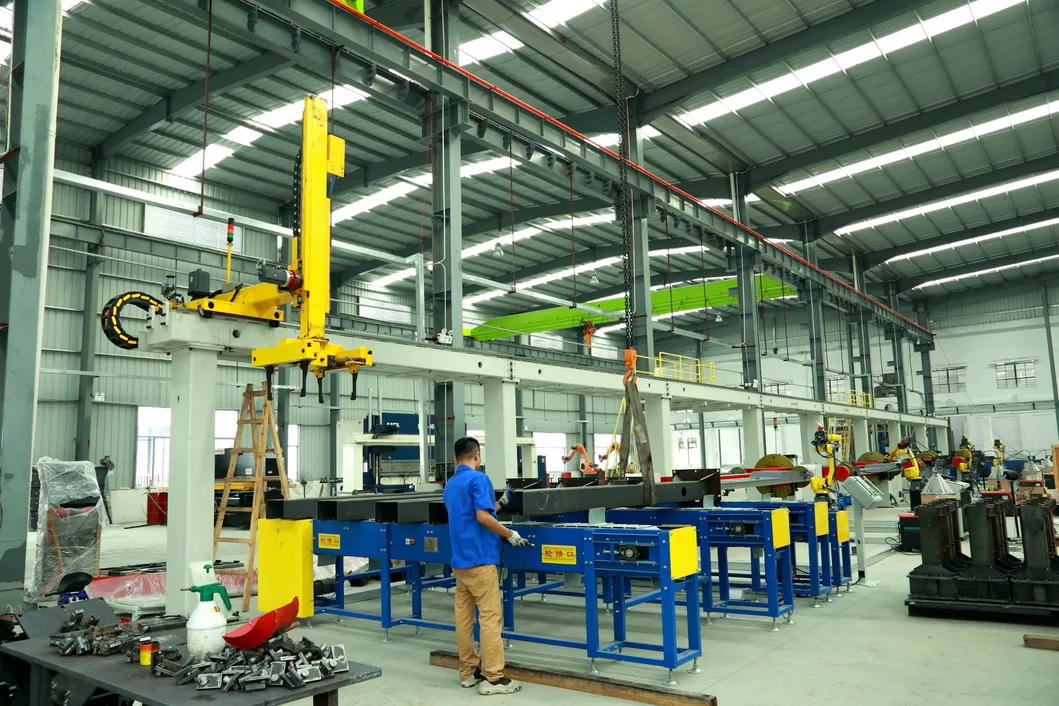

Production Excellence

Product Certifications
🛠️

Service & Warranty

Warranty Term: One year for equipment structure, free of defects in material and workmanship. Motors, hydraulic cylinders, cables, chains, and switches are covered for one year under normal use.

  • OEM & ODM professional services.
  • Full customization based on client requirements.
  • Free spare parts supplied within warranty period (shipping excluded).
  • Lifelong technical support from a professional team.

Frequently Asked Questions

What is the lifting capacity of this hydraulic lift?
The standard model offers a capacity of 4,200kg (9,300 lbs), while the high-capacity version supports up to 4,500kg (10,000 lbs).
How long is the typical delivery time?
Lead time is generally within 15 days after receipt of deposit, based on standard container orders.
Are there different color options available?
Standard colors are Blue, Red, and Yellow. We can also provide custom colors upon client request.
Can the size of the lift be customized?
Yes, sizes can be customized as long as they fit within standard shipping container dimensions.
What is the minimum lifting height?
The lift features an ultra-thin adapter design with a minimum height of 95mm (3 3/4"), ideal for low-chassis vehicles.
Is the equipment certified for safety?
Yes, our equipment is fully certified with CE, ISO, and RoHS markings to ensure international safety and quality standards.
