3.5t MID Size Car Hoist Scissor Hydraulic Auto Lift Home Garage

Customization: Available
After-sales Service: --
Warranty: 15 Months

Product Description

Basic Information
Model NO.
Mid Rise Scissor Car Lift
Type
Double Cylinder Hydraulic Lift
Lifting Capacity
≥5T
Driving Type
Hydraulic
Certification
CE, ISO
Lifting Height
1000mm
Motor Power
2.2 Kw
Power Supply
110/220/240/380/415V
📋 Product Description
Key Features
  • Pneumatic release, above-ground installation
  • Four cylinders drive and dual safety structure design
  • Lifting with machinery self-locking device, safe and reliable
  • 24V safety operation volt, Aluminum motor with fan to avoid overheating
  • Self-lubricated bushing and bearing with zerk for extended service life
  • Surface shot blasting and electrostatic powder spraying for durability
  • 115% dynamic load capacity and 150% static load tested
  • CE certificated

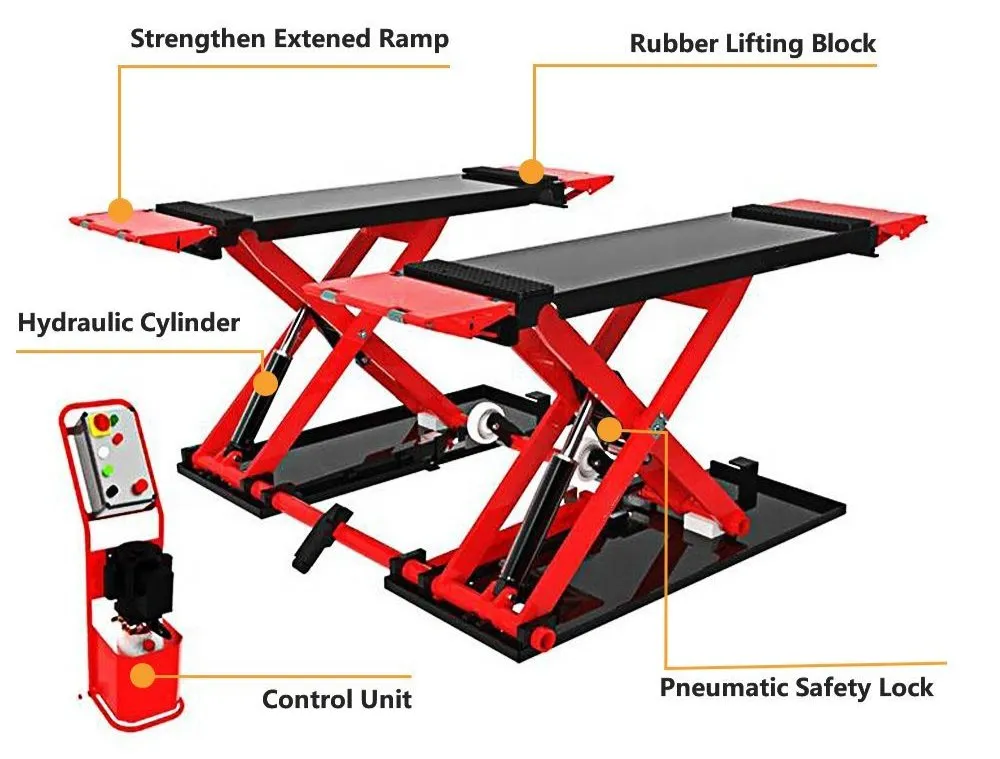

Scissor Hydraulic Auto Lift
Specifications
Max Lifting Capacity5000KG (Optional)
Lifting Height1000mm (Optional)
Lifting TimeAbout 40s (Adjustable)
Lowing TimeAbout 30s (Adjustable)
Motor Power2.2KW / 3KW
Overall Length1440mm
Overall Width1780mm
Locking SystemPneumatic or Electrical Release
Warranty15 Months
🚗 Scissor Lift Types

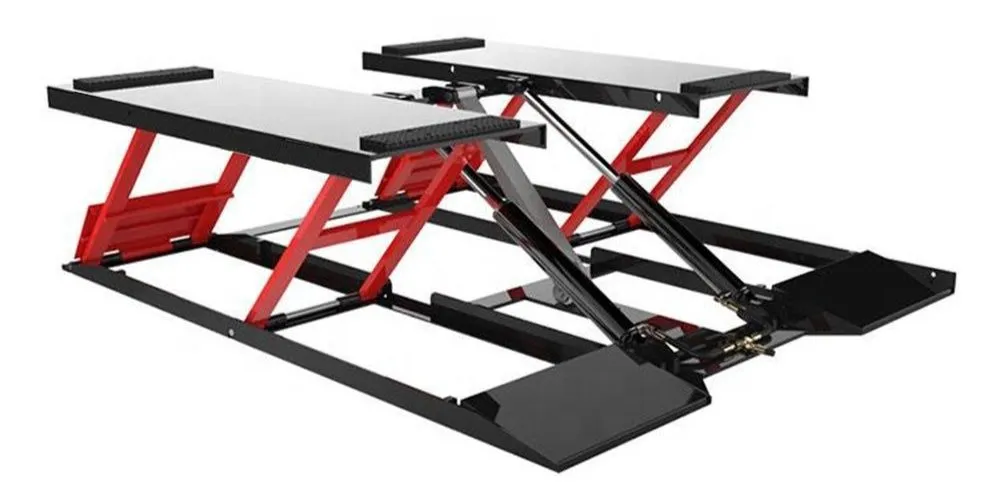

Low Rise Scissor Lift

Typically offer a lifting height of about 28 inches. Easiest to fit in home garages and take up the least amount of space. Ideal for DIY work with a creeper.

Low Rise Lift

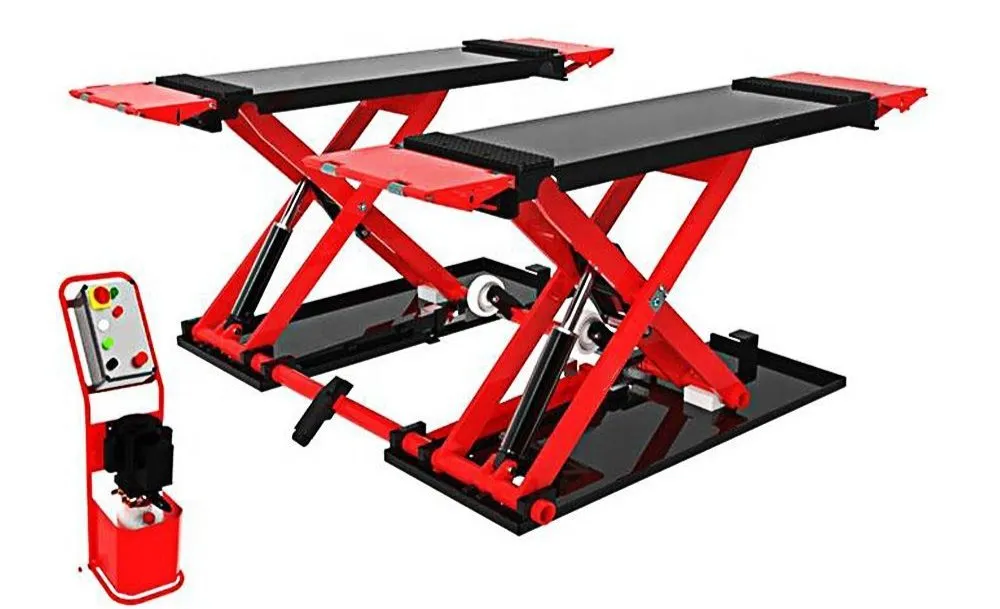

Mid Rise Scissor Lift

Raise to about 48 inches. Highly popular and often portable. Can be rolled around and stored under a parked car when not in use. Popular with body and brake shops.

Mid Rise Lift

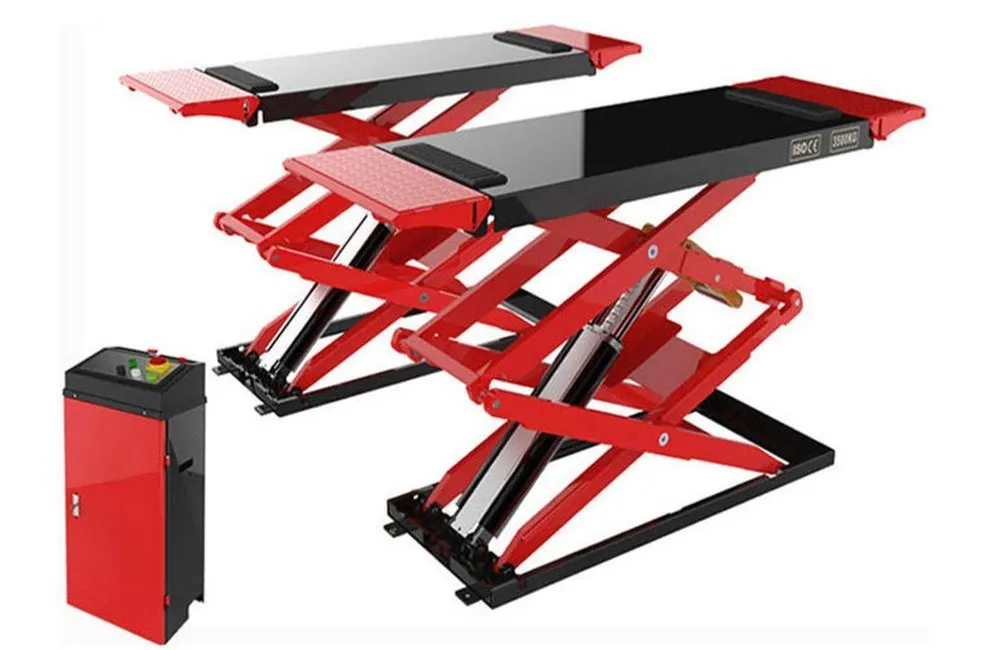

Full Rise Scissor Lift

Raise to a height of 70 inches. Most offer an open center for complete access to the underside of the automobile, similar to a two-post lift but with a smaller footprint.

Full Rise Lift
🖼 Details & Manufacturing

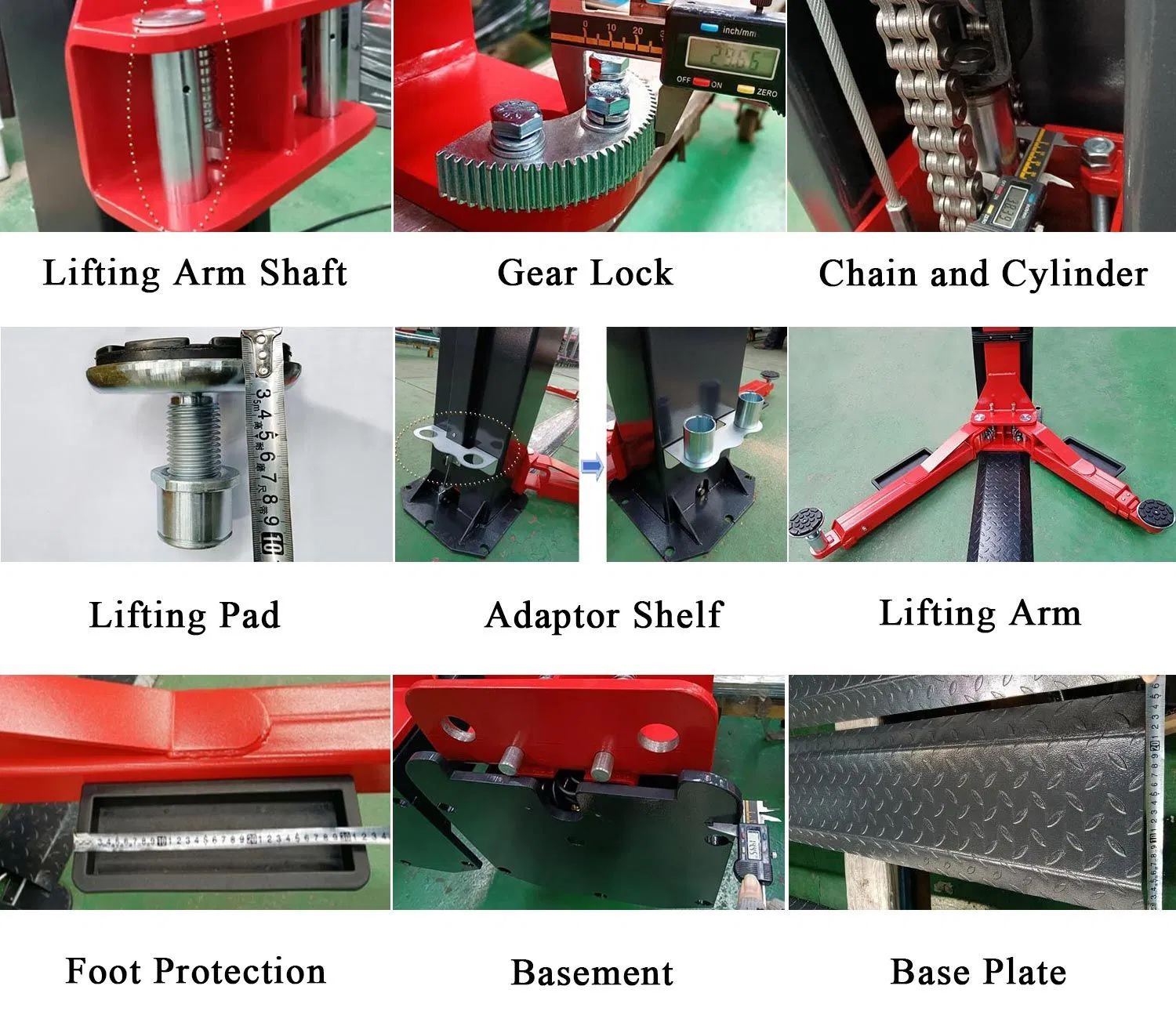

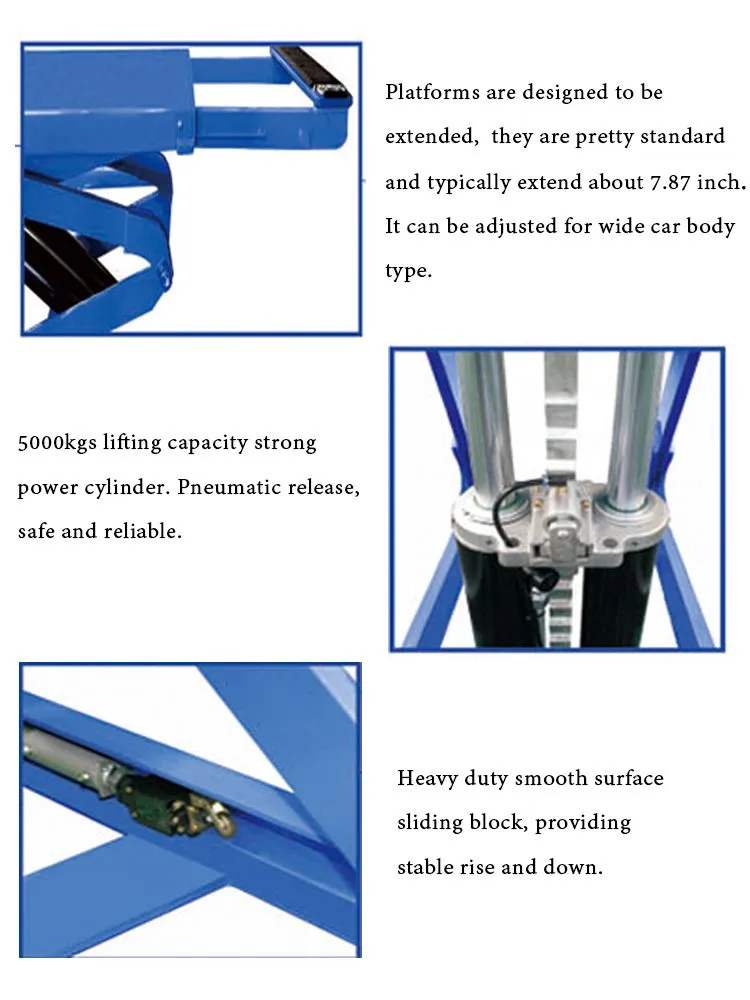

Detail Image

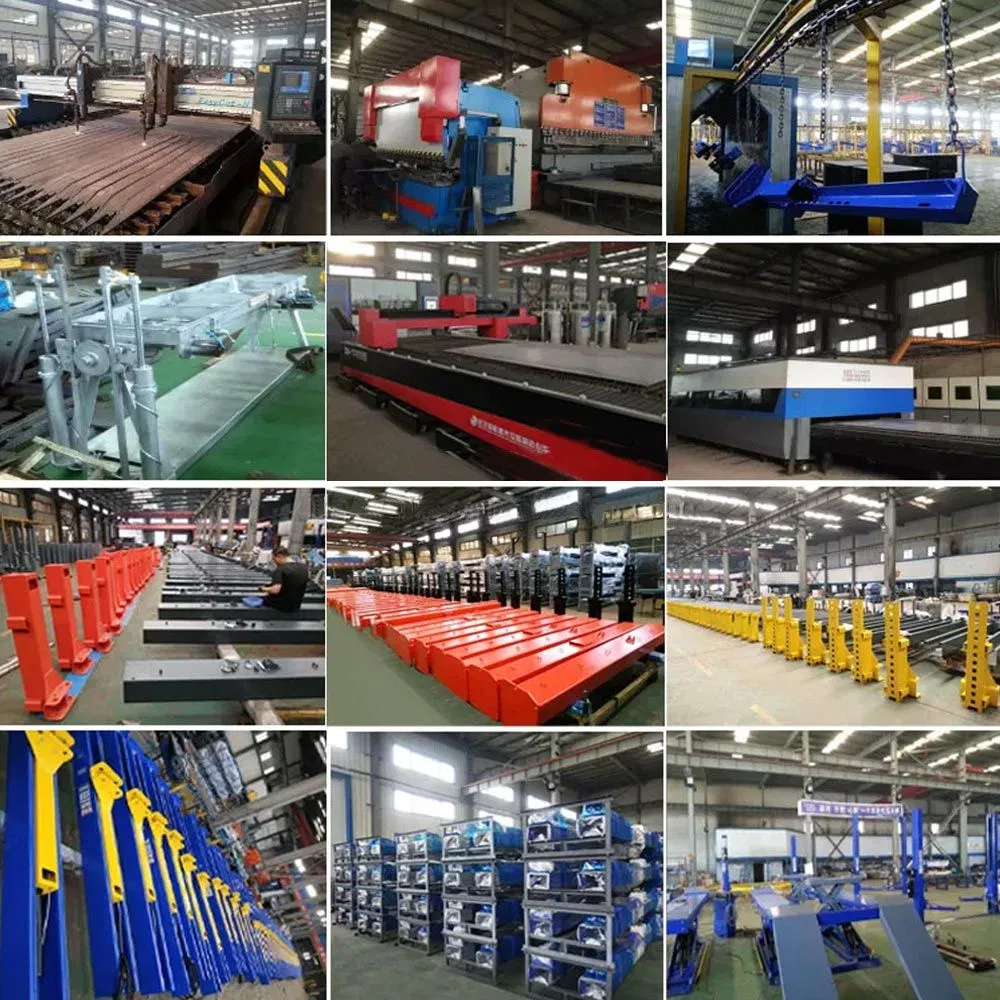

Factory View
Production Process
🤝 Why Choose Us
Pre-sales Service
  • Active communication to understand real needs
  • Objective answers to all inquiries
  • One-on-one professional sales consultants
  • Technical feature guidance and online training
After-sales Service
  • Dedicated responsibility for quality and delivery
  • Guaranteed spare parts availability
  • Immediate support for any damage or shortage
  • Continuous product improvement based on feedback

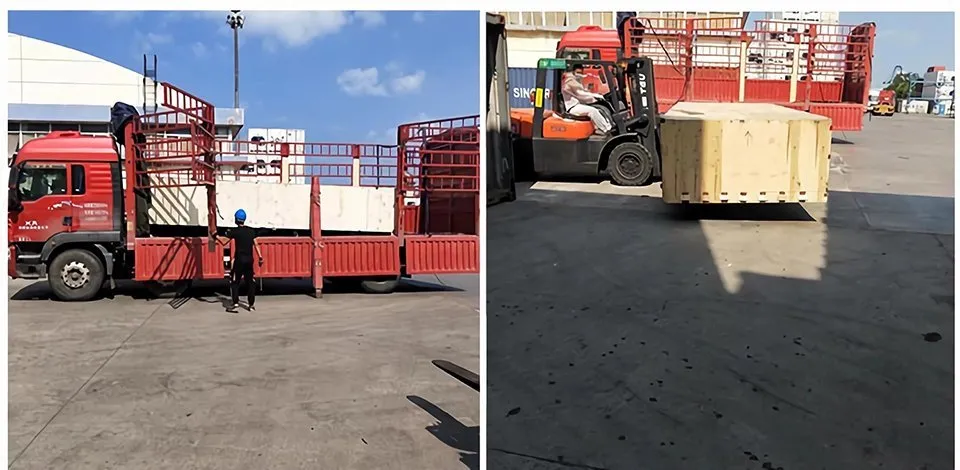

📦 Packing & Delivery
Packing and Delivery
🏢 Equipment Expertise

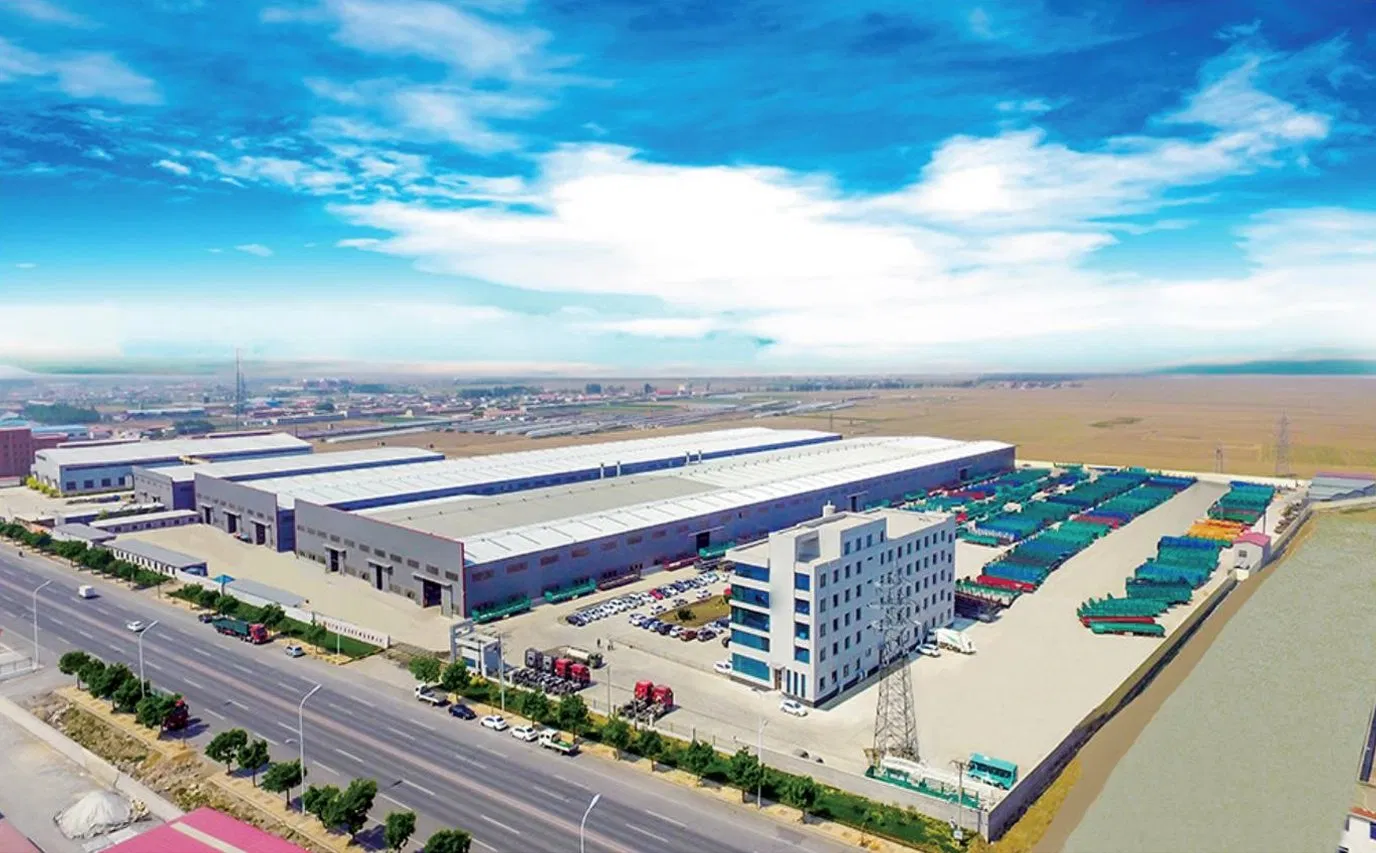

Vehicle Equipment

We are dedicated to manufacturing high-quality vehicle equipment. Our facilities cover 360 acres with a diverse production line including over 10 types of semi-trailers (tipper, container, dry van, etc.).

We specialize in 4 types of car lifts: scissor car lifts, single-post car lifts, 2 post car lifts, and 4 post car lifts.

Frequently Asked Questions
What is the typical lead time for an order?
The delivery time is determined by the order quantity, usually averaging around 30 days.
What is the Minimum Order Quantity (MOQ)?
The MOQ for our car lift products is 1 unit.
Is customization (OEM) available for specific needs?
Yes, we offer customized OEM services according to your specific requests and requirements.
Do the lifts come with floor mounting hardware?
Yes, all car lifts are shipped with the necessary anchor bolts required for mounting the unit to your floor.
What type of hydraulic fluid should be used?
The lifts are designed to operate using standard 10-weight, non-foaming, non-detergent hydraulic oil or Dexron-II ATF fluid.
Are there special floor requirements for installation?
Most standard residential or commercial foundations are strong enough. A level floor is suggested; however, small differences in floor slopes can be compensated for with proper shimming.
