Customization: Available
Parking Post: 2
Level: 2
Send Inquiry

Product Description

I am responsible for the safety of every vehicle!!! Single Post Parking Lift System

Basic Specifications

Model NO.
QBS2
Lifting Capacity
2000kgs
Lifting Height
2.0 Meters
Drive Mode
Hydraulic Cylinder + Chains
Installation
Indoor & Outdoor
Material
High Strength Steel
Surface Treatment
Powder Coating / Galvanized
Safety Locks
Electric Auto Release
Power Supply
2.2kw, 110V-450V, 50/60Hz
Certification
ISO, CE Certified
Platform Size
4166mm x 2722mm
Warranty
12 Months

Product Description

Operation Principle: The equipment utilizes a hydraulic transmission mode where a high-pressure pump drives the hydraulic cylinder to move the carrying platform vertically. Once the platform reaches the designated height, the ground-level vehicle can easily enter or exit the space.

Hydraulic driven and precision chain lifting system.
Single stage heavy-duty hydraulic cylinder.
Automatic safety lock with electric lock release.
Space-saving design, suitable for residential and commercial use.
Platform runway made of durable diamond steel plates.
Folded ramps designed for sports cars and low-clearance vehicles.
Sandblasted steel parts with anti-corrosion primer and top coat.

Technical Parameters

Model No.QBS2
Lifting Capacity2000 kgs
Lifting Height2000 mm
Overall Height3330 mm
Platform Usable Width2100 mm
Rated Oil Pressure18 Mpa
Voltage/Power220v/380v, 2.2kw
Operation ModeKey Switch / Push Button
Package Size345.00cm * 220.00cm * 50.00cm
Gross Weight700.00 kg

Product Showcase

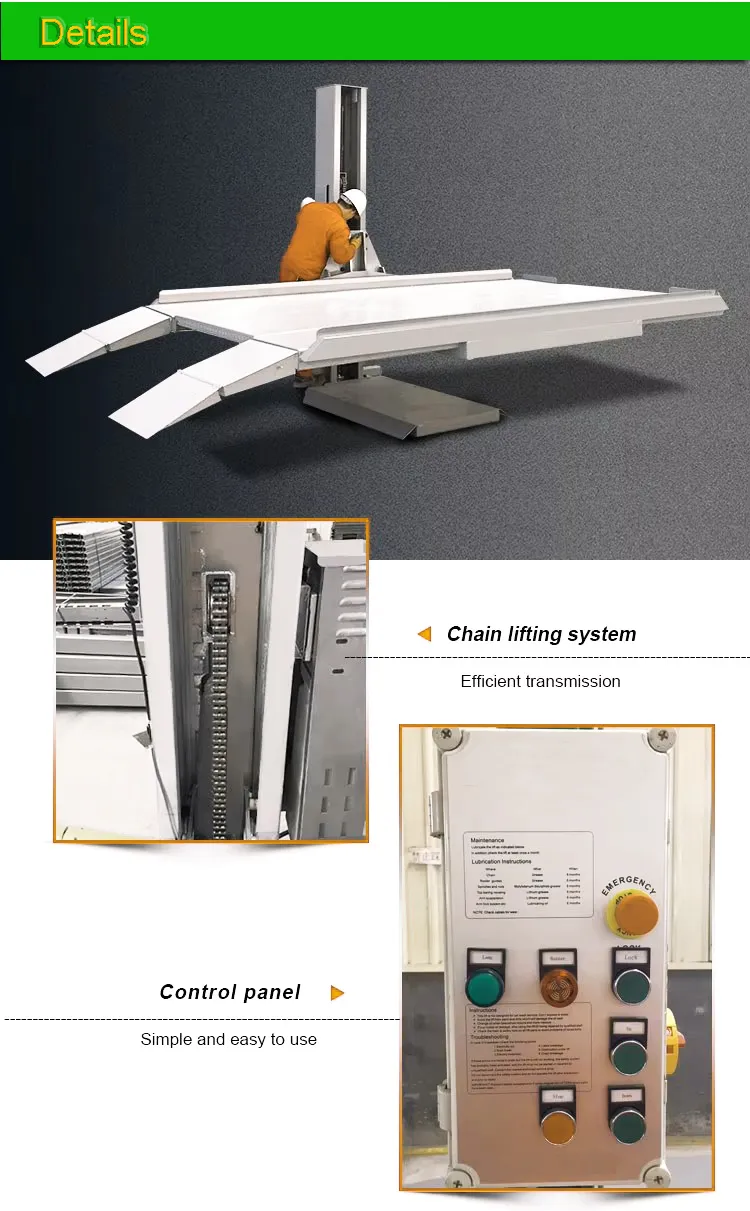

Parking Lift Detail 1

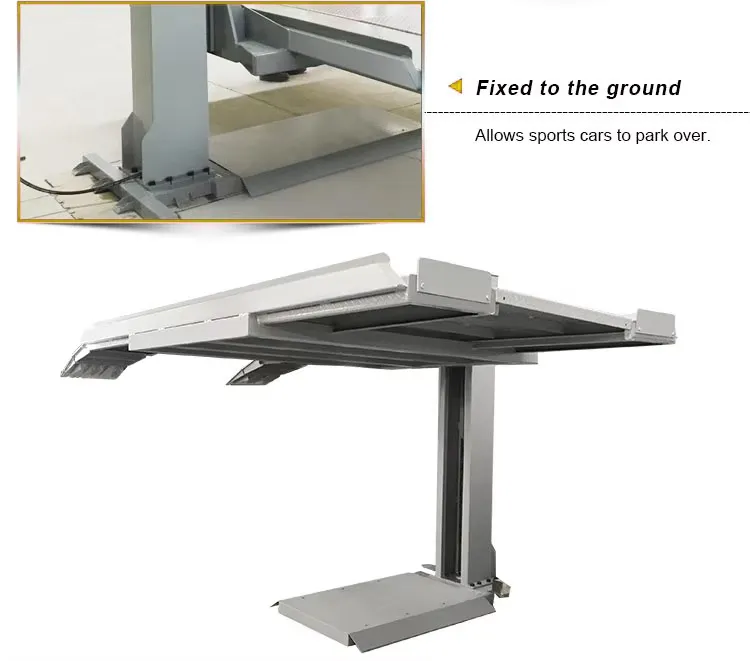

Parking Lift Detail 2
Parking Lift Detail 3
Parking Lift Detail 4
Parking Lift Detail 5
Parking Lift Detail 6
Parking Lift Detail 7
Parking Lift Detail 8
Parking Lift Detail 9
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Extended Specifications
Parking System Example

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a professional factory with over 30 years of manufacturing and design experience in vehicle lifting and parking systems.
Can the parking system be customized?
Yes, absolutely. The system can be customized to match your specific site dimensions and functional requirements.
Is this system suitable for SUVs?
Yes. The platform and lifting height can be adjusted to accommodate most standard SUVs. Please provide your vehicle specs for a detailed fitment check.
Can the equipment be installed outdoors?
Yes. The structure is treated with anti-corrosion primer and galvanized or powder-coated finishes, making it waterproof and weather-resistant.
What are the electrical power requirements?
The system supports various voltages (110V to 450V, 50/60Hz, 1p or 3p) and can be configured to meet your local power standards.
What safety features are included?
The system includes automatic safety locks, an emergency stop button, overload protection, and an anti-falling device to ensure maximum safety.
