Dave Lift
Dave Lift

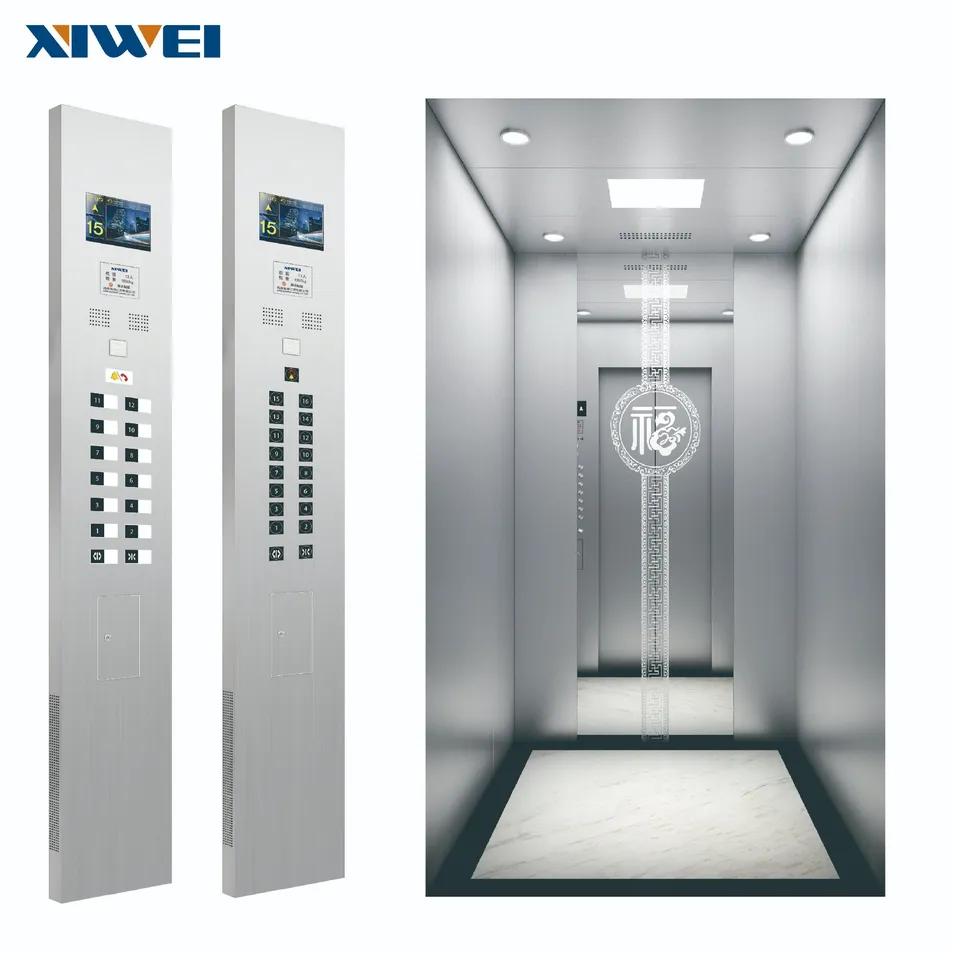

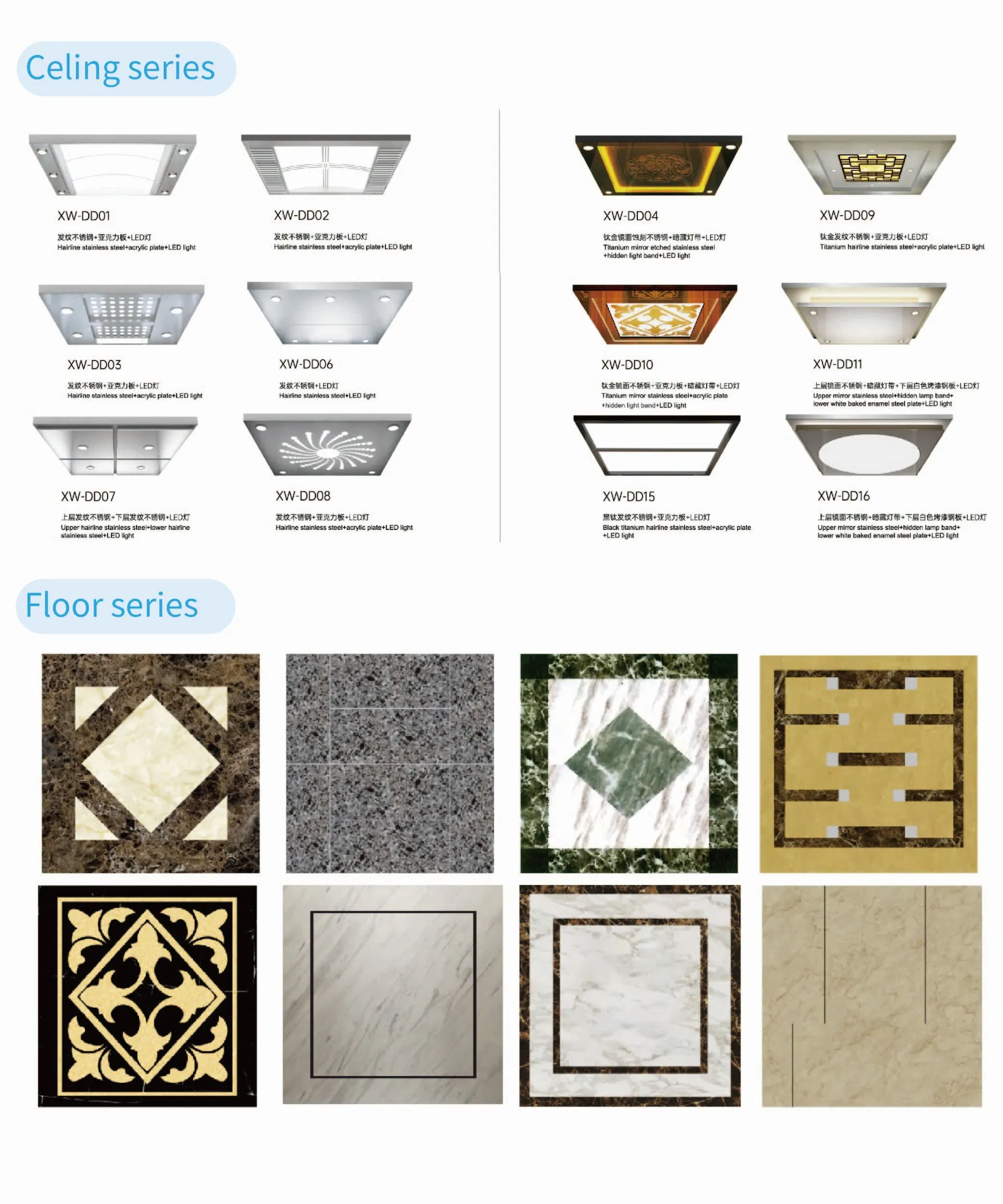

Split ceiling (XW-DD15): Hairline stainless steel + acrylic plate + energy saving light
Car wall: Hairline stainless steel + rear-wall center mirror etched
Front wall: Hairline stainless steel

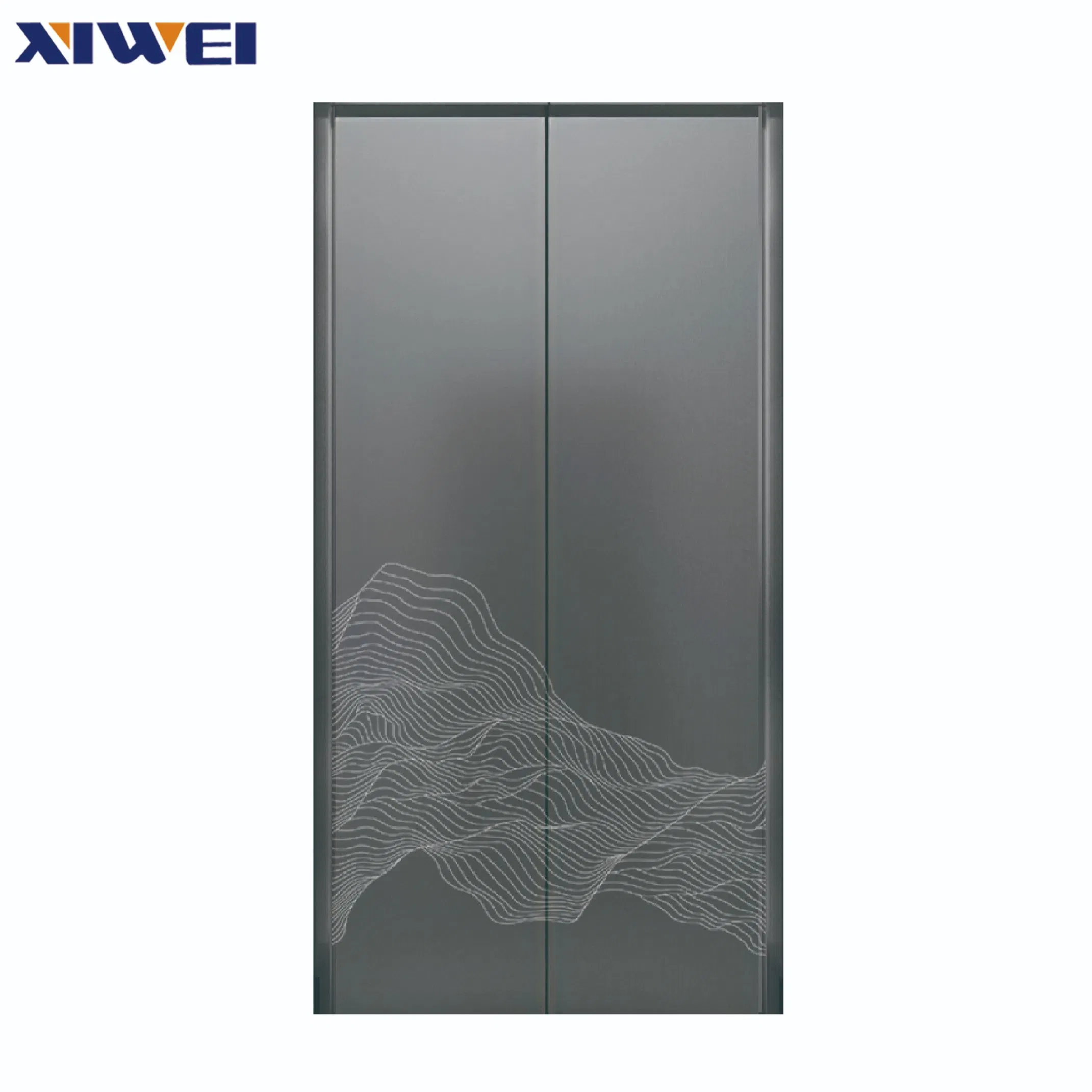

Car door: Hairline stainless steel

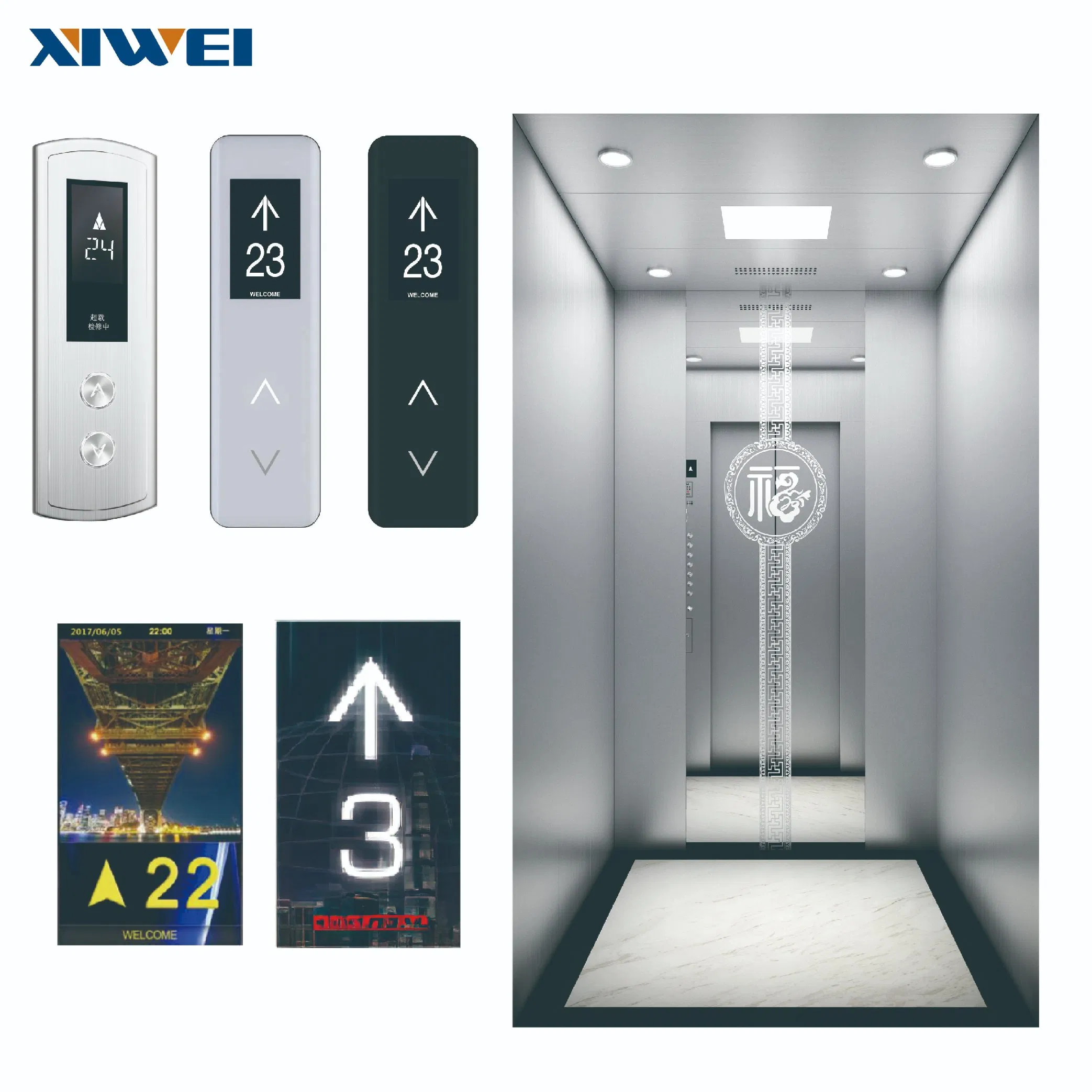

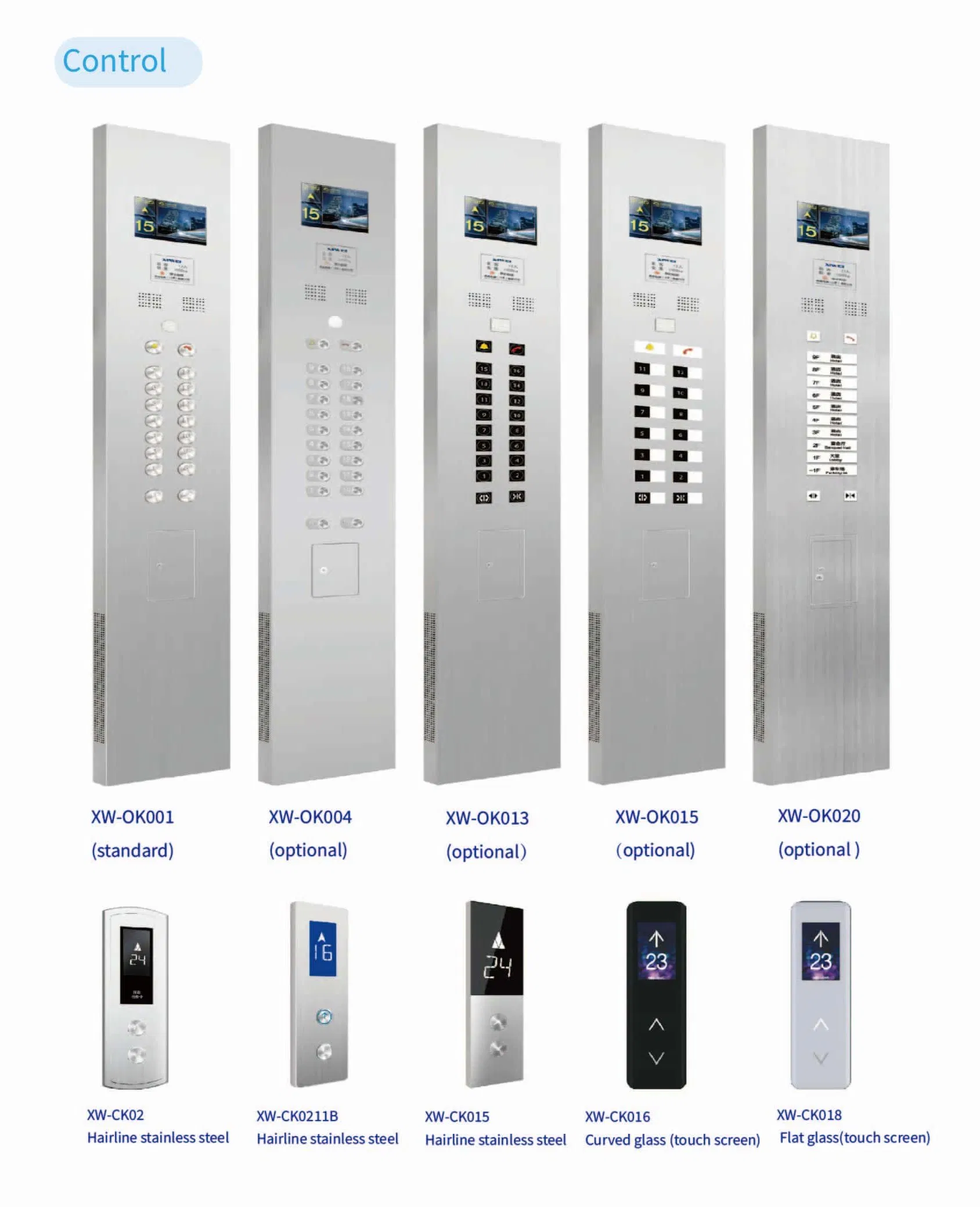

Operation panel: Integrated hairline stainless steel
Handrail (XW-F01): Stainless steel round handrail on the rear wall
Floor (XW-DB10): Full body brick or PVC
Applications: Combined with modern technology and fashion art, our passenger lift satisfies all needs of hotels, office buildings, shopping malls, etc., and provides a safe and comfortable riding experience.
| Rated Load (kg) | Speed (m/s) | Car Size (CWxCD) | Door Size (DWxPH) | Hoistway (HWxHD) |
|---|---|---|---|---|
| 450 | 1.0-1.75 | 1100x1150 | 700x2100 | 1850x1600 |
| 630 | 1.0-1.75 | 1200x1300 | 800x2100 | 2000x1750 |
| 800 | 1.0-2.5 | 1400x1400 | 800x2100 | 2100x1800 |
| 1000 | 1.0-2.5 | 1600x1500 | 900x2100 | 2300x1900 |
| 1150 | 1.0-2.5 | 1700x1500 | 1000x2100 | 2450x1900 |

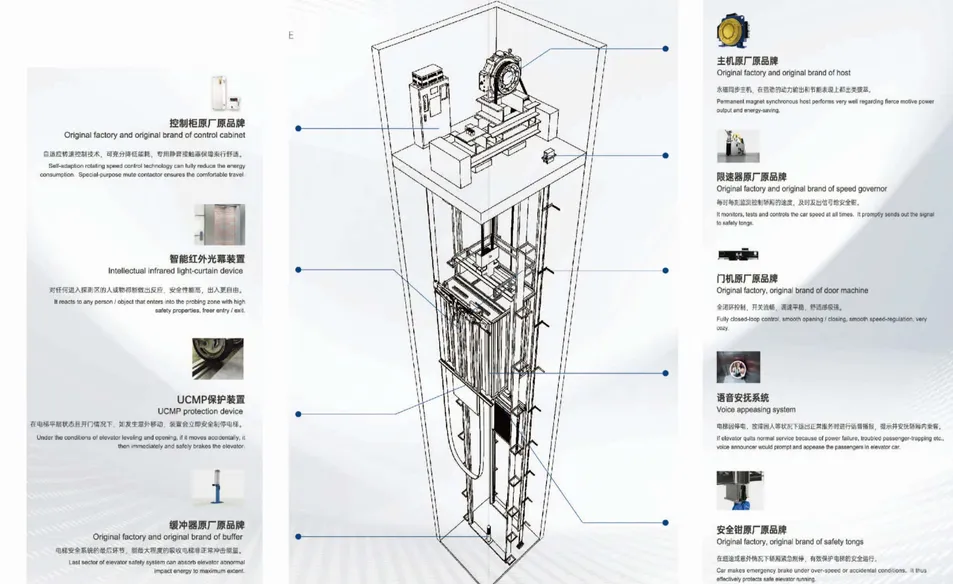

The overall warranty period is 1 year. Core components (traction machines, control cabinets, safety gears, and speed governors) feature an extended 5-year warranty.
During the warranty period, manufacturing defects and installation issues are covered. Maintenance and component replacement costs are borne by us.

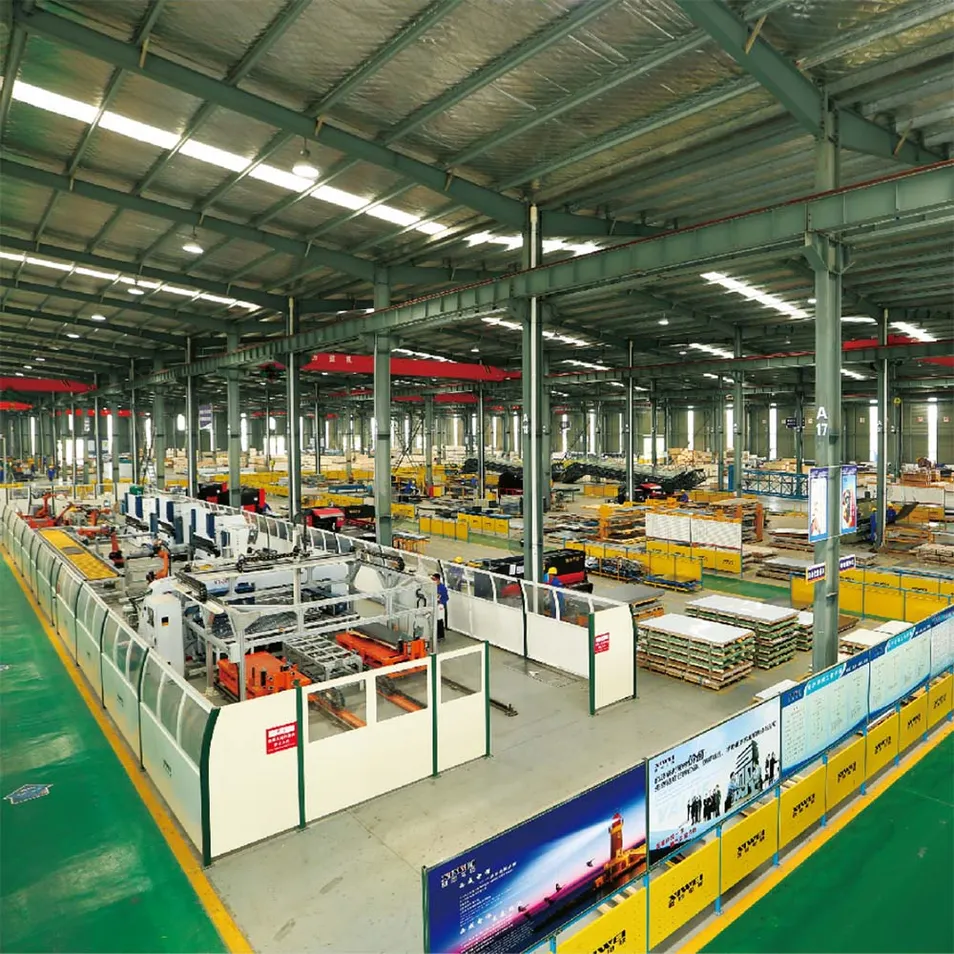

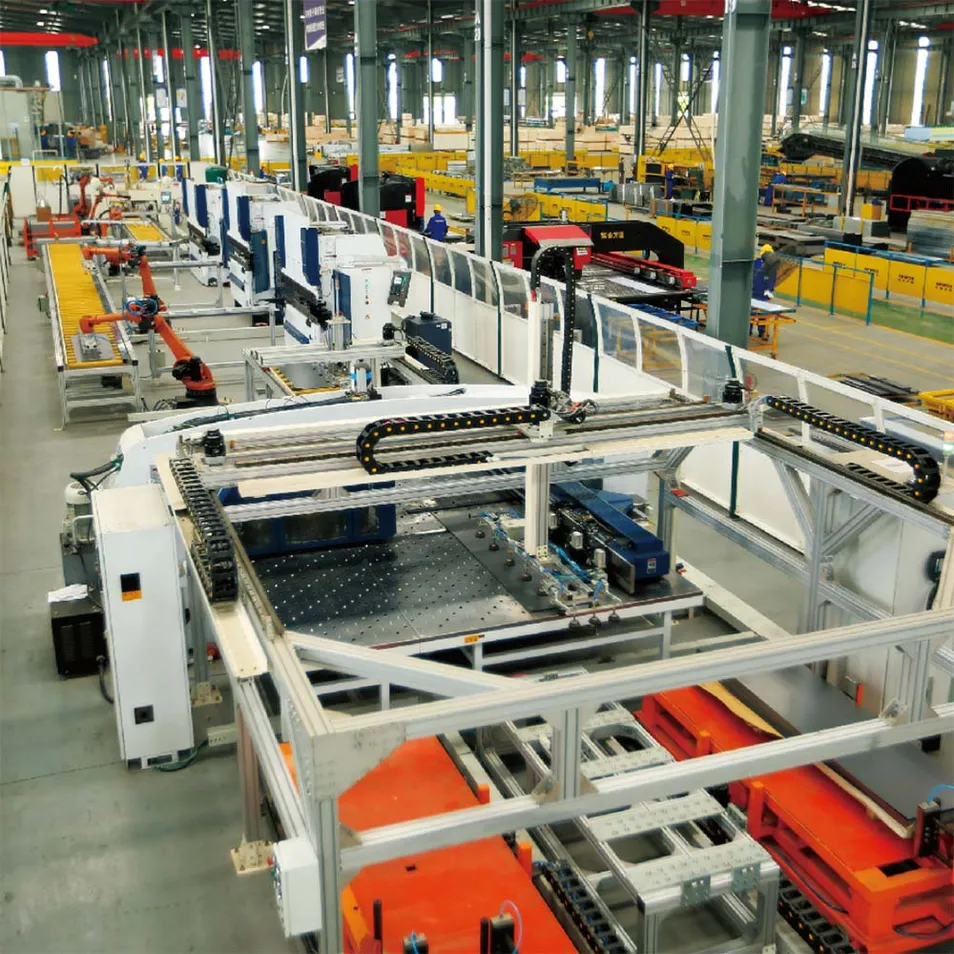

Our group operates advanced intellectual factories featuring automatic warehouses, robot flow-lines, and an 87m high test tower. We adopt Industry 4.0 ideas to ensure low trouble rates and long service life for all elevator systems.
