Xyzlift Hot Sale Hydraulic Driven Home Vertical Wheelchair Lift with Cabin

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
XYZVPL-2
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Material
Aluminum Alloy/ SS304
Travel Height
Up to 15m
Load Capacity
250kg or Customized
Safety Standard
EN81-41
Package
Plywood Case

Vertical Platform Lift Overview

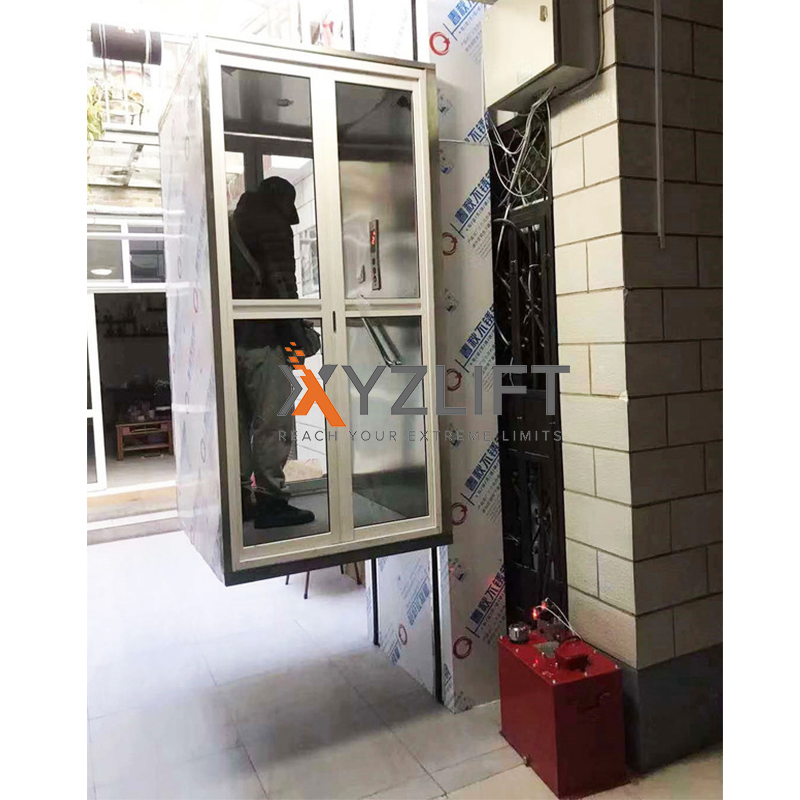

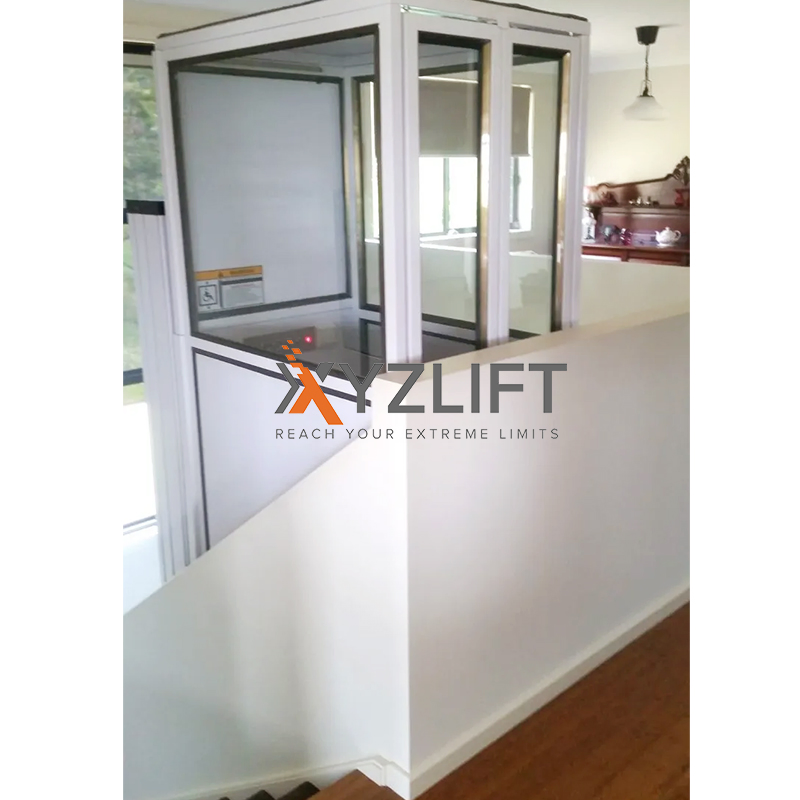

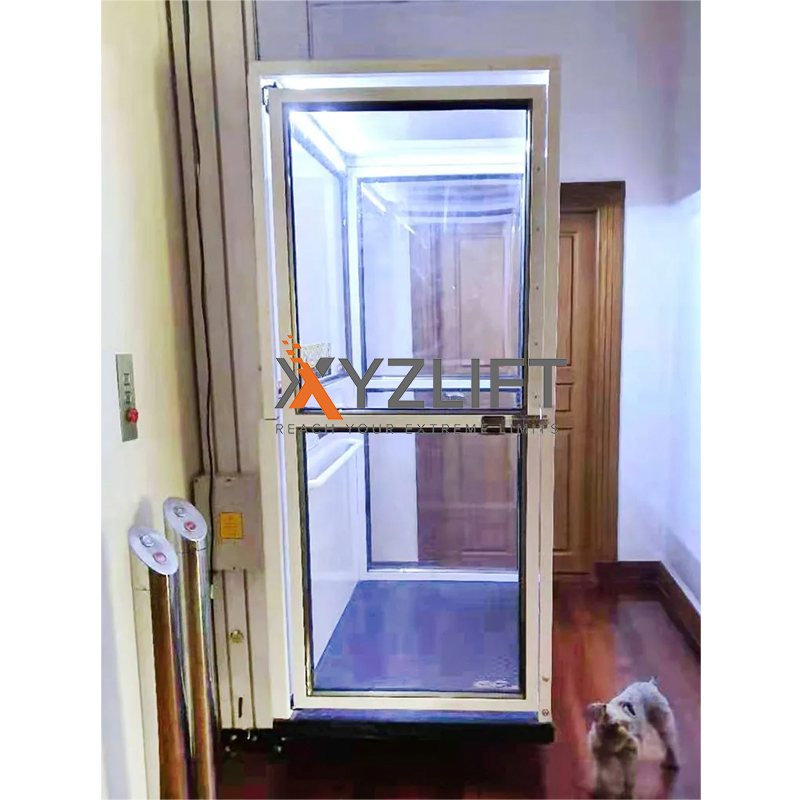

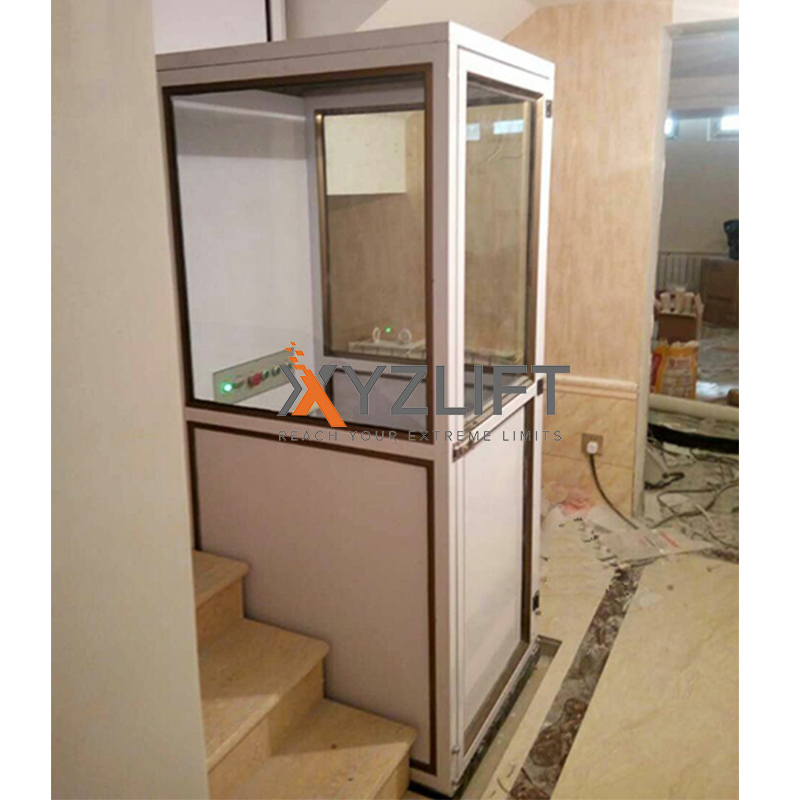

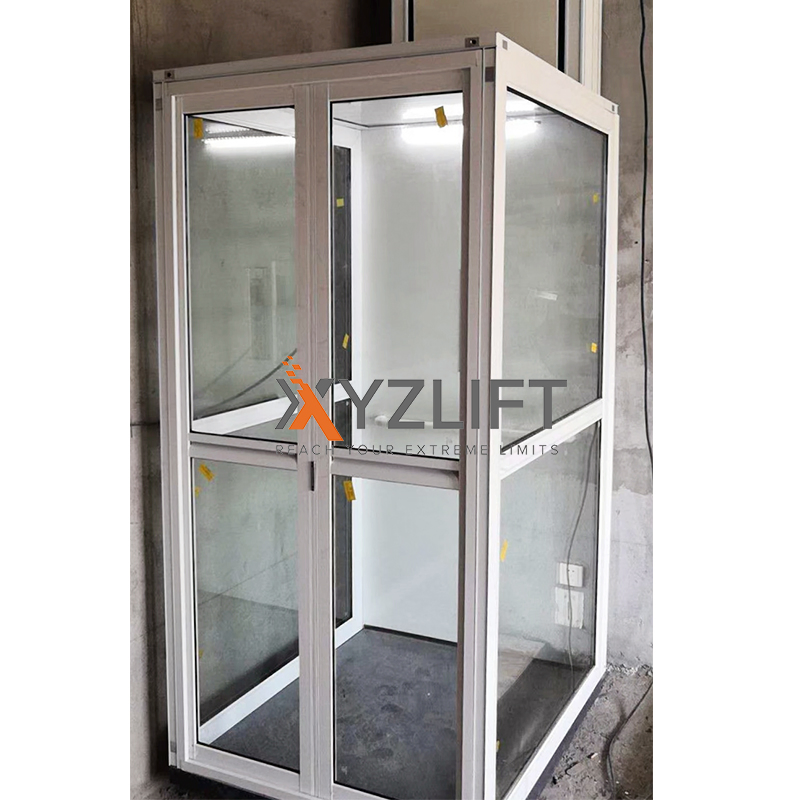

Hydraulic Driven Home Vertical Wheelchair Lift with Cabin

This vertical platform lift is built with the end user in mind. Passenger comfort, simple-to-use operation, and safety features allow people with limited mobility to operate the lifts independently or with assistance from an attendant. It is designed to provide cost-effective access to raised porches, decks, and other elevated areas for residential and commercial applications. Can easily be installed in private homes or public buildings.

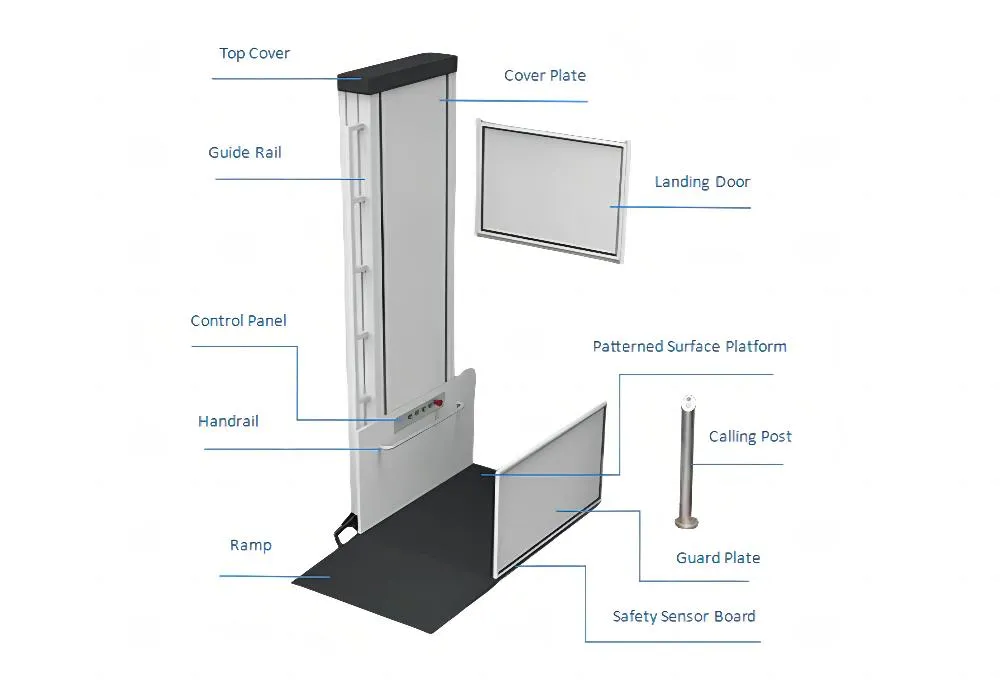

Vertical Wheelchair Lift Overview

Technical Parameters

MODEL XYZVPL-2
Load capacity250kgs
Platform size1330mm*900mm (Customizable)
Travel heightUp to 15 meters
Normal speed60mm/s
Entry & Exit90°/180°/Three-sided
Motor power2.2kw
Power supply220V/50HZ
Drive systemHydraulic driven
StandardEN81-41
🔍

Key Features & Details

Optional Access: Flexible entrance/exit directions including 90°, 180°, or three-sided access.
Limit Switch Safety: Stops the platform automatically if the upper leveling switch fails.
Mounting Bracket: Adjustable height brackets to secure the cover plate firmly to the wall.
Manual Emergency Opening: In case of power failure, a manual override allows the door to be lifted upwards.
Manual Lowering Valve: Allows the platform to be lowered safely to the ground level during power outages.

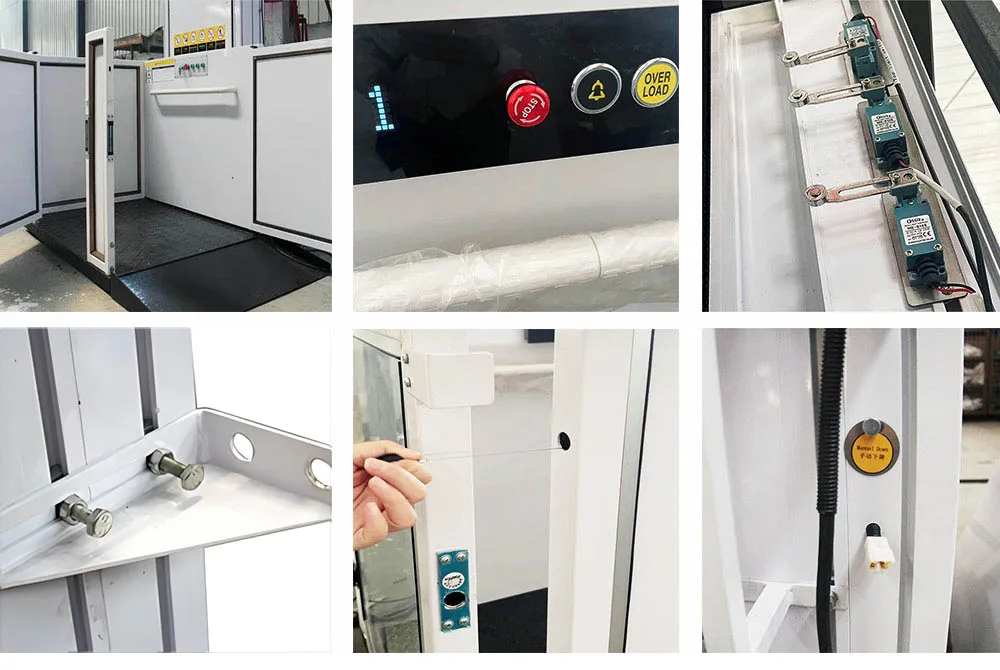

Lift Detail Show
🏠

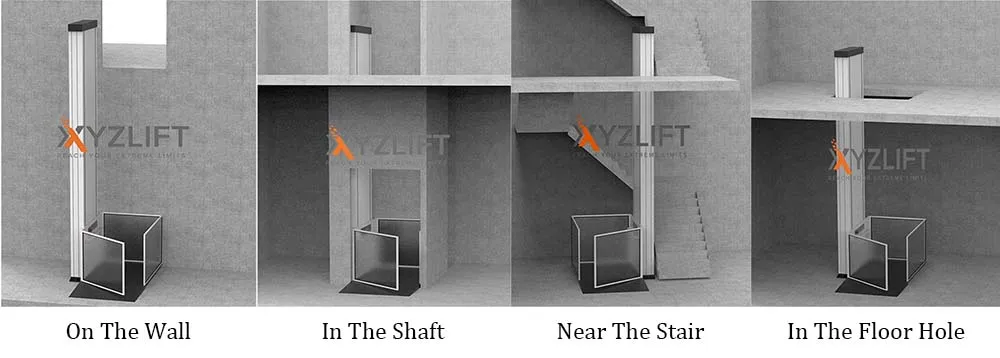

Installation Scenarios

Based on extensive experience, we provide 4 common installation scenarios. Technical teams offer 3D designs tailored to specific sites, ensuring precise pre-production confirmation and clear installation guidance.

Installation Scenarios
🎨

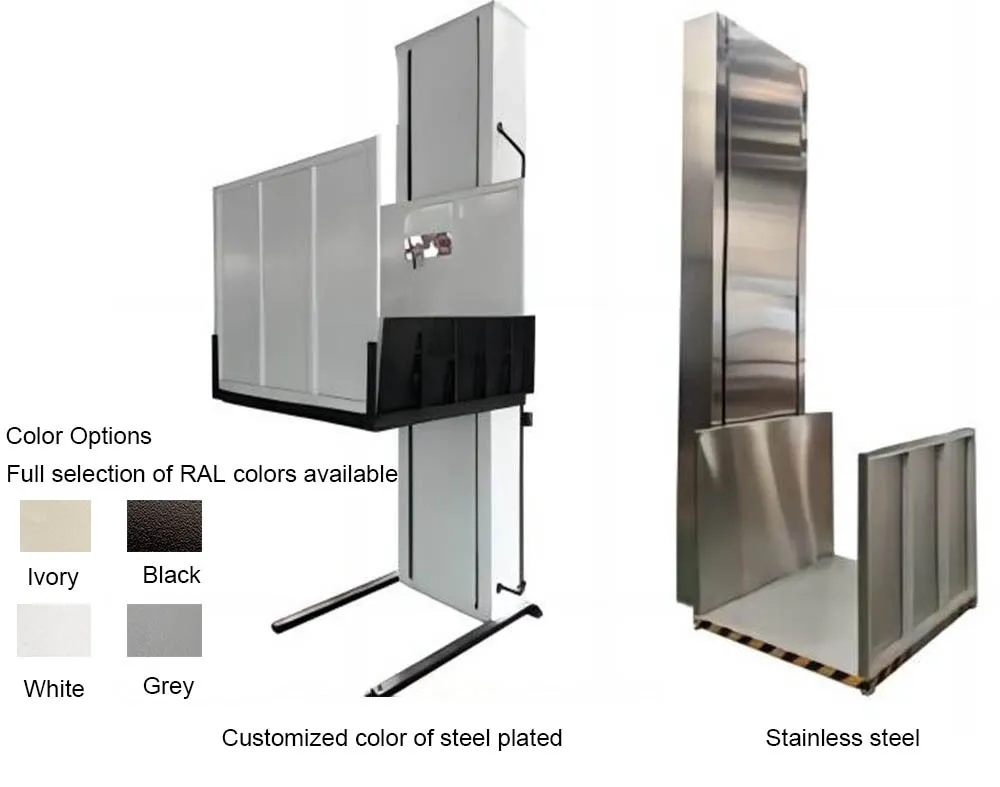

Custom Finishes & Colors

Upgrade your platform with versatile cover options. Choose between stainless steel or steel plates available in various RAL colors to perfectly match the surrounding architecture.

Finish and Color Options

Project Gallery & Certifications

Suitable for indoor and outdoor use in houses, villas, banks, factories, or warehouses. Our solutions solve floor-to-floor transportation challenges globally.

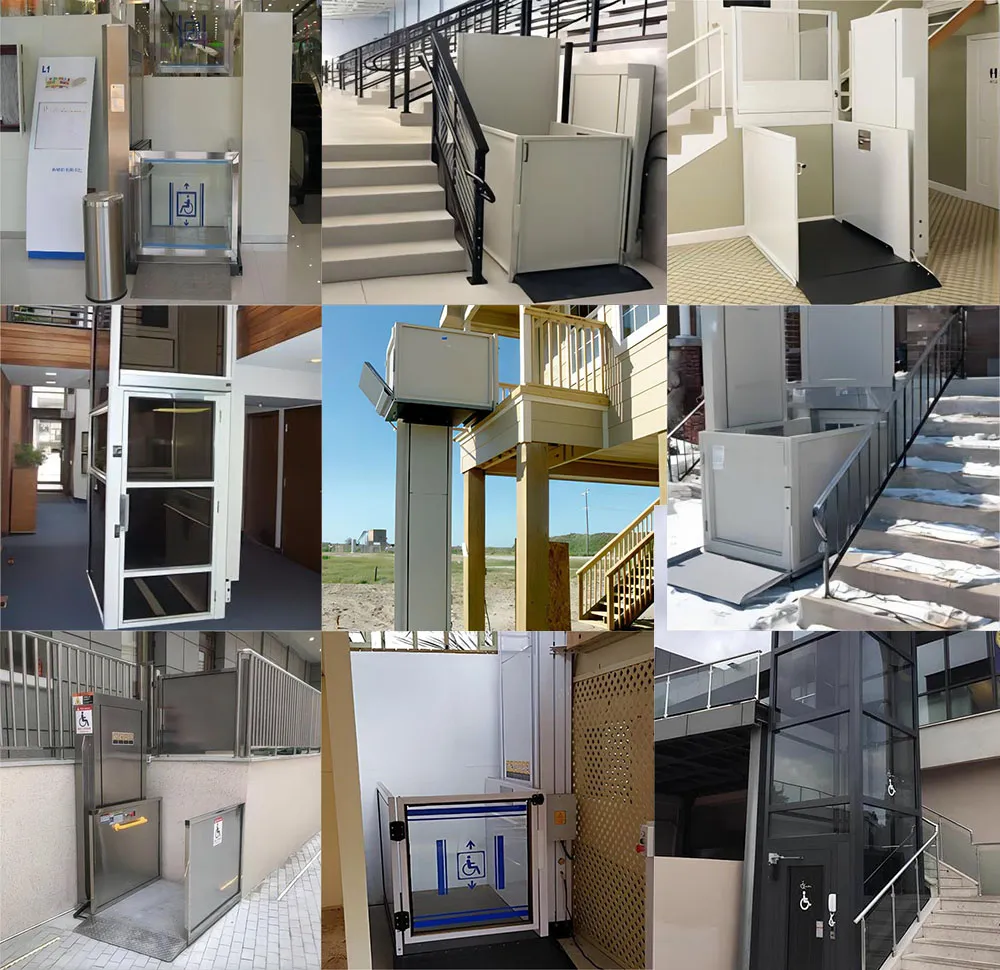

Project Show

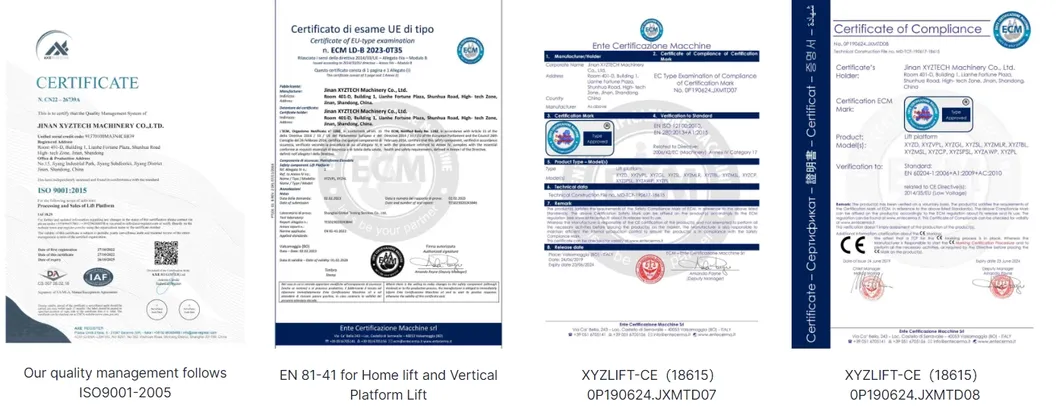

Certifications
📦

Packaging & Delivery

Packaging Show
?

Frequently Asked Questions

Q1. What details are required to specify a vertical lift platform?
To precisely tailor a lift to your needs, we require the desired Platform Size (standard is 1430*1000mm), the Travel Height (vertical distance), Loading/Unloading directions, and any additional equipment like a glass shaft or landing doors.
Q2. How many floors can a vertical lift platform serve?
Our vertical lift platforms can travel up to a maximum height of 16 meters, which typically covers up to 5 floors.
Q3. What color options are available for customization?
We offer full customization based on the RAL color system. Provide us with your preferred RAL color number, and we will match the platform finish accordingly.
Q4. Is the lift suitable for outdoor installation?
Yes, the lift is designed for both indoor and outdoor environments. Materials like aluminum alloy and stainless steel (SS304) are used to ensure durability against weather elements.
Q5. What safety features are included for power outages?
The lift is equipped with a manual emergency lowering valve to bring the platform down safely and a manual door opening mechanism to allow passengers to exit if power fails.
Q6. What are the standard power requirements?
The standard power supply required is 220V/50HZ with a 2.2kw motor. Local electrical standards can be accommodated upon request.
