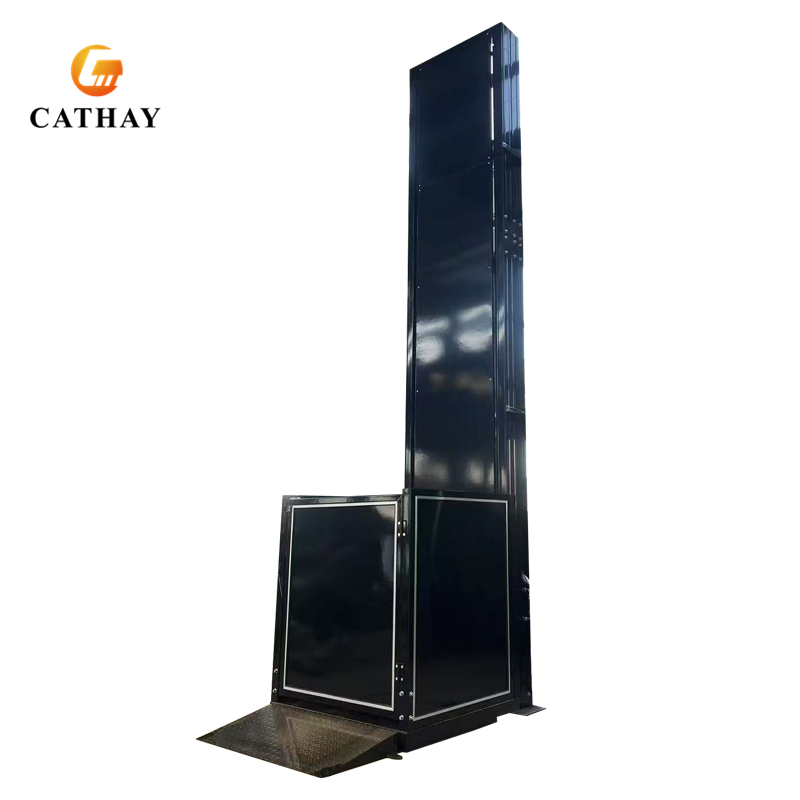

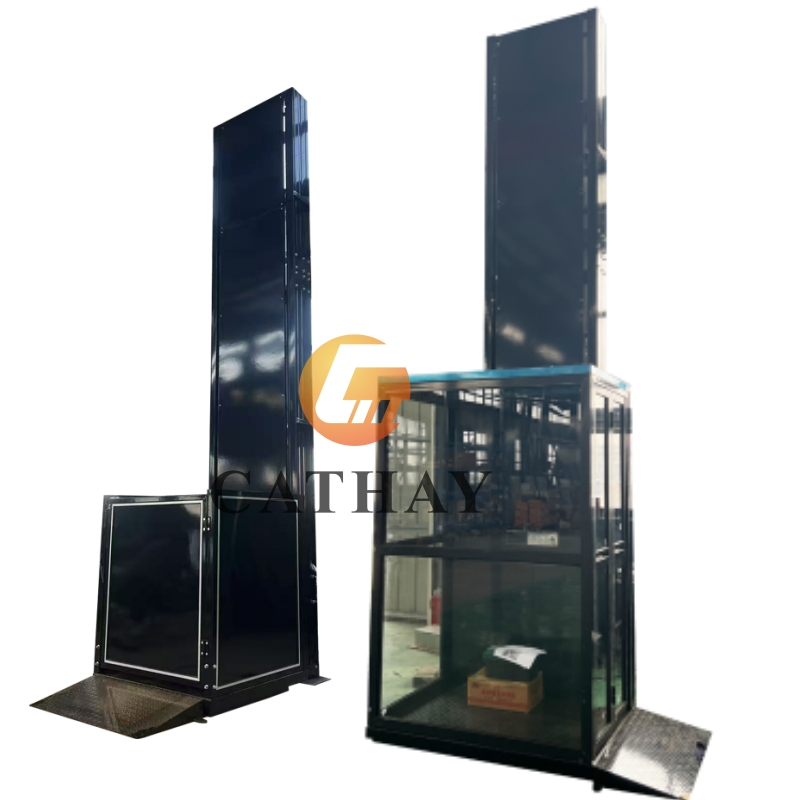

Basic Specifications
Application:Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism:Lift Chain / Hydraulic
Carrying Capacity:250kg~500kg
Driven Type:AC / Hydraulic
Certification:GS, CE, RoHS, ISO 9001
Platform Size:1430mm×1000mm
Lifting Height:1~12m
Voltage:110V/220V/380V/440V
Lifting Speed:0.01~0.2m/S
Control Voltage:24V
Power Output:1.1~2.2kw
Package:Wooden Carton

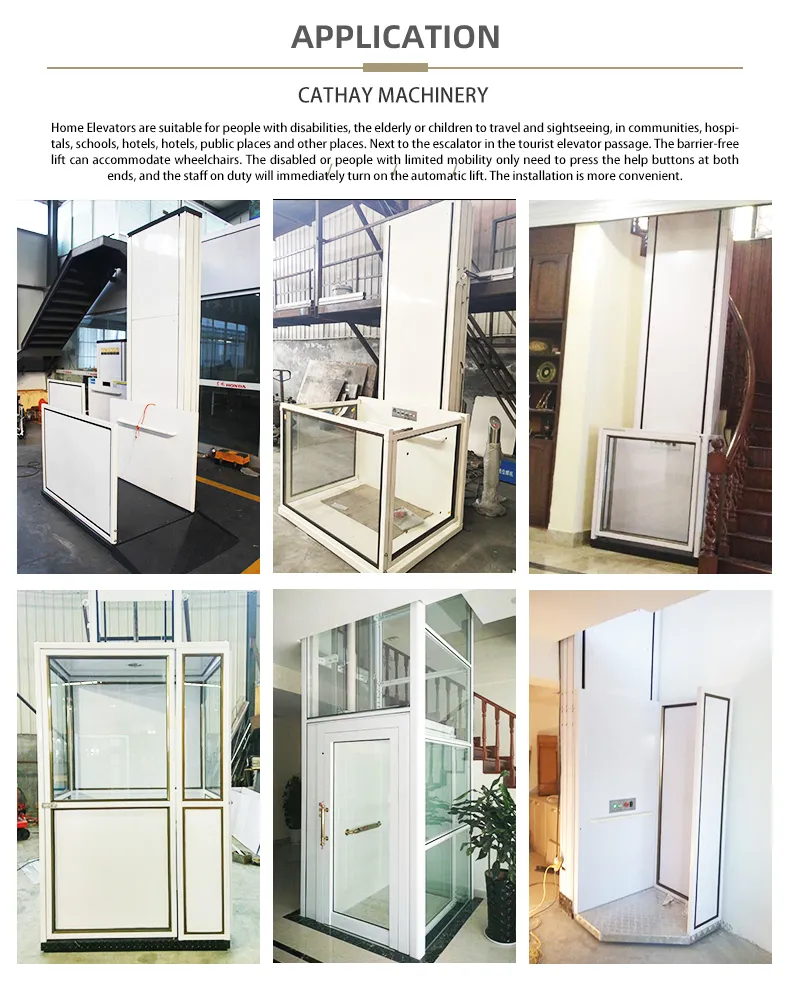

Applications & Practical Use
These hydraulic lifts provide an efficient and compact way to move between floors in residential spaces. They are ideal for seniors, people with disabilities, and families with mobility challenges. Suitable for both new builds and retrofits, they can be installed indoors or outdoors to enhance accessibility and property value.
Frequently Asked Questions
What is the maximum lifting height available?
The lift supports a customized lifting height range from 1 meter up to 12 meters.
Is a pit required for installation?
No pit is required for installations under 3 meters; the unit can be installed directly on the floor. For heights above 3 meters, it is typically secured to both the floor and the wall.
What happens during a power failure?

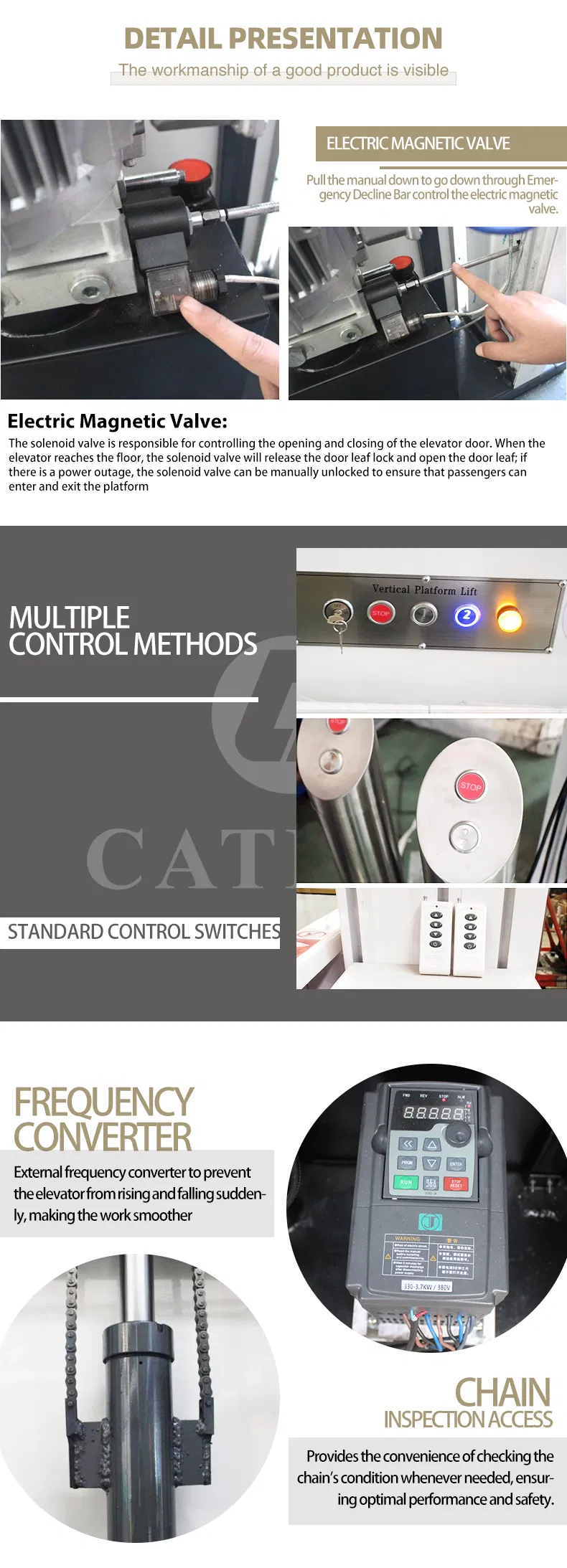

The lift is equipped with a manual pressure relief valve and an emergency descent function, allowing users to lower the platform safely without electricity.
Can the platform size be customized?
Yes, we offer tailoring for specific requirements including customized table sizes, heights, periphery enclosures, and car designs.

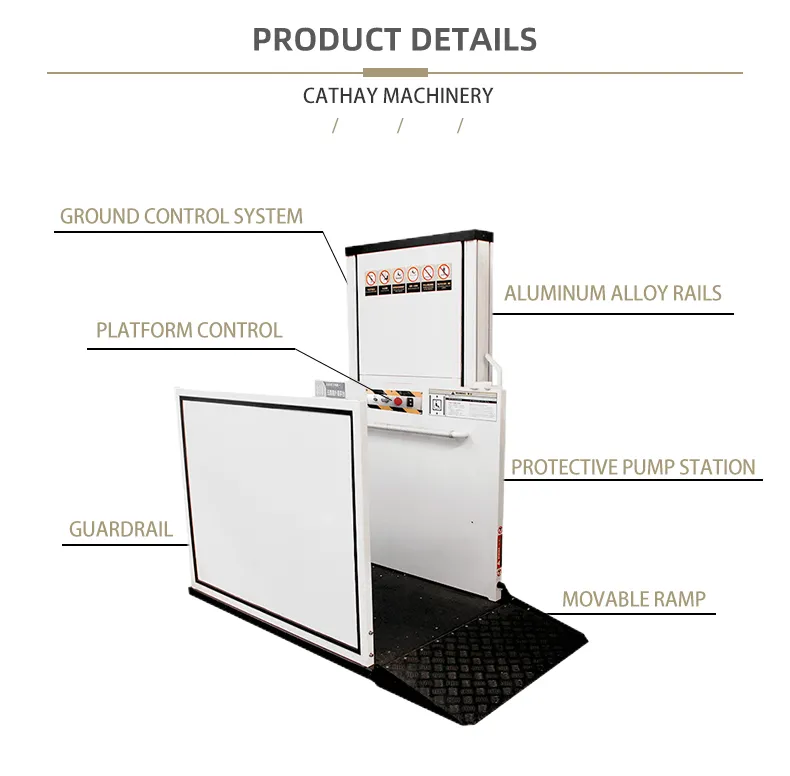

What safety features protect the user?

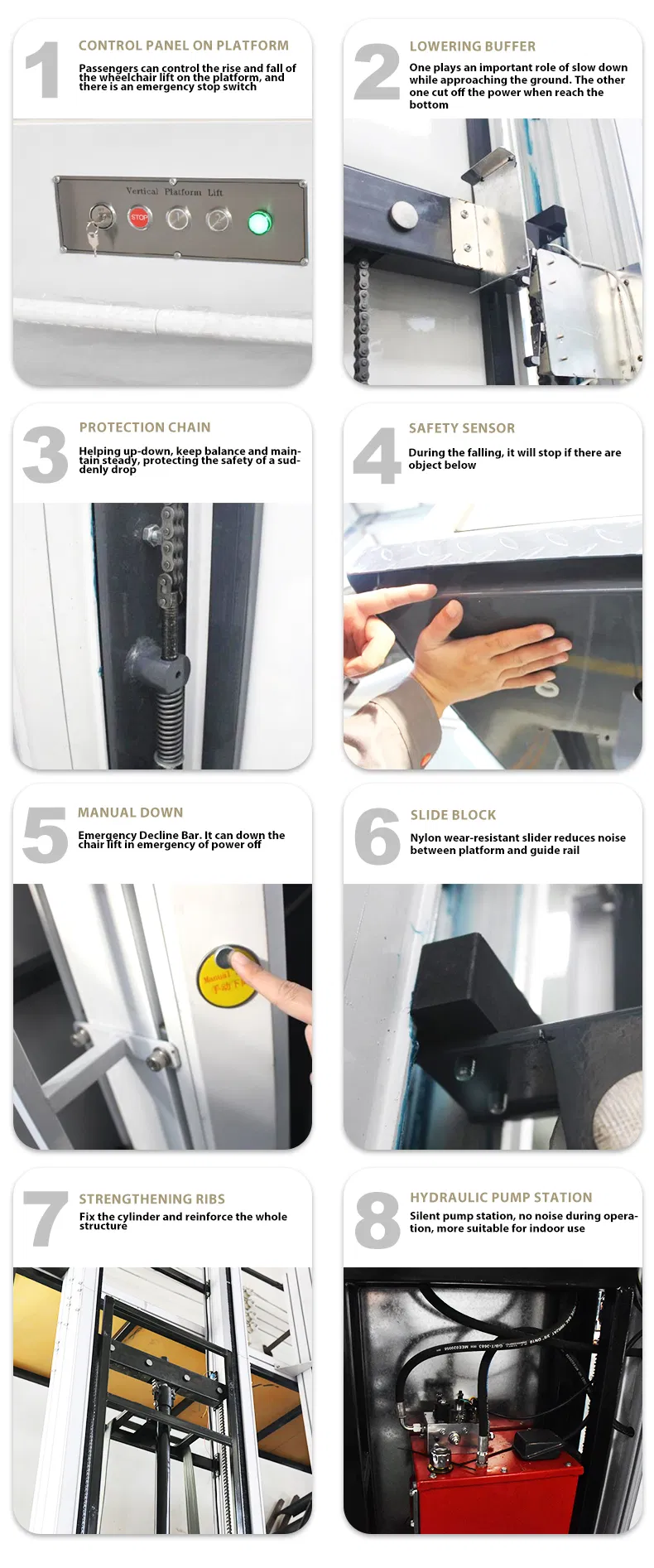

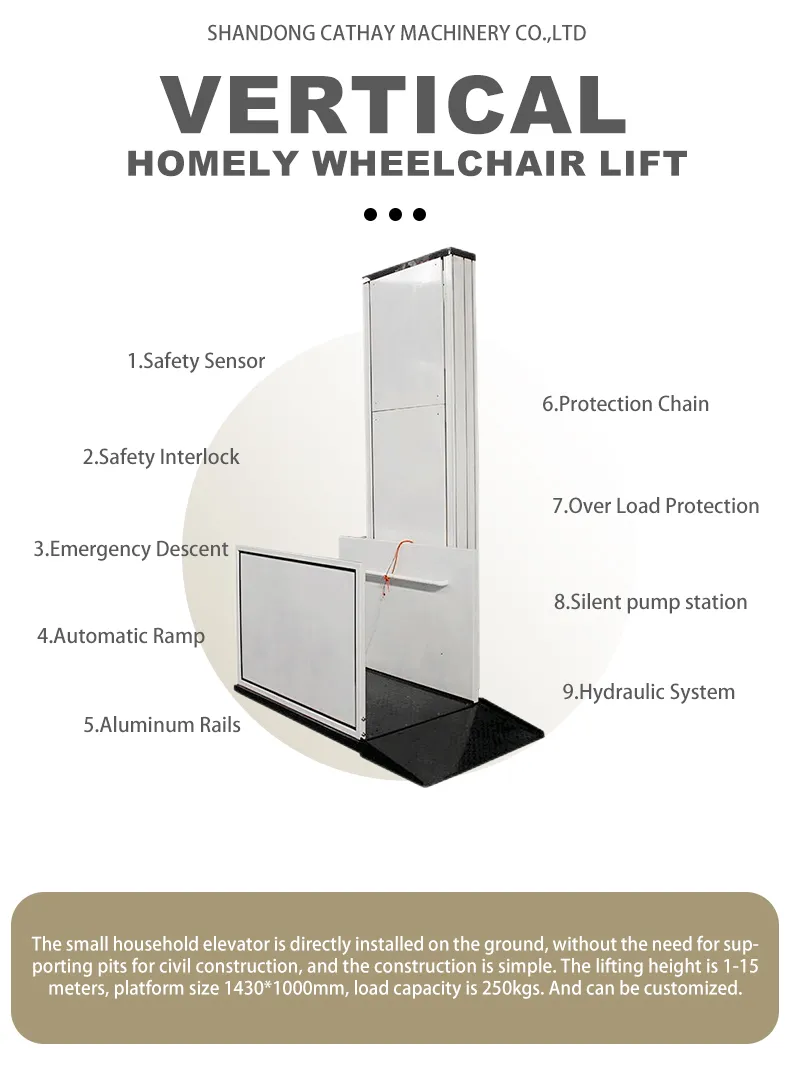

Key safety features include a bottom safety sensor to detect obstacles, an emergency stop system, an automatic ramp to prevent tripping, and overload protection.
Can this be used in outdoor environments?
Yes, the lift is designed to operate in temperatures ranging from -20°C to 70°C and is suitable for both indoor and outdoor installation.
