Dave Lift
Dave Lift
| Model NO. | DN-880/880S/880U |
| Type | Cooling System |
| Material | Steel |
| Loading Capacity | 300kg - 350kg |
| Platform Size | 1150*720 / 1250*820mm |
| Voltage | 12-24V |

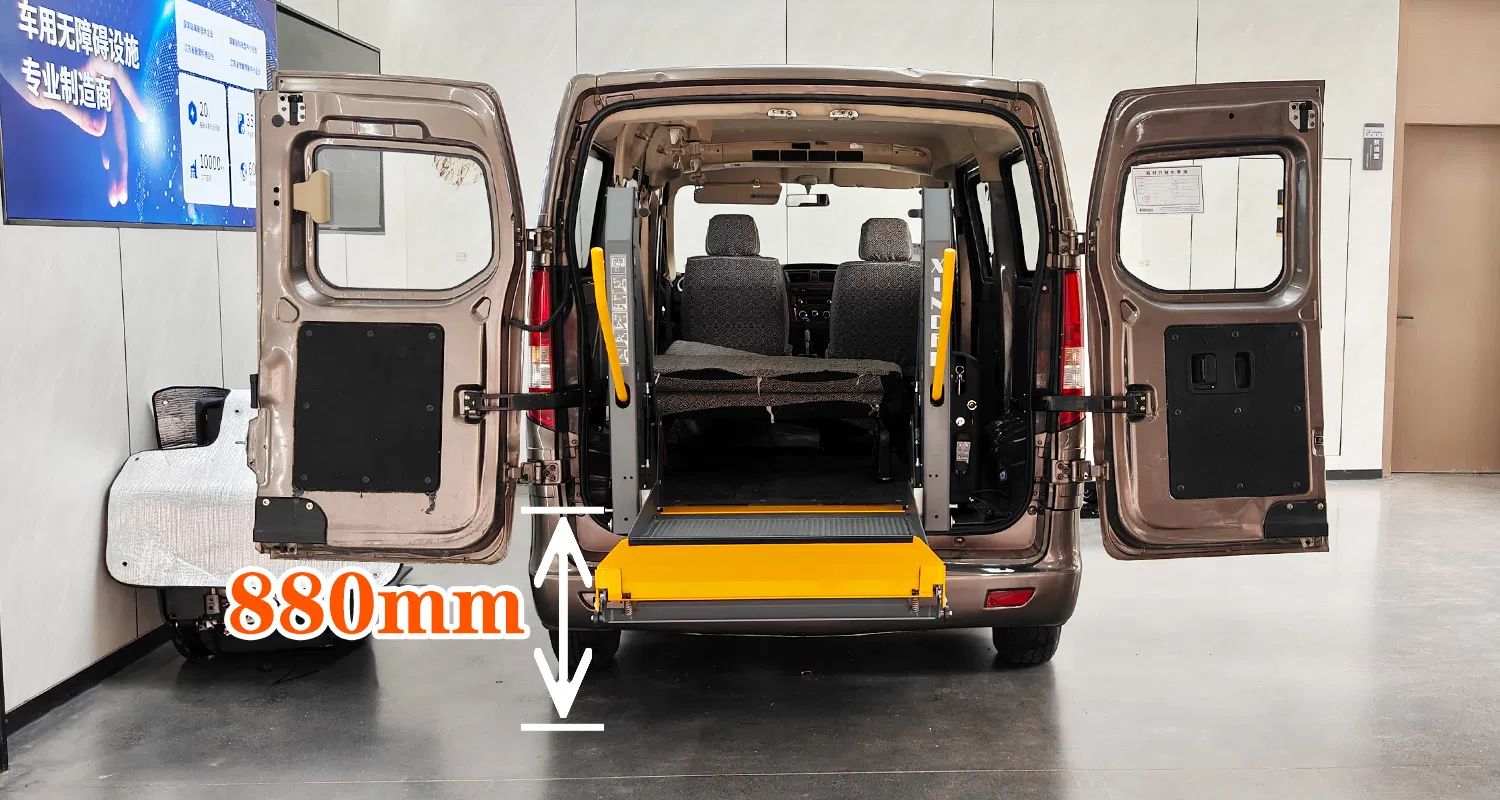

| Max Lifting Height | 880mm |
| Operation | Fully Automatic / Remote Control |

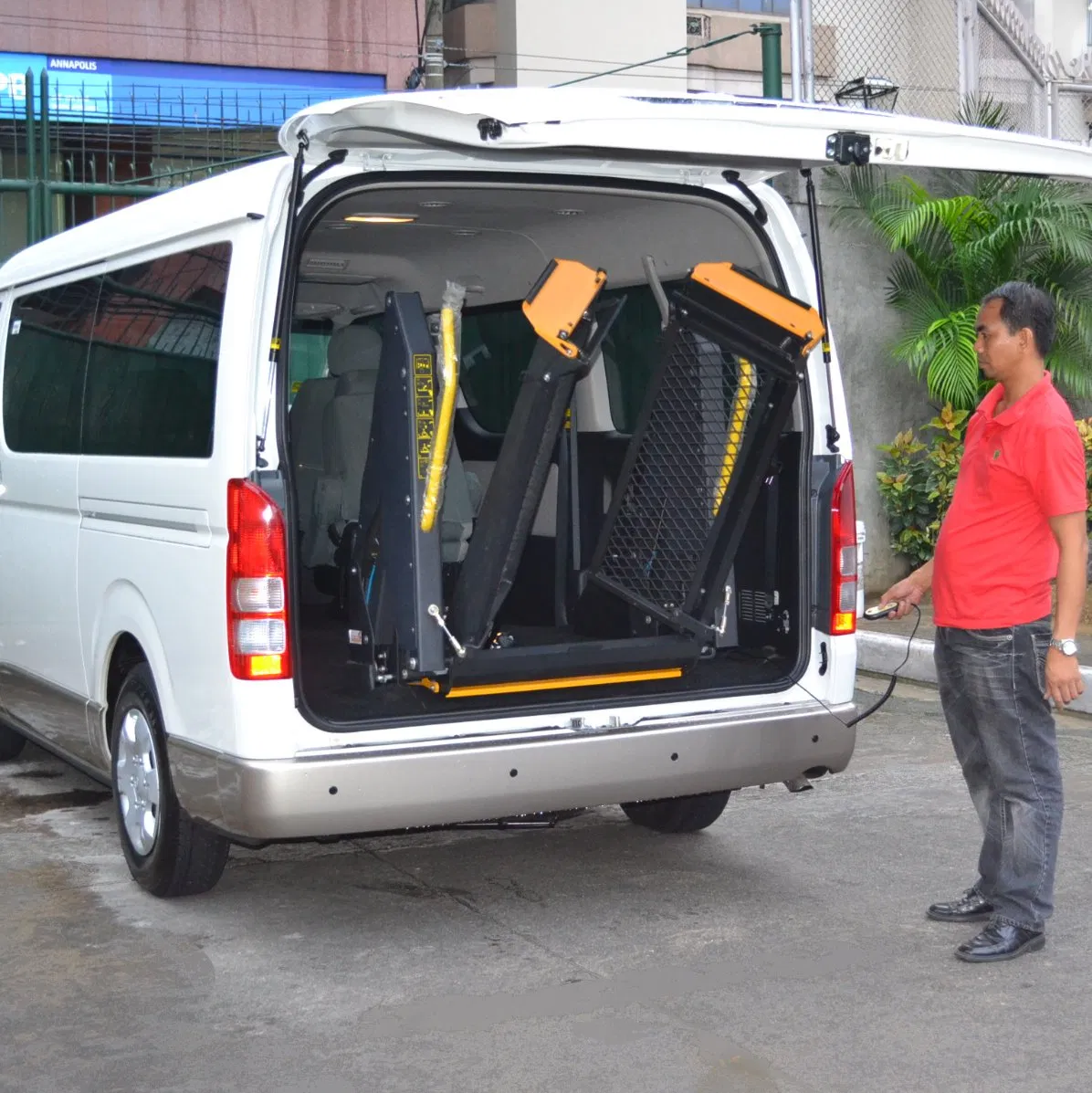

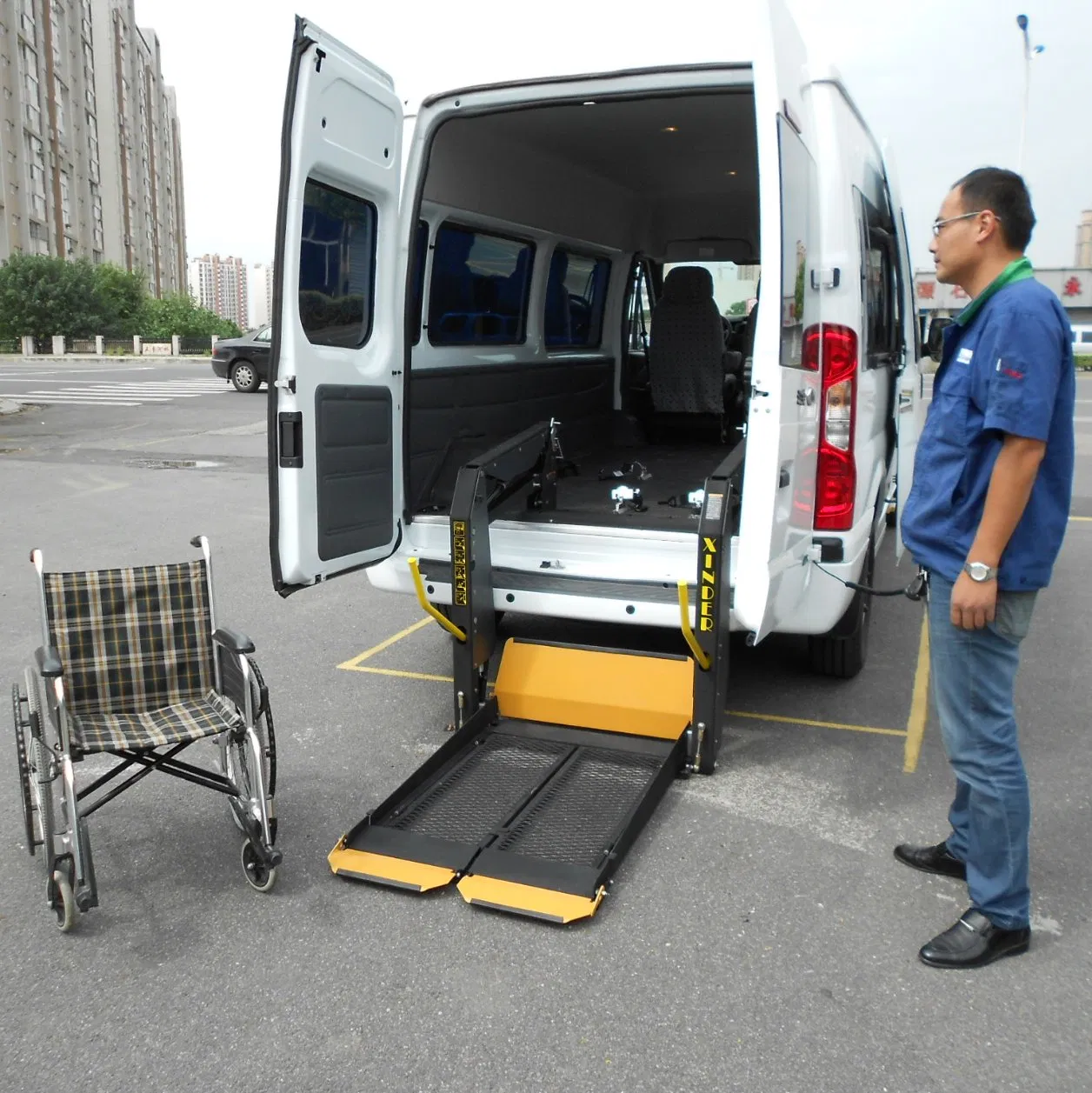

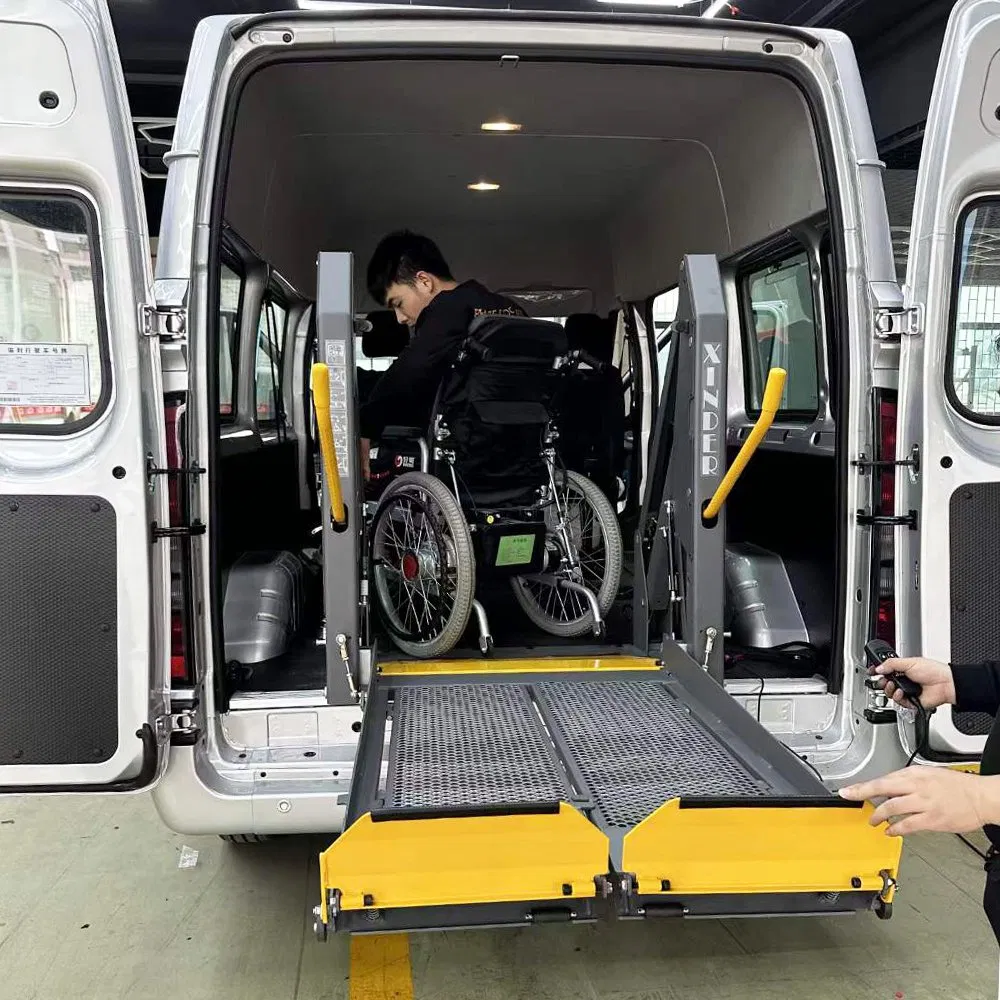

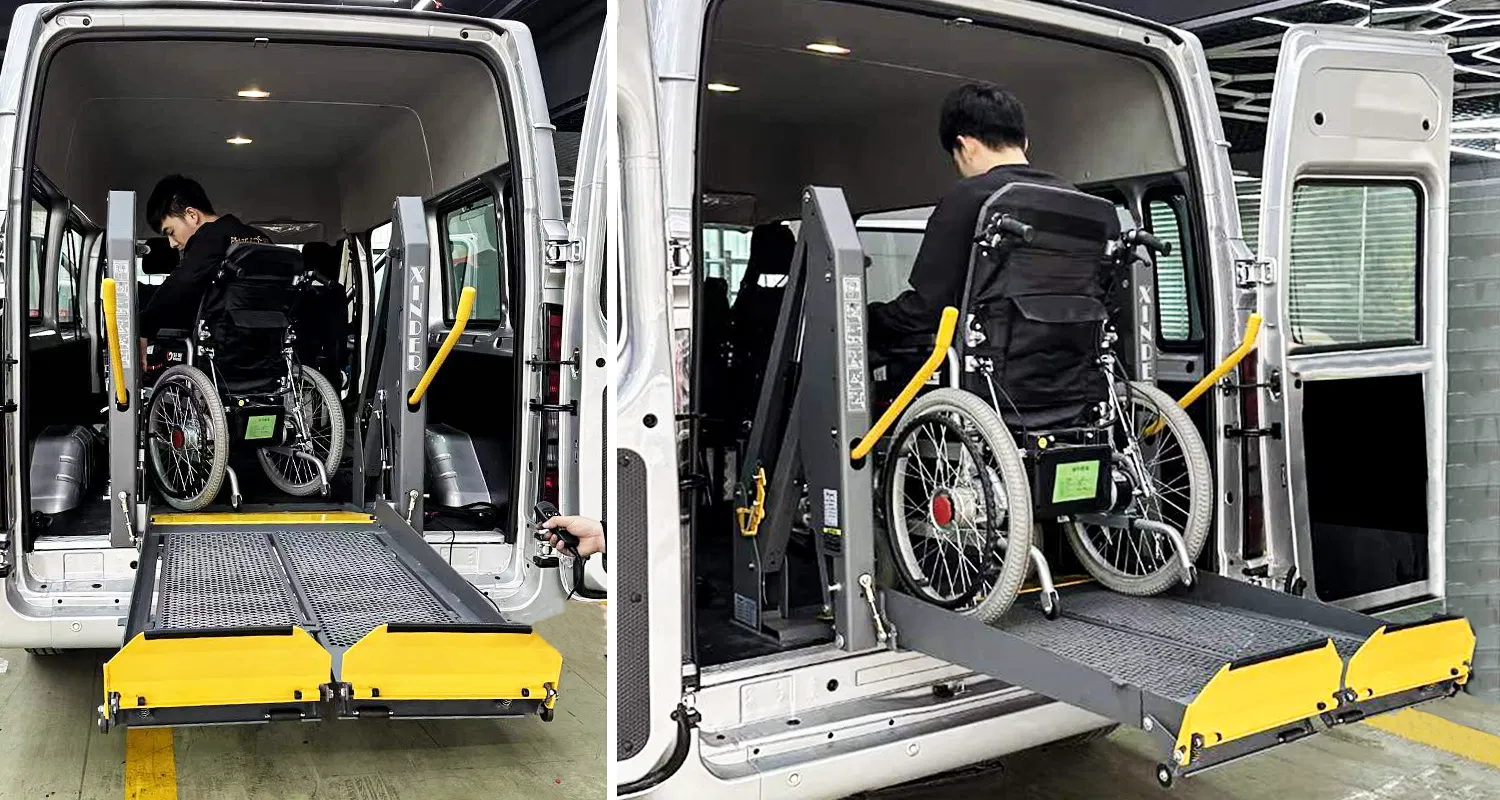

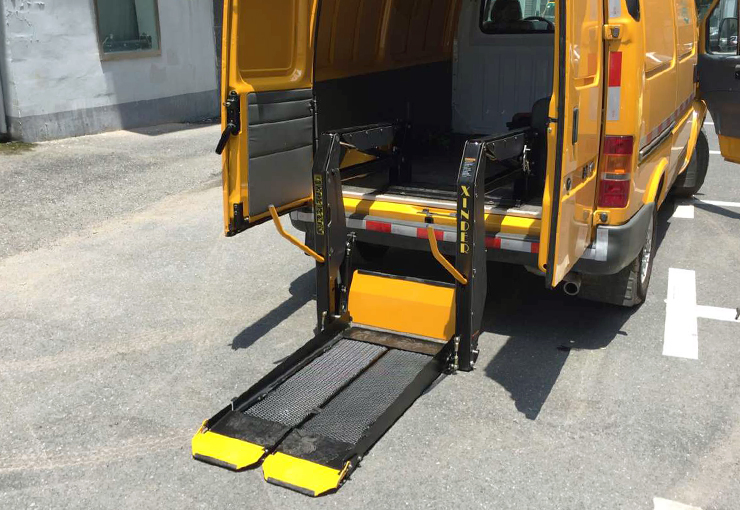

WL-DN-880S Series Wheelchair Lift

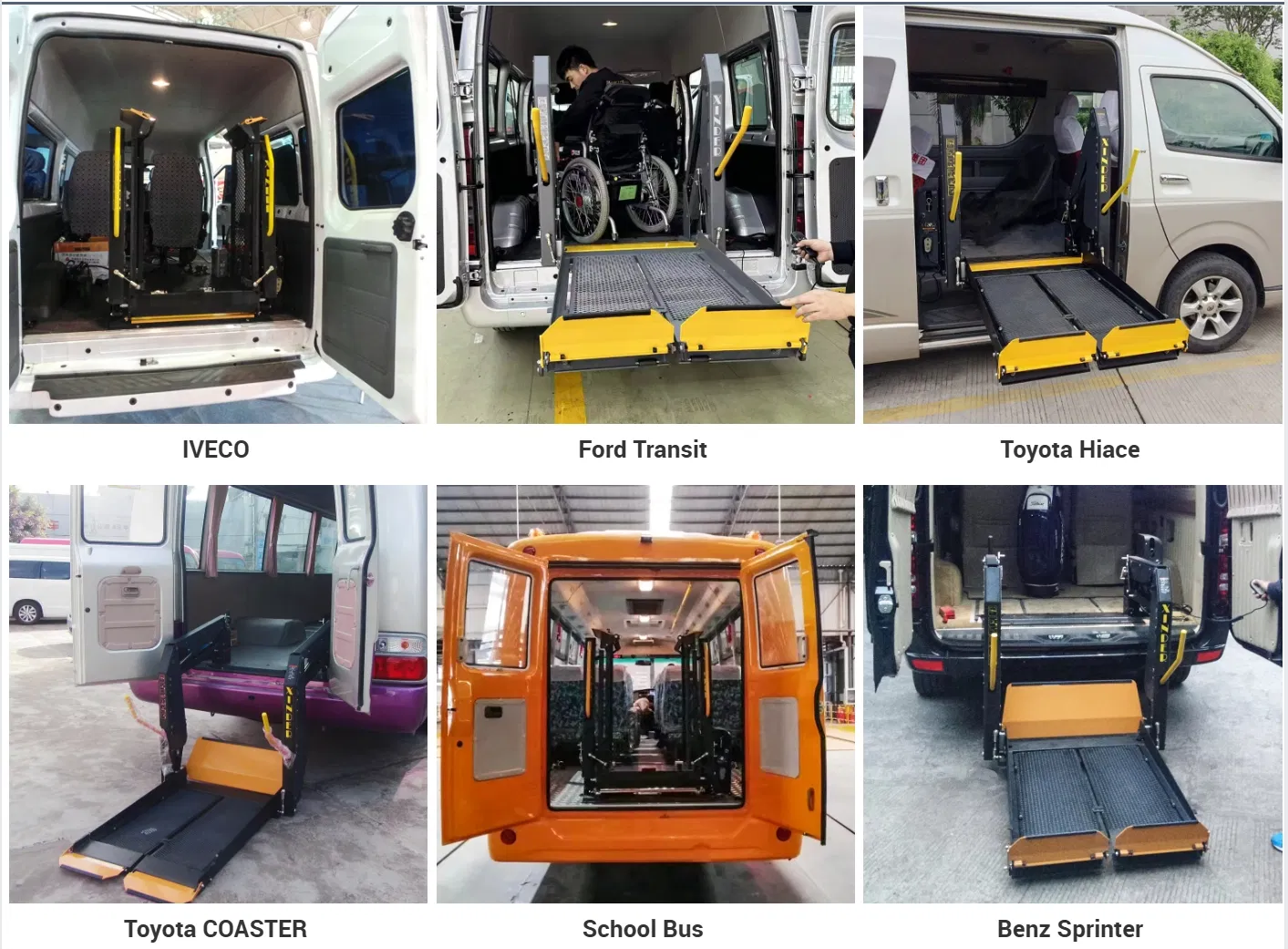

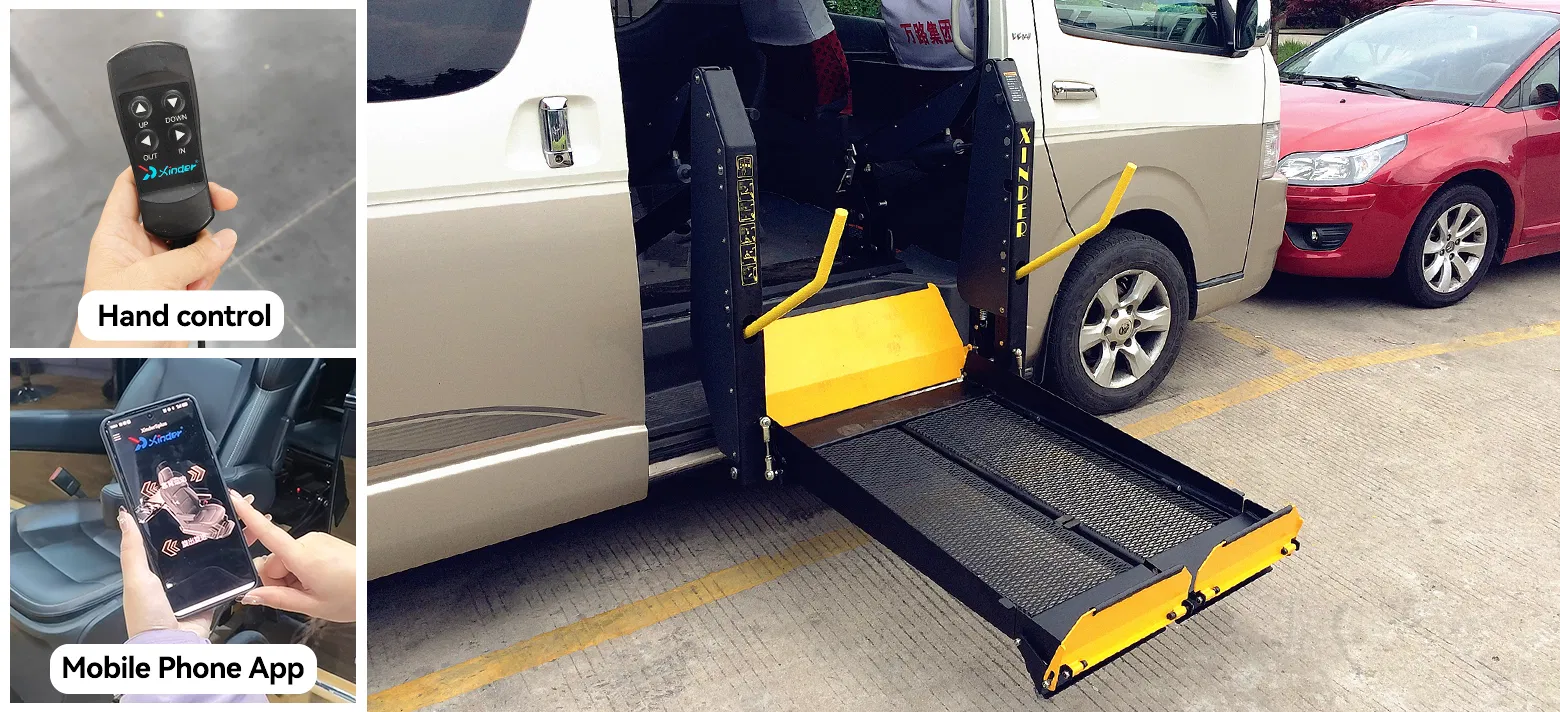

This lift is the first choice for a person to enter a vehicle. It can be installed at the rear door or side door, providing good visibility for both passengers and the driver! Powered by hydraulics, the movement of lifting, lowering, and rotating is fully automatic. A wired remote control operates this lift. We provide three types of platforms for your choice: solid platform, split platform, and folding platform.

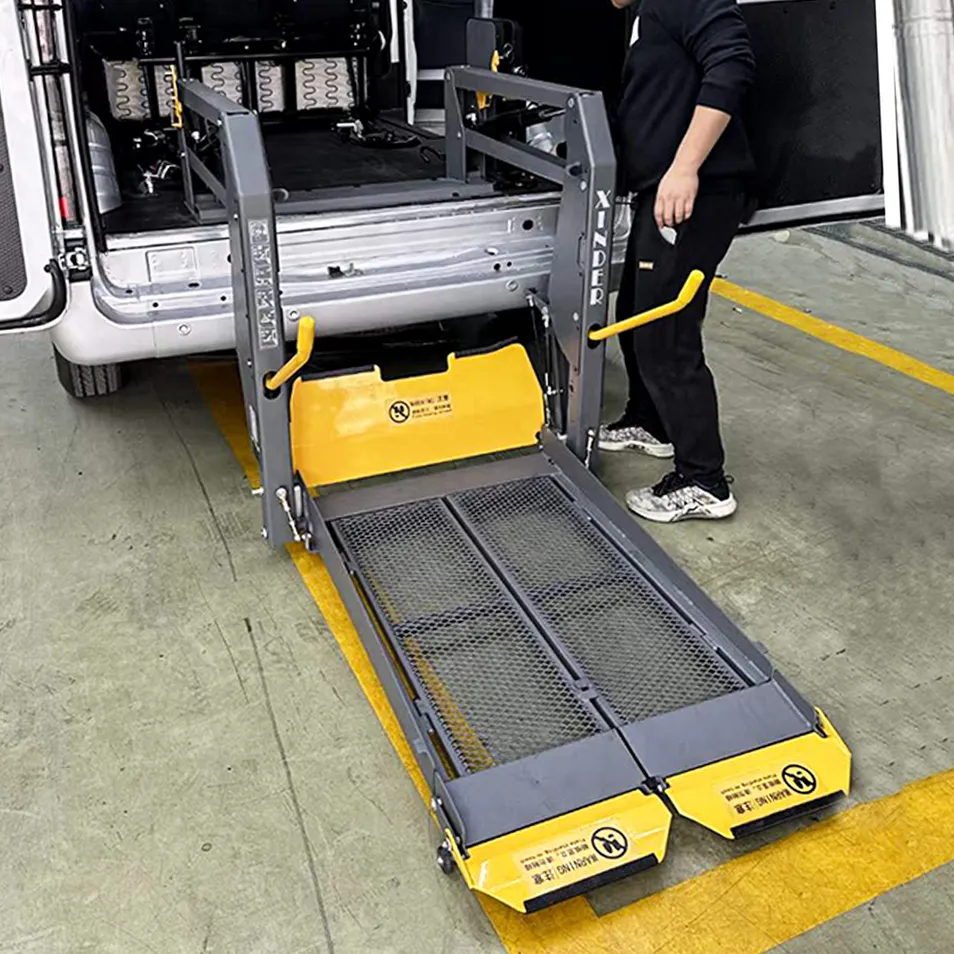

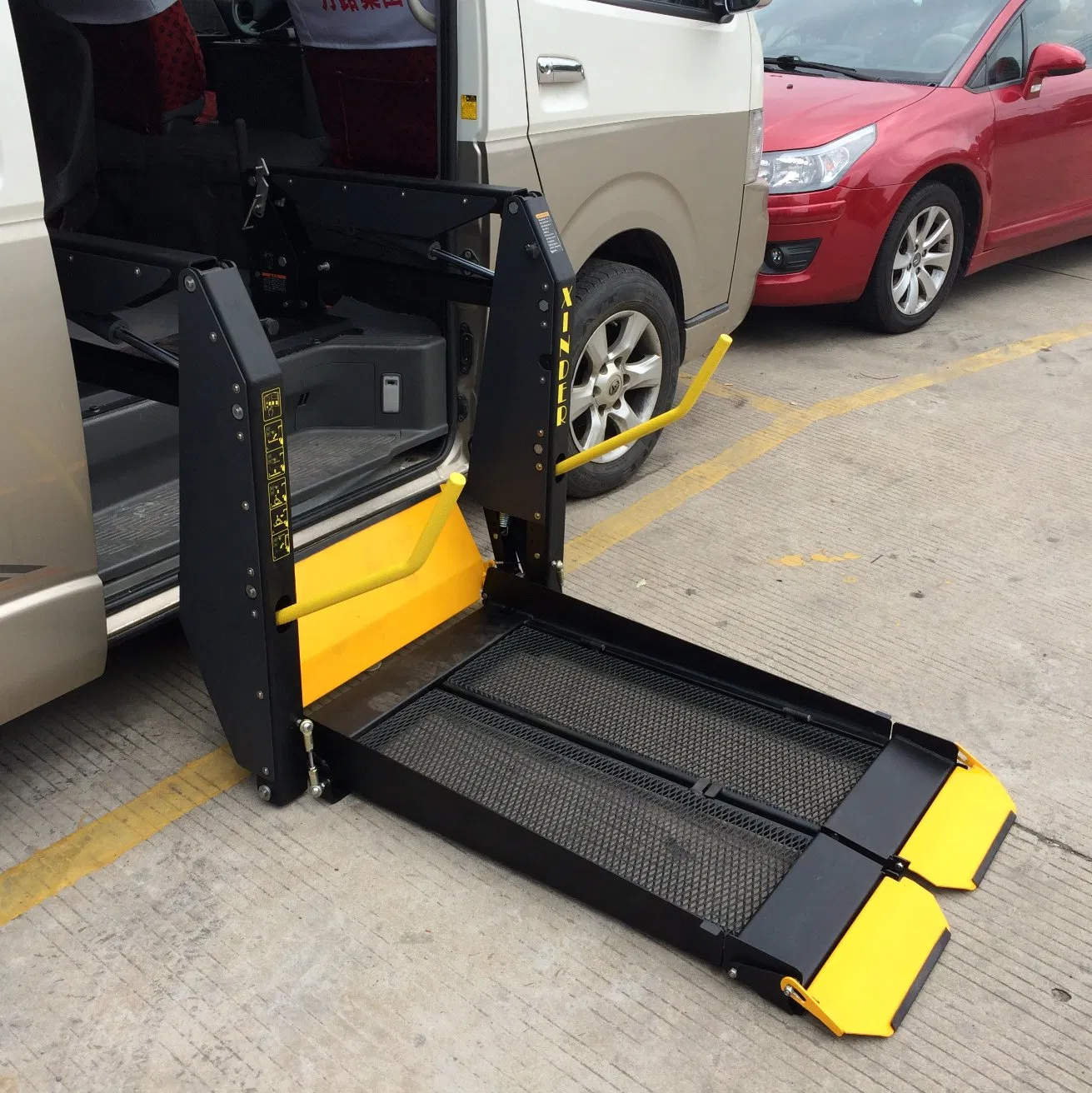

Platform Open

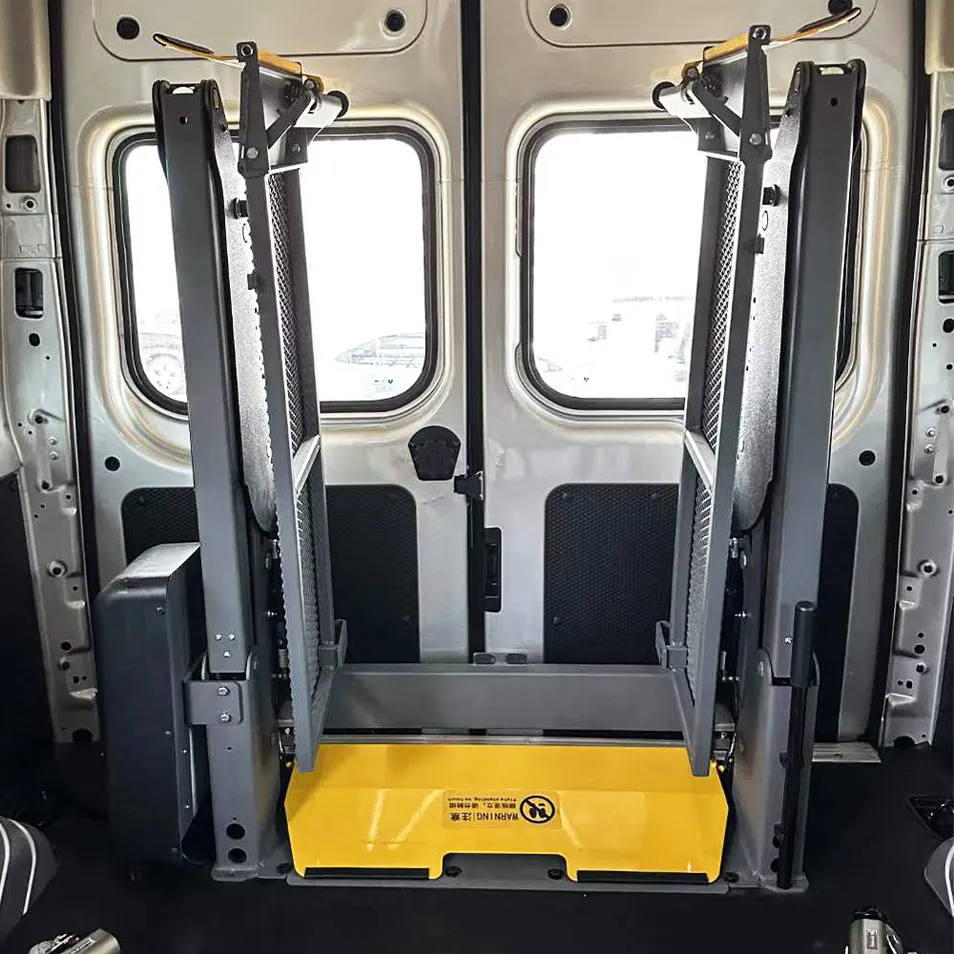

Platform Retraction

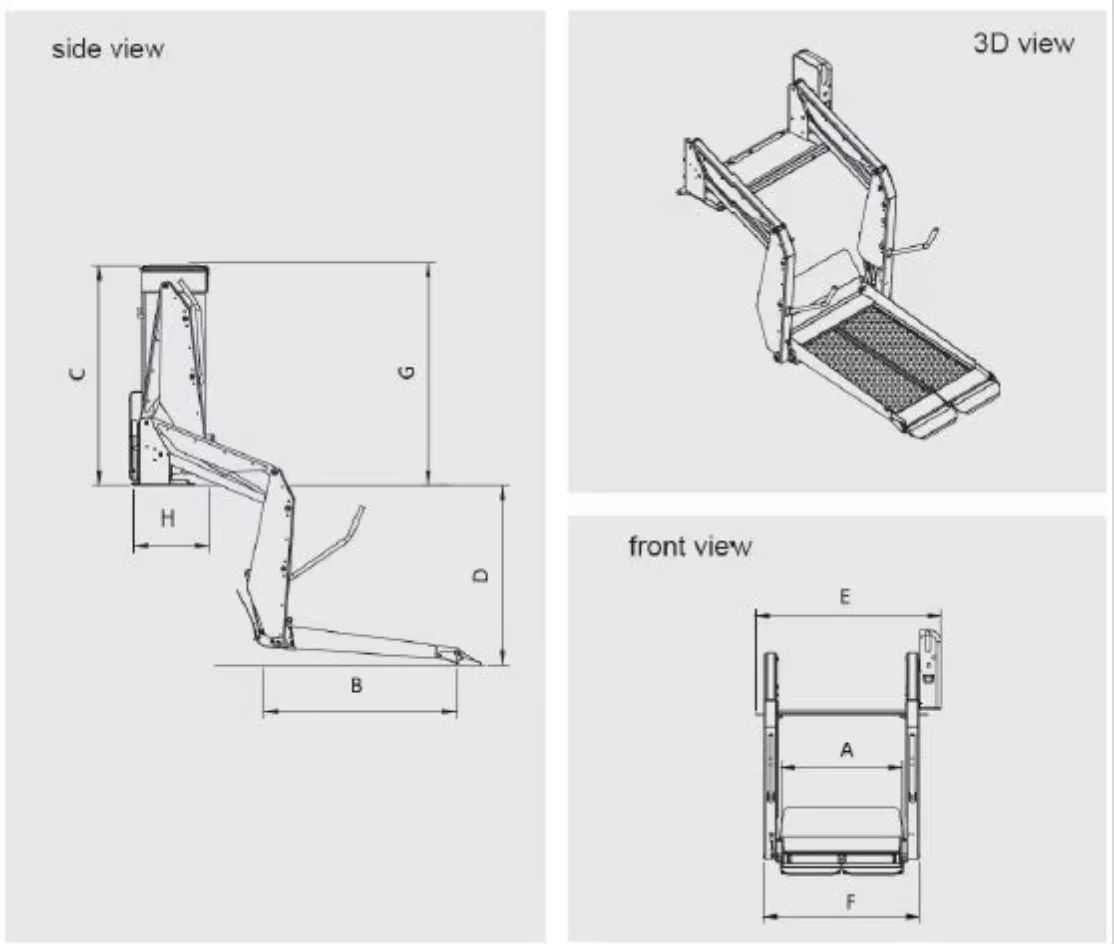

| Model | Net Width (A) | Net Length (B) | Overall Height (C) | Max Lifting (D) | Overall Width (E) | Door Width (F) | Door Height (G) | Depth (H) |
|---|---|---|---|---|---|---|---|---|
| DN-880S-1150 | 720 | 1150 | 1235 | 880 | 1137 | 1150 | 1230 | 490 |
| DN-880S-1250 | 820 | 1215 | 1300 | 880 | 1237 | 1250 | 1330 | 490 |
| Voltage | 12V / 24V |
| Power | 800W |

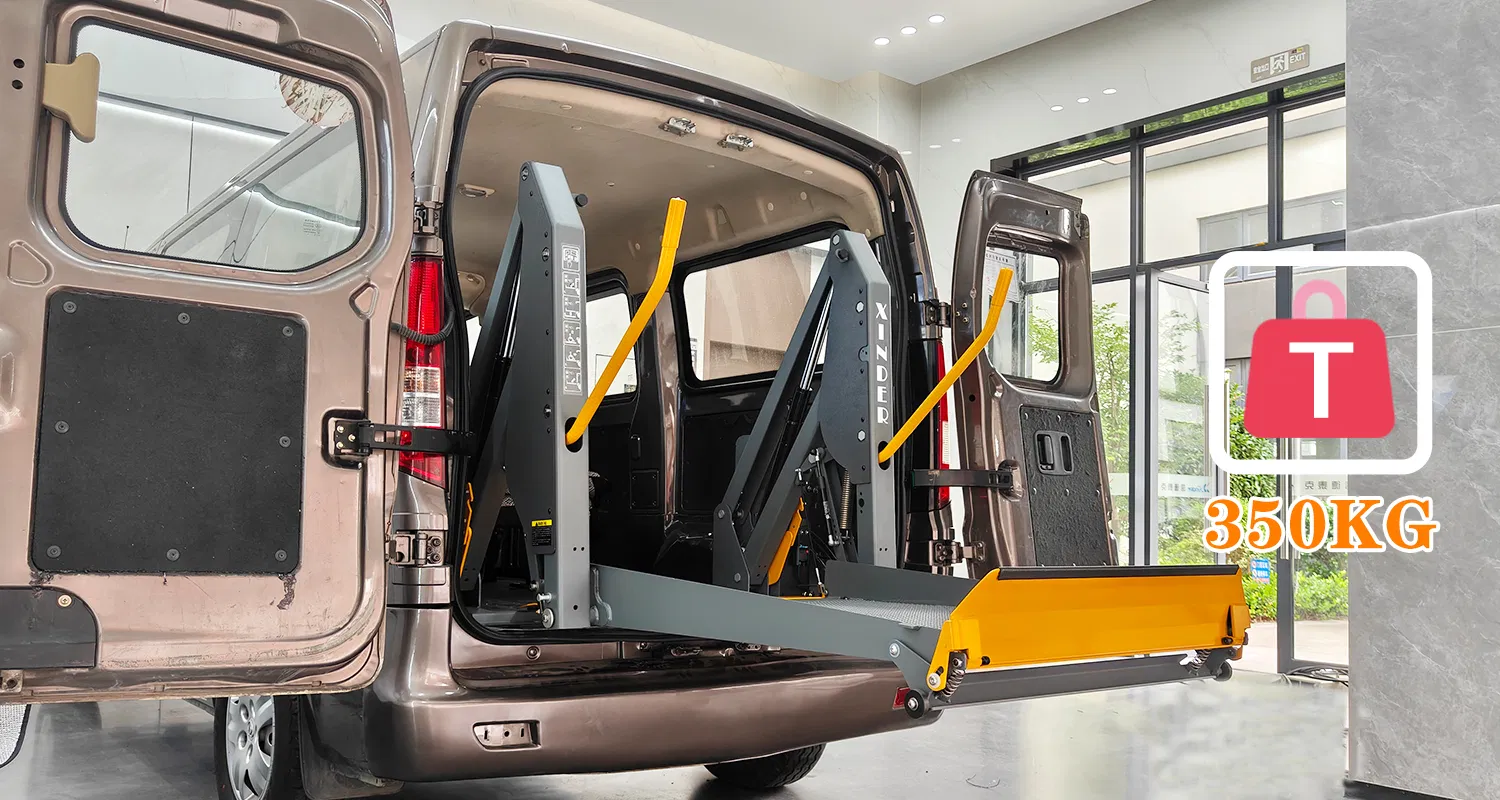

| Loading Capacity | 350kg |
| Operation Method | Electric and Hydraulic |
