Dave Lift
Dave Lift
| Model NO. | Y-160 |
| Driving Type | Hydraulic Type or Screw Type |
| Capacity | 250kg |
| Persons | 2-3 Persons |
| Speed | 70mm/S |
| Control Mode | Push-Button Control |
| Position | Outdoor or Indoor |
| Lifting Height | 1m-10m |
| Operation Mode | Electric |
| Transport Package | Export Wooden Box Packaging |
| HS Code | 8428909090 |

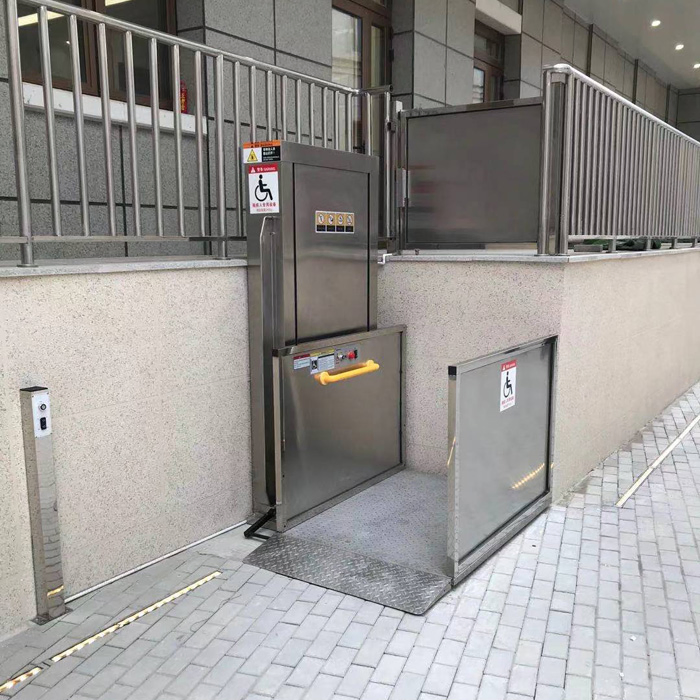

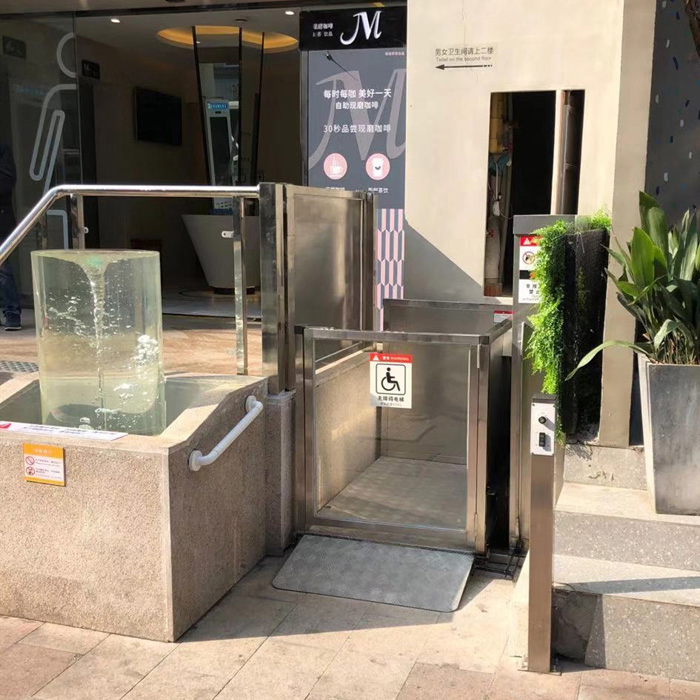

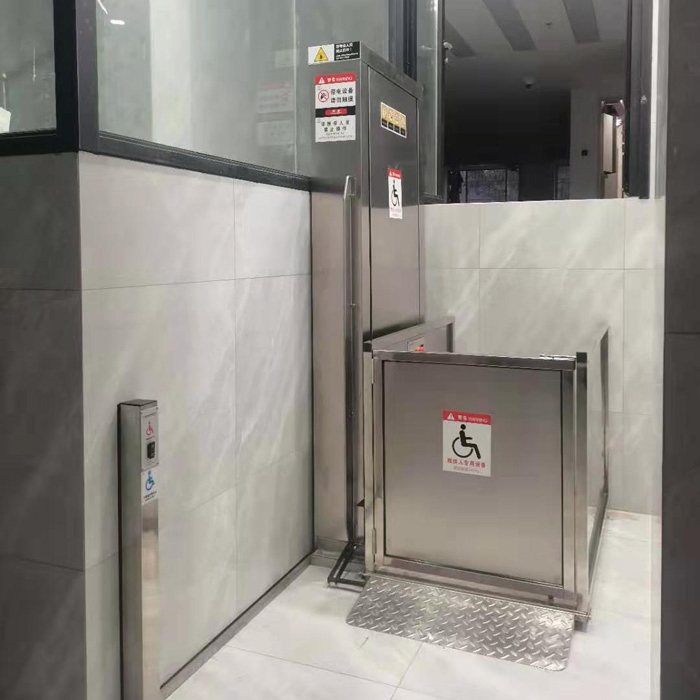

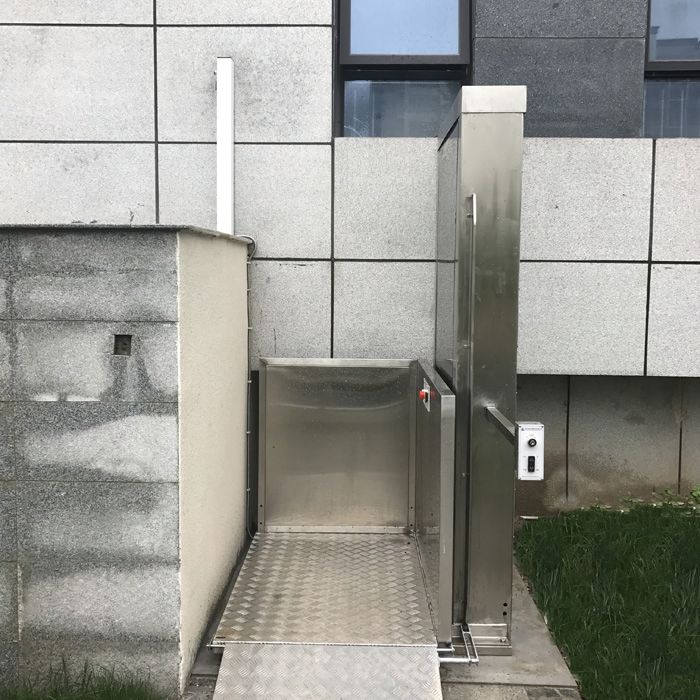

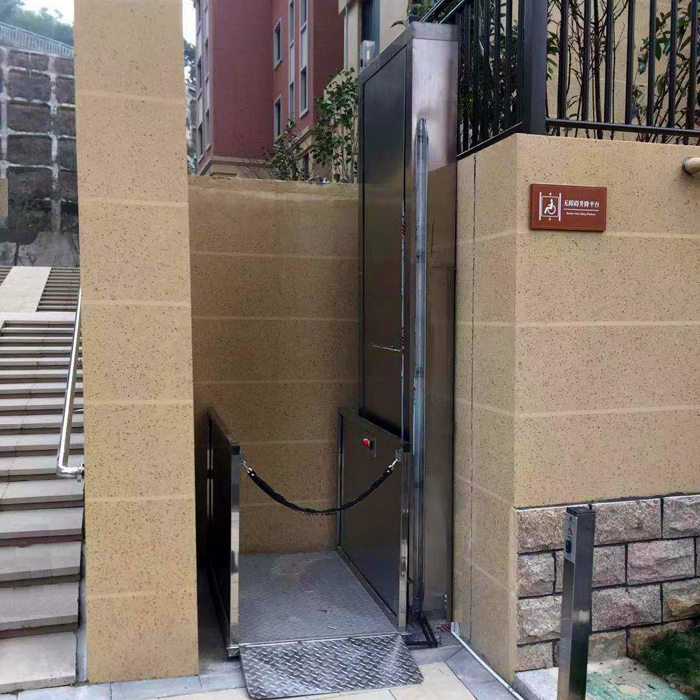

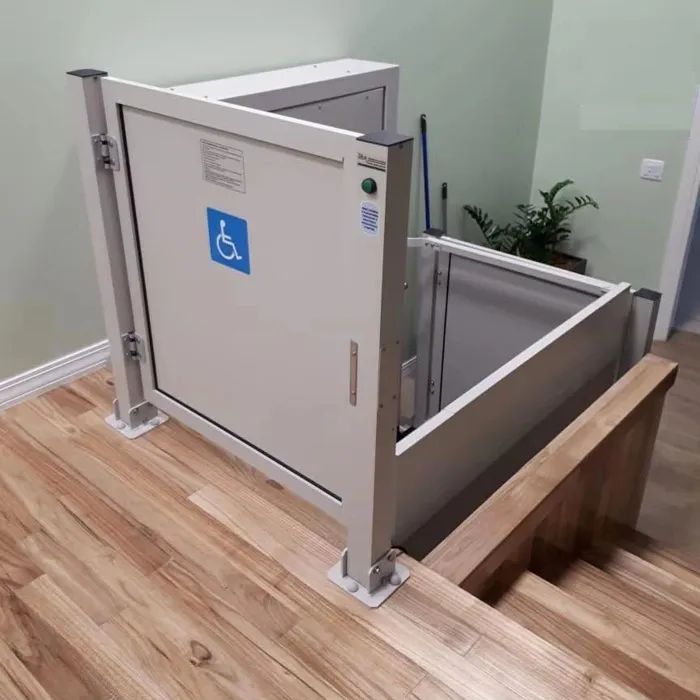

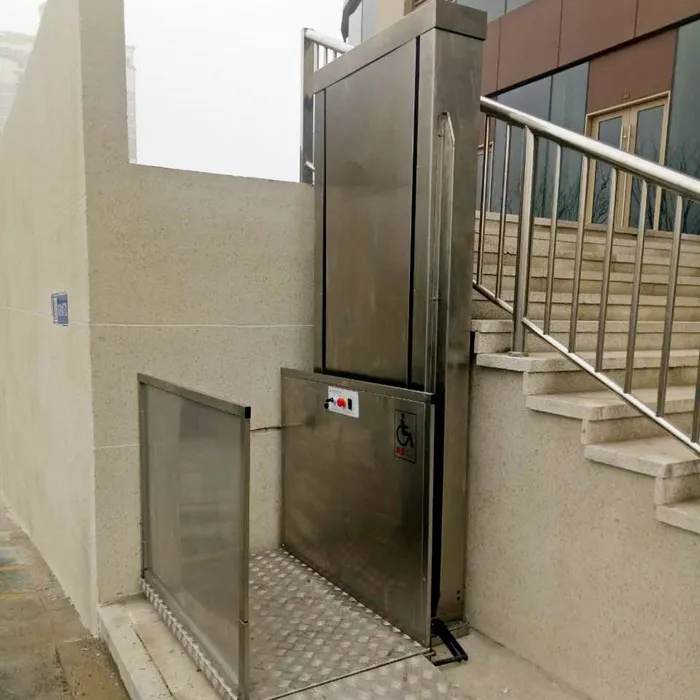

Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people. It is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts.
This wheelchair platform lift features smooth running speed, high safety, and easy installation. It requires minimal space and no pits for installation.
| Voltage | 220V/50HZ or Customized |
| Overall Dimensions | 1670mm(L) × 1270mm(W) × (lifting height+550)mm (H) |
| Lifting Base Plate | 60mm from the ground |
| Installation | No Foundation Required |
| Max Loading | 240kg |
| Drive System | Screw Drive |
| Power | 2.2kw 220V/AC |
| Temperature Range | -20°C to 60°C |
| Safety Rocker | Automatically tilts up to prevent wheelchair sliding |
| Safety Features | Overload Protection, Emergency Stop, Emergency Descent |
The screw-type barrier-free lifting platform is a vertical multi-functional lifting platform with a steel structure frame and precision screw drive. It can be produced within a lifting range below 2000mm according to specific needs.

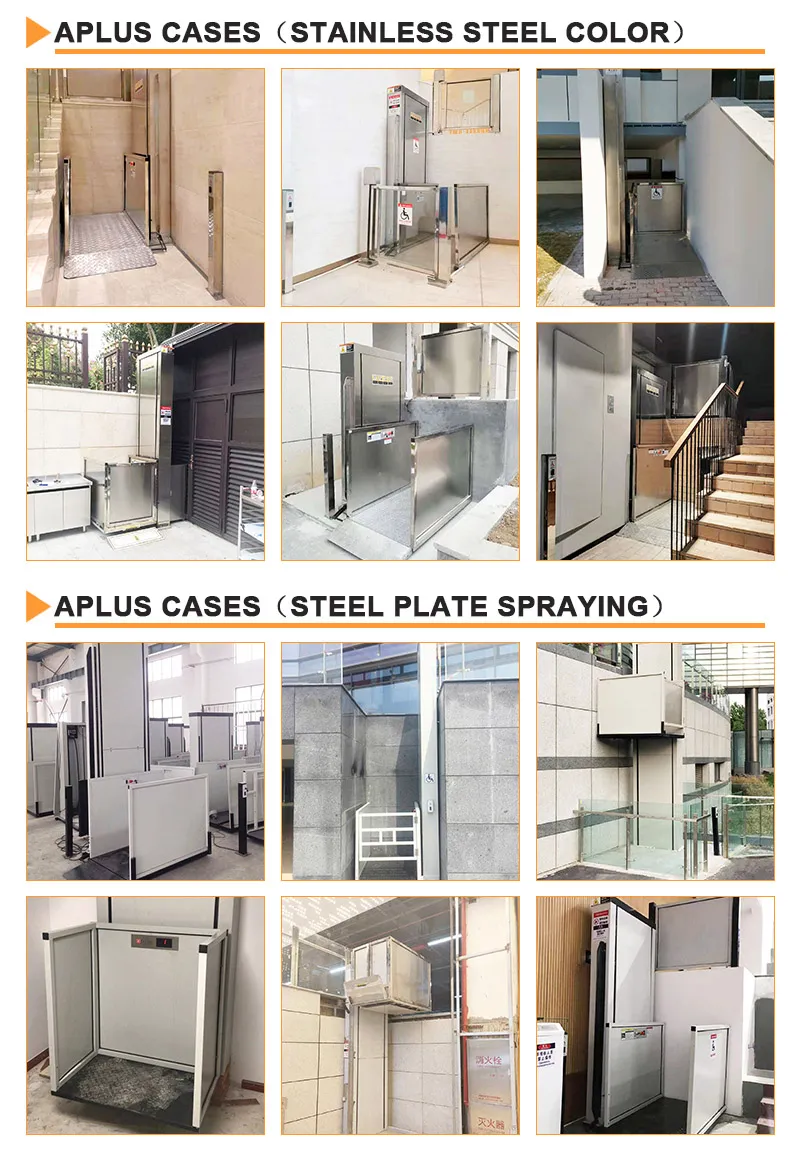

Widely used in residential quarters, hotels, restaurants, office buildings, subways, banks, and hospitals. It offers novel design, stability, low noise, and low temperature resistance, complying with ASME A18-1 and CSA-B613 standards.
