300kg Disabled Elevator Home Wheelchair Lift

1 / 5

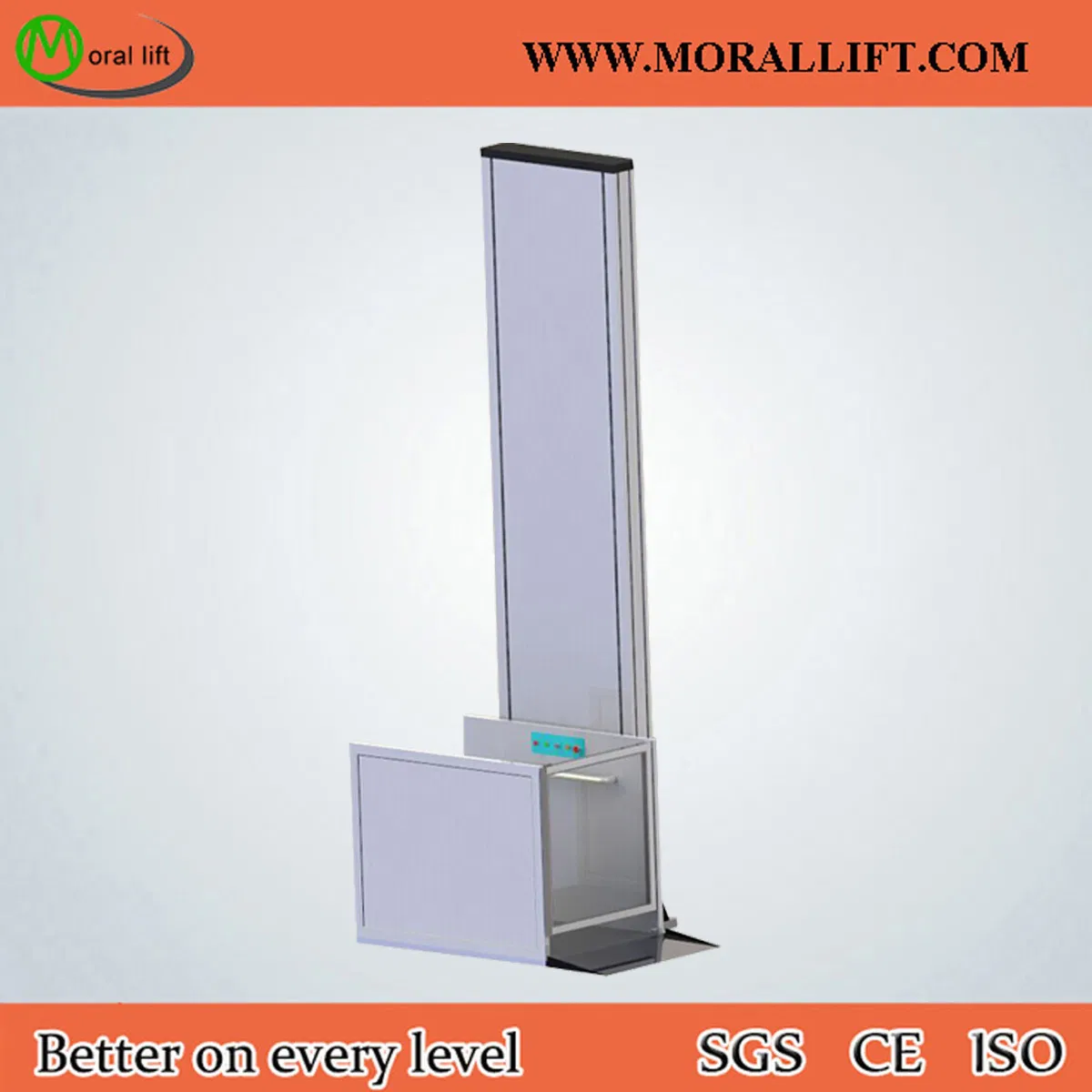

300kg Disabled Elevator Home Wheelchair Lift

Customization:	Available
After-sales Service:	Free parts will be provided in one year
Warranty:	5 years for main structure, 1 year for parts

Send Inquiry

Product Description

Basic Information

Model NO.	VWL	Application	Warehouse/Building/Home/School/Hospital
Lift Mechanism	Lift Chain	Carrying Capacity	Light Level (300kg)
Driven Type	Hydraulic	Control Mode	Button / Remote Control
Platform Size	1430mm(L)* 1000mm(W) / Customized	Exit & Entrance	90 or 180 degree
Material	Checkered Slip-proof Aluminum Alloy	Speed	80mm/s
Safety Device	Safety board / Safety sensor / E-Stop	Certification	CE

Product Description

A residential vertical wheelchair lift is an ideal solution for individuals with mobility challenges, wheelchair users, or those using mobility scooters. It ensures safe and convenient access to homes, serving as an affordable and weather-resistant alternative to residential elevators or complex ramps.

Main Features

✔ Vertical elevating system suitable for indoor/outdoor heights up to 15 meters.

✔ No architectural supporting pit required; easy to install and operate.

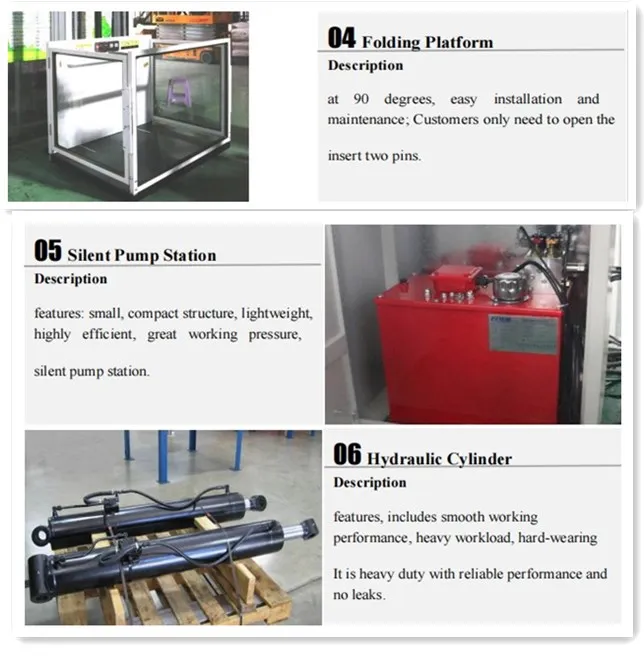

✔ Hydraulic drive for smooth, comfortable, and silent operation.

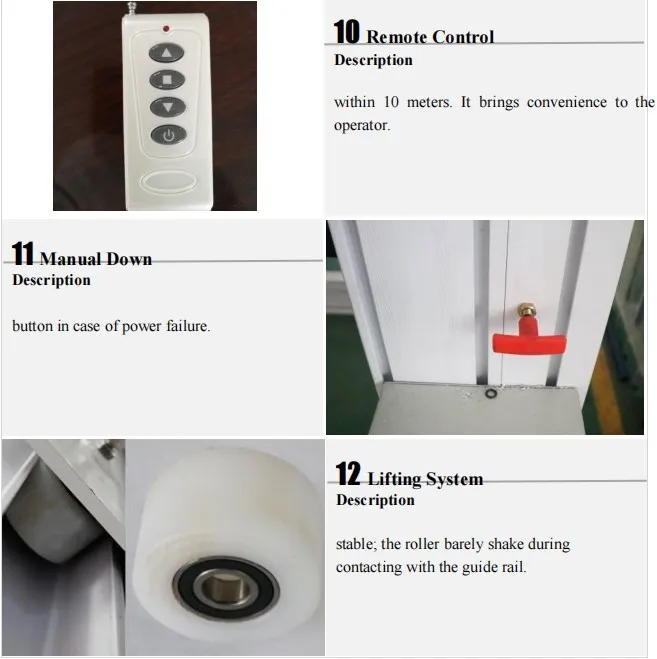

✔ Emergency Descending: Manual override in case of power failure.

✔ Comprehensive safety: Anti-falling system and deceleration settings.

✔ Control options: Remote control, column buttons, and platform buttons.

Specifications

Load Capacity	300kg
Platform Size	1430*1000mm / Customized
Lifting Height	0-15m / Customized
Control Voltage	24V/DC
Power Supply	220V/380V/Local power
Lifting Speed	80-100mm/s
Installation	Pit installation (100mm) or Non-pit with ramp

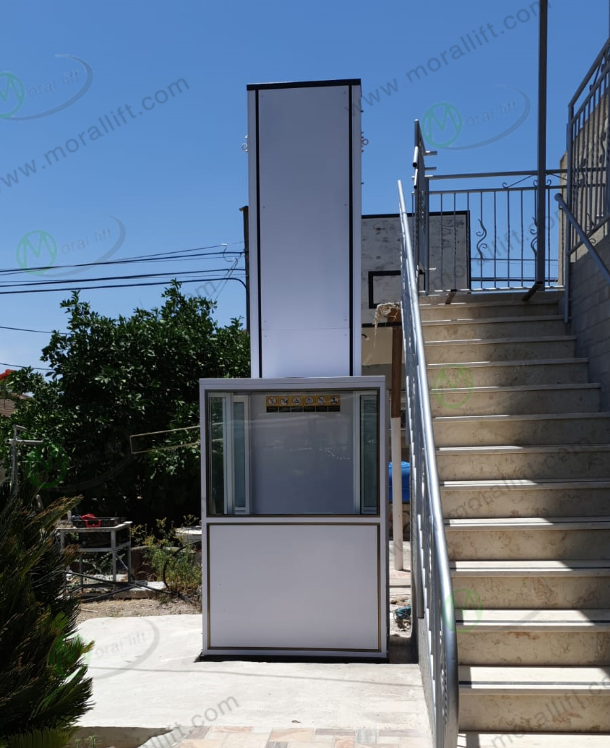

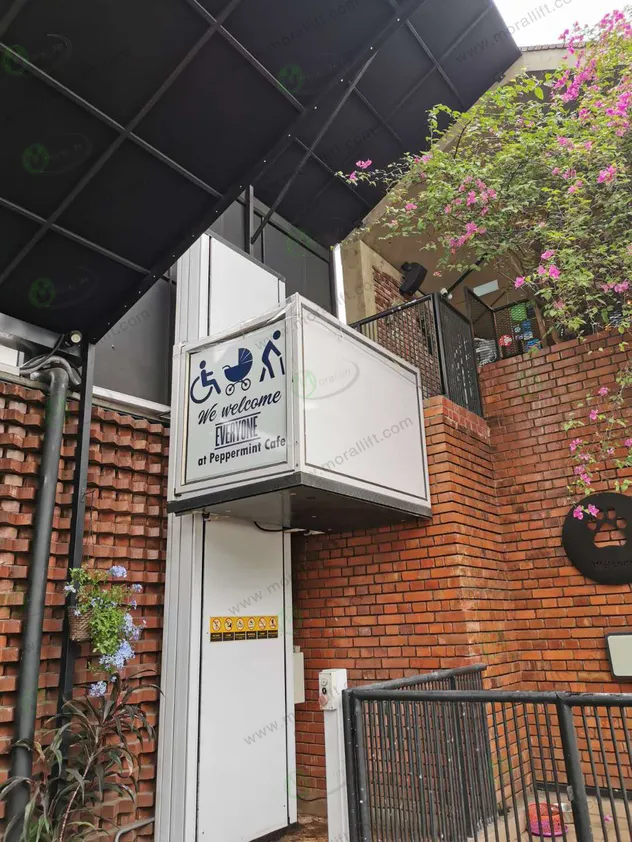

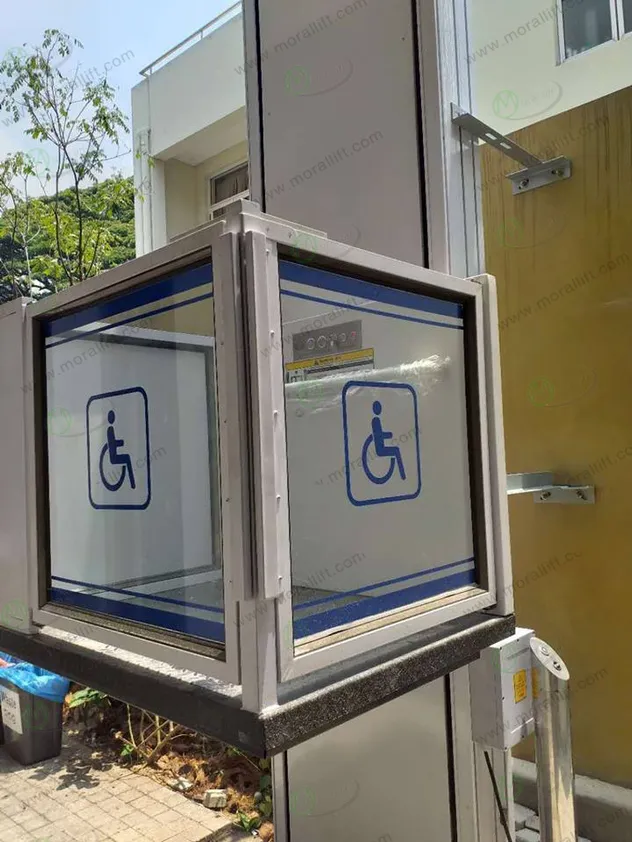

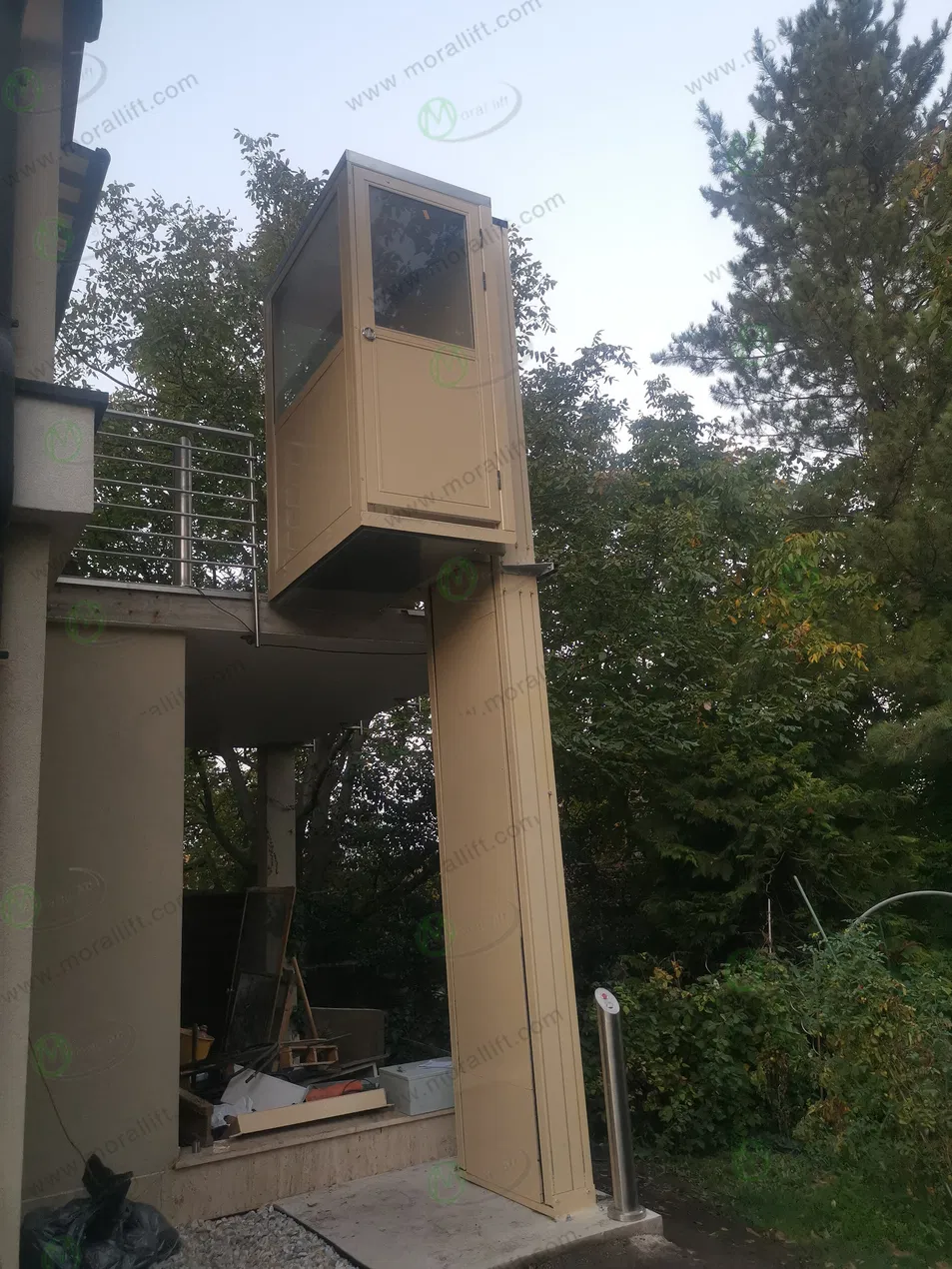

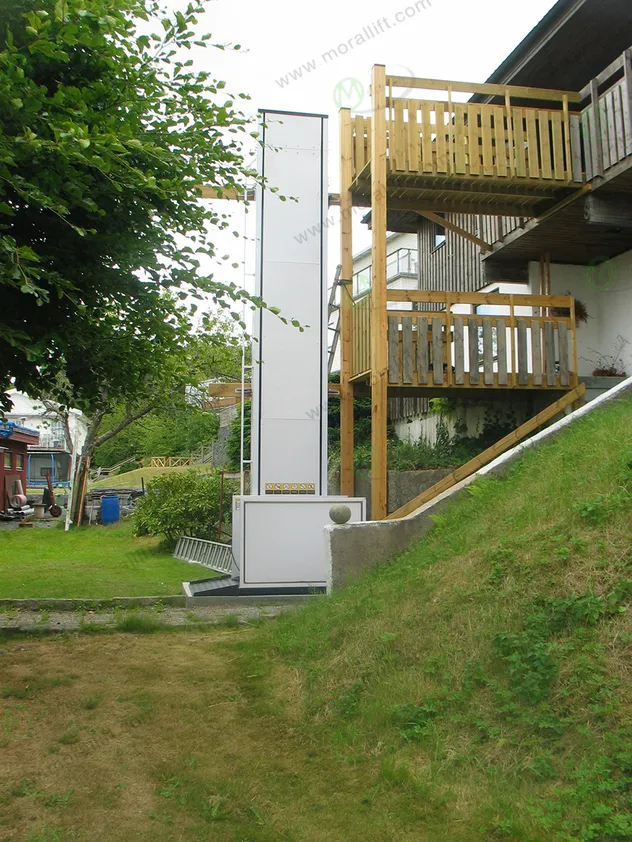

Aluminum Extruded Type

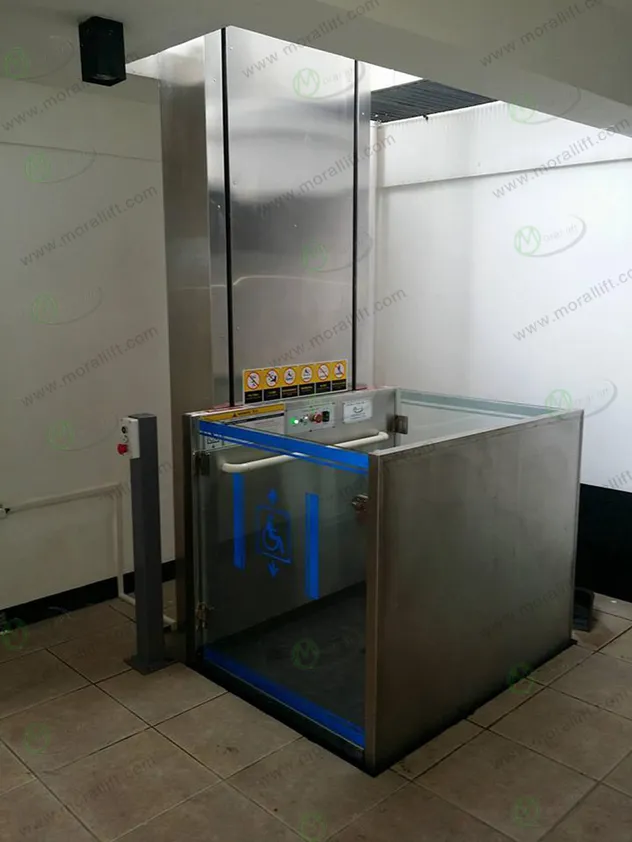

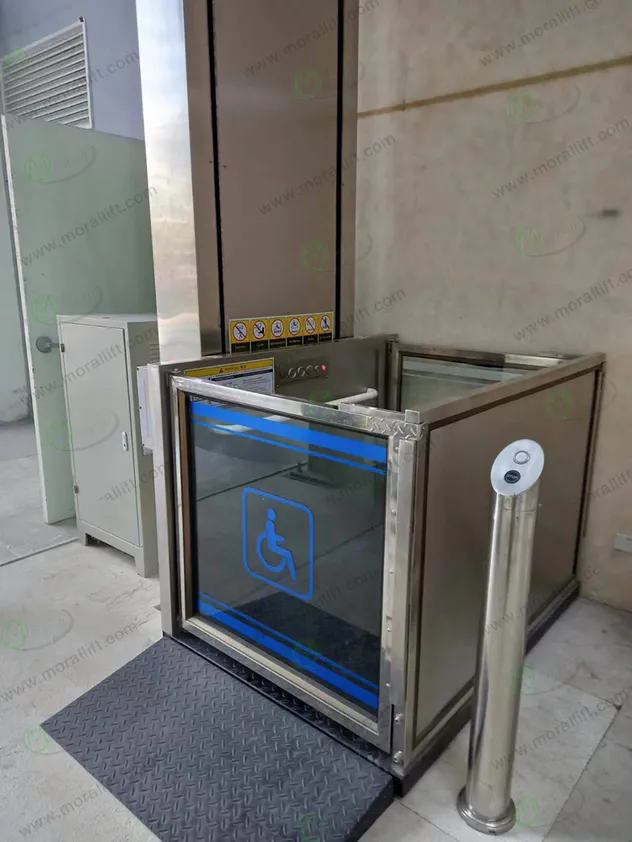

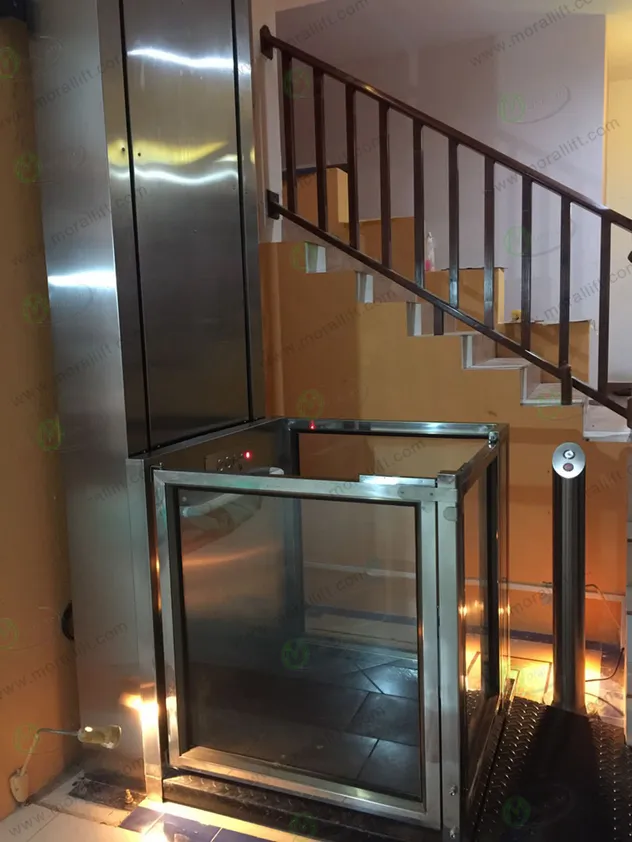

Stainless Steel Type

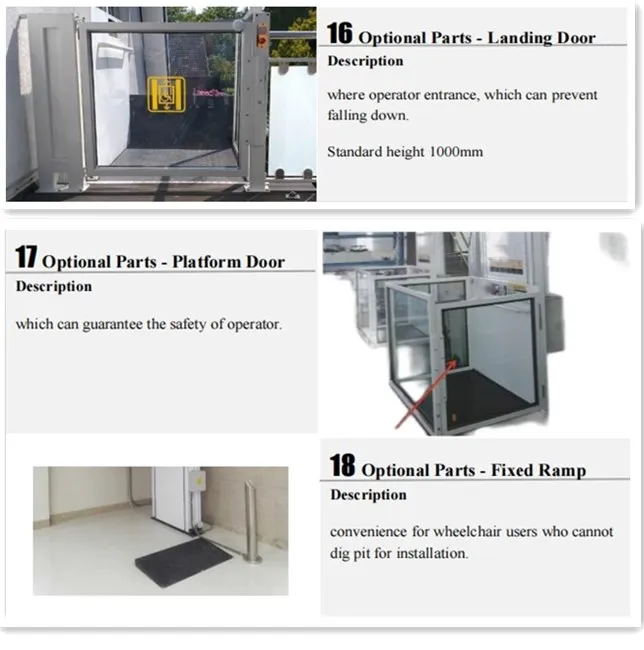

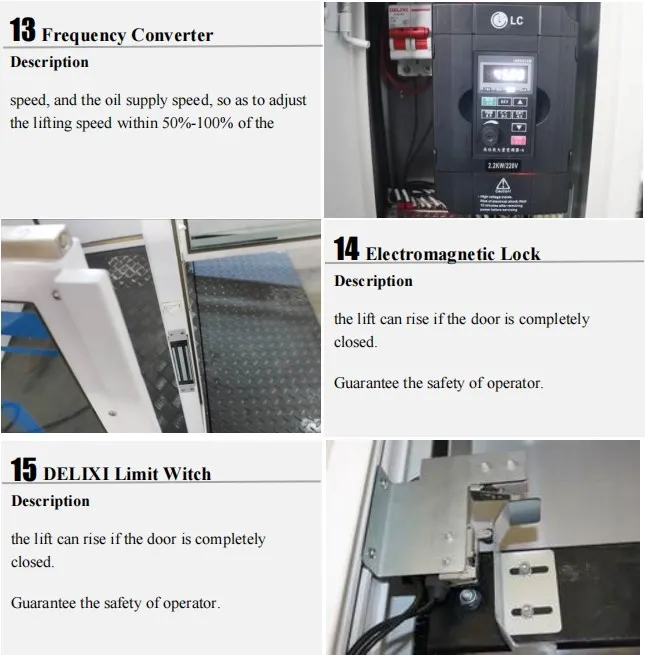

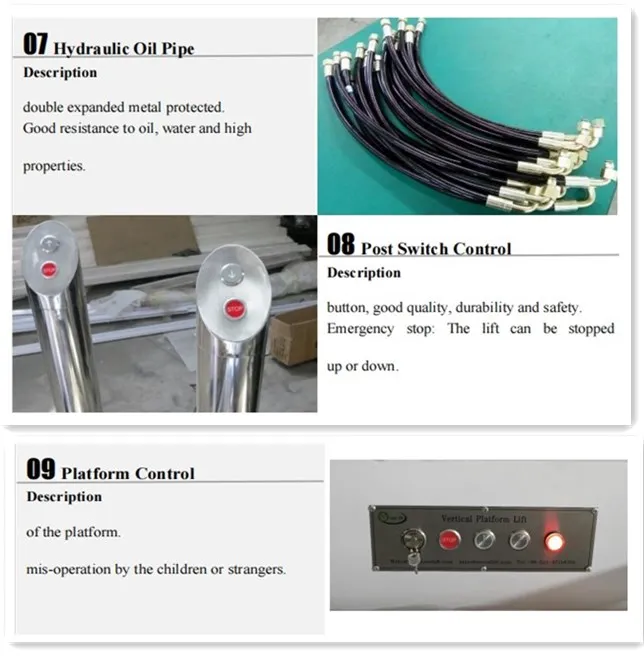

Technical Details

Packaging & Shipping

Package Dimensions: 300cm * 150cm * 150cm
Gross Weight: 700kg
Lead Time: 15 days (1-10 units), negotiated for larger orders.

Quality Assurance & Support

Professional design drawings provided for confirmation before production.

100% testing of every rail lift before delivery.

Strict rust-removal and powder painting process for durability.

5-year warranty on the main structure; 1-year for electrical parts.

24-hour technical support via email or phone with rapid 2-hour response time.

If you are interested in our products, please inform us of the lifting height you need; we will customize the solution for you!

Frequently Asked Questions

Q1: What is the maximum load capacity of this wheelchair lift? The standard load capacity is 300kg, which safely accommodates a person in a wheelchair or mobility scooter.

Q2: Can the lift be installed without a pit? Yes, it can be installed directly on the ground. For non-pit installations, a ramp is provided to allow easy access onto the platform.

Q3: Is the lift suitable for outdoor use? Absolutely. Our wheelchair lifts are designed with weather-resistant materials, making them suitable for both indoor and outdoor residential applications.

Q4: What safety features are included for the user? The lift includes a safety sensor, anti-falling system, emergency stop button, safety lock, and a manual emergency descending valve in case of power loss.

Q5: How long is the warranty period? We offer a 5-year warranty on the main structure and a 1-year warranty on all electrical parts and components.

Q6: Can the platform size be customized? Yes, while the standard size is 1430mm x 1000mm, we can customize the platform size and lifting height based on your specific architectural requirements.
