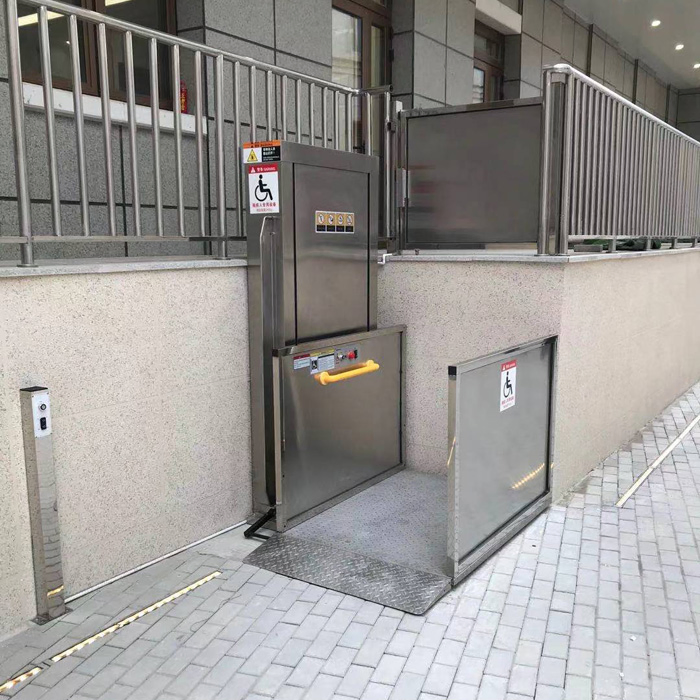

Vertical Home Wheelchair Lift Hydraulic Handicapped Disabled Lift

1 / 5

Vertical Home Wheelchair Lift Hydraulic Handicapped Disabled Lift

Customization:	Available
After-sales Service:	24 Hours Technical Support
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

Y-160

Driving Type

Hydraulic Drive

Capacity

250kg

Persons

2-3 Persons

Speed

70mm/S

Control Mode

Push-Button Control

Position

Outdoor or Indoor

Elevator Door

Automatic or Manual

Lifting Height

1m-10m

HS Code

8428909090

Origin

China

Packaging

Export Wooden Box

Product Description

Vertical home wheelchair lift hydraulic handicapped disabled lift is a customized solution designed for lifting cargo or providing mobility for disabled individuals. It is ideally suited for bridging height differences between floors, with a platform space that comfortably accommodates both wheelchairs and escorts. This lift system features smooth operation, high safety standards, and easy installation with minimal space and no pit requirements.

Technical Parameters & Functions

Parameter Item		Specifications
Voltage		220V/50HZ or Customized

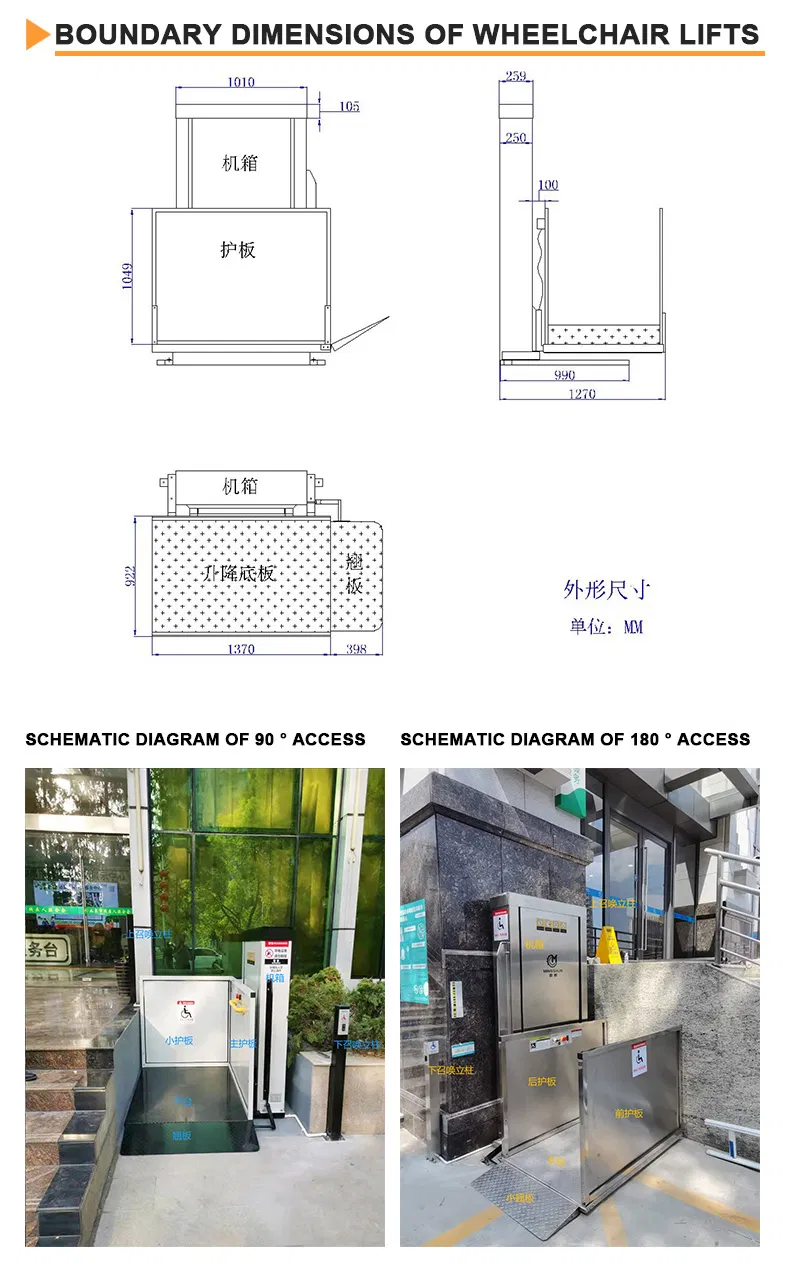

Overall Dimensions		1670mm(L) × 1270mm(W) × (Lifting Height + 550)mm(H)
Standard Lifting Height		2000mm (Customizable)
Base Plate Min Height		60mm from ground
Installation		No Foundation Required
Lifting Speed		60mm/s Inverter Control (Soft Start/Stop)
Max Loading		240kg
Drive System		Screw Drive
Power		2.2kw 220V/AC
Control Supply Voltage		24V/DC
Environment		Indoor & Outdoor (-20°C to 60°C)
Safety Equipment	Safety Rocker	Automatically tilts up to prevent sliding
	Overload Protection	System stops if load exceeds capacity
	Emergency Stop	Manual switch to stop all movement
	Emergency Descent	Electric emergency descent system

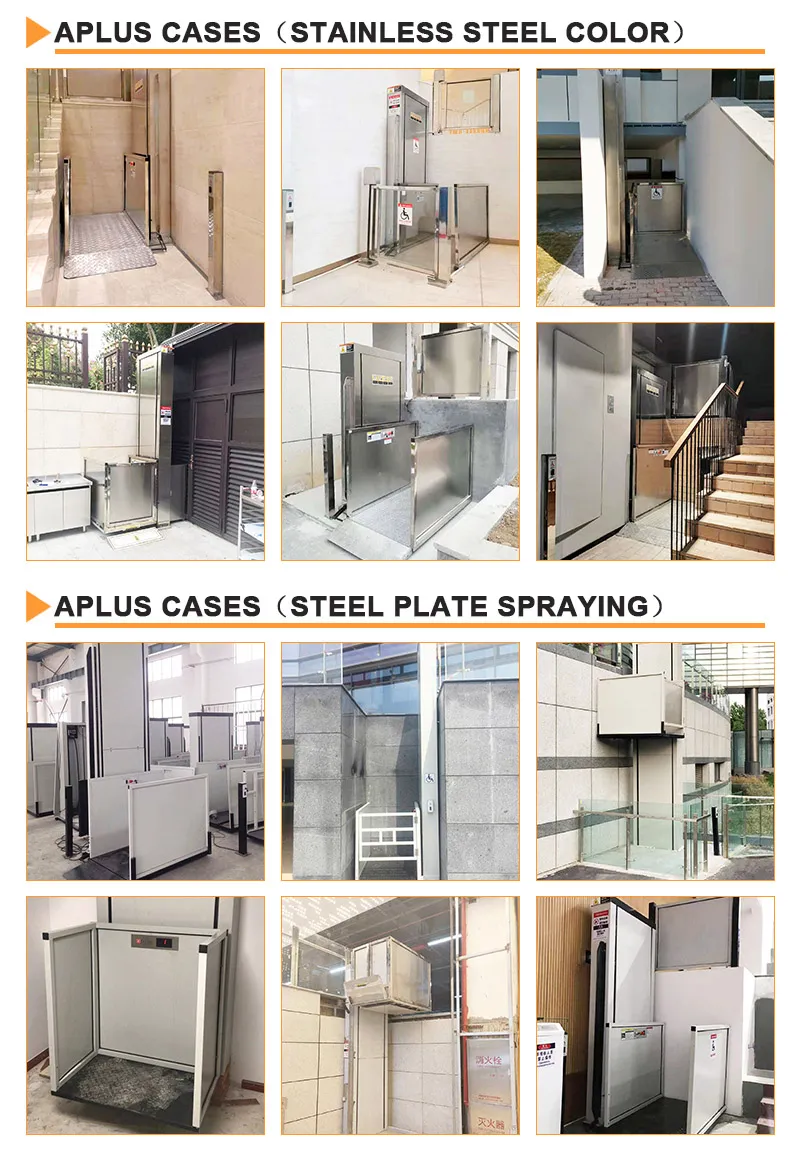

This barrier-free access construction offers elevator-like enjoyment with safe performance and a pit-free installation design. It is widely used in residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals, and other public places. Our products are designed with novelty, stability, and low noise, fully complying with ASME A18-1 and CSA-B613 standards.

Frequently Asked Questions

What is the maximum weight capacity of this wheelchair lift?

The standard model (Y-160) has a rated capacity of 250kg, suitable for 2-3 persons or a wheelchair with an attendant.

Is a specialized pit or foundation required for installation?

No, one of the primary advantages of this lift is the pit-free design. It can be installed directly on the ground with no foundation required.

Can this lift be installed outdoors?

Yes, the equipment is designed for both indoor and outdoor environments, with a working temperature range from -20°C to 60°C.

What happens if there is a power failure while the lift is in use?

The lift is equipped with an electric emergency descent system, allowing the platform to be lowered safely to the ground level during a power outage.

Is the lifting height adjustable for different floor levels?

Absolutely. While the standard height is 2000mm, we provide customization for lifting heights ranging from 1 meter up to 10 meters based on your specific needs.

How does the safety rocker function?

When the equipment moves upward, the safety rocker automatically tilts up to create a barrier, preventing the wheelchair from sliding off the platform.
