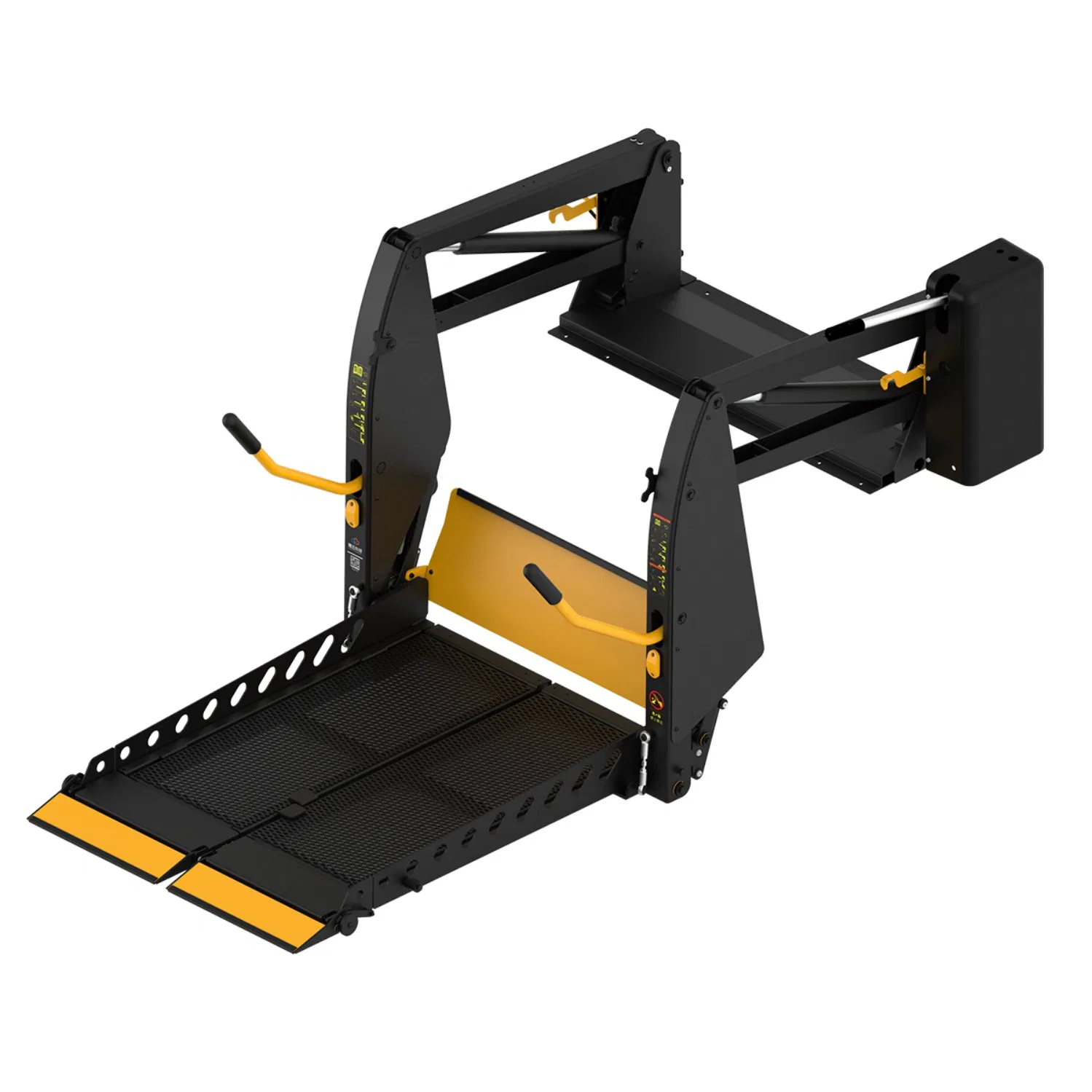

New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues
New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues
New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues
New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues
New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues
1 / 5
New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues
New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues
New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues
New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues
New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues

New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
L3B
Condition
New
Operating Voltage
12/24 VDC
Rated Power
500 W
Load Capacity
400 Kg
Configurations
Bluetooth Remote and APP Operation
Transport Package
Box
Capacity
50000 pieces/Year
🚀 Product Description
Wheelchair Lift Banner

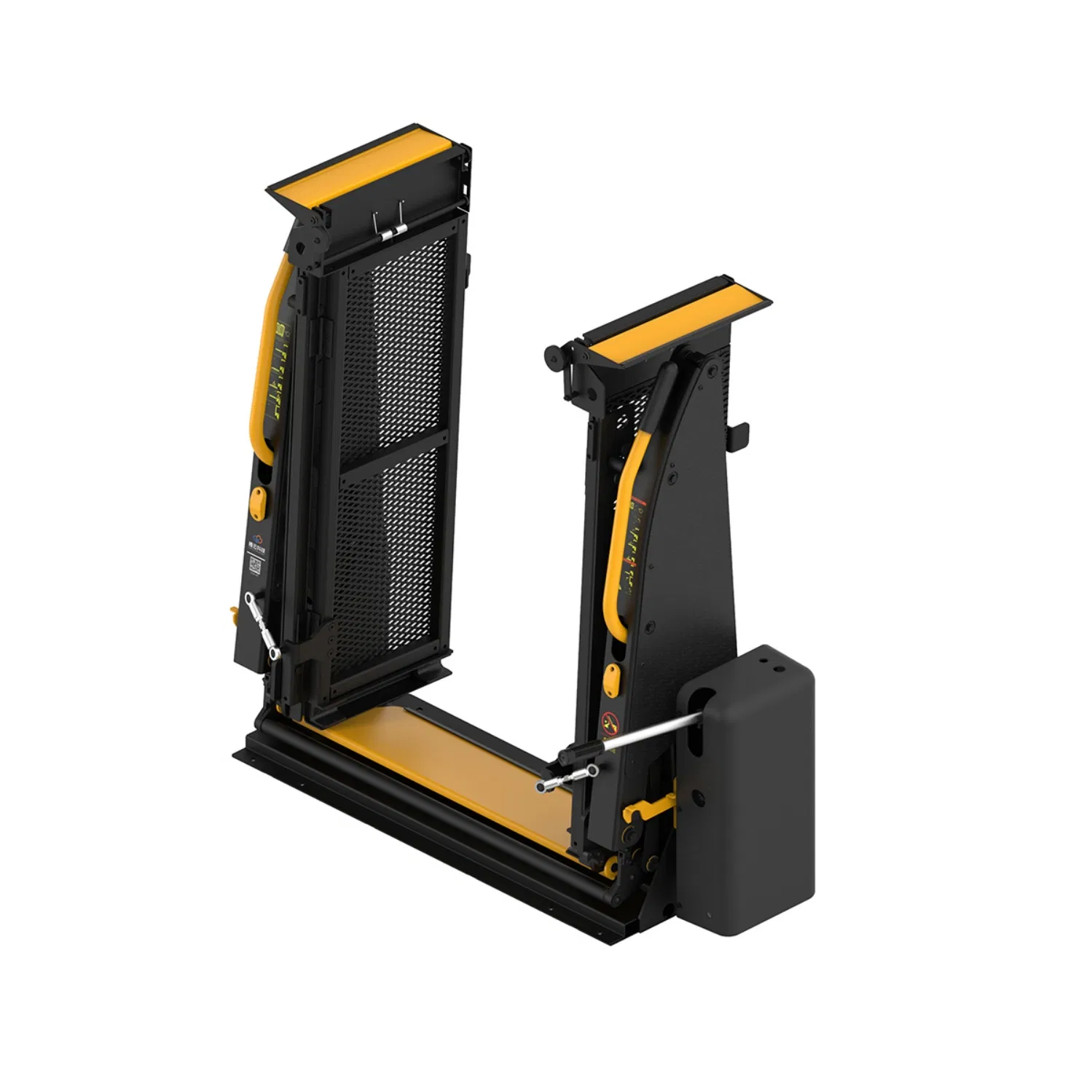

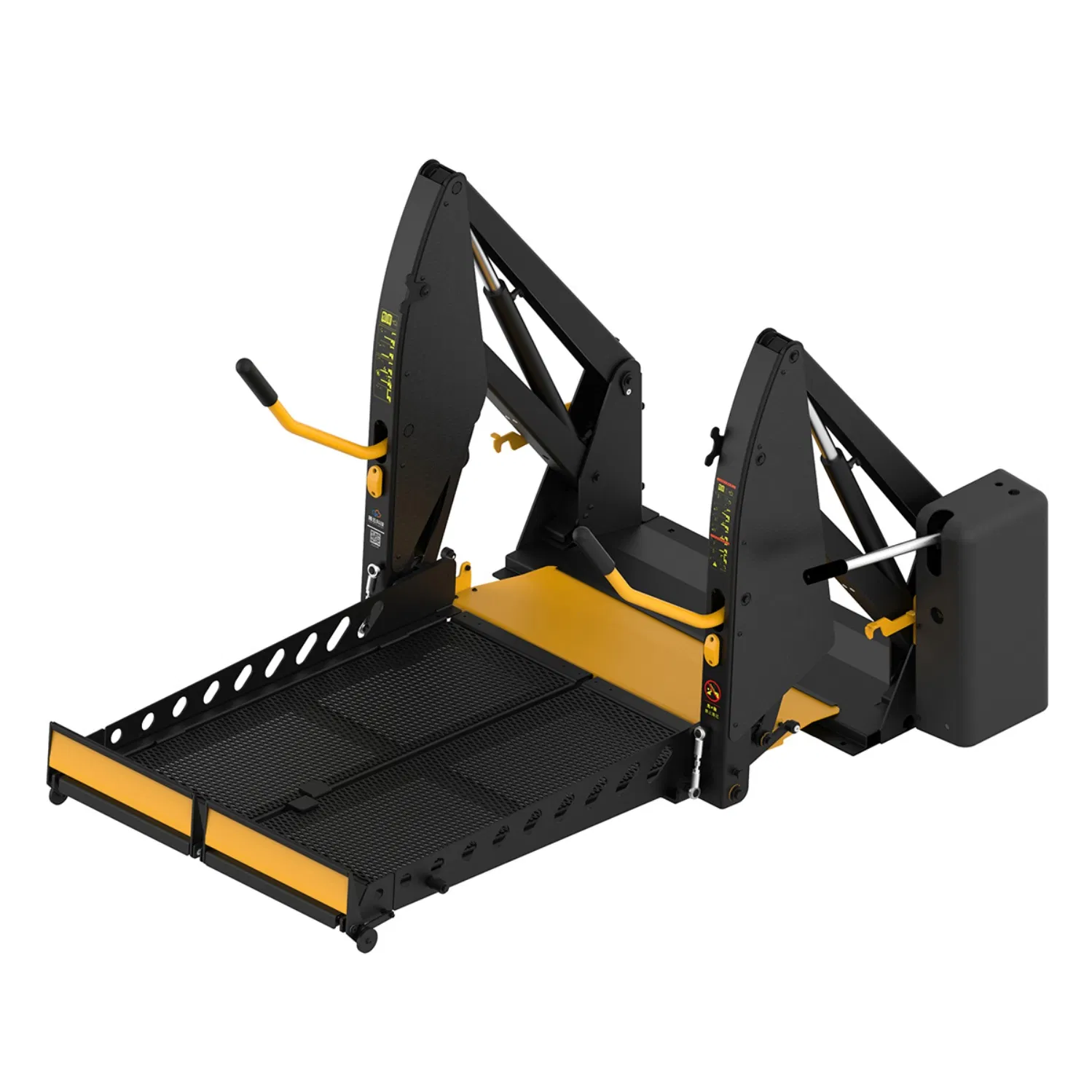

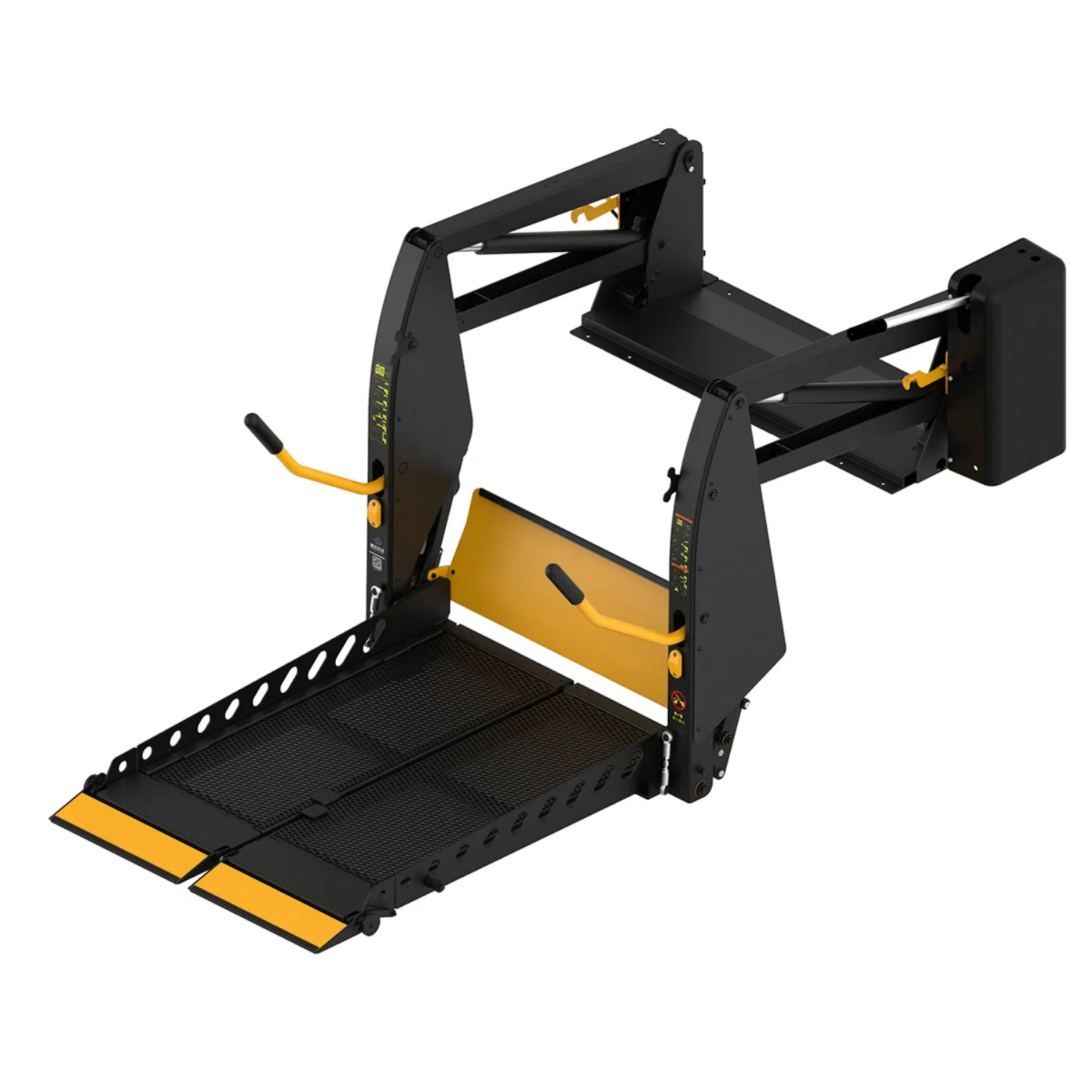

This product is primarily installed on the side or rear doors of commercial vehicles. Featuring a drawer-style storage platform structure, it ensures an unobstructed field of view for both passengers and the driver. The lift boasts a reduced overall thickness, making it compatible with the installation requirements of a wider range of vehicle models. Fully hydraulically driven, the platform's lifting and folding operations can be controlled via a handheld switch.
Product Detail 1
Product Detail 2

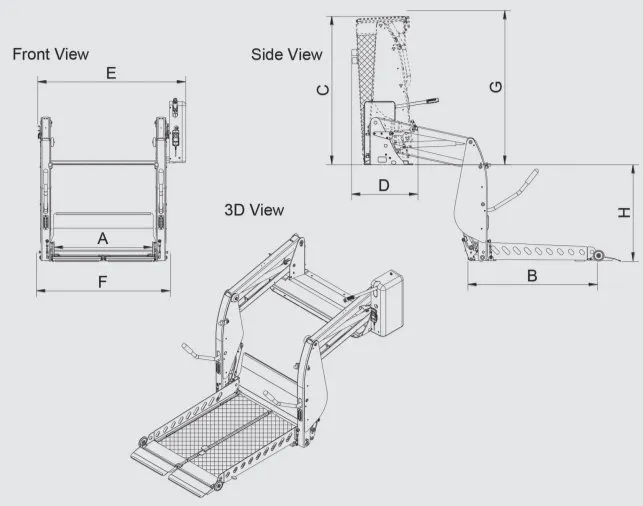

📏 Technical Specifications
Model (Unit: mm) A (Platform Length) B (Platform Width) C (Overall Height) D (Overall Depth) E (Overall Width)
L3B-660×95566095510904701050
L3B-770×1030770103011605201160
L3B-820×1200820120013355551210
L3B-870×1300870130014355851260
Model (Unit: mm) F (Door Opening Width) G (Door Opening Height) H (Max Floor to Ground) Pump Side Unit Weight
L3B-660×9559201105750L/R130kg
L3B-770×103010301200880L/R142kg
L3B-820×120010801380900L/R152kg
L3B-870×130011301480900L/R159kg

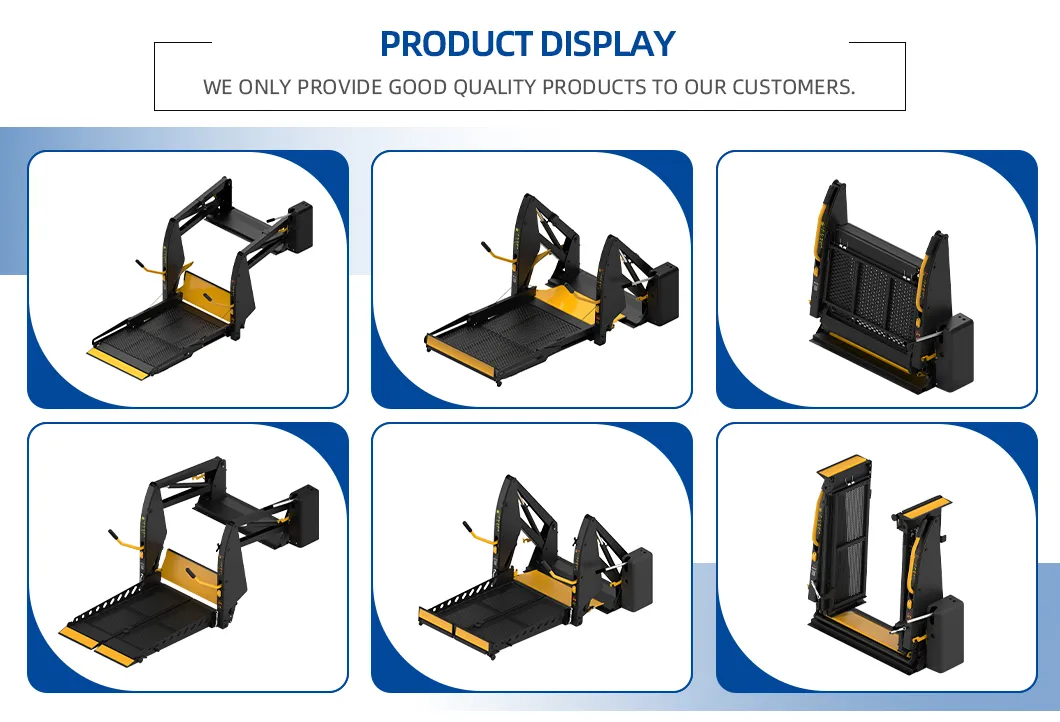

Installation View

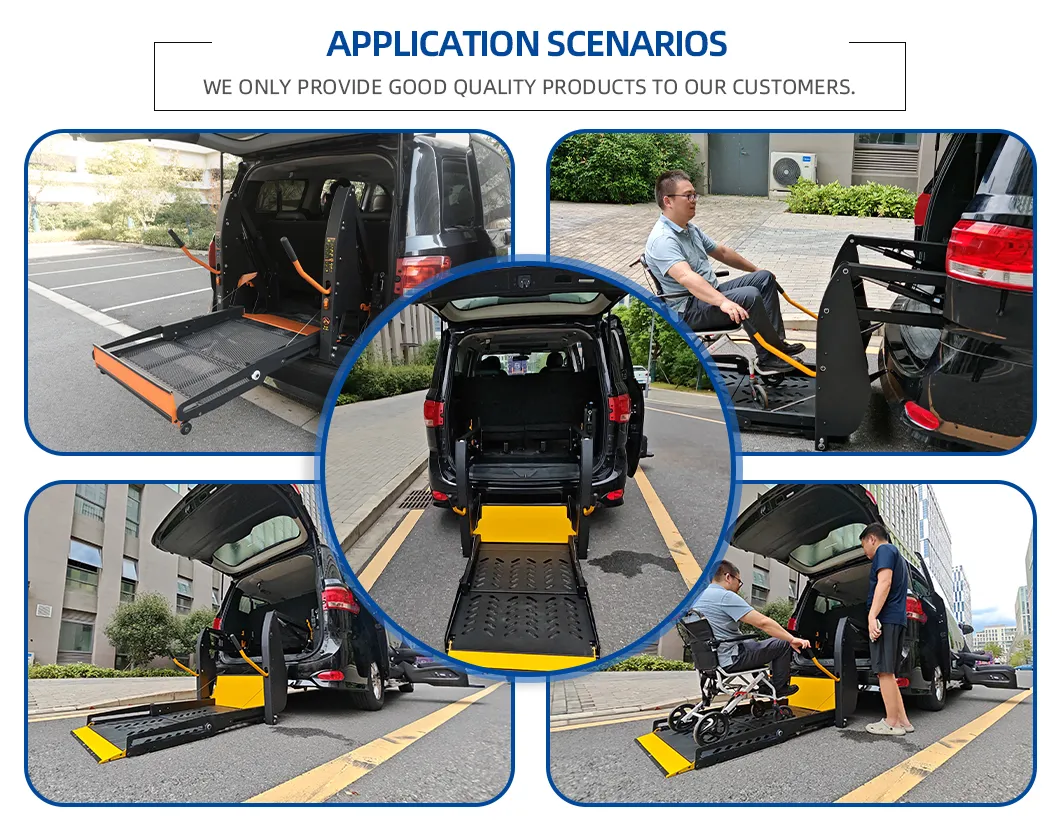

Operational View
Structural View
🏭 Production & Quality

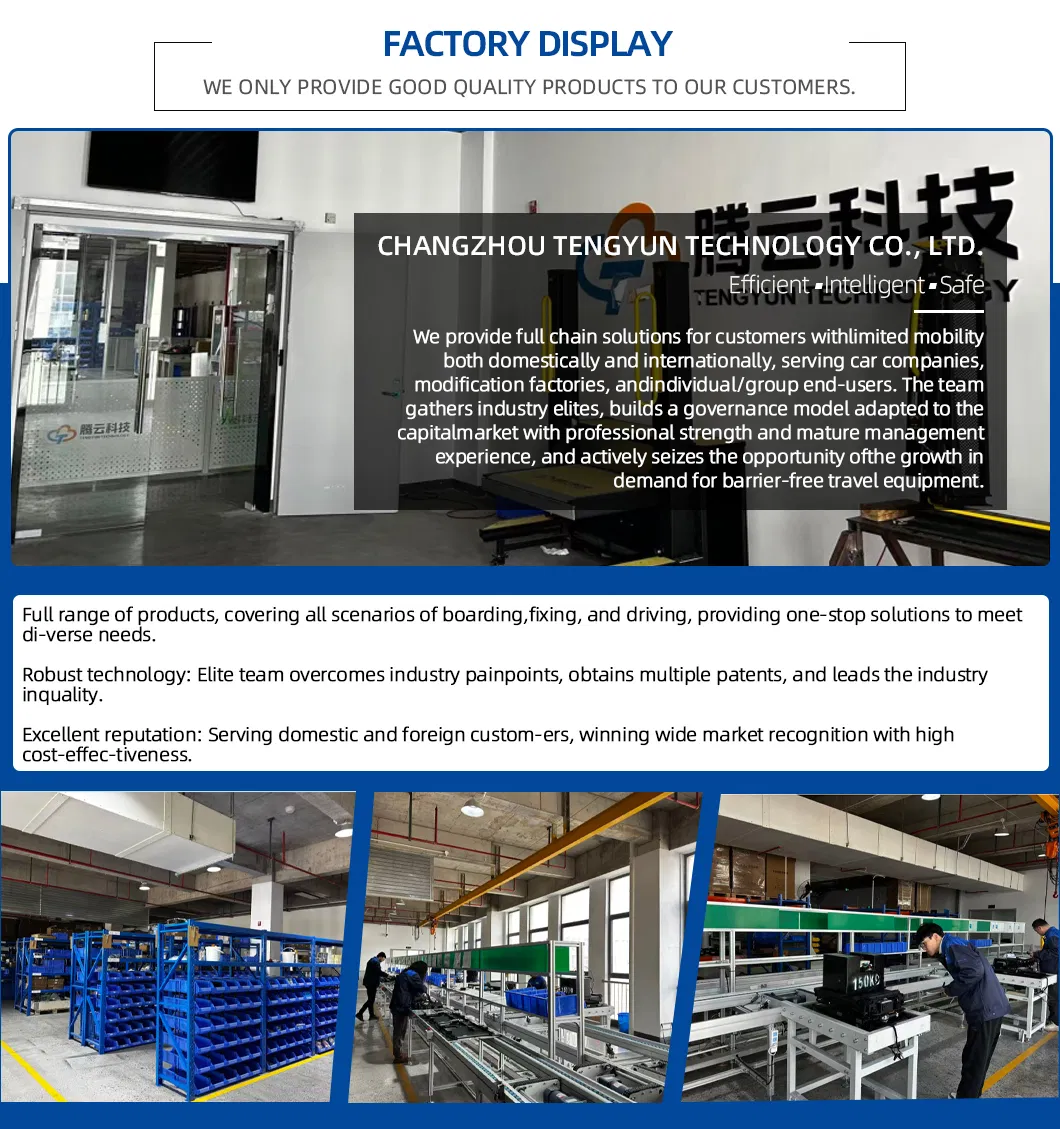

Factory Overview
Production Line
Quality Control
Certifications
📦 Packaging & Shipping
Shipping Package
Standard Packing
Export Standard: Carton + Wooden Case. Securely packed to prevent any damage during transit. Custom packaging available.
Delivery Terms
Lead time: within 15 days. Ports: Shanghai / Ningbo / Shenzhen. Modes: Sea, Air, Express, or Rail.
Trade Options
FOB, CIF, EXW, DDP, DDU. OEM/ODM orders are welcome. Sample units available before mass production.
❓ Frequently Asked Questions
What are the main installation requirements for this wheelchair lift?
The lift is designed for the side or rear doors of commercial vehicles. Its reduced thickness allows it to fit a wide variety of vehicle models.
Can I request a sample before placing a bulk order?
Yes, we provide samples for testing and evaluation to ensure the product meets your specific requirements.
Do you support custom logos and OEM designs?
Absolutely. We offer comprehensive OEM & ODM services, allowing you to customize products with your own logo and design specifications.
What is the standard lead time for delivery?
Most products are in stock and can be shipped within 15 days after order confirmation. Lead time for mass production depends on the order quantity.
What is your monthly production capacity for accessible products?
Our facility produces approximately 150 sets of wheelchair lifts and 200 sets of accessible seats, ramps, and electric steps per month.
How is the lift operated?
The lift is fully hydraulic and can be operated via a standard handheld switch, or through optional Bluetooth remote and mobile APP controls.
