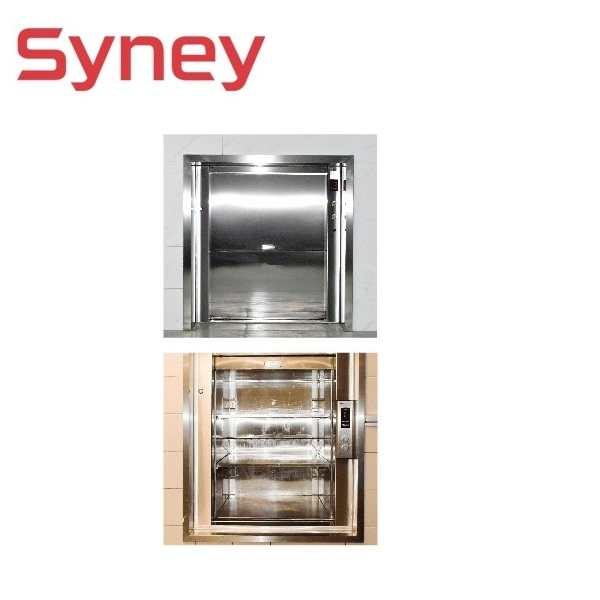

300kg Commercial Dumbwaiters Kitchen Lift Residential Dumb Waiter for Restaurants

1 / 5

300kg Commercial Dumbwaiters Kitchen Lift Residential Dumb Waiter for Restaurants

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

Send Inquiry

Product Description

Technical Specifications

Model NO.

ZW001

Type

Wellhole

Load Capacity

300kg

Speed

0.40m/s

Drive Mode

Door Type

Automatic

Lift Mechanism

Telescoping Lift

Guide Rail

Hollow Guide

Main Power

AC 380V, 3 Phase 50Hz

Packing

Plywood Box

Product Description

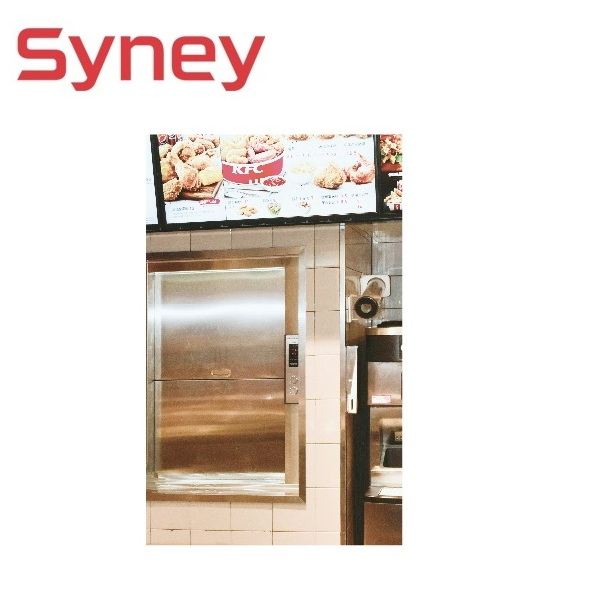

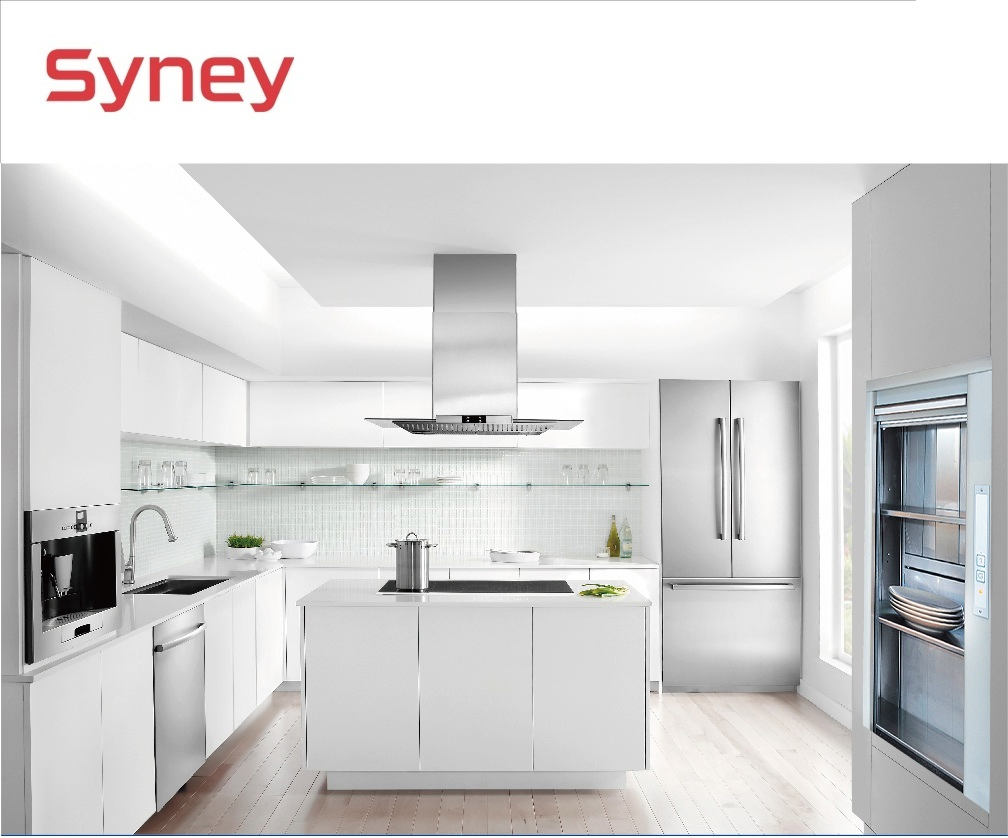

300kg Commercial Dumbwaiters - Kitchen Lift Solutions

The dumbwaiter is the smallest member of the elevator family, often referred to as a food elevator, food dumbwaiter, or kitchen lift. These systems serve various industries silently, playing a significant role while occupying minimal space. We redefine the dumbwaiter with a complete product series including floor type and window type models, equipped with two different door opening methods.

Space Efficiency: Occupies small space and requires minimal civil engineering bearing capacity.
Advanced Control: Utilizes PC control modules for smooth operation and accurate leveling.

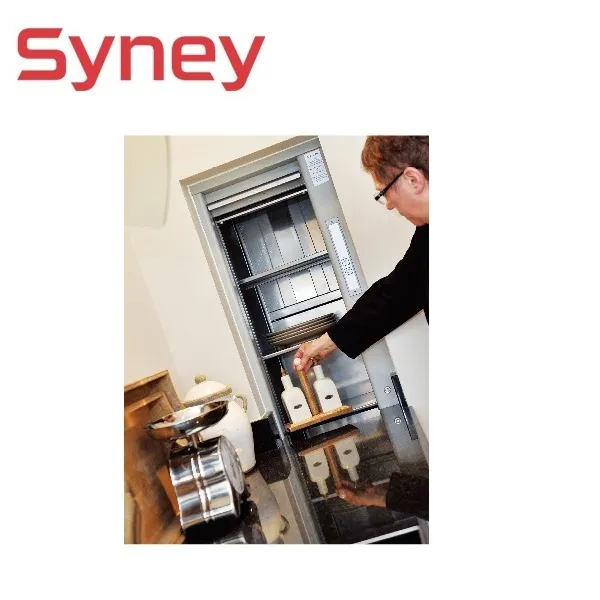

Flexible Operation: Humanized design makes the operation more flexible for staff.

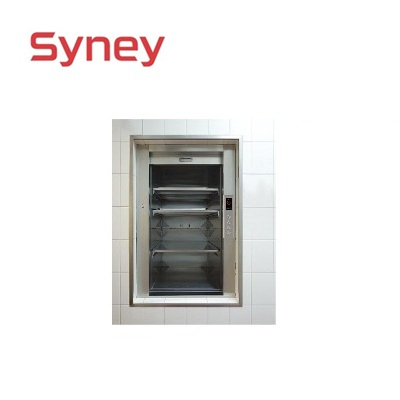

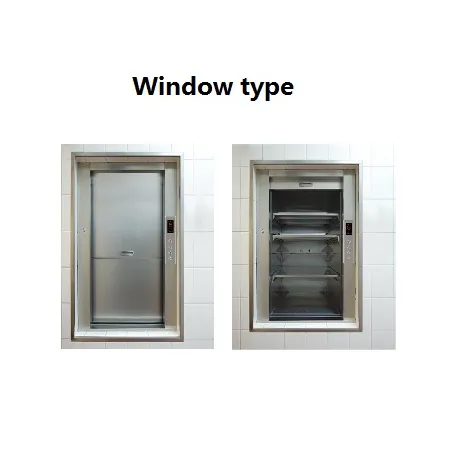

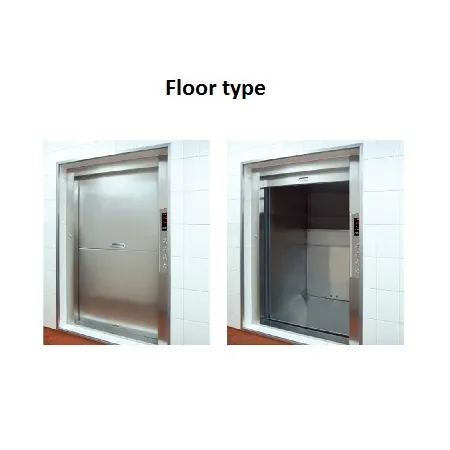

Versatile Models: Available in both window type and floor type configurations.
Safe & Quiet: Elegant, quiet operation that is easy to maintain.

Product Parameters

Load (kg)	Speed (m/s)	Cabin Size (WXDXH)mm	Door Size (WxH)mm	Shaft Size (WxD)mm	Working Mode
100	0.4	500x500x900	500x900	1000x800	Window Type
200	0.4	600x600x900	600x900	1100x900	Window Type
250	0.4	800x800x900	800x900	1300x1100	Window Type
300	0.4	900x900x900	900x900	1400x1200	Window Type
100	0.4	500x500x1000	500x1000	1000x800	Floor Type
200	0.4	600x600x1000	600x1000	1100x900	Floor Type
300	0.4	900x900x1000	900x1000	1400x1200	Floor Type

Safety Functions Included:

Motor overheat protect	Safety gear contact
Power phase fault detect	Main fuse (controller)
Inspection running	Emergency door opening key
Car door contact	Running direction indicator

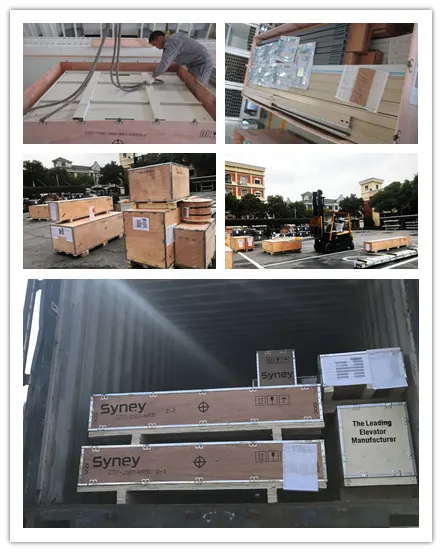

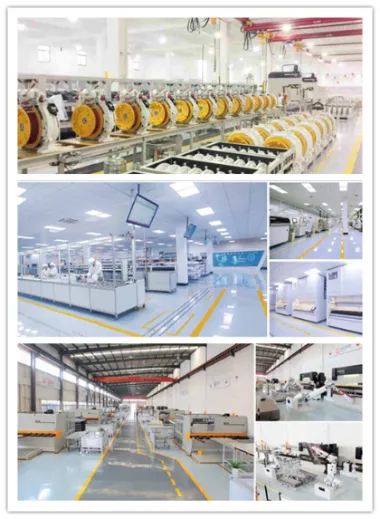

Manufacturing & Packing

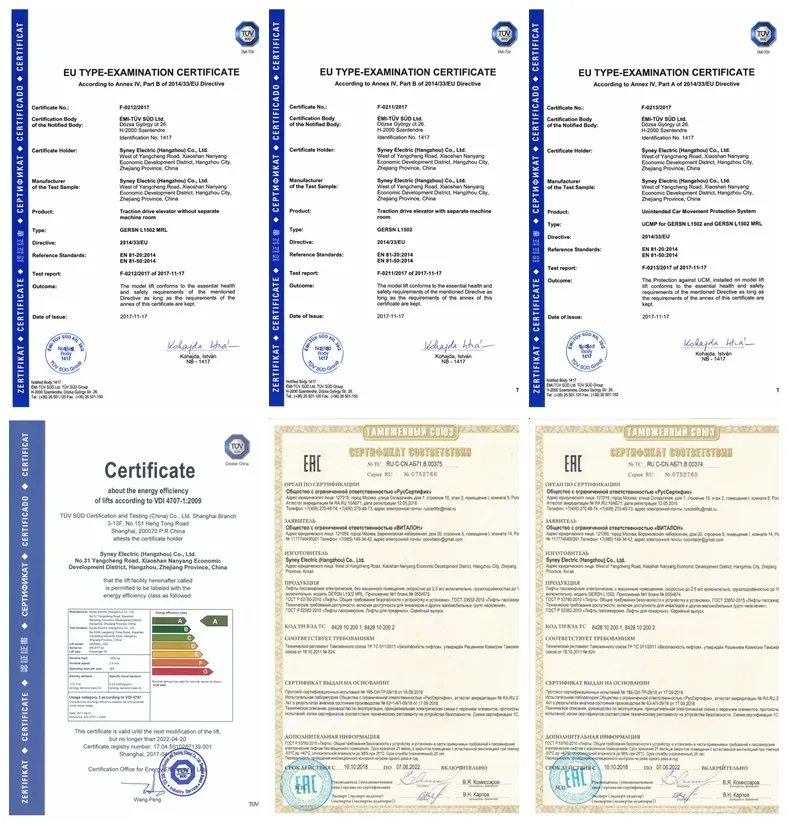

Certifications

Our products meet the strictest global standards. With marks like TÜV SÜD and CE, our elevators are recognized for exceptional quality and safety across European and international markets.

Available Certificates:
• CE Certificate (With/Without Machine Room)
• CE Certificate of Energy-Efficiency: Grade A
• EAC Certification

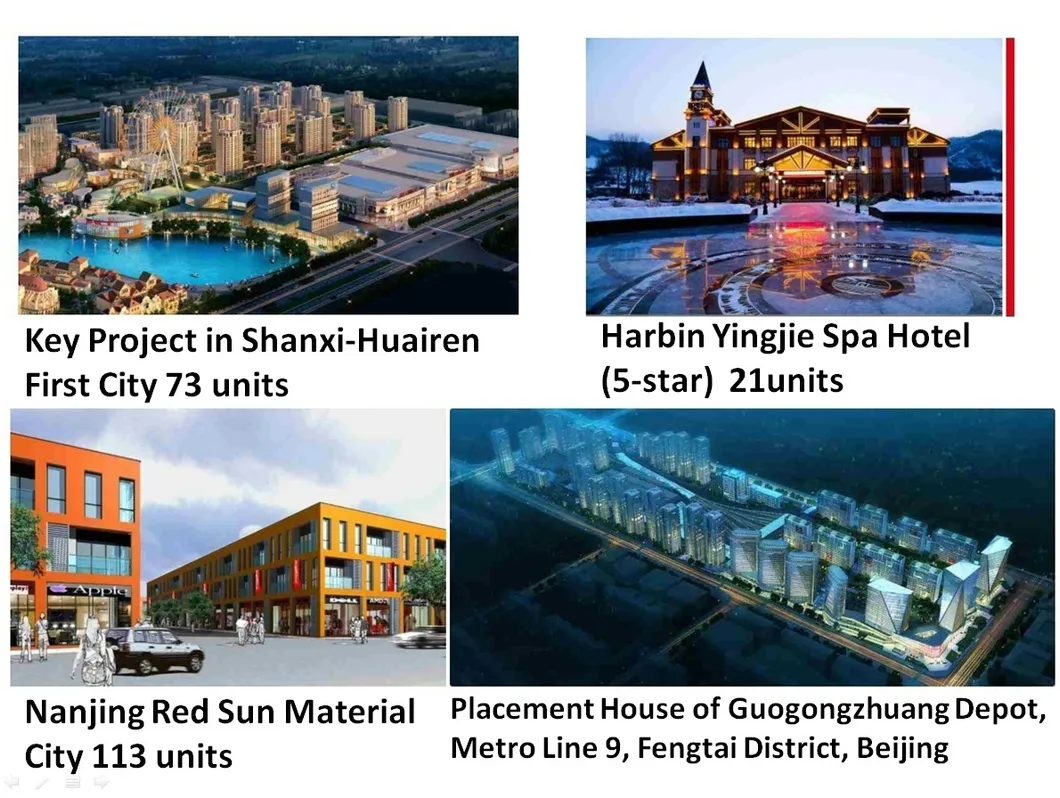

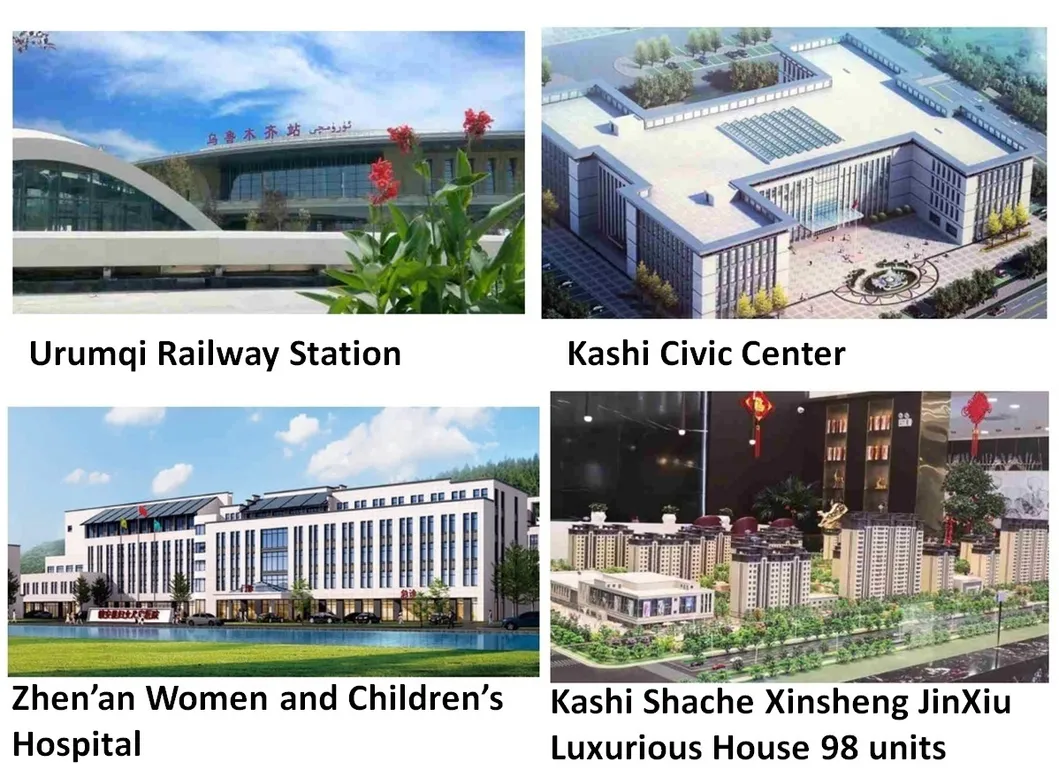

Global Projects

Frequently Asked Questions

How can I get a fast quote for a dumbwaiter?

Please provide complete information including the required load capacity (e.g., 100kg, 300kg), the number of floors/stops, shaft dimensions, and whether you prefer a window or floor type model.

What is the typical delivery time?

The standard production and delivery time is usually 30 days after the deposit is received. Urgent production options may be available depending on project requirements.

What is the warranty period for your products?

We provide a comprehensive warranty of 18 months for our elevators starting from the date of delivery.

Do you provide installation and commissioning support?

Yes. We provide a complete set of installation manuals. For commissioning, we offer remote guidance. In special cases, engineers can be dispatched to the site to assist with the process.

Can the dumbwaiter be customized for my specific shaft size?

Absolutely. While we have standard specifications, our factory can design a customized solution tailored to your specific jobsite parameters and dimensions.

What materials are used for the cabin and doors?

Our standard dumbwaiters utilize high-quality stainless steel for the cabin, cabin walls, landing doors, and floor to ensure durability and hygiene in kitchen environments.
