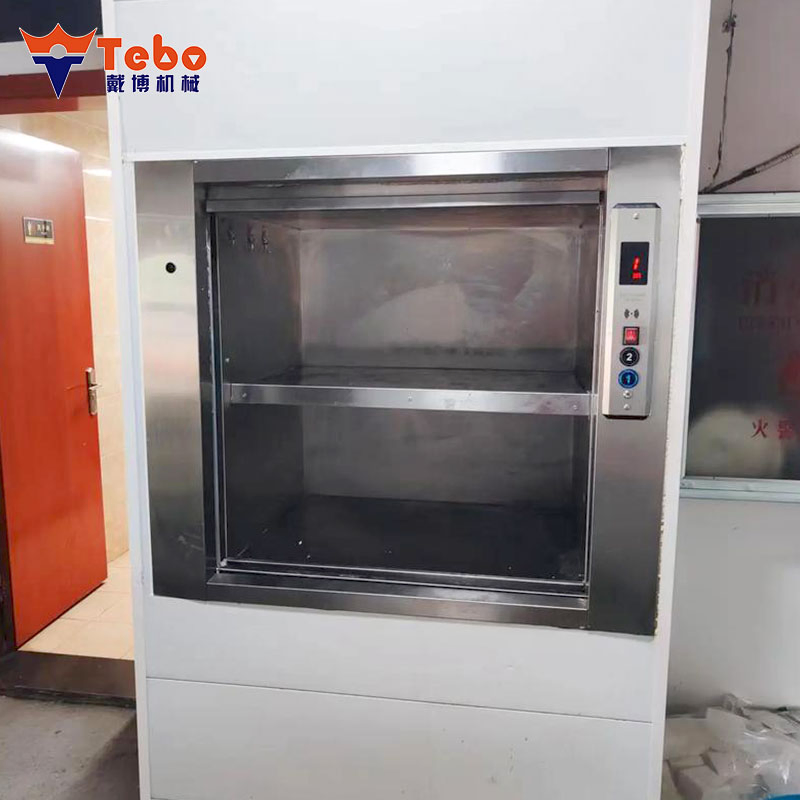

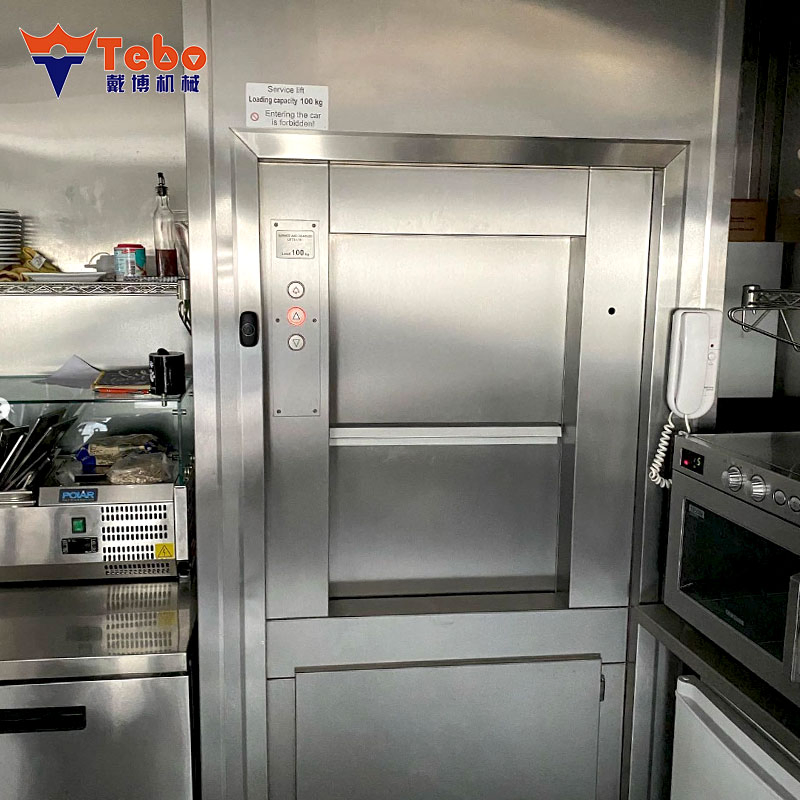

Durable Electric Food Dumbwaiter Lift with Control Panel for Hotels

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Specifications
Model NO.
TBD-37
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Guide Rail
T Guide
Elevator Door
Center Opening Door
Production Capacity
1000 Sets/Year
🚀 Product Description

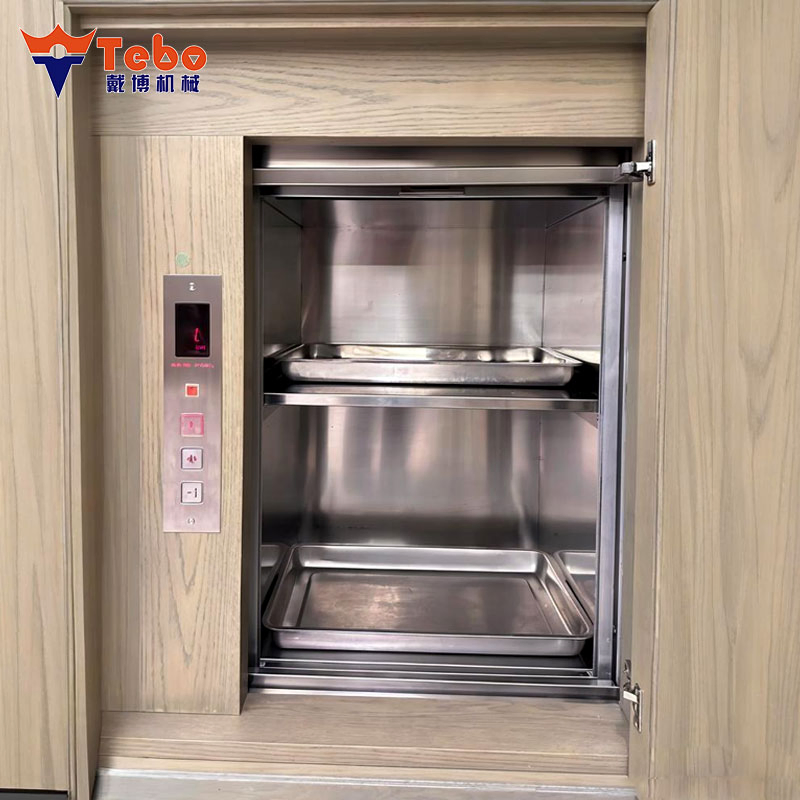

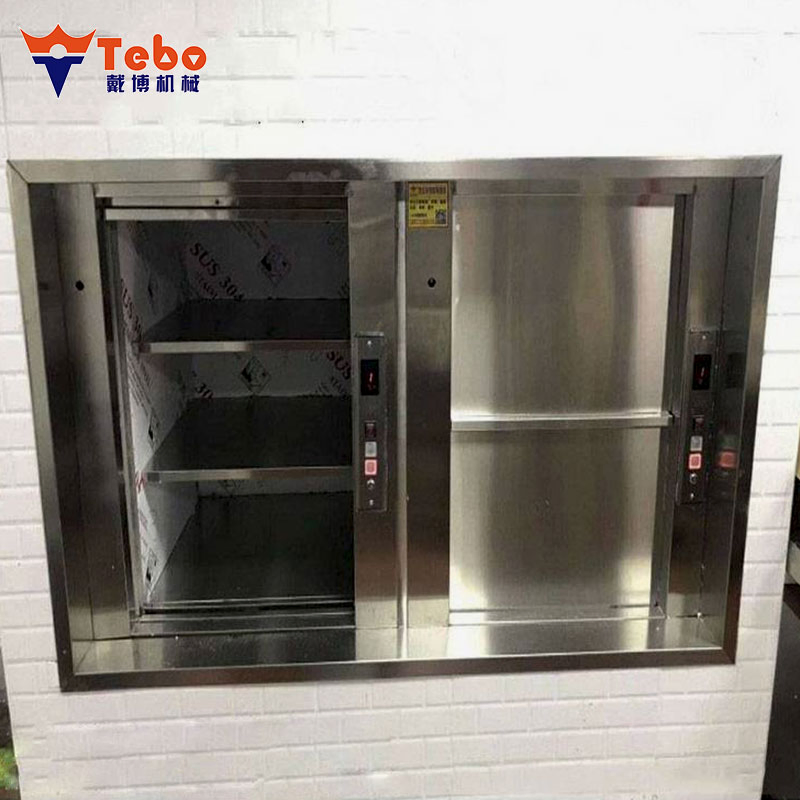

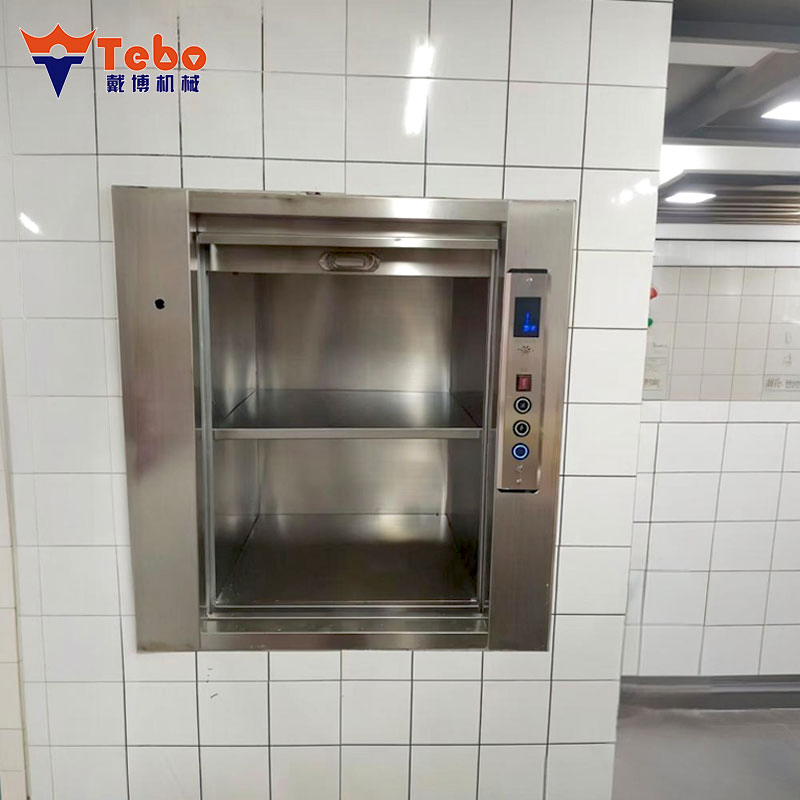

Durable Electric Food Dumbwaiter Lift
The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

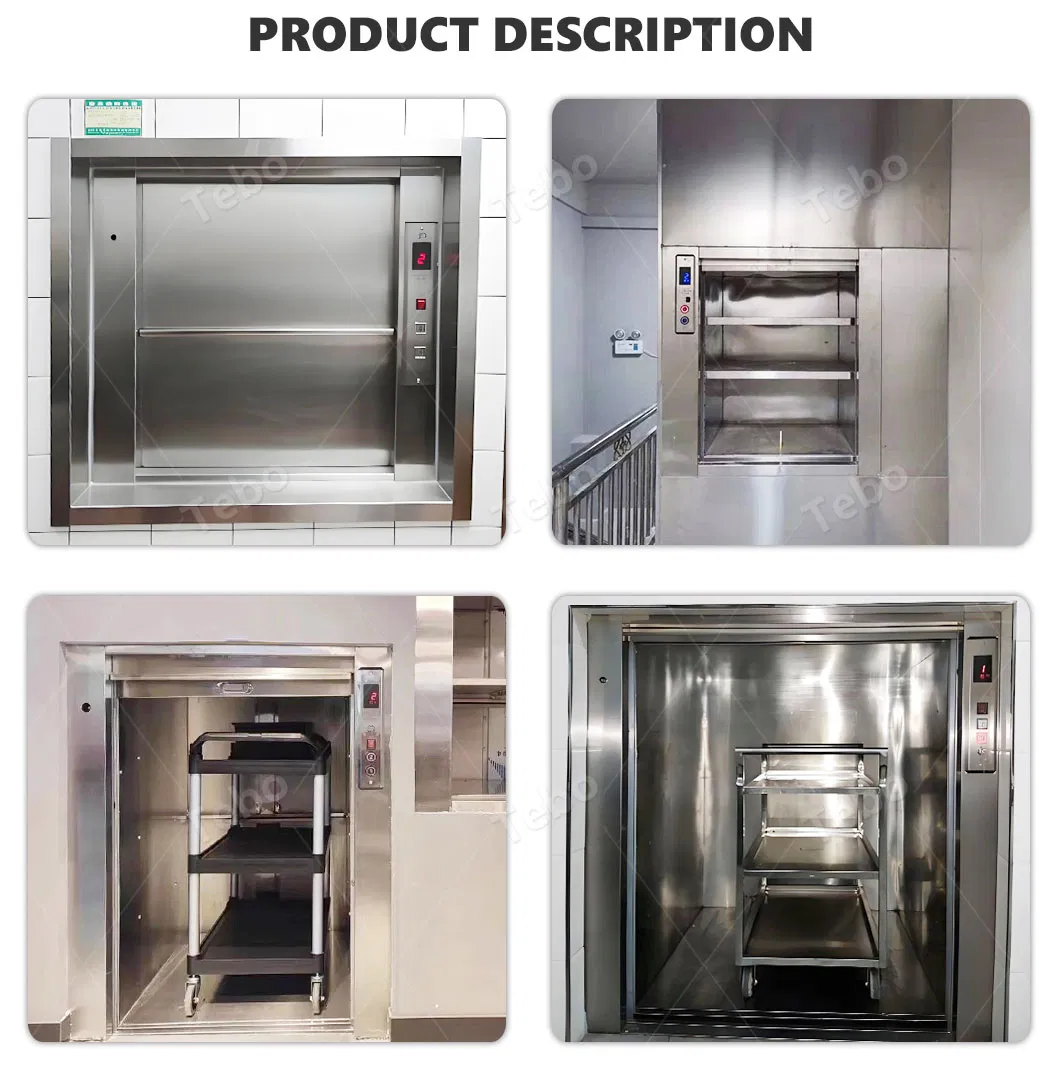

Control Panel Details
Key Advantages: High efficiency, enhanced hygiene, advanced safety protocols, and space-saving design. This solution is widely used in star-rated hotels, school canteens, hospitals, and luxury villas.
📊 Technical Parameters (Window Type)
Type Load(kg) Cabin Dimension (W*D*H) Landing Door Door Size (W*H) Sill Height Overhead Height
Window Type100600*400*800Standard600*8008002800
Window Type100600*600*800Standard600*8008002800
Window Type200800*800*800Standard800*8008002800
Window Type200800*800*1000Standard800*10008003000
📊 Technical Parameters (Floor Type)
Type Load(kg) Cabin Dimension (W*D*H) Landing Door Door Size (W*H) Pit Depth Overhead Height
Floor Type200800*800*1000Standard800*10006002800
Floor Type3001000*1000*1200Standard1000*12007003200
Floor Type4001000*1200*1400Standard1200*14008003600
🔍 Product Details

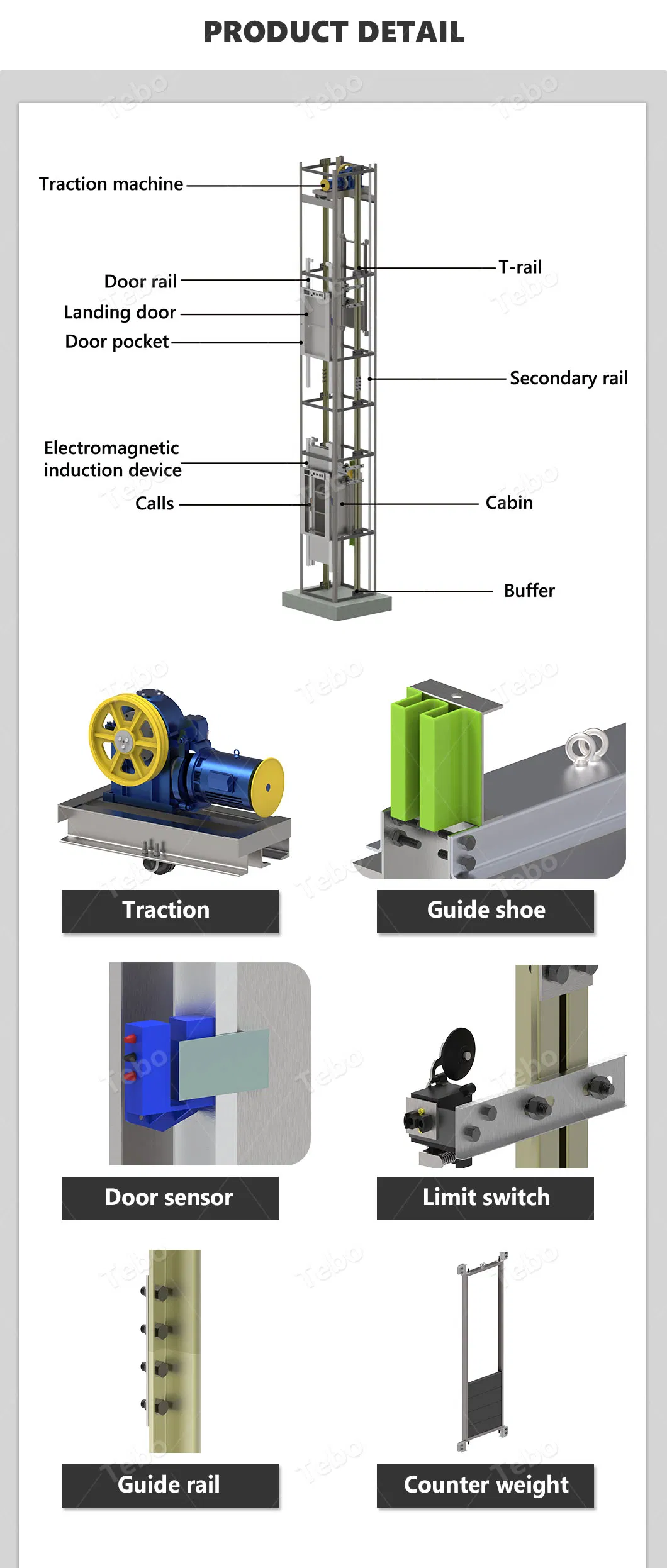

Detail 1

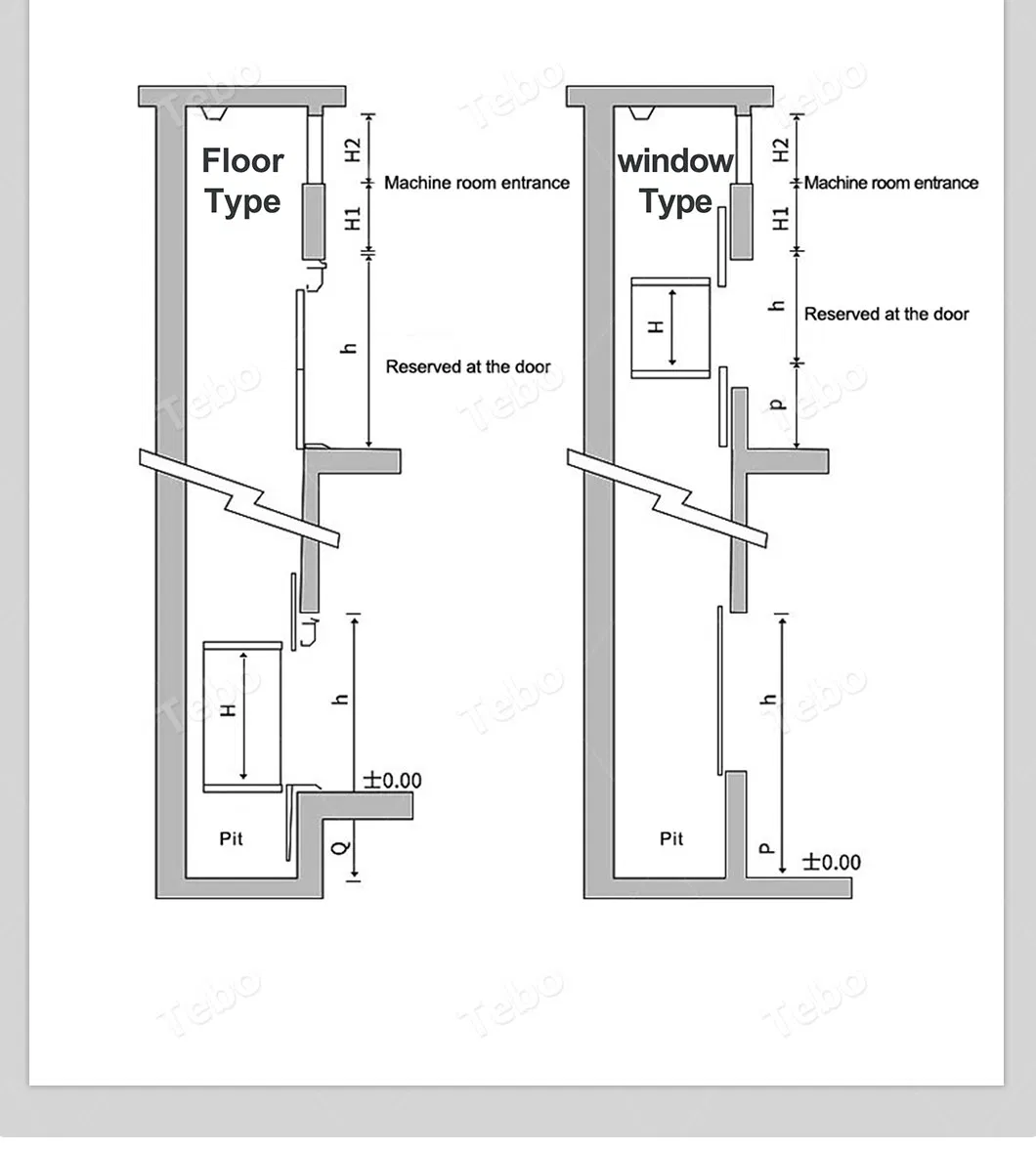

Detail 2

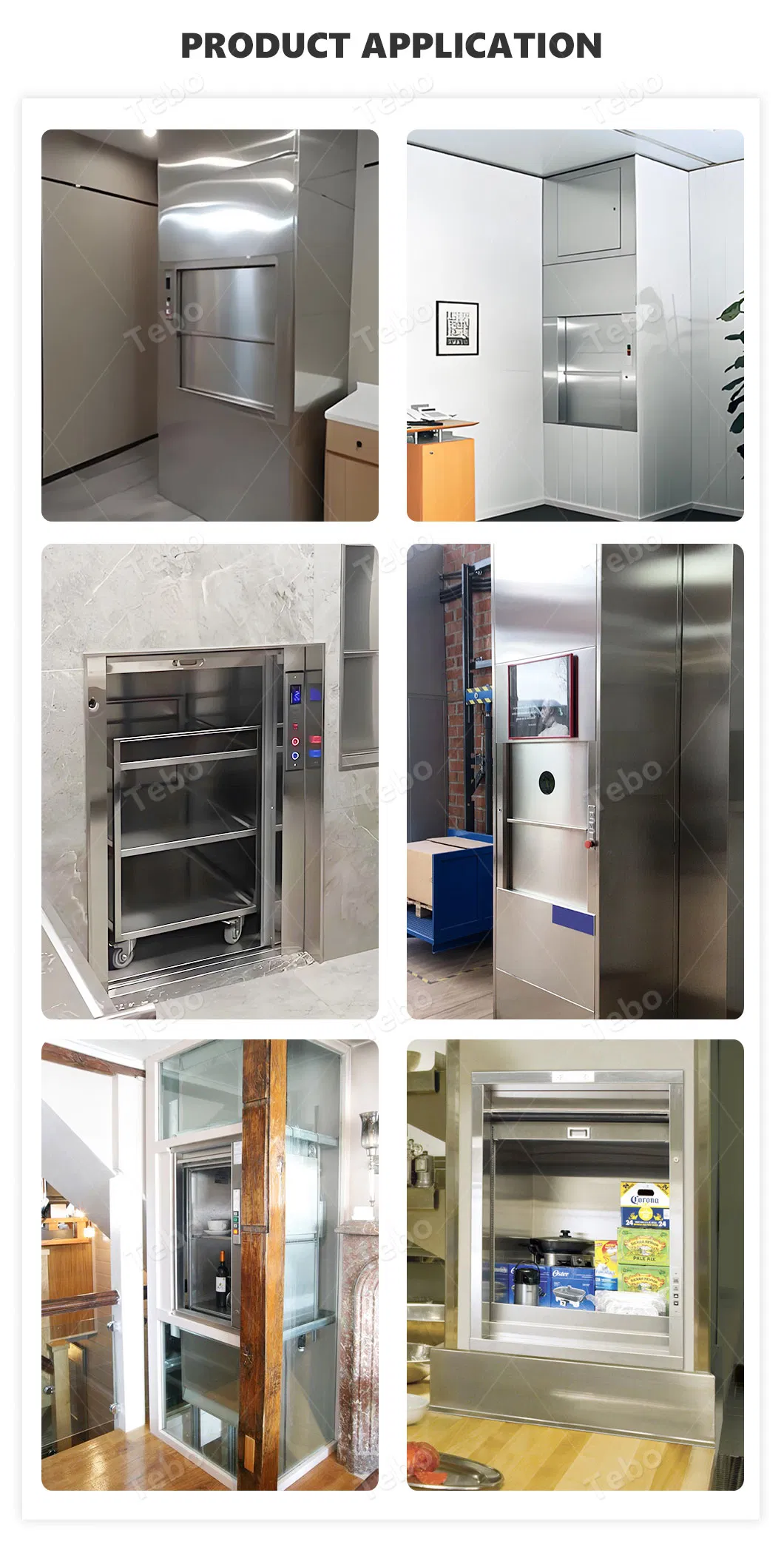

Detail 3
🏭 Professional Manufacturing
Factory Overview
As a specialized Chinese enterprise in the R&D and manufacturing of mechanical equipment, we possess significant advantages in structural design, operational efficiency, and stability. Our core product range includes hydraulic home elevators, freight lifts, and specialized scissor lift platforms. We utilize modern CNC machining centers and automated welding equipment to ensure precision and reliability.
✔ Certifications & Logistics
Quality Certificates
Standards
Packaging
❓ Frequently Asked Questions
1. What are the main advantages of your lift equipment?
We are among the leading manufacturers in China with a dedicated production base, ensuring competitive pricing and superior quality. We offer professional guidance and a 12-month warranty for all equipment.
2. What pre-sales services do you provide?
Our team offers detailed machinery consultations. For custom requirements, our engineers provide bespoke blueprints to match your specific shaft and load needs.
3. How is the equipment supported after installation?
We provide comprehensive assembly and installation manuals with clear drawings. If you have any operational questions, our technical support team typically responds via email within 2 hours.
4. What is the standard packaging for international shipping?
We primarily use robust plywood cases for export. We can also accommodate special shipping marks or specific packaging requirements based on client needs.
5. What is the typical lead time for delivery?
Lead times depend on the specific product configuration. Generally, standard units are ready for shipping within 10 working days after payment confirmation.
6. What are the accepted payment and trade terms?
We accept various trade terms including EXW, FOB, CFR, and CIF. Standard procedure involves a deposit before production and the remaining balance before final delivery.
