Product Overview & Basic Info
Model NO.:TBD-38
Type:Wellhole
Load Capacity:50kg-300kg
Speed:0.40m/s
Drive Mode:AC
Open & Close Type:Manual
Lift Mechanism:Telescoping Lift
Guide Rail:T Guide
Elevator Door:Center Opening Door
Origin:China
Production Capacity:1000 Sets/Year
Product Description

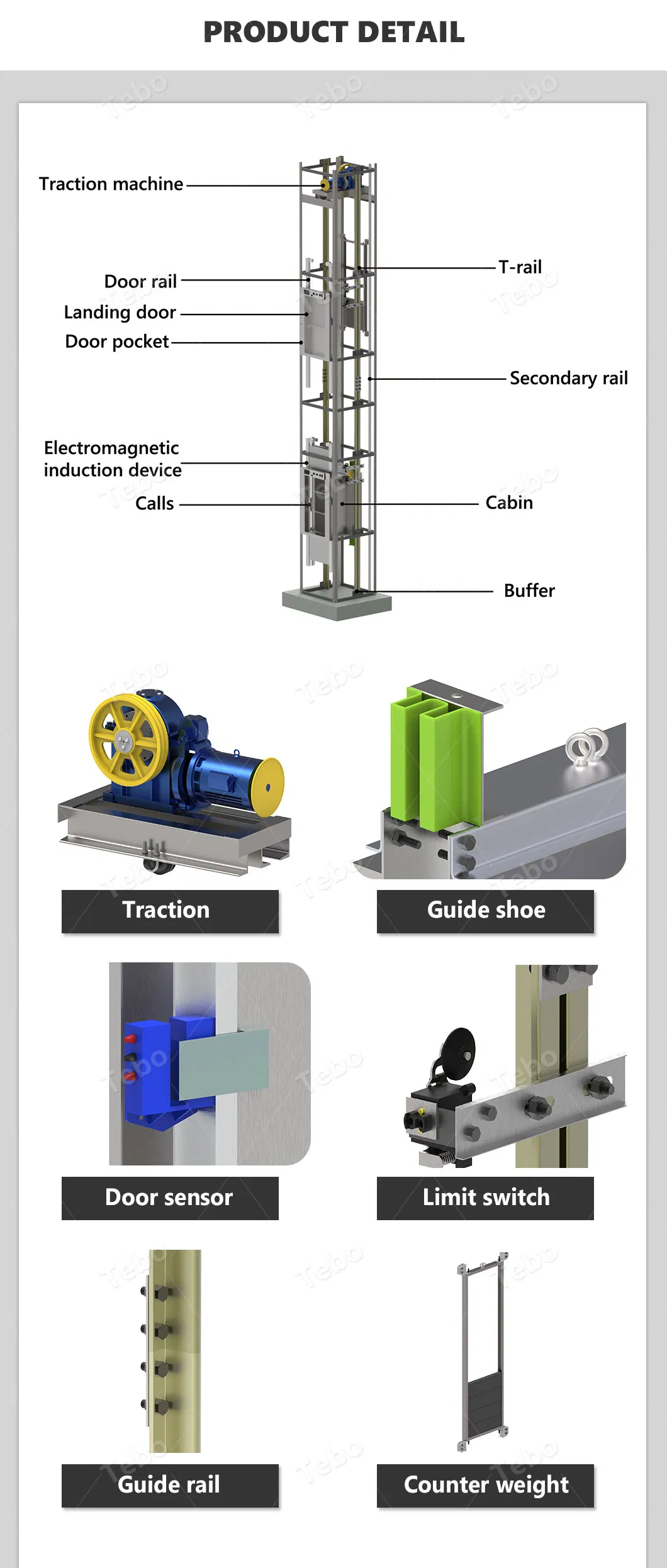

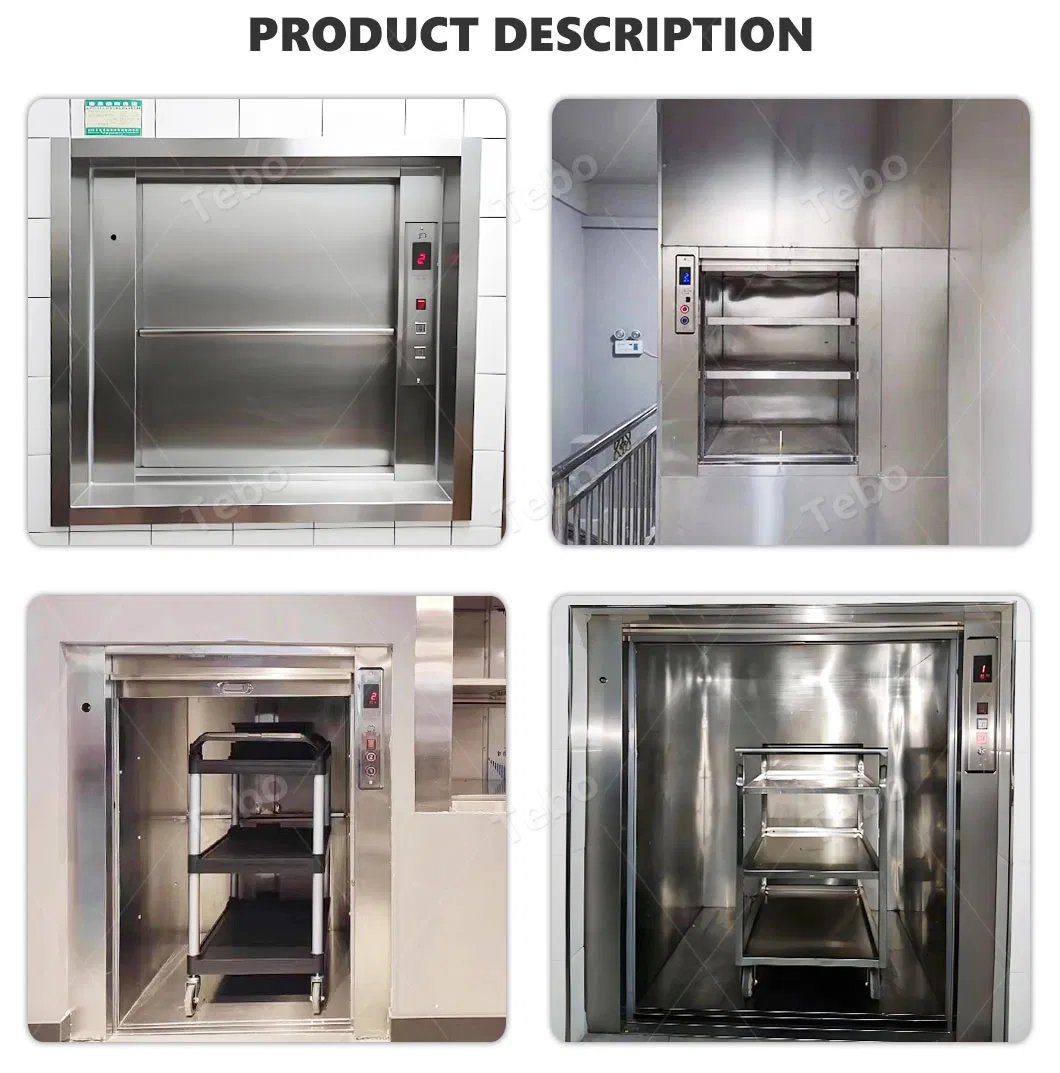

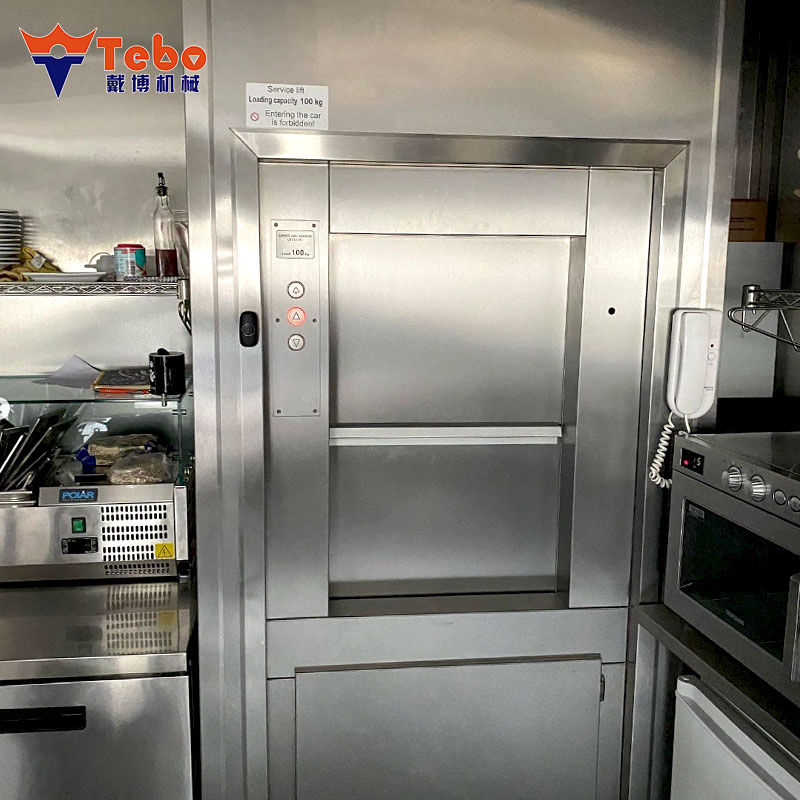

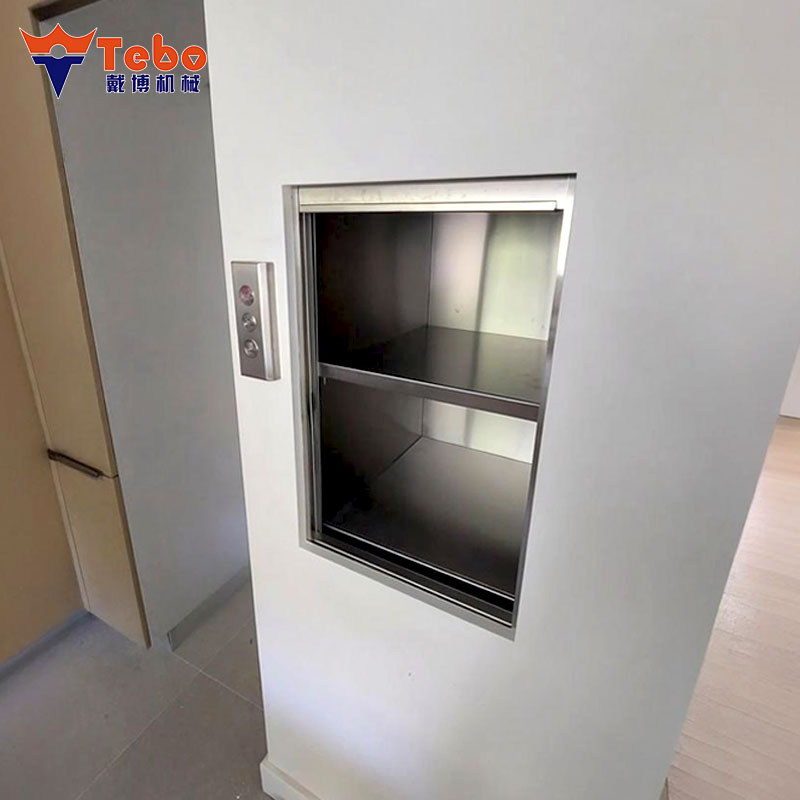

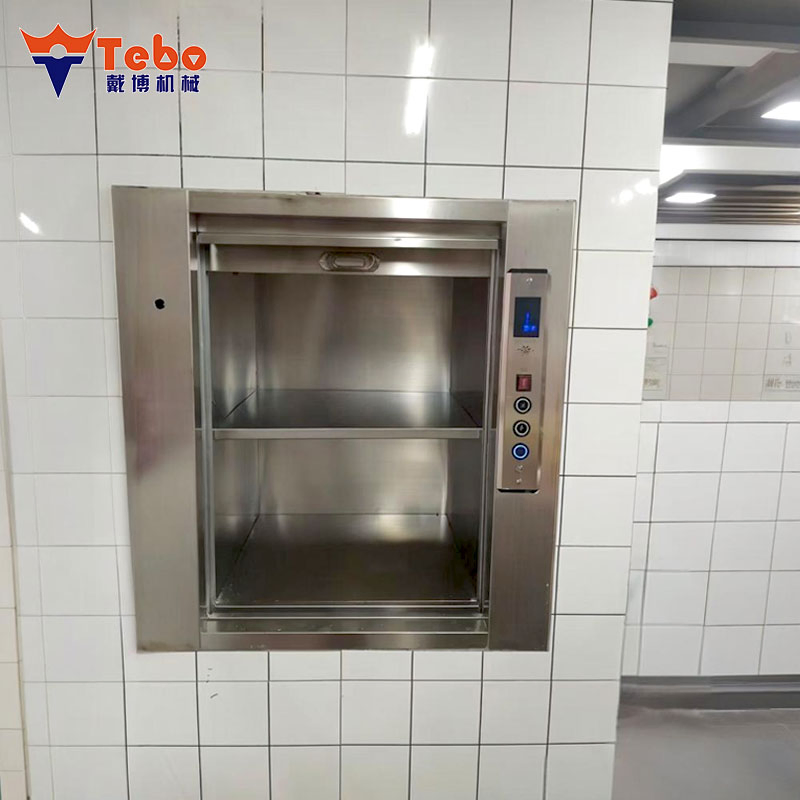

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It features a durable stainless-steel cabin and a robust steel shaft frame, ensuring excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, meeting strict hygiene and quietness requirements.

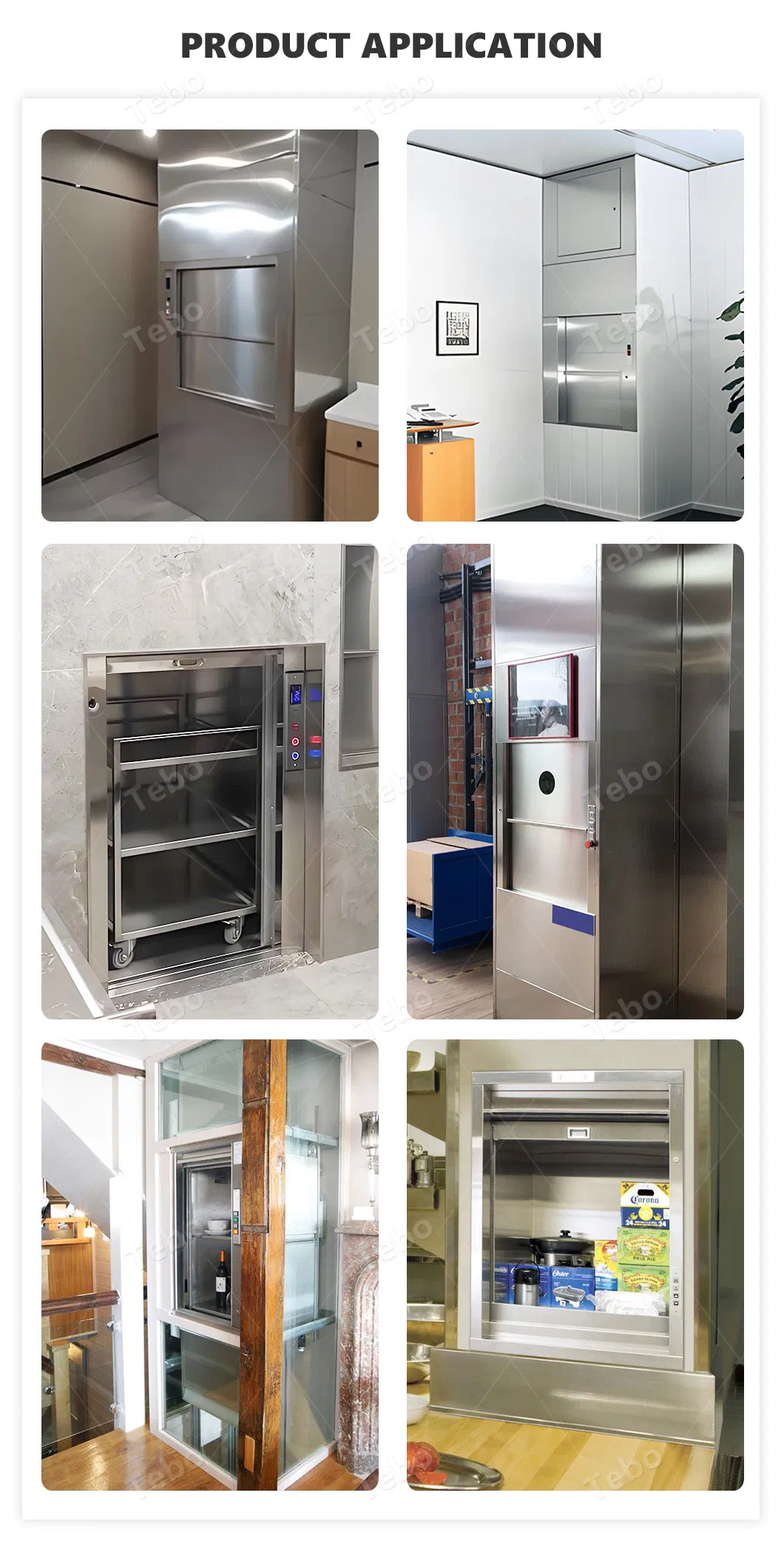

This lift significantly improves operational efficiency by transferring dishes, beverages, and tableware between floors quickly. Its enclosed design prevents contamination, while the compact footprint allows for flexible installation in kitchens, dining areas, or private rooms. It is widely used in star-rated hotels, corporate canteens, hospitals, and luxury villas.

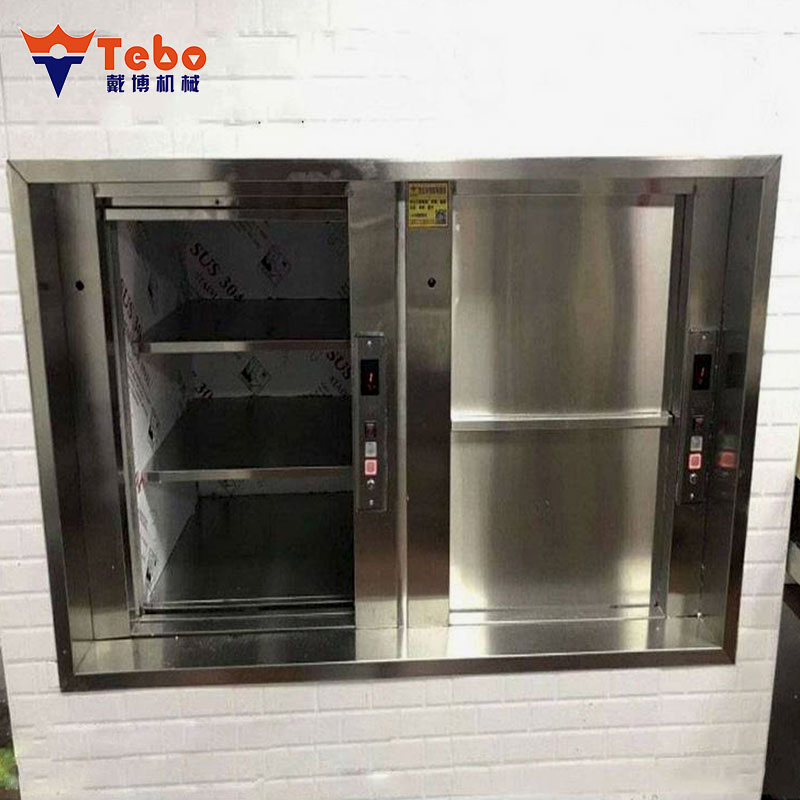

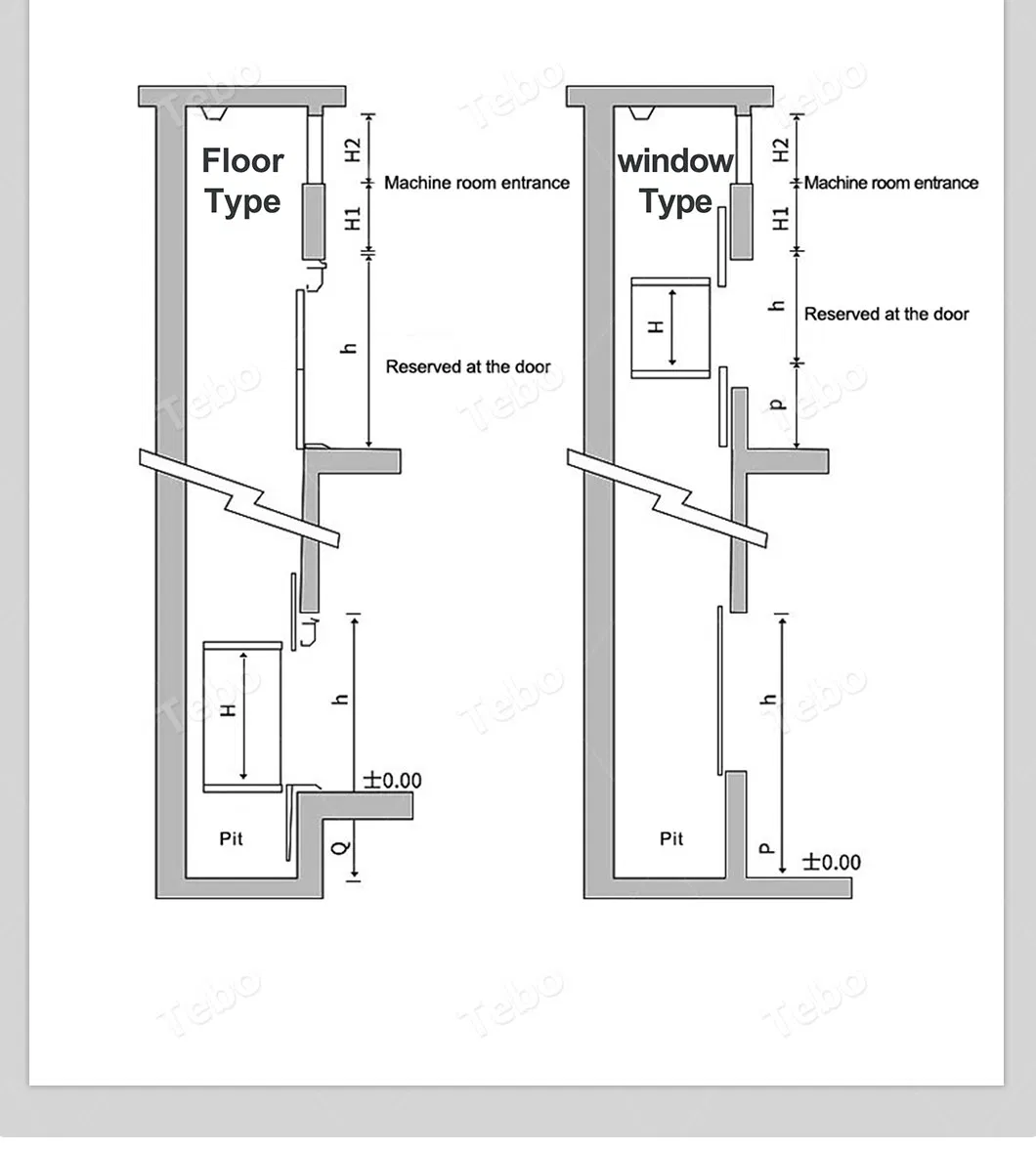

Technical Parameters (Window Type)
| Load (kg) |
Cabin Dimension (W*D*H mm) |
Landing Door |
Door Size (W*H mm) |
Sill Height (mm) |
Overhead (mm) |
| 100 | 600*400*800 | Standard | 600*800 | 800 | 2800 |
| 100 | 600*600*800 | Standard | 600*800 | 800 | 2800 |
| 200 | 800*800*800 | Standard | 800*800 | 800 | 2800 |
| 200 | 800*800*1000 | Standard | 800*1000 | 800 | 3000 |
| 200 | 1000*1000*1000 | Standard | 1000*1000 | 800 | 3200 |

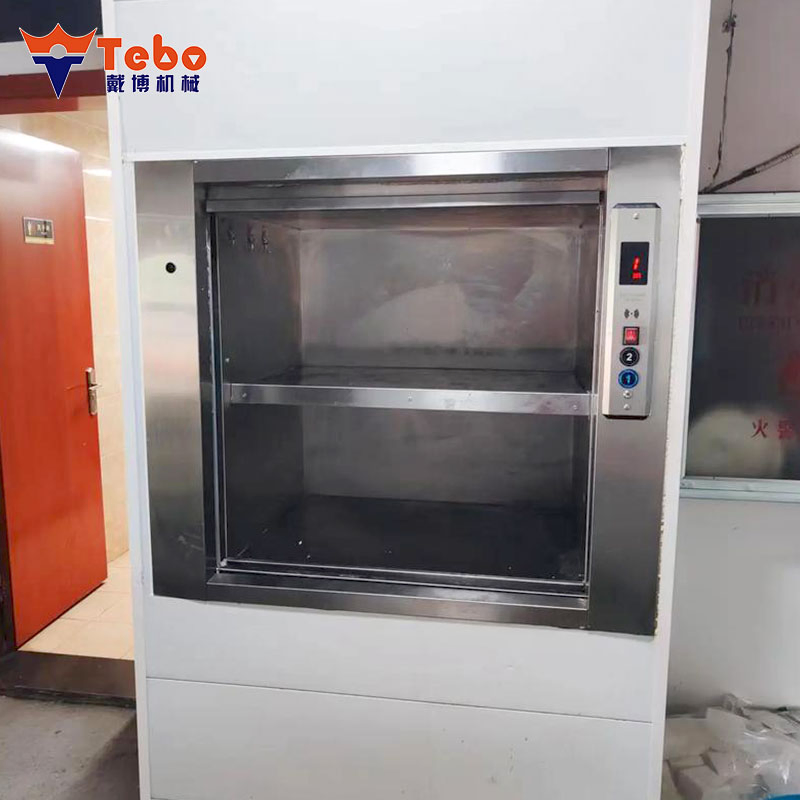

Technical Parameters (Floor Type)
| Load (kg) |
Cabin Dimension (W*D*H mm) |
Door Size (W*H mm) |
Pit Depth (mm) |
Overhead (mm) |
| 200 | 800*800*1000 | 800*1000 | 600 | 2800 |
| 200 | 1000*1000*1000 | 1000*1000 | 600 | 2800 |
| 300 | 1000*1000*1200 | 1000*1200 | 700 | 3200 |
| 400 | 1000*1200*1400 | 1200*1400 | 800 | 3600 |
Manufacturing & Expertise
We specialize in the R&D and manufacturing of high-end mechanical lift equipment. Our production base is equipped with advanced CNC machining centers, automated welding systems, and precision inspection instruments. Our core range includes hydraulic home elevators, freight lifts, and specialized scissor platforms. We offer comprehensive solutions from custom design and precision manufacturing to full lifecycle technical support.
Quality Assurance & Packaging
All equipment is packed in standard export plywood cases to ensure safety during international transit. We support various shipping terms including EXW, FOB, CFR, and CIF to meet global logistical needs.
Frequently Asked Questions
What are the primary advantages of your lift equipment?
We provide high-quality lift solutions with a strong focus on durability and price competitiveness. Our equipment comes with a 12-month warranty, and we offer on-site installation guidance to ensure reliable performance.
Do you offer customization for specific kitchen layouts?
Yes, our expert engineers provide detailed blueprints and bespoke designs for customers who require modifications to suit their unique architectural or operational needs.
What kind of after-sales support do you provide?
We provide detailed assembly manuals and installation drawings. Our technical team is available to answer operational questions via email, typically responding within 2 hours.
How is the equipment packaged for international shipping?
We typically use robust plywood cases. We can also accommodate special shipping marks or specific packaging requirements based on your logistics needs.
What is the typical lead time for production and shipping?
Lead times depend on the specific product and level of customization, but standard orders are typically ready for shipment within 10 working days after payment confirmation.
What payment methods and trade terms do you support?
We support standard international trade terms including EXW, FOB, CFR, and CIF. Payment is generally required before production, with the balance due prior to delivery.
