Customization:	Available
After-sales Service:	7*24 Hours Via Phone/Whatsapp/Email
Warranty:	18months

Send Inquiry

Product Description

Basic Specifications

Model	XYZD-LH	Type	Wellhole and Derrick
Load Capacity	100kgs	Speed	0.40m/s
Drive Mode	AC	Lift Mechanism	Traction
Guide Rail	T Guide	Applicable Industries	Restaurant, Hotels, Warehouse, Bank, Childcenter
Certification	CE, ISO 9001	Transport Package	Plywood Case

Product Description

Low Headroom Counter Loading Dumbwaiter

Our innovative Low Headroom Counter Loading Dumbwaiter Lift is specifically engineered to maximize space efficiency in environments with limited vertical space. By strategically positioning the motor at the lowest level of the frame, this system significantly reduces the overhead clearance required at the top level.

Key Performance Features:

Space-Saving Design: Base-mounted motor requires minimal overhead clearance.
High Efficiency: Precision engineering for smooth vertical transportation.
Customizable Dimensions: Tailored sizes and capacities to fit unique building constraints.
User-Friendly Interface: Intuitive controls for a seamless operator experience.
Integrated Safety: Multiple safety mechanisms protect both goods and users.

Technical Parameters

Parameter	Specification
Model	XYZD-2
Capacity	100kgs
Installation Site Size	900*1000mm
Car Size	500600600mm
Door Opening	Single / Bi-parting Stainless Steel
Floor Height	3260mm
Sill Height	700mm
Headroom Requirement	1920mm
Speed	0.4m/s

Standard Smart Functions: Arrival reminder, Over-time running protection, Overloading alarm, Direction indication, Elevator locking, Intercom communication, and Monitoring relay.

Enhanced Experience Options

We provide specialized customizations for demanding environments:

Thermal insulation for cold storage applications.
Double-door configurations on a single floor level.
Luxurious finishes including copper plating for aesthetic appeal.
Multiple landing door styles: Automatic, swing, or roller doors.

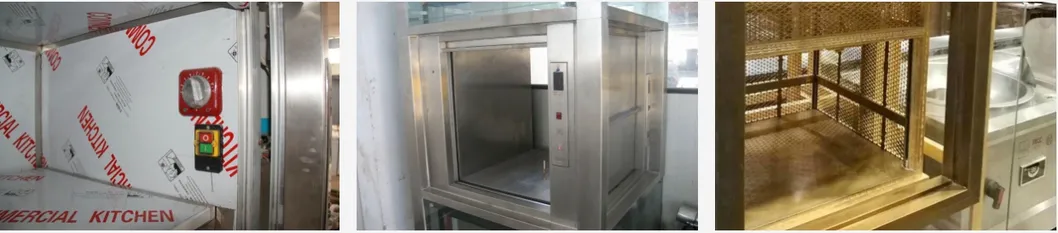

Dumbwaiter Options

10-Step Installation Guide

Step 1Connect Stand Columns and Shaft Beams on a level foundation.

Step 2Attach Guide Rails inside shaft beams with brackets.

Step 3Install Motor and connect to the drive system.

Step 4Set up Counterweight frame and connect to the cabin.

Step 5Align Cabin and Guide Shoes for smooth movement.

Step 6Fix and align the Cabin Door.

Step 7Install Landing Doors with secure locking.

Step 8Install Bottom Buffers for impact absorption.

Step 9Fix Leveling Parts and Limit Switches for safety.

Step 10Set up Electrical Controller and verify connections.

Project Showcase

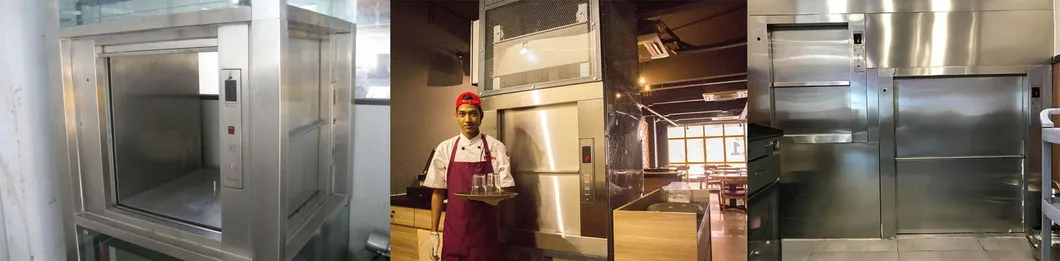

Dumbwaiter Project 1

Dumbwaiter Project 2

Dumbwaiter Project 3

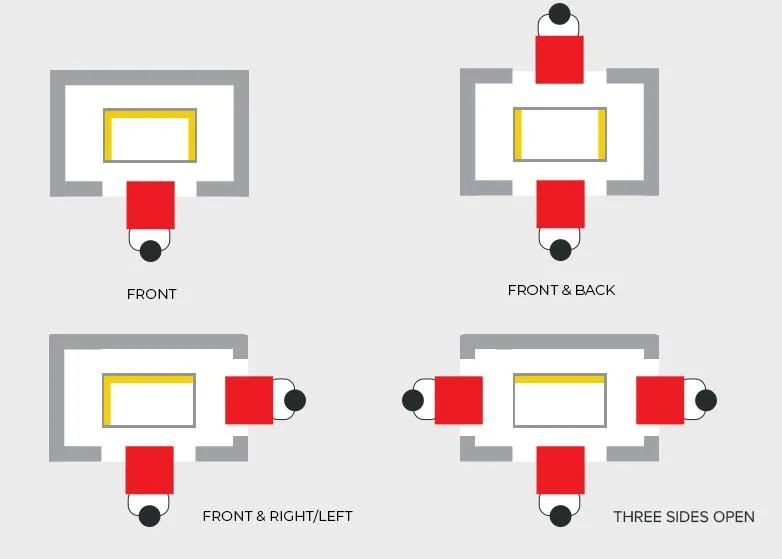

Our solutions support various loading configurations: Single side, Opposite sides, Adjacent side, and Three sides.

Frequently Asked Questions

What makes the "Low Headroom" model different from standard dumbwaiters?

The motor is located at the base rather than the top, significantly reducing the overhead height requirement for the top floor.

Can the cabin dimensions be customized for my specific shaft?

Yes, the lifting height, cabin size, and door orientation can all be fully customized to meet your site specifications.

What industries are these lifts best suited for?

They are ideal for restaurants, hotels, warehouses, banks, hospitals, and residential villas where vertical transport of goods is required.

What safety features are included as standard?

Standard safety includes overloading alarms, limit switches, buffers, monitoring relays, and inter-floor intercoms.

What information is needed to receive a design plan?

Please provide your installation/shaft size, the height of each floor, the required car door direction, and your local voltage.

How is the product shipped?

All dumbwaiter components are securely packed in plywood cases to ensure safety during international transport.
