Commercial Customized Dumbwaiter Food Lift Kitchen Elevator Carrier for Residential Floor Service Solutions

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

🔹 Basic Info.

Model NO.ZW002

TypeWellhole

Load Capacity100kg

Speed0.40m/s

Drive ModeAC

Open TypeAutomatic

Lift MechanismTelescoping Lift

Guide RailHollow Guide

Main PowerAC 380V, 3 Phase 50Hz

PackingPlywood Box

🔹 Product Description

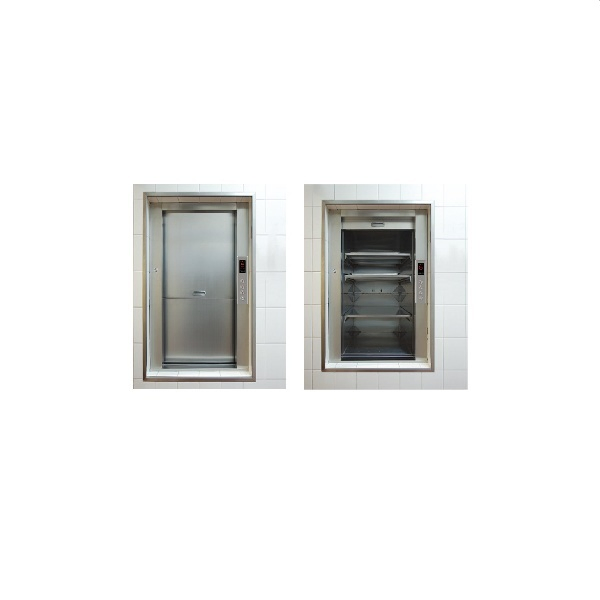

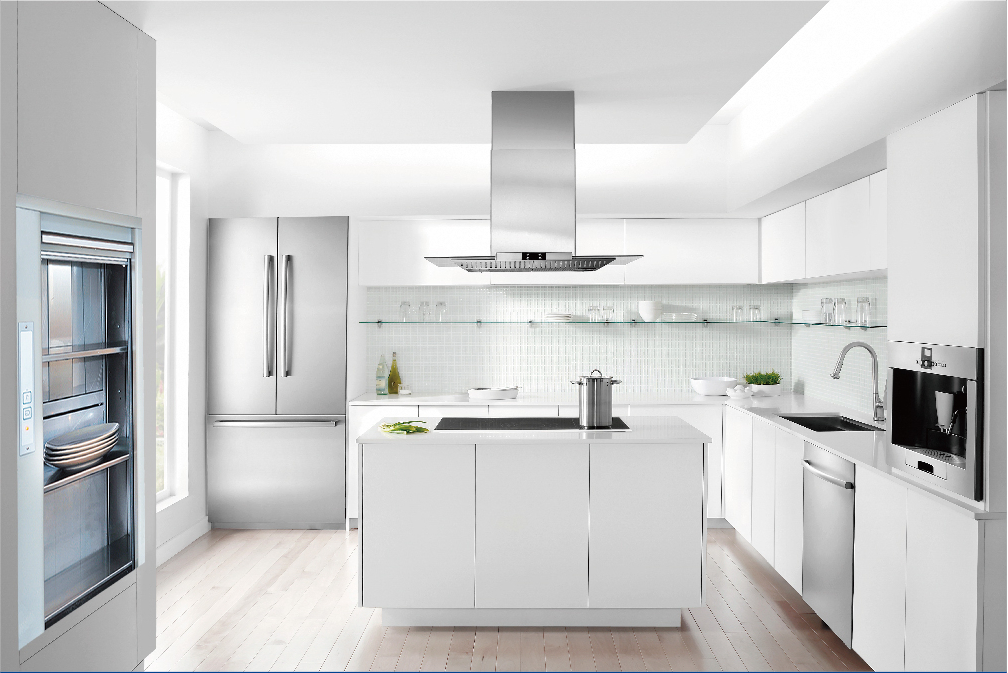

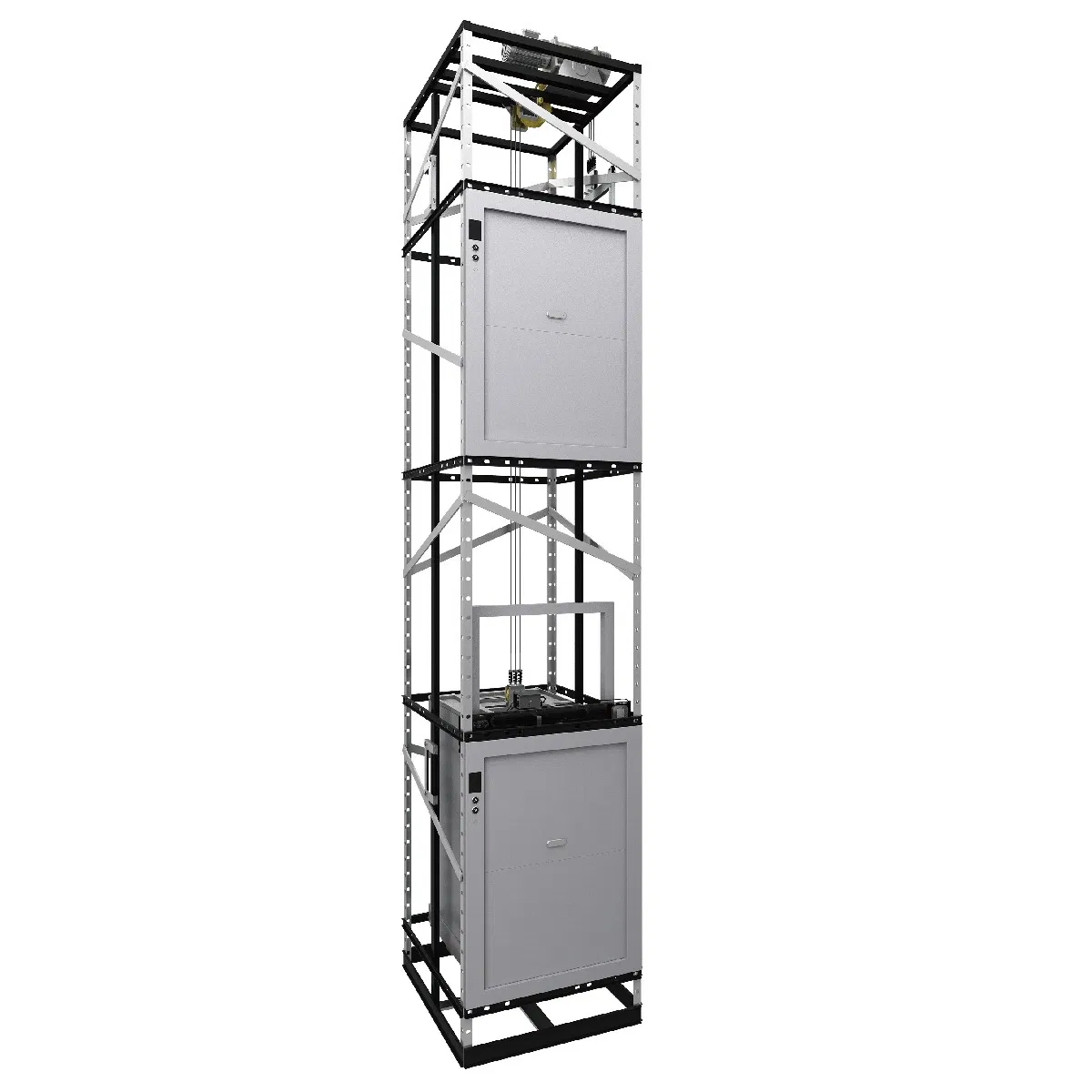

Commercial Customized Residential Floor Service Food Lift Kitchen Elevator Carrier Dumbwaiter

The dumbwaiter is the smallest member of the elevator family. According to different use occasions, it is also called the food elevator, the food dumbwaiter, or the kitchen lift. It silently serves various industries, playing the biggest role within the smallest space. Currently, it forms a complete product series with floor type and window type elevators equipped with two different door opening methods.

Key Advantages:

Small Footprint: Does not require strong civil engineering bearing capacity.
Advanced Control: Uses PC control modules for smooth running and accurate leveling.
Humanized Design: Flexible operation for various environments.

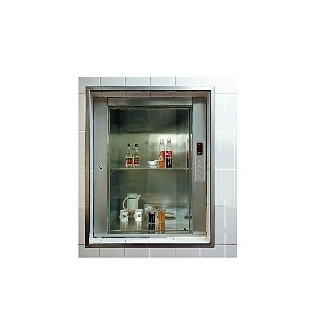

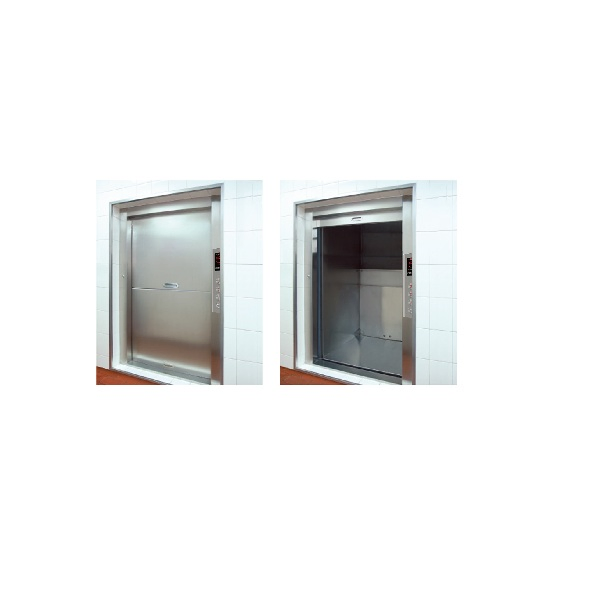

Versatility: Available in window type and floor type configurations.
Reliability: Safe, quiet, elegant, and easy to maintain.

🔹 Product Parameters (Machine Roomless)

Type	Load (kg)	Speed (m/s)	Cabin Size (WxDxH)	Shaft Size (WxD)	Pit Depth	Door Open

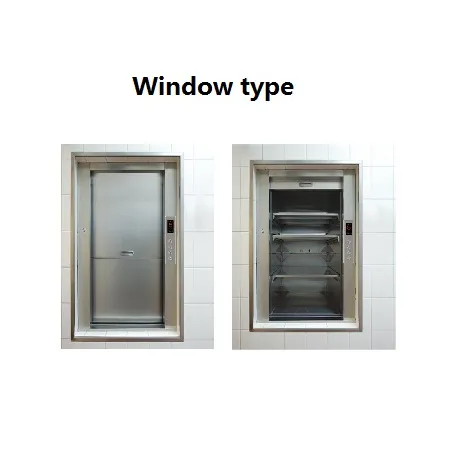

Window	100-300	0.4	500x500x900 ~ 900x900x900	1000x800 ~ 1400x1200	700mm	Manual/Straight Open

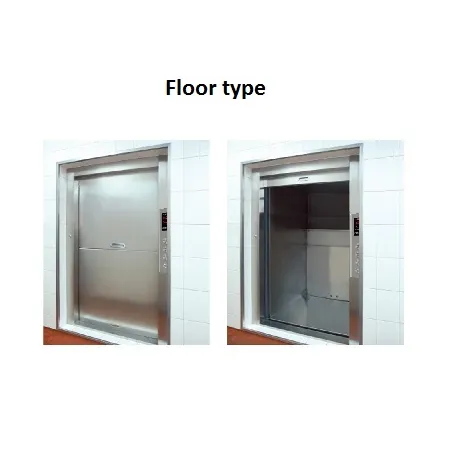

Floor	100-300	0.4	500x500x1000 ~ 900x900x1000	1000x800 ~ 1400x1200	1000mm	Manual/Straight Open

🔹 Safety Functions

Motor overheat protect	Safety gear contact	Power phase fault detect	Main fuse (controller)
Drive running time detect	Main power switch	Inspection running	Car lighting switch
Emergency door opening key	Hall calling register	Car door contact	Car position indicator
Shaft emergency stop	Running direction indicator	Car top emergency stop	Cabin position in controller

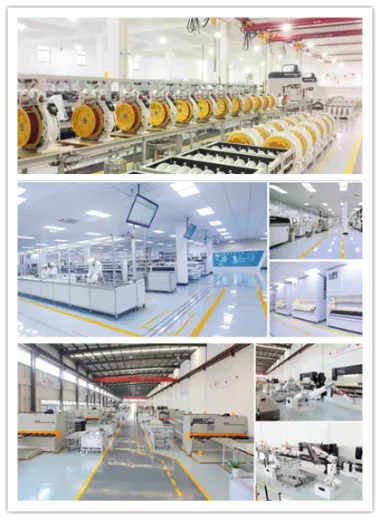

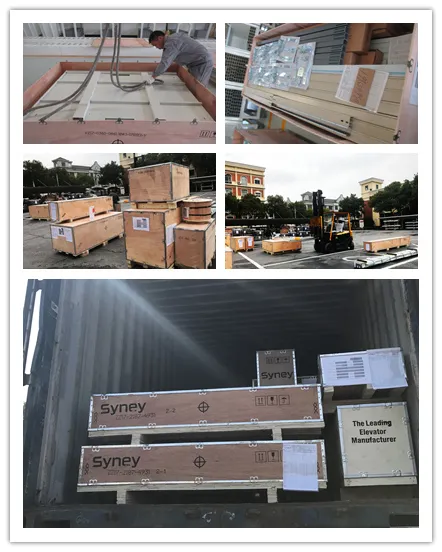

🔹 Manufacturing & Packing

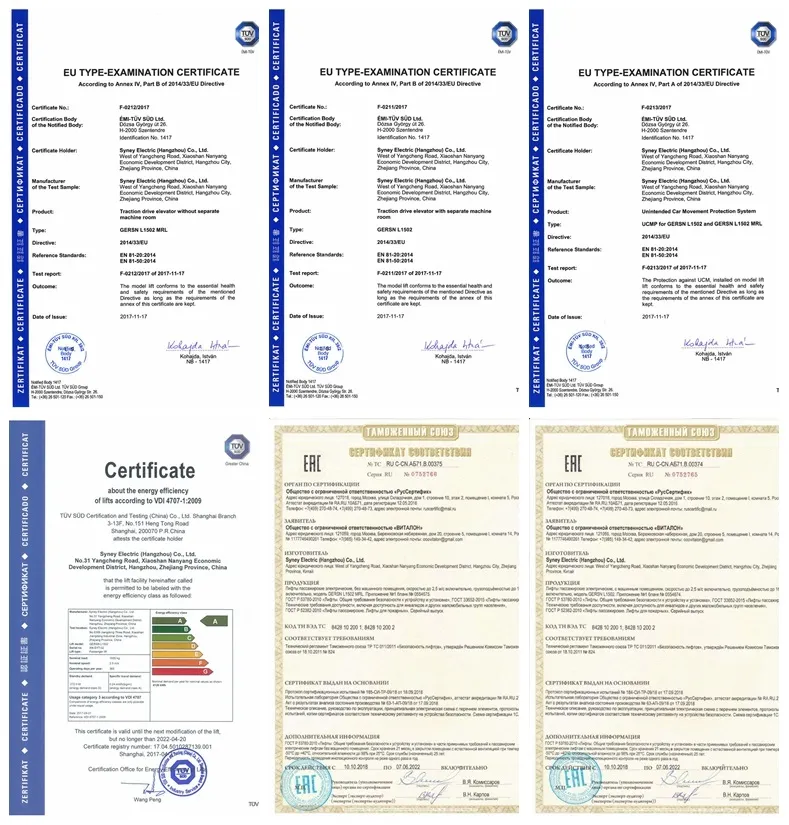

🔹 Global Certifications

The quality system meets international requirements, including Germany TÜV SÜD, which is widely accepted in Europe. Key certifications include:

CE Certificate (With/Without machine room)
CE Certificate for UCMP device
Energy-efficiency: Grade A
EAC Certificate

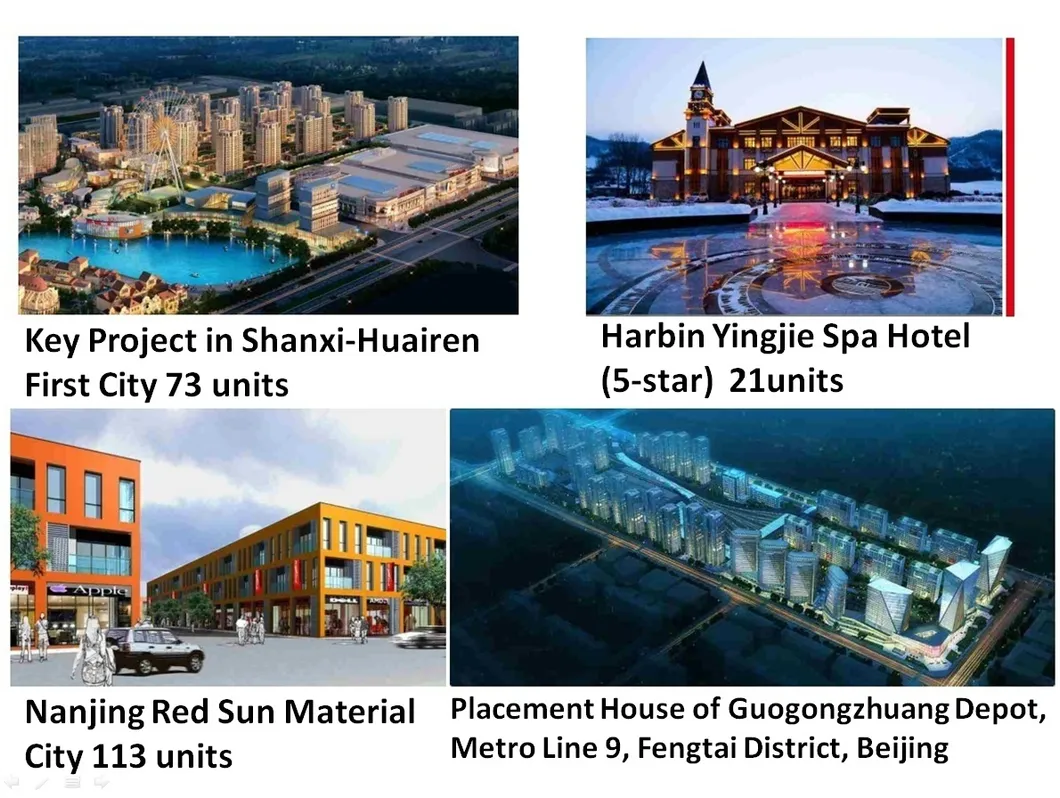

🔹 Project Cases

❓ Frequently Asked Questions

How can I get a fast quote for a dumbwaiter?

Please provide complete information including the required capacity (e.g., 100kg), number of floors/stops, preferred speed, shaft size, and whether you need a window or floor type.

What is the standard delivery time?

The standard delivery time is usually 30 days after receiving the deposit. Urgent production schedules may be available upon request for specific projects.

How long is the product warranty?

The standard warranty for our elevators and dumbwaiters is 18 months from the date of delivery.

Do you provide installation and commissioning support?

Yes, we provide a complete installation manual and remote technical guidance. For special projects, engineers can be sent to the site to assist with the process.

Is training available for technicians?

We welcome agents to send their technicians to our facility for professional training. We cover accommodation and local transportation during the training period.

What materials are used for the cabin decoration?

The standard decoration for the cabin, walls, landing doors, and floor is high-quality Stainless Steel, ensuring durability and hygiene for food service.
