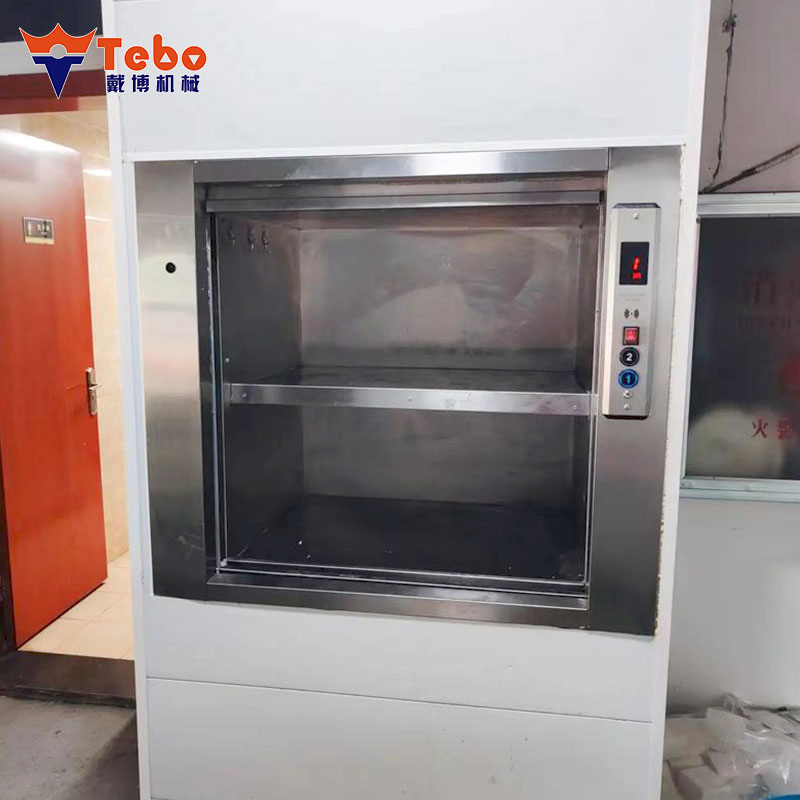

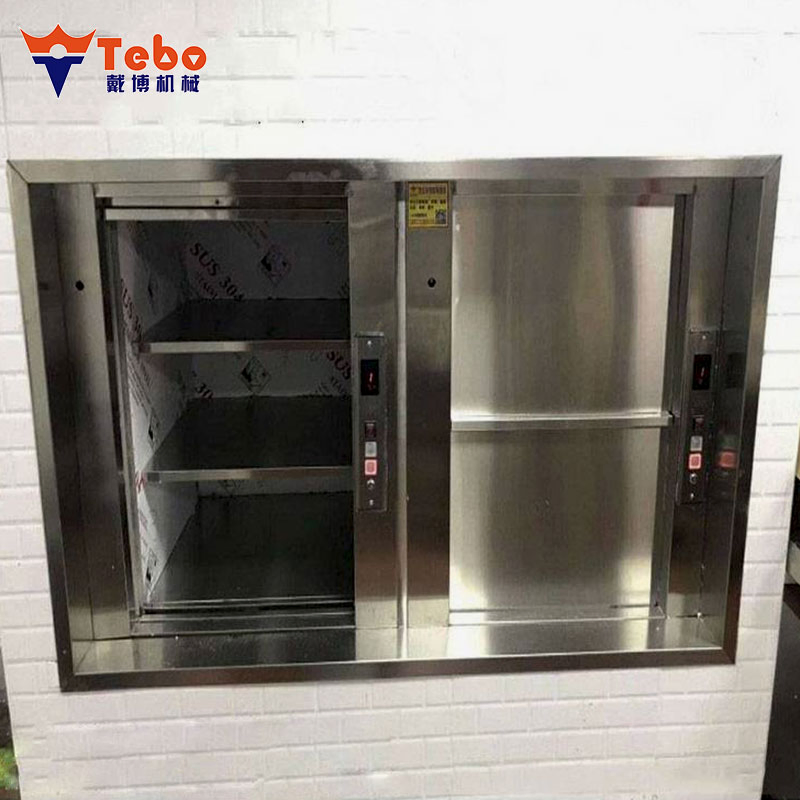

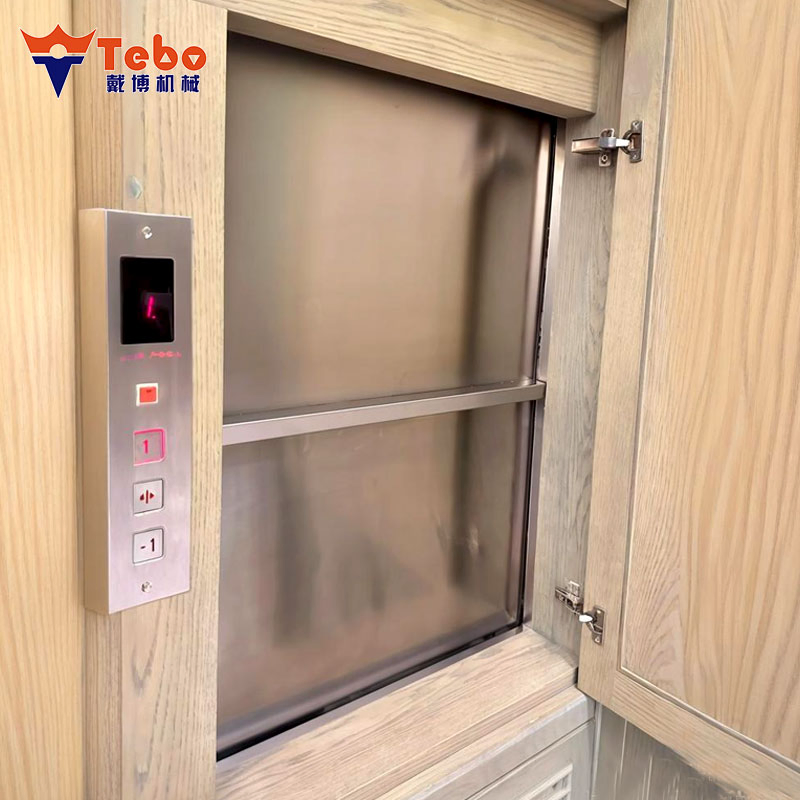

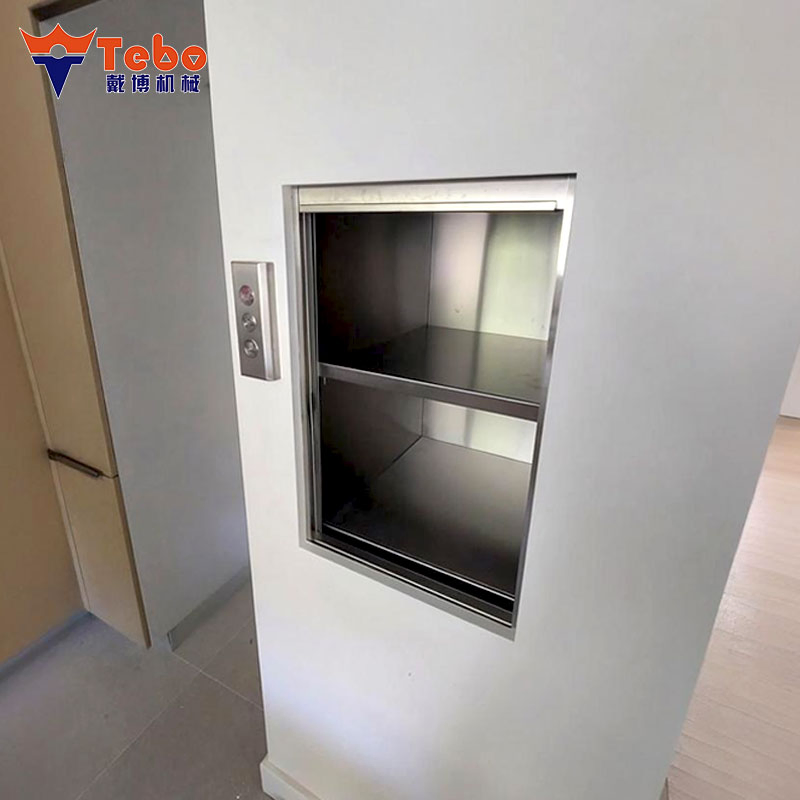

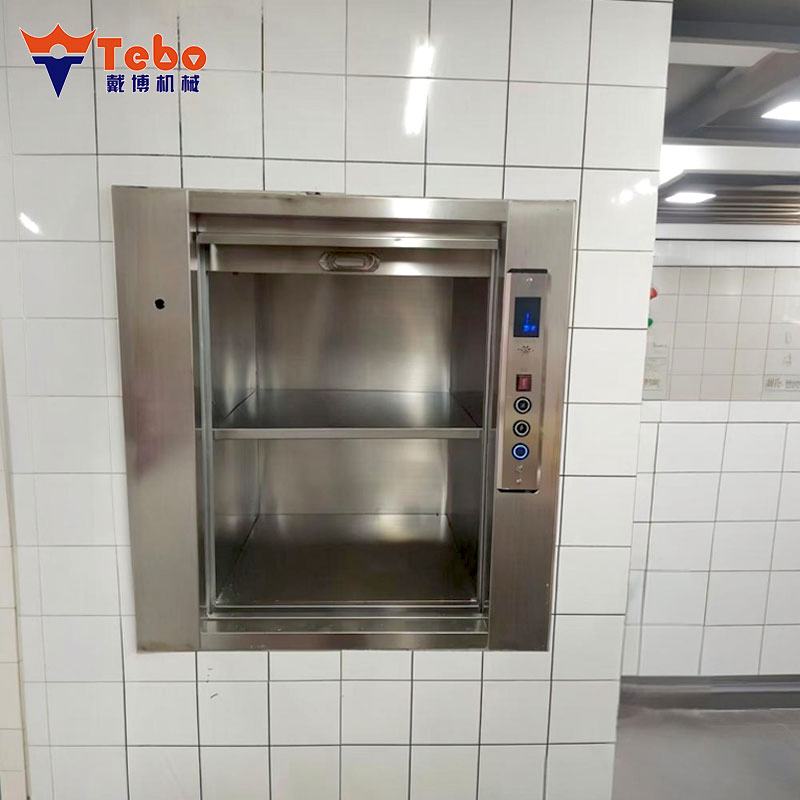

Customized Dumbwaiter Service Lift for Library Kitchen and Apartment Use

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.TBD-39
TypeWellhole
Load Capacity50kg-300kg
Speed0.40m/s
Drive ModeAC
Open & Close TypeManual
Lift MechanismTelescoping Lift
Guide RailT Guide
Elevator DoorCenter Opening Door
Production Capacity1000 Sets/Year

Product Description

Dumbwaiter Service Lift
The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel carbin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning.

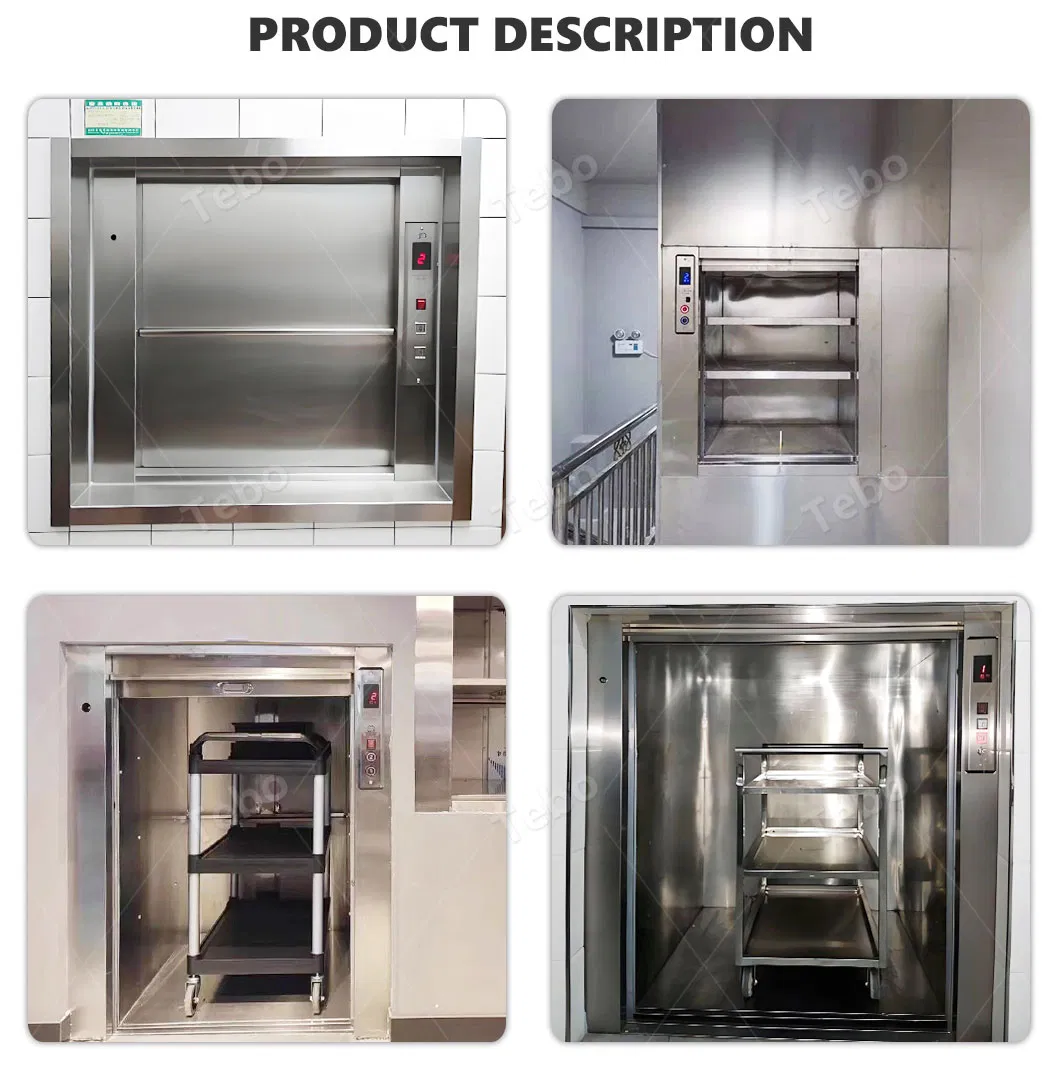

Customized Service Lift
The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings. Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals.

Technical Parameters

Window Type Parameters
Type Load(kg) Cabin Dimension (mm) Landing Door Cabin Door Door Size (mm) Sill Height Overhead
Window100600*400*800StandardOptional600*8008002800
Window100600*600*800StandardOptional600*8008002800
Window200800*800*800StandardOptional800*8008002800
Window2001000*1000*1000StandardOptional1000*10008003200
Floor Type Parameters
Type Load(kg) Cabin Dimension (mm) Landing Door Cabin Door Door Size (mm) Pit Depth Overhead
Floor200800*800*1000StandardOptional800*10006002800
Floor3001000*1000*1200StandardOptional1000*12007003200
Floor4001000*1200*1400StandardOptional1200*14008003600

Product Details

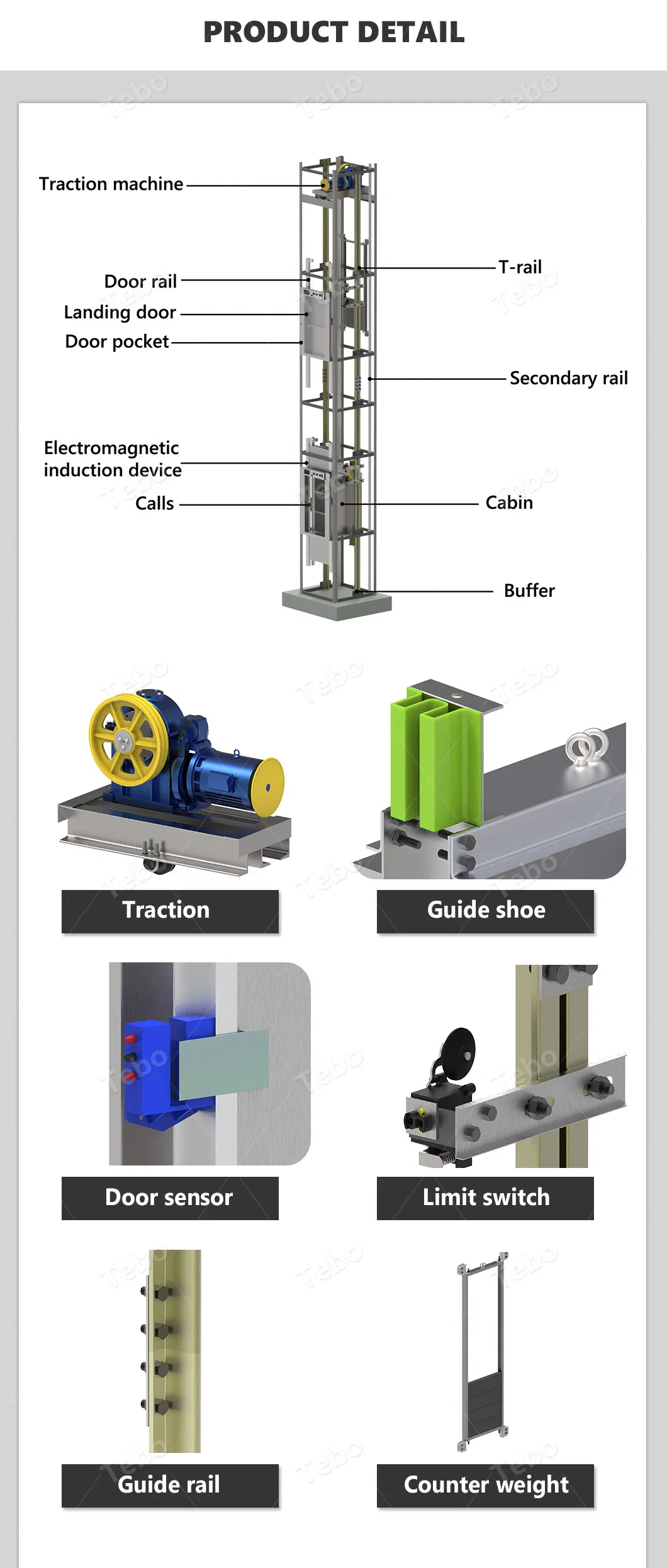

Product Detail View 1

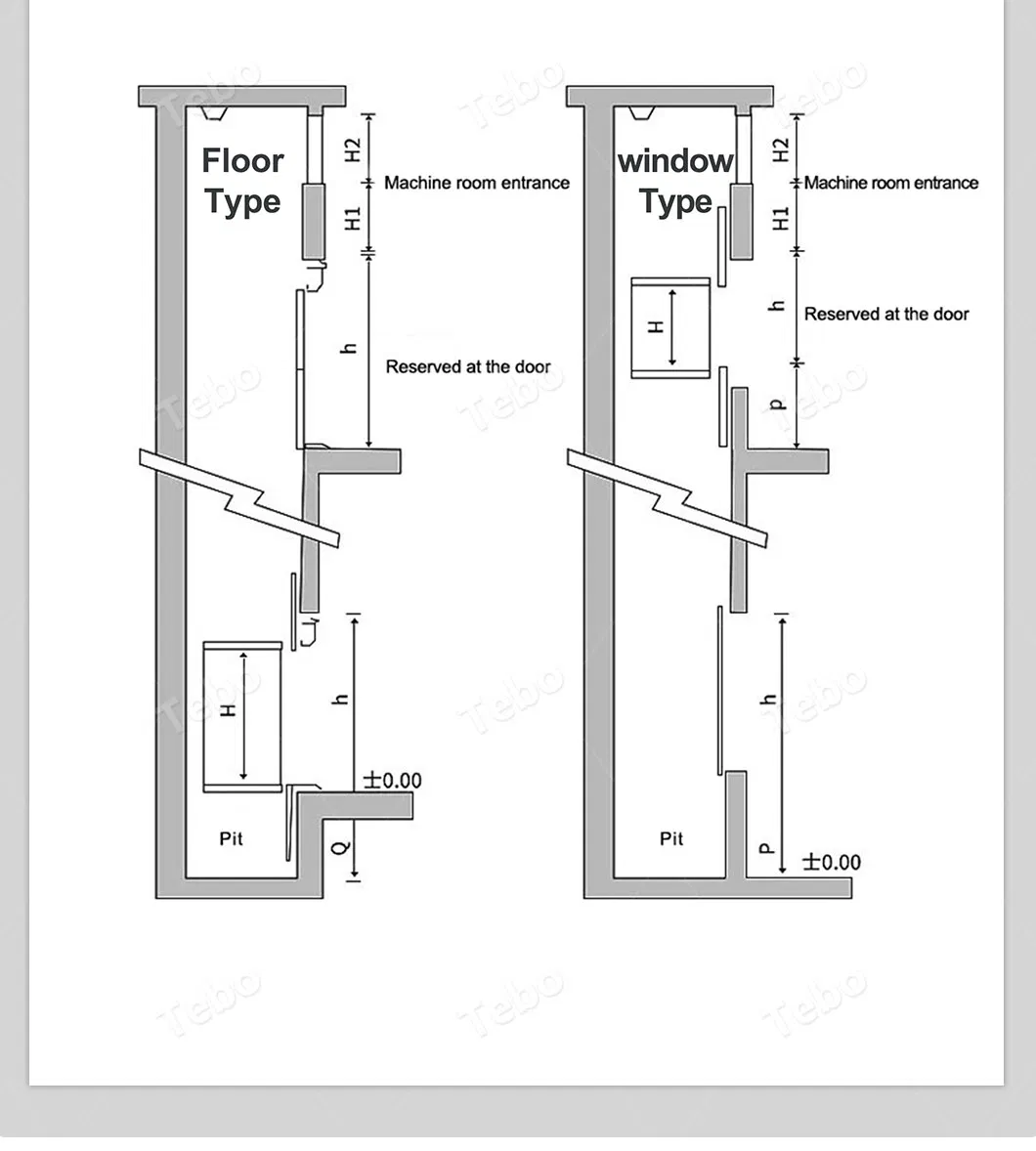

Product Detail View 2

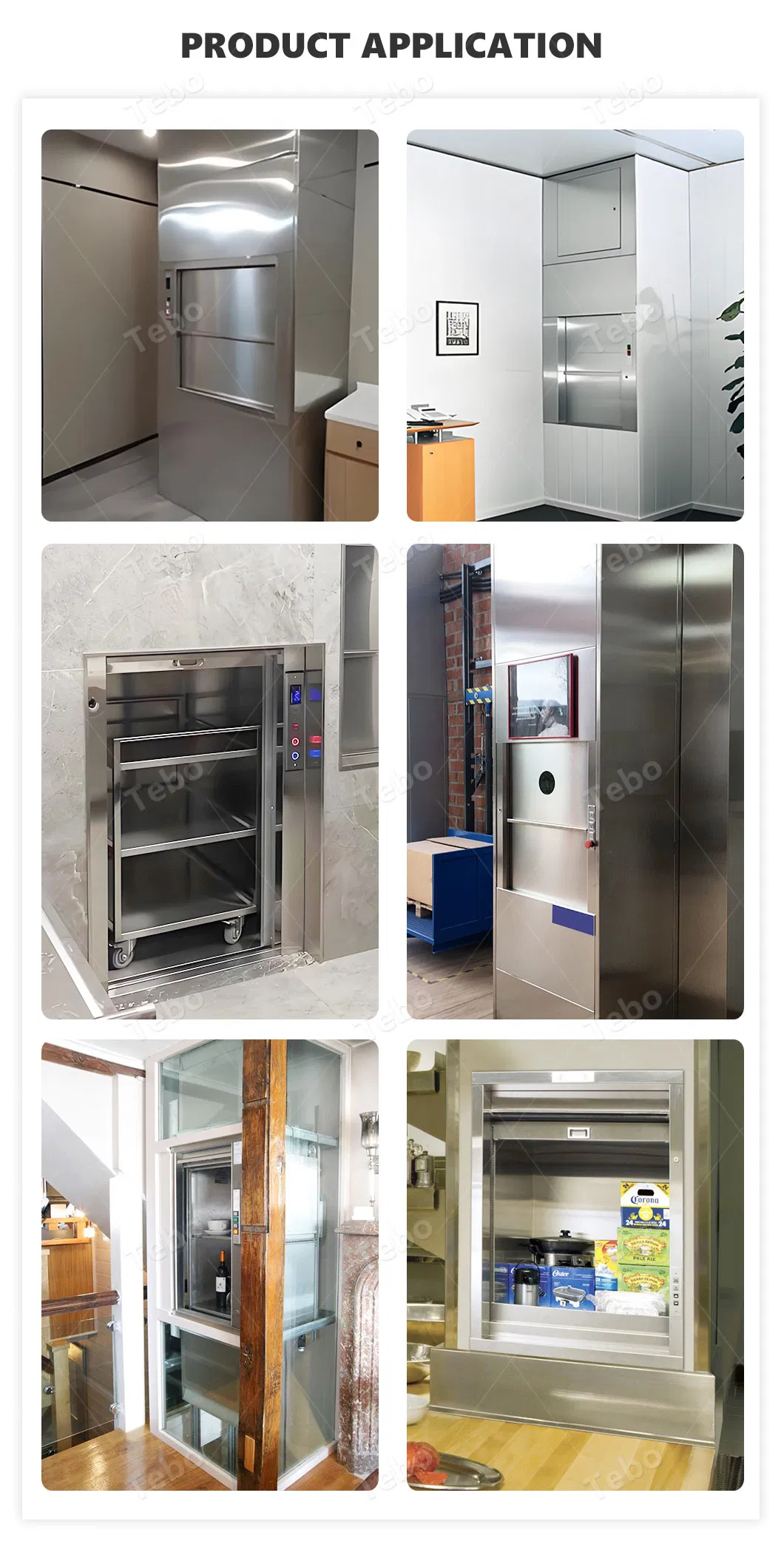

Product Detail View 3

Enterprise Profile

Enterprise Manufacturing
We are a Chinese enterprise specializing in the R&D and manufacturing of mechanical equipment. The company has assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability, having secured numerous independent intellectual property rights.
Our core product range includes hydraulic home elevators, hydraulic freight lifts, and hydraulic scissor lift platforms. Equipped with advanced production facilities and employing sophisticated manufacturing processes, we utilize modern CNC machining centers and automated welding equipment to ensure performance and reliability.
🛡

Certifications & Shipping

Certifications Production Standards
Packaging and Shipping
?

Frequently Asked Questions

What are the main advantages of our lift equipment?
We are among the leading manufacturers in China, offering absolute advantages in quality and market pricing. We provide on-site guidance and a 12-month warranty for all equipment.
What pre-sales and after-sales services are available?
Our expert engineers provide detailed blueprints for bespoke machines. After delivery, we provide clear assembly and installation manuals along with technical support within 2 hours of inquiry.
How is the equipment packaged for international shipping?
We typically use high-quality plywood cases. We can also accommodate special requirements and shipping marks based on your specific needs.
What is the typical lead time before shipping?
Normally, shipping takes approximately 10 working days after receipt of payment, depending on the specific customization required for the product.
What are the accepted payment and trade terms?
We support EXW, FOB, CFR, and CIF terms. Standard practice involves payment before production and the remaining balance before delivery.
Can the cabin size and load capacity be customized?
Yes, all our parameters, including cabin dimensions, load capacity, and sill height, support customized services to fit your specific building layout.
