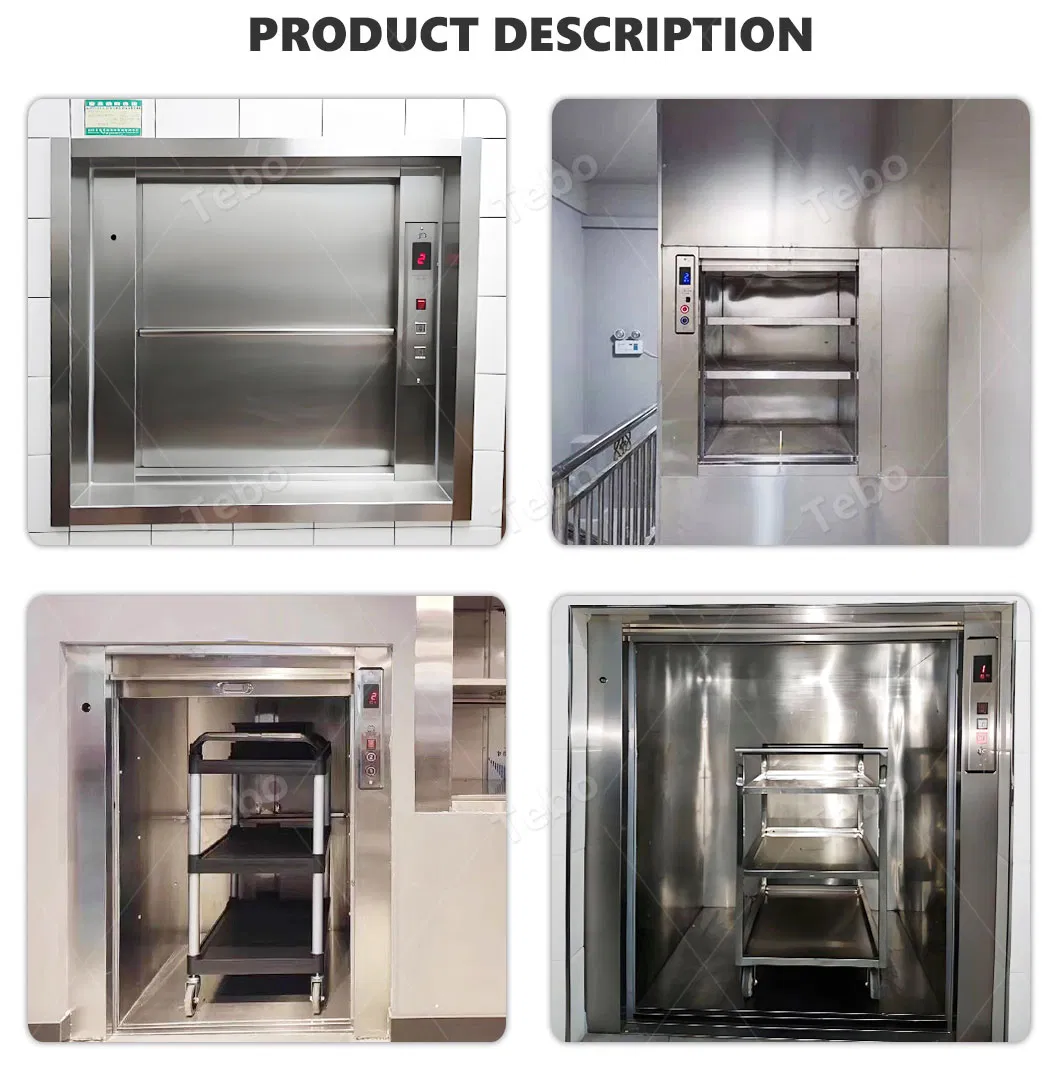

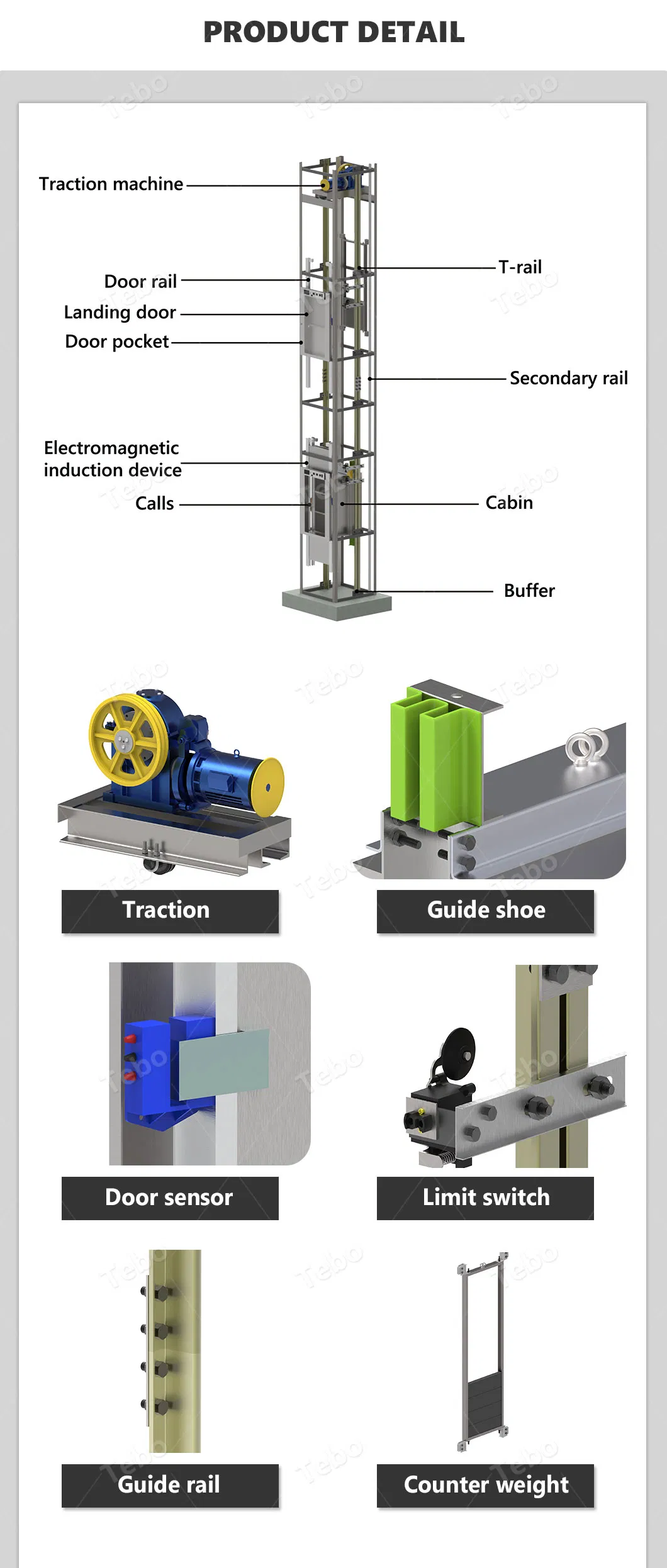

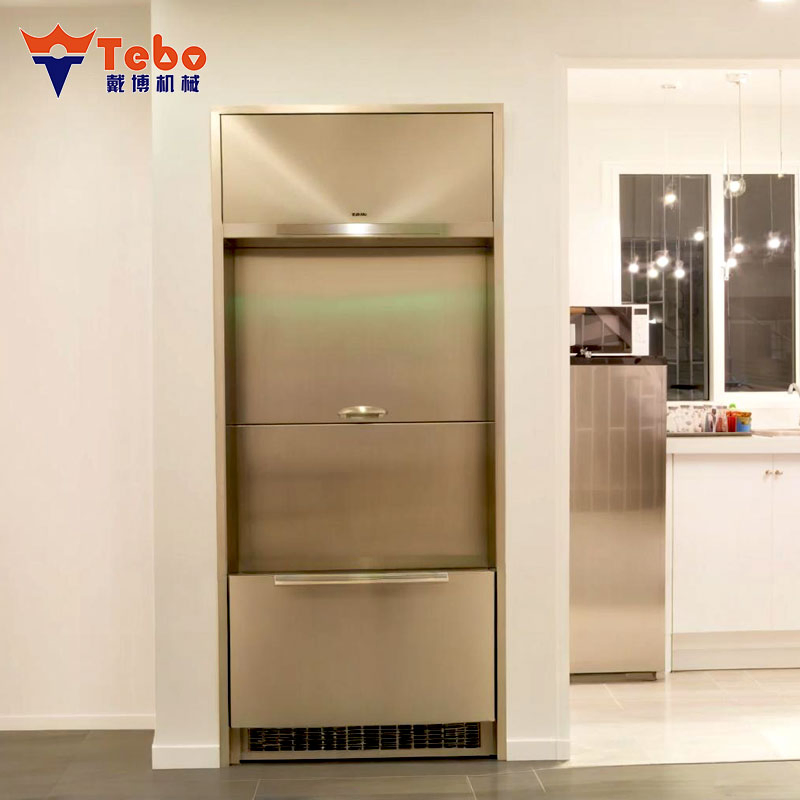

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings. Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals.

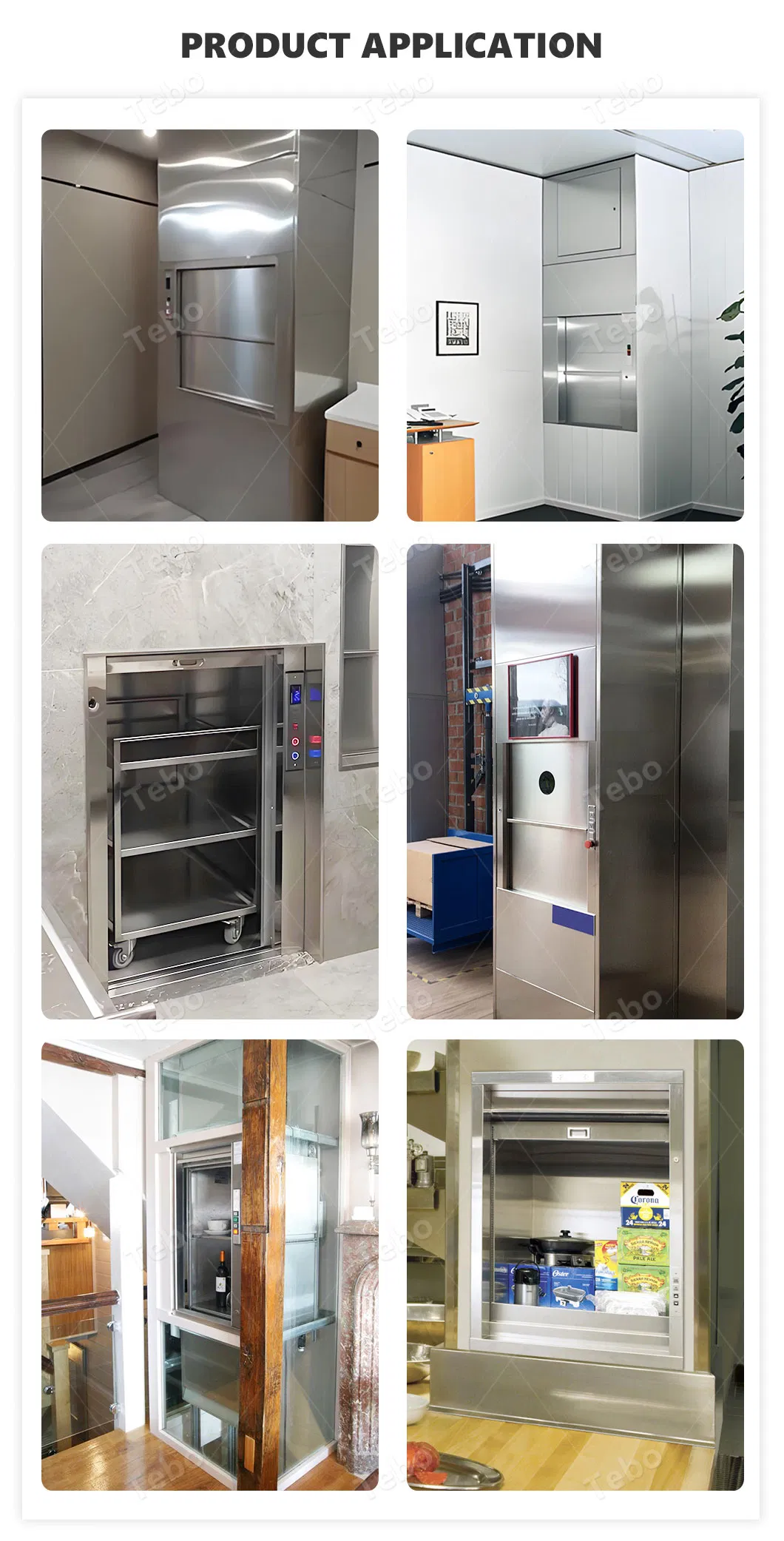

The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use. Its enclosed design prevents contamination and meets food-hygiene standards. Thanks to its compact footprint and flexible installation options, it easily adapts to kitchens, dining areas, private rooms, and other spaces with limited layout conditions.

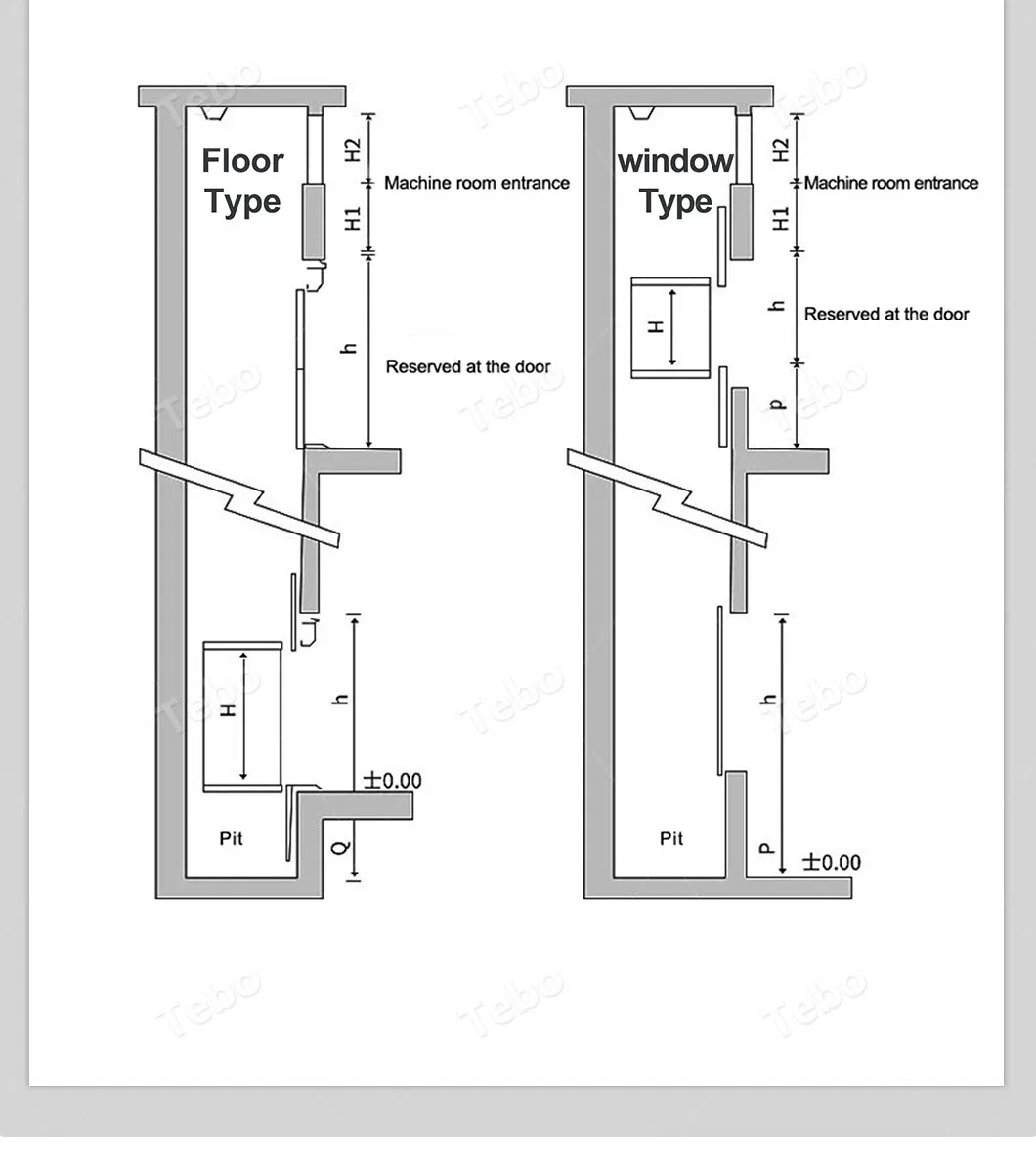

| Window Type Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Type | Load(kg) | Cabin inside W*D*H(mm) | Landing door | Cabin door | Door size W*H(mm) | Sill height | Overhead |

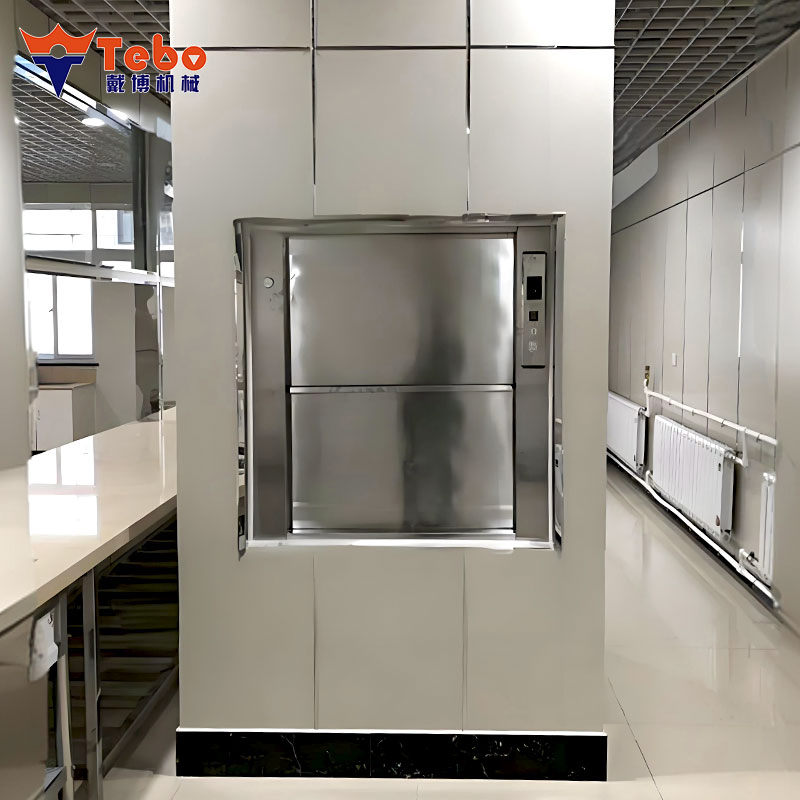

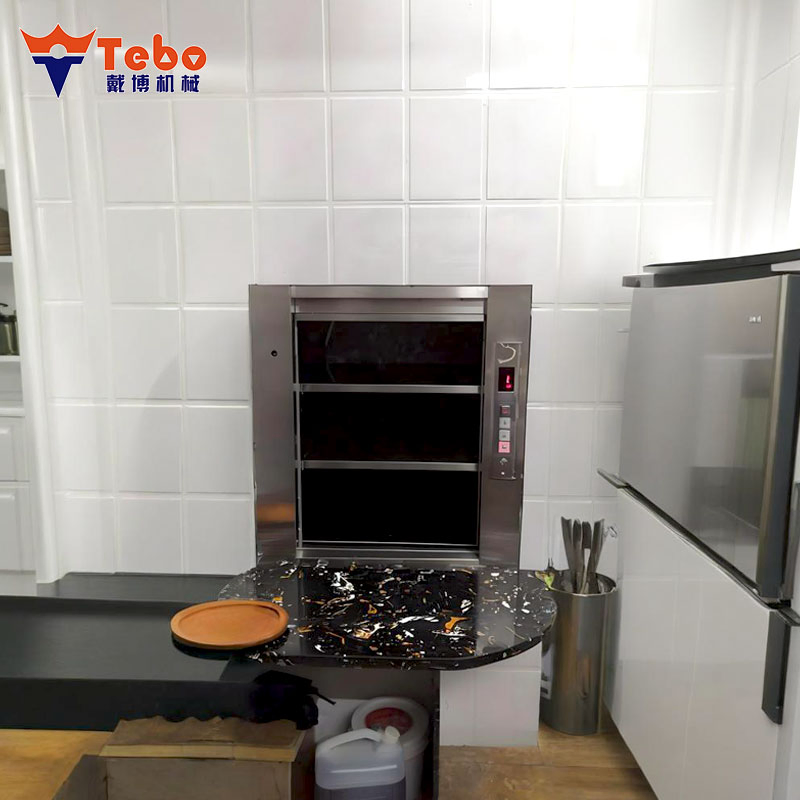

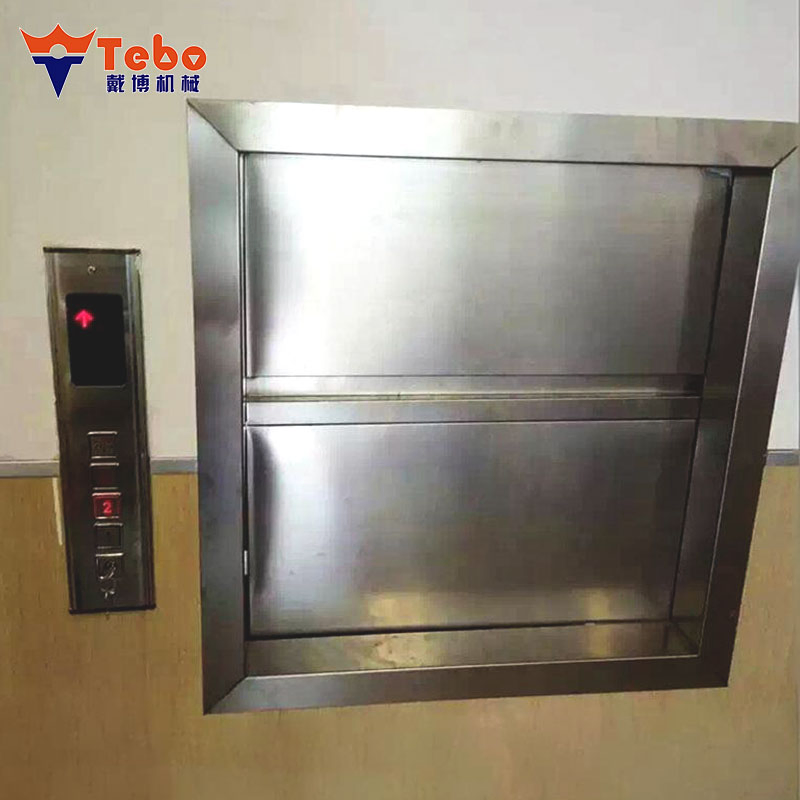

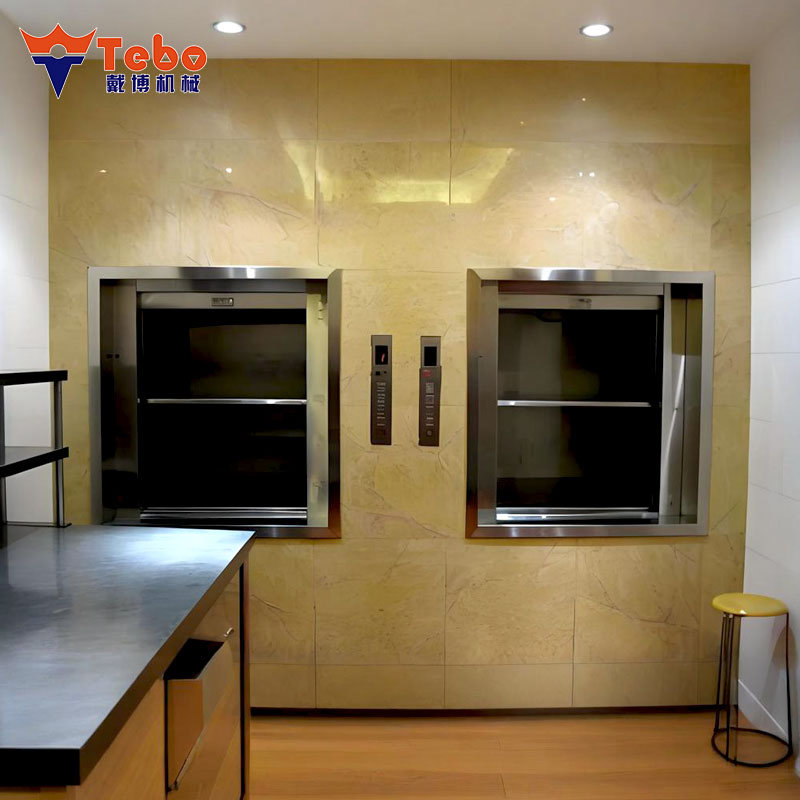

| Window Type | 100 | 600*400*800 | Standard | Optional | 600*800 | 800 | 2800 |
| 100 | 600*600*800 | Standard | Optional | 600*800 | 800 | 2800 | |
| 200 | 800*800*800 | Standard | Optional | 800*800 | 800 | 2800 | |
| 200 | 800*800*1000 | Standard | Optional | 800*1000 | 800 | 3000 | |
| 200 | 1000*1000*800 | Standard | Optional | 1000*800 | 800 | 3000 | |
| 200 | 1000*1000*1000 | Standard | Optional | 1000*1000 | 800 | 3200 | |
| Floor Type Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Type | Load(kg) | Cabin inside W*D*H(mm) | Landing door | Cabin door | Door size W*H(mm) | Pit depth | Overhead |
| Floor Type | 200 | 800*800*1000 | Standard | Optional | 800*1000 | 600 | 2800 |
| 200 | 1000*1000*1000 | Standard | Optional | 1000*1000 | 600 | 2800 | |
| 200 | 800*1000*1200 | Standard | Optional | 800*1200 | 700 | 3200 | |
| 300 | 1000*1000*1200 | Standard | Optional | 1000*1200 | 700 | 3200 | |
| 300 | 1000*1200*1200 | Standard | Optional | 1200*1200 | 700 | 3200 | |
| 400 | 1000*1200*1400 | Standard | Optional | 1200*1400 | 800 | 3600 | |
Our company is a Chinese enterprise specializing in the R&D and manufacturing of mechanical equipment. We have assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability, and have secured numerous independent intellectual property rights and patent technologies.
Our core product range includes hydraulic home elevators, hydraulic freight lifts, hydraulic car lifts, and hydraulic scissor lift platforms. By leveraging stable hydraulic drive systems and exceptional load-bearing capacity, these products provide smooth and quiet vertical transportation for residential buildings and meet the demands for efficient, heavy-duty freight lifting in various commercial and industrial settings.
