Basic Specifications
Model NO.:VWL
Application:Workshop, Shipboard, Warehouse, Building
Lift Mechanism:Cylinder
Carrying Capacity:Middle-Level (250kg)
Driven Type:AC Electric Power
Features:Special Design for Disabled People
Certification:CE, ISO 9001
Operating Temp:-20°C ~ 70°C

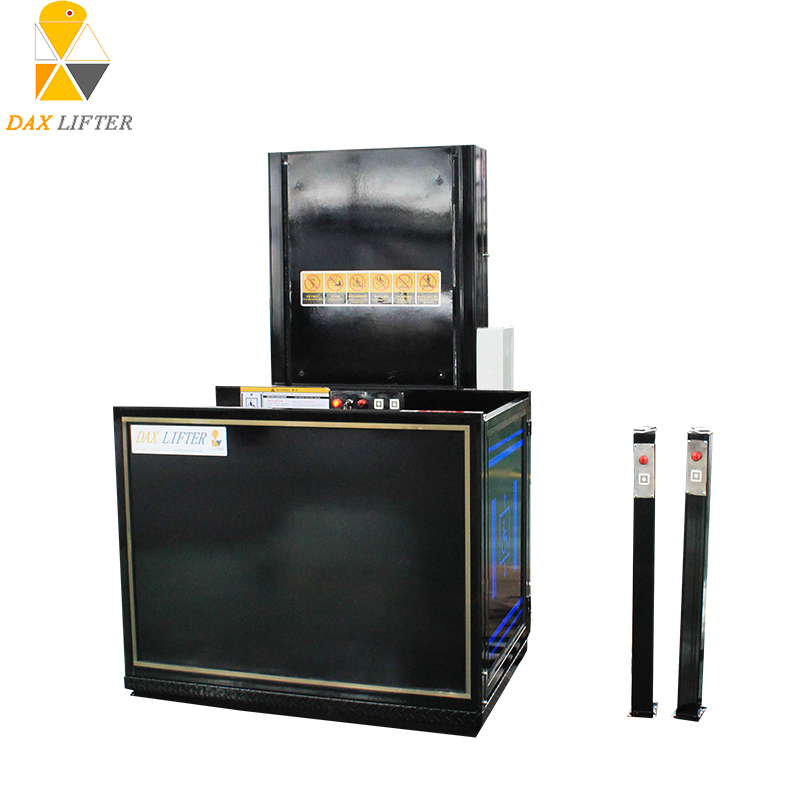

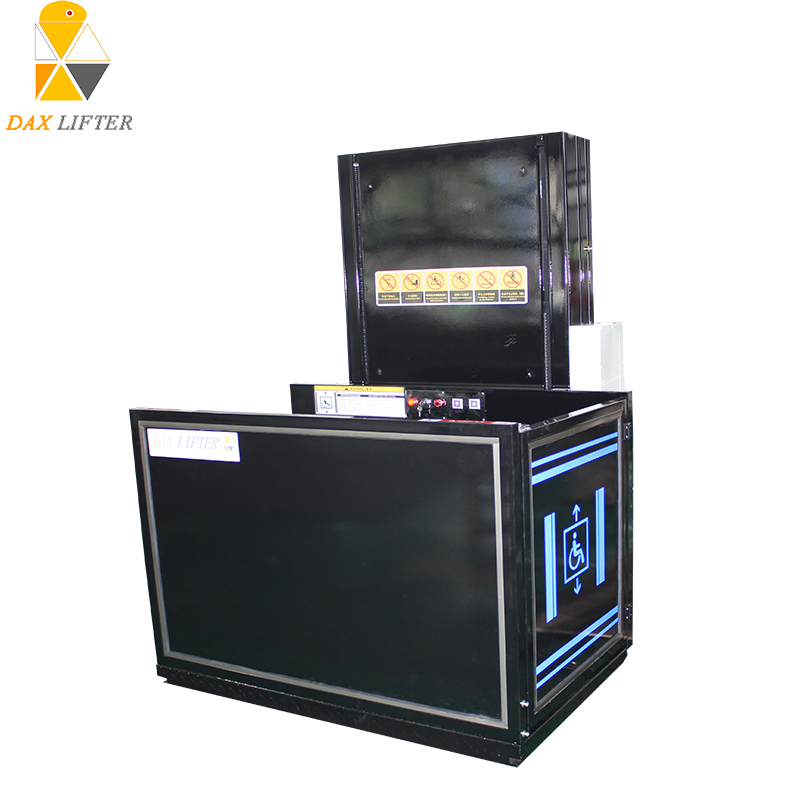

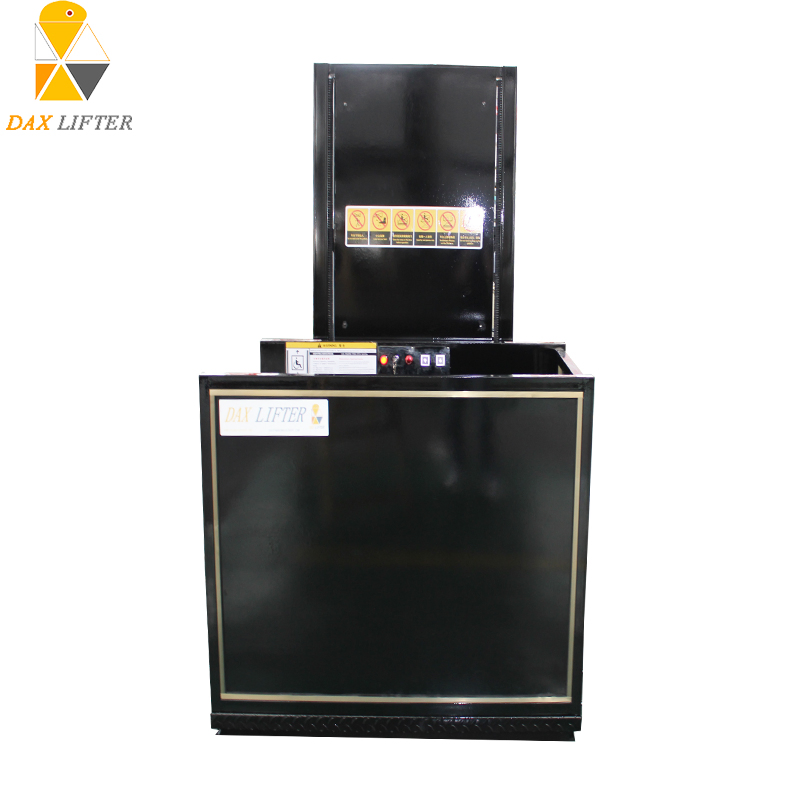

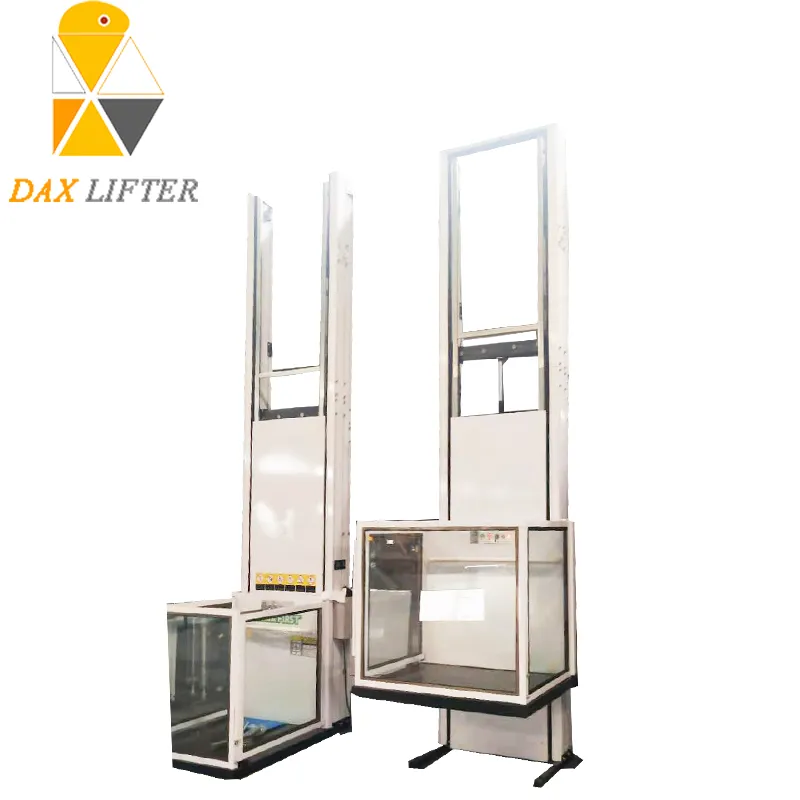

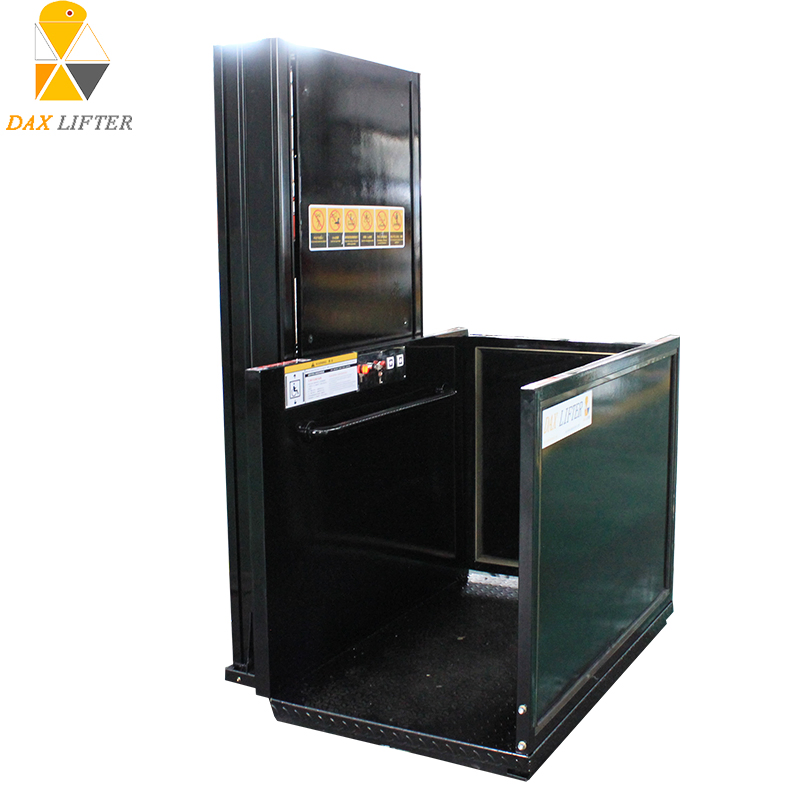

Passenger Lift Wheelchair Elevator
VWL-Series wheelchair lifts are professionally designed for the disabled and the elderly to safely overcome architectural barriers. These lifts provide high quality and durability at an economical price point. Equipped with a high-performance hydraulic pump station, the system ensures sufficient power for a smooth, low-noise lifting experience, making it ideal for residential and commercial environments.
| Model Type |
VWL2510 |
VWL2520 |
VWL2530 |
VWL2540 |
VWL2550 |
VWL2560 |
| Max Platform Height |
1000mm |
2000mm |
3000mm |
4000mm |
5000mm |
6000mm |
| Load Capacity |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
| Platform Size |
1430*1000mm skid proof checkered steel |
| Speed |
0.06~0.1m/s |
| Control Voltage |
24V/DC |
| Power Output |
1.1~2.2KW |
Core Advantages
1
H-type Guide Rail Structure
The structural design is exceptionally safe and practical, making installation significantly more convenient.
2
Premium Aluminum Alloy
Constructed using high-quality aluminum alloy which is resistant to rust and ensures a longer service life.
3
Safety Sensor System
Equipped with bottom safety sensors; the elevator stops immediately if an obstruction is detected underneath.
4

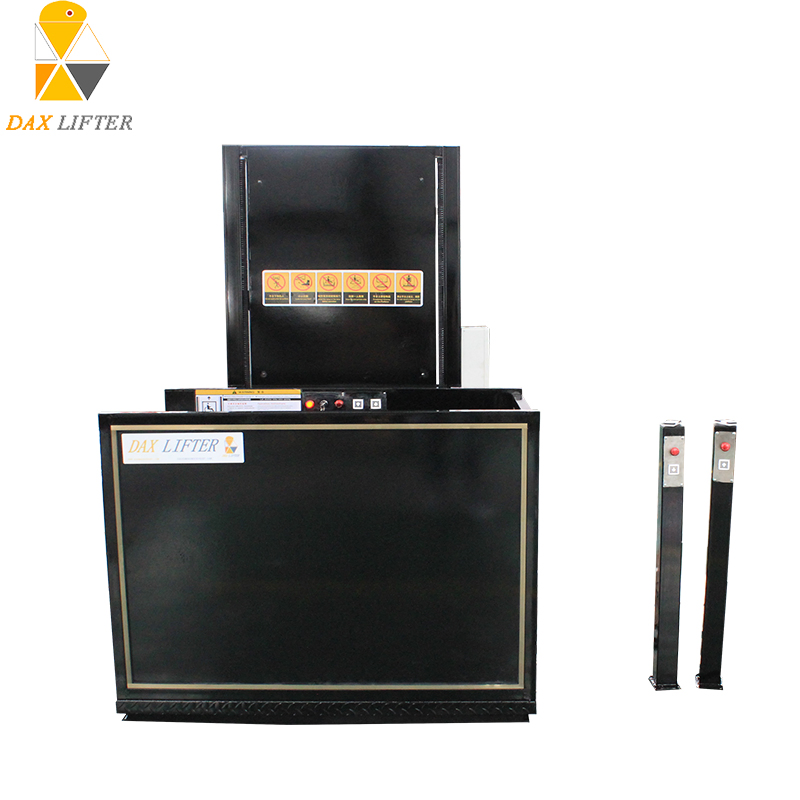

Three Control Methods
Supports platform panel operation, column control switches, and remote control for maximum accessibility.
5
Safety Configuration
Includes emergency stop buttons and an emergency lowering system to ensure user safety during power failures.
Technical Superiority
Non-slip Platform: The platform surface uses skid-proof checkered steel to prevent movement during transit.
Customizable Entrance: Supports customized 90° or 180° entrance-exit configurations to fit specific site requirements.
No Pit Required: Easy to install directly on the floor for lifts under 3.0m, or wall-mounted for higher elevations.
Frequently Asked Questions
Q1: What is the maximum weight capacity of the wheelchair elevator?
A: The standard carrying capacity for the VWL-Series is 250kg, specifically optimized for wheelchairs and passengers.
Q2: Can this lift be installed in an outdoor environment?
A: Yes, it is designed for both indoor and outdoor use, capable of operating in temperatures ranging from -20°C to 70°C.
Q3: What are the installation requirements?
A: The lift does not require a pit. For heights under 3.0m, it can be installed directly on a flat floor. For heights above 3.0m, it is secured to both the floor and the wall.
Q4: How many ways can I control the elevator?
A: There are three control methods: an on-platform control panel, column switches for ground/floor levels, and a remote control that works within a 20m range.
Q5: Is the wheelchair lift safe during a power outage?
A: Yes, the equipment is equipped with an emergency lowering button that allows the platform to descend safely even if the power is cut.
Q6: Is the product certified for safety?
A: Yes, all units are CE qualified and comply with ISO 9001 standards, ensuring high-quality manufacturing and safety performance.
