Dave Lift
Dave Lift
Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people. It is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts.
The platform lift features smooth running speed, high safety, and easy installation. It requires minimal space and no pits are required for the installation process.
| Technic Parameters and Functions | ||
|---|---|---|
| Voltage | 220V/50HZ or Customized | |

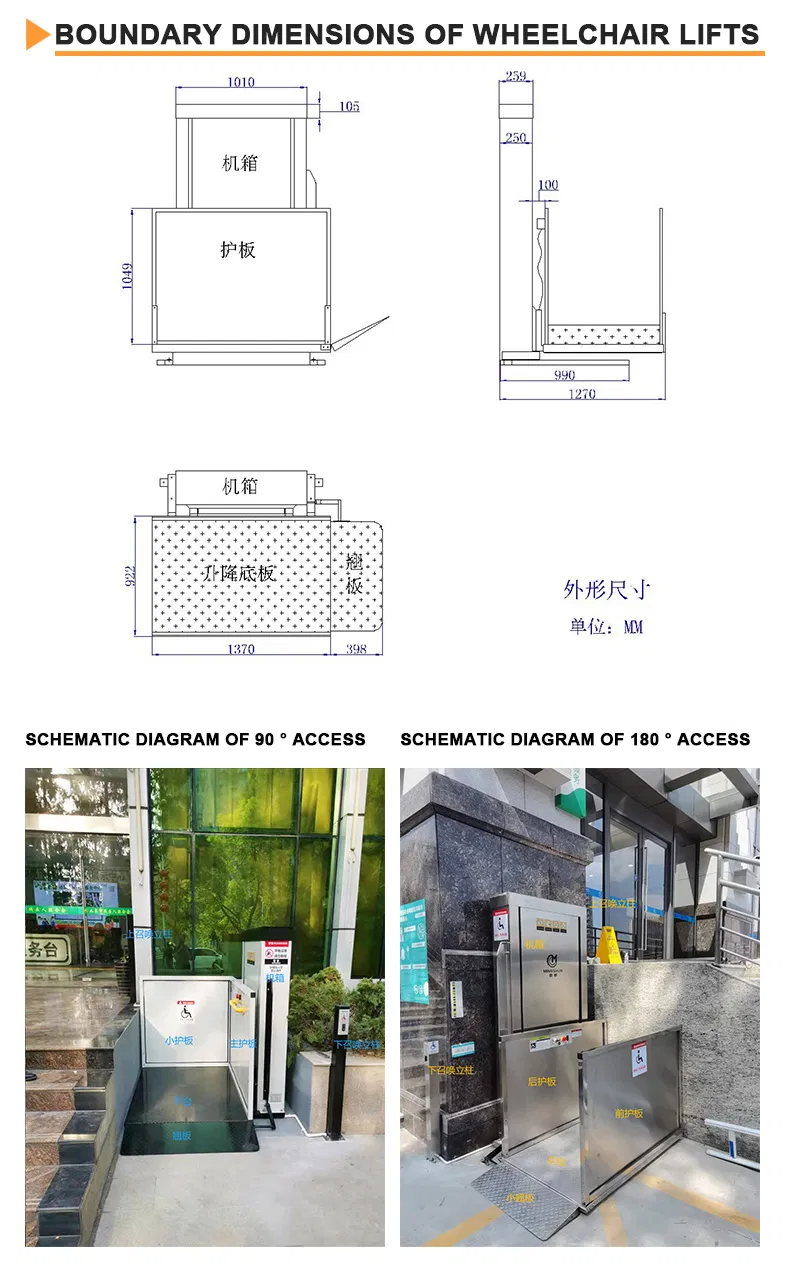

| Overall Dimensions | 1670mm(L)×1270mm(W)×(lifting height+550)mm (H) | |
| Lifting Height | 2000mm (customizable) | |
| Base Plate Min Height | 60mm from the ground | |
| Installation | No Foundation Required | |
| Lifting Speed | 60mm/s inverter control, soft start/brake | |
| Max Loading | 240kg | |
| Guard Form | 90° or 180° configuration | |
| Drive System | Screw Drive | |
| Power | 2.2kw 220V/AC | |
| Environment | Indoor & Outdoor (-20°C to 60°C) | |
| Safety Equipment | Safety Rocker | Automatically tilts up to prevent wheelchair sliding |
| Overload Protection | Does not operate when overloaded | |
| Emergency Stop | Standard emergency button switch control | |
| Emergency Descent | Electric emergency descent system | |
