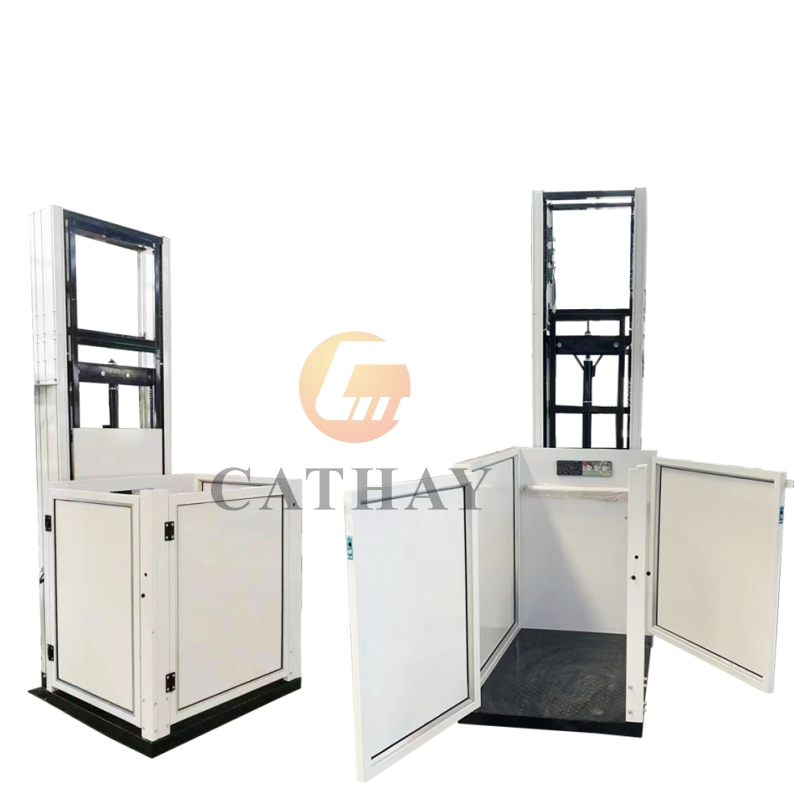

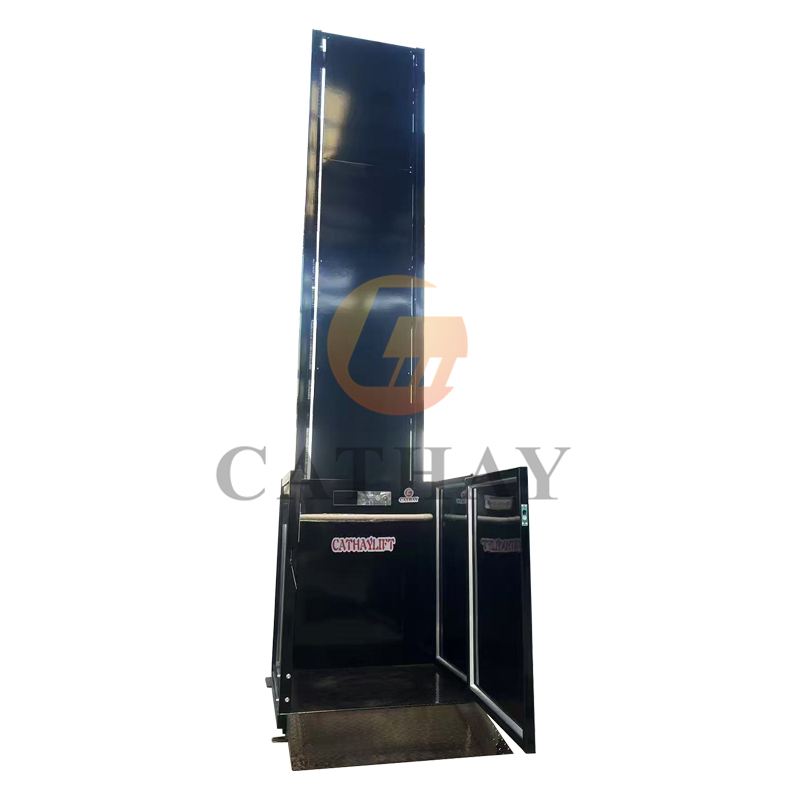

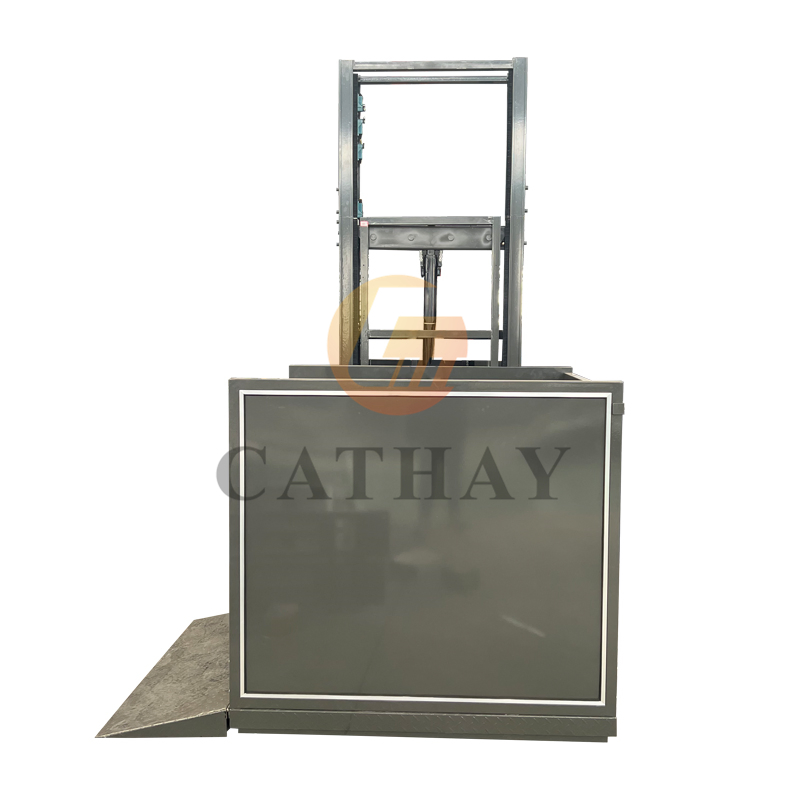

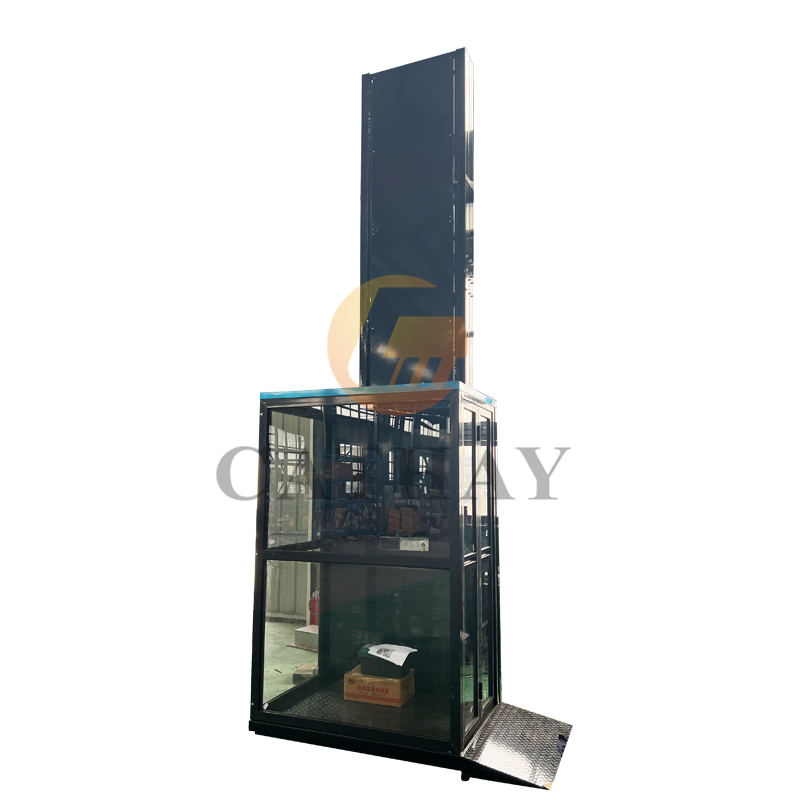

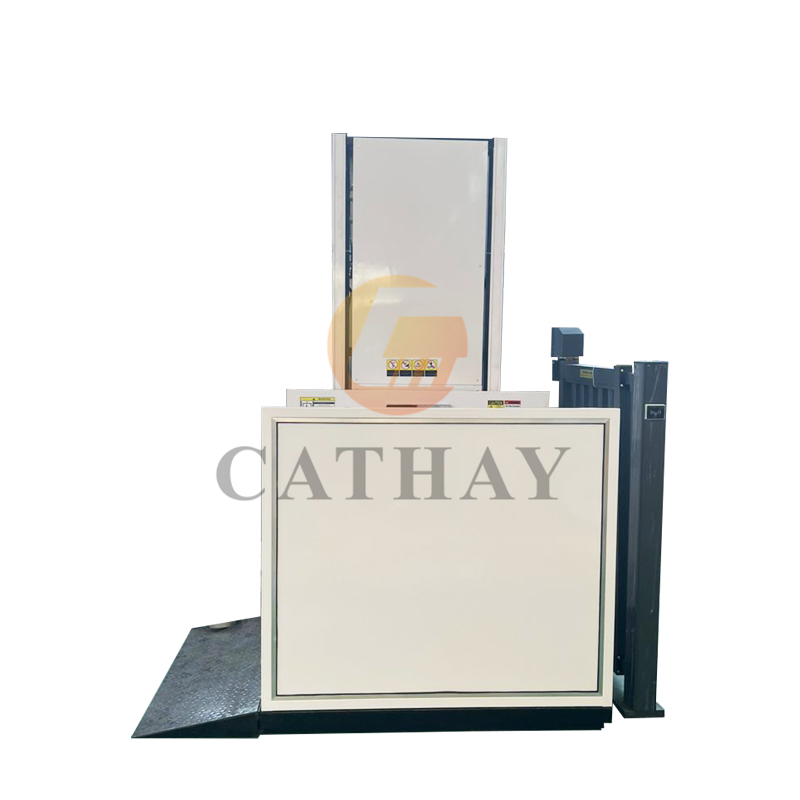

CE 1~15m Residential Indoor Outdoor Vertical Platform Stair Home Small Personal Elevator Wheelchair Lift for Home

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Application:Workshop, Shipboard, Warehouse, Building
Lift Mechanism:Lift Chain
Capacity:250kg ~ 500kg
Driven Type:AC Hydraulic
Lifting Height:1m ~ 12m
Voltage:110V/220V/380V/440V
Lifting Speed:0.01 ~ 0.2m/s
Certification:GS, CE, RoHS, ISO 9001
Product Description

Electric Hydraulic Wheelchair Platform Lift for Indoor & Outdoor Use

This high-performance wheelchair lift offers a lifting height range of 1 to 12 meters with a robust capacity of 250kg to 500kg. Engineered for stability and security, these custom lifts adapt perfectly to various environments, including harsh outdoor settings or general explosion-proof locations. Flexible configurations allow for personalized platform sizes and entry/exit orientations to meet specific user needs.

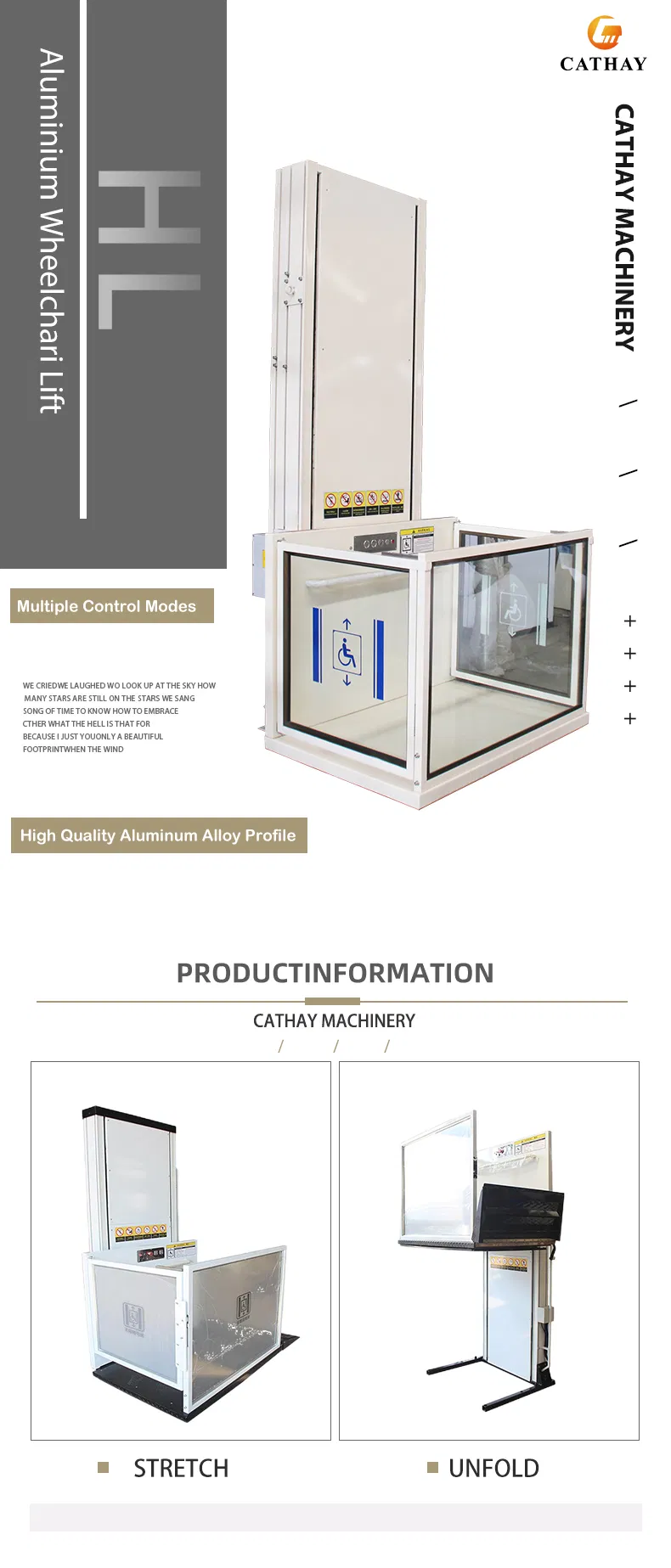

Wheelchair Lift Overview
Technical Parameters
Model HL10 HL20 HL30 HL40 HL50 HL60 HL80 HL100
Max Platform Height 1000mm 2000mm 3000mm 4000mm 5000mm 6000mm 8000mm 10000mm
Load Capacity 250kg 250kg 250kg 250kg 250kg 250kg 250kg 250kg
Machine Weight (kg) 350 550 780 880 1000 1100 1300 1500
Platform Size 1430mm * 1000mm (Skid-proof checkered steel)
Drive System Hydraulic silent pump station and electric motor

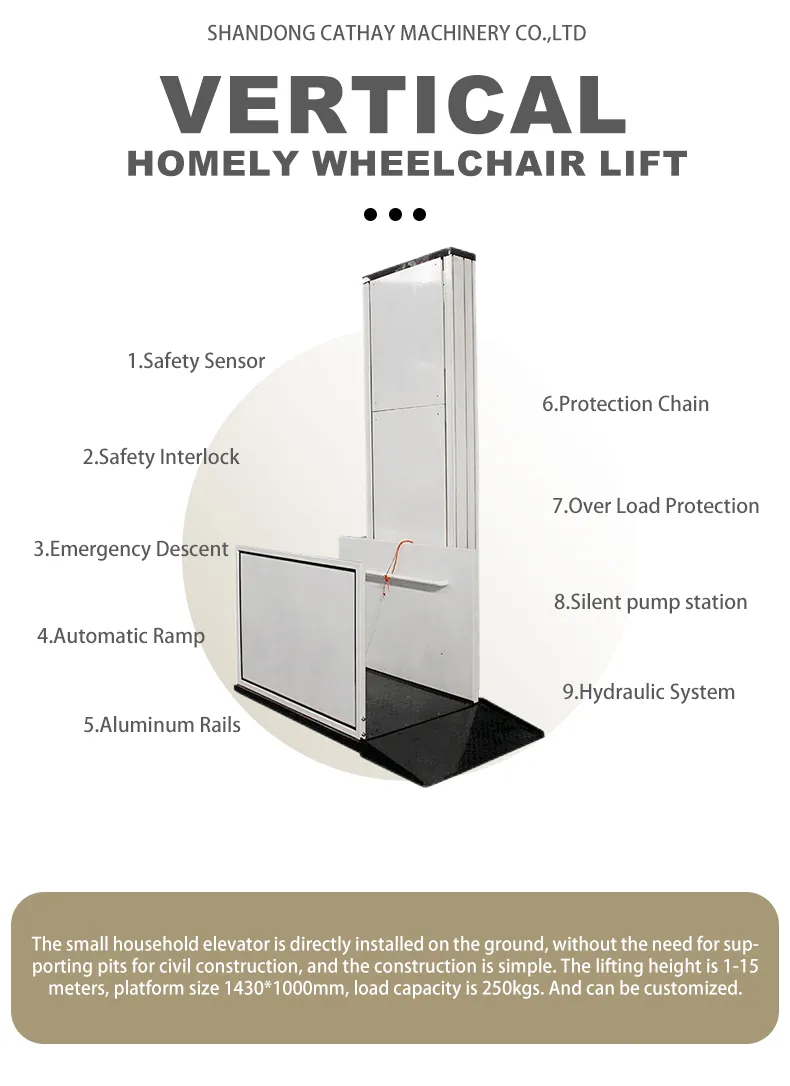

Key Advantages

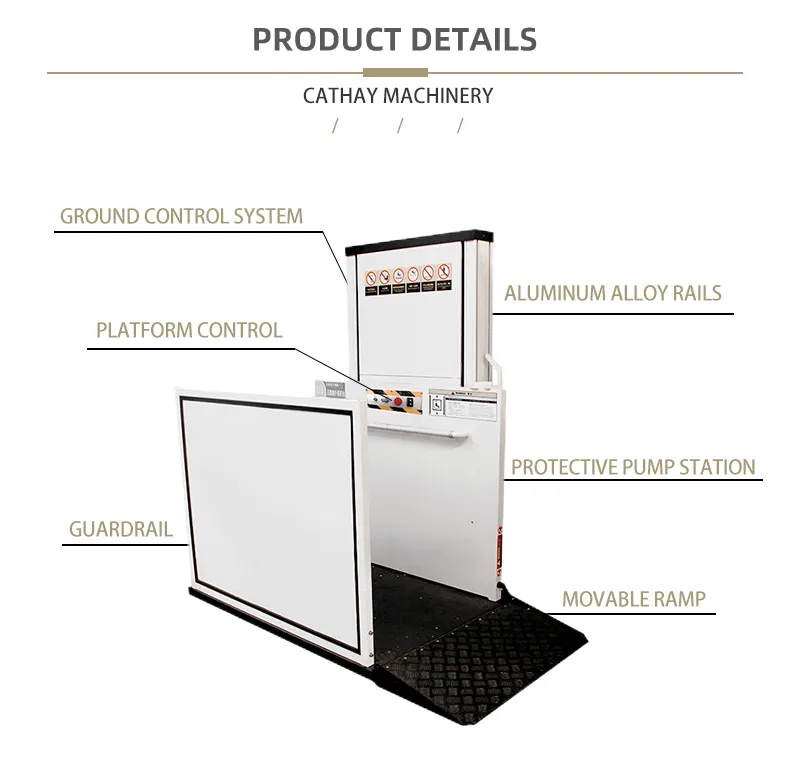

Advantage 1 Advantage 2 Advantage 3
  • Safety Sensor Protection: Equipped with sensors beneath the car that stop the platform immediately if an obstacle is detected.
  • Silent Operation: High-quality pump station ensures a quiet and comfortable experience, meeting international noise standards.
  • Emergency Functions: Features manual pressure relief and descent mechanisms for safety during power outages.
  • Durable Construction: High-strength aluminum alloy rails ensure long-term stability and durability.
  • Automatic Ramp: The ramp folds automatically during operation to ensure smooth transitions and safety.
  • Overload Protection: Built-in overcurrent relays and relief valves prevent operation beyond rated capacity.

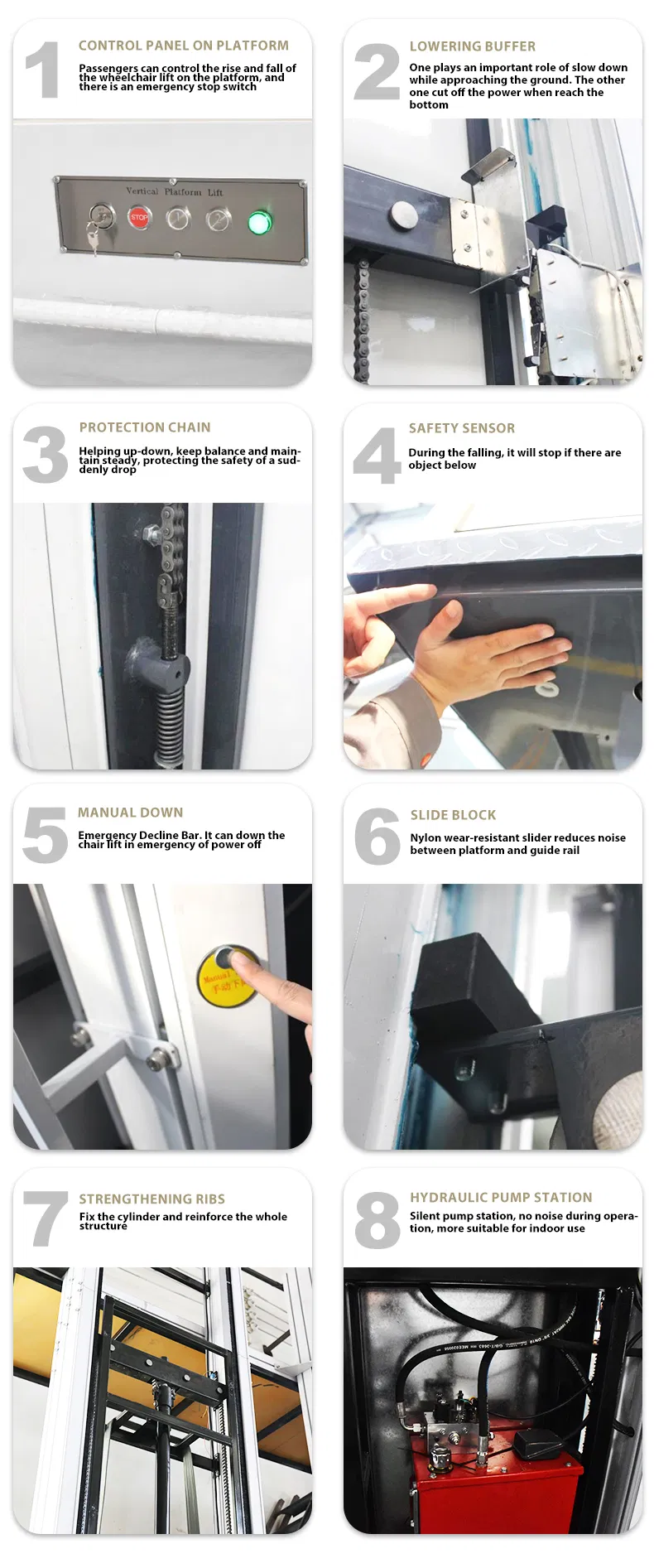

Safety Features

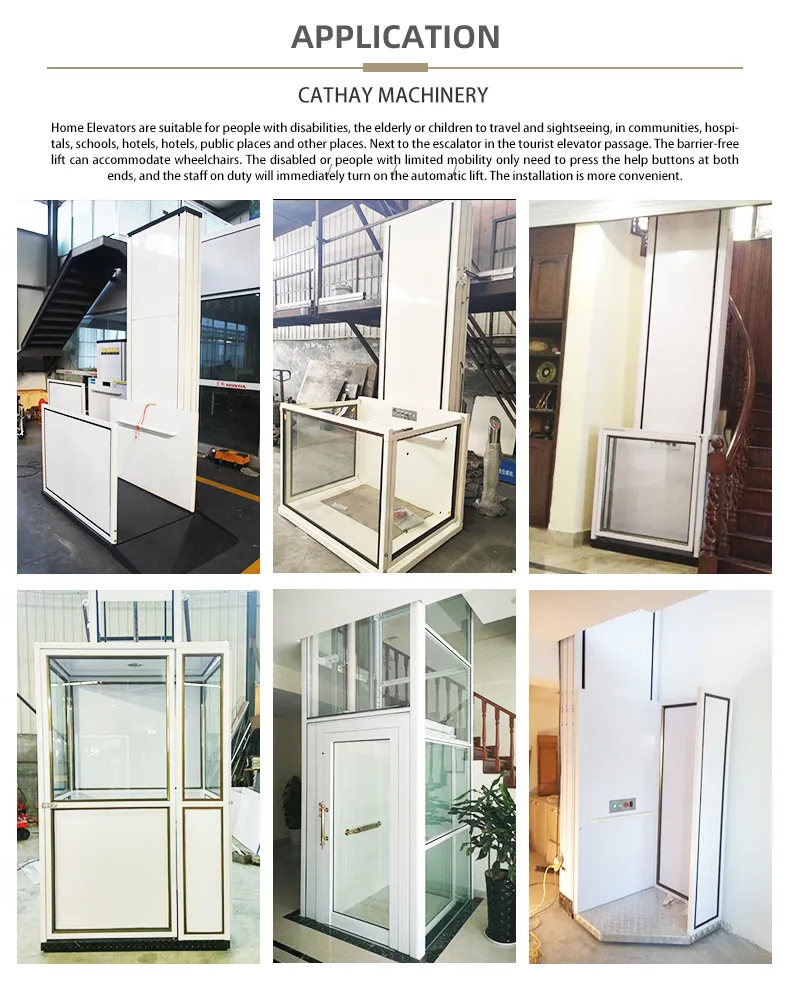

Applications & Practical Use

These hydraulic lifts provide an efficient way to move between floors in residential and commercial spaces. They are ideal for seniors and individuals with mobility challenges, fitting seamlessly into new home builds or retrofits. Whether connecting a basement to a ground floor or providing rooftop access, these lifts offer convenience, flexibility, and cost-effectiveness.

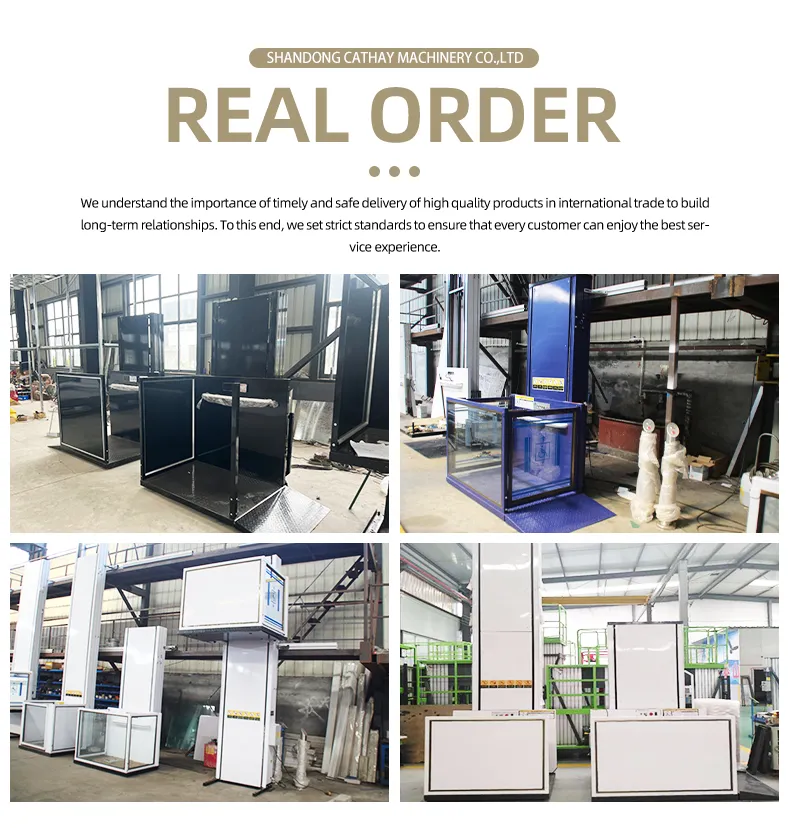

Application 1 Application 2
Manufacturing & Quality Control

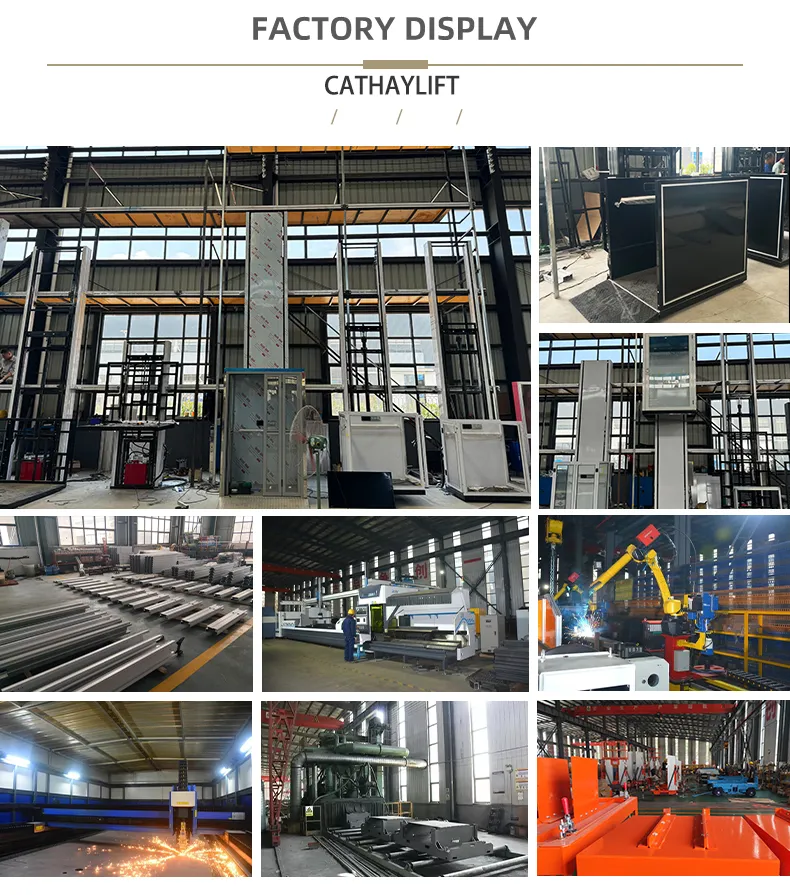

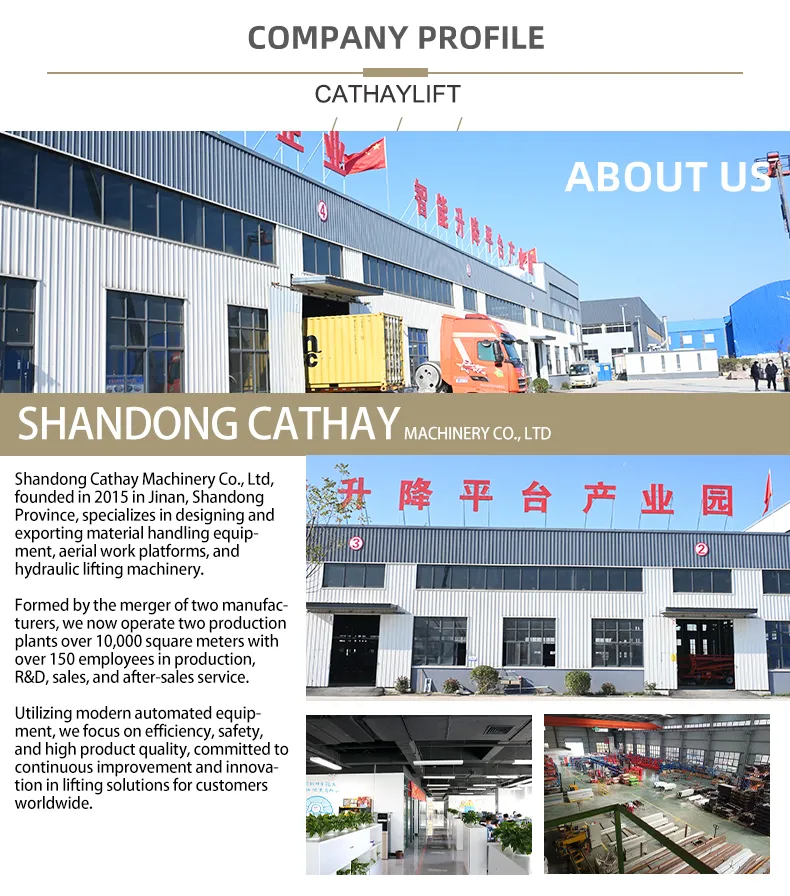

Production Workshop Certifications
Global Reach & Related Products
Teams and Customers
Related Product 1 Related Product 2 Related Product 3
Frequently Asked Questions
What is the maximum lifting height available?
The platform lift can be customized to reach heights between 1 meter and 12 meters, depending on the model and installation requirements.
Is the lift suitable for outdoor installation?
Yes, the lift is designed to operate in both indoor and outdoor environments, withstanding temperatures ranging from -20°C to 70°C.
What safety features are included for the user?
Safety features include a bottom safety sensor to detect obstacles, an emergency manual descent valve, a safety interlock system, and overload protection.
Can the platform size be customized?
Yes, we provide tailored solutions where the table size, lifting height, and even the cabin configuration can be customized to meet specific space requirements.
How is the lift controlled?
The system offers multiple control options: a control panel on the platform, column switches for each floor, and a remote control that works within a 20-meter range.
What are the power requirements?
The lift supports various voltages (110V, 220V, 380V, 440V) and can be configured for either single-phase or three-phase power according to your local standards.
