Basic Specifications
Driving Type
Screw Drive & Hydraulic Drive
Computer Room
Without Computer Room
Transport Package
Export Wooden Box Packaging
Production Capacity
10000 sets Per Month
Product Description

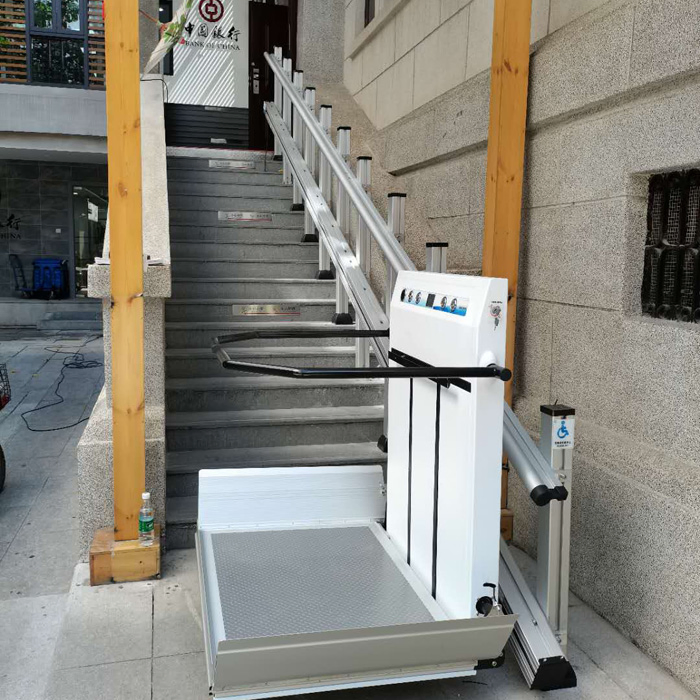

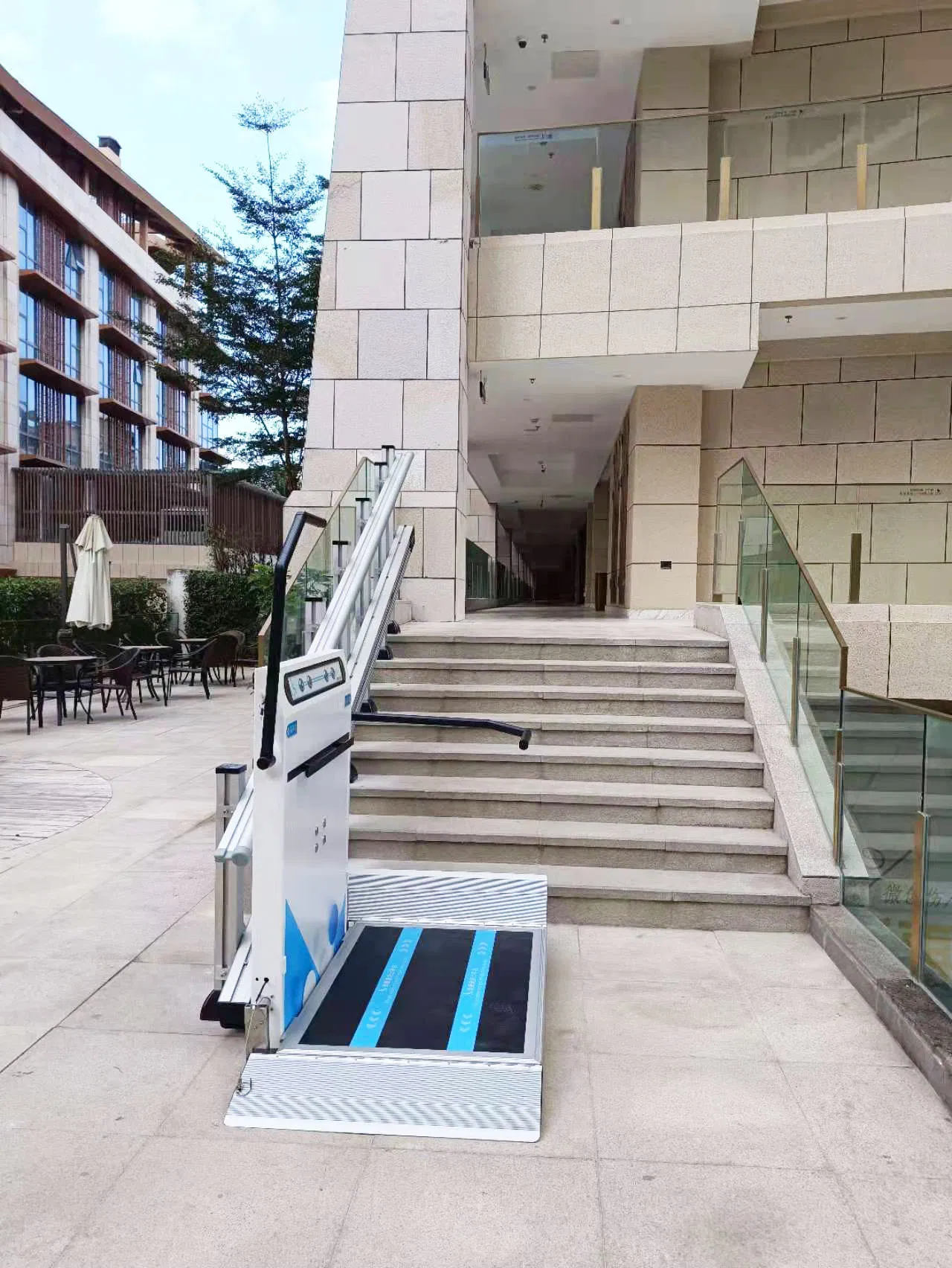

Indoor and outdoor electric inclined wheelchair lift for stairs combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase. These lifts can carry a passenger with wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal for applications where an elevator or vertical platform lift cannot be easily accommodated.
Technical Parameters
| Platform load |
250kg |
Platform weight |
≈150 kg |
| Operating surface size |
680mm*60mm (L*H) |
Platform manned size |
1118mm*800mm |
| Side flap size |
885mm*260mm(L*W) |
Side flap tiltable angle |
-30°~ +60° |
| Guardrail height |
945mm |
Button height |
1088mm |
| Device thickness |
450mm±3mm |
Folding Thickness |
323mm±1mm |
Material & Construction
| Platform Shell |
White spray + matt film |
Platform Pedal |
Aluminum Alloy Profile |
| Operation Panel |
Electroplated acrylic |
Action Button |
Stainless steel |
| Side Panel Seal |
Aluminum alloy |
Automatic Guardrail |
Stainless steel wire drawing |
Power & Drive System
| Motor Power |
1 kw |
Speed Ratio |
≤80:1 |
| Running Speed |
0.01~0.16 m /s |
Power Supply |
220v 50hz |
| Control Voltage |
DC 24V, 5V |
Emergency Stop |
<0.5s response |
Frequently Asked Questions
What is the maximum load capacity of the X-500L?
The standard capacity is 250kg, which is designed to safely accommodate a wheelchair user and their equipment or 2-3 people.
Can this lift be installed in outdoor environments?
Yes, this inclined platform lift is designed for both indoor and outdoor applications, featuring durable materials like stainless steel and aluminum alloy.
How much space does the lift take when not in use?

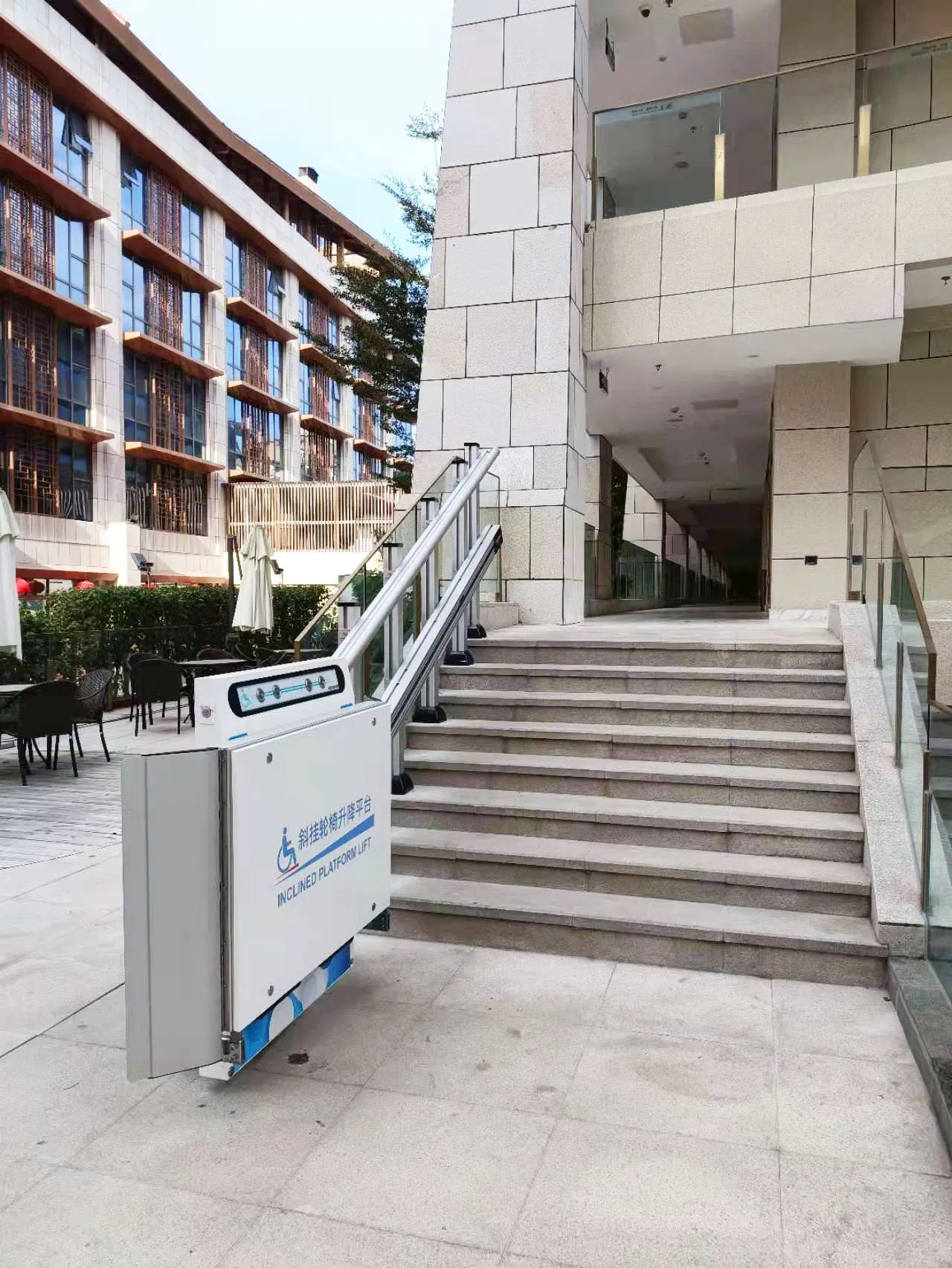

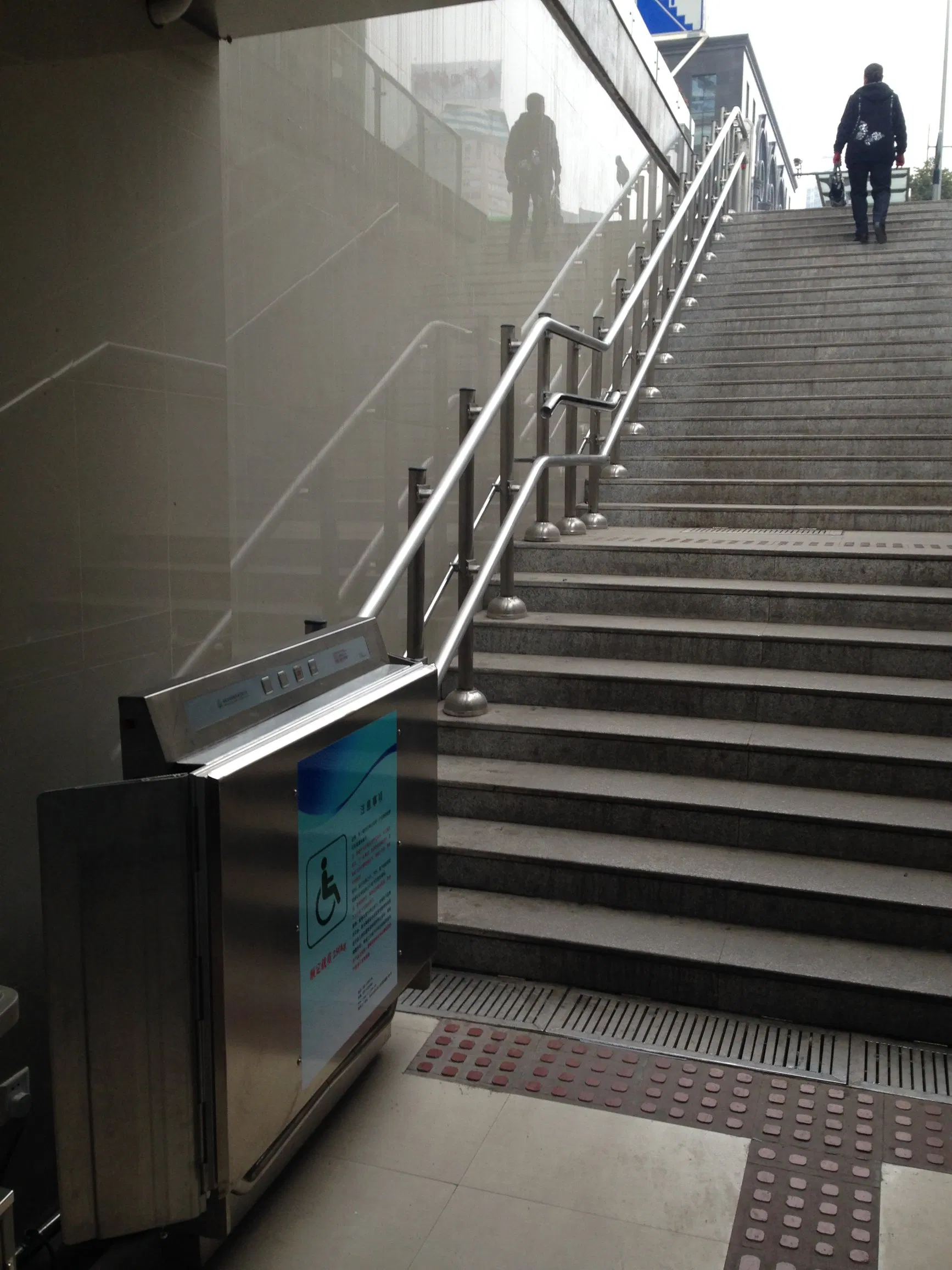

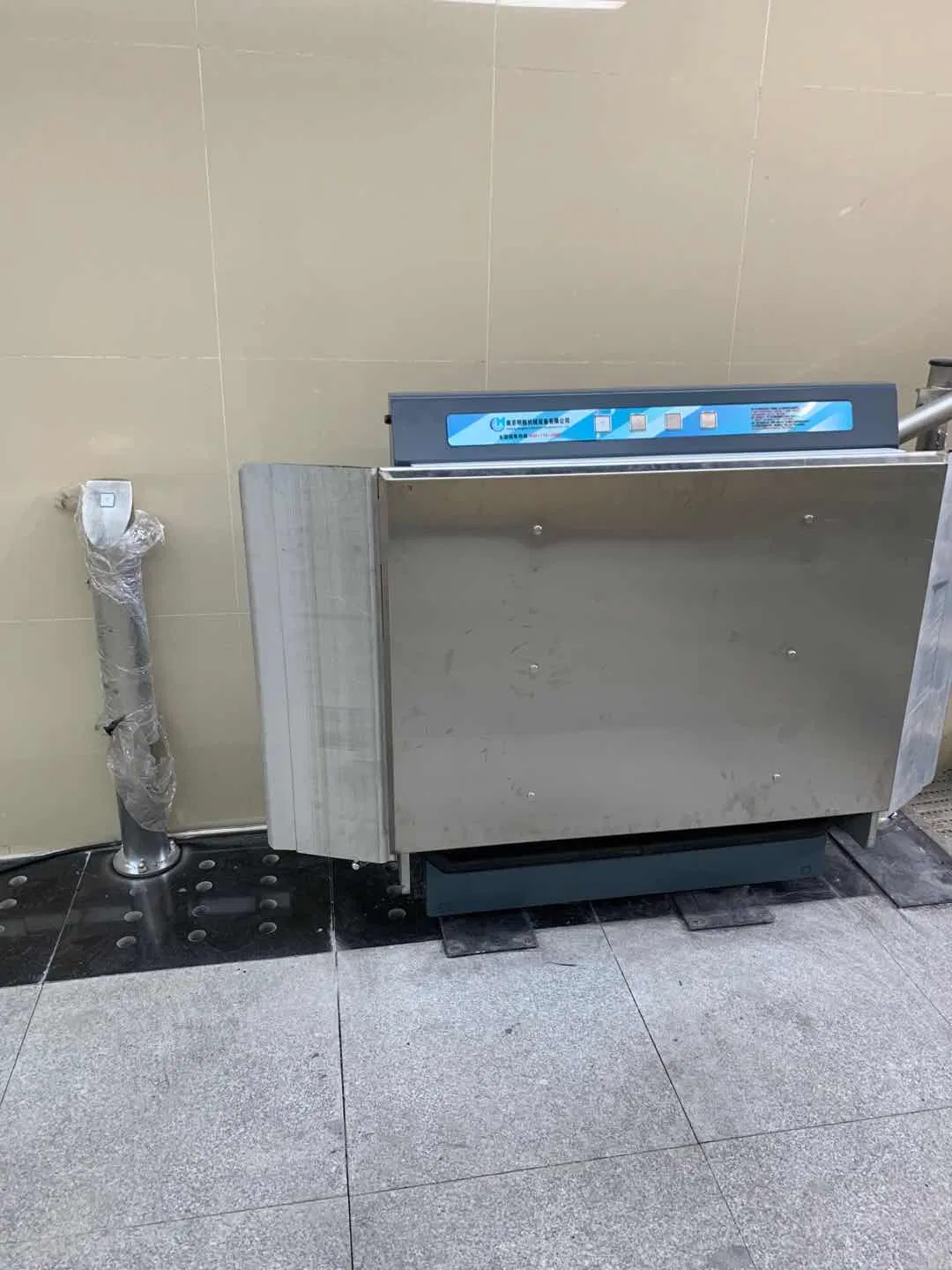

The platform is foldable. When folded, the thickness of the device is only approximately 323mm, ensuring the staircase remains accessible to others.
What are the power requirements for installation?
The system operates on a standard 220V 50Hz power supply with a motor power of 1kW. The internal control voltage uses a safe DC 24V system.
What safety features are integrated into the platform?
The lift includes automatic guardrails, an emergency stop button with a response time of less than 0.5s, side flaps for easy access, and a deceleration device.
What is the lead time for a customized order?
The standard production date is approximately 30 days after receiving the deposit, allowing for customization of lifting height and color.
