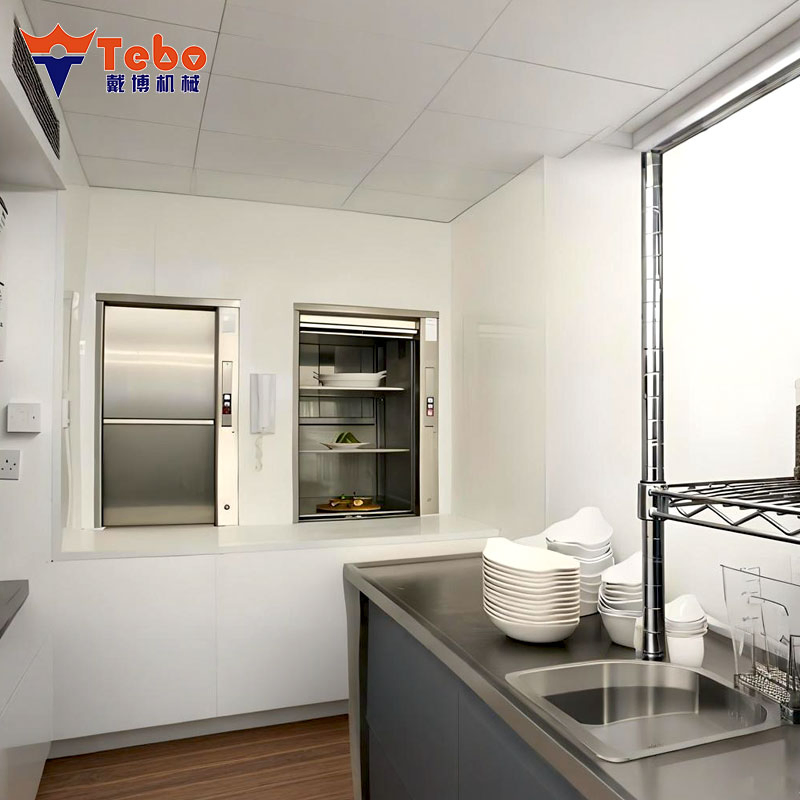

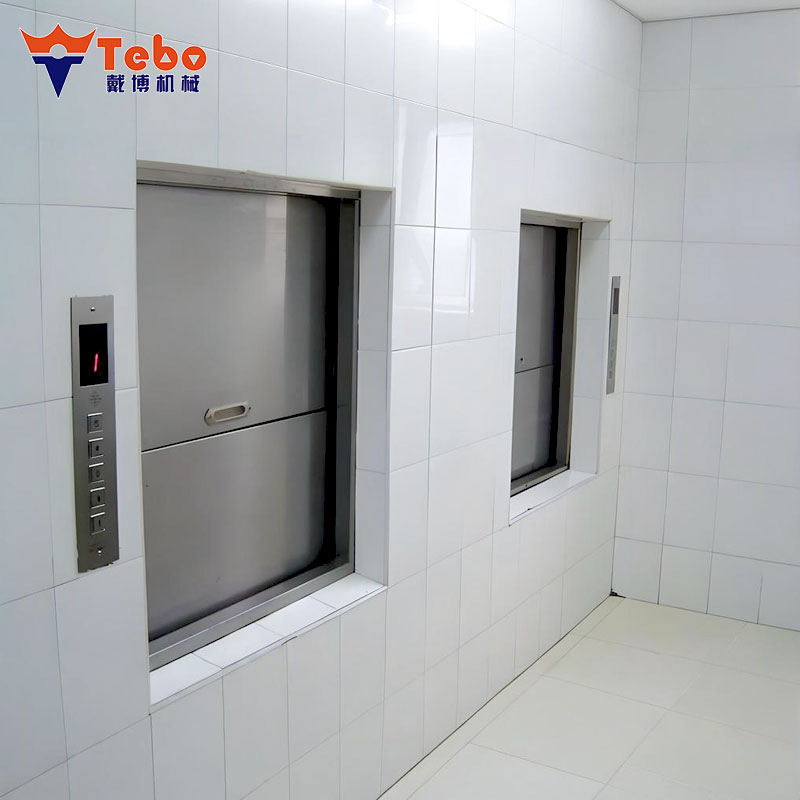

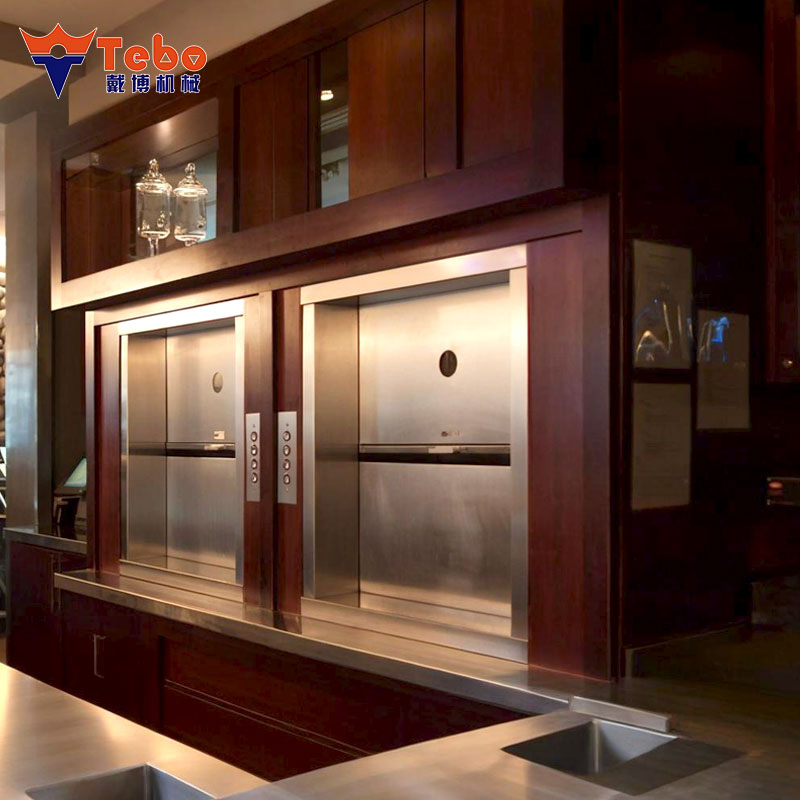

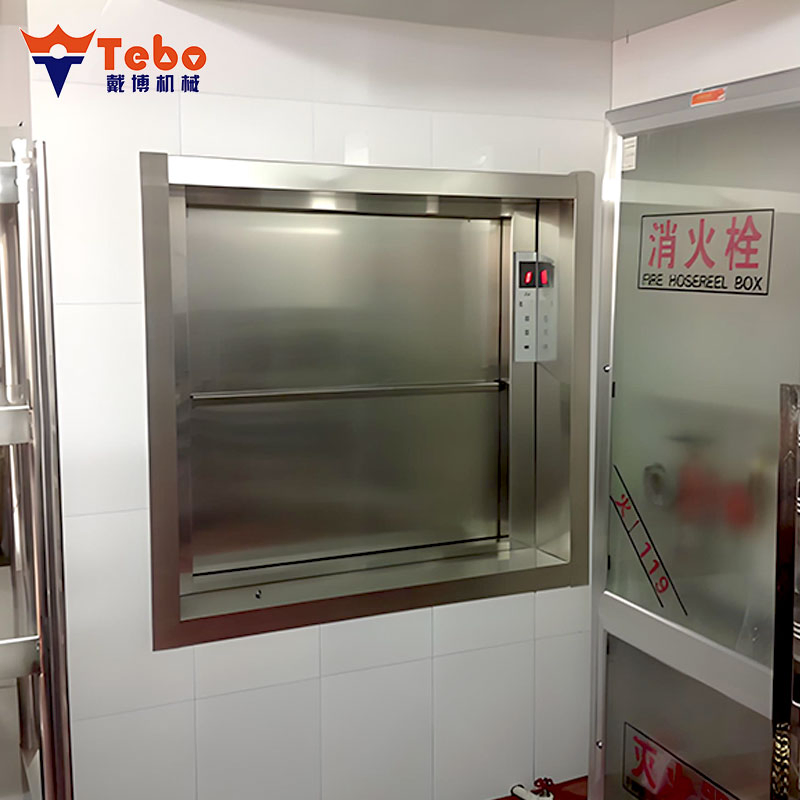

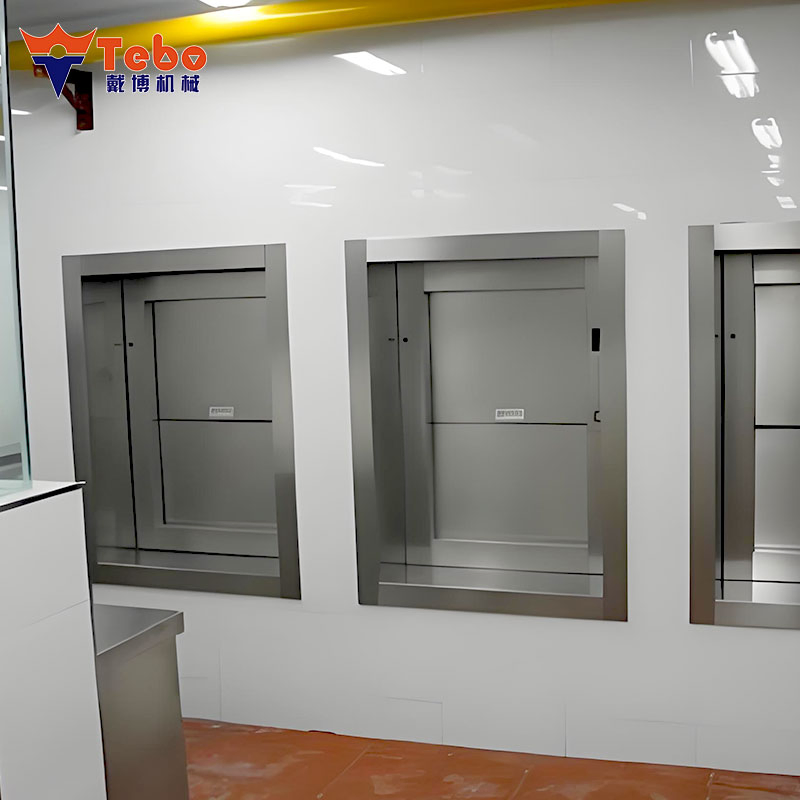

Hot Sale Food Used Hotel Restaurant Dumbwaiter Lift From High Quality Materials

Still deciding? Get samples of $ !
Request Sample

Product Description

📊

Basic Information

Model NO.
TBD-09
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Guide Rail
T Guide
Elevator Door
Center Opening Door
Origin
China
Production Capacity
1000 Sets/Year
HS Code
8428909090
🍴

Product Description

Dumbwaiter Lift Overview

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning.

The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings. Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals.

The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use. Its enclosed design prevents contamination and meets food-hygiene standards. Thanks to its compact footprint and flexible installation options, it easily adapts to kitchens, dining areas, private rooms, and other spaces with limited layout conditions.

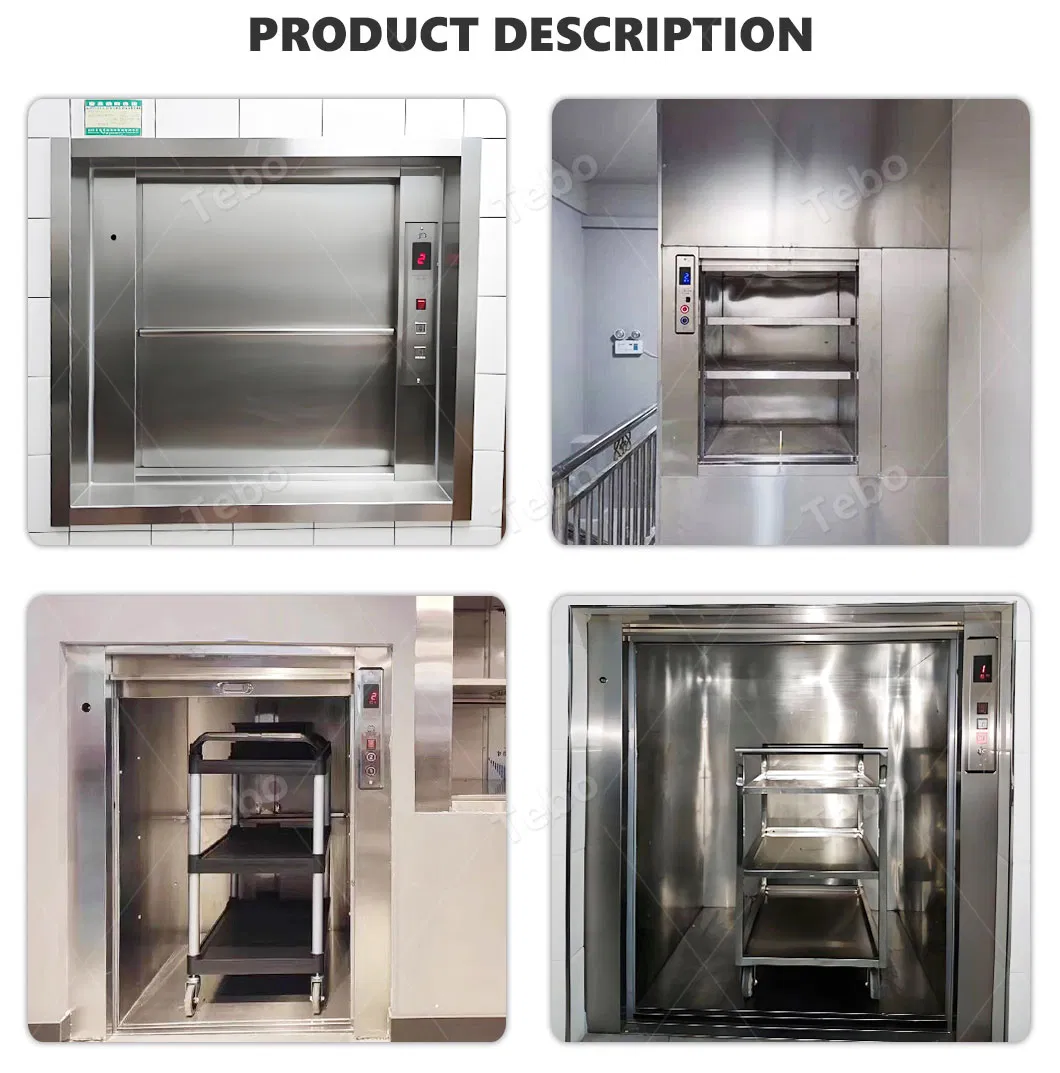

Dumbwaiter Application
📋

Technical Parameters

Window Type Specification

Load(kg) Cabin Dimension (W*D*H mm) Landing Door Cabin Door Door Size (W*H mm) Sill Height Overhead Height
100600*400*800StandardOptional600*8008002800
100600*600*800StandardOptional600*8008002800
200800*800*800StandardOptional800*8008002800
200800*800*1000StandardOptional800*10008003000
2001000*1000*800StandardOptional1000*8008003000

Floor Type Specification

Load(kg) Cabin Dimension (W*D*H mm) Landing Door Cabin Door Door Size (W*H mm) Min Pit Depth Overhead Height
200800*800*1000StandardOptional800*10006002800
2001000*1000*1000StandardOptional1000*10006002800
3001000*1000*1200StandardOptional1000*12007003200
4001000*1200*1400StandardOptional1200*14008003600

* All parameters are for reference and support customization services.

🔍

Product Details

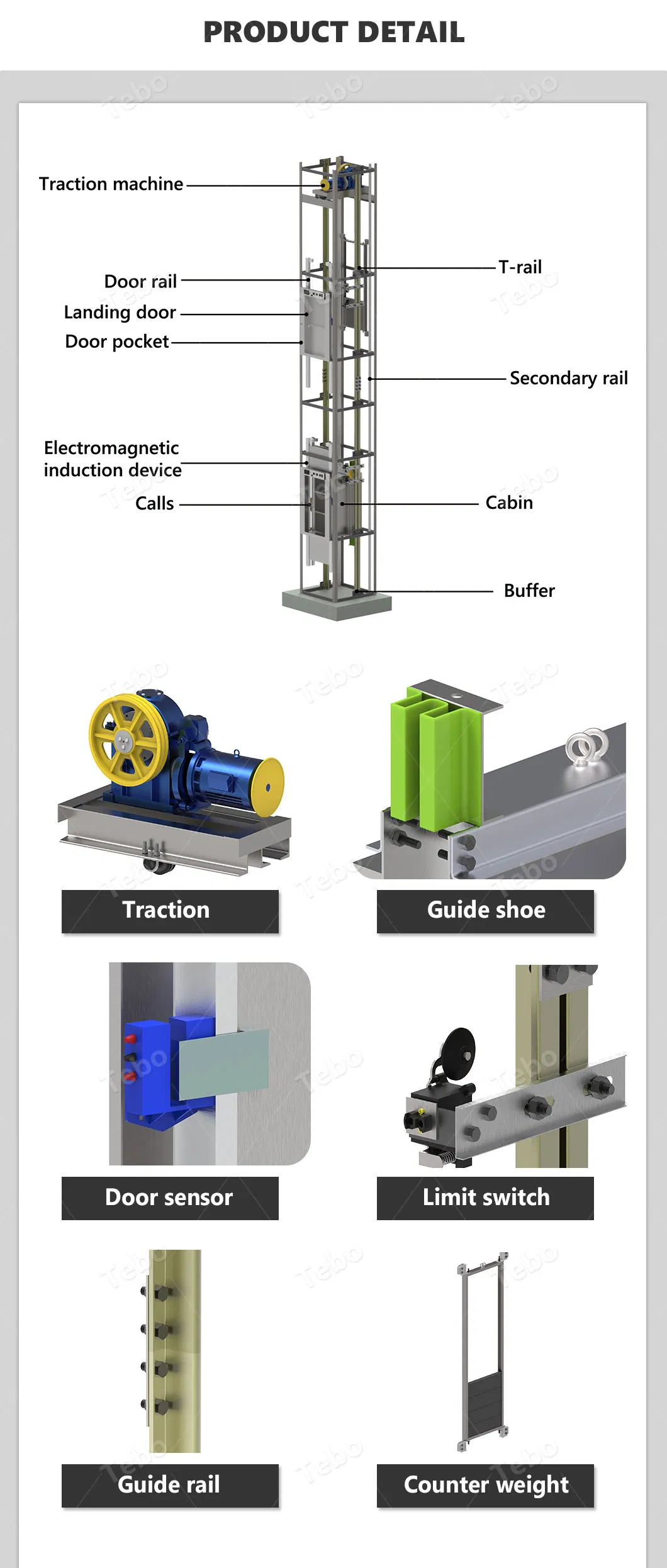

Detail 1

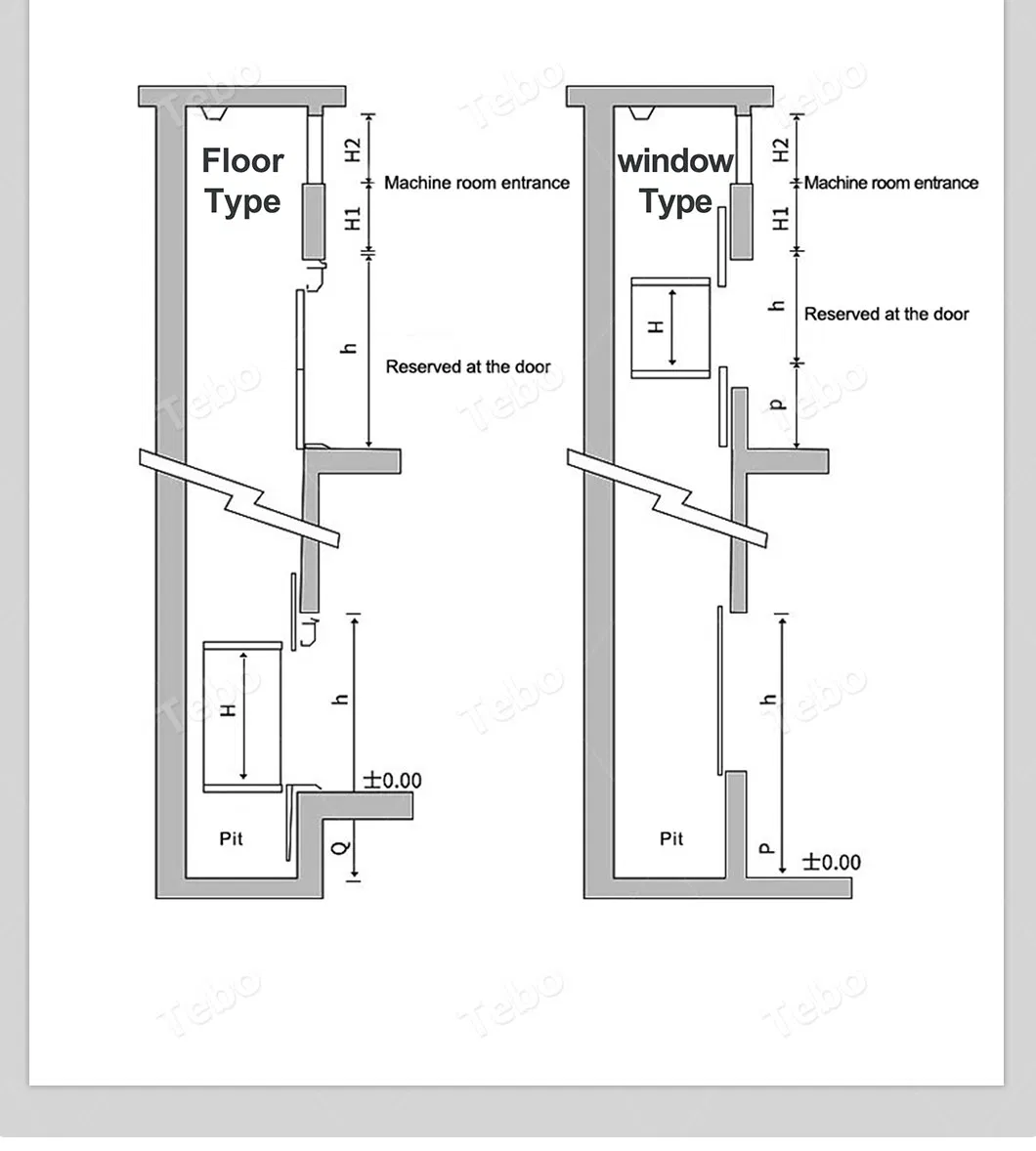

Detail 2

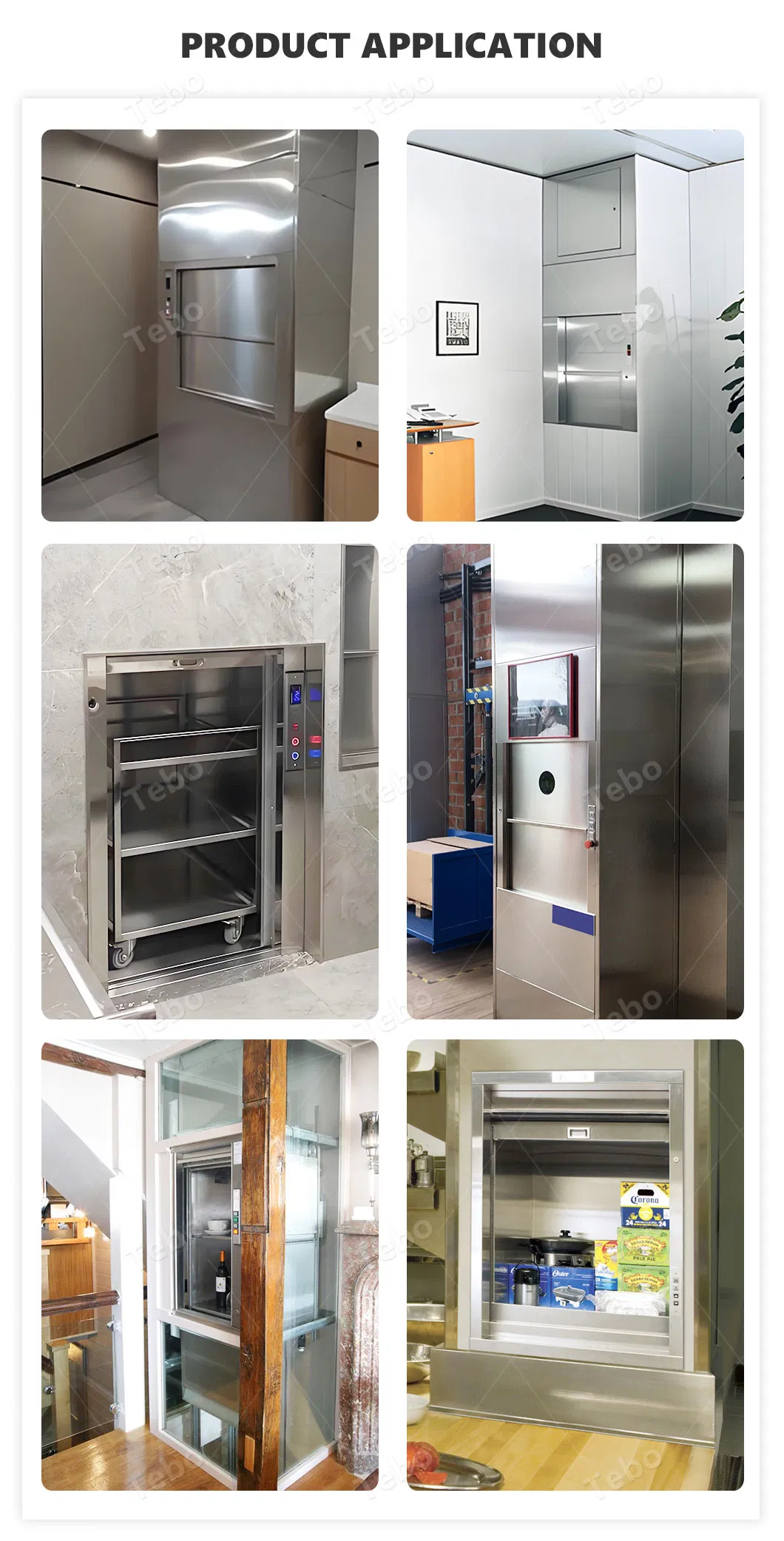

Detail 3
🏢

Company Profile

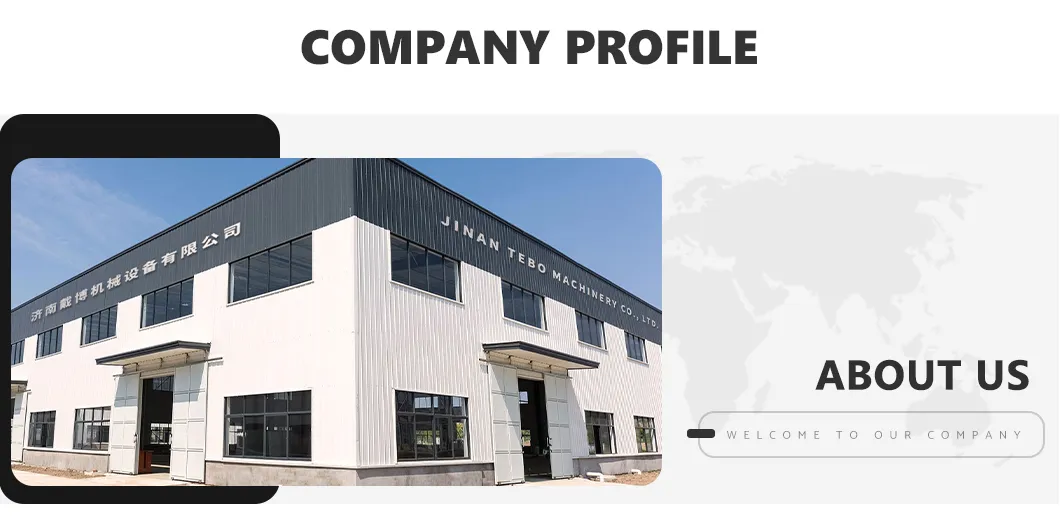

Company Facility

We are a professional enterprise specializing in the R&D and manufacturing of mechanical lifting equipment. Our production base is located in a well-connected industrial region. With an experienced and highly innovative technical team, we continuously optimize our product series, securing numerous independent intellectual property rights and patent technologies.

Our core product range includes hydraulic home elevators, hydraulic freight lifts, hydraulic car lifts, and hydraulic scissor lift platforms. We leverage stable hydraulic drive systems and exceptional load-bearing capacity to provide smooth and quiet vertical transportation for residential buildings and efficient heavy-duty lifting for commercial settings.

Equipped with advanced production facilities, including modern CNC machining centers and automated welding equipment, we ensure high precision from component processing to complete unit assembly. Our comprehensive service system covers market analysis, customized manufacturing, and full lifecycle technical support.

📜

Certifications & Logistics

Certificates

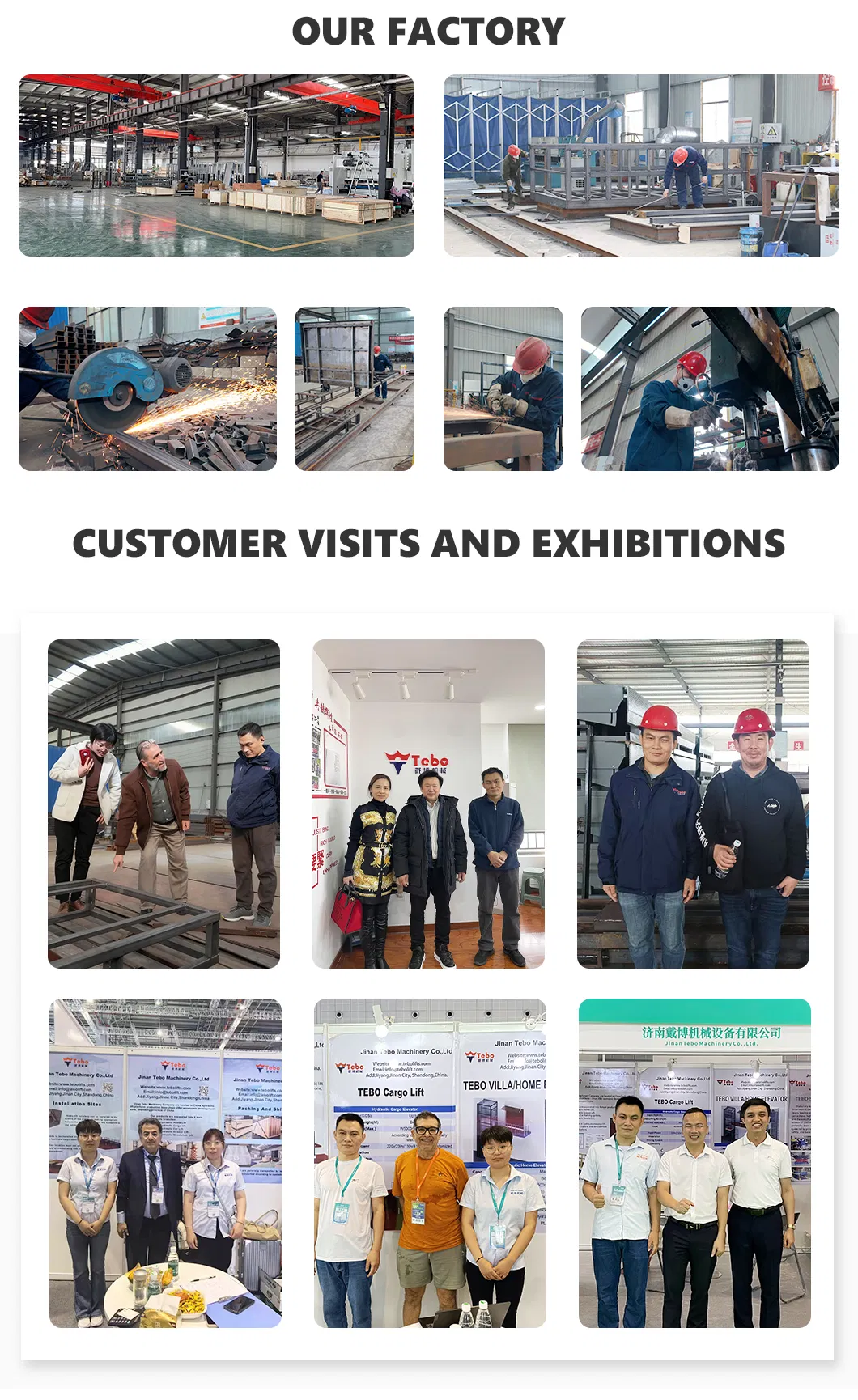

Factory View
Packaging

Frequently Asked Questions

What are the advantages of choosing your equipment?
As one of the leading manufacturers in China with a dedicated lift platform base, we offer high quality and competitive pricing. We provide on-site guidance and a 12-month warranty for the entire equipment.
What pre-sales and after-sales services do you provide?
Pre-sales: Expert consultation and bespoke machine blueprints. After-sales: Follow-up service, detailed assembly drawings, installation manuals, and technical support response within 2 hours.
How is the equipment packaged for shipping?
We typically use standard plywood cases for export. If you have special requirements or specific shipping marks, we can customize the packaging accordingly.
What is the typical lead time for shipping?
It depends on the specific product, but standard orders usually take 10 working days after payment. We guarantee the fastest possible shipping for all our clients.
What are the accepted payment methods and terms?
We accept standard international terms including EXW, FOB, CFR, and CIF. Typically, payment is made before production with the balance cleared prior to delivery.
Can the cabin size be customized?
Yes, both the cabin inside dimensions and overhead height are fully customizable to fit your specific building layout and service requirements.
