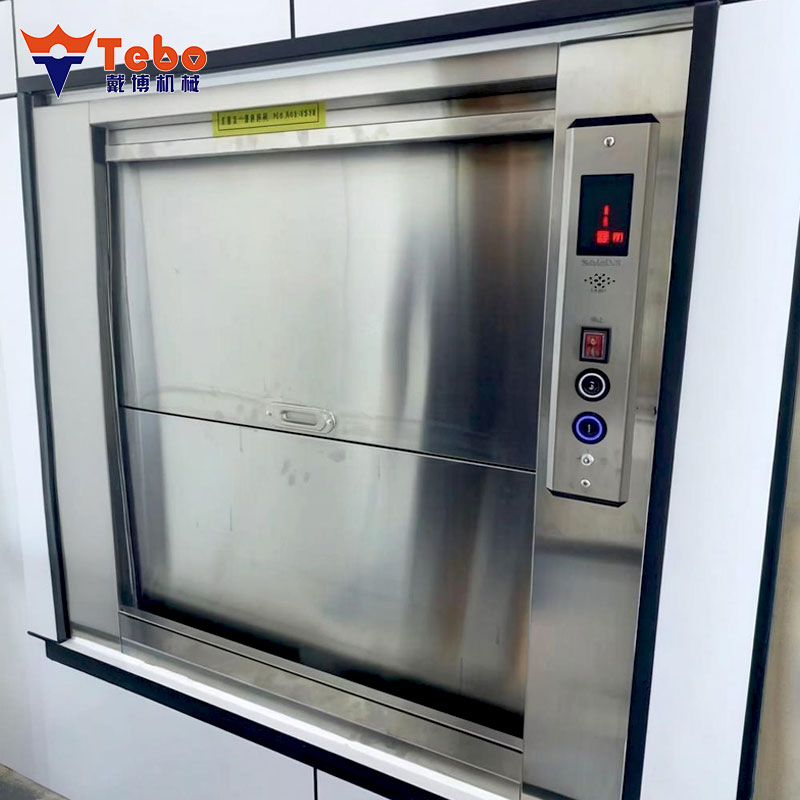

Industrial Cargo Elevator and Dumbwaiter Lift for Warehouse or Factory

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
TBD-29
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Guide Rail
T Guide
Elevator Door
Center Opening Door
Production Capacity
1000 Sets/Year
🚀 Product Description

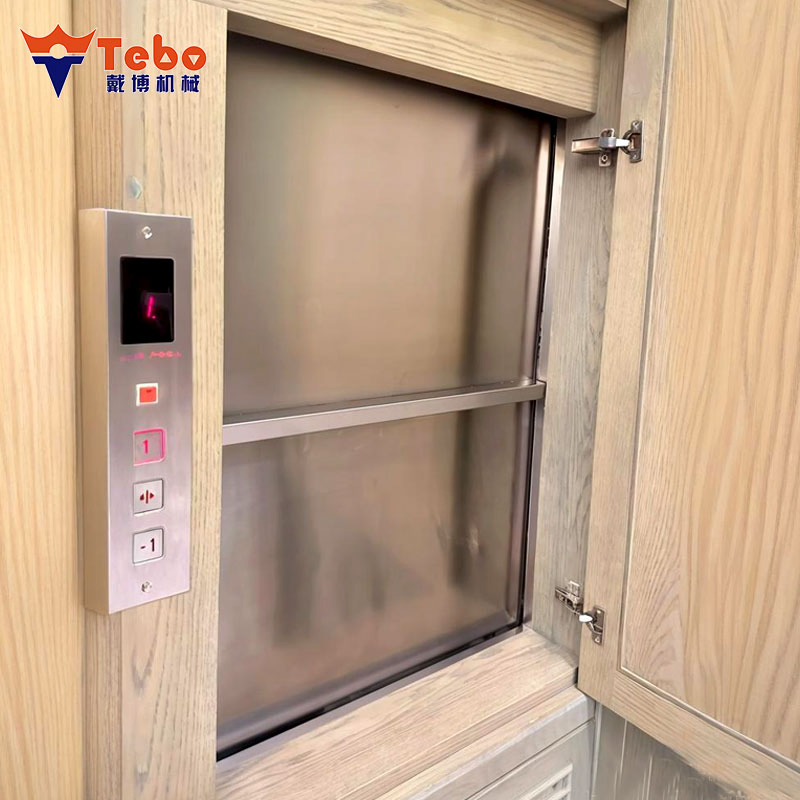

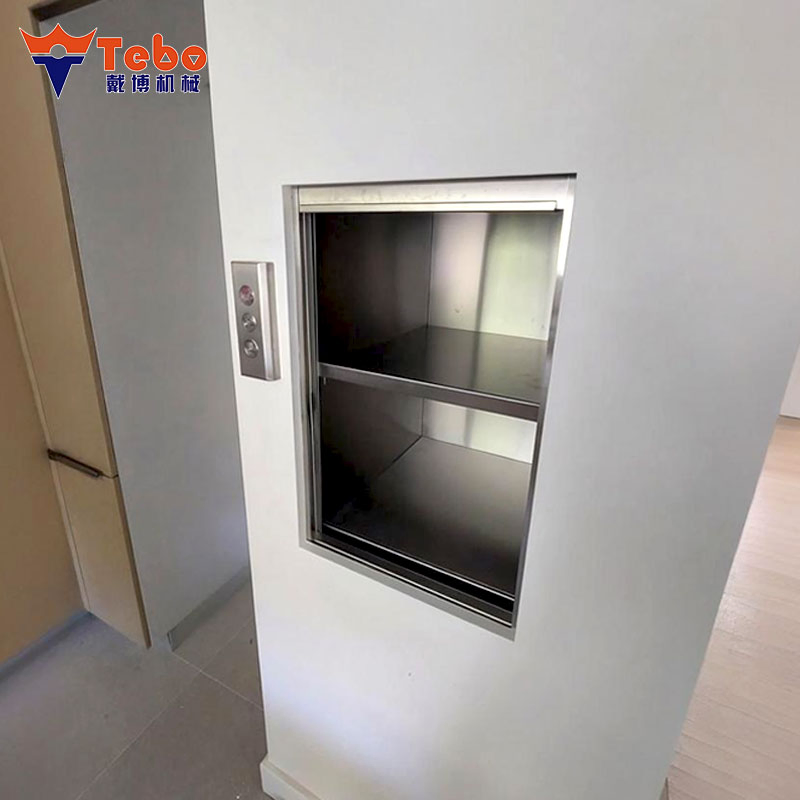

Industrial Cargo Elevator
The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

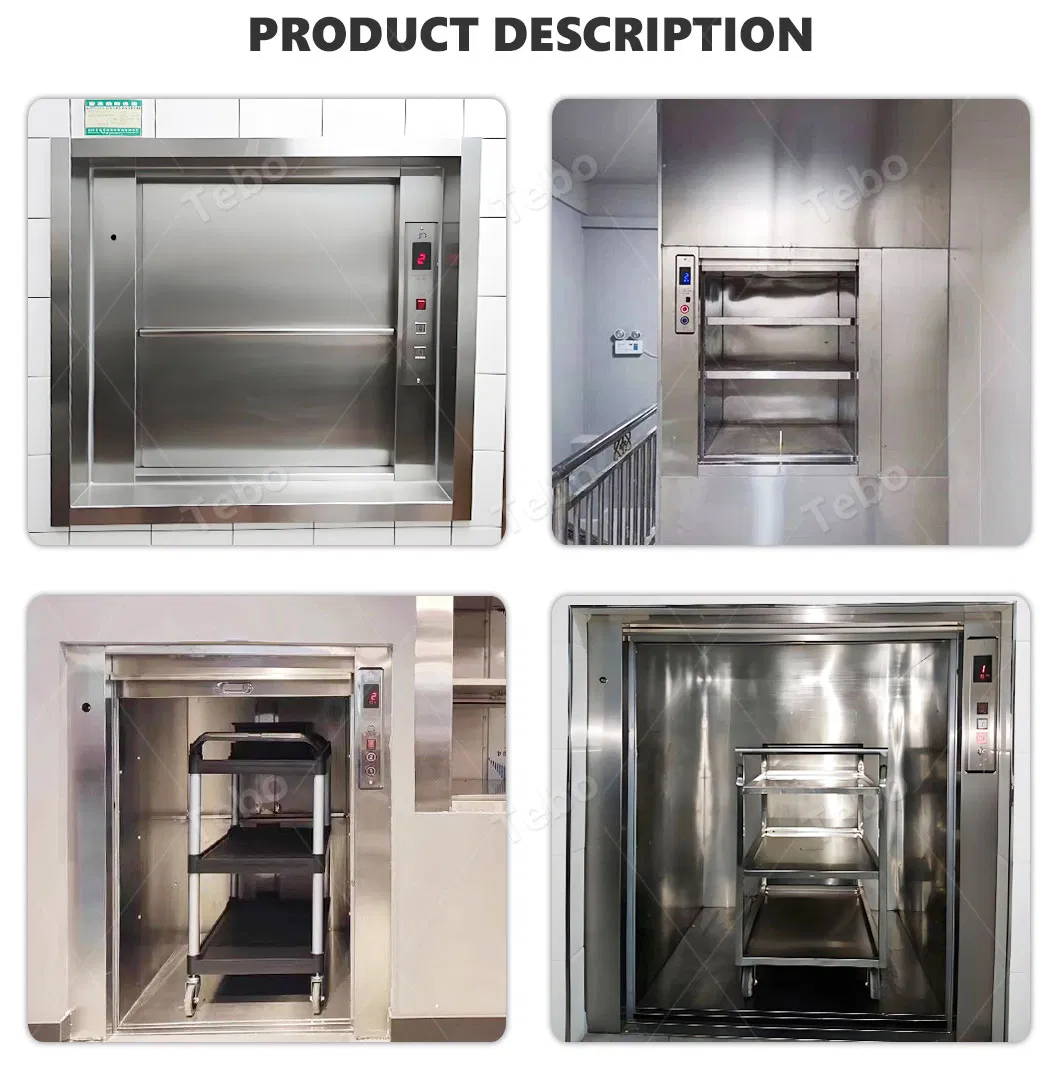

Dumbwaiter Lift Features
Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain.
📊 Technical Parameters
Window Type Parameters
Type Load(kg) Cabin Size (W*D*H mm) Landing Door Cabin Door Door Size (W*H mm) Sill Height Overhead Height
Window100600*400*800StandardOptional600*8008002800
Window100600*600*800StandardOptional600*8008002800
Window200800*800*800StandardOptional800*8008002800
Window2001000*1000*1000StandardOptional1000*10008003200
Floor Type Parameters
Type Load(kg) Cabin Size (W*D*H mm) Landing Door Cabin Door Door Size (W*H mm) Pit Depth Overhead Height
Floor200800*800*1000StandardOptional800*10006002800
Floor3001000*1000*1200StandardOptional1000*12007003200
Floor4001000*1200*1400StandardOptional1200*14008003600
🔍 Product Details

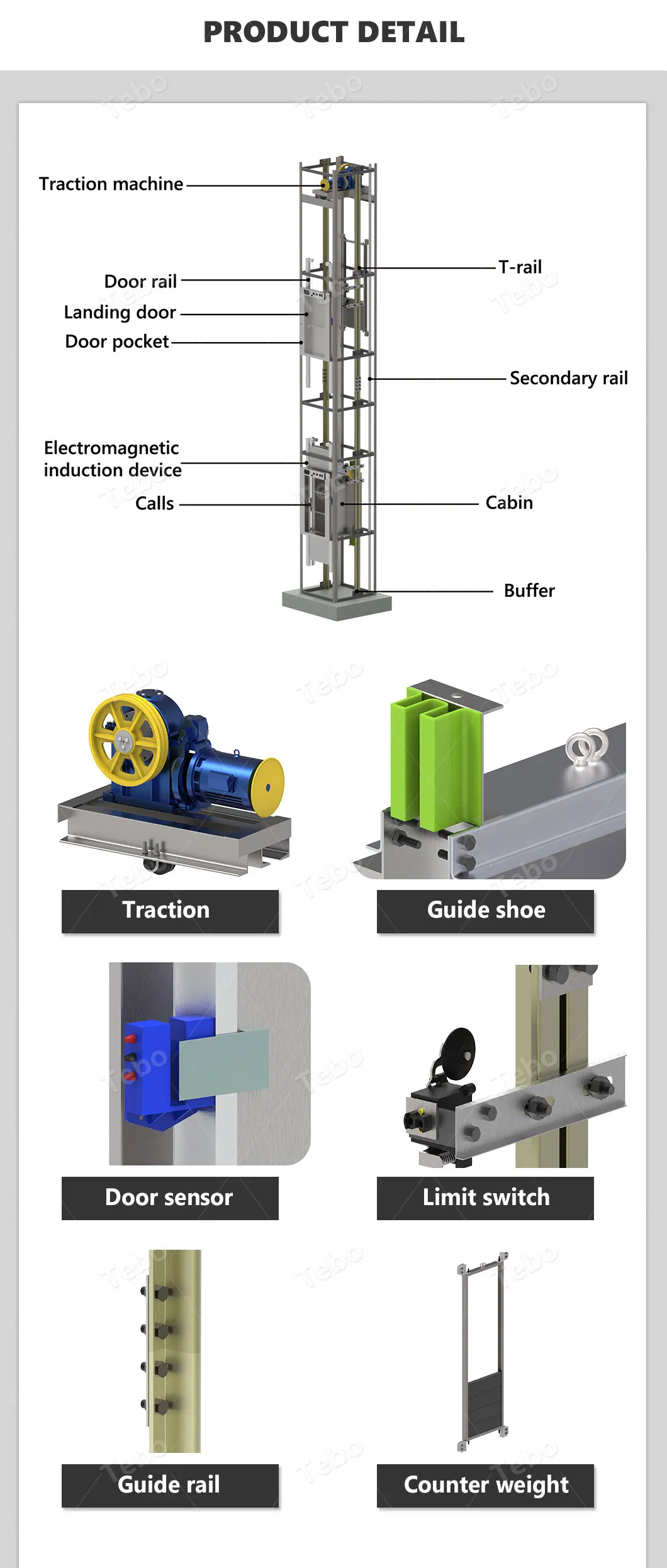

Detail 1

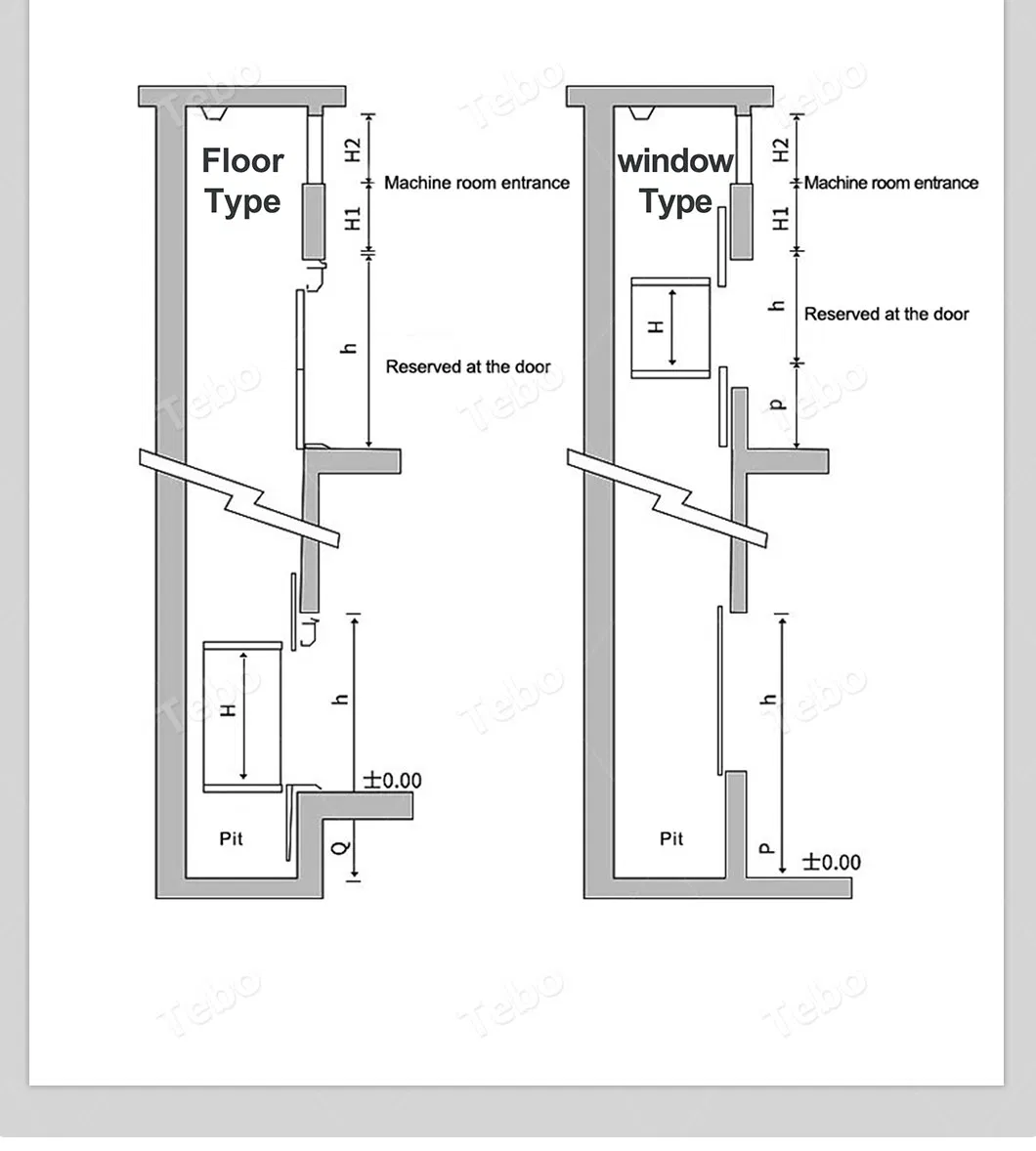

Detail 2

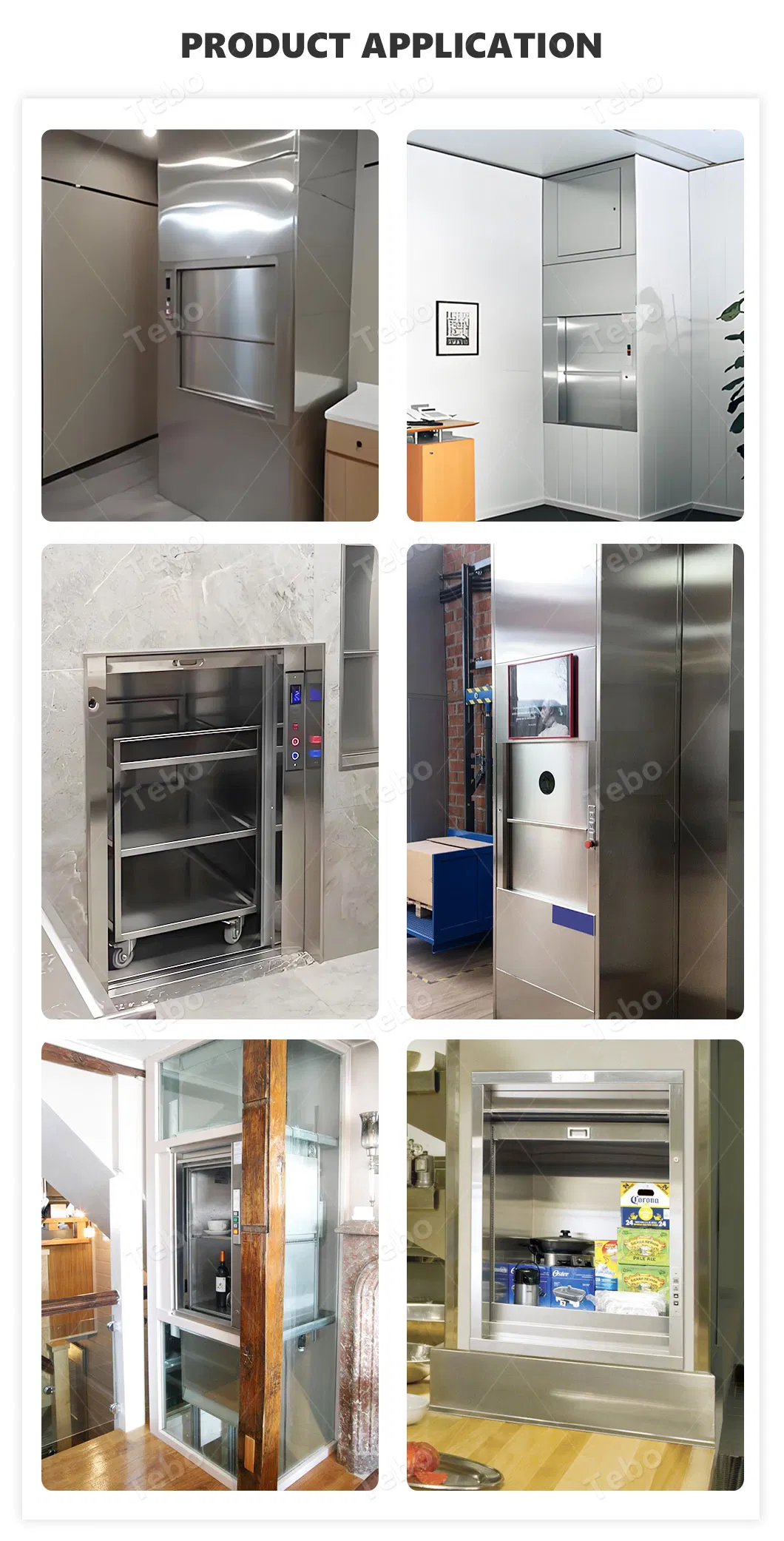

Detail 3
🏭 Manufacturing Excellence
Production Facility
Our operational and production base is located in a well-connected industrial hub. We have assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability. Our core product range includes hydraulic home elevators, hydraulic freight lifts, and specialized dumbwaiter systems. Equipped with advanced CNC machining centers and automated welding equipment, we ensure efficient production and rigorous quality control.
📜 Certifications & Logistics
Certifications
Quality Standards
Packaging and Shipping
Frequently Asked Questions
1. What are the main advantages of our lift equipment?
We are among the leading manufacturers in China, offering absolute advantages in quality and market pricing. We provide comprehensive after-sales service and 12-month warranties for all equipment.
2. Do you provide pre-sales consultation and customization?
Yes, our customer advisors offer expert consultations. For bespoke requirements, our engineers provide detailed blueprints and customized structural designs to fit your specific space.
3. What kind of after-sales support is available?
We provide detailed assembly and installation manuals with every order. If you encounter any operational issues, our technical support team typically responds within 2 hours via email.
4. How is the equipment packaged for international shipping?
We standardly use robust plywood cases. Special shipping marks and specific packaging requirements can be accommodated based on your needs to ensure safe transit.
5. What is the typical lead time for an order?
Production time depends on the specific model, but standard units typically ship within 10 working days after payment confirmation.
6. What are the accepted terms of payment and delivery?
We support EXW, FOB, CFR, and CIF terms. Generally, a production deposit is required, with the remaining balance cleared before delivery.
