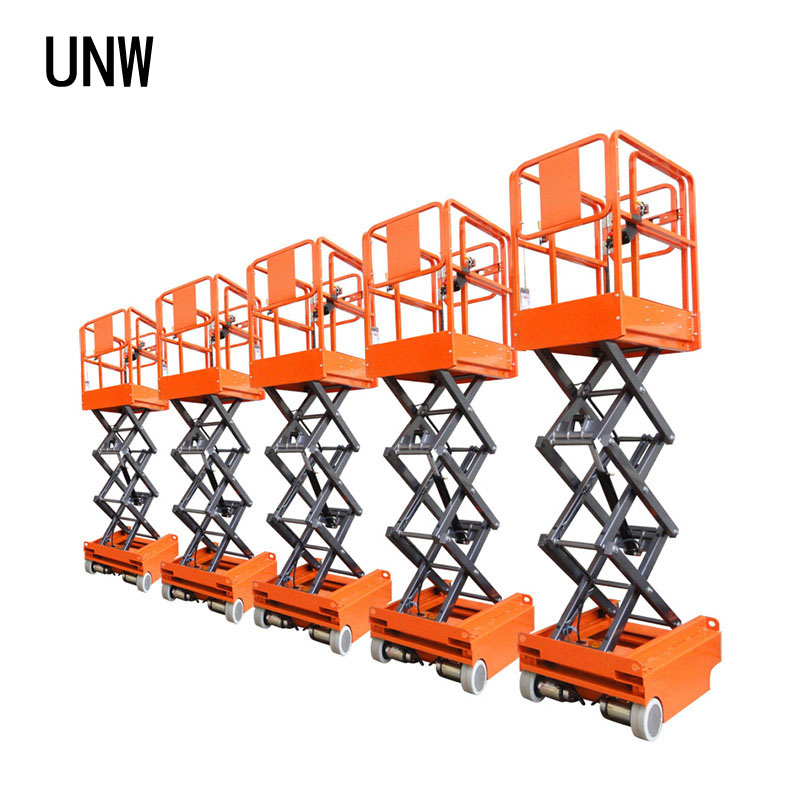

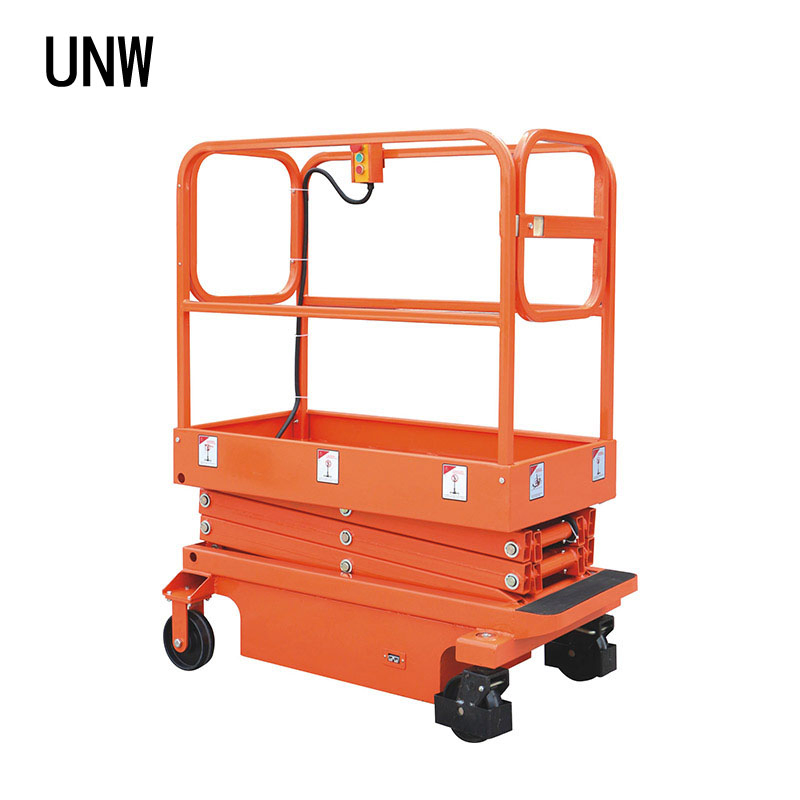

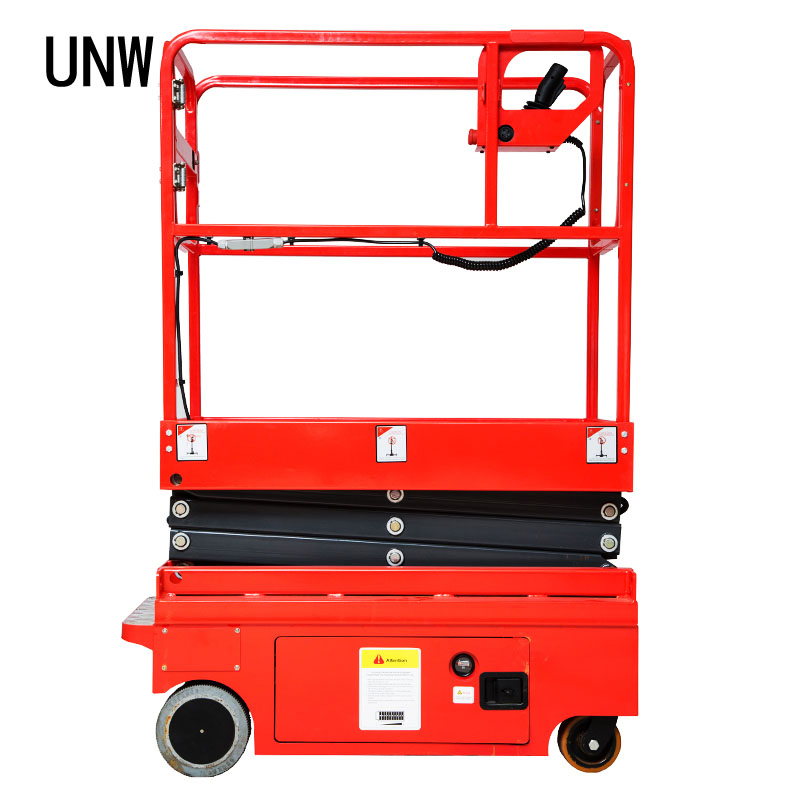

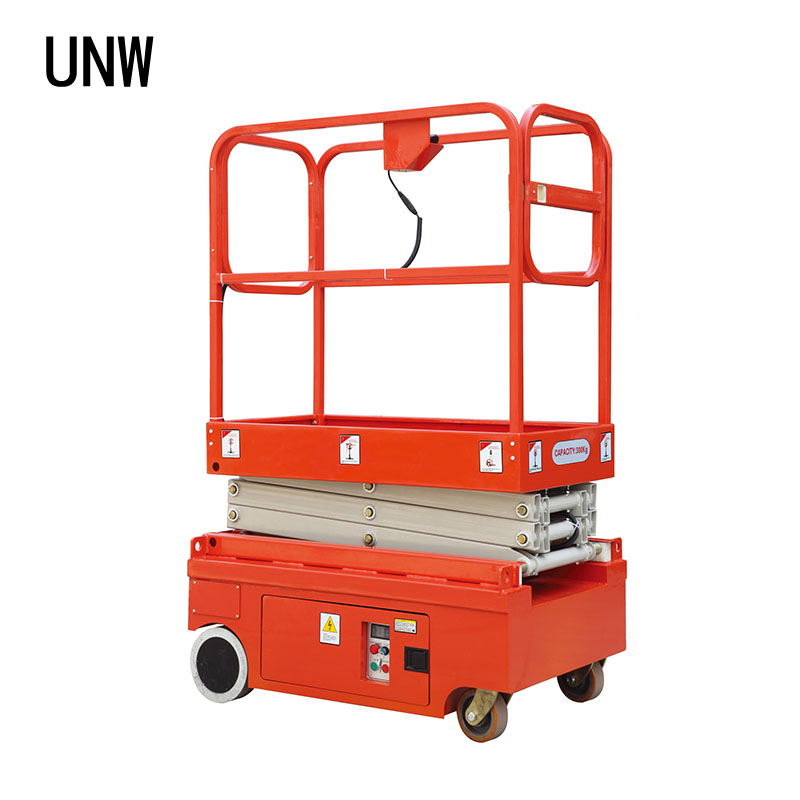

Hot Selling Mini Self-Propelled Scissor Hydraulic Stair Lift Platform

Still deciding? Get samples of $ !
Order Sample

Product Description

📋
Product Overview & Basic Info
Model NO.MSS-5.0 DC
ApplicationWorkshop, Shipboard, Warehouse, Building Maintenance
Lift MechanismScissor Lift
Lifting Capacity300kg
Driven TypeDC Battery Power
CertificationGS, CE, RoHS, ISO 9001
Max.Platform Height3m / 4m / 4.8m
Platform Size1170mm x 600mm
Ground Clearance60mm
Min. Turning Radius1200mm
⚙️
Product Description
Mini Self Propelled Scissor Lift is specially designed for indoor and outdoor aerial works with lower height requirements and narrow spaces. With compact dimensions, light weight, and a strengthened structure, it is highly portable and easy to operate in confined environments.
Unlike semi-electric models, this self-propelled mini scissor lift is fully drivable via control panels on both the platform and the body. Featuring automatic walking, turning, and lifting capabilities, it significantly improves operational efficiency for installation services, decoration companies, theaters, and galleries.
📊
Technical Parameters
Model No. MSS-5.0DC MSS-5.9DC MSS-6.8DC
Max. Platform Height (mm)300039004800
Max. Working Height (mm)500059006800
Rated Capacity (kg)300300300
Platform Size (mm)1170*600*11001170*600*11001170*600*1100
Max. Drive Speed (Stowed)4km/h4km/h4km/h
Lifting/Falling Speed (sec)20/3020/3020/30
Battery (V/AH)2×12/602×12/602×12/60
Overall Net Weight (kg)490600760
📸

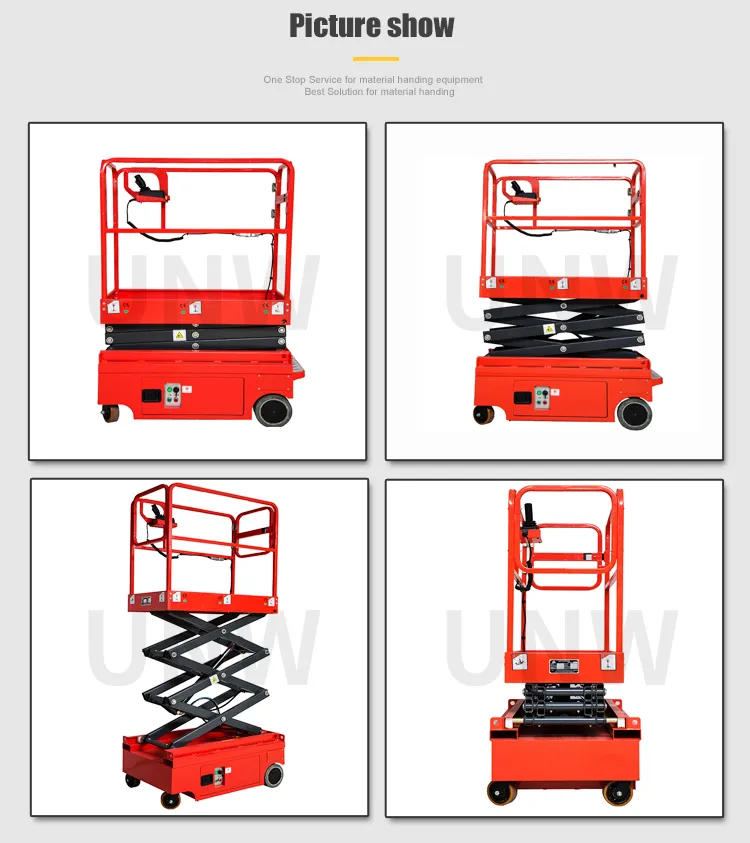

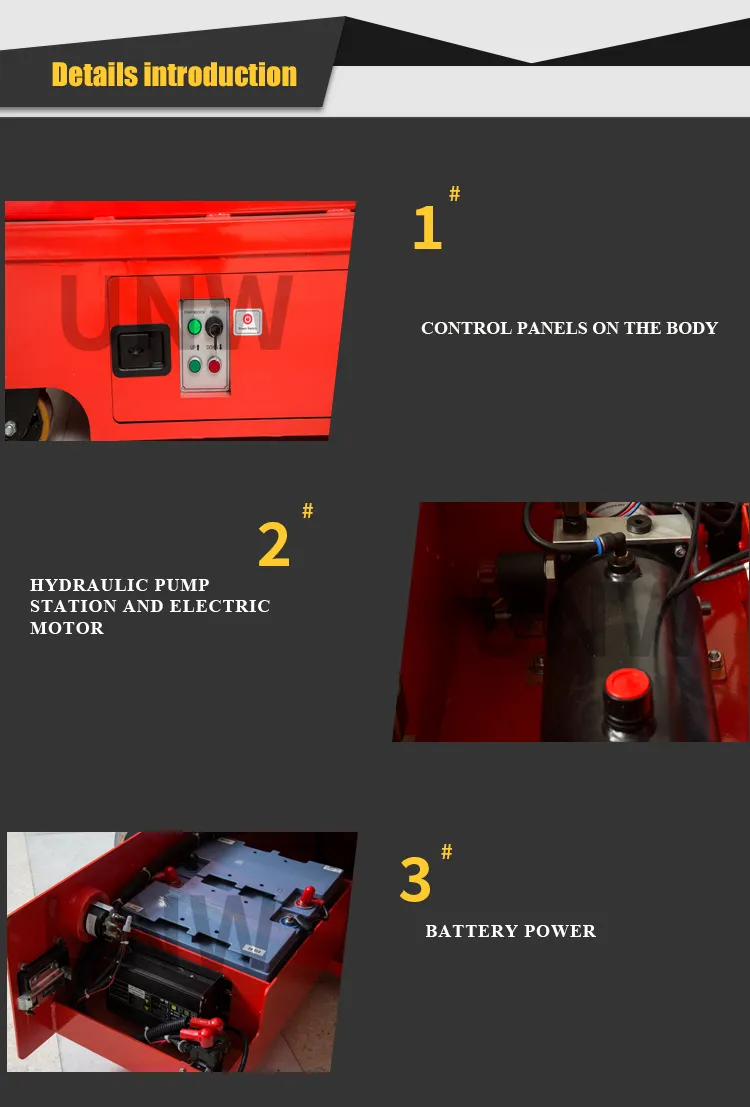

Detailed Photos

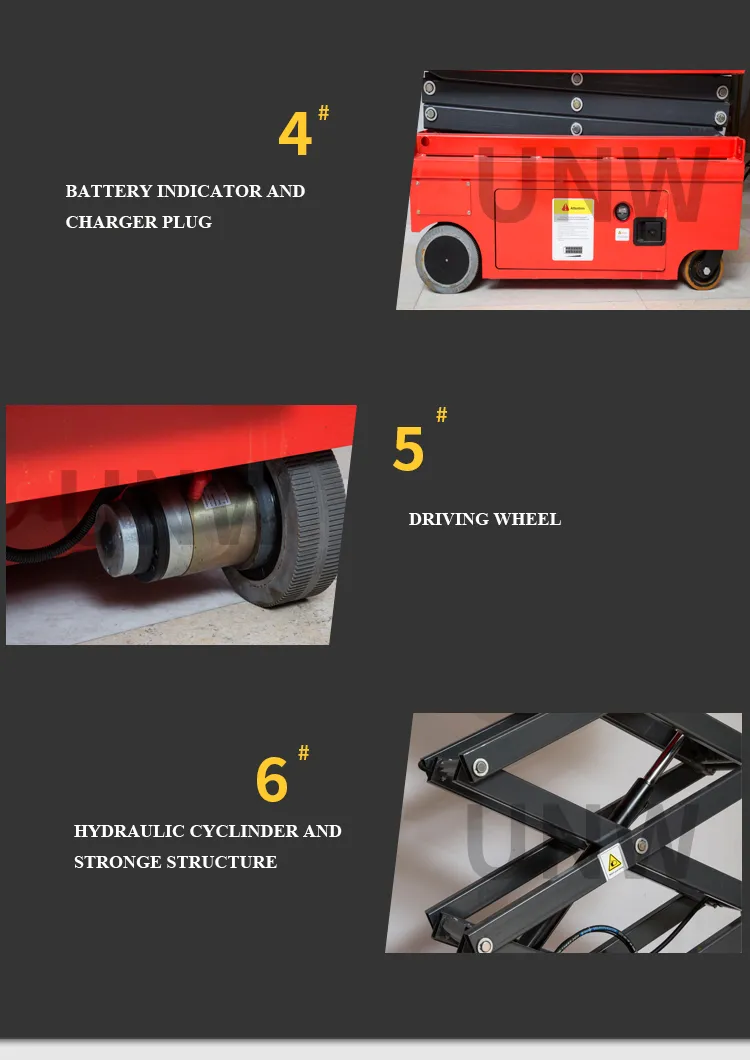

Self Propelled Scissor Lift Operations
🎨

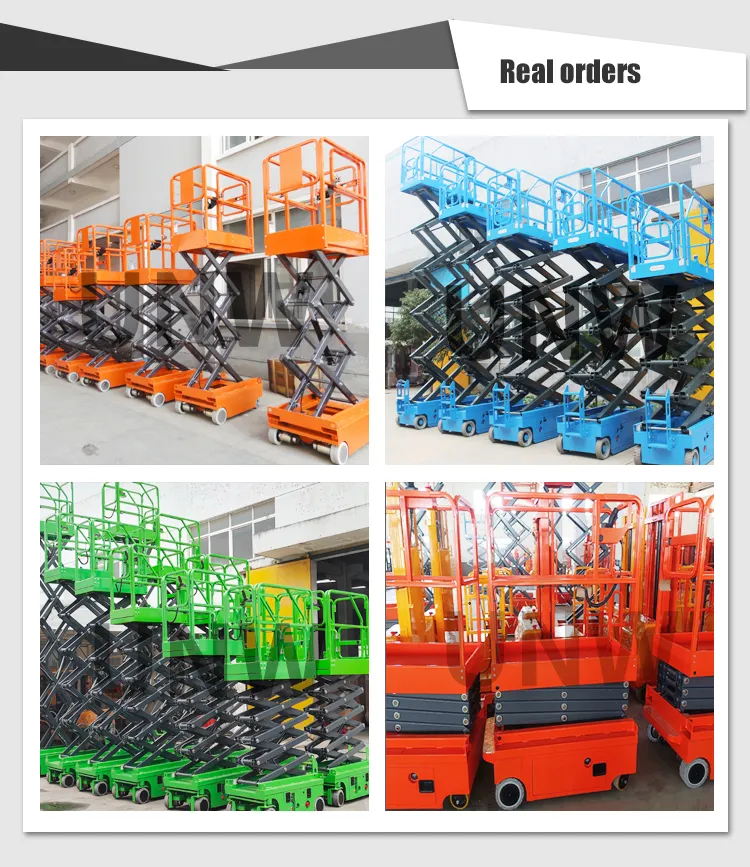

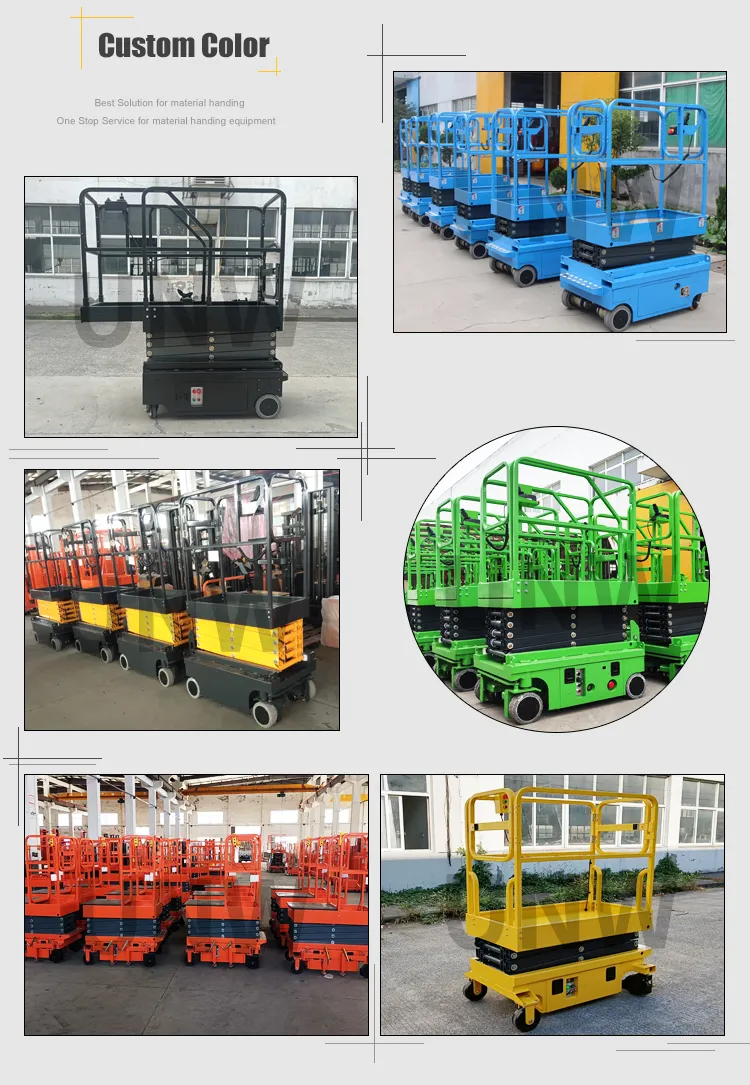

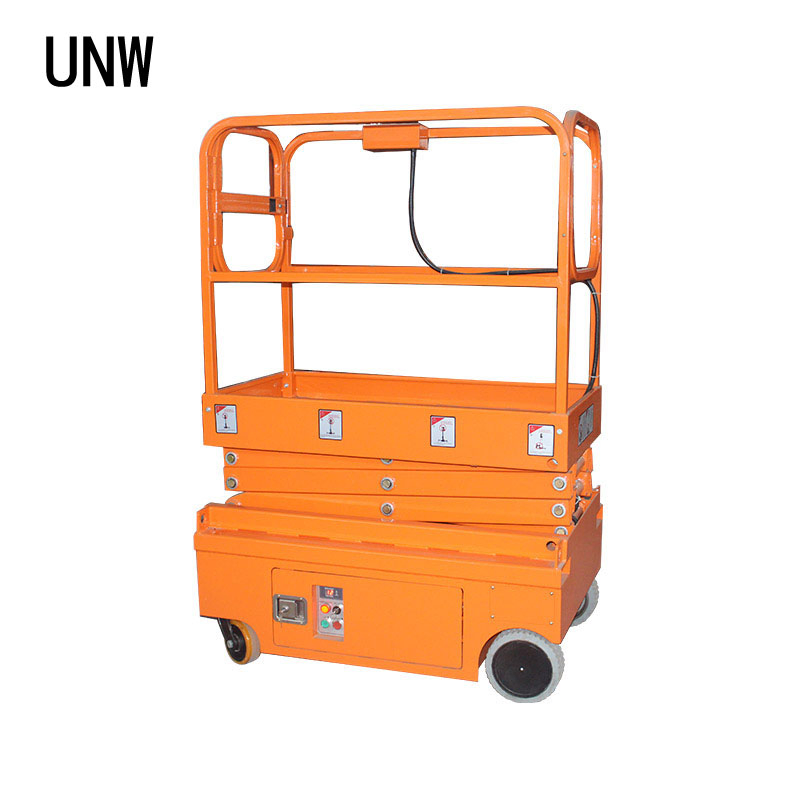

Real Orders & Customized Colors
🏭

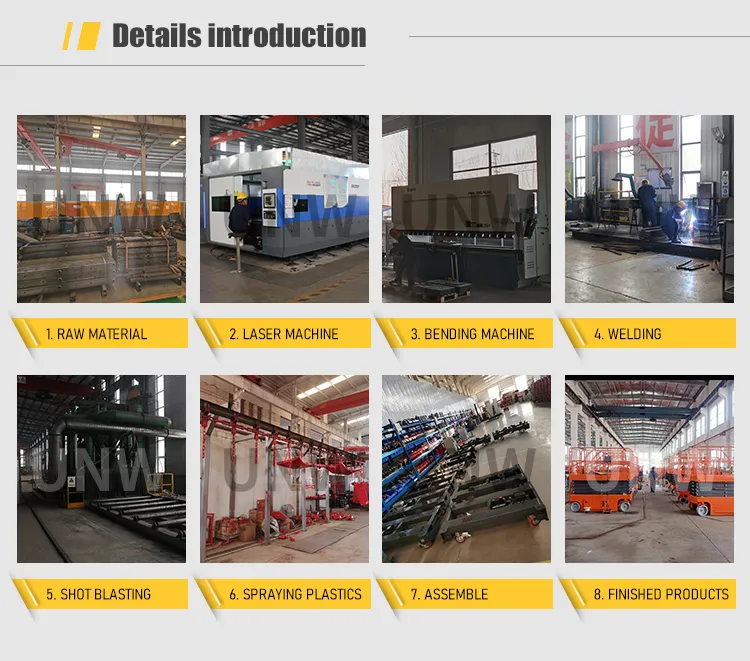

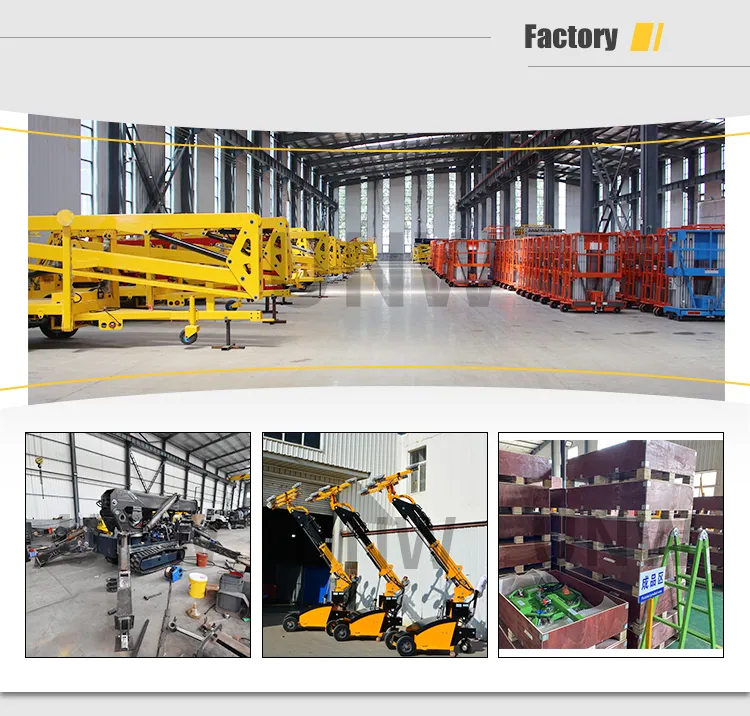

Production & Quality Control
🛠️
After Sales Service
  • Spare parts provided freely within the quality warranty period.
  • Comprehensive user manual provided with every unit.
  • Lifetime technical support and guidance.
  • 24-hour online and telephone service availability.
Frequently Asked Questions
How can customers purchase replacement parts?
The scissor lift uses standard hardware components. You can easily find replacement parts at local hardware markets or forklift specialty shops.
How is the equipment repaired if a fault occurs?
The equipment is designed for high reliability with a low failure rate. If an issue arises, we provide detailed video tutorials and step-by-step repair instructions for easy maintenance.
What is the quality guarantee period?
We offer a one-year quality guarantee. If the machine fails due to manufacturing defects within the first year, we will ship replacement parts to you free of charge.
Can the scissor lift be used on an incline?
The maximum allowable working angle for this equipment is 2°. It is designed primarily for use on level, firm surfaces to ensure maximum safety.
How long does the battery last and how is it charged?
The unit is equipped with two 12V/60Ah batteries. It comes with a 24V/10A charger. Charging typically takes 6-8 hours for a full cycle, providing enough power for a standard work shift.
What safety certifications does the product hold?
Our products are fully compliant with international standards and hold CE, RoHS, GS, and ISO 9001 certifications to ensure global safety and quality compliance.
