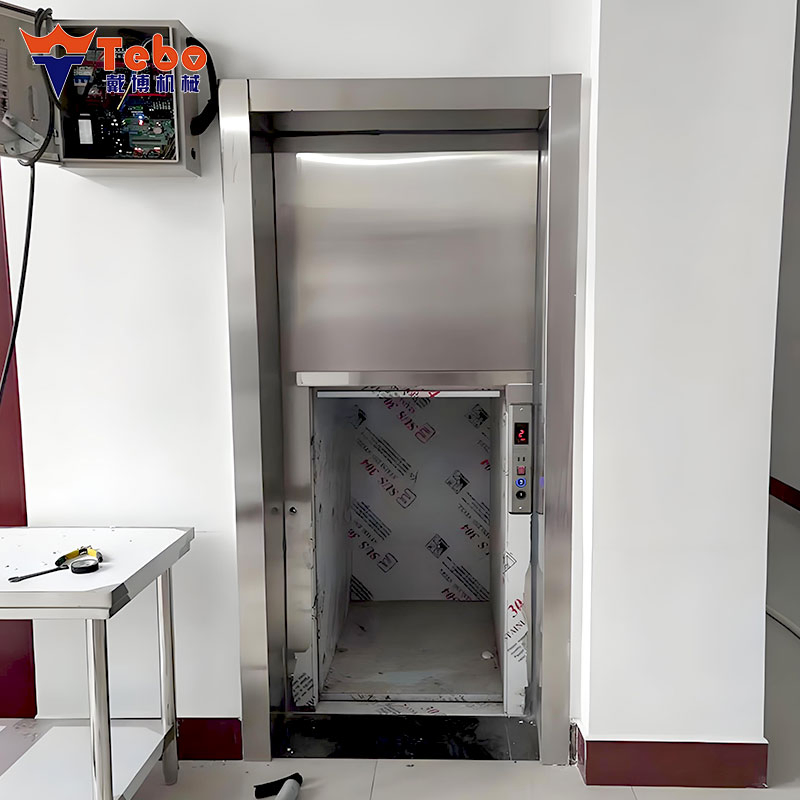

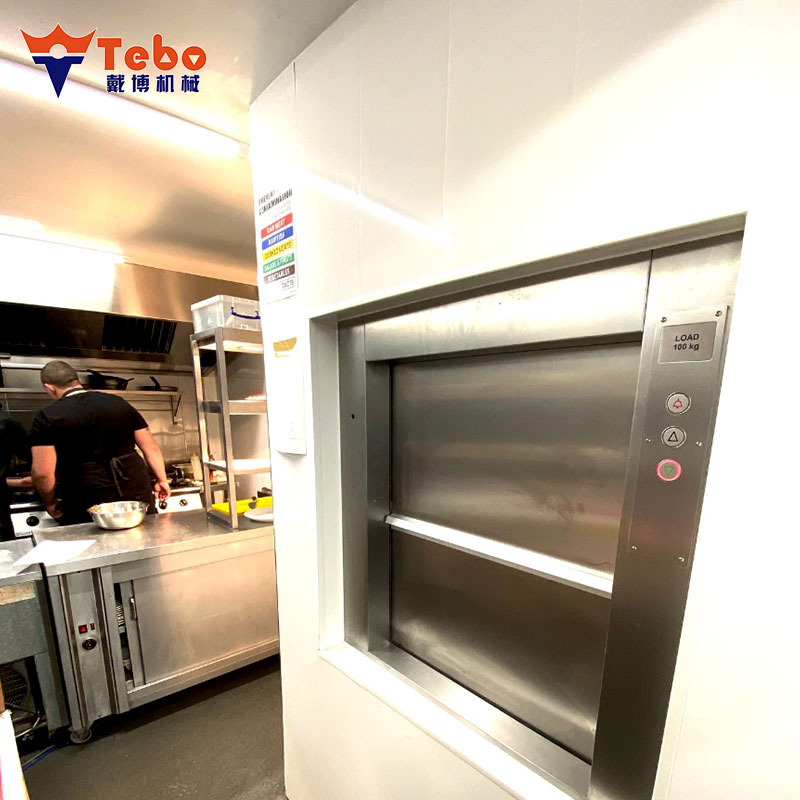

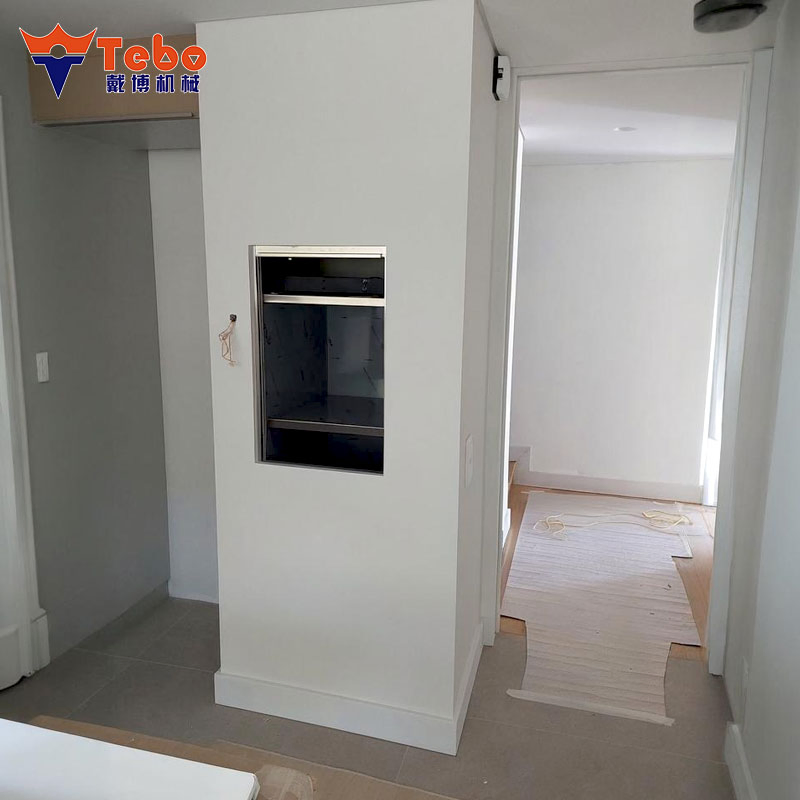

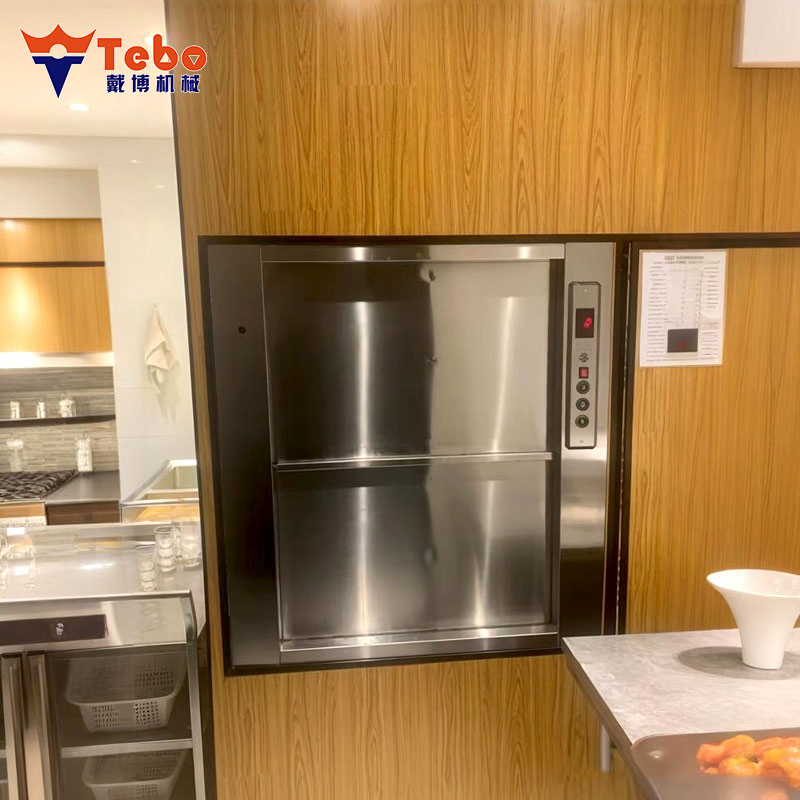

Residential Dumbwaiter Elevator for Home with 100kg Loading Capacity

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
TBD-41
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Deceleration Device
With Deceleration Device
Guide Rail
T Guide
Elevator Door
Center Opening Door
Door Knife
Double
Cabin Inside Dimension
Customizable
Origin
China
Production Capacity
1000 Sets/Year
Product Description

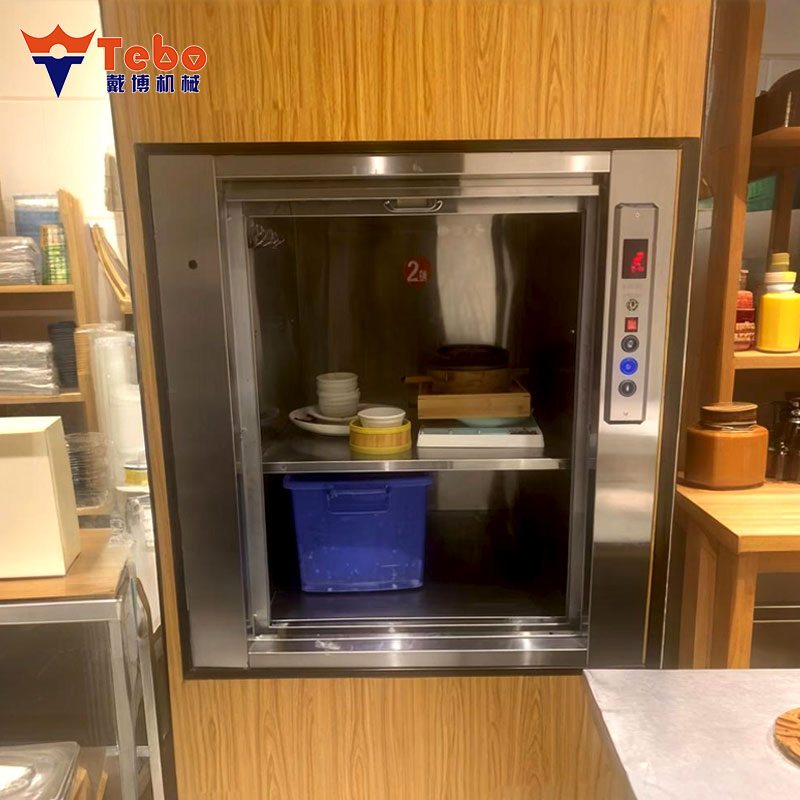

Residential Dumbwaiter Elevator
The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

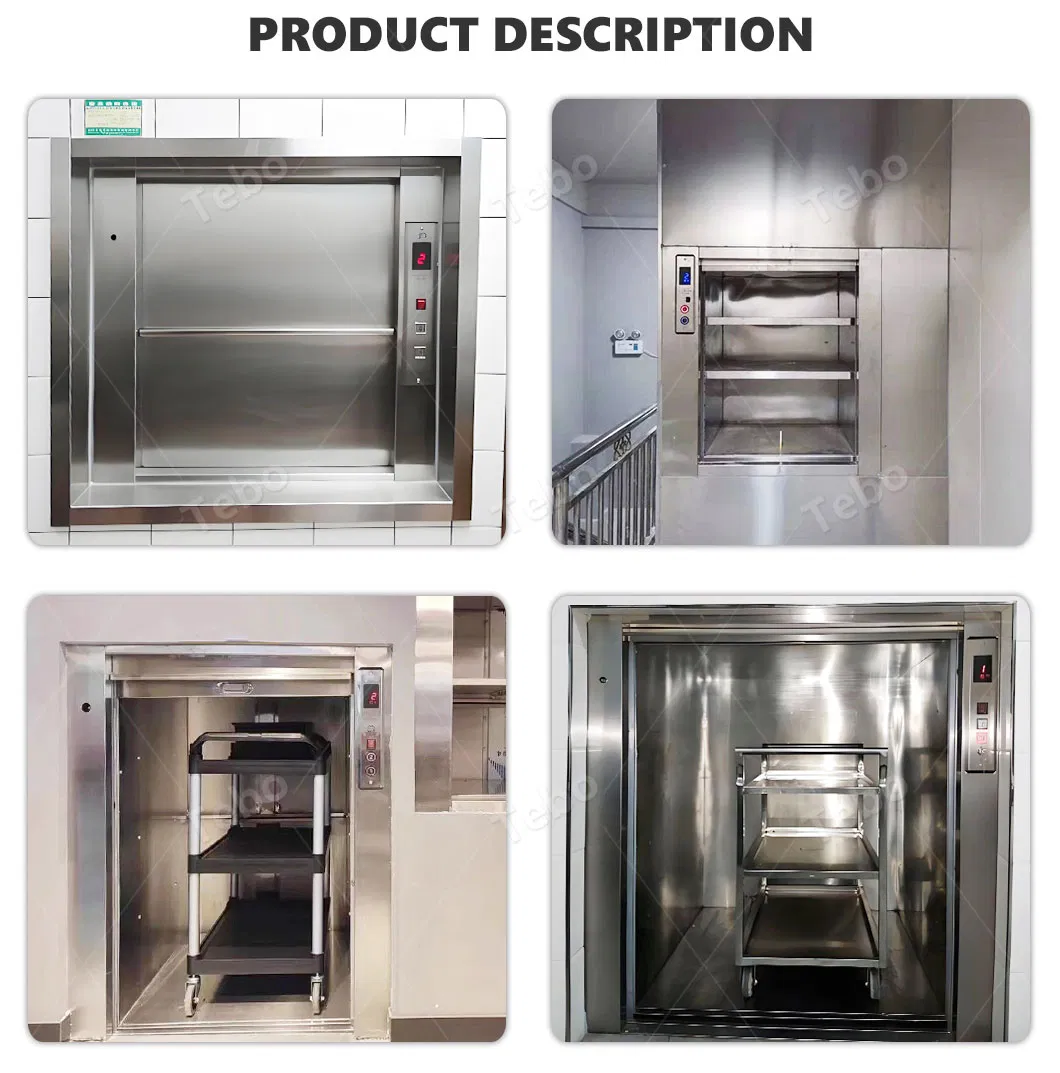

Loading Capacity Details
Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain.
Window Type Parameters (Customizable)
TypeLoad(kg)Cabin Dimension (mm)Landing DoorCabin DoorDoor Size (mm)Window Sill HOverhead H
Window Type100600*400*800StandardOptional600*8008002800
100600*600*800StandardOptional600*8008002800
200800*800*800StandardOptional800*8008002800
2001000*1000*1000StandardOptional1000*10008003200
Floor Type Parameters (Customizable)
TypeLoad(kg)Cabin Dimension (mm)Landing DoorCabin DoorDoor Size (mm)Min Pit DepthOverhead H
Floor Type200800*800*1000StandardOptional800*10006002800
3001000*1000*1200StandardOptional1000*12007003200
3001000*1200*1200StandardOptional1200*12007003200
4001000*1200*1400StandardOptional1200*14008003600
Product Details

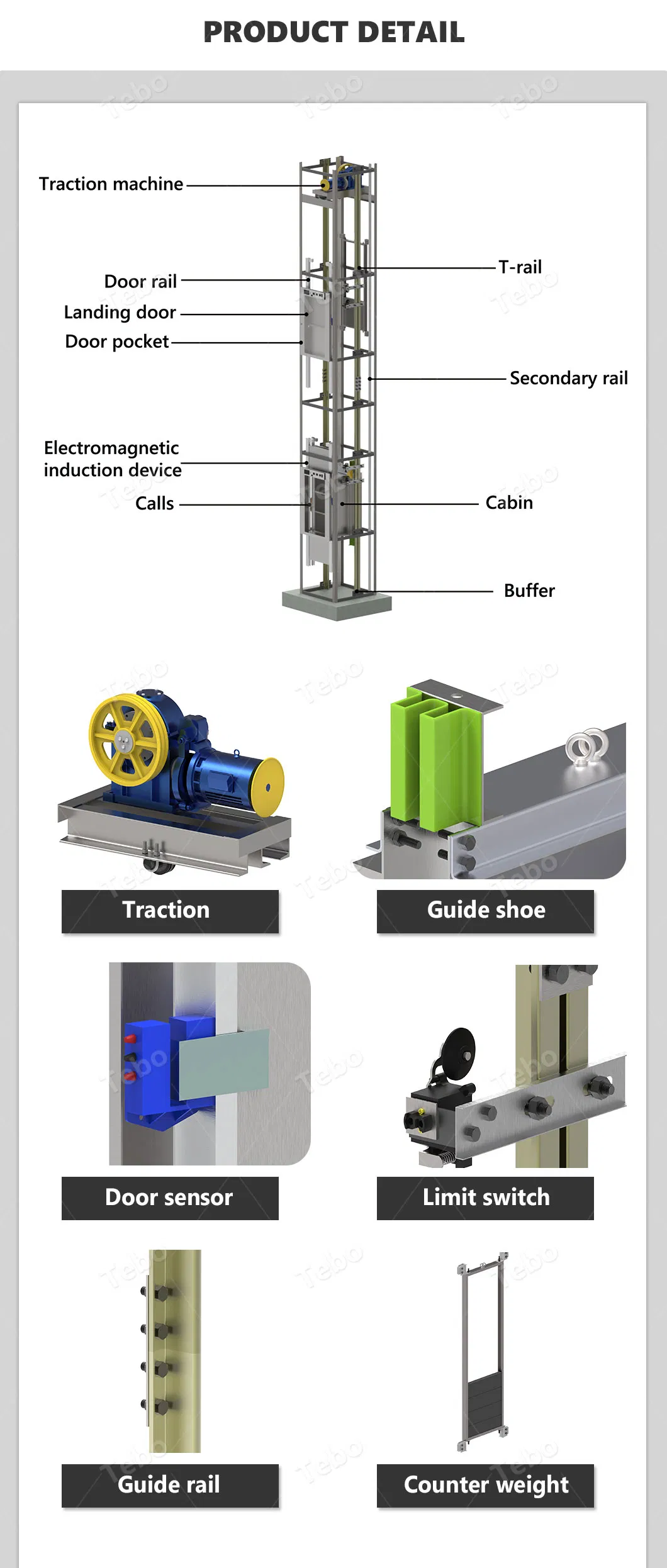

Elevator Detail 1

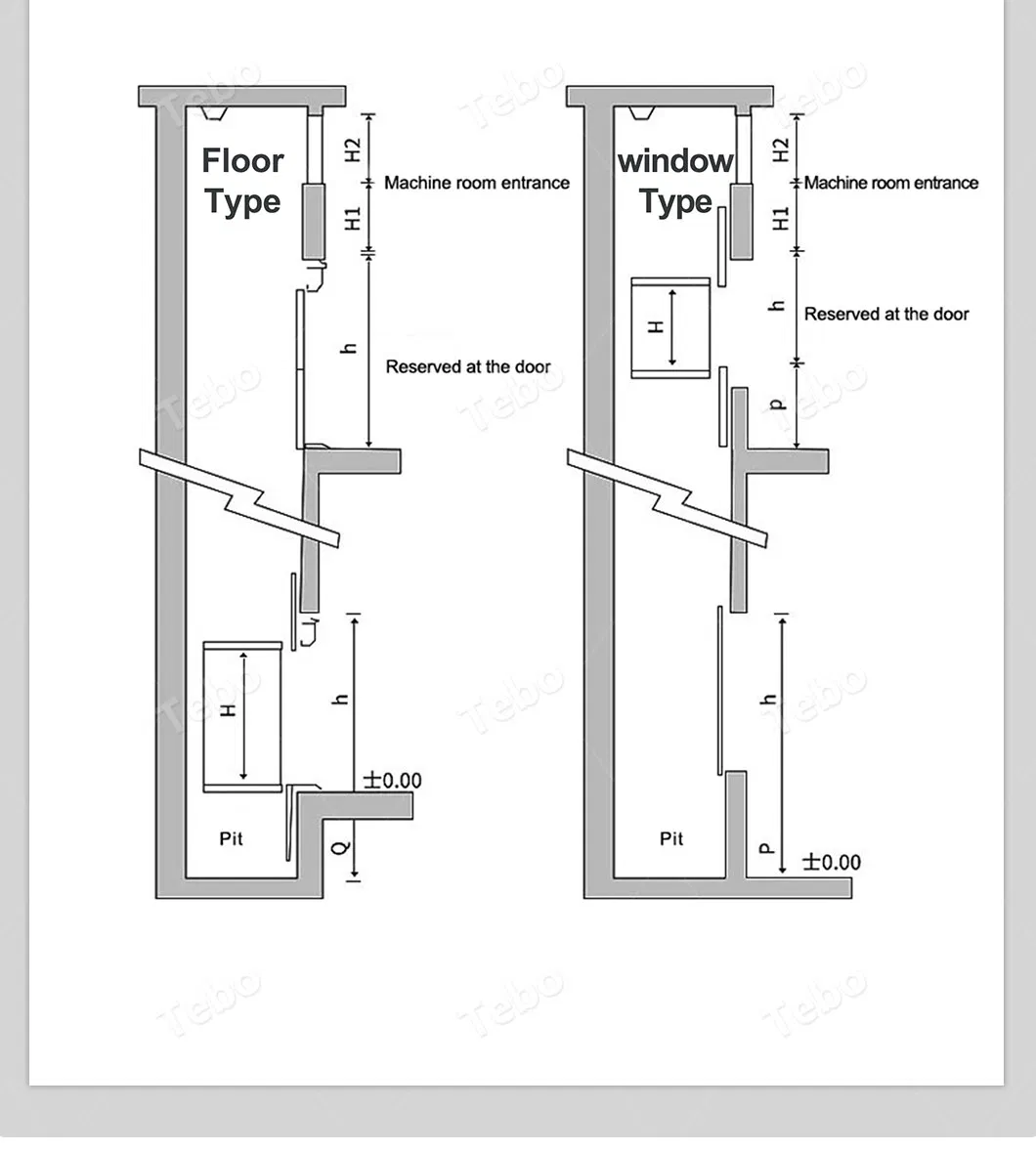

Elevator Detail 2

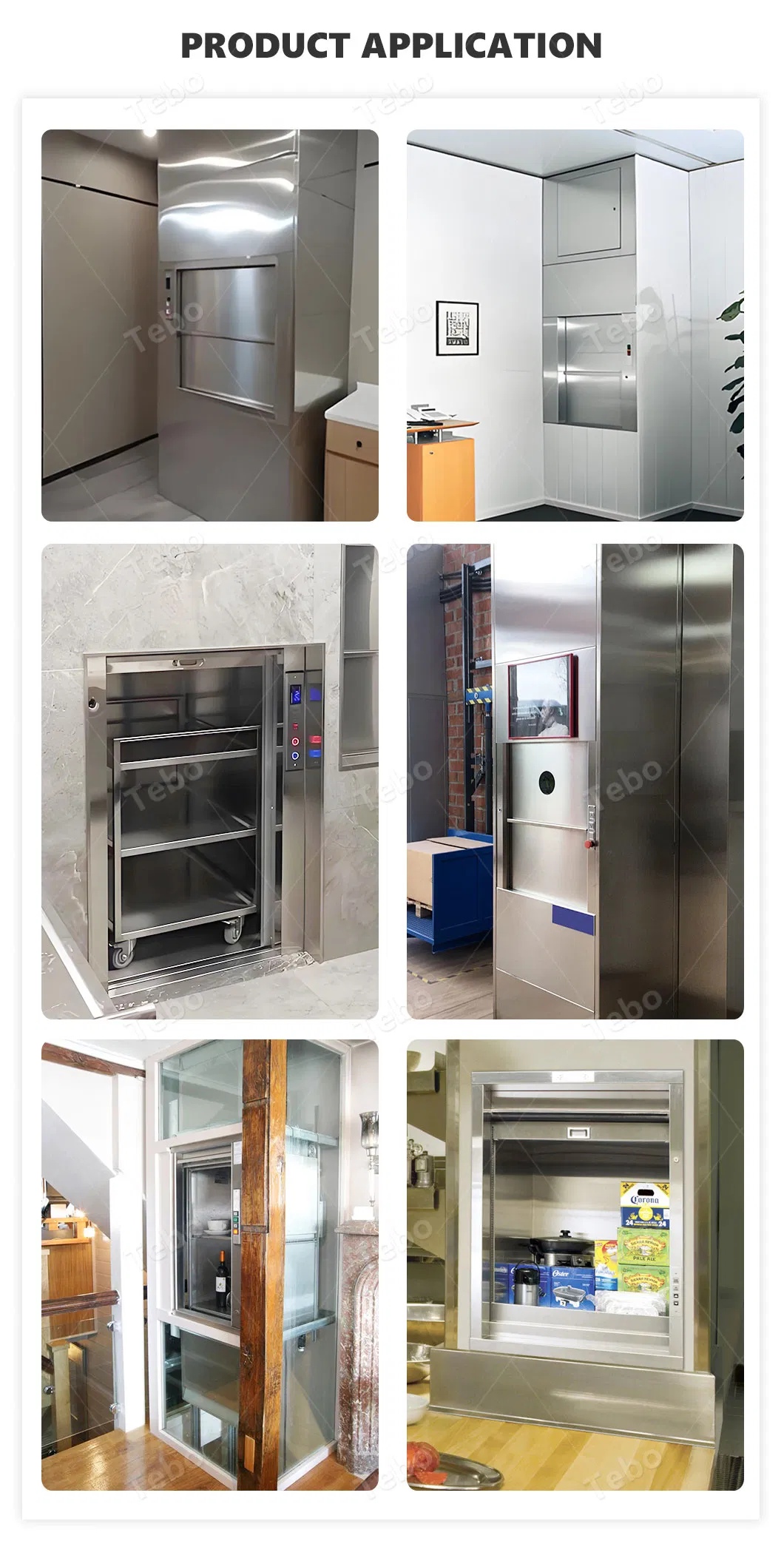

Elevator Detail 3
Company Profile
Factory Overview
We are a Chinese enterprise specializing in the R&D and manufacturing of mechanical equipment. Our production base is located in a well-connected industrial hub. The company has assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability.
Our core product range includes hydraulic home elevators, hydraulic freight lifts, hydraulic car lifts, and hydraulic scissor lift platforms. By leveraging stable hydraulic drive systems and exceptional load-bearing capacity, these products provide smooth and quiet vertical transportation for residential buildings and meet heavy-duty demands in industrial settings.
Certifications & Logistics
Technical Drawings
Frequently Asked Questions
What are the main advantages of your lift equipment?
We are among the early manufacturers in China with a dedicated production base. Our equipment offers absolute advantages in quality and market pricing. We provide high-quality after-sales service, including a 12-month warranty for the entire unit (excluding man-made faults).
What pre-sales and consultation services do you provide?
Our team of customer advisors offers machinery recommendations and consultation before ordering. For custom requirements, our expert engineers provide detailed blueprints and bespoke machine designs.
How is the installation and after-sales support managed?
We provide detailed assembly and installation manuals along with technical drawings. Most customers find the instructions clear enough for self-installation. For operational questions, our support team typically responds within 2 hours.
What kind of packaging is used for international shipping?
We normally use standard export plywood cases. We can also accommodate special requirements for shipping marks or specific packaging details based on your needs.
What is the typical lead time for delivery?
Shipping time depends on the specific product. Generally, it takes approximately 10 working days after payment is received. We strive to guarantee the fastest possible shipping for all orders.
What are the accepted payment methods and terms?
Orders require payment before production, with the remaining balance due prior to delivery. We support standard trade terms including EXW, FOB, CFR, and CIF.
