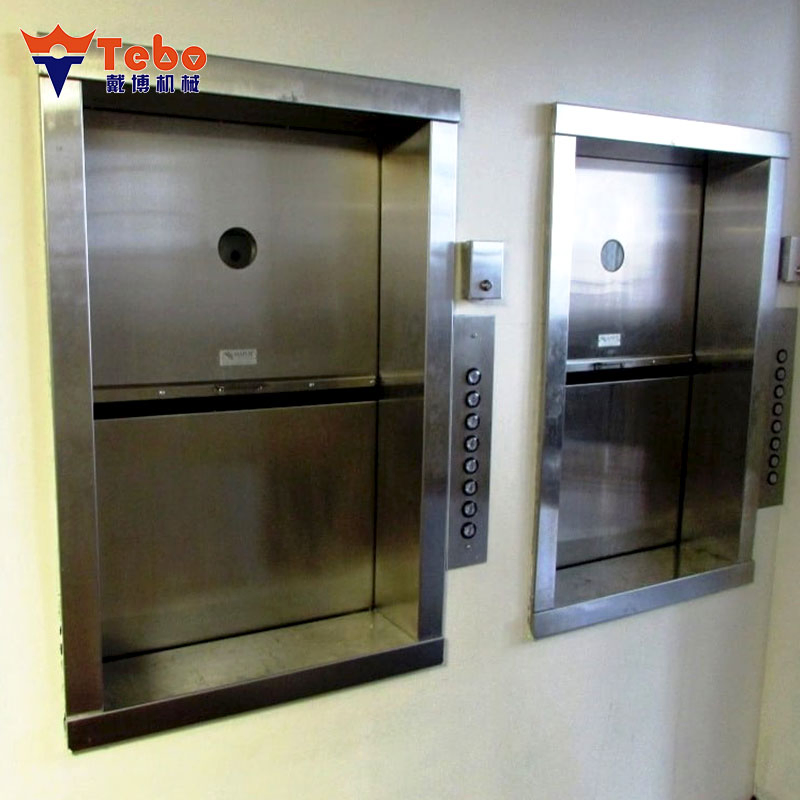

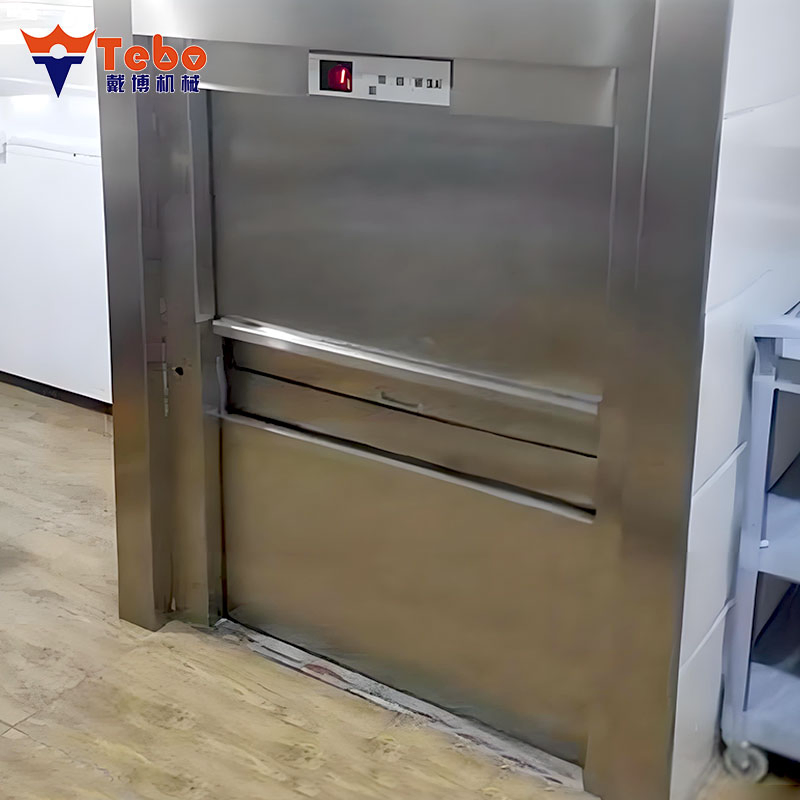

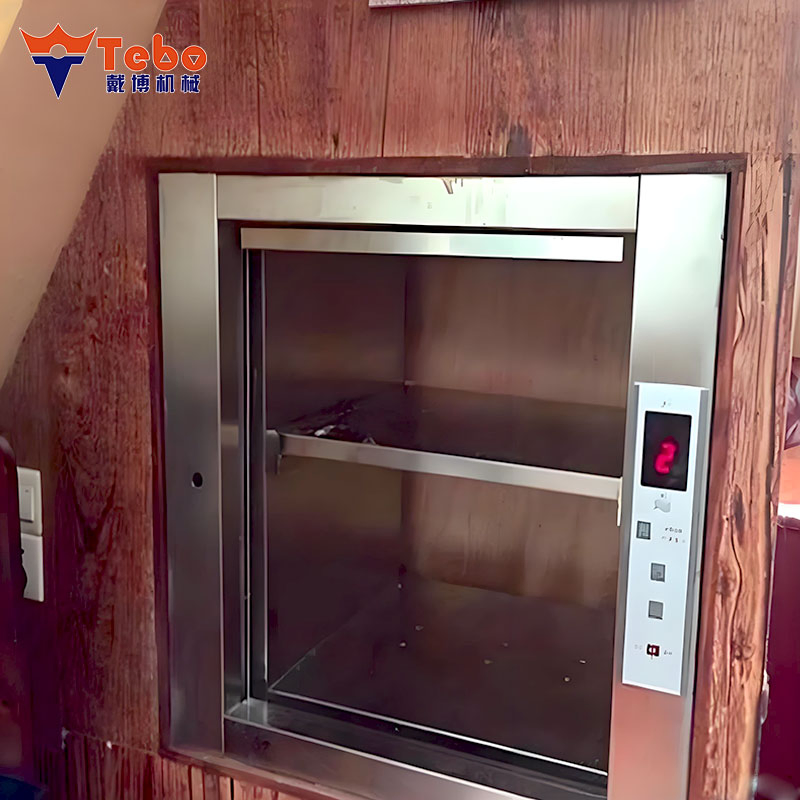

Residential Kitchen Food Elevator Dumb Waiter for Easy Transport to Multiple Floors

1 / 5

Residential Kitchen Food Elevator Dumb Waiter for Easy Transport to Multiple Floors

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

TBD-12

Type

Wellhole

Load Capacity

50kg-300kg

Speed

0.40m/s

Drive Mode

Open & Close Type

Manual

Lift Mechanism

Telescoping Lift

Guide Rail

T Guide

Elevator Door

Center Opening Door

Production Capacity

1000 Sets/Year

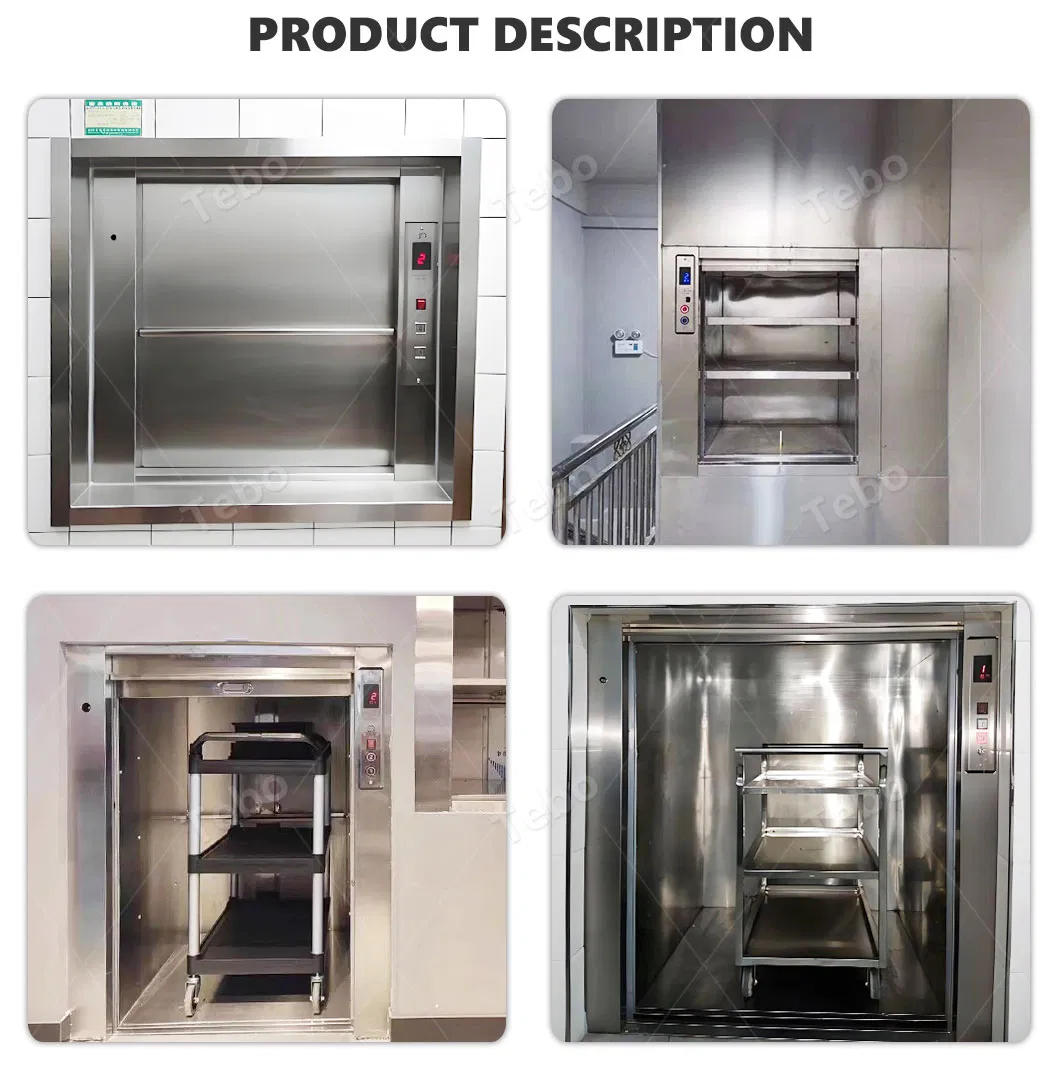

Product Description

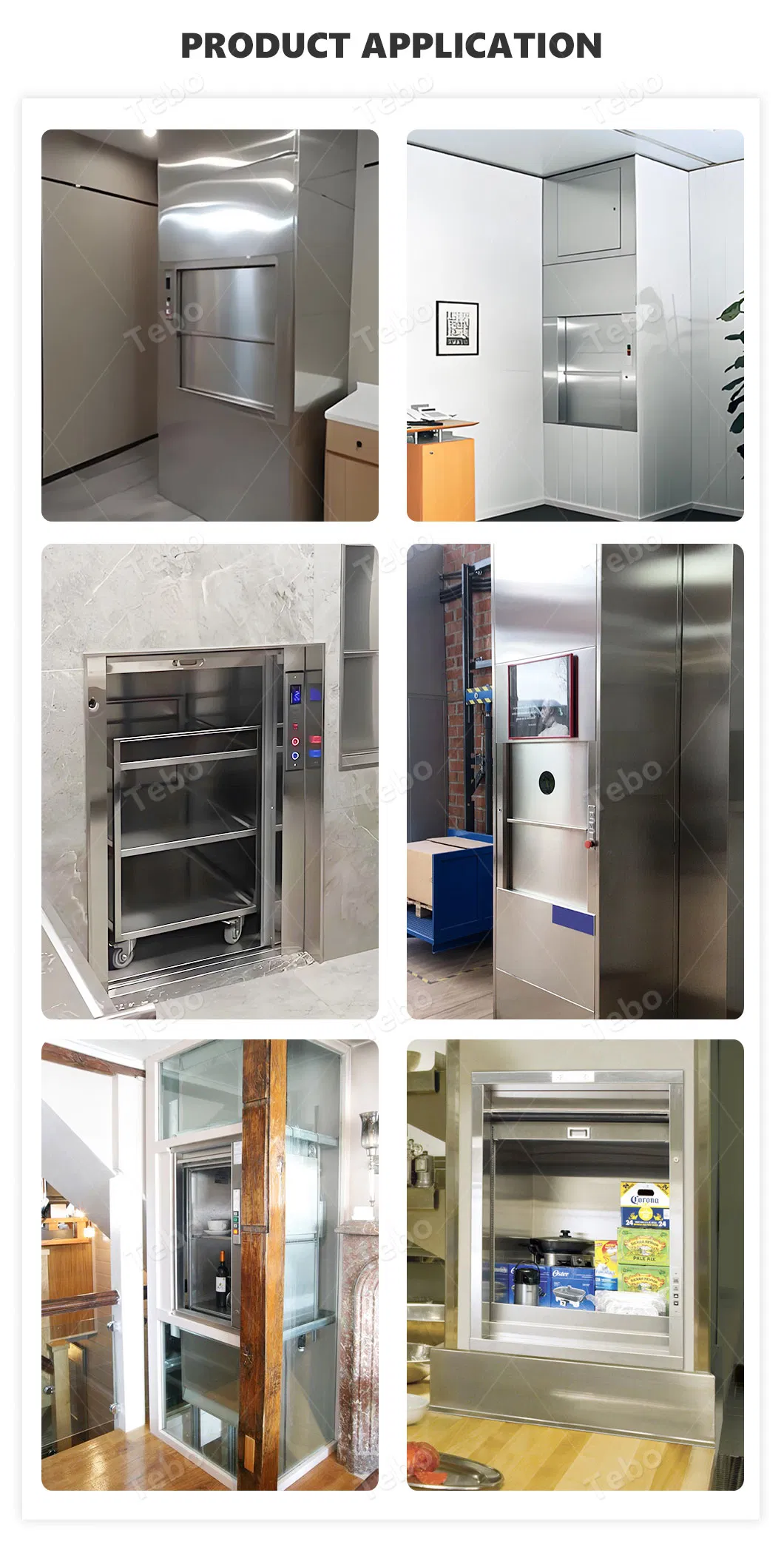

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. Composed of a durable stainless-steel cabin and a robust steel shaft frame, it ensures excellent corrosion resistance and hygiene. The traction driving system provides smooth and low-noise movement.

This system significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain. Its enclosed design prevents contamination and meets food-hygiene standards, making it ideal for star-rated hotels, school canteens, and hospital meal-delivery areas.

Technical Parameters

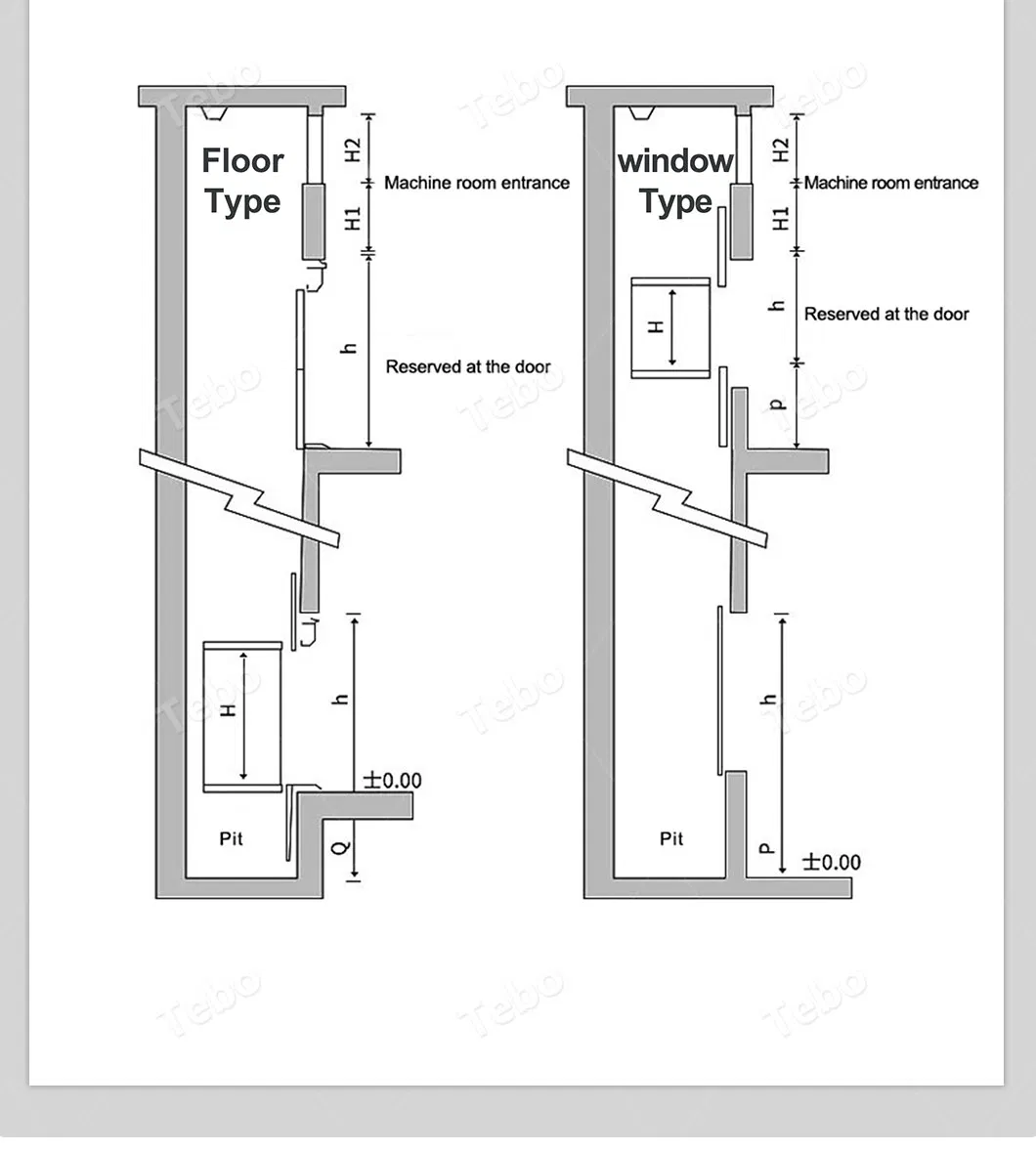

Window Type Parameters
Type	Load(kg)	Cabin Dimension (mm)	Landing Door	Cabin Door	Door Size (mm)	Sill Height	Overhead
Window	100	600400800	Standard	Optional	600*800	800	2800
Window	100	600600800	Standard	Optional	600*800	800	2800
Window	200	800800800	Standard	Optional	800*800	800	2800
Window	200	100010001000	Standard	Optional	1000*1000	800	3200

Floor Type Parameters
Type	Load(kg)	Cabin Dimension (mm)	Landing Door	Cabin Door	Door Size (mm)	Pit Depth	Overhead
Floor	200	8008001000	Standard	Optional	800*1000	600	2800
Floor	300	100010001200	Standard	Optional	1000*1200	700	3200
Floor	400	100012001400	Standard	Optional	1200*1400	800	3600

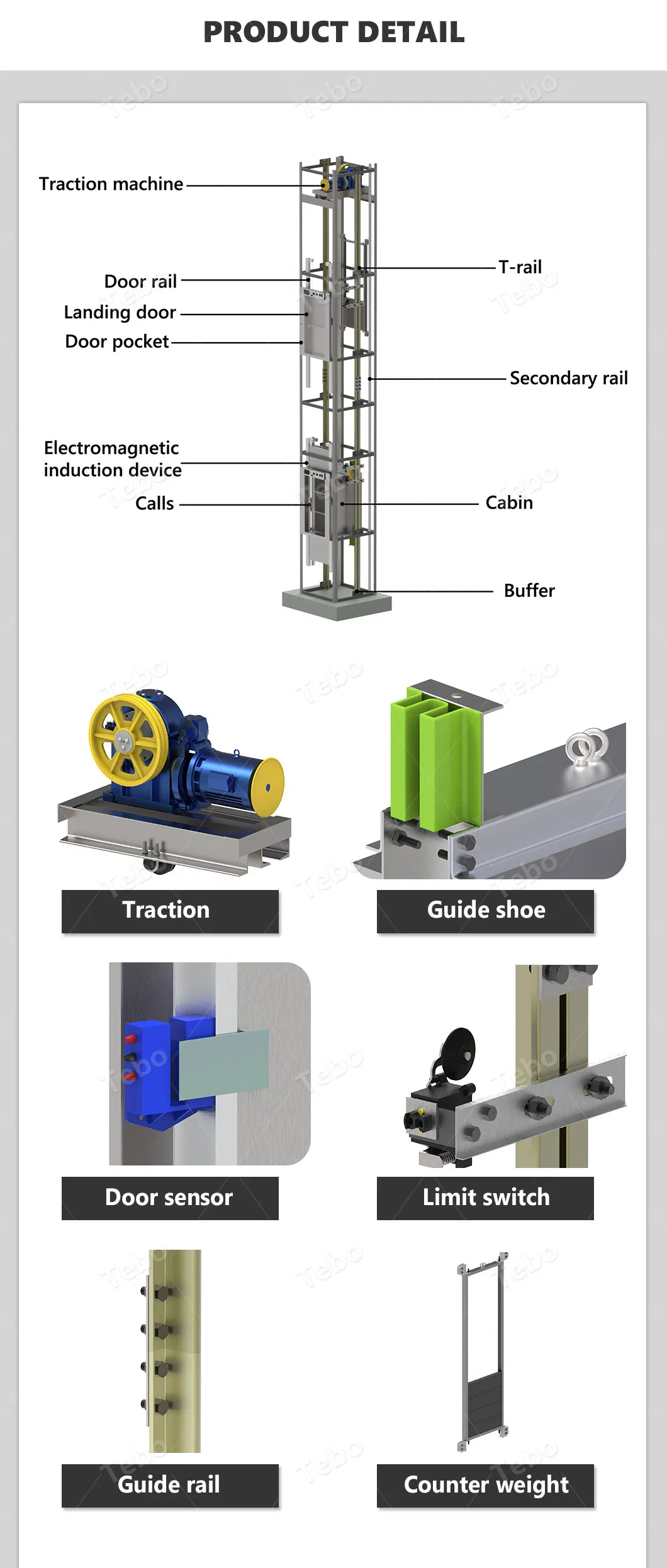

Product Details

Manufacturing Excellence

Our facility specializes in the R&D and manufacturing of high-quality mechanical lifting equipment. With an experienced technical team, we continuously optimize our products for structural design, operational efficiency, and stability. We utilize advanced CNC machining centers and automated welding equipment to ensure precision in every component.

By leveraging stable hydraulic and traction drive systems, our products offer smooth and quiet vertical transportation. We have established a comprehensive service system encompassing design, customized manufacturing, and full lifecycle technical support.

Certifications & Shipping

Frequently Asked Questions

What are the main advantages of your lift equipment?

We are among the leading manufacturers in China, offering absolute advantages in quality and market pricing. We provide a 12-month warranty for all equipment and offer comprehensive guidance for installation.

Do you provide custom design services?

Yes. For customers requiring specific modifications, our expert engineers provide detailed blueprints and bespoke designs to fit your space and operational requirements perfectly.

How are the products packaged for international shipping?

We typically use high-quality plywood cases to ensure maximum protection. Special shipping marks and specific packaging requirements can be accommodated based on your needs.

What is the typical lead time for production?

Production time depends on the specific model and customization. Generally, shipping occurs within 10 working days after payment is confirmed.

What kind of after-sales support do you offer?

We provide full follow-up services including detailed assembly drawings and installation manuals. Technical queries are typically answered within 2 hours of receipt via digital communication.

What payment terms do you accept?

We support standard international trade terms including EXW, FOB, CFR, and CIF. Typically, a production deposit is required with the balance cleared before delivery.
