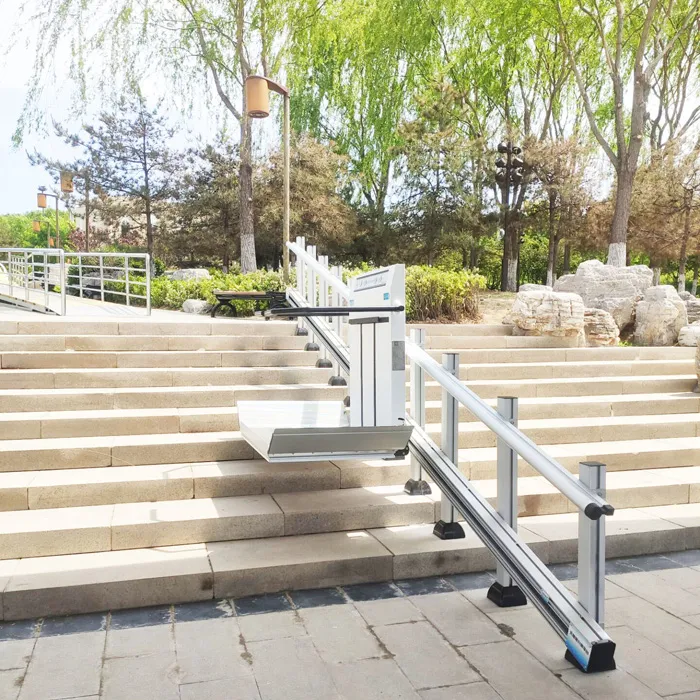

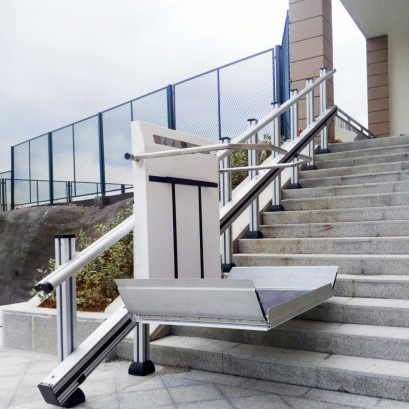

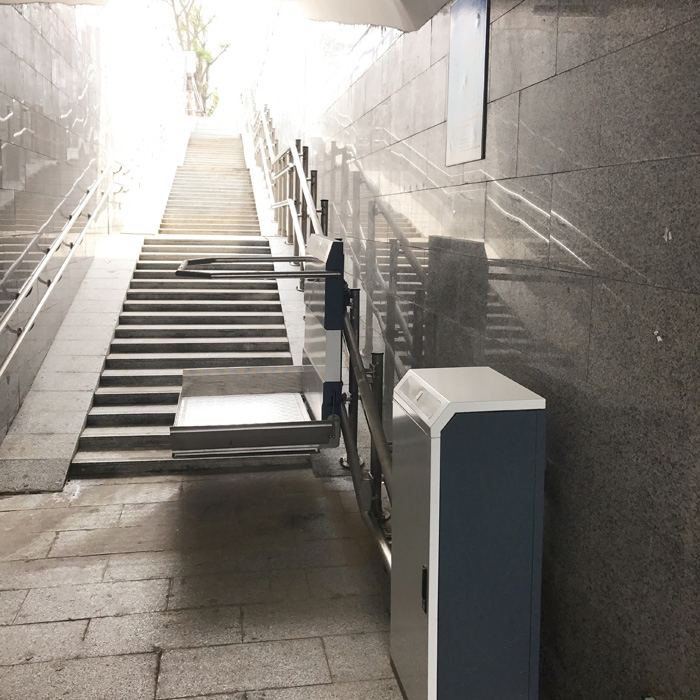

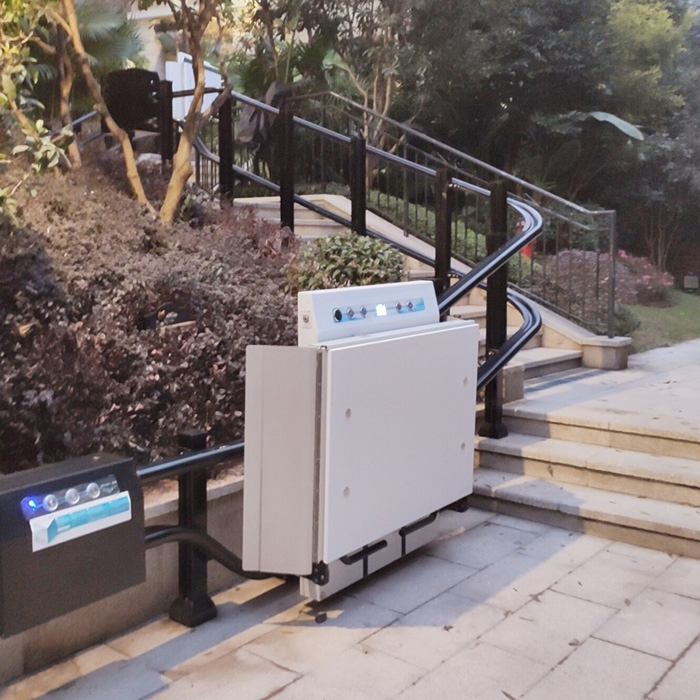

Inclined wheelchair lifts combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase.
These lifts can carry a passenger with a wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal for applications where an elevator or vertical platform lift cannot be easily accommodated.
| Platform Specifications | Measurement / Data | ||
|---|---|---|---|
| Platform load | 250kg | Platform weight | ≈150 kg |
| Operating surface size | 680mm * 60mm (L*H) | Manned size | 1118mm * 800mm |
| Side flap size | 885mm * 260mm | Side flap angle | -30° ~ +60° |
| Guardrail height | 945mm | Internal voltage | Up to DC 25.2V |
| Device thickness | 450mm±3mm | Folding Thickness | 323mm±1mm |
| Power & Speed | Value | ||
|---|---|---|---|
| Motor Power | 1 kw | Running speed | 0.01 ~ 0.16 m/s |
| Power supply | 220v 50hz | Control voltage | DC 24V, 5V |
| Emergency stop | < 0.5s | Communication | 9600k hz |
| Platform Shell | White spray + matt film | Platform Pedal | Aluminum Alloy Profile |
| Operation Panel | Electroplated acrylic | Action Button | Stainless steel |
| Side Panel Seal | Aluminum alloy | Automatic Guardrail | Stainless steel wire drawing |
| Floor | Aluminum alloy profiles | Rod | Stainless steel mirror + rubber |
