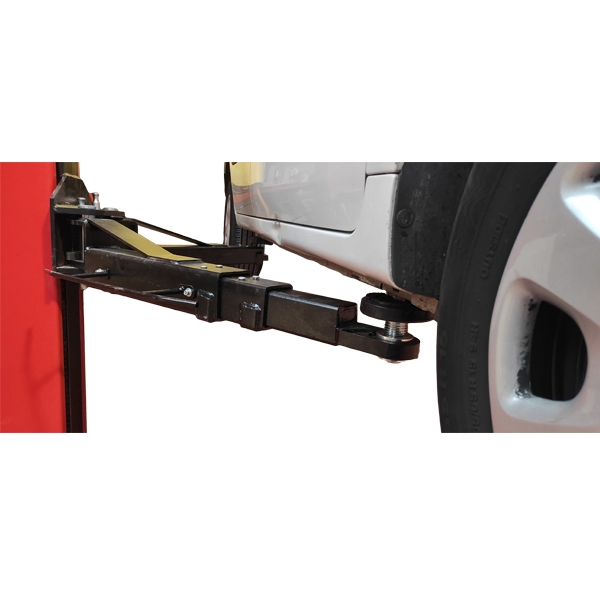

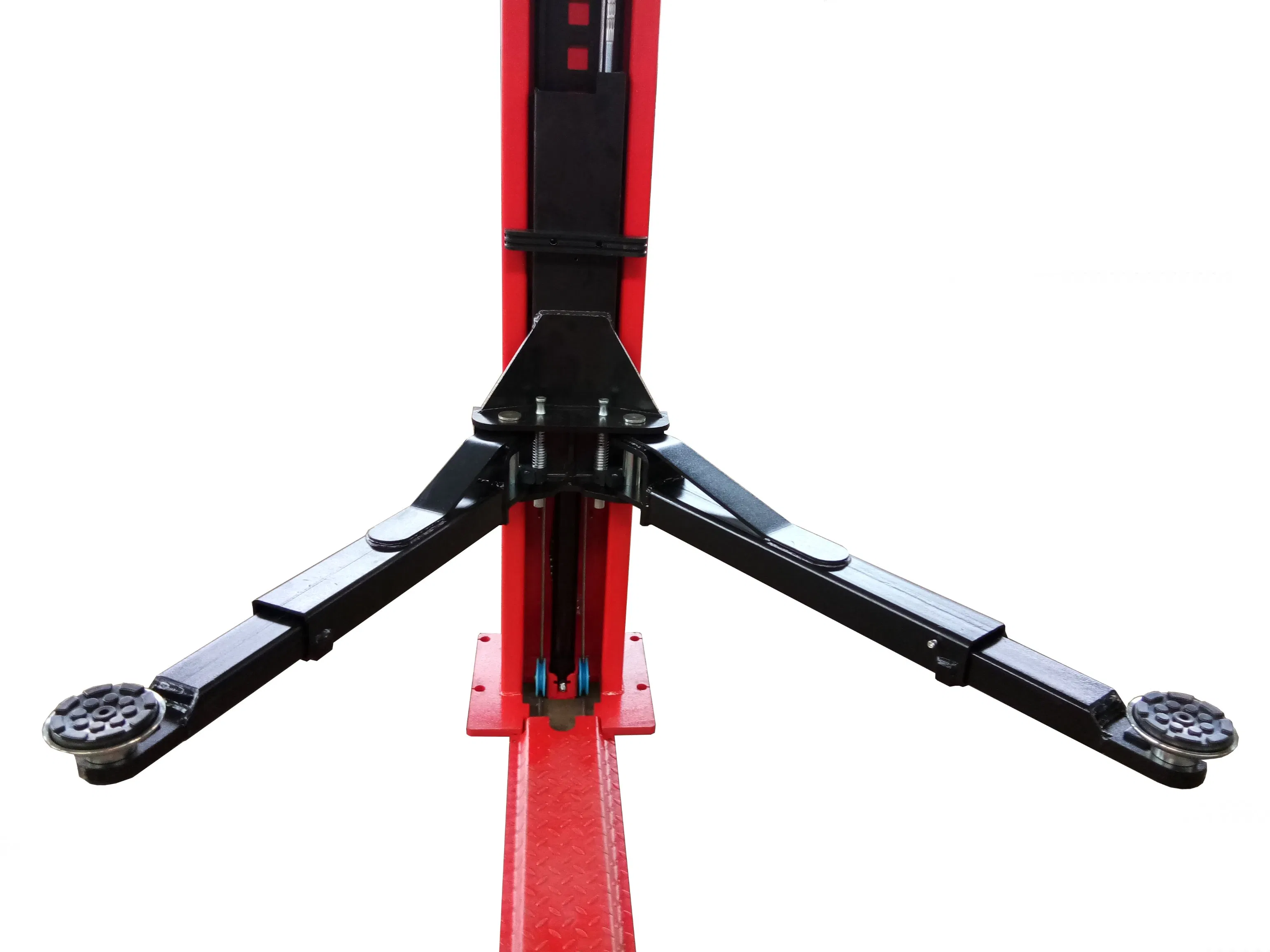

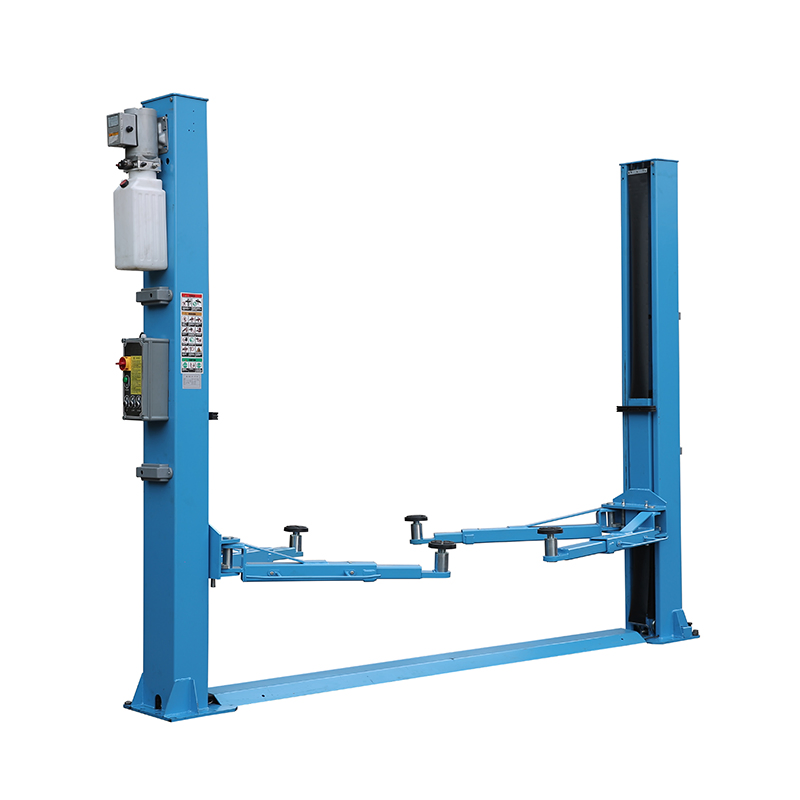

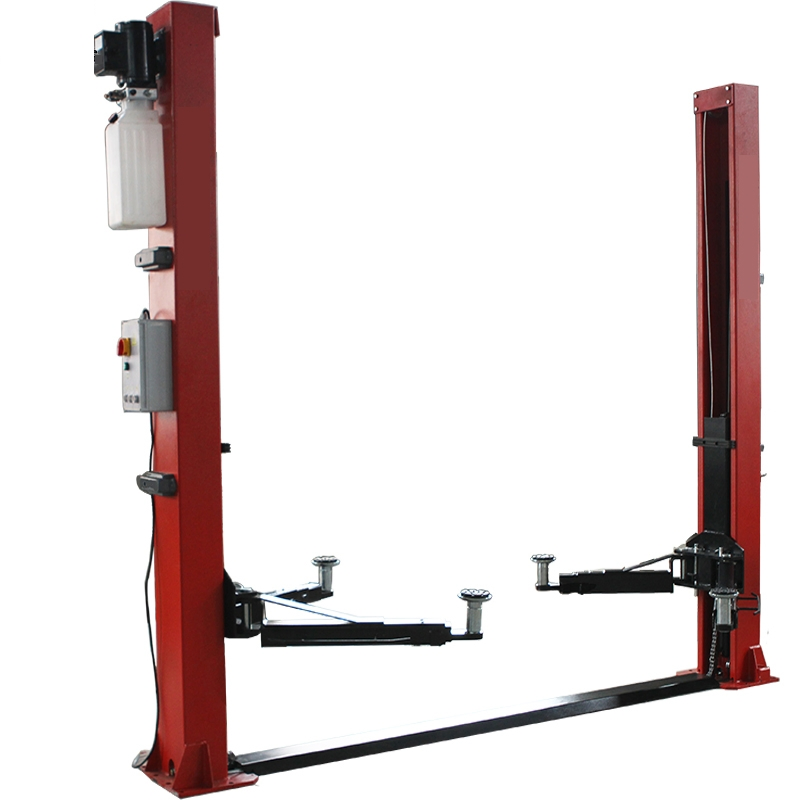

4000kg 2 Column Post Car Lift Electric Release Auto Lifter Elevadores

1 / 5

4000kg 2 Column Post Car Lift Electric Release Auto Lifter Elevadores

Customization:	Available
After-sales Service:	36 Month
Warranty:	12 Month

Send Inquiry

Product Description

Basic Specifications

Model NO.JH-4000FE

TypeDouble Cylinder Hydraulic Lift

Lifting Capacity4T

Driving TypeHydraulic

CertificationCE, ISO

Lifting Height1900mm

DesignTwo Post

Lifting Time50s

Motor Power110V/220V/380V

ConditionNew

Production Capacity10000 Sets /Month

HS Code8425429000

JH-4000FE 4000kg 2 Column Electric Release Auto Lifter Elevadores

Electric Unlock System: Reliable performance with professional-grade safety mechanisms.

Key Features

✓ Driven by double hydraulic cylinders, steel wire chain-type elevating system.

✓ Oil cylinder parts made by automatic high rotation speed CNC lathe ensure excellent finish.

✓ Automatic arm safety lock and hook type post lock for maximum security.

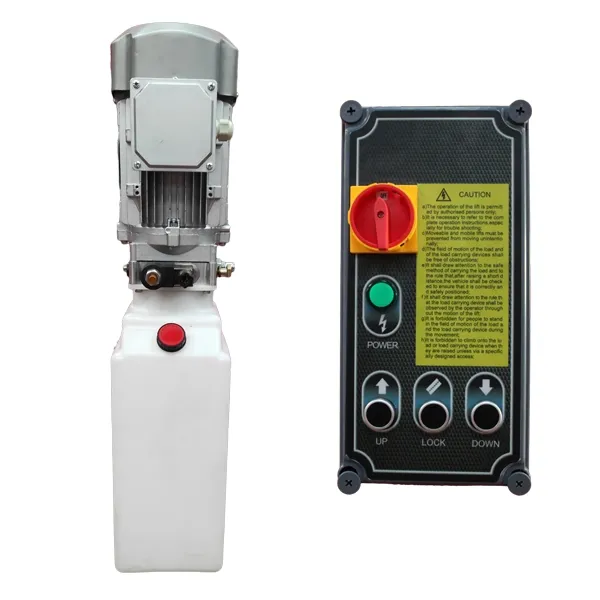

✓ Electrical box control both side unlocked safety, arm locks with tooth type ratchet.

✓ 3-stage Screw-up pads suitable for low chassis vehicles as well as SUVs.

✓ Door opening protection rubber and laser cutting surface finish.

✓ Shot blasting and high temperature baking powder coated surface.

✓ High-quality Japanese oil seals for long-term durability.

Technical Parameters

Lifting Capacity	4000kg
Lifting Height	1900mm
Minimum Height	115mm
Lifting Time	40-45s
Overall Height	2814mm
Overall Width	3310mm
Width Between Columns	2820mm
Motor Power	2.2kw
Power Supply	220V/380V/415V

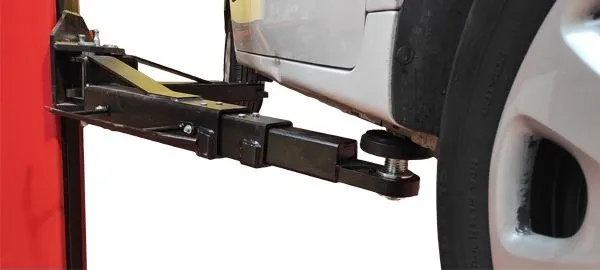

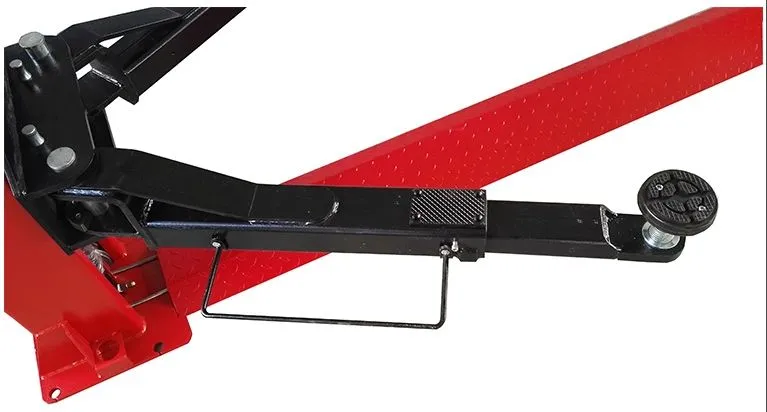

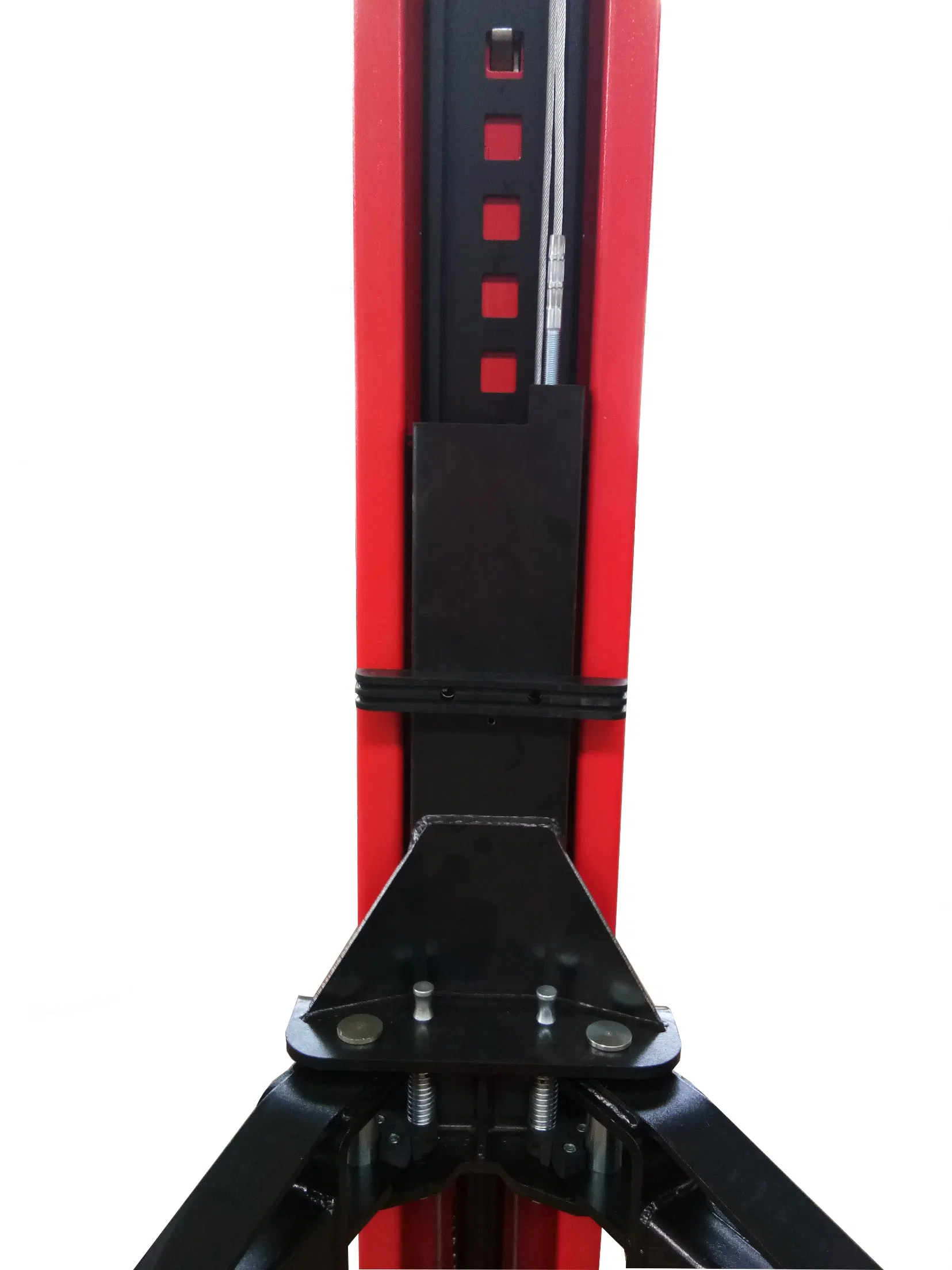

Detailed View

Quality Management

To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All products are 100% inspected before shipment. Whole manufacturing processes are under a very serious and strict system.
