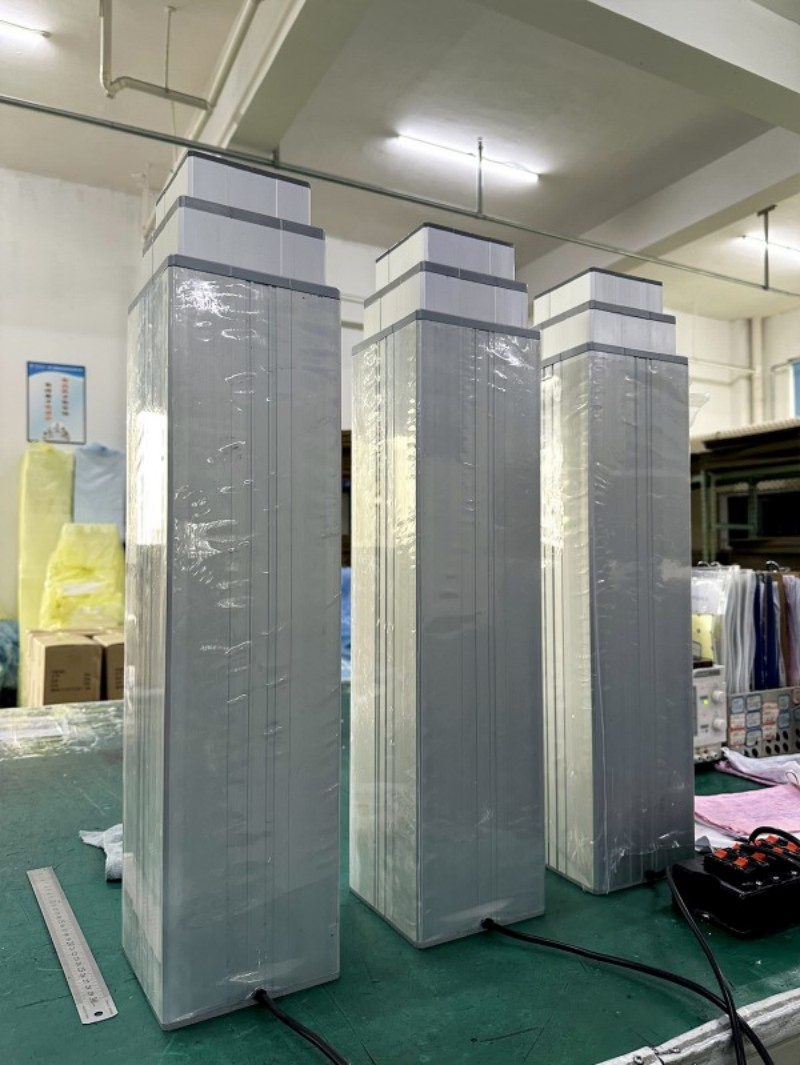

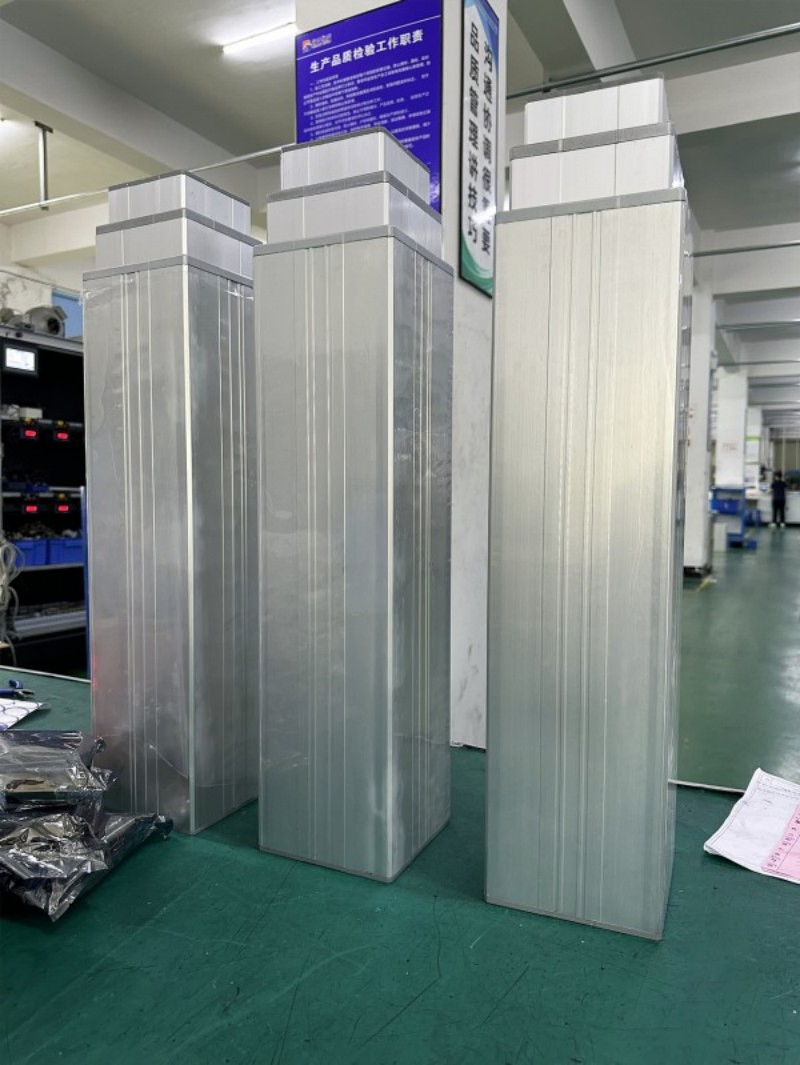

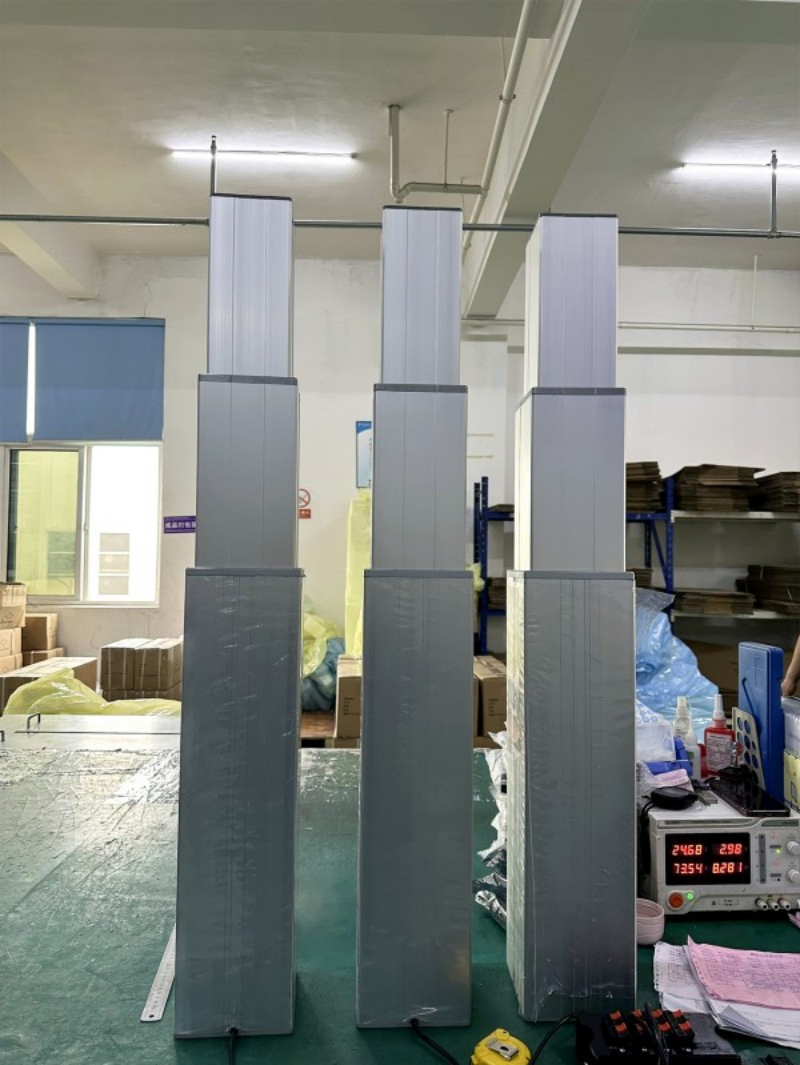

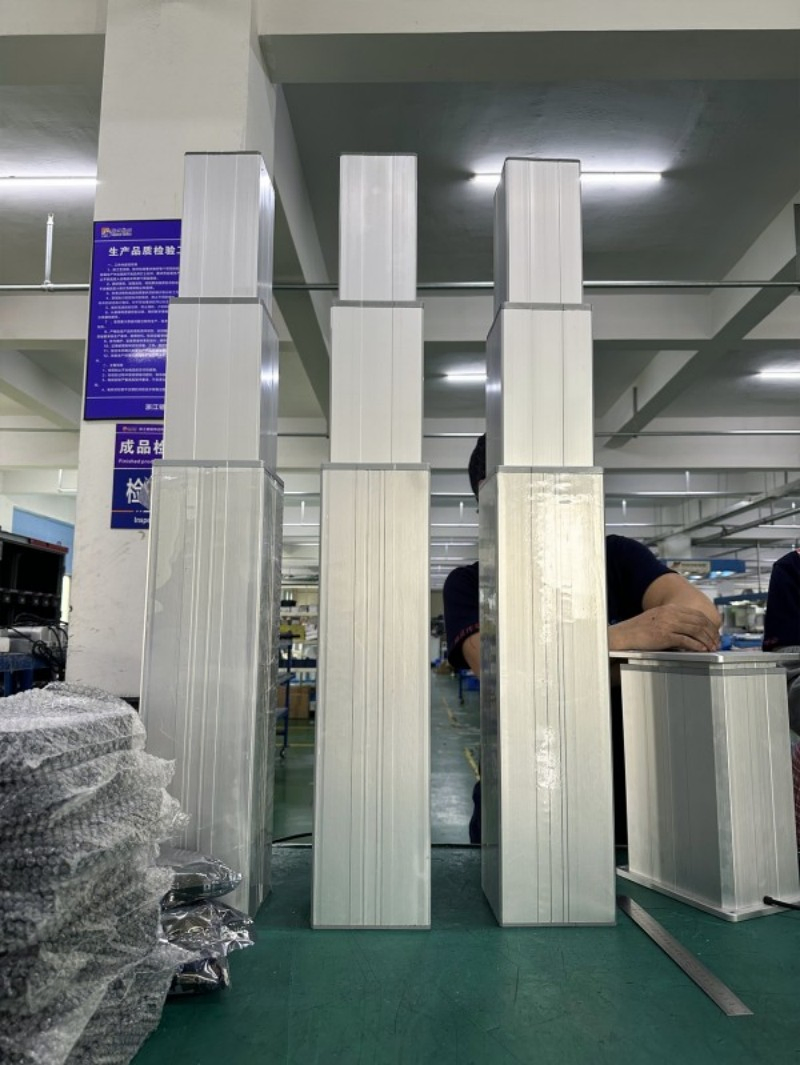

Htd3-18 Robot Base Lift System, Trapezoidal Screw / Ball Screw Optional

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
HTD3-18
Payload Capacity
200 kg
Reach
2000 mm
Maximum Load
4000
Maximum Speed
200mm/S
Installation Dimensions
Stroke +350mm
Certification
ISO, CE
Control Mode
Continuous Path Control
Product Features

Robots are one of the keys to the Industrial 4.0 revolution. They are increasingly being used in new applications to perform repetitive or dangerous tasks, increasing productivity and improving working conditions. With the development of collaborative robots, various new industries can also benefit from them. Robots have limited working range. Robotic 7th axis solutions can effectively extend the robot's reach and significantly improve productivity in many cases with repetitive tasks. Our additional horizontal linear module can reposition the robot's base during the work cycle, increasing the operating range by 7 times. We offer a range of linear motion extension axes (both vertical and horizontal) to easily expand your robot's working range!

Model Selection
Model Selection

• Professional Selection

Our professional sales representatives and technical team will choose the right model and transmission solutions for your usage depending on your specific parameters.

• Drawing Request

If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.

• Customization

We can modify standard products or customize them to meet your specific needs.

Detailed Photos

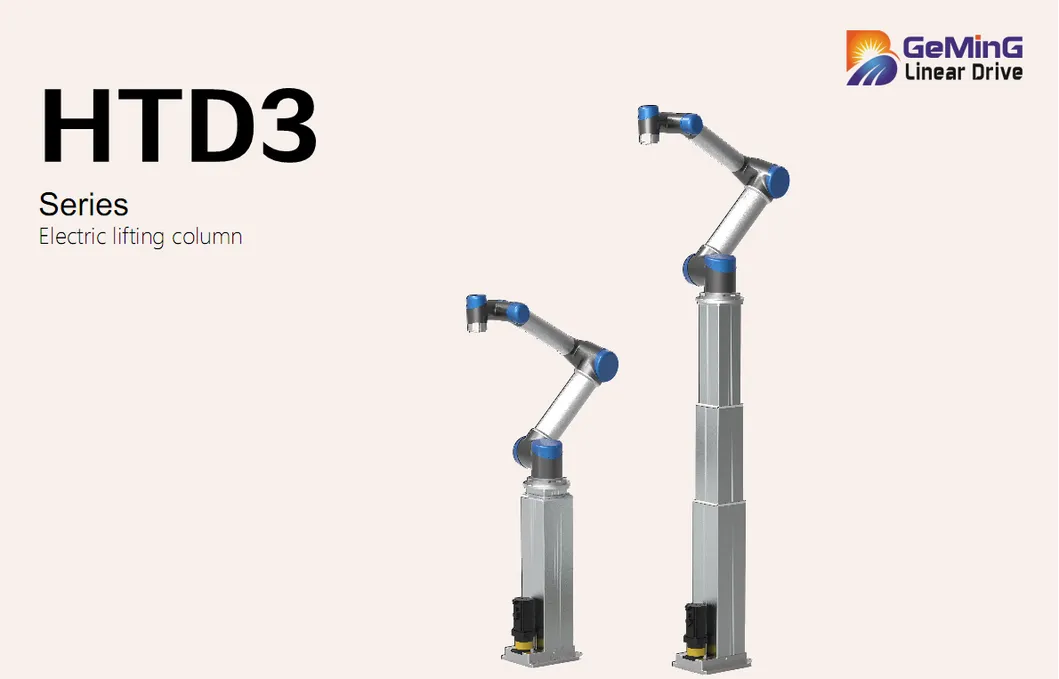

Detail Photo 1

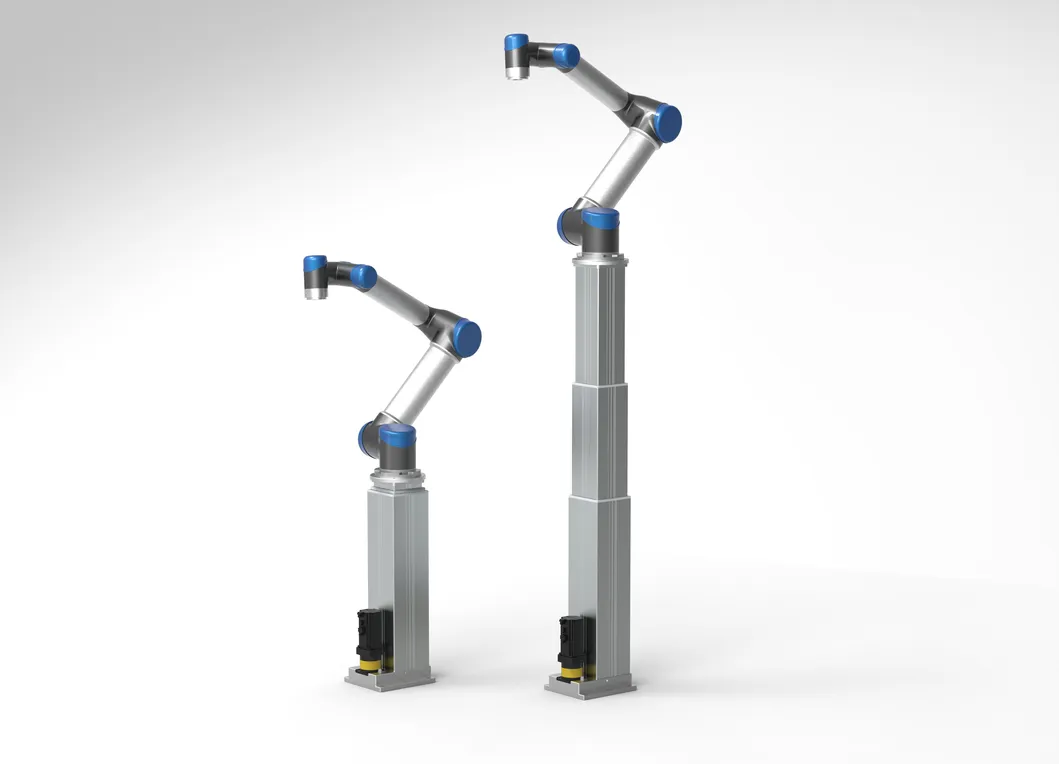

Detail Photo 2

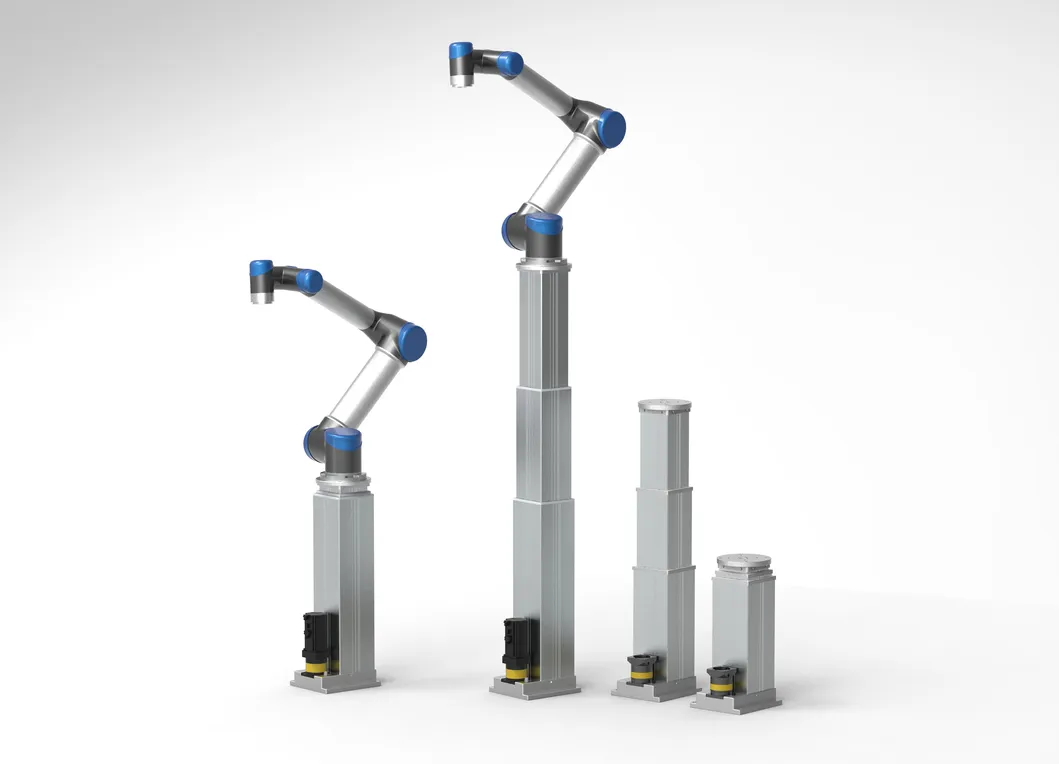

Detail Photo 3

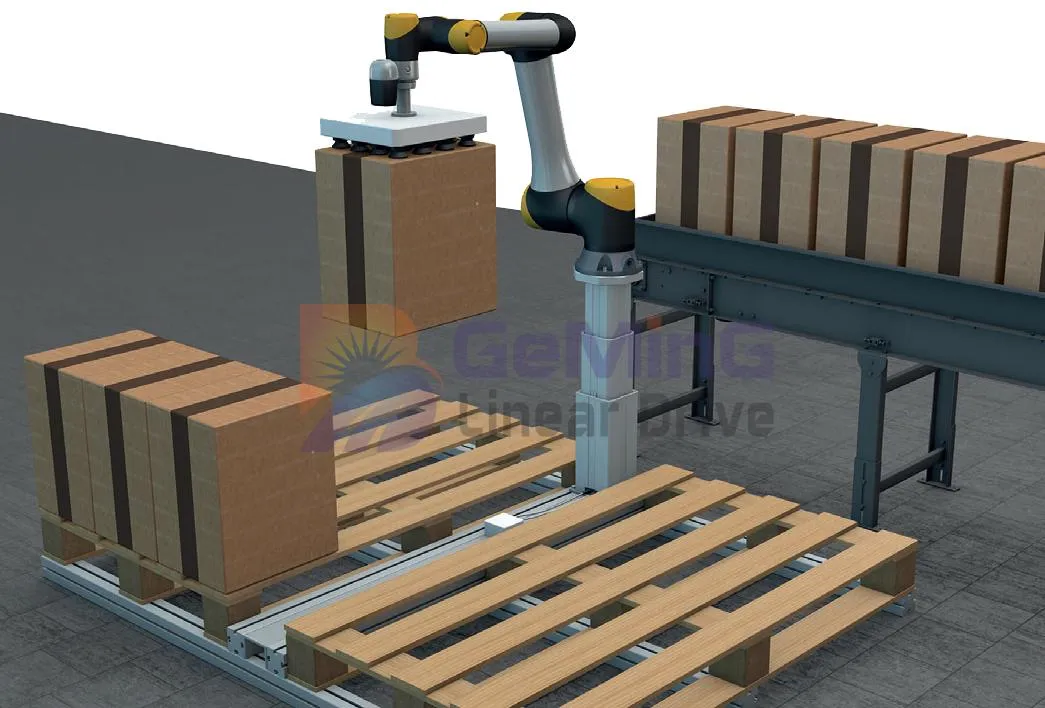

Detail Photo 4
Functional Overview
Voltage48V DC, 220V AC
Motor optionsDC servo motor, AC servo motor
Maximum thrust (pull force)5,000N / 3,000N
Maximum speed under load100 mm / s (load 2,000N)
Minimum installation sizeStroke /2 + 350mm
Dynamic lateral moment1,000Nm
Static lateral moment1,800Nm
ColorAluminum color, Silver gray
Noise Level55~68 DB
Adaptable temperature range-35 ° C ~ + 75 ° C
Screw selectionBall screw, trapezoidal screw
Control optionsCAN bus control
Safety certificateComply with ISO9001-2008, CE and RoHS specifications
Engineering Drawings

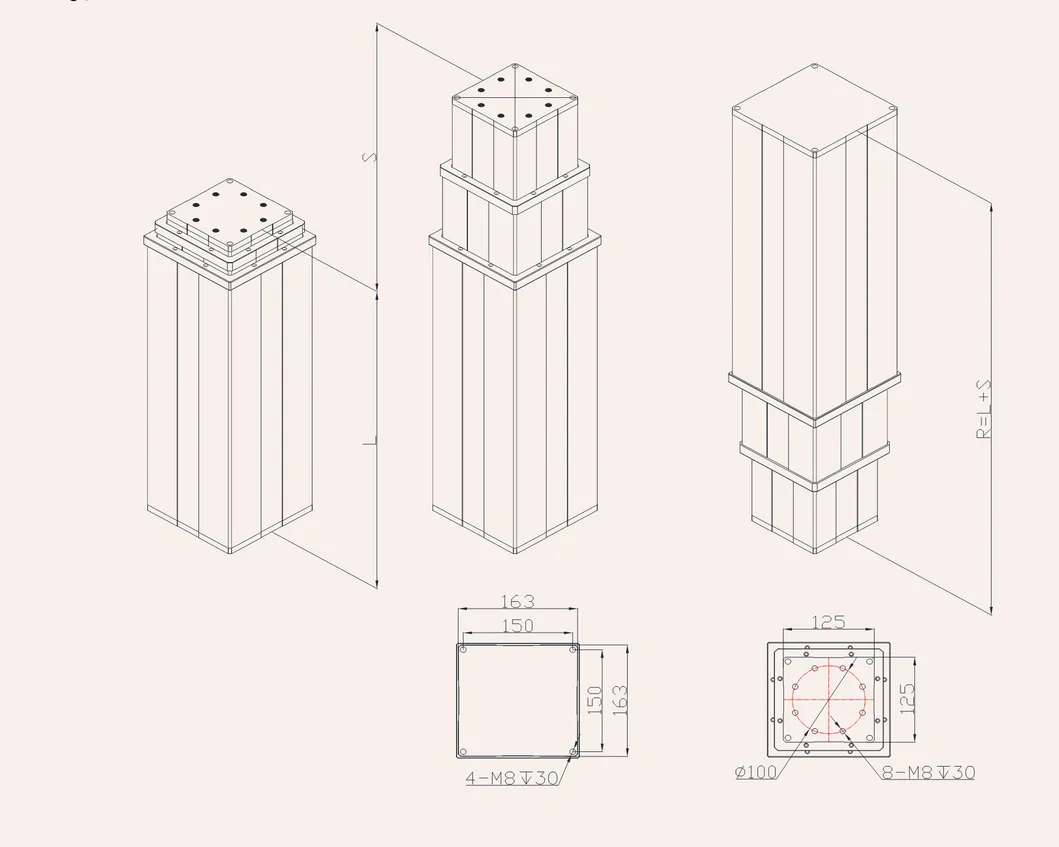

Engineering Drawing 1

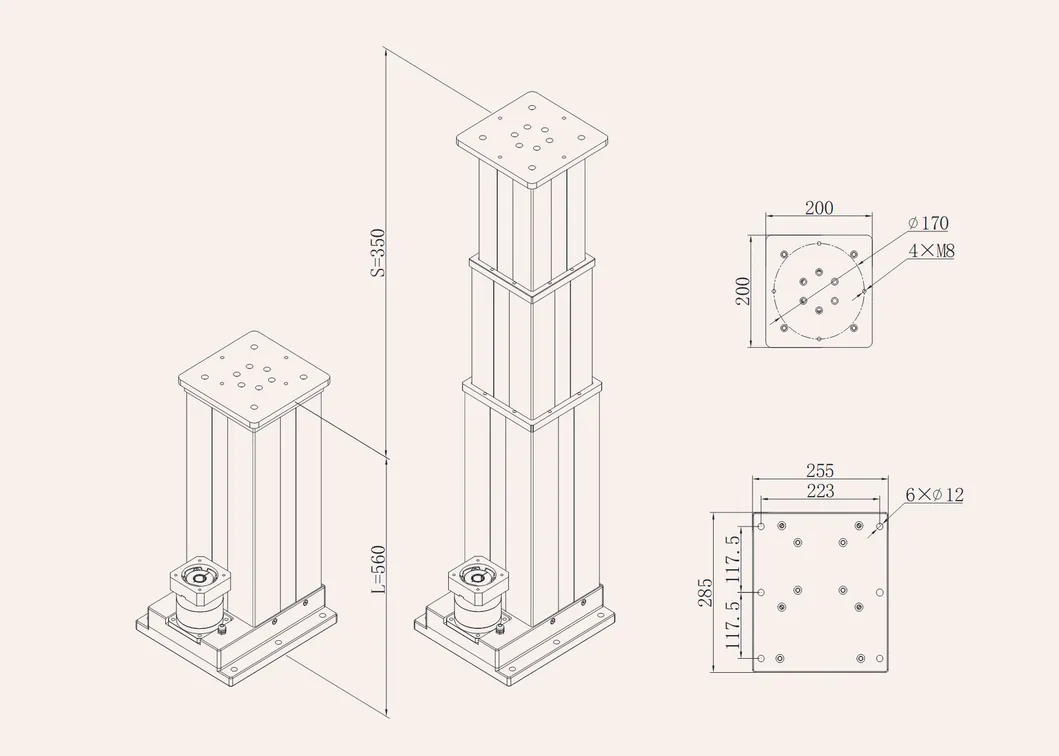

Engineering Drawing 2
