Product Description

Basic Specifications

Model NO.L150

Lift MechanismLift Chain

Carrying CapacityLight Level

MovesVehicular

Driven TypeHydraulic

Running ModeStationary

FeatureLow Temperature Resistance

CertificationCE, ISO 9001

Base Plate Size1370mm×922mm

Power220V/50Hz

Overall Dimensions1768mm*1290mm*600mm

Max Lift Height6000mm

Lifting Speed70mm/S (Hydraulic) 40mm/S (Screw)

Maximum Load250kg

Guard Form90° or 180° Configuration

Proper Temp.-20°c-60°c

HS Code8428909090

Capacity200 Units Per Month

★

Product Description

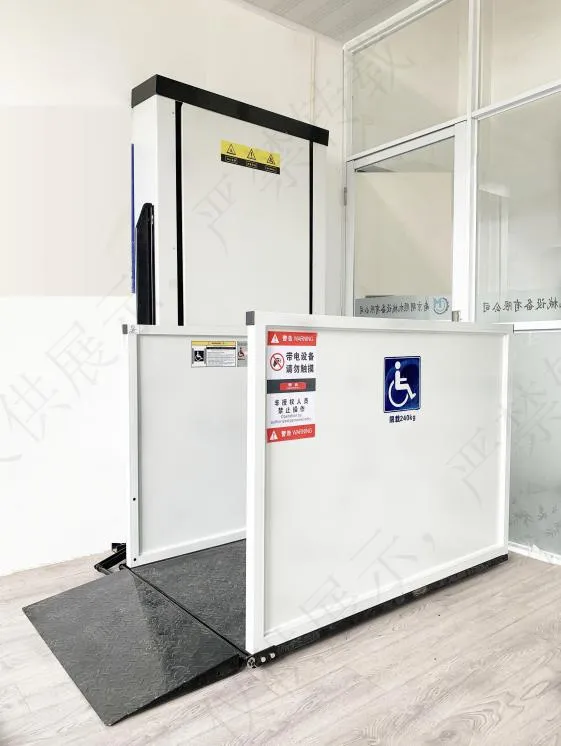

Barrier-free Vertical Wheelchair Lift

The L-150 screw type barrier-free lifting platform is a vertical multi-functional lifting platform driven by a steel structure frame and precision screw. It can be customized for heights up to 2000mm or more based on customer requirements. The pit-free installation design offers convenience for barrier-free access construction.

Key Application: Public places such as residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, and hospitals.
Key Features: Novel design, safe and smooth operation, beautiful appearance, low noise, and low temperature resistance.

⚙

Technical Dimensions & Diagrams

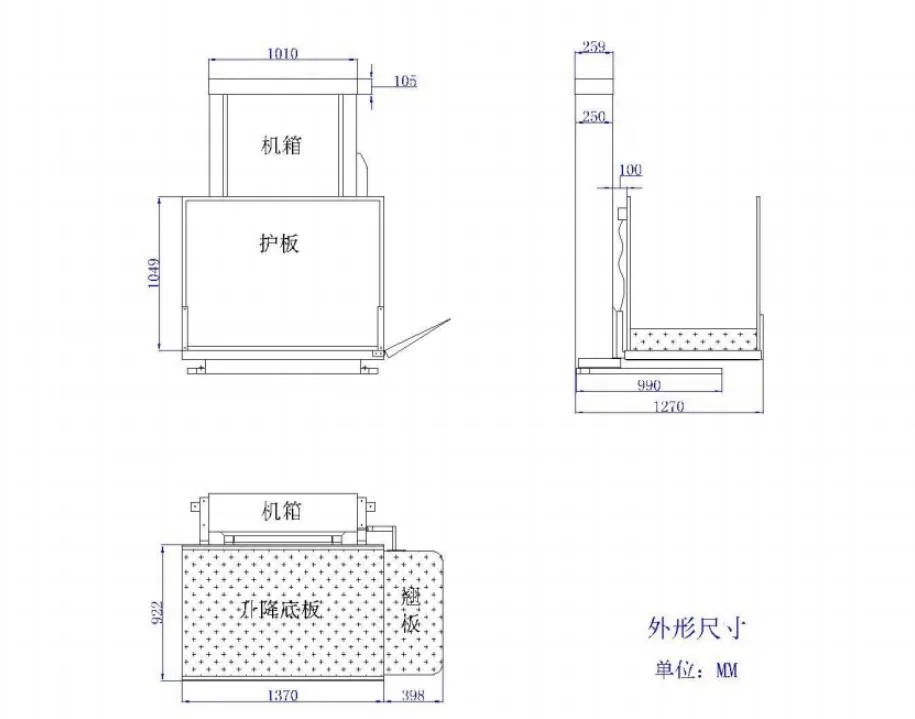

Dimensions of L-150 Lifting Platform:

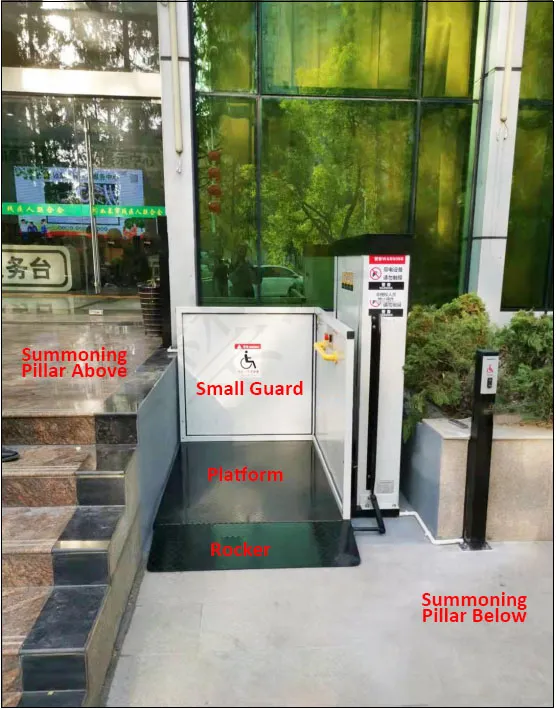

90° Configuration

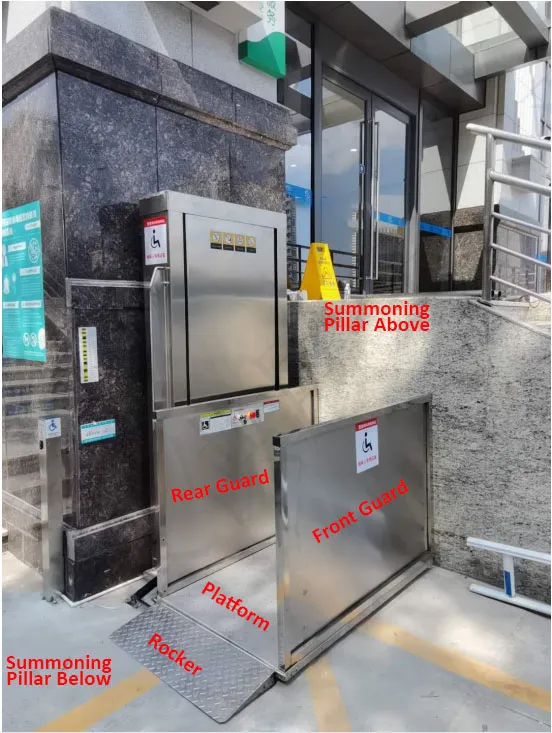

180° Configuration

Power	220V/50HZ	Motor Power	0.75kw, 1.5kW 220V/AC
Overall dimensions	1768mm × 1290mm × H+600mm	Lift control	Rocker self-reset switch operation
Lifting base plate size	1370mm(L) × 922mm(W)	Outbound call form	Ground-attached columns with linkage control
Maximum lift height	6000mm	Environment	Indoor or Outdoor
Min Height	80mm (from ground)	Installation	No foundation pit required (fixed on C30 concrete)
Lifting speed	70mm/s (Hydraulic) / 40mm/s (Screw)	Safety rocker	Automatic tilt to prevent wheelchair sliding
Maximum load	250kg (Standard)	Fall protection	Main/Auxiliary nut transmission & anti-fall protection
Emergency Stop	Emergency button switch control	Emergency descent	Manual crank handle lowering

✔

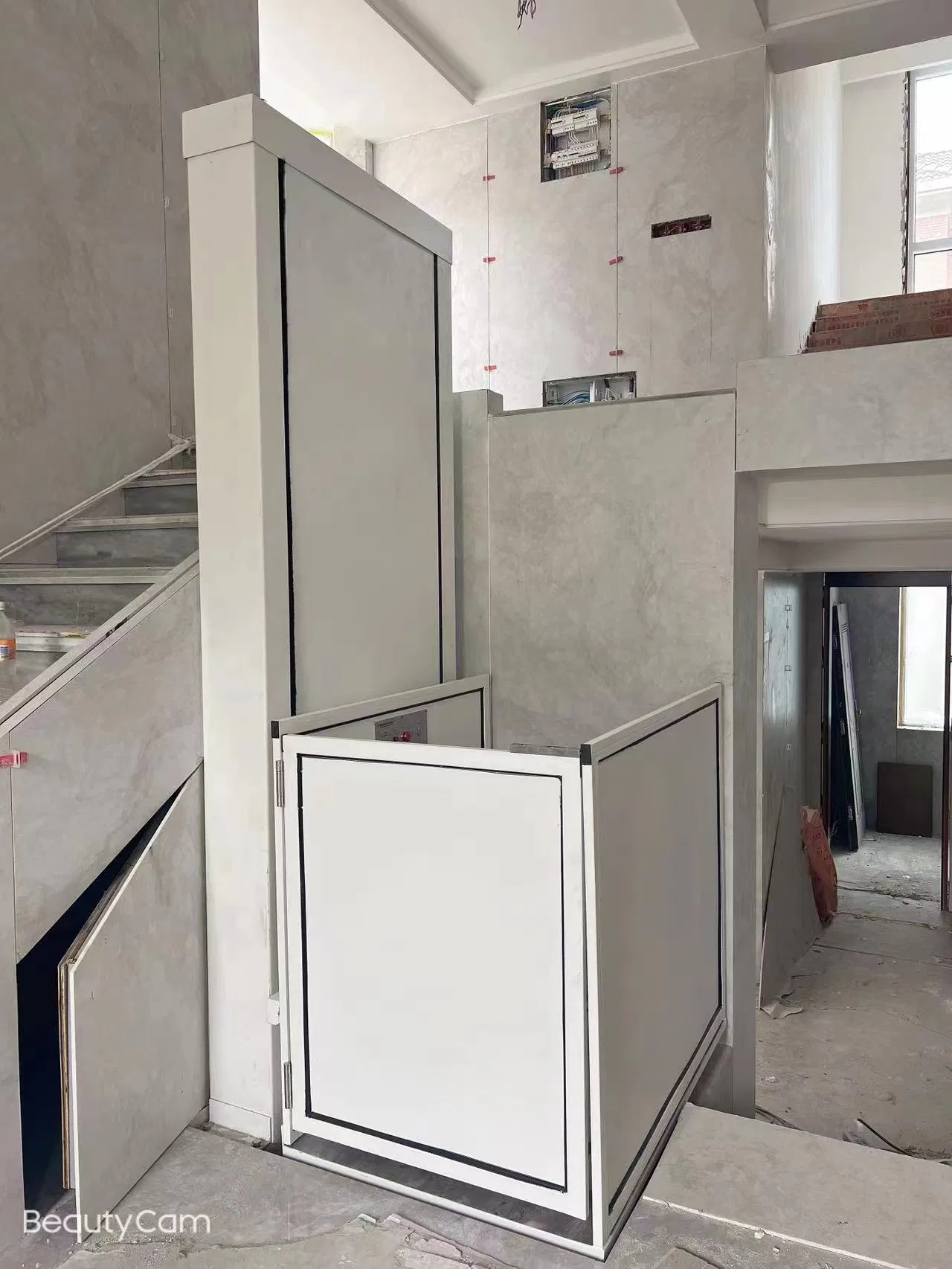

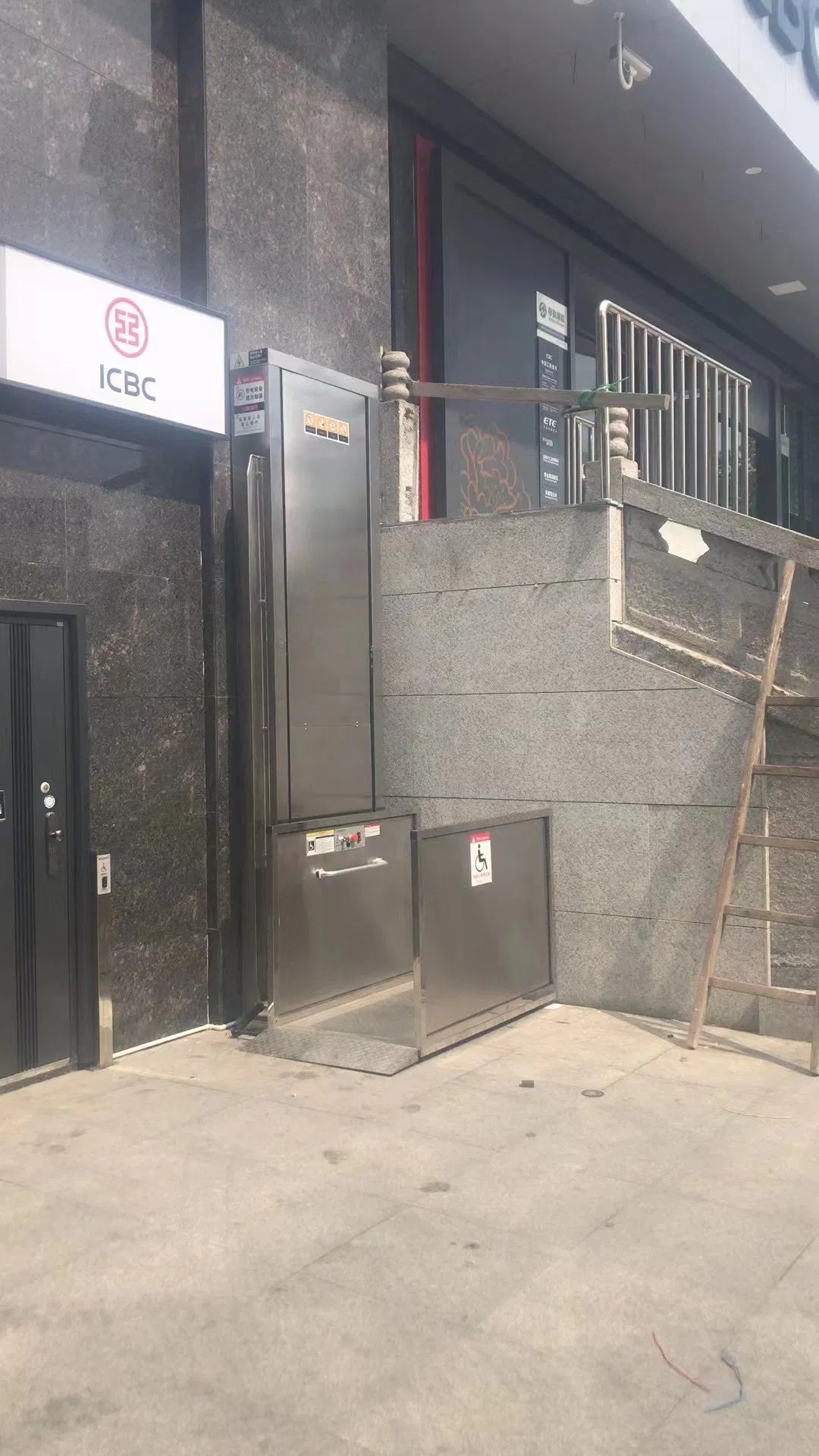

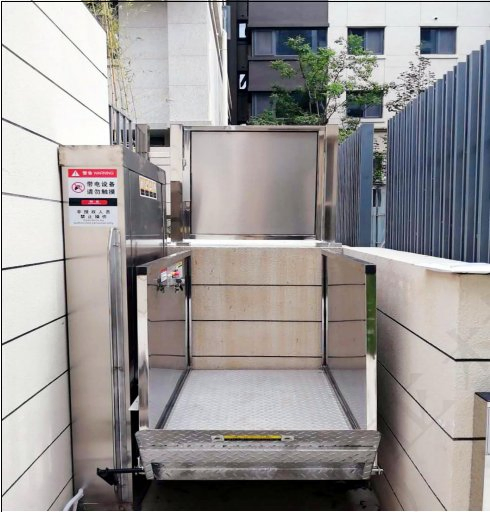

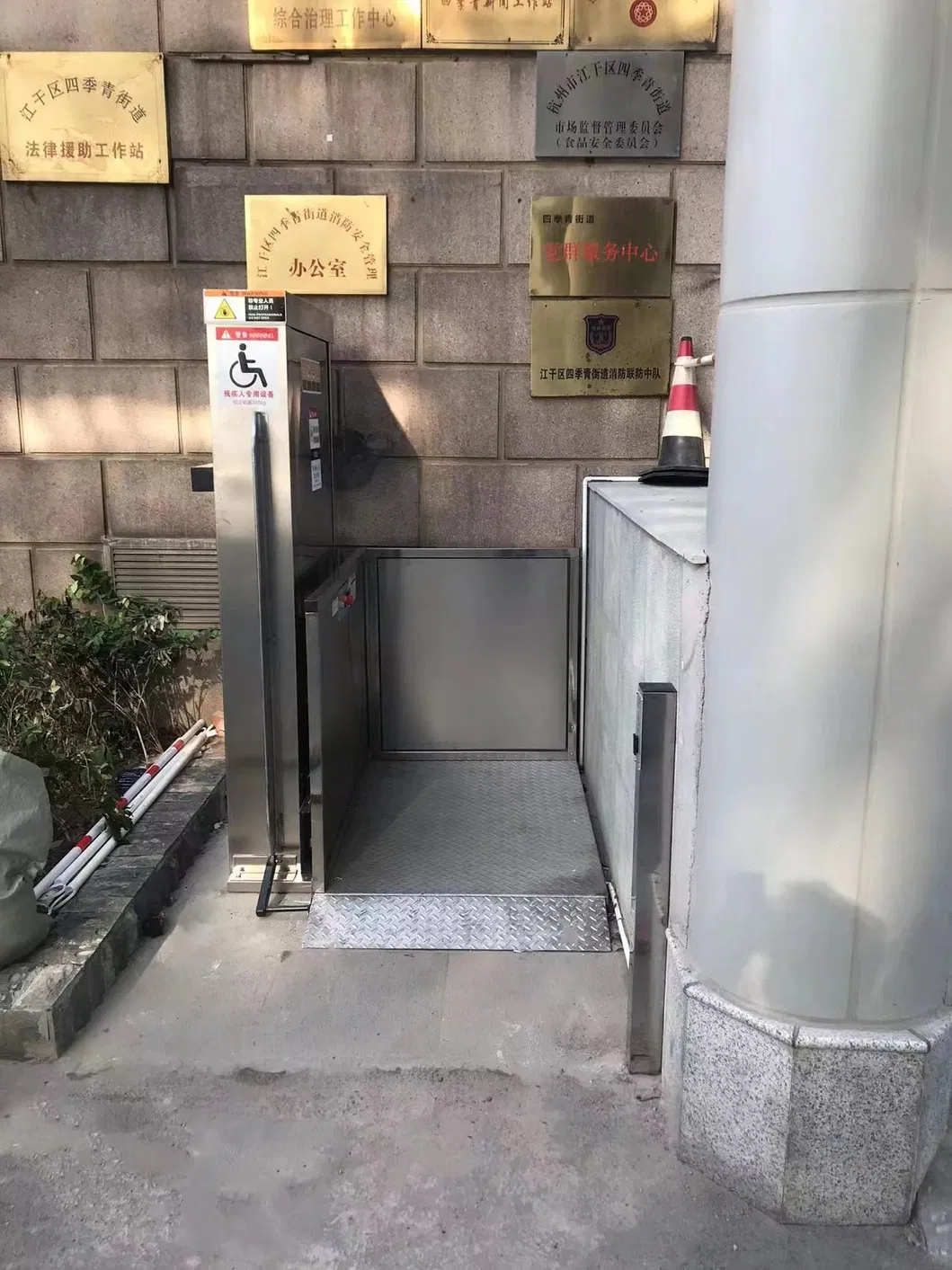

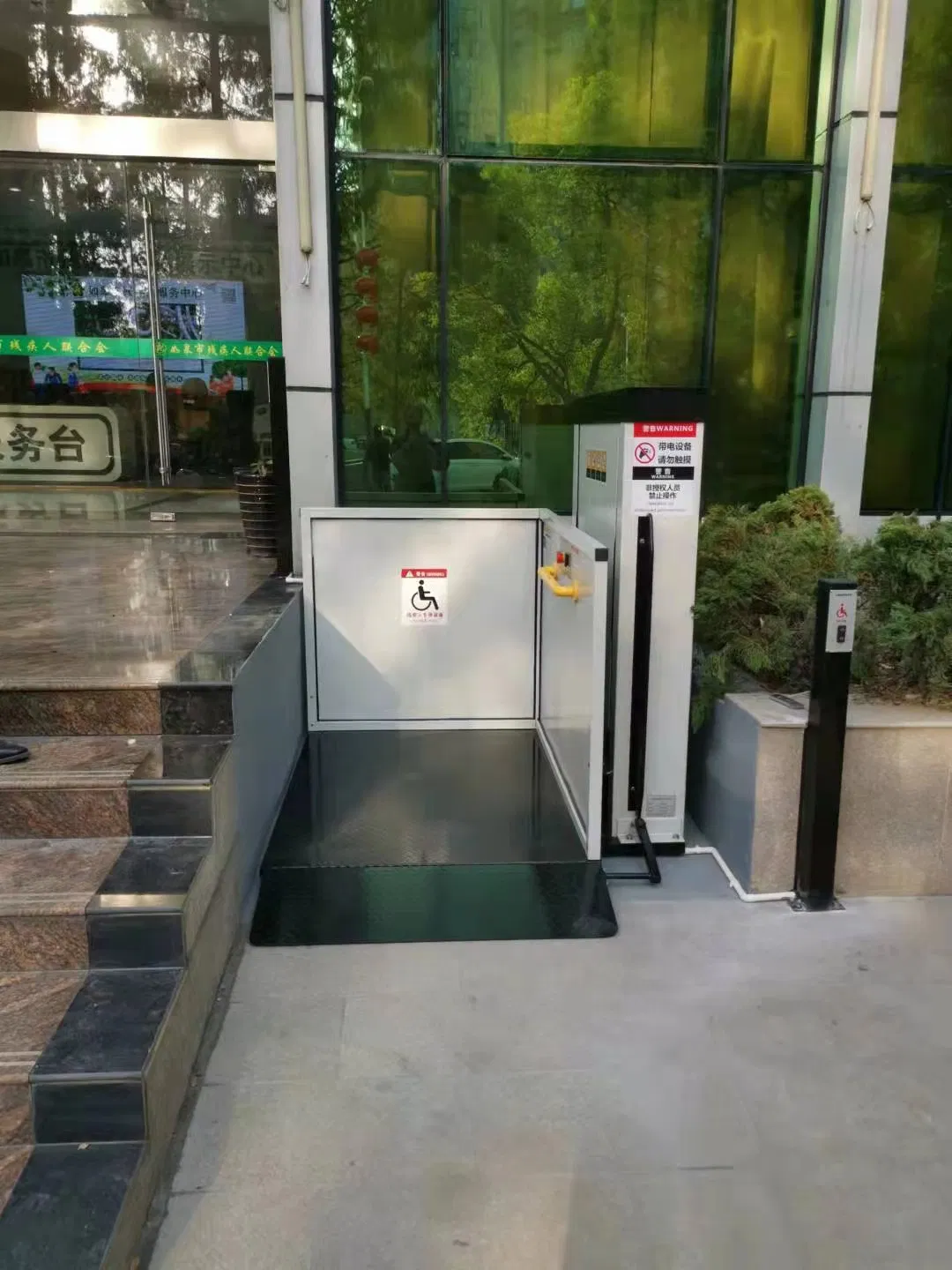

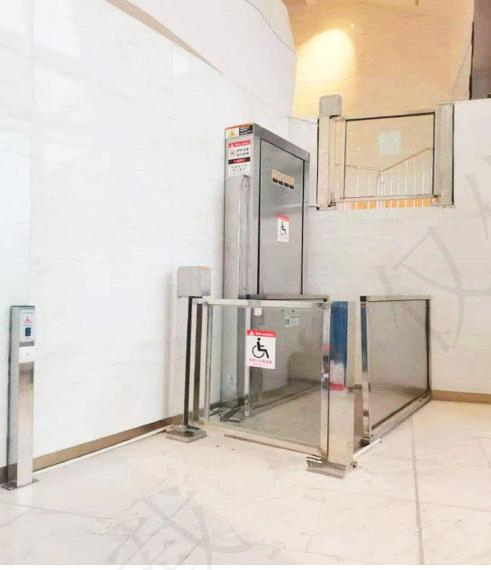

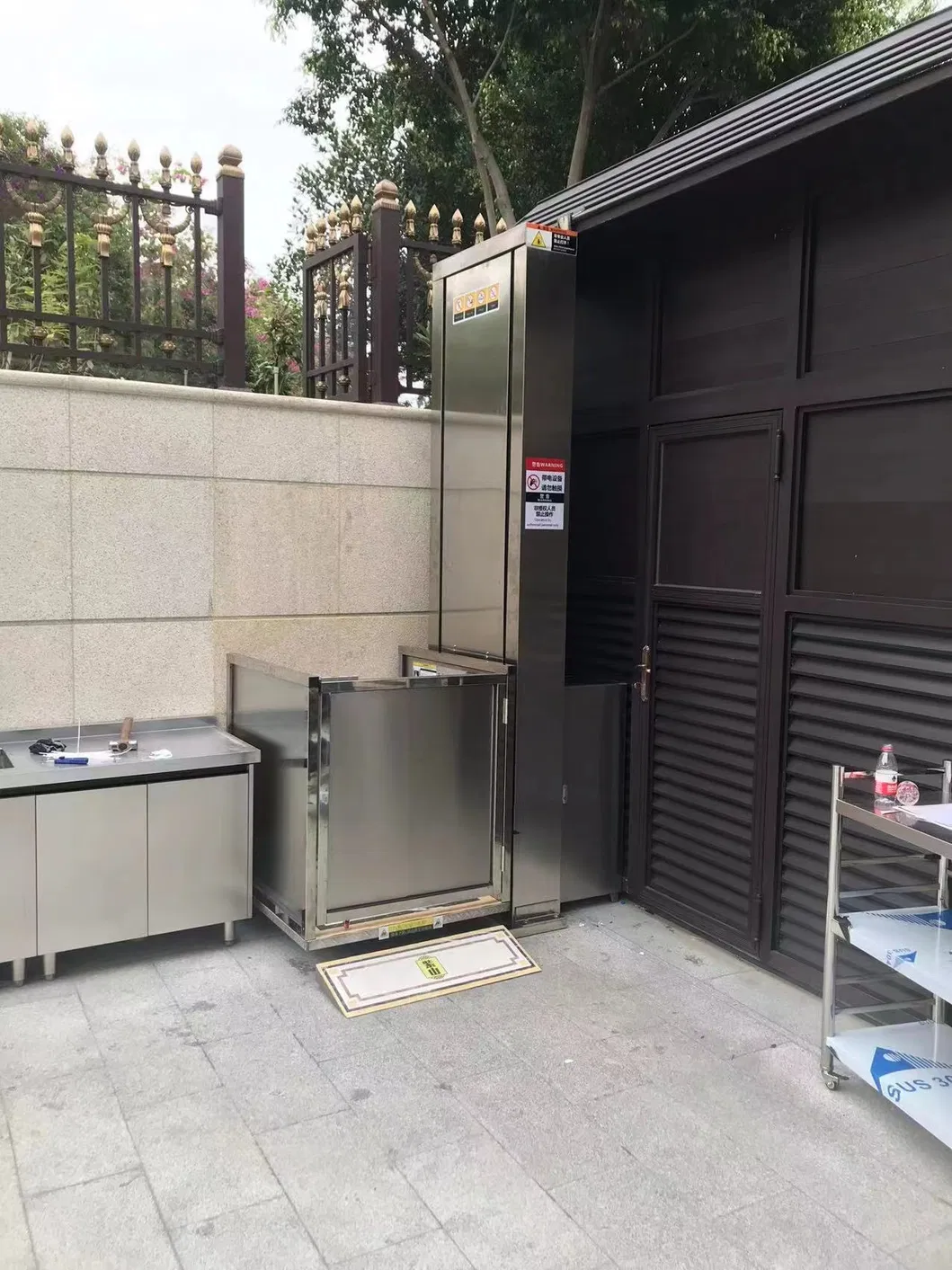

Reference Cases & Production

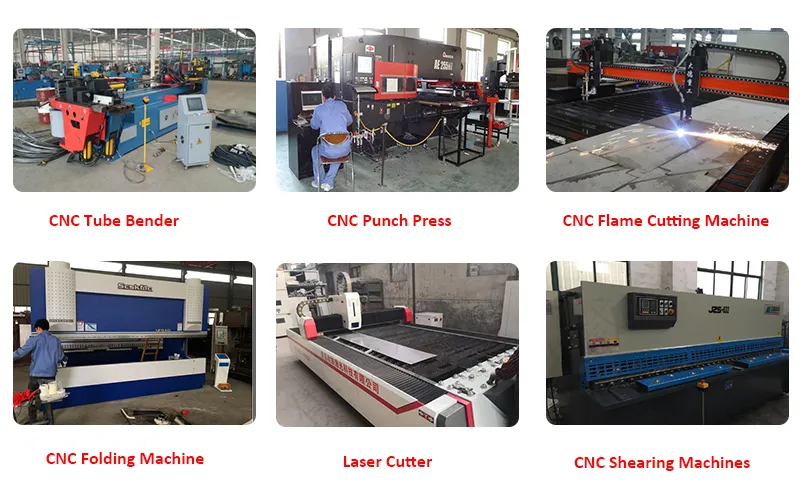

Production Equipment:

Certificates

Transportation

🛡

Warranty & Support

User-friendly English manual for machine operation and maintenance.
One year warranty for the entire machine (excluding man-made faults).
Free replacement parts provided for non-human factor issues during warranty.
24-hour technical support via email or telephone.
Rapid response within 2 hours for all inquiries, including weekends and holidays.

Frequently Asked Questions

Q1: What is the maximum lift height of the L150 platform? The L150 can reach a maximum lifting height of up to 6000mm.

Q2: Does the installation require a foundation pit? No, it is designed for pit-free installation and can be directly fixed on a level concrete surface (minimum 200mm thickness).

Q3: What safety features prevent the wheelchair from sliding? The equipment includes a safety rocker that automatically tilts up when the platform is running to secure the wheelchair.

Q4: Can this lift be used in cold outdoor environments? Yes, the L150 features low temperature resistance and is suitable for environments ranging from -20°C to 60°C.

Q5: What are the drive mode options? The platform can be equipped with either a hydraulic drive or a precision screw drive system.

Q6: What happens if there is an obstacle under the platform while descending? The lift is equipped with a safety net underneath that immediately stops the downward movement upon encountering an obstacle.
