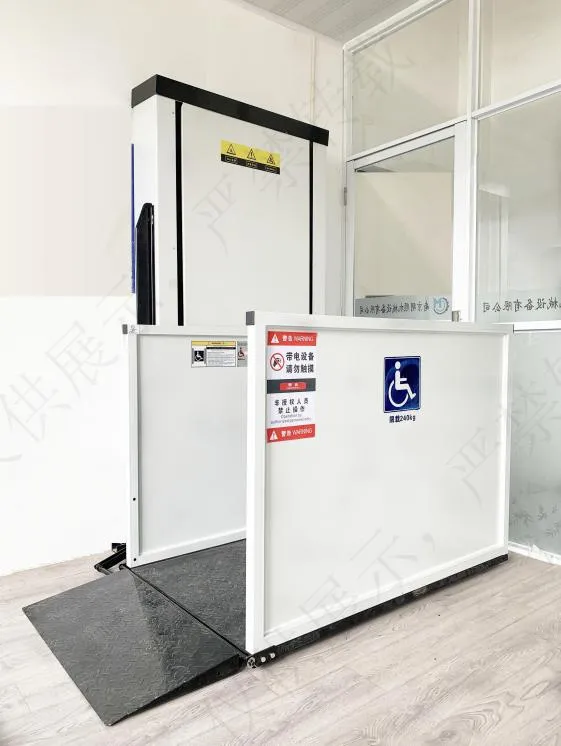

Vertical Hydraulic Driven Disabled Home Wheelchair Lift
Basic Information
Lift Mechanism
Lift Chain
Carrying Capacity
Light Level
Moves
Vehicular
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Low Temperature Resistance
Certification
CE, ISO 9001
Lifting Base Plate
1370mm × 922mm
Power
220V/50Hz
Maximum Lift
6000mm
Maximum Load
250kg
HS Code
8428909090
Product Description
The L-150 screw type barrier-free lifting platform is a vertical multi-functional lifting platform driven by a steel structure frame and precision screw. Products can be customized within a range of 2000mm or less. The safe performance and pit-free installation design provide convenient barrier-free access construction and elevator-like enjoyment.
This product is widely utilized in public and residential settings, including hotels, restaurants, administrative offices, subways, banks, hospitals, and gymnasiums. It features a novel design, smooth operation, low noise, and excellent low-temperature resistance, conforming to ASME A18-1 and CSA-B613 standards.
Main Features
Novel design with a beautiful aesthetic appearance.
Safe and smooth vertical movement with low operational noise.
High resistance to low temperatures for diverse environmental use.
Automatic safety rocker to prevent wheelchair sliding.
Multiple drive options: Hydraulic or Precision Screw drive.

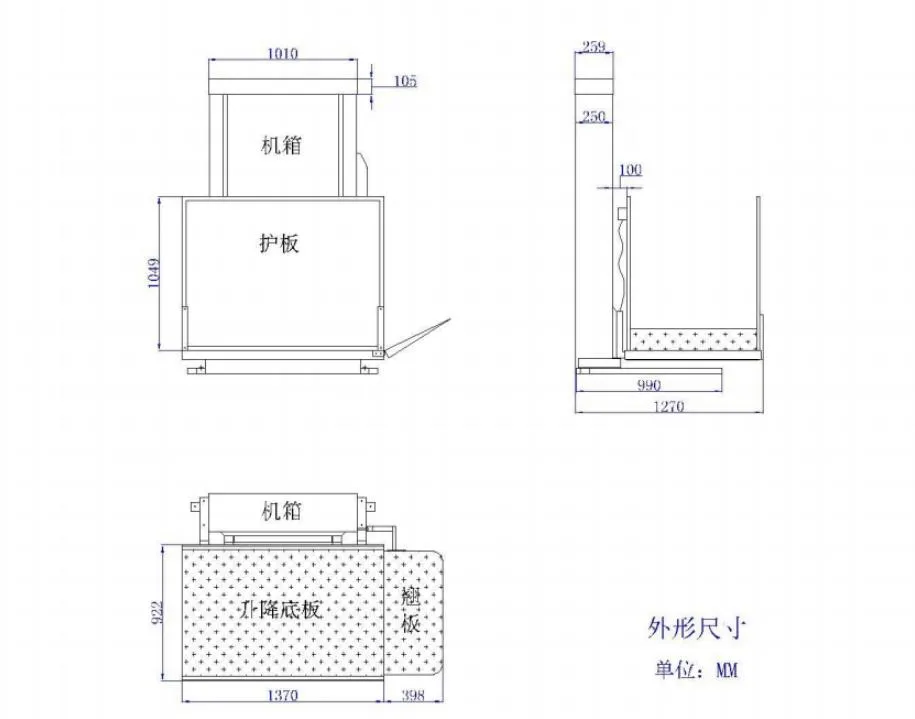

Dimensions & Configurations
Technical Parameters
Power
220V/50HZ
Motor Power
0.75kw - 1.5kW
Overall Dimensions
1768mm × 1290mm × H+600mm
Lift Control
Rocker self-reset switch
Base Plate Size
1370mm × 922mm
Environment
Indoor or Outdoor
Max Lift Height
6000mm
Temperature Range
-20°C to 60°C
Min Platform Height
80mm (from ground)
Max Load
250kg
Lifting Speed
70mm/s (Hydraulic) / 40mm/s (Screw)
Safety Features
Safety Rocker, Fall Protection, Emergency Stop

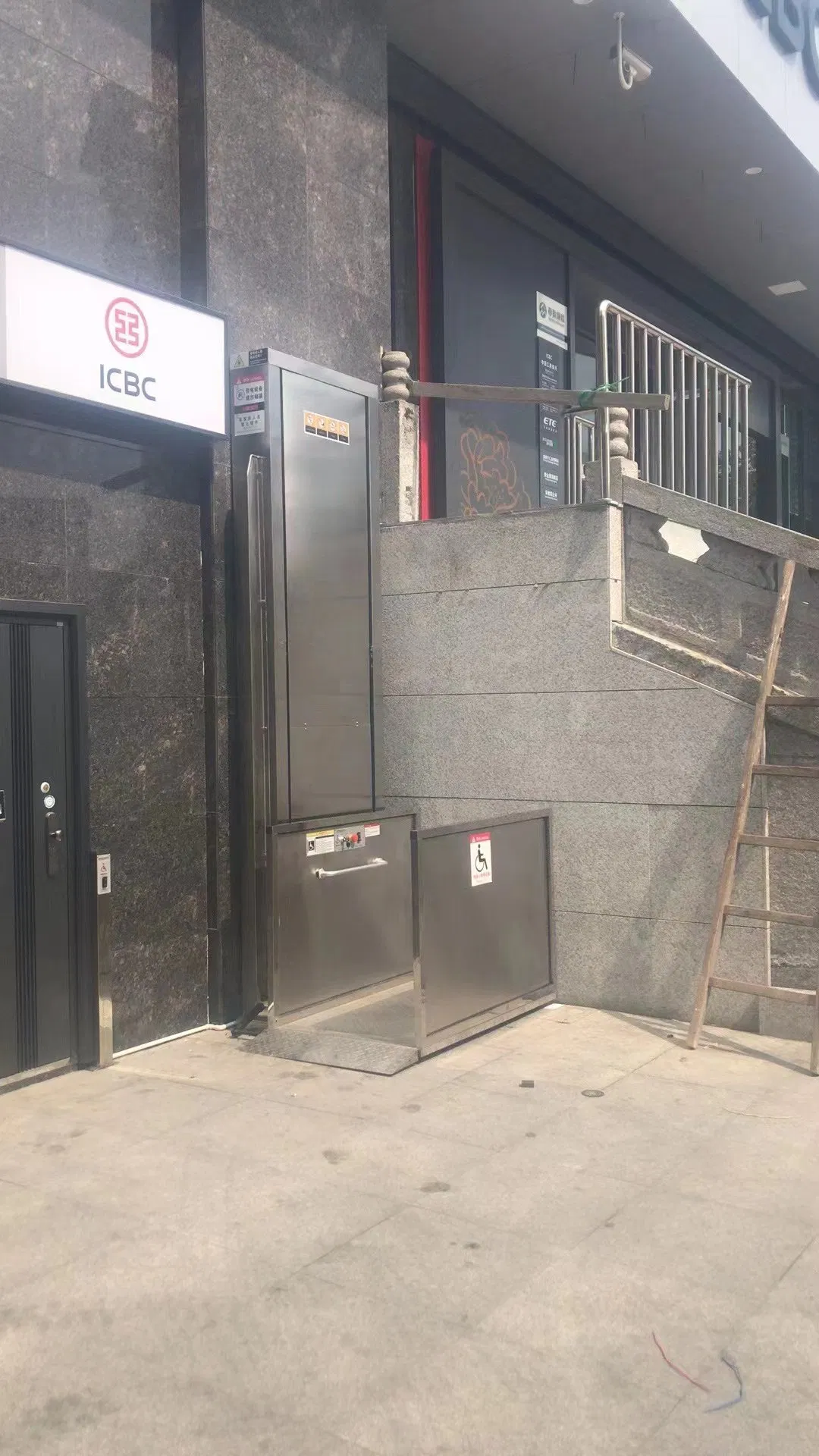

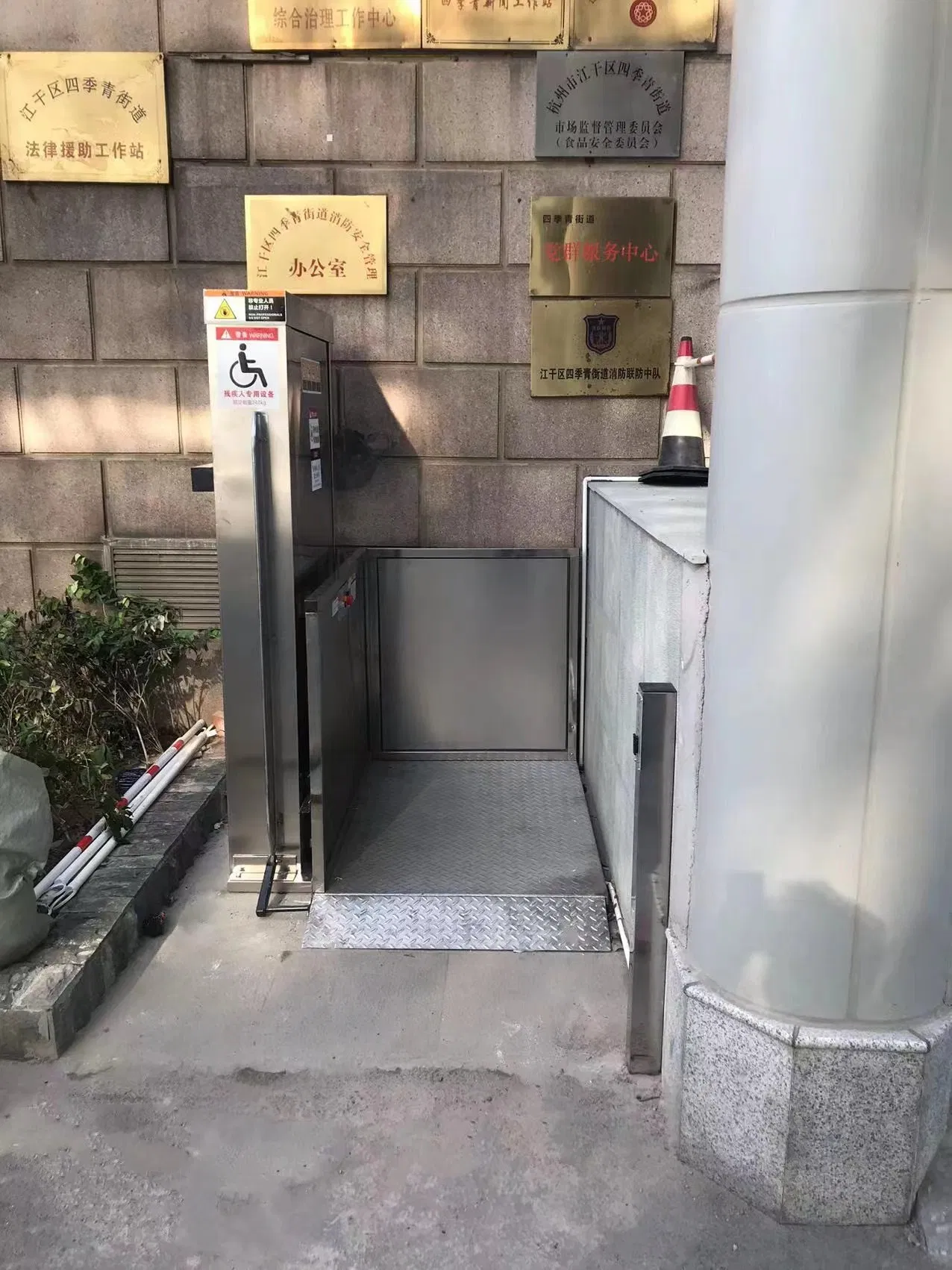

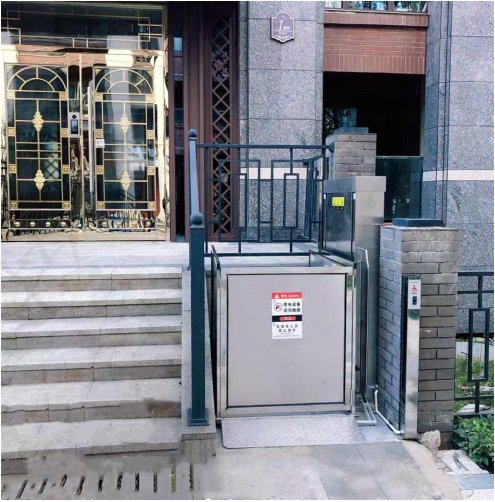

Reference Cases & Quality
Certificates & Packaging
Warranty & Support
1. User-friendly English manual provided for machine operation and maintenance.
2. One year warranty for the entire machine covering non-man-made faults.
3. Free replacement parts for non-human factor issues during the warranty period.
4. 24-hour technical support via email or online communication platforms.
5. Rapid response within 2 hours for all technical inquiries, including weekends and holidays.
Frequently Asked Questions
What is the maximum load capacity for this wheelchair lift?
The maximum load capacity is 250kg, meeting standard European and American requirements for disabled access equipment.
Can the lift be installed outdoors?
Yes, the equipment is designed for both indoor and outdoor environments, with a working temperature range from -20°C to 60°C.
Does it require a deep foundation pit for installation?
No, it features a pit-free installation design. It can be fixed directly onto a C30 concrete level ground with a minimum thickness of 200mm.
What safety measures are in place to prevent the wheelchair from sliding?
The lift is equipped with an automatic safety rocker. When the platform rises, the rocker tilts up to prevent the wheelchair from sliding out.
What happens if there is a power failure during use?
The machine includes an emergency descent feature, allowing for manual lowering via a crank handle in case of power loss.

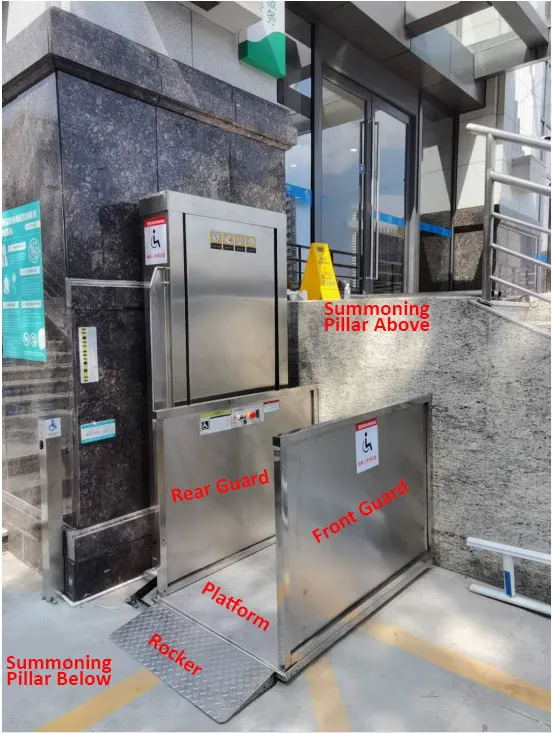

What are the available entry and exit configurations?

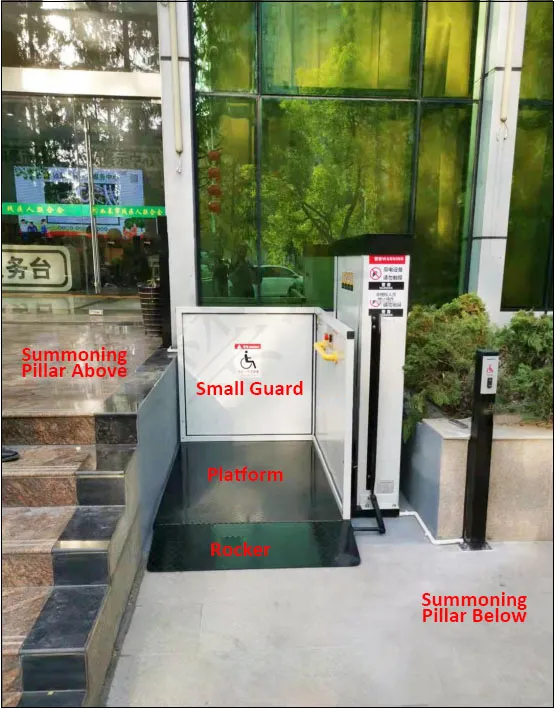

The lift can be configured for either 90° or 180° entry and exit, providing flexibility for different architectural layouts.
